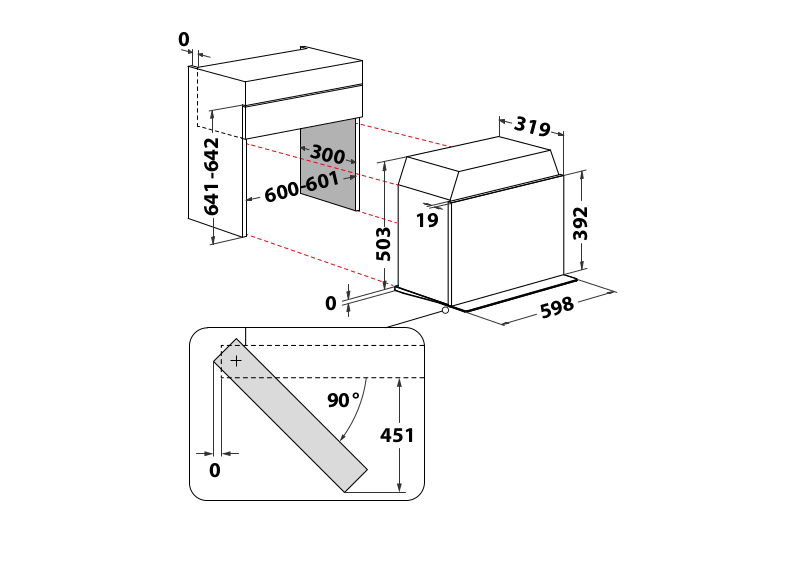

WHIRLPOOL AVM 970/WH Extended Technical Drawing

0

642-

300







601

641

600

-

19











503





0

90°

451

319

392

598

0

WHIRLPOOL AVM 970/WH Extended Technical Drawing

AVM 970/WH

12NC/Fx: 859991566420

GTIN (EAN) code:





8003437396281

DIMENSION

MEASURE

OVERALL CABINET







MIN Height of the wall cabinet niche, including all required space for installation or ventilation

641

mm



MIN Height of the tall cabinet niche, including all required space for installation or ventilation

0

mm

MIN Height of the base cabinet niche, including all required space for installation or ventilation

0

mm



MAX Height of the wall cabinet niche, including all required space for installation or ventilation

642

mm

MAX Height of the tall cabinet niche, including all required space for installation or ventilation

0

mm



MAX Height of the base cabinet niche, including all required space for installation or ventilation

0

mm

MIN Width of the wall cabinet niche, including all required space for installation or ventilation

600

mm



MIN Width of the tall cabinet niche, including all required space for installation or ventilation

0

mm

MIN Width of the base cabinet niche, including all required space for installation or ventilation

0

mm



MAX Width of the wall cabinet niche, including all required space for installation or ventilation

601

mm

MAX Width of the tall cabinet niche, including all required space for installation or ventilation

0

mm



MAX Width of the base cabinet niche, including all required space for installation or ventilation

0

mm

MIN Depth of the wall cabinet niche, including all required space for installation or ventilation

300

mm



MIN Depth of the tall cabinet niche, including all required space for installation or ventilation

0

mm

MIN Depth of the base cabinet niche, including all required space for installation or ventilation

0

mm



Space in front, which is required to install bottom trim

0

mm

Indicates whether a ventilation opening is needed or not. Default is "N"

-





WALL CABINET (vent-shaft incoming)







Indicates the position of the freespace for the inbound airflow (wall cabinet)

-





Minimum space or inbound ventilation (wall cabinet)

0

mm

Minimum area for inbound ventilation cavity (wall cabinet)

0

cm²



WALL CABINET (vent-shaft outgoing)







Indicates the position of the freespace for the outbound airflow (wall cabinet)

-





Minimum space or outbound ventilation (wall cabinet)

0

mm

Minimum area for outbound ventilation cavity (wall cabinet)

0

cm²



TALL CABINET (vent-shaft incoming)







Indicates the position of the freespace for the inbound airflow (tall cabinet)

-





Minimum space for inbound ventilation (tall cabinet)

0

mm

Minimum area for inbound ventilation cavity (tall cabinet)

0

cm²



TALL CABINET (vent-shaft outgoing)







Indicates the position of the freespace for the outbound airflow (tall cabinet)

-





Minimum space for outbound ventilation (tall cabinet)

0

mm

Minimum area for outbound ventilation cavity (tall cabinet)

0

cm²



BASE CABINET (vent-shaft incoming)







Indicates the position of the freespace for the inbound airflow (base cabinet)

-





Minimum space for inbound ventilation (base cabinet)

0

mm

Minimum area for inbound ventilation cavity (base cabinet)

0

cm²



BASE CABINET (vent-shaft outgoing)







Indicates the position of the freespace for the outbound airflow (base cabinet)

-





Minimum space for outbound ventilation (base cabinet)

0

mm

Minimum area for outbound ventilation cavity (base cabinet)

0

cm²











DIMENSION

MEASURE

APPLIANCE







Height of the front



392

mm

Width of the front



598

mm

Depth of the front



19

mm

Maximum depth all protruding elements, e.g. handles, controls



50

mm

Lateral clearance between front edge and most protruding elements which avoid to open a



0

mm

neighbour front more than 90 degrees







Projection of front in relation to housing of appliance



0

mm

Projection of front in relation to bearing area of the appliance. Taken at minimum height of



0

mm

appliance, if height is adjustable







When product panel is missing, set to 0



0

mm

Space in front, which is required to guarantee full operability. The most protruding part gives this

451

mm

dimension







Height from bearing area of appliances and lower handle



25

mm

Frontal handle thickness



22

mm

Frontal handle width



388

mm

MIN Height of the product body



0

mm

MAX Height of the product body



503

mm

Width of the product body



0

mm

Depth of the product body



0

mm

Full depth of product excluding protruding interface elements



319

mm

Minimum height from bottom line hood to top line air outlet



663

mm

Maximum height from bottom line hood to top line air outlet



663

mm

Diameter minimum air outlet



116

mm

Diameter maximum air outlet



118

mm

Indicates measure between center of air outlet hole and rear wall



161

mm

Projection of the rear flap in relation to bearing area



0

mm

Height tube connection for air outlet



0

mm

Appliance can be used as base for other appliances from the same manufacturer. Default is "No"

-



Appliance Flap door







Projection of the opened flap in relation to bearing area



0

mm

Maximum angle when flap door is opened totally



0

mm

Appliance Side swing door







Lateral projection of front incl. controls when door is opened totaly. At the side where the hinge is

0

mm

mounted







Lateral projection of opened front at the side where the hinge is fixed



0

mm

Maximum angle when door is opened totally



90

mm

Appliance other







Depth from front end of the niche to the front end of the freespace of the retrace



0

mm

Height from niche to bottom end of freespace for the retrace



0

mm
