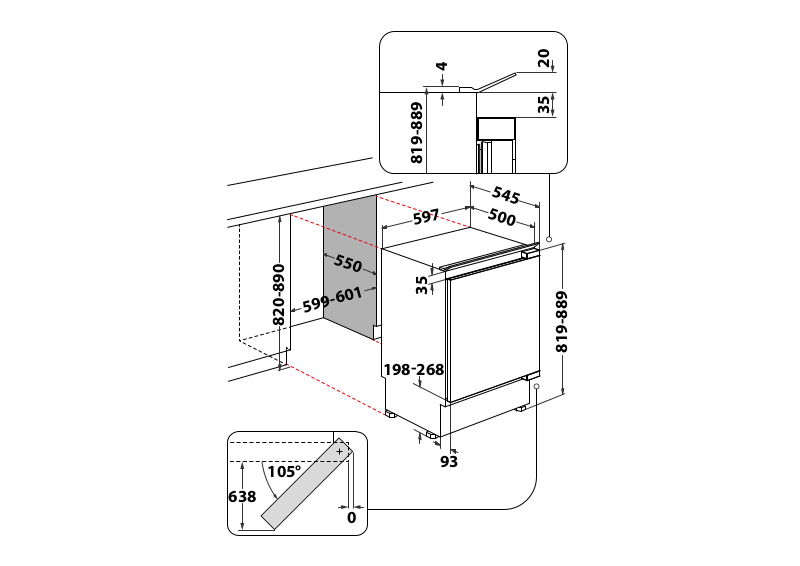

820-890
|
550 |
|
601 |
599 |
- |
|
4 |
20 |
-889 |
35 |
819 |
|
|
545 |
597 |
500 |
|
35 |
-889 |
|
819 |
198-268
105°
638
0
93
ARG 146 LA1 |
12NC/Fx: 859991607360 |
GTIN (EAN) code: |
|
|
8003437046049 |
DIMENSION |
MEASURE |
|||
WOODEN CABINET - Overall Wooden Cabinet - BI |
|
|
|
|
01. |
Height MIN of the tall cabinet Niche, including all required space for installation or ventilation |
820 |
mm |
|
(HMIN_T) |
|
|
|
|
02. |
Height MAX of the tall cabinet Niche, including all required space for installation or ventilation |
890 |
mm |
|
(HMAN_T) |
|
|
|
|
03. |
Width MIN of the tall cabinet Niche, including all required space for installation or ventilation |
|
600 |
mm |
(WMIN_T) |
|
|
|
|
04. |
Width MAX of the tall cabinet Niche, including all required space for installation or ventilation |
600 |
mm |
|
(WMAN_T) |
|
|
|
|
05. |
Depth of the tall cabinet Niche, including all required space for installation or ventilation (DN_T) |
550 |
mm |
|
06. |
Height MIN of the base cabinet Niche, including all required space for installation or ventilation |
820 |
|
|
(HMIN_B) |
|
|
|
|
07. |
Height MAX of the base cabinet Niche, including all required space for installation or ventilation |
890 |
|
|
(HMAN_B) |
|
|
|
|
08. |
Width MIN of the base cabinet Niche, including all required space for installation or ventilation |
599 |
|
|
(WMIN_B) |
|
|
|
|
09. |
Width MAX of the base cabinet Niche, including all required space for installation or ventilation |
601 |
|
|
(WMAN_B) |
|
|
|
|
10. |
Depth of the base cabinet Niche, including all required space for installation or ventilation |
|
550 |
|
(DN_B) |
|
|
|
|
11. |
Indicates whether a ventilation opening is needed or not. Default is "N" |
|
No |
|
12. |
Appliance can be used as base for other appliances from the same manufacturer. Default is "N" |
Yes |
|
|
WOODEN CABINET - Door – Drawer |
|
|
|
|
13. |
Height MIN Decorative Front, if appliance has more than one front, only the most bottom left |
|
645 |
|
front is described here (HMIF) |
|
|
mm |
|
14. |
Width MIN Decorative Front, if appliance has more than one front, only the most bottom left |
|
586 |
mm |
front is described here (WMIF) |
|
|
|
|
15. |
Weight/Thickness of the decorative bottom front panel of the Kitchen manufacturer needs |
|
Yes |
|
(essential) |
|
|
|
|
16. |
Weight MAX of the decorative bottom front panel of the Kitchen manufacturer (WEMAF) |
|
0 |
kg |
17. |
Thickness MIN Decorative Front, if appliance has more than one front only the most bottom left |
0 |
mm |
|
front is described here(TMIF) |
|
|
|
|
18. |
Thickness MAX Decorative Front, if appliance has more than one front only the most bottom left |
0 |
mm |
|
front is described here(TMAF) |
|
|
|
|
Additional Fronts (2 doors) |
|
|
|
|
19. |
Height MIN Decorative Front, when appliance has more than one front, upper front is discribed |
0 |
|
|
here (HMIFU) |
|
|
mm |
|
20. |
Width MIN Decorative Front, when appliance has more than one front, upper front is discribed |
0 |
mm |
|
here (WMIFU) |
|
|
|
|
21. |
Weight/Thickness of the decorative upper front panel of the Kitchen manufacturer needs |
|
Yes |
|
(essential) |
|
|
|
|
22. |
Weight MAX of the decorative upper front panel of the Kitchen manufacturer (WEMAFU) |
|
0 |
kg |
23. |
Thickness MIN Decorative Front, when appliance has more than one front, upper front is |
|
0 |
mm |
discribed here (TMIFU) |
|
|
|
|
24. |
Thickness MAX Decorative Front, when appliance has more than one front, upper front is |
|
0 |
mm |
discribed here (TMAFU) |
|
|
|
DIMENSION |
MEASURE |
||
APPLIANCE |
|
|
|
Overall Appliance |
|
|
|
01. |
Height MIN Product, watch the detail drawing for the exact position of the dimension line |
819 |
mm |
(HMIP) |
|
|
|
02. |
Height MAX product, watch the detail drawing for the exact position of the dimension line |
889 |
mm |
(HMAP) |
|
|
|
03. |
Width product, watch the detail drawing for the exact position of the dimension line (WP) |
597 |
mm |
04. |
Depth product without front, watch the detail drawing for the exact position of the |
500 |
mm |
dimension line (DP) |
|
|
|
05. |
Depth product, watch the detail drawing for the exact position of the dimension line (D) |
545 |
mm |
06. |
Depth MIN plinth return front (DMIPRF) |
0 |
mm |
07. |
Depth MAX plinth return front (DMAPRF) |
93 |
mm |
08. |
Height MIN Plinth return. This dimension is taken by minimum appliance height (HMIPR) |
198 |
mm |
09. |
Height MAX Plinth return. This dimension is taken at minimum appliance height (HMAPR) |
268 |
mm |
Door or Drawer |
|
|
|
10. |
Height front. When appliance has more than one front, only the most bottom left front is |
0 |
mm |
discribed here (HF) |
|
|
|
11. |
Width front. When appliance has more than one front, only the most bottom left front is |
597 |
mm |
discribed here (WF) |
|
|
|
12. |
Depth front (DF) |
0 |
mm |
13. |
Maximum depth all protruding elements, e.g. handles, controls (DC) |
0 |
mm |
14. |
Lateral clearance between front edge and most protruding elements which avoid to open a 0 |
mm |
|
neighbour front more than 90° (CC) |
|
|
|
15. |
Projection of front in relation to housing of appliance (FPT) |
20 |
mm |
16. |
Projection of front in relation to bearing area of the appliance. Taken at MIN height of |
0 |
mm |
appliance if adjustable height(FPB) |
|
|
|
17. |
Height Product Panel. When product panel is missing, set to 0 (HMAPP) |
35 |
mm |
18. |
Lateral projection of front including controls when door is opened totaly. At the side where |
0 |
mm |
the hinge is mounted (FPOD) |
|
|
|
19. |
Space in front, which is required to guarantee full operability. The most protruding part |
638 |
mm |
gives this dimension (RSF) |
|
|
|
20. |
Lateral projection of opened front at the side where the hinge is fixed (FPD) |
0 |
mm |
21. |
Door hinge positiong and tipology |
Right- |
|
|
|
changeable |
|
22. |
Type of preparation to fix the cover door |
Fixed |
|
|
|
mounting |
|
23. |
Maximum angle when door is opened totaly (AOD) |
105 |
° |
24. |
Maximum thickness of the upper front panel (TUFP) |
4 |
mm |
Additional Fronts (2 doors) |
|
|
|
25. |
Height front, when appliance has more than one front, upper front is discribed here (HUF) |
0 |
mm |
26. |
Width front, when appliance has more than one front, upper front is discribed here (WUF) |
0 |
mm |
27. |
Useful space between the 2 doors, including hinges size (HMAFG) |
20 |
mm |
28. |
Distance between the bottom of the product and the center line between the fridge doors |
0 |
mm |
(HFG)
