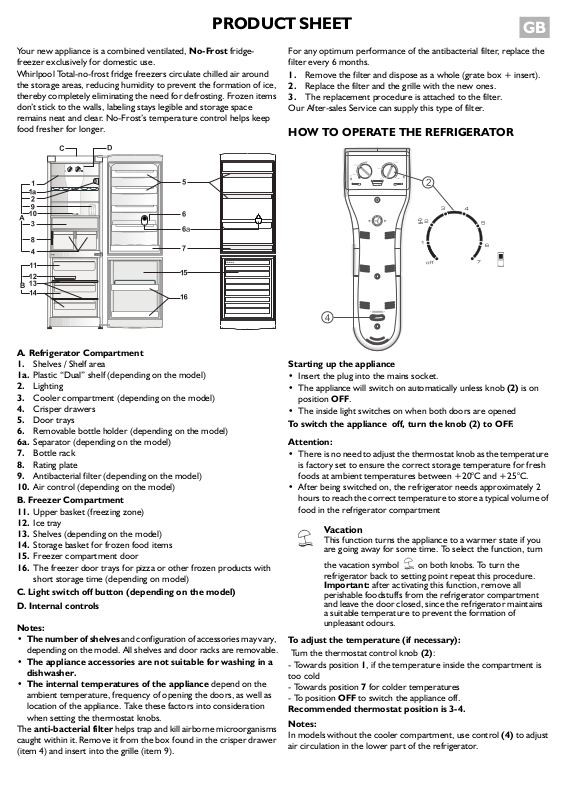

PRODUCT SHEET

GB

Your new appliance is a combined ventilated, No-Frost fridge­freezer exclusively for domestic use.
Whirlpool Total-no-frost fridge freezers circulate chilled air around
the storage areas, reducing humidity to prevent the formation of ice,
thereby completely eliminating the need for defrosting. Frozen items
don’t stick to the walls, labeling stays legible and storage space
remains neat and clear. No-Frost’s temperature control helps keep
food fresher for longer.

A. Refrigerator Compartment

1. Shelves / Shelf area
1a. Plastic “Dual” shelf (depending on the model)

2. Lighting

3. Cooler compartment (depending on the model)

4. Crisper drawers

5. Door trays

6. Removable bottle holder (depending on the model)
6a. Separator (depending on the model)

7. Bottle rack

8. Rating plate

9. Antibacterial filter (depending on the model)

10. Air control (depending on the model)

B. Freezer Compartment

11. Upper basket (freezing zone)

12. Ice tray

13. Shelves (depending on the model)

14. Storage basket for frozen food items

15. Freezer compartment door

16. The freezer door trays for pizza or other frozen products with

short storage time (depending on model)

C. Light switch off button (depending on the model)

D. Internal controls

Notes:

• The number of shelves and configuration of accessories may vary,

depending on the model. All shelves and door racks are removable.

• The appliance accessories are not suitable for washing in a
dishwasher.

• The internal temperatures of the appliance depend on the

ambient temperature, frequency of opening the doors, as well as
location of the appliance. Take these factors into consideration
when setting the thermostat knobs.

The anti-bacterial filter helps trap and kill airborne microorganisms
caught within it. Remove it from the box found in the crisper drawer
(item 4) and insert into the grille (item 9).

For any optimum performance of the antibacterial filter, replace the
filter every 6 months.

1. Remove the filter and dispose as a whole (grate box + insert).

2. Replace the filter and the grille with the new ones.

3. The replacement procedure is attached to the filter.

Our After-sales Service can supply this type of filter.

HOW TO OPERATE THE REFRIGERATOR

Starting up the appliance

• Insert the plug into the mains socket.

• The appliance will switch on automatically unless knob (2) is on
position OFF.

• The inside light switches on when both doors are opened

To switch the appliance off, turn the knob (2) to OFF.

Attention:

• There is no need to adjust the thermostat knob as the temperature

is factory set to ensure the correct storage temperature for fresh
foods at ambient temperatures between +20°C and +25°C.

• After being switched on, the refrigerator needs approximately 2
hours to reach the correct temperature to store a typical volume of
food in the refrigerator compartment

Vac atio n

This function turns the appliance to a warmer state if you
are going away for some time. To select the function, turn

the vacation symbol on both knobs. To turn the
refrigerator back to setting point repeat this procedure.

Important: after activating this function, remove all
perishable foodstuffs from the refrigerator compartment
and leave the door closed, since the refrigerator maintains
a suitable temperature to prevent the formation of
unpleasant odours.

To adjust the temperature (if necessary):

Turn the thermostat control knob (2):

- Towards position 1, if the temperature inside the compartment is

too cold

- Towards position 7 for colder temperatures

- To position OFF to switch the appliance off.

Recommended thermostat position is 3-4.

Notes:

In models without the cooler compartment, use control (4) to adjust
air circulation in the lower part of the refrigerator.

HOW TO OPERATE THE COOLER COMPARTMENT
(depending on the model)

The appliance is equipped with a cooler compartment.
To adjust temperature (if necessary), rotate the air regulator (4):

• Towards position (+) for cooler temperatures

• Towards position (-) for less cool temperatures.
It is possible to remove the basket of the Cooler
compartment.

HOW TO OPERATE THE FREEZER COMPARTMENT

• When the appliance is plugged in, the freezer compartment

switches on automatically.

Attention:

• There is no need to adjust the thermostat knob as it is factory set

to ensure the correct storage temperature for frozen foods in the
freezer compartment at ambient temperatures between +20°C
and +25°C.

• After switching on, the freezer compartment takes approximately
3 hours to reach a suitable temperature for frozen food storage.

To adjust the internal temperature (if necessary):

Turn the thermostat control knob (1):

- Towards position 1 for less cold internal temperatures.

- Towards position 3 for colder temperatures.

- To position to use the fast freeze function.

Recommended thermostat position: 2-3.

How to freeze fresh food

1. 24 hours before freezing fresh food, turn the knob (1) to position

; when turning from 3 to pos. , the knob is slightly stiff and

the yellow indicator (3) near the symbol lights up.

2. Place food in the drawer, leaving enough space for air to circulate

around packs.

3. For more efficient freezing, turn the knob (2) to position 7.

4. Leave the fast freeze function activated for the next 24 hours.

5. When freezing is complete, turn both knobs (1), (2) back to their

recommended positions.

REPLACING THE LIGHT BULB

Always disconnect the refrigerator from the power supply before
replacing any light bulb. If the inside light is not working, it is necessary
to:

1. Remove the light cover: put the fingers into the side ventilation
holes (1), stretch the cover gently and move it upwards.

2. Remove the bulb pulling it out of the holder (do not rotate).

3. Check the bulb and replace (if necessary) by pushing its terminals

into the holder sockets until it stops.

4. Put on the light cover.

The appliance is equipped with a special push-in light bulb.
This bulb is available only from our After-sales Service. The bulb
should not exceed 15W.

Do not leave uncovered the bulb.

Care and Maintenance

When cleaning, especially with the light cover removed, take
special safety precautions and do not touch the light bulb.
