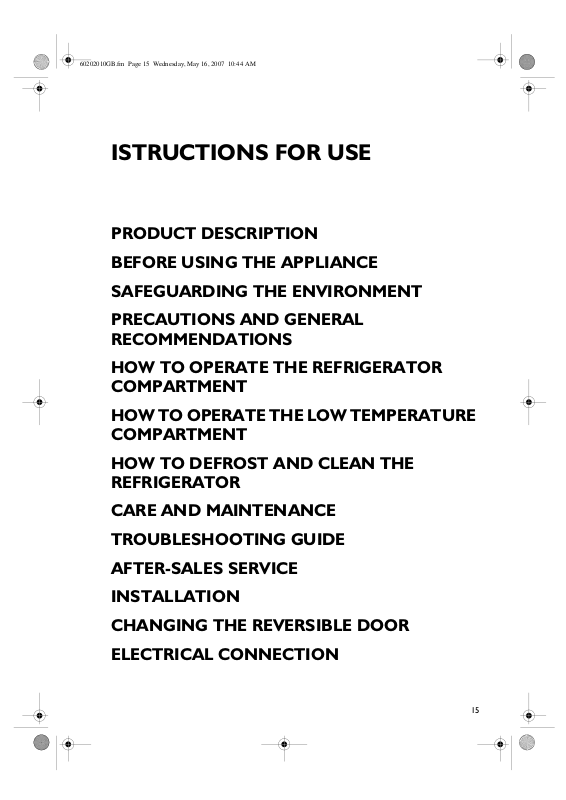

ISTRUCTIONS FOR USE
PRODUCT DESCRIPTION
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
HOW TO OPERATE THE LOW TEMPERATURE
COMPARTMENT
HOW TO DEFROST AND CLEAN THE
REFRIGERATOR
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
INSTALLATION

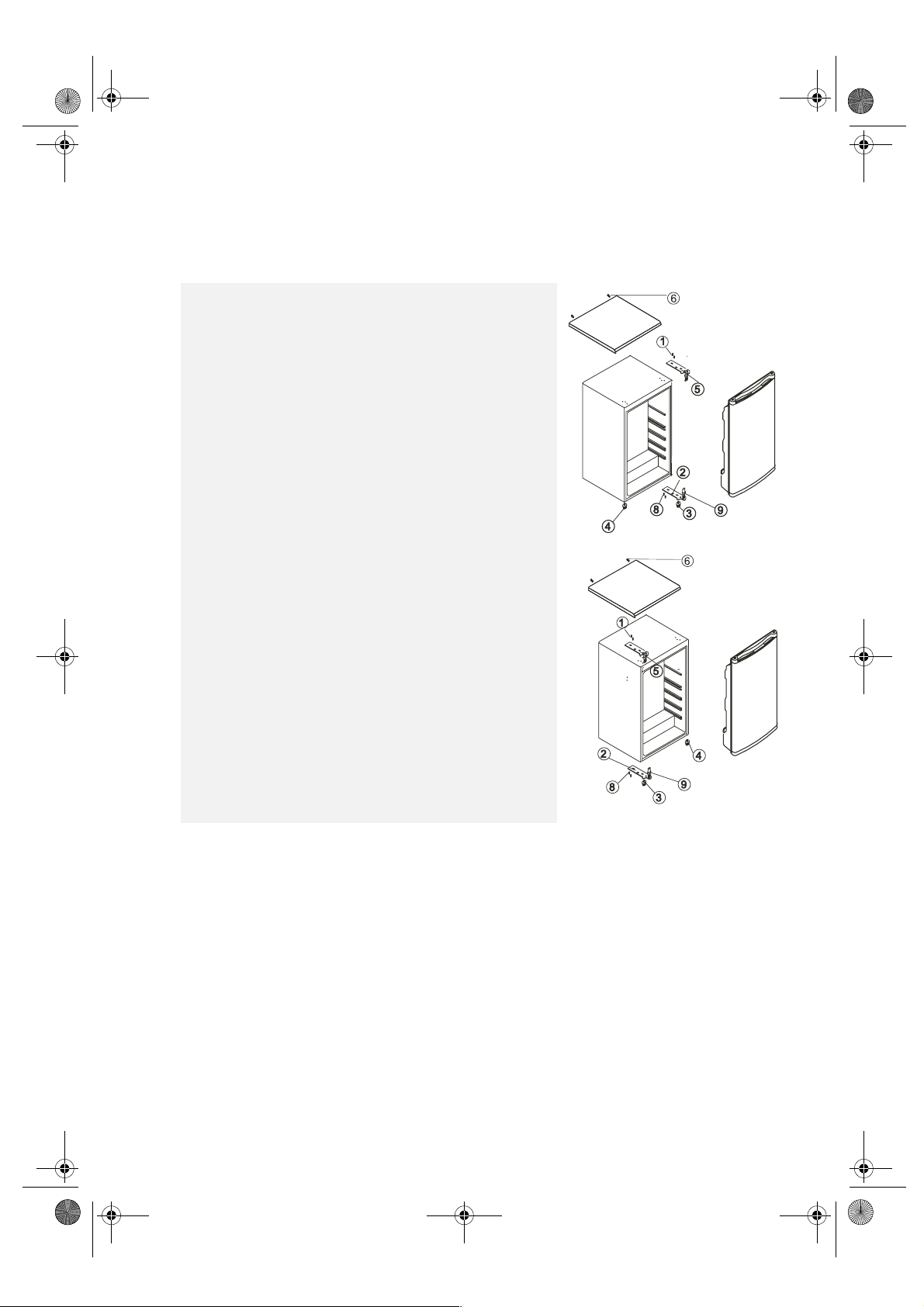

CHANGING THE REVERSIBLE DOOR
ELECTRICAL CONNECTION
15
Page 2
60202010GB.fm Page 16 Wednesday, May 16, 2007 10:44 AM
PRODUCT DESCRIPTION
Cabinet
1.
Freezer Compartment Door
2.
Drip Tray
3.
Shelves
4.
Glass cover
5.
Compressor(back)
6.
Crisper box
7.
16
Leveling feet
8.
Bottle Racks
9.
Integrated Handle
10.
Door switch
11.
Temperature Control Knob
12.
Top Cover
13.
Page 3
60202010GB.fm Page 17 Wednesday, May 16, 2007 10:44 AM
BEFORE USING THE APPLIANCE
•
Your new appliance is designed exclusively for
domestic use
To get the most out of your new appliance,
read the user handbook thoroughly. The
handbook contains a description of the
appliance and useful tips for storing food.
Keep this handbook for future consultation.
SAFEGUARDING THE ENVIRONMENT
1.
After unpacking, make sure that the appliance
is undamaged and that the door closes
properly. Any damage must be reported to
your dealer within 24 hours after delivery of
the appliance.
2.
Wait at least two hours before switching the
appliance on in order to ensure the refrigerant
circuit is fully efficient.
3.
Installation of the appliance and electrical
connections must be carried out by a qualified
electrician, in accordance with the
manufacturer's instructions and local safety
regulations
4.
Clean the inside of the appliance before using it.
1.Packing
The packaging material is entirely recyclable,
and marked with the recycling symbol. Follow
local regulations for scrapping. Keep the
packaging materials (plastic bags, polystyrene
parts, etc.) out of reach of children, as they are
potentially dangerous.
2.Scrapping
The appliance is manufactured using recyclable
material.
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic equipment.
Before scrapping, make the appliance unusable
by cutting off the power cable and removing the
doors and shelves so that children cannot easily
climb inside the appliance.
Disposal must be carried out in accordance with
local environmental regulations for waste
disposal. Deliver the appliance immediately to
an authorized dump; do not leave it unattended
even for a few days, since it is potentially
dangerous for children. For more detailed
information about treatment, recovery and
recycling of this product, please contact your
local city office, your household waste disposal
service or the shop where you purchased the
product.
Information:
This appliance does not contain CFCs. The
refrigerant circuit contains R134a (HFCs) or
R600a (HCs), see the rating plate inside the
appliance.
Appliances with isobutane (R600a): Isobutane is
a natural gas of low environmental impact.
Caution is required, however, since isobutane is
flammable. Therefore, ensure that refrigerant
circuit pipelines are not damaged
Declaration of conformity
•
This product has been designed for preserving
food and is manufactured in compliance with
Regulation (CE) No. 1935/2004.
•
This product has been designed, manufactured
and marketed in compliance with:
- the safety objectives prescribed in the Low
Voltage Directive 2006/95/CE (which replaced
Directive 73/23/CEE as amended).
- the protection requirements of the “EMC”
89/336/CEE directive, amended by Directive
93/68/CEE.
•
Electrical safety of the appliance can only be
guaranteed if it is correctly connected to an
approved earthing system.
17
Page 4
60202010GB.fm Page 18 Wednesday, May 16, 2007 10:44 AM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
•
During installation, make sure the appliance
does not damage the power cable.
•
Make sure the appliance is not placed near a
heat source.
•
To guarantee adequate ventilation, leave a
space on both sides and above the appliance
and follow the installation instructions.
•
Keep the appliance ventilation openings free.
•
Power cable modification or replacement
must only be carried out by qualified
personnel.
•
It must be possible to disconnect the
appliance from the power supply by
unplugging it or by means of a mains two-pole
switch installed upstream of the socket.
•
Make sure the voltage specified on the rating
plate corresponds to that of your home
•
For the water connection, use the pipe
supplied with the new appliance; do not reuse
the one from the previous appliance.
•
Install and level the appliance on a floor strong
enough to take its weight and in a place
suitable for its size and use.
•
The appliance must be handled and installed
by two or more persons.
•
Be careful not to damage the floors when you
move the appliance (e.g. parquet flooring).
•
Do not use single/multiple adapters or
extension cords.
•
Install the appliance in a dry, well-ventilated
place. The appliance has been configured for
operation in places where the temperature
falls within the following ranges, and within
the climatic class given on the rating plate. The
appliance may not work properly if it is left for
a long time at a temperature outside the
specified range.
Climatic Class Amb. temp.
(°C)
SN From 10 to 32 From 50 to 90
N From 16 to 32 From 61 to 90
ST From 16 to 38 From 61 to 100
T From 16 to 43 From 61 to 110
Amb. temp.
(°F)
•
Do not store or use petrol, flammable liquids
or gas in the vicinity of this or other electrical
appliances. The vapours may cause fire or
explosion.
•
Do not use mechanical, electric or chemical
means other than those recommended by the
Manufacturer to speed up the defrost
process.
•
Do not damage the appliance refrigerant
circuit pipes.
•
Do not use or place electrical appliances
inside the product if they are not of the type
expressly authorised by the Manufacturer.
•
This appliance is not designed for use by
young children or the infirm without
supervision.
•
To avoid the risk of children becoming
trapped and suffocating, do not allow them to
play or hide inside the appliance.
•
Do not swallow the contents (non-toxic) of
the ice packs (where provided).
•
Use the refrigerator compartment to store
fresh food only and the low temperature
compartment exclusively for the production
and storage of ice cubes.
•
Do not store glass containers with liquids in
the freezer since they may burst.
•
Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer since they
may cause cold burns.
•
Before carrying out any maintenance or
cleaning, unplug the appliance or disconnect it
from the power supply.
•
All appliances equipped with an ice-maker and
water dispenser must be connected to a water
supply that only delivers drinking water (with
mains water pressure of between 0.17 and
0.81 Mpascals (1.7 and 8.1 bar)). Ice-makers
and/or water dispensers not directly
connected to the water supply must be filled
with drinking water only.
• The Manufacturer declines any liability if
the above advice and precautions are not
respected.
18
Page 5
60202010GB.fm Page 19 Wednesday, May 16, 2007 10:44 AM
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
Switching on the appliance
Starting up the appliance
•
Plug in the appliance.
•
The inside light, where provided, switches on when the
refrigerator door is opened.
• Adjusting the temperature
Ensure the water collection tray, located below the low
temperature compartment, touches the rear wall of the
refrigerator unit.
The thermostat, located on the right hand side of the refrigerator
compartment, is used to adjust the internal temperature.
To adjust the temperature in the refrigerator compartment, turn
the thermostat control knob:
•
lowest numbers
temperatures;
•
numbers
•
number 5 for a
Thermostat set to z: the appliance is switched off although it
remains connected to the mains power supply.
Note:
The ambient air temperature, frequency of door opening and the
position of the appliance can affect internal temperatures. These
factors must be taken into account when setting the thermostat.
3÷4
1÷2
for the
MEDIUM
for a
COLDEST
LEAST COLD
compartment temperature;
temperature.
internal
(Fig. 1)

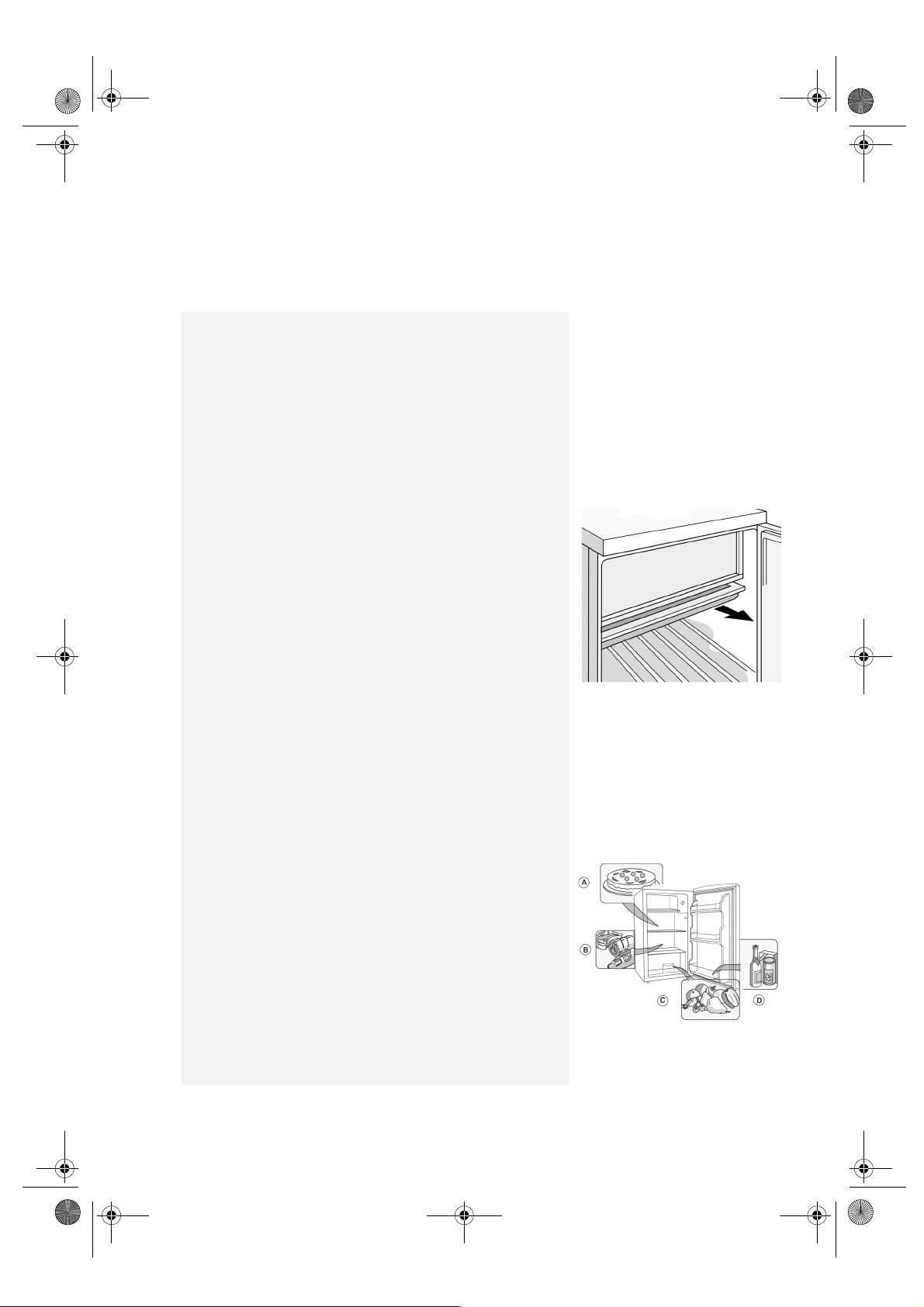

Position of water collection tray:
When the room temperature is above 25°C, pull the water
collection tray forwards
(Fig. 1)
.
How to use the refrigerator compartment
Position food as follows:
A. Cooked foods, cakes, soup/pasta
B. Fish, meat, cold cuts
C. Fruit and vegetables
D. Bottles, canned produce
Notes:
•
The space between the shelves and the rear wall of the
refrigerator compartment must be unobstructed to allow
circulation of air.
•
Do not place food in direct contact with the rear wall of the
refrigerator compartment.
•
Do not place hot food in the refrigerator.
•
Store liquids in closed containers.
19
Page 6
60202010GB.fm Page 20 Wednesday, May 16, 2007 10:44 AM
HOW TO OPERATE THE LOW TEMPERATURE
COMPARTMENT
Defrosting in low temperature compartment is operated
manually. Before defrosting, take the food, the ice tray and
the shelf out into low temperature compartment temporarily
then set the knob of the temperature regulator to position
“0” (where the compressor will stop working) and leave the
door open until ice and frost dissolve thoroughly deposited at
the bottom of the freezer chamber, wipe off the water with
soft cloth.
In the case of speeding up the defrosting, you may put a bowl
of warm water (about 50°C ) into the low temperature
compartment, and be sure to set the knob of the temperature
regulator to original position after defrosting.
Do not use sharp objects or metal instruments to
remove ice.
HOW TO DEFROST AND CLEAN THE
REFRIGERATOR
Before any cleaning or maintenance operation, unplug
the appliance from the mains or disconnect the
electrical power supply.
Defrosting of the refrigerator compartment is
completely automatic.
Droplets of water on the rear wall of the refrigerator
compartment indicate that the periodic automatic defrost
cycle is in progress.
The defrost water is automatically routed to a drain outlet
and into a container from which it evaporates.
Regularly clean the inside of the defrost water drain hole in
order to guarantee the constant and correct flow of defrost
water.
Defrosting the low temperature compartment
Defrost the low temperature compartment once or
twice a year or when the ice formation is excessive.
It is perfectly normal for ice to form. The amount of ice
which forms and the rate at which it accumulates will
depends on room temperature and humidity, and on
the frequency with which the door is opened. Ice
formation is concentrated at the top of the
compartment and does not affect the efficiency of the
appliance.
If possible, defrost the freezer when it is nearly empty.
•
Remove the food from the freezer, wrap in newspaper and
group together in a cool place or in a portable cooler.
•
Leave the door open to allow the frost to melt.
• Clean the interior with a sponge soaked in warm
water and/or neutral detergent. Do not use abrasive
substances.
•
Rinse the interior and dry thoroughly.
•
Put the food back into the freezer.
•
Close the door.
•
Plug in the appliance once again.
•
Switch the appliance on.
20
Page 7
60202010GB.fm Page 21 Wednesday, May 16, 2007 10:44 AM
CARE AND MAINTENANCE
Before any cleaning or maintenance operation,
unplug the appliance from the mains or
disconnect the electrical power supply.
•
Clean the interior periodically with a sponge soaked in
warm water and/or neutral detergent. Do not use
abrasive substances.
•
Rinse the interior and dry thoroughly.
•
Clean the inside of the low temperature compartment
when defrosting.
•

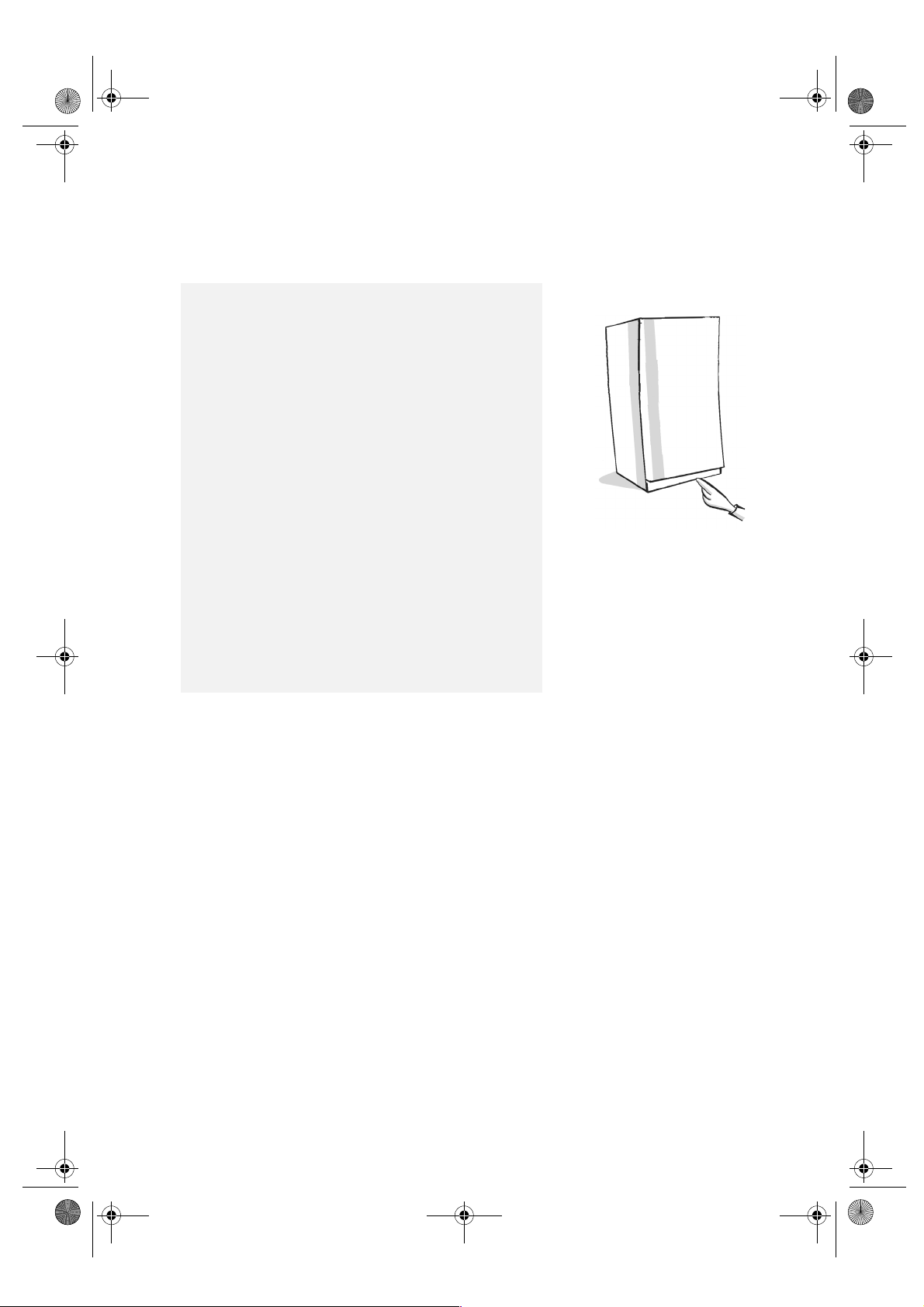

Clean the outside with a damp cloth. Do not use abrasive
products, scourers, stain-removers (e.g. acetone,
trichloroethylene) or vinegar.
•
Periodically clean air vents and the condenser at the rear
of the appliance with a vacuum cleaner or a brush.
Prolonged disuse
1.
Empty the refrigerator.
2.
Disconnect the appliance from the power supply.
3.
Defrost and clean the interior.
4.
In the event of prolonged disuse, leave the door open to
prevent the formation of mould, odours and oxidation.
5.
Clean the appliance.
21
Page 8
60202010GB.fm Page 22 Wednesday, May 16, 2007 10:44 AM
Clean the outside using a soft cloth.
- Clean the inside of the low temperature compartment
(where fitted) when defrosting.
- Periodically clean the inside of the refrigerator
compartment with a sponge dampened in warm water
and/or neutral detergent. Rinse and dry with a soft cloth.
Do not use abrasive products, scourers, stain-removers e.g.
acetone, trichloroethylene) or vinegar.

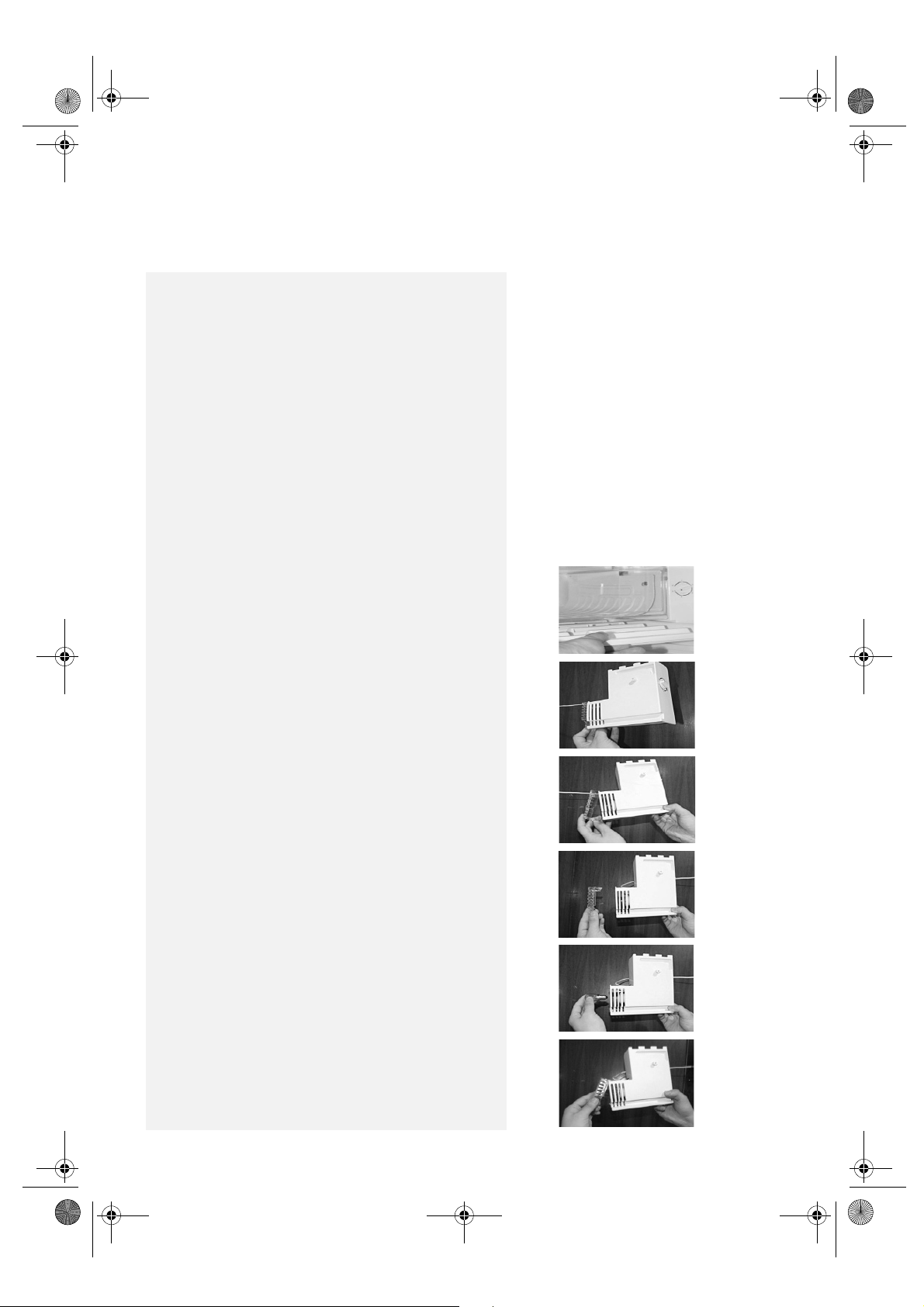

Replace bulb.
1.
Remove the water drip tray.
2.
Hold the lamp cover and push toward inside of the
cabinet.
3.
Remove the lamp cover.
4.
Unscrew the bulb and screw the new bulb.
5.
Hold the lamp cover and put the hook of the lamp cover
to click the thermostat box.
6.
Pull the lamp cover to click the thermostat box.
7.
Assemble the water tray.
22
Page 9
60202010GB.fm Page 23 Wednesday, May 16, 2007 10:44 AM
TROUBLESHOOTING GUIDE

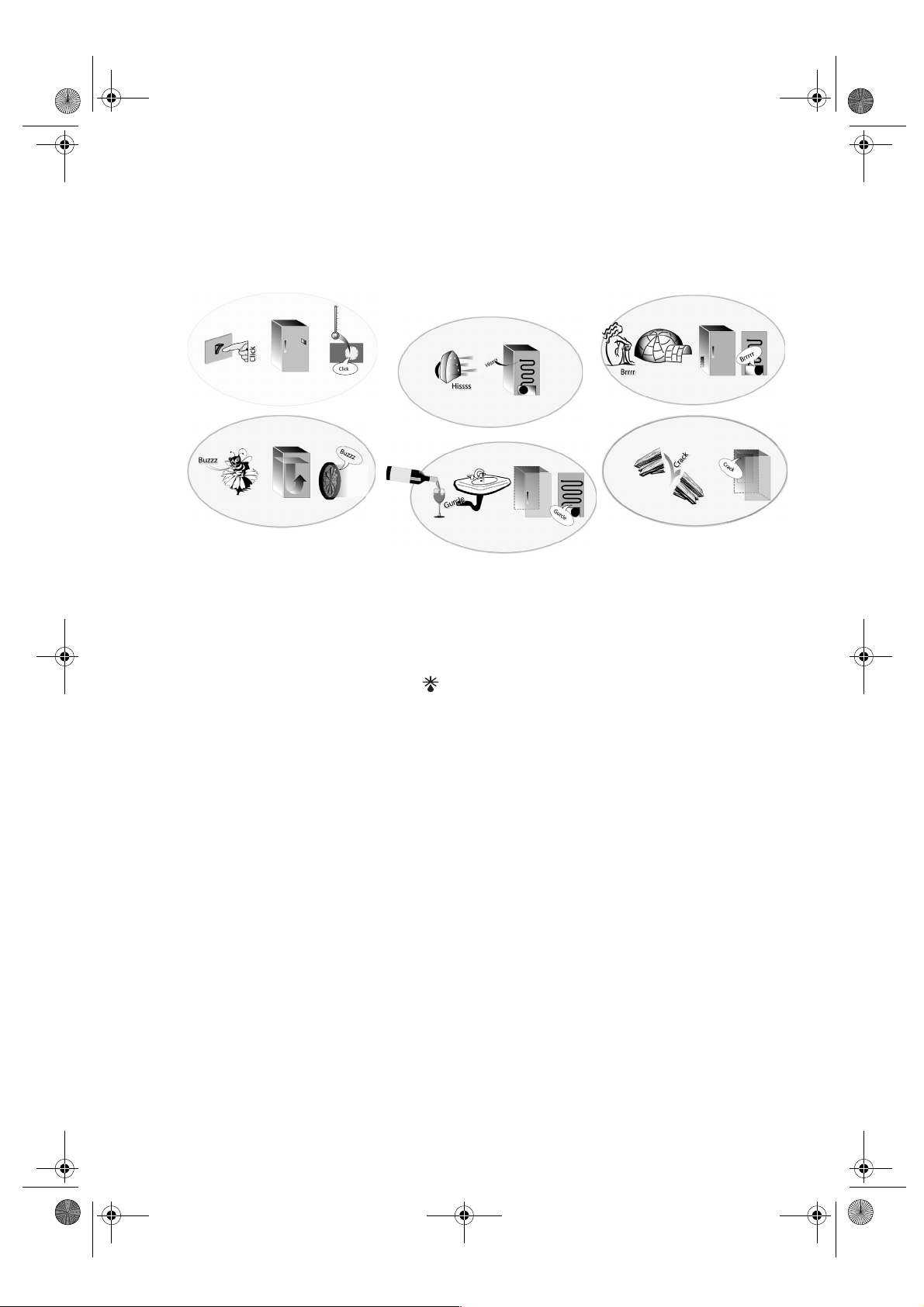

When you hear these noises
..your appliance is alive!!!
1. The appliance is not working.
•
Is there a power failure?
•
Is the power cord in perfect condition?
•
Is the plug properly inserted in the socket?
•
Has the fuse blown?
•
Is the thermostat set to ● (Stop) or
(defrost)?
2. Temperature inside the compartments is
not low enough.
•
Is the door shut properly?
•
Is there an excessive frost build-up in the low
temperature compartment?
•
Is the appliance installed near a heat source?
•
Is the thermostat setting correct?
•
Are the air circulation vents blocked?
3. Temperature inside the refrigerator
compartment is too low.
•
Is the thermostat setting correct?
4. The appliance is excessively noisy.
•
Has the appliance been installed correctly?
•
Are the pipes at the back touching or
vibrating?
5. Water collects at the bottom of the
refrigerator compartment.
•
Is the thermostat setting correct?
6. The inside light is not working.
•
Is there a power failure?
•
If not, unplug the appliance from the mains,
remove the cover and check the bulb has not
come loose. If necessary, replace the bulb
with a new one (max 15 W).
Notes:
Gurgling and hissing noises due to expansion
in the refrigerant circuit are normal.
23
Page 10
60202010GB.fm Page 24 Wednesday, May 16, 2007 10:44 AM
AFTER-SALES SERVICE
Before contacting After-Sales Service:
1.
See if you can solve the problem yourself
(see “Troubleshooting guide”).
2.
Switch the appliance on again to see if the
problem has been solved. If it has not,
disconnect the appliance from the power
supply and wait for about an hour before
switching on again.
3.
If the problem persists after this course of
action, contact After-sales Service.
INSTALLATION
•
Install the appliance away from heat sources. Installation in a
hot environment, direct exposure to the sun or installation
near heat sources (heaters, radiators, cookers) will increase
power consumption and should therefore be avoided.
•
Leave at least 5 cm clearance above the appliance and
ensure any adjacent units allow sufficient space for air
circulation.
•
Install the appliance in a dry, well-ventilated place, and
ensure it is level, using the front adjustment foot if necessary.
•
Ensure the air circulation grille on top of the appliance is
unobstructed in order to guarantee circulation of air.
•
Clean the interior and fit the accessories supplied.
•
Fill the ice cube tray (if provided) with water and place it in
the low temperature compartment.
Specify:
•
The nature of the problem.
•
The model.
•
The Service number (the number after the
word SERVICE on the data plate on the
inside of the appliance).
•
Your full address.
•
Your telephone number and area code.
Electrical Connection
• Electrical connections must be made in accordance
with local regulations.
•
Voltage and power consumption are indicated on the rating
plate inside the appliance at the bottom left hand side, at the
side of the crisper drawer.
• Regulations require that the appliance is earthed. The
manufacturer declines all liability for injury to persons
or animals and for damage to property resulting from
failure to observe the above procedures and
reminders.
•
If the plug and socket are not of the same type, have the
socket replaced by a qualified electrician.
•
Do not use extension leads or adapters.
24
Page 11
60202010GB.fm Page 25 Wednesday, May 16, 2007 10:44 AM
CHANGING THE REVERSIBLE DOOR
This refrigerator has been built with the door hinges on the
right. If you wish to change the opening direction, follow the
instructions below:
1.
Remove the screws (6) which fix the worktop to
disassembly the worktop
2.
Remove the two screws (1) that hold the upper hinge (5)
(right side) to the frame. Take away the upper hinge (5).
3.
Lift the door and place it on a padded surface to prevent
scratching it.
4.
Remove the two screws (8) that hold the lower hinge (2)
and Make sure to
Remove the lower hinge (2).
5.
Remove the left front leg (4) and transfer it to the right side.
6.
Before placing this lower hinge (2), remove the bolt-pin (9)
and reverse the direction of the lower hinge (2). Then install
the lower hinge (2) onto the left side of the lower frame with
two screws (8).
7.
Insert the bolt-pin (9) to the lower hinge (2).
8.
Set the door to its place making sure the door seat at the
lower hinge (2)
9.
While holding the door in the closed position secure the
upper hinge (5) in the top frame of left side with two screws
(1 ). P lea se r eme mbe r th at d o not tighten the two screws (1)
until the top of the door is levelled with the counter top.
10.
Install the worktop onto the top of the cabinet with screws
(6)
Figura 1
Figura 1
Represents position of components prior to door reversal.
Figura 2
Represents position of components after door reversal.
Figura 2
25
Page 12
60202010GB.fm Page 26 Wednesday, May 16, 2007 10:44 AM
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed

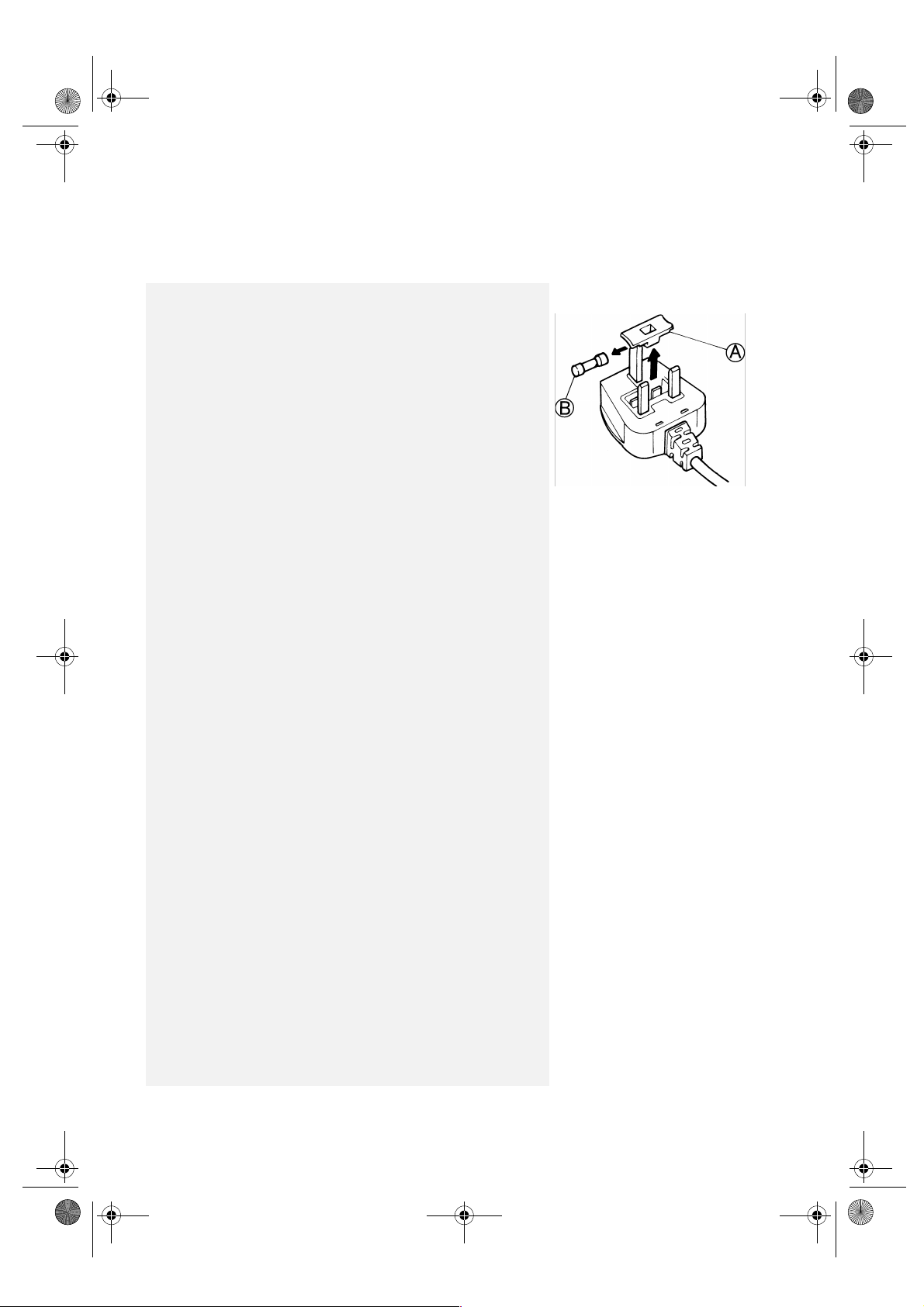

Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A 13amp
fused plug, to change a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 type and proceed as follows:
1.
Remove the fuse cover (A) and fuse (B).
2.
Fit replacement 13A fuse into fuse cover.
3.
Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the 2-pin, side
earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please contact
Whirlpool Service for further instruction. Please do not attempt to
change plug yourself. This procedure needs to be carried out by a
qualified Whirlpool technician in compliance with the manufactures
instructions and current standard safety regulations.
26
Loading...
