AKP 401

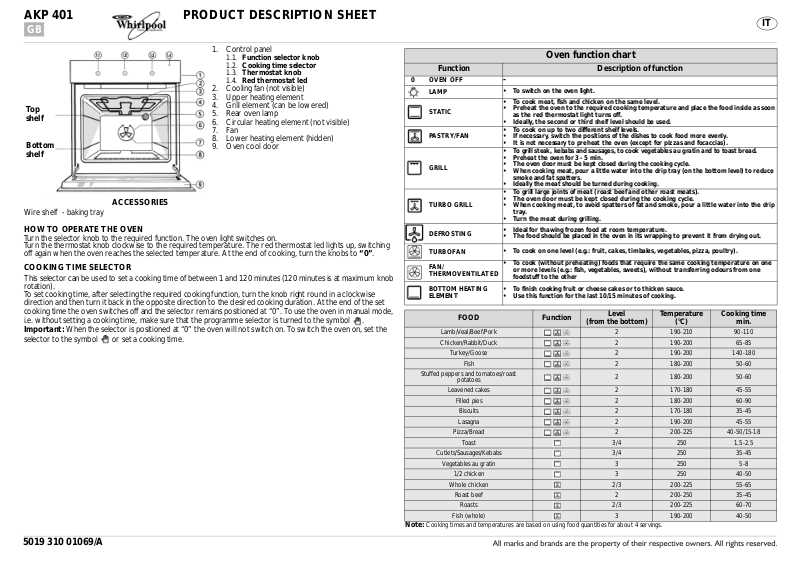

PRODUCT DESCRIPTION SHEET

IT

GB

		1.	Control panel
			1.1.	Function selector knob
			1.2.	Cooking time selector
			1.3.	Thermostat knob
			1.4.	Red thermostat led
		2.	Cooling fan (not visible)
		3.	Upper heating element
	Top	4.	Grill element (can be lowered)
		5.	Rear oven lamp
	shelf
		6.	Circular heating element (not visible)
		7.	Fan
	Bottom	8.	Lower heating element (hidden)
		9.	Oven cool door
	shelf

ACCESSORIES

Wire shelf - baking tray

HOW TO OPERATE THE OVEN

Turn the selector knob to the required function. The oven light switches on.

Turn the thermostat knob clockwise to the required temperature. The red thermostat led lights up, switching off again when the oven reaches the selected temperature. At the end of cooking, turn the knobs to “0”.

COOKING TIME SELECTOR

This selector can be used to set a cooking time of between 1 and 120 minutes (120 minutes is at maximum knob rotation).

To set cooking time, after selecting the required cooking function, turn the knob right round in a clockwise direction and then turn it back in the opposite direction to the desired cooking duration. At the end of the set cooking time the oven switches off and the selector remains positioned at “0”. To use the oven in manual mode,

i.e. without setting a cooking time, make sure that the programme selector is turned to the symbol . Important: When the selector is positioned at “0” the oven will not switch on. To switch the oven on, set the selector to the symbol or set a cooking time.

				Oven function chart
	Function								Description of function
0	OVEN OFF	-
	LAMP	• To switch on the oven light.
		• To cook meat, fish and chicken on the same level.
	STATIC	• Preheat the oven to the required cooking temperature and place the food inside as soon
		as the red thermostat light turns off.
		• Ideally, the second or third shelf level should be used.
		• To cook on up to two different shelf levels.
	PASTRY/FAN	• If necessary, switch the positions of the dishes to cook food more evenly.
		• It is not necessary to preheat the oven (except for pizzas and focaccias).
		• To grill steak, kebabs and sausages, to cook vegetables au gratin and to toast bread.
		• Preheat the oven for 3 - 5 min.
	GRILL	• The oven door must be kept closed during the cooking cycle.
		• When cooking meat, pour a little water into the drip tray (on the bottom level) to reduce
		smoke and fat spatters.
		• Ideally the meat should be turned during cooking.
		• To grill large joints of meat (roast beef and other roast meats).
	TURBO GRILL	• The oven door must be kept closed during the cooking cycle.
		• When cooking meat, to avoid spatters of fat and smoke, pour a little water into the drip
		tray.
		• Turn the meat during grilling.
	DEFROSTING	• Ideal for thawing frozen food at room temperature.
		• The food should be placed in the oven in its wrapping to prevent it from drying out.
	TURBOFAN	• To cook on one level (e.g.: fruit, cakes, timbales, vegetables, pizza, poultry).
	FAN/	• To cook (without preheating) foods that require the same cooking temperature on one
		or more levels (e.g.: fish, vegetables, sweets), without transferring odours from one
	THERMOVENTILATED
		foodstuff to the other
	BOTTOM HEATING	• To finish cooking fruit or cheese cakes or to thicken sauce.
	ELEMENT	• Use this function for the last 10/15 minutes of cooking.
	FOOD		Function							Level		Temperature	Cooking time
									(from the bottom)			(°C)	min.
	Lamb/Veal/Beef/Pork									2		190-210	90-110
	Chicken/Rabbit/Duck									2		190-200	65-85
	Turkey/Goose									2		190-200	140-180
	Fish									2		180-200	50-60
	Stuffed peppers and tomatoes/roast									2		180-200	50-60
	potatoes
	Leavened cakes									2		170-180	45-55
	Filled pies									2		180-200	60-90
	Biscuits									2		170-180	35-45
	Lasagna									2		190-200	45-55
	Pizza/Bread									2		200-225	40-50/15-18
	Toast									3/4		250	1.5-2.5
	Cutlets/Sausages/Kebabs									3/4		250	35-45
	Vegetables au gratin									3		250	5-8
	1/2 chicken									3		250	40-50
	Whole chicken									2/3		200-225	55-65
	Roast beef									2		200-250	35-45
	Roasts									2/3		200-225	60-70
	Fish (whole)									3		190-200	40-50

Note: Cooking times and temperatures are based on using food quantities for about 4 servings.

5019 310 01069/A
