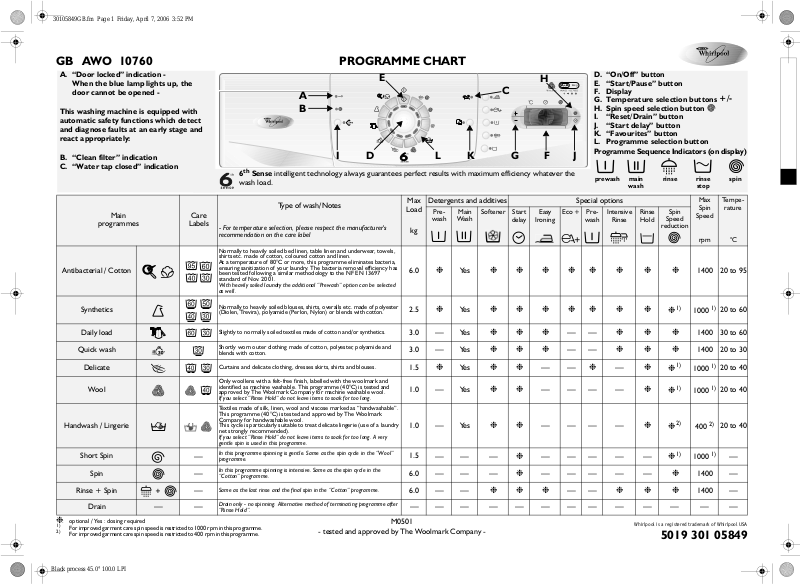

GB AWO 10760 PROGRAMME CHART

A. “Door locked” indication -

E

H

D. “On/Off” button

When the blue lamp lights up, the

E. “Start/Pause” button

C

door cannot be opened -

A

F.

Display

G. Temperature selection buttons +/-

This washing machine is equipped with

B

H. Spin speed selection button

automatic safety functions which detect

I.

“Reset/Drain” button

J.

“Start delay” button

and diagnose faults at an early stage and

K. “Favourites” button

react appropriately:

L.

Programme selection button

B. “Clean filter” indication

I

D

L

K

G

F

J

Programme Sequence Indicators (on display)

C. “Water tap closed” indication

6th Sense intelligent technology always guarantees perfect results with maximum efficiency whatever the

prewash

main

rinse

rinse

spin

wash load.

wash

stop

										Type of wash/Notes	Max	Detergents and additives									Special options					Max	Tempe-
											Load															Spin	rature
Main					Care							Pre-	Main	Softener			Start		Easy		Eco +	Pre-	Intensive	Rinse	Spin	Speed
												wash	Wash				delay	Ironing				wash	Rinse	Hold	Speed
programmes				Labels
										- For temperature selection, please respect the manufacturer's	kg														reduction
										recommendation on the care label																rpm	°C
										Normally to heavily soiled bed linen, table linen and underwear, towels,
										shirts etc. made of cotton, coloured cotton and linen.
										At a temperature of 80°C or more, this programme eliminates bacteria,
Antibacterial / Cotton										ensuring sanitization of your laundry. The bacteria removal efficiency has	6.0		Yes													1400	20 to 95
										been tested following a similar methodology to the NF EN 13697
										standard of Nov. 2001.
										With heavily soiled laundry the additional “Prewash” option can be selected
										as well.
Synthetics										Normally to heavily soiled blouses, shirts, overalls etc. made of polyester	2.5		Yes												1)	1000 1)	20 to 60
										(Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.
Daily load										Slightly to normally soiled textiles made of cotton and/or synthetics.	3.0	—	Yes								—	—				1400	30 to 60
Quick wash										Shortly worn outer clothing made of cotton, polyester, polyamide and	3.0	—	Yes								—	—				1400	20 to 30
										blends with cotton.
Delicate										Curtains and delicate clothing, dresses skirts, shirts and blouses.	1.5		Yes						—		—		—		1)	1000 1)	20 to 40
										Only woollens with a felt-free finish, labelled with the woolmark and
Wool										identified as machine washable. This programme (40°C) is tested and	1.0	—	Yes						—		—	—	—		1)	1000 1)	20 to 40
										approved by The Woolmark Company for machine washable wool.
										If you select “Rinse Hold” do not leave items to soak for too long.
										Textiles made of silk, linen, wool and viscose marked as “handwashable”.
										This programme (40°C) is tested and approved by The Woolmark
Handwash / Lingerie										Company for handwashable wool.	1.0	—	Yes						—		—	—	—		2)	400 2)	20 to 40
										This cycle is particularly suitable to treat delicate lingerie (use of a laundry
										net strongly recommended).
										If you select “Rinse Hold” do not leave items to soak for too long. A very
										gentle spin is used in this programme.
Short Spin						—				In this programme spinning is gentle. Same as the spin cycle in the “Wool”	1.5	—	—		—				—		—	—	—	—	1)	1000 1)	—
										programme.
Spin						—				In this programme spinning is intensive. Same as the spin cycle in the	6.0	—	—		—				—		—	—	—	—		1400	—
										“Cotton” programme.
Rinse + Spin		+				—				Same as the last rinse and the final spin in the “Cotton” programme.	6.0	—	—								—	—				1400	—
Drain		—				—				Drain only - no spinning. Alternative method of terminating programme after	—	—	—		—		—		—		—	—	—	—	—	—	—
										“Rinse Hold”.

:

1)

2)

	optional / Yes : dosing required	M0501	Whirlpool is a registered trademark of Whirlpool USA
	For improved garment care spin speed is restricted to 1000 rpm in this programme.	- tested and approved by The Woolmark Company -
			5019 301 05849
	For improved garment care spin speed is restricted to 400 rpm in this programme.
