ADP 962/3 GRM
5019 100 91132
(We reserve the right to make technical modifications)

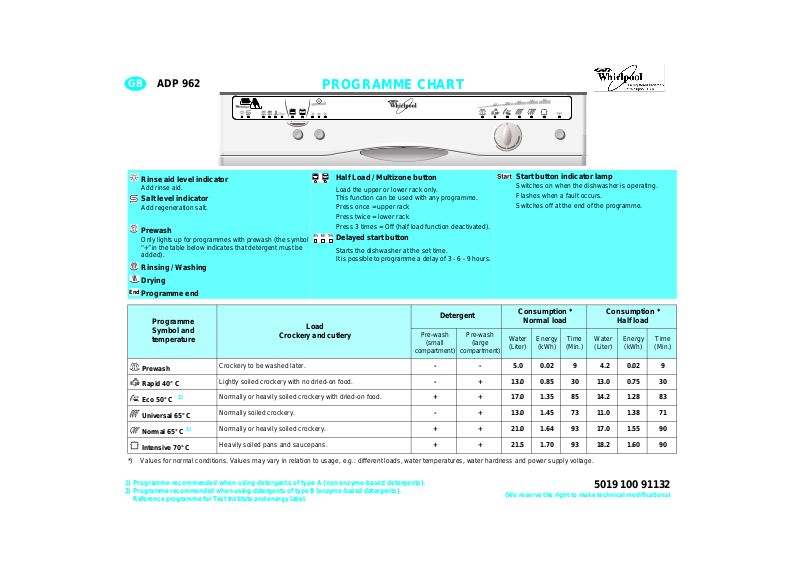

PROGRAMME CHART
ADP 962
GB
1) Programme recommended when using detergents of type A (non enzyme-based detergents).
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for Test Instit ute andenergy label.
*) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt.
Prewash
Only lights up for programmes with prewash (the symbol
“+” in the table below indicates that detergent must be
added).
Rinsing / Washing
Drying
Programme end
Half Load / Multizone button
Load the upper or lower rack only.
This function can be used with any programme.
Press once = upper rack
Press twice = lower rack
Press 3 times = Off (half load function deactivated).
Delayed start button
Starts the dishwasher at the set time.
It is possible to programme a delay of 3 - 6 - 9 hours.
Start button indicator lamp
Switches on when the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Programme
Symbol and
temperature
Load
Crockery and cutlery
Detergent
Consumption *
Normal load
Consumption *
Half load
Pre-wash
(small
compartment)
Pre-wash
(large
compartment)
Water
(Liter)
Energy
(kWh)
Time
(Min.)
Water
(Liter)
Energy
(kWh)
Time
(Min.)
Prewash
Crockery to be washed later.
- - 5.0 0.02 9 4.2 0.02 9
Rapid 40° C
Lightly soiled crockery with no dried-on food.
- + 13.0 0.85 30 13.0 0.75 30
Eco 50° C
2)
Normally or heavily soiled crockery with dried-on food.
+ + 17.0 1.35 85 14.2 1.28 83
Universal 65° C
Normally soiled crockery.
- + 13.0 1.45 73 11.0 1.38 71
Normal 65° C
1)
Normally or heavily soiled crockery.
+ + 21.0 1.64 93 17.0 1.55 90
Intensive 70° C
Heavily soiled pans and saucepans.
+ + 21.5 1.70 93 18.2 1.60 90
E
nd
