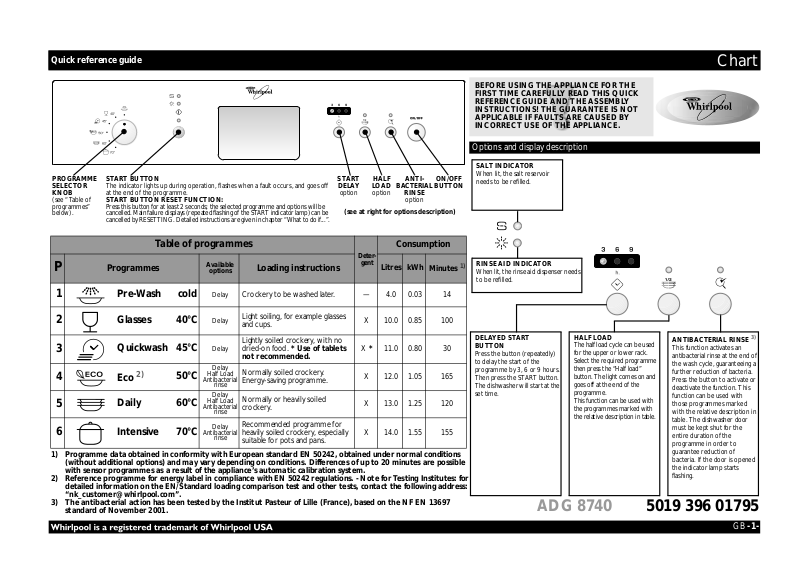

Whirlpool ADG 8740 Quick Reference Guide
r
Quick reference guide
PROGRAMME
SELECTOR
KNOB
(see “Table of
programmes”
below).
START BUTTON
The indicator lights up during operation, flashes when a fault occurs, and goes off
at the end of the programme.
START BUTTON RESET FUNCTION:
Press this button for at least 2 seconds; the selected programme and options will be
cancelled. Main failure displays (repeated flashing of the START indicator lamp) can be
cancelled by RESETTING. Detailed instructions are given in chapter “What to do if...”.
START
DELAY
HALF
ANTI-
LOAD
BACTERIAL
option
RINSE
option
option
(see at right for options description)
ON/OFF
BUTTON
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME CAREFULLY READ THIS QUICK
REFERENCE GUIDE AND THE ASSEMBLY
INSTRUCTIONS! THE GUARANTEE IS NOT
APPLICABLE IF FAULTS ARE CAUSED BY
INCORRECT USE OF THE APPLIANCE.
Options and display description
SALT INDICATOR
When lit, the salt reservoir
needs to be refilled.
Chart
Table of programmes
Deter-
gent
X * 11.0 0.80 30
50°C
Available
options
Delay
Delay
Delay
Delay
Half Load
Antibacterial
rinse
Delay
Half Load
Antibacterial
rinse
Delay
Antibacterial
rinse
Loading instructions
Crockery to be washed later. — 4.0 0.03 14
Light soiling, for example glasses
and cups.
Lightly soiled crockery, with no
dried-on food. * Use of tablets
not recommended.
Normally soiled crockery.
Energy-saving programme.
Normally or heavily soiled
crockery.
Recommended programme for
heavily soiled crockery, especially
suitable for pots and pans.
P
1
2
3
4
5
6
1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions
(without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible
with sensor programmes as a result of the appliance’s automatic calibration system.
2) Reference programme for energy label in complian ce with EN 50242 regul ations. - No te for Testing Institutes: fo
detailed information on the EN/Standard loading comparison test and other tests, contact the following address:
“nk_customer@whirlpool.com”.
3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697
standard of November 2001.
Programmes
Pre-Wash cold
Glasses 40°C
Quickwash 45°C
2)
Eco
Daily 60°C
Intensive 70°C
Consumption
Litres kWh
X 10.0 0.85 100
X 12.0 1.05 165
X 13.0 1.25 120
X 14.0 1.55 155
Minutes
RINSE AID INDICATOR
1)
When lit, the rinse aid dispenser needs
to be refilled.
DELAYED START
BUTTON
Press the button (repeatedly)
to delay the start of the
programme by 3, 6 or 9 hours.
Then press the START button.
The dishwasher will start at the
set time.
HALF LOAD
The half load cycle can be used
for the upper or lower rack.
Select the required programme
then press the “Half load”
button. The light comes on and
goes off at the end of the
programme.
This function can be used with
the programmes marked with
the relative description in table.
5019 396 01795ADG 8740
ANTIBACTERIAL RINSE
This function activates an
antibacterial rinse at the end of
the wash cycle, guaranteeing a
further reduction of bacteria.
Press the button to activate or
deactivate the function. This
function can be used with
those programmes marked
with the relative description in
table. The dishwasher door
must be kept shut for the
entire duration of the
programme in order to
guarantee reduction of
bacteria. If the door is opened
the indicator lamp starts
flashing.
GB
-1-
3)
How to set detergent type: powder/gel/tablet (if option is available)
First time use
In order to always ensure the best cleaning
results, you NEED to set:
DETERGENT type and WATER HARDNESS.
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms
1.
Select 3rd programme
(see Table of programmes
- page 1)
2.
Press START button
for 7 seconds
3a.
Check your
detergent type...
Detergent
types
Powder or gel
(factory setting)
Tablet 2 in 1
Tablet 3 in 1
Tablet All in 1
For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.
How to set water hardness
Switch on the appliance
* only before the first wash or if
the water hardness has been
changed
1.
Ask your water supply company what the
German
degrees °dH
0 - 5 0 - 9 0 - 6.3 Soft 1 1x
6 - 10 10 - 18 7 - 12.6 Medium 2 2x
11 - 15 19 - 27 13.3 - 18.9 Average 3 3x
16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 4x
22 - 28 38 - 50 26.6 - 35 Hard 5 5x
29 - 35 51 - 63 35.7 - 44.1 Very hard 6 6x
36 - 60 64 - 107 44.8 - 74.9
French
degrees °fH
English
degrees °eH
- Select the 2nd programme “P2” - consult the table of programmes.
- Press the START button for at least 5 seconds until the START indicator lamp flashes.
- The water hardness setting is shown on the display (if present) or the START button flashes.
- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.
- The appliance must be switched off to memorise the new setting.
water hardness
is...2....enter this value on your
dishwasher
Water
hardness
Extremely
hard
Dishwasher
with display:
insert value in
the display
7 7x
3b.
...and set it on your dishwasher
using the START button
(as per table below)
Dishwasher models
model without
display
3h 6h 9h
Dishwasher
without
display: count
START button
led flashes
model with display
Suggestions for detergent use
Gel or Powder
(rinse aid and
salt)
go to step 1
(see “Daily
check”)
4.
Remember to use salt and rinse
aid when needed (as indicated
below)
no symbol add salt add rinse aid
add salt
salt
Tablets
rinse aid
rinse aid
Water hardness level is factory set for
medium hard water (a number “4” is
shown on the display or the START
indicator lamp flashes 4 times).
if extra salt is
needed go to
step 1
(see “Daily
check”)
Even if you use tablets which include salt,
you must still add salt since such
detergents are not effective enough at
softening hard water.
5.
Switch off and switch on
again to save setting
GB
-2-
1
Filling the salt reservoir -
Dissolve limescale (not necessary if water hardness level is set to “soft”!)
Daily check
The salt level indicator lamp may remain lit for the duration of several wash cycles. If the
water hardness level falls within category (soft),
Adding rinse aid
(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
2
Rinse aid indicator (depending on model)
Only use rinse aids recommended for use in domestic dishwashers.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly d ry : incr e a s e the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid
setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend
to form excess suds.
Adding detergent -
3
S
E
L
Visual indicator
(depending
on model).
Unscrew cap.
Visual
indicator
If required,
open the cover
B (press right
button).
no
salt is required.
The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE
ADDED.
Immediately
Fill the salt
reservoir with
water before the
first wash only.
S
E
L
Salt indicator
(depending on
the model)
Add rinse aid
to the max.
line ~150 ml
wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.
The indicator lamp on the control panel lights
up when SALT NEEDS TO BE ADDED.
Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations
Tablet / gel / powder
Use only one tablet per one
Open the cover A
(press left button).
Only fill the
detergent dispenser
prior to starting a
wash programme.
cycle, only placed in detergent
dispenser.
All types of tablets can be
used, but for 2 in 1 type
adding of salt is mandatory.
S
Add salt
(never add
detergent!).
min. 1.5 kg
S
max. 2 kg
E
L
orange: OK. clear: NEEDS TO BE ADDED
The rinse aid dosage can be adjusted to the
detergent used. The lower the setting,
the less rinse aid is dispensed
(factory setting: position 4).
Press the button to open the cover B. Using a
coin or similar object, turn the arrow to the
desired setting. After adjusting the rinse aid
setting, shut the cover again.
dark: OK. clear: NEEDS TO BE ADDED
By pressing
dedicated ribs
shut the cover.
E
L
Visual indicator (depending
on model). Screw on the cap.
Salt residues around cap
need to be removed.
Daily use
GB
-3-
