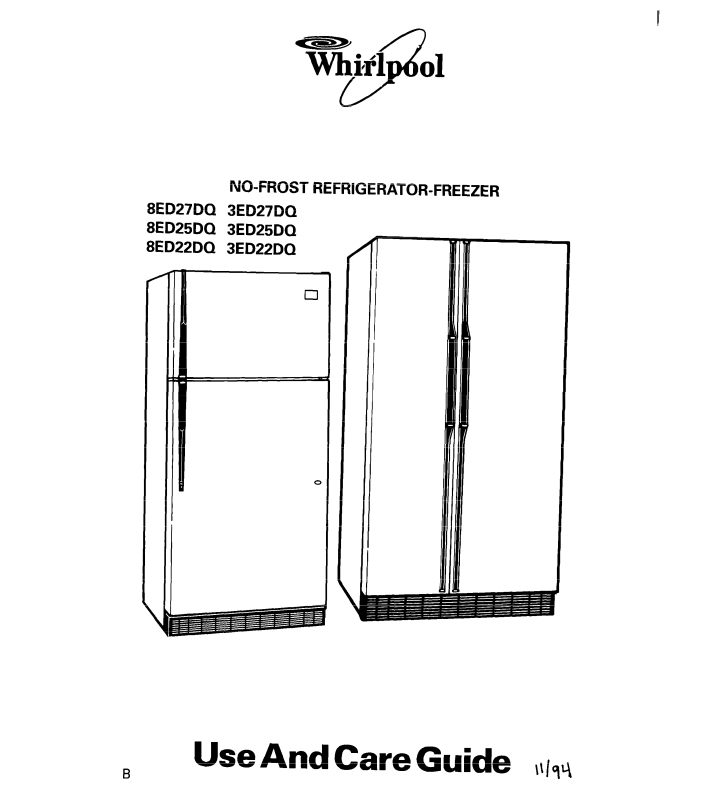

Whirlpool 3ED25DQ, 8ED25DQ, 8ED27DQ User Manual
NO-FROST REFRIGERATOR-FREEZER
8ED27DQ 3ED27DQ
8ED25DQ 3ED25DQ
8ED22DQ 3ED22DQ
0
B
Use And Care Guide
\\lqt\
A Note To You
Important Safety
Instructions
2
3
Parts And Features
Before Using Your
Refrigerator
Using Your
Refrigerator
Caring For Your
Refrigerator
Food Storage
Guide
If You Need
Assistance Or
Service
Warranty
4
5
7
21
24
26
28
A
Note To You
Thank you for buying a Whirlpool* appliance.
You have purchased a quality, world-class home appliance. Years of engineering experience
went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,
we developed this Use and Care Guide. It is full of valuable information on how to operate
and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help
us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire
This symbol will help you avoid actions
which could cause product damage
Help when you need it.
If you ever have a question concerning your appliance’s operation, or if you need service, first
see “If You Need Assistance Or Service” on page 26. If you need further help, feel free to call
an authorized Whirlpool service center. When calling, you will need to know your appliance’s
complete model number and serial number. You can find this information on the model and
serial number label (see diagram on page 4). For your convenience, we have included a
handy place below for you to record these numbers, the purchase date from the sales slip
and your dealer’s name and telephone number. Keep this book and the sales slip together in
a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone
I
2
Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury when
using your
refrigerator, follow these
basic precautions:
l Read all instructions before using the
refrigerator.
l Child entrapment and suffocation are
not problems of the past. Junked or
abandoned refrigerators are still dangerous . . . even if they will “just sit in the
garage a few days.”
If you are getting rid of your old refrigerator, do it safely. Please read the
enclosed safety booklet from the
Association of Home Appliance Manufacturers. Help prevent accidents.
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l Install and level the refrigerator on a floor
that will hold the weight and in an area
suitable for its size and use.
l Do not install the refrigerator near an oven,
radiator or other heat source.
l Do not use the refrigerator in an area
where the room temperature will fall below
13°C (55°F).
l Keep the refrigerator out of the weather.
l Connect the refrigerator only to the proper
kind of outlet, with the correct electrical
supply and grounding.
l Do not load the refrigerator with food
before it has time to get properly cold.
l Use the refrigerator only for the uses
described in this manual.
l Properly maintain the refrigerator.
l Be sure the refrigerator is not used by
anyone unable to operate it properly.
l Never allow children to operate, play with,
or crawl inside the refrigerator.
l Never clean refrigerator parts with
flammable fluids. The fumes can create a
fire hazard or explosion.
. FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE. THE FUMES
CAN CREATE A FIRE HAZARD OR
EXPLOSION.
Parts And Features
This section contains captioned illustrations of your appliance. Use them to become familiar
with where all parts and features are located and what they look like. The model you purchased may have all or some of the parts and features shown and they may not match the
illustration exactly. This manual covers several models.
Model and serial
Automatic ice
maker with
wire shelves+
Snack bin
Slide-out
freezer
Light
(on sotye models)
Control pane’
Light
/
number label
(on side wall)
some models)
Leveling rollers
(behind base grille)
+ Number varies with model
Control panel
I
Freezer control
\
Base grille
I
Refrigerator control
Model 8ED27DQ
shown
Before Using Your Refrigerator
In This Section
Page
Cleaning your refrigerator ., . . . . . . . . . . . . . . . 5
Plugging it in
It is important to prepare your refrigerator for use. This section tells you how to clean it,
connect it to a power source, install it and level it.
. . . . ..*................*...............
Installing it properly
Leveling it
5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . ..#..................
Cleaning your refrigerator
Removing packaging materials
Remove tape and any inside labels (except
the model and serial number label) before
using the refrigerator.
To remove any remaining glue:
l Rub briskly with thumb to make a ball,
then remove.
OR
l Soak area with liquid hand-dishwashing
detergent before removing glue as
described above. Do not use sharp
instruments, rubbing alcohol, flammable
fluids or abrasive cleaners. These can
damage the material. See “Important
Safety Instructions” on page 3.
NOTE: Do not remove any permanent
instruction labels inside your retngerator. Uo
not remove the Tech Sheet fastened under
the refrigerator at the front.
Cleaning it before use
After removing all packaging materials,
clean your refrigerator before using it, if
necessary. See cleaning instructions on
pages 21-22.
Page
_
6
6
Plugging it in
Recommended Grounding Method
A 115 Volt, 60 Hz (Plug 1) or 220/240 Volt,
50 Hz (Plug 2), AC only 15 or 20 ampere
fused and properly grounded electrical
supply is required. It is recommended that a
separate circuit serving only this appliance
be provided. Use a receptacle which cannot
be turned off with a switch or pull chain. Do
not use an extension cord.
Plug 1
Plug 2
5
Installing it properly
1.
Allow 1.25 cm (l/2 inch) space on each
side and at the top of the refrigerator for
ease of installation.
2.
If the hinge side of the refrigerator is to be
against a wall, you might want to leave
extra space so the door can be opened
wider.
3. The refrigerator can be flush against the
back wall.
4. Make sure the ice maker water supply
has been connected. Refer to Installation
Instructions.
Leveling it
Your refrigerator has 2 front leveling
screws-one on the right and one on the left.
To adjust one or both of these, follow the
directions below.
1. Remove base grille. (See page 19.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclockwise.
4. Check with level.
5. Replace base grille. (See page 19.)
Use a screw-
driver to adjust
Using Your Refrigerator
In This Section
Page
Setting the controls
Changing the control settings . . . . . . . . . . . 8
Removing the door shelf fronts . . . . . . . . 9
Removing the
Adjusting the
Adjusting the door bin glides . . . . . . . . . . 10
Adjusting the refrigerator shelves . . 10
Removing the
Using the egg bin
Removing the crisper and
crisper cover
Adjusting the crisper
humidity
Removing the meat drawer
and cover
control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . ..*...........
door trim
door
snack
. . . . . . . . . . . . . . . . . . . . . . . . . ..*.........
.* . . . . . . . m . . . . . . . . . . . 9
bins .- . . . . . . . , . . . . . . . . . . . 9
bin . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . ..*.......*.........
11
11
12
7
Adjusting
Removing the freezer baskets . . . . . . . . . 13
Removing
Using the THIRSTCRUSHER*
dispensing
Using the automatic ice maker . . . . . . . . 15
Solving common ice maker/
dispenser problems ..,.......,.............. 16
Removing the ice maker
storage
Changing the light bulbs
Removing the
Understanding the sounds you
may
Saving
the
the freezer
system
bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
hear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . 20
energy
rack . . . . m . . . . . . . . . . . . ~13
wine
. . . . m . . . . . . . s . . . . . . . . . . . . . . 14
grille . . . . . . . . . . . . . . . . . 19
base
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Page
shelf . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . 18
Adjusting the meat drawer
temperature . . . . . . . . . . . . . . . . . . . . . m . . . . . . . . . . . . . . . . . 12
To obtain the best possible results from your refrigerator, it is important that you operate it
properly. This section tells you how to set the controls, remove and adjust some of the
features in your refrigerator, and how to save energy.
Setting the controls
Controls for the refrigerator and freezer are in
the refrigerator. When you plug in the refrigerator
for the first time:
1. Set the Refrigerator Control to 3.
Refrigerator Control adjustments range from
1 (warmest) to 5 (coldest).
2. Set the Freezer Control to B.
Freezer Control adjustments range from
A (warmest) to C (coldest).
3. Give the refrigerator time to cool down
completely before adding food. This may
take several hours.
The settings indicated above should be
correct for normal, household refrigerator
NOTE: The Automatic Exterior Moisture
control continuously guards against moisture
build-up on the outside of your refrigerator
cabinet. This control does not have to be set
or adjusted.
usage. The controls are set correctly when
milk or juice is as cold as you like and
when ice cream is firm. If you need to
adjust these settings, see “Changing the
control settings” below.
Changing the control settings
If you need to adjust temperatures in
refrigerator or freezer, use the settings listed
in the chart below as a guide.
CONDITION:
REASON:
l Adjust the Refrigerator Control first.
l Wait at least 24 hours between adjustments.
l Then adjust the Freezer Control if needed.
RECOMMENDED
CONTROL SElTINGS:
Refrigerator
Freezer
Refrigerator
section
too warm
Freezer
section
too warm
Refrigerator
section
too cold
Ice not
made fast
enough
Both
sections
too warm
l Door opened often
l Large amount of food added
l Room temperature too warm
l Door opened often
l Large amount of food added
*Very cold room temperature
(can’t cycle often enough)
@Controls not set correctly
for your conditions
l Heavy ice usage
every cold room temperature
(can’t cycle often enough)
l Door opened often
l Large amount of food added
*Very warm or very cold room
temperatures
2
3
4
4
3
A
C
B
C
B
