wheelock SSB-4 INSTALLATION INSTRUCTIONS

273 Branchport Avenue
Long Branch, N.J. 07740
[phone]

FAX: [phone]
P82288 E

SPEAKER SUPPORT BRIDGE

SSB-4

INSTALLATION INSTRUCTIONS

SSB-4

SPEAKER SUPPORT BRIDGE

INSTALLATION INSTRUCTIONS

The SSB-4 is a speaker support bridge for mounting Wheelock 4" ceiling
speaker assemblies into acoustic tile ceilings. The SSB-4 is designed
for use with ceiling tiles up to 24" wide. If a backbox is required, use:

A. Wheelock Flush Ceiling Mount ET Series:
Standard 4" square by 2-1/8" deep box with 1-1/2" extension

ring.

B. All other Wheelock 4" Flush Ceiling Mount Speakers:
Standard 4" square by 1-1/2" deep box with 1-1/2" extension

ring.

CAUTION: These devices are not intended for use in hazardous
locations as defined by the National Electrical Code (NEC) and by the
National Fire Protection Association (NFPA).

P82288 E

Sheet 1 of 2

SSB-4

SPEAKER

SUPPORT

BRIDGE

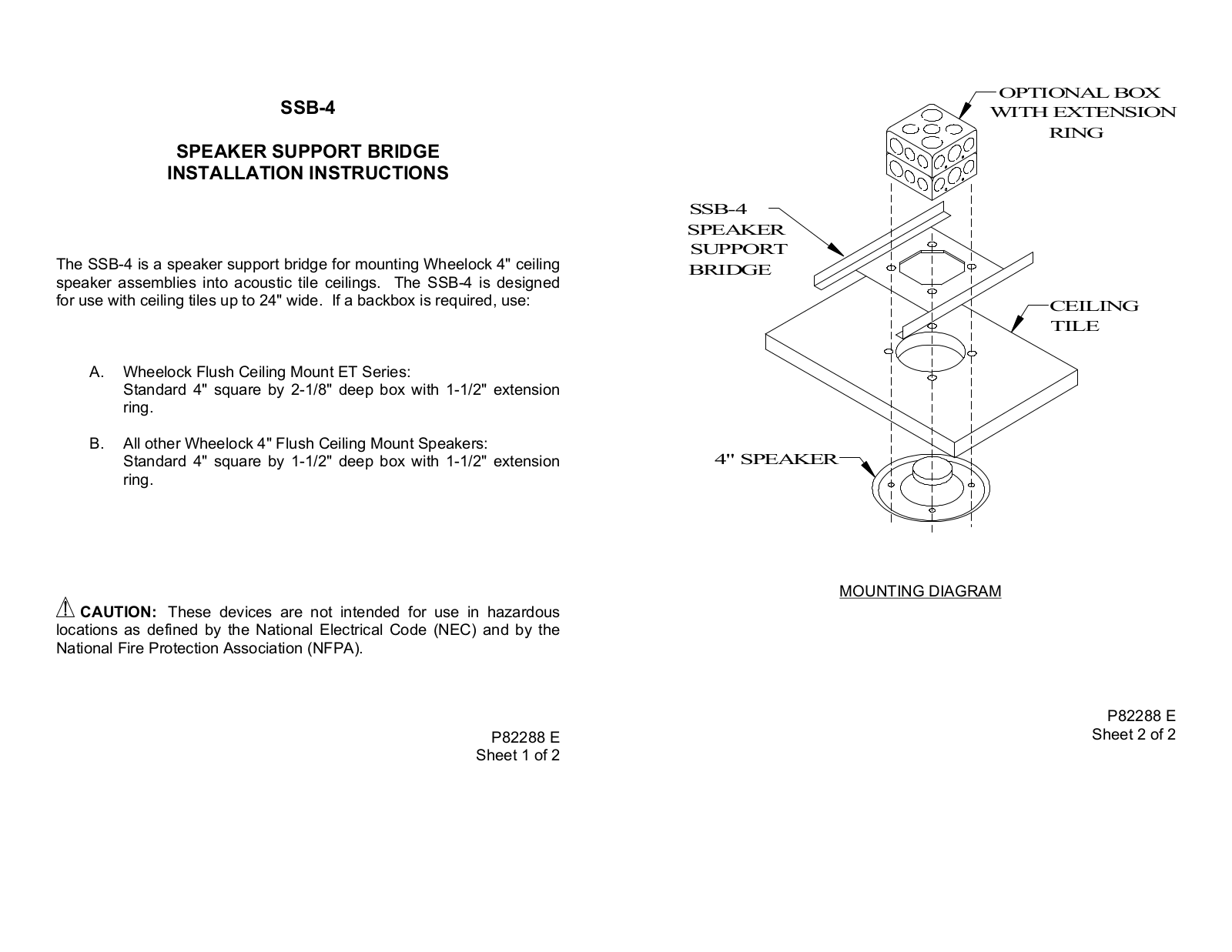

4" SPEAKER

MOUNTING DIAGRAM

OPTIONAL BOX

WITH EXTENSION

RING

CEILING
TILE

P82288 E

Sheet 2 of 2
