Westinghouse WSE6200WA, WSE6170SA, WSE6900WA User Manual
USER MANUAL
REGISTER YOUR
APPLIANCE TODAY
to get product tips, safety
notifications and more.
westinghouse.com.au/register
REFRIGERATION
Side by Side
WARNING
CONGRATULATIONS
WARNING
WARNING
TIPS & INFORMATION
ENVIRONMENTAL TIPS
WARNING
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Dear customer,
Congratulations and thank you for choosing our
refrigerator. We are sure you will find your new
refrigerator a pleasure to use. Before you use the
refrigerator we recommend that you read through
the relevant sections of this manual, which provides
a description of your refrigerator and its functions.
To avoid the risks that are always present when you use
an electric appliance, it is important that the refrigerator
is installed correctly and that you read the safety
instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the refrigerator, please check it is not
damaged. If in doubt, do not use the refrigerator but
contact your local customer care centre.
Conditions of Use
This refrigerator is designed and intended to be used in
normal domestic applications only:
• By clients in hotels, motels and other residential
type environments
• Bed and breakfast type environments
Record model and serial number here:
Model number:........................................................................................
Serial number: .........................................................................................
Please read the user manual carefully and store in a
handy place for later reference. The symbols you will see
in this booklet have these meanings:
WARNING
This symbol indicates information concerning your
personal safety
CAUTION
This symbol indicates information on how to avoid
damaging the appliance
TIPS AND INFORMATION
This symbol indicates tips and information about use of
the appliance
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the appliance
CONTENTS
Important safety instructions ........................................................ 3
Refrigerator features
Non ice and water refrigerator features ........................... 4
Ice and water refrigerator features ..................................... 5
Installing your new refrigerator
Unpacking your refrigerator ...................................................6
Locating your refrigerator. ......................................................6
Installing your refrigerator ....................................................... 6
Fitting the handles ...................................................................... 7

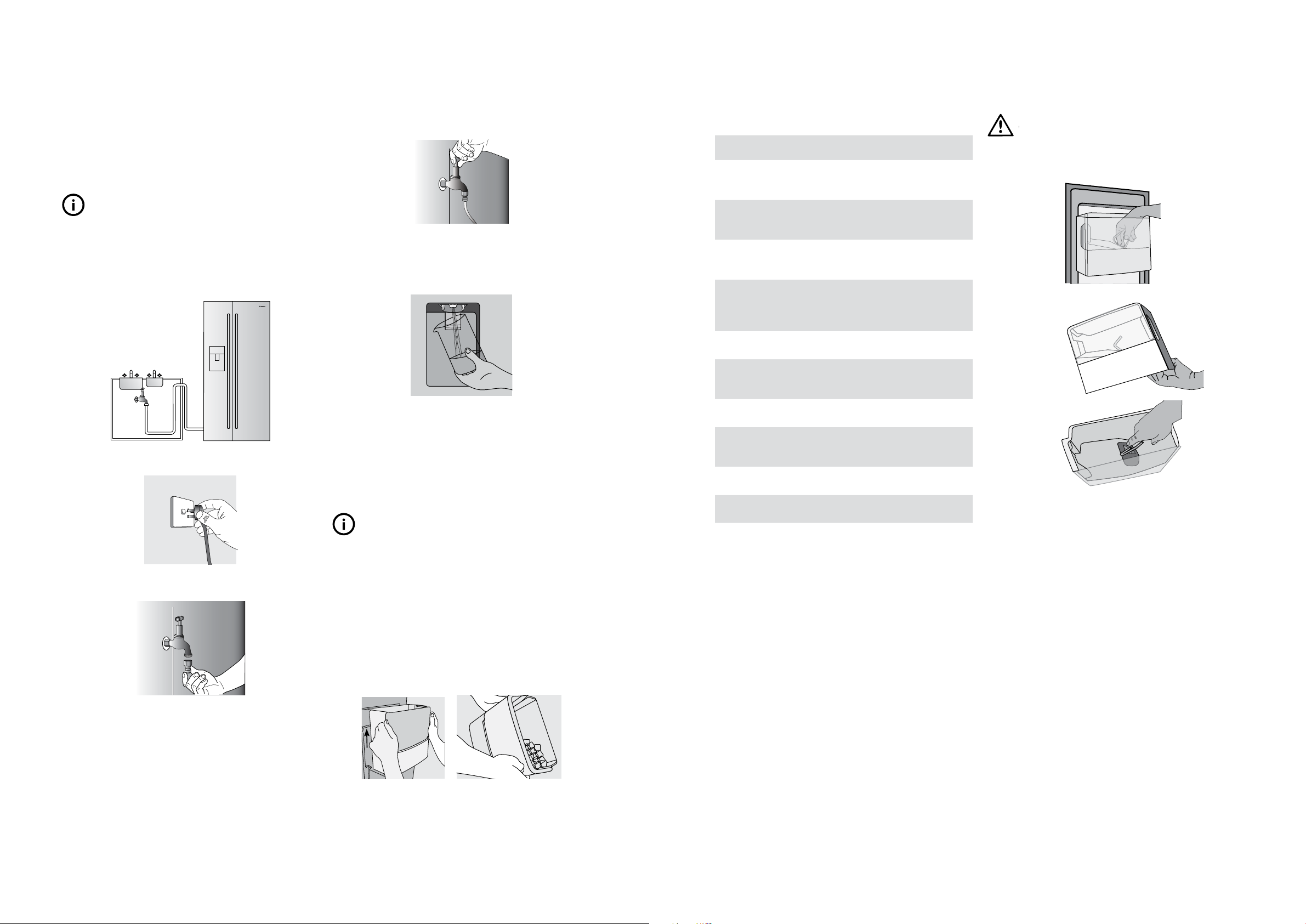

Ice and water installation
Water filter ...................................................................................... 7
Water supply and plumbing ................................................... 8
Replacing the water filter ......................................................10

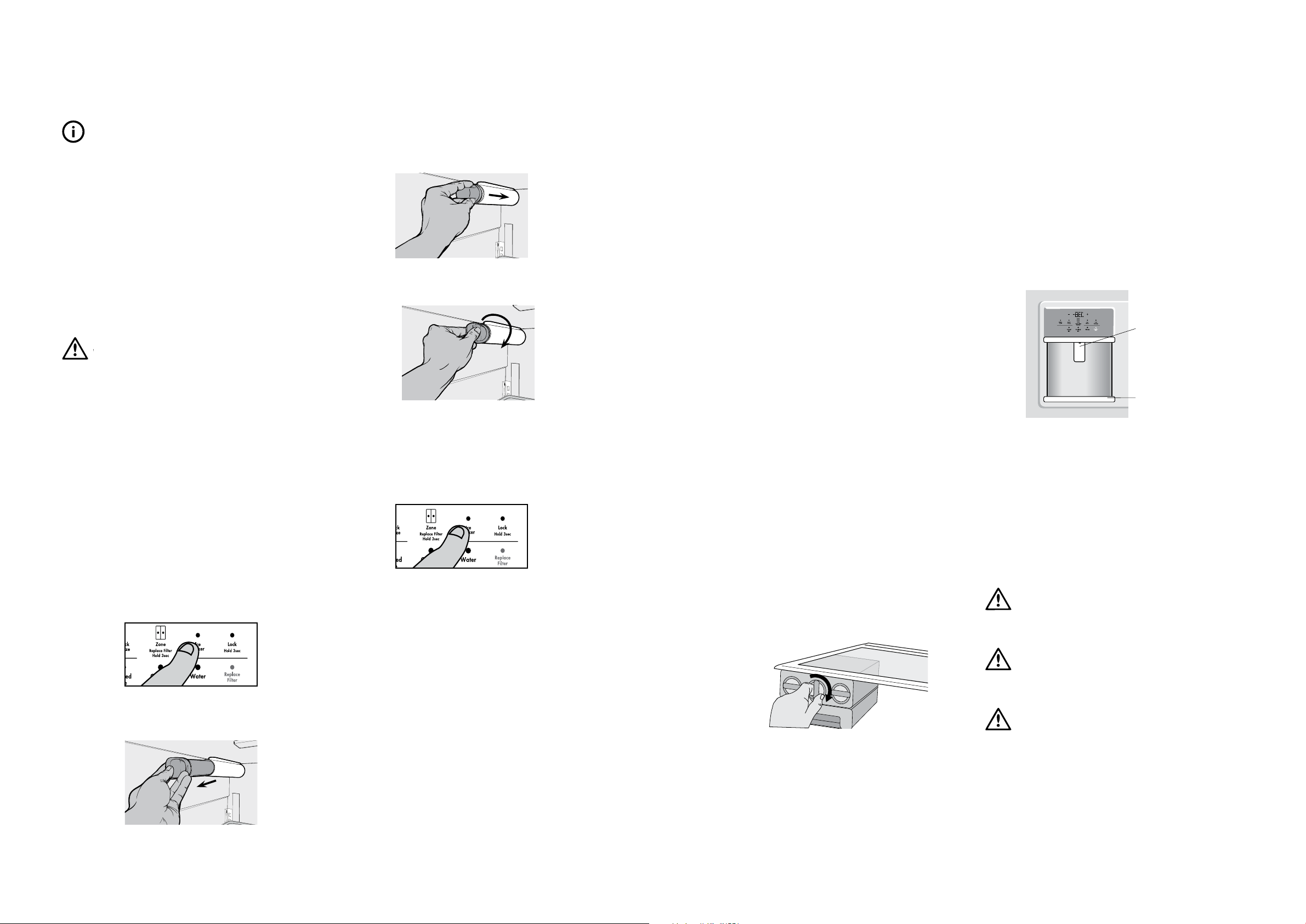

Using your refrigerator .....................................................................11
Removing features ............................................................................12

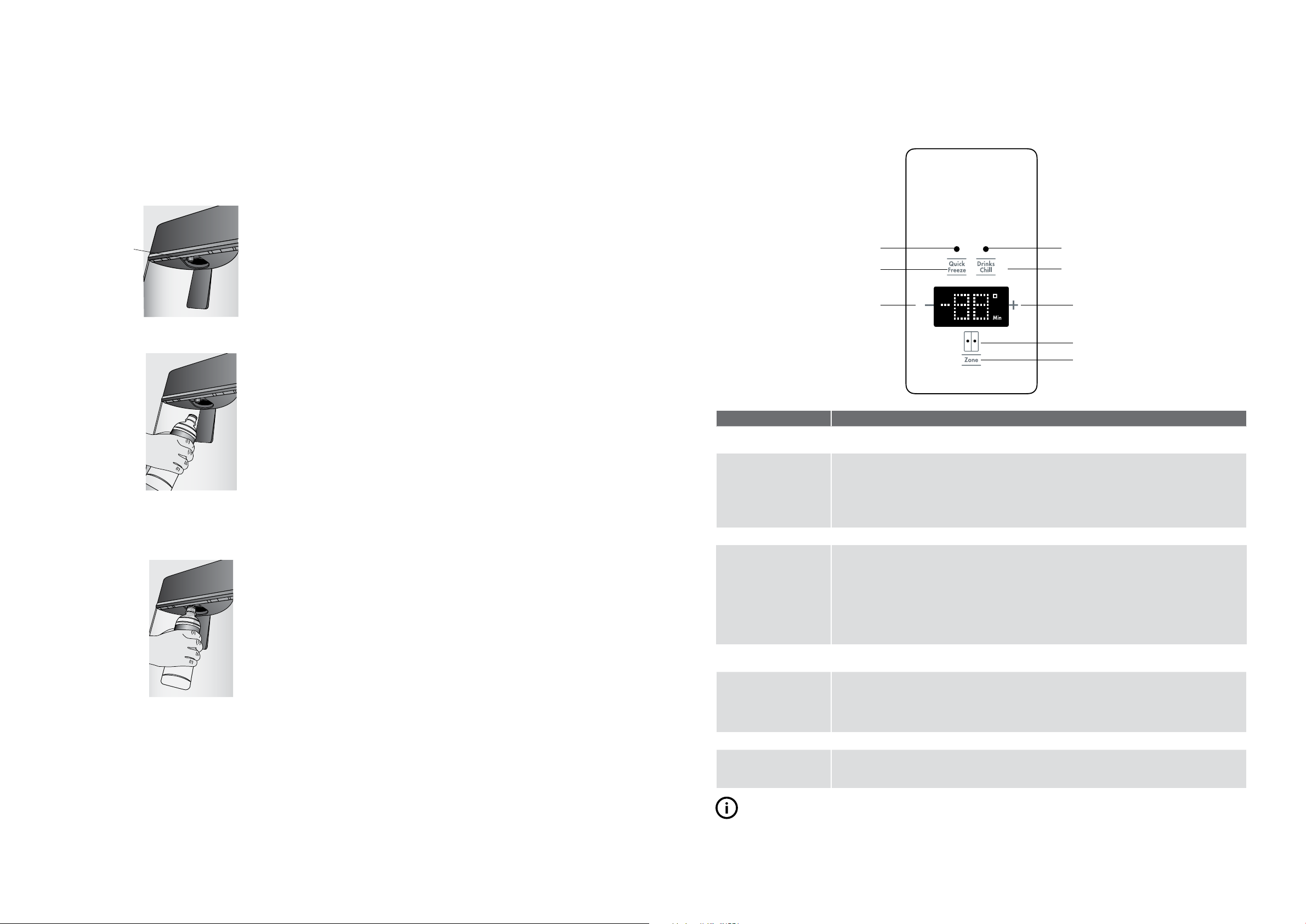

User interface
Non ice and water model ........................................................13

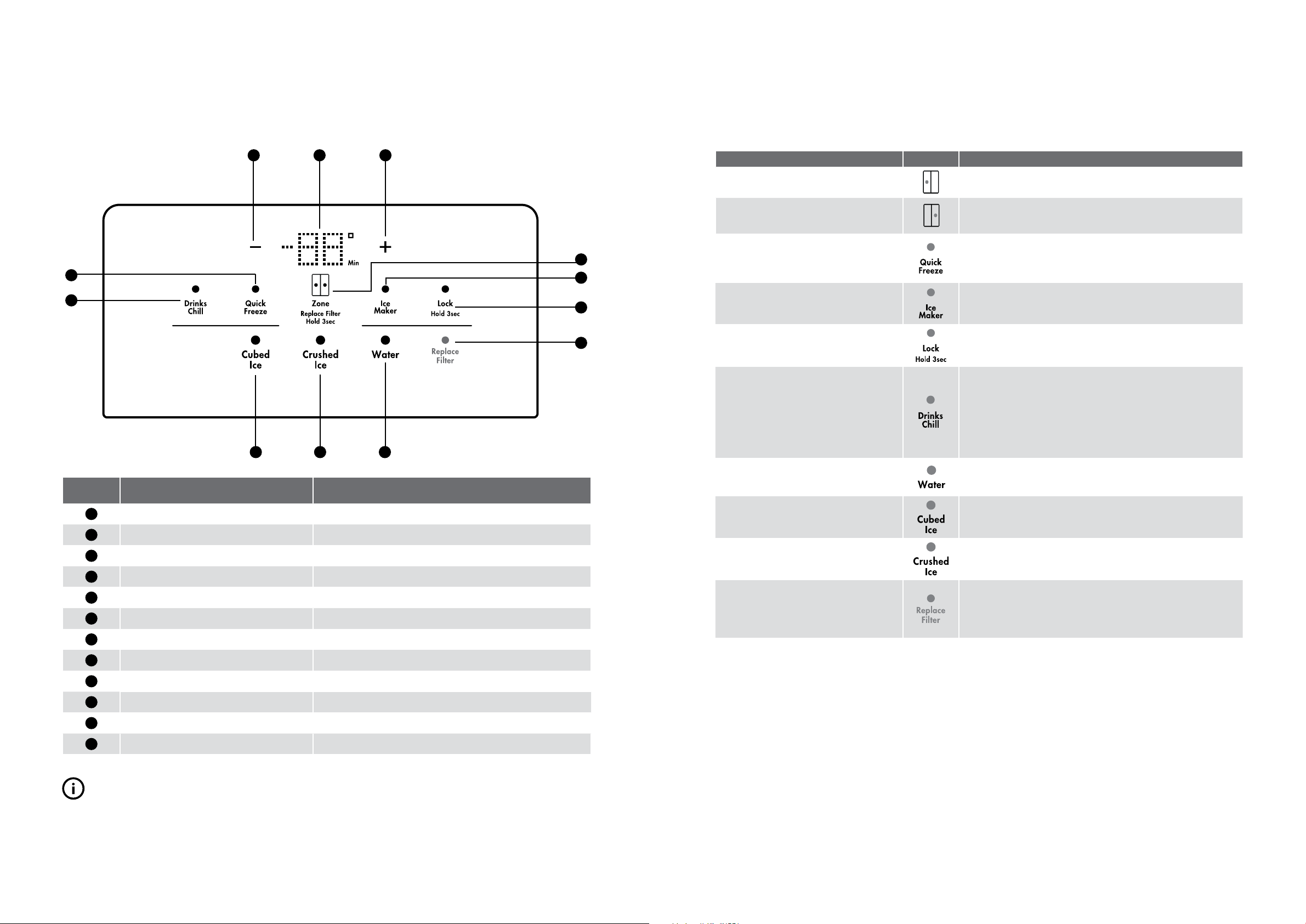

Ice and water model .................................................................14
General information
Cleaning the refrigerator ........................................................ 16
Food storage guide ...................................................................17
Troubleshooting
Temperature ................................................................................. 18
Noise ................................................................................................ 18
Crisper operation ....................................................................... 18
Refrigerator operation ............................................................. 19
Door operation ...........................................................................20
Automatic ice maker ...............................................................20
Ice dispenser .................................................................................21
Notes ................................................................................................22
Warranty information ..................................................................... 23
TIPS AND INFORMATION
Important – CHECK FOR ANY DAMAGE OR MARKS
If you find the appliance is damaged or marked, you must
report it within 7 days if you wish to claim for damage/
marks under the manufacturer’s warranty. This does not
affect your statutory rights.
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
IMPORTANT SAFETY
INSTRUCTIONS
Note: You must read these warnings carefully before
installing or using the refrigerator. If you need assistance,
contact your customer care centre. The manufacturer will
not accept liability, should these instructions or any other
safety instructions incorporated in this book be ignored.
WARNING
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
• It is essential the power point is properly earthed to
ground. Consult a qualified electrician if you
are unsure.
• Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or moving it
to avoid electric shock.
• Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
• If the power cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Don’t use a steam cleaner. If live components come
into contact with condensing steam, they may shortcircuit or cause an electric shock.
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If pressurised aerosol containers bear the word
‘flammable’ and/or a small flame symbol, do not store
them inside any refrigerator or freezer. If you do so
you may cause an explosion.
• Do not damage the refrigerant circuit.
• Wait at least 4 hours before connecting the appliance
to the power supply. This is to allow the oil to flow
back in the compressor.
• This appliance contains insulation formed with
flammable blowing gases. Avoid safety hazards by
carefully disposing of this appliance.
• If you wish to discard this refrigerator, please contact
your local authorities and ask for the correct method
of disposal.
• When you dispose of your old refrigerators and
freezers, remove any doors. Children can suffocate if
they get trapped inside.
• The plug must be accessible when the appliance is
in position.
• Never try to repair the refrigerator yourself, only use a
qualified or authorized service person for repairs.
WARNING
R600a refrigerant warning
This appliance contains flammable R600a refrigerant.
Avoid safety hazards by carefully installing, handling,
servicing and disposing of this appliance.
• Ensure that the tubing of the refrigerant circuit is not
damaged during transportation and installation.
• Leaking refrigerant may cause eye injuries or ignite.
• The room for installing appliance must be at least
1m3 per 8g of refrigerant. The amount of refrigerant in
the appliance can be found on the rating plate inside
the appliance.
• If you are unsure of the refrigerant check the rating
plate inside the refrigerator compartment.
• It is hazardous for anyone other than an Authorised
Service Person to service this appliance. In
Queensland Australia the Authorisation Service
Person MUST hold a Gas Work Authorisation for
hydrocarbon refrigerants to carry out servicing or
repairs which involve the removal of covers.
• Keep ventilation openings in the appliance enclosure
or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
2 3CONTENTS SAFETY
NON ICE AND WATER FEATURES
1
LED lighting
2
SpillSafeTM glass shelves
– The glass shelves
improve visibility
and isolate leaks –
preventing spills from
dripping down to the
shelves below.
3
Twist and Serve Ice
maker.
4
Humidity control –
Change the humidity
by sliding the
humidity control. Less
humid conditions
are recommended
for fruit, while more
humid conditions are
recommended for
vegetables.
5
Freezer door bin.
6
Freezer baskets.
7
FamilySafe lockable
compartment – This
compartment can be
used to store dairy
and is also lockable
for storing items
like cosmetics and
medicines. To operate
the lock, squeeze and
turn the knob located
on the front of the bin
as indicated.
8
FlexStor bins – Slide
FlexStor bins to meet
different storage needs.
To remove, lift and tilt.
To replace, tilt the top
and push down until
locked in place.
9
Fold away bottle
rack – Bottle can be
rotated and clipped
underneath the shelf to
optimise storage space.
10
FlexFresh crisper – Use
the crisper to store
vegetables, fruit or
small goods. Change
the humidity by sliding
the humidity control.
1
2
3
4
5
6
11
Bottle storage bin
with fingers – Use the
bottle bin for tall bottle
storage. The bottle bin
can be removed by
lifting it up over the
support lugs.
To replace, push down
over the support lugs
to lock in place.
12
Can bin – Use the can
for the handy storage
of cans or small jars.
Control panel
From this panel you can
control the temperature of
the refrigerator and freezer
compartments as well as
setting the quick freeze and
drinks chill functions.
For further information
on how to use this feature
refer to the section “About
the User Interface”.
ICE AND WATER FEATURES
1
7
1
Water filter.
2
Ice maker.
3
Ice Storage Bin – Refer
2
3
to the section “Using
your Refrigerator” for
8
9
details on using this
feature.
4
LED lighting
5
SpillSafeTM glass shelves
– The glass shelves
improve visibility
4
5
and isolate leaks –
preventing spills from
10
dripping down to the
shelves below.
6
Humidity control –
6
Change the humidity
11
by sliding the humidity
control. Less humid
conditions are
7
recommended.
7
Freezer door bin.
8
Freezer baskets.
9
FamilySafe lockable
12
compartment – This
8
compartment can be
used to store dairy
and is also lockable
for storing items
like cosmetics and
medicines. To operate
the lock, squeeze and
turn the knob located
on the front of the bin
as indicated.
10
FlexStor bins – Slide
FlexStor bins to meet
different storage needs.
To remove, lift and tilt.
To replace, tilt the top
and push down until
locked in place.
11
Fold away bottle
rack – Bottle can be
rotated and clipped
underneath the shelf to
optimise storage space.
12
FlexFresh crisper –
Use the crisper to store
vegetables, fruit or
small goods. Change
the humidity by sliding
the humidity control.
13
Bottle storage bin
with fingers – Use the
bottle bin for tall bottle
storage. The bottle
bin can be removed
by lifting it up over
the support lugs. To
replace, push down
over the support lugs
to lock in place.
14
Can bin – Use the can
for the handy storage
of cans or small jars.
Control panel
From this panel you can
control the temperature of
the refrigerator and freezer
compartments as well as
setting the quick freeze and
all the icemaker functions.
For further information
on how to use this feature
refer to the section “About
the User Interface”.
1
2
3
4
5
6
Features may vary depending on model. Not all models will have features listed. Features may vary depending on model. Not all models will have features listed.
4 5FEATURES
FEATURES
ENVIRONMENTAL TIPS
WARNING
INSTALLING YOUR NEW
WARNING
DATE FITTED___/___/___
REFRIGERATOR
Unpacking
ENVIRONMENT
Most of the packing materials are recyclable. Please
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
Important – check for any damages or marks. If you find
the refrigerator is damaged or marked, you must report
it within 7 days should you wish to claim for damage/
marks under the manufacturers warranty. This does not
affect your statutory rights.
Clean your refrigerator thoroughly following the
instructions in the “Cleaning” section and wipe off any
dust that has accumulated during shipping.
Locating the refrigerator
CAUTION
Automatic aerosol systems (such as insect control)
should not be located adjacent to the product as the
spray may cause long term damage to the external
plastics of the appliance.
Do not put the refrigerator in a location that is too cold or
is unprotected, for example in a garage or on a veranda.
For optimal performance the ambient temperature should
be between 10°C and 43°C.
Put the refrigerator in a dry place avoiding areas of high
moisture or humidity.
Ensure the refrigerator is located on an even surface.
Adequate ventilation around your refrigerator
The diagram below shows the recommended airspace to
allow for ventilation of your refrigerator.
50mm
Recommended
minimum airspace
10mm
around the base of
the cabinet
10mm
Note: 10mm clearance at the top of the cabinet is once
the cabinet is tilted back and in it's final location.
Allow a 250 – 350mm minimum clearance on the hinge
side of the doors, if you place the refrigerator next to the
wall. This will make cleaning easier.
Make sure that cupboards or fixtures do not stick out
further than the refrigerator cabinet.
10mm
NOTE: Doors are designed to sit proud of cabinetry (not
flush). The clearances shown above are the recommended
minimum clearances.
250mm
Maximum
cupboard depth
350mm
Installing your refrigerator
1. Roll the refrigerator into place.
The rollers are designed for forward or backward
movement only. They are not castors. Moving the
refrigerator sideways may damage your floor and the
rollers. Before moving your refrigerator ensure the
adjusting nuts are fully wound up off the floor.
2. Using spanner supplied, wind the large height
adjusting nuts under door hinges down until the
refrigerator is tilted back by 10 – 15mm (see diagram)
and the cabinet is stable. If you have difficulty
winding the nut or height adjusting foot down,
have someone tilt the refrigerator back so you
have better access.
10–15mm
Height adjusting nut
Fixed rollers
3. Check the alignment of the refrigerator to the
surrounding cupboards to see if it is level. You can
adjust the level as detailed in step 2.
4. If you find your refrigerator rocks from corner to
corner, it means your floor is uneven. Find a piece
of plastic or hardboard etc. and pack it firmly under
the foot.
5. You may now need to fine-tune the installation by
repeating steps 2, 3 and 4.
Aligned to cupboard
– even gap
Centre roller
Top of refigerator is
level – horizontal
Adjust front feet for unevenness
of floor e.g. adjust this foot
down. Packing may be required
underneath the rear roller to
ensure stability.
6. Plug your refrigerator straight into its own power
point and never use a double adapter.
7. Before you put any food in your refrigerator, it’s
recommended you leave it on for 2 or 3 hours to
check it is running properly.
Fitting the handles
The handles are supplied prepackaged inside your
refrigerator and will require fitting. Refer to the
instructions provided in the pack.
Adjusting door alignment
The doors can be aligned by adjusting the right hand
door up or down by turning the adjustable bolt under the
hinge using the spanner provided.
Door alignment
Adjusting bolt
Lock nut
1. Loosen lock nut
2. Turn adjusting bolt until doors are aligned
3. Tighten lock nut
NOTE: When the height of the rollers and adjusting bolts
are correctly adjusted the refrigerator will stand firmly on
the floor and the doors will be in line with one another.
Fitting the handles
ICE AND WATER INSTALLATION
WARNING
Connect to potable water supply only.
The new hose-sets supplied with the appliance must be
used and old hose-sets should not be reused.
Never connect the appliance to a hot water supply.
Do not use with water that is microbiologically unsafe
or with water of unknown quality without adequate
disenfection.
Water Filter
The service life of the filter may be reduced in water
supplies that contain an excess of particles or other
impurities. Reduced flow rate is an indication that a new
filter is required. Failure to replace the filter when required
can affect the function of the ice maker. Service calls
caused by a failure to replace the filter are not covered
by warranty. Replacement water filters are available from
Electrolux Home Products Spare Parts Centres and can
be posted to you for your convenience (refer to spare
parts contact numbers on the warranty page).
Contents of installation kit
4 metres of water tubing
1 x 1/2” tap fitting
Water supply and plumbing
A drinkable water supply to suit a 1/2” tap fitting is
required adjacent to the refrigerator. It is recommended
that a licensed plumber install a new water supply outlet
nearer to the appliance should the tubing supplied not be
long enough. It is not recommended that the tubing be
extended as this could adversely affect the flow of water
to the ice maker or water dispenser. The water dispenser
and automatic ice maker require a drinkable water supply
with a pressure range of between 206kPa and 689kPa
(30PSI and 100PSI). If the water supply is above 100psi a
pressure limiting valve should be installed.
It is recommended that a noise reduction valve also be
fitted in the water supply line. This will reduce water
hammer and its effects from quick action household taps
and fast acting valves on appliances.
The refrigerator water valve is pre-fitted with a push-fit
connector for inserting the water tube. When the tap
connection is other than 1/2”, adapters can be purchased
from plumbing supply stores or good hardware stores.
6 7ICE & WATER INSTALLATIONINSTALLATION
The handles are supplied prepackaged inside your
refrigerator and will require tting. Refer to the instructions
provided in the pack.
Loading...
