Westinghouse WFB4204SA, WHE6060SA, WTB4600SALH Product Manual

USER MANUAL
REGISTER YOUR
to get product tips, safety
notifications and more.
westinghouse.com.au/register
REFRIGERATION
Top Mount, Bottom Mount, French Door & Single Door
WHE6000SA, WHE6060SA, WHE5200SA, WHE5260SA, WHE5200WA, WBE4504SA, WBE4514SA, WBE4500WA, WBE4500SA, WBE5304SA, WBE5314SA, WBE5300WA, WBE5300SA, WBE5360SA,
WTB4600SA, WTB4600WA, WTB4604SA, WTB5400SA, WTB5400WA, WTB5404SA, WBE5360SA,
WRB5004SA, WRB5004WA, WFB4204SA, WFB2804WA
CONGRATULATIONS
WARNING
WARNING
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Dear customer,
Congratulations and thank you for choosing our refrigerator. We are sure you will find your new refrigerator a pleasure to use. Before you use the refrigerator we recommend that you read through the relevant sections of this manual, which provides a description of your refrigerator and its functions.
To avoid the risks that are always present when you use an electric appliance, it is important that the refrigerator is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
After unpacking the refrigerator, please check it is not damaged. If in doubt, do not use the refrigerator but contact your local customer care centre.
The symbols you will see in this booklet have these meanings:
WARNING
This symbol indicates information concerning your personal safety.
CAUTION
This symbol indicates information on how to avoid damaging the refrigerator
IMPORTANT
This symbol indicates tips and information about use of the refrigerator
ENVIRONMENT
This symbol indicates tips and information about economical and ecological use of the refrigerator
Conditions of use
This refrigerator is designed and intended to be used in normal domestic applications only.
Record model and serial number here:
CONTENTS
Important safety instructions ........................................................3
Refrigerator Features
Top mount refrigerator features .........................................4
Bottom mount refrigerator features .................................5
French door refrigerator features ....................................... 6
Bottom mount with ice & water
refrigerator features ...............................................................7
French door with ice & water refrigerator features ... 8
Single door refrigerator features ....................................... 9
Single door freezer features .................................................10

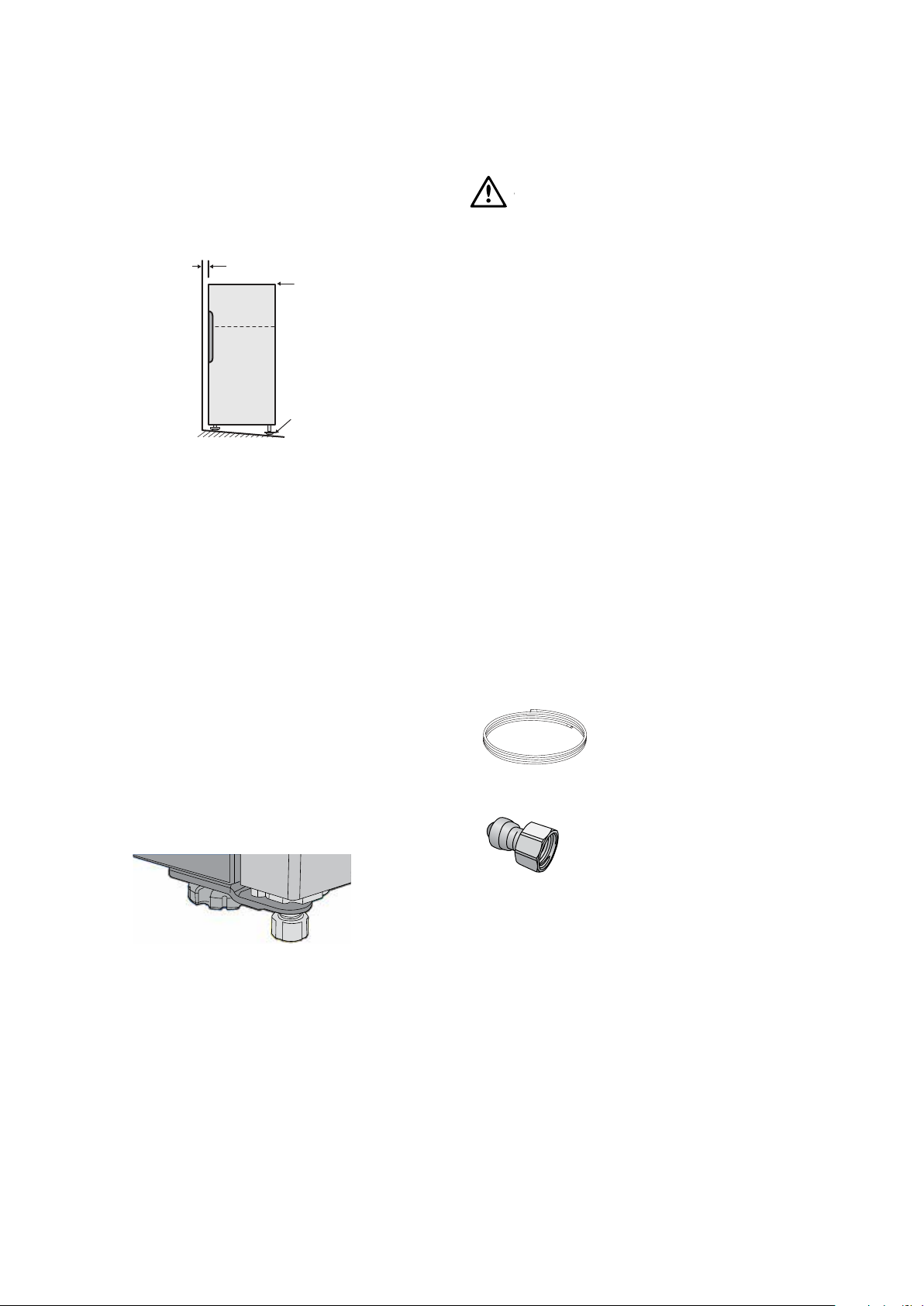

Installing your new refrigerator
Unpacking your refrigerator .................................................. 11

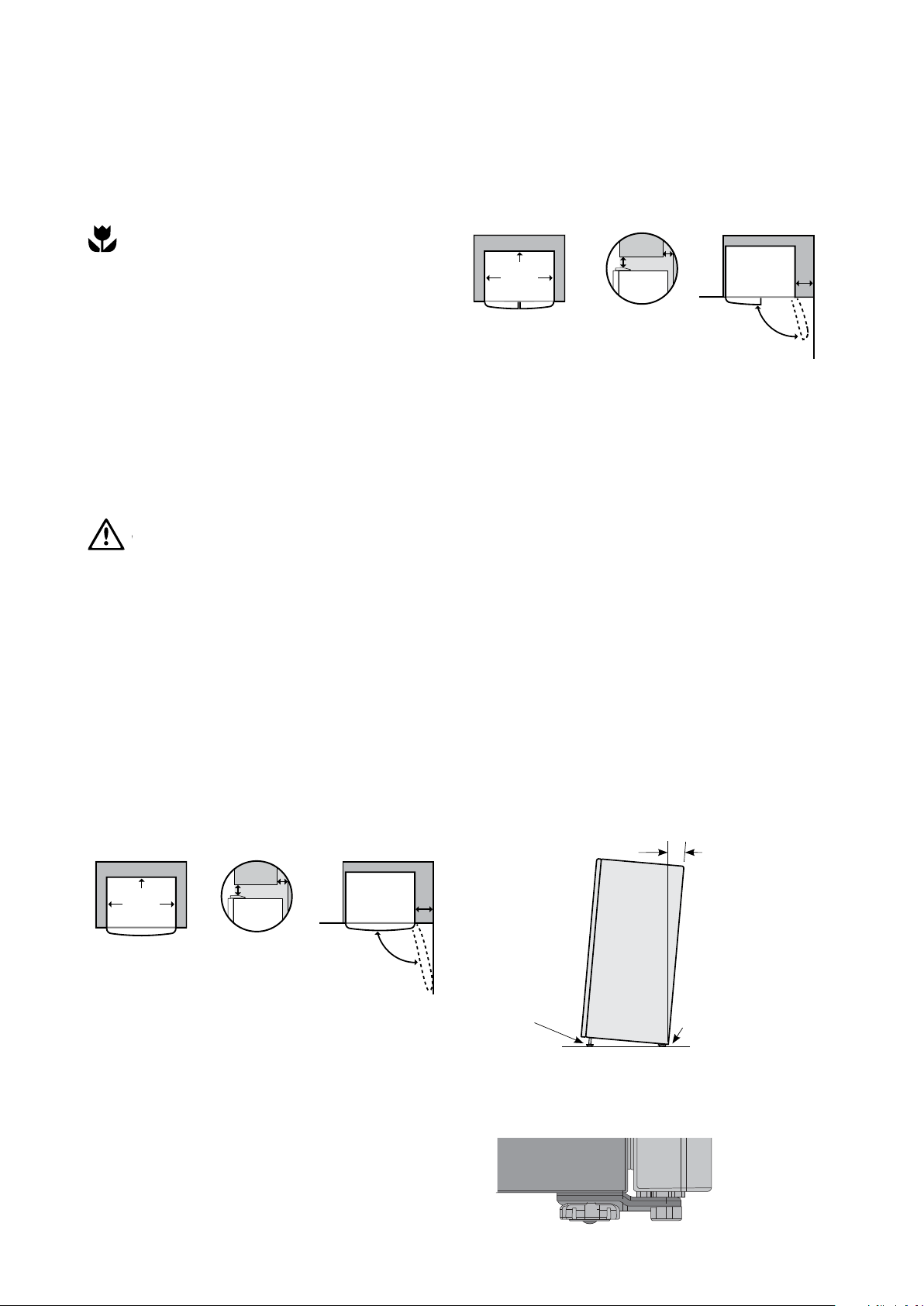

Locating your refrigerator. ..................................................... 11
Installing your refrigerator ...................................................... 11
Fitting the handles .................................................................... 12
Ice and Water Installation
Water filter .................................................................................... 12

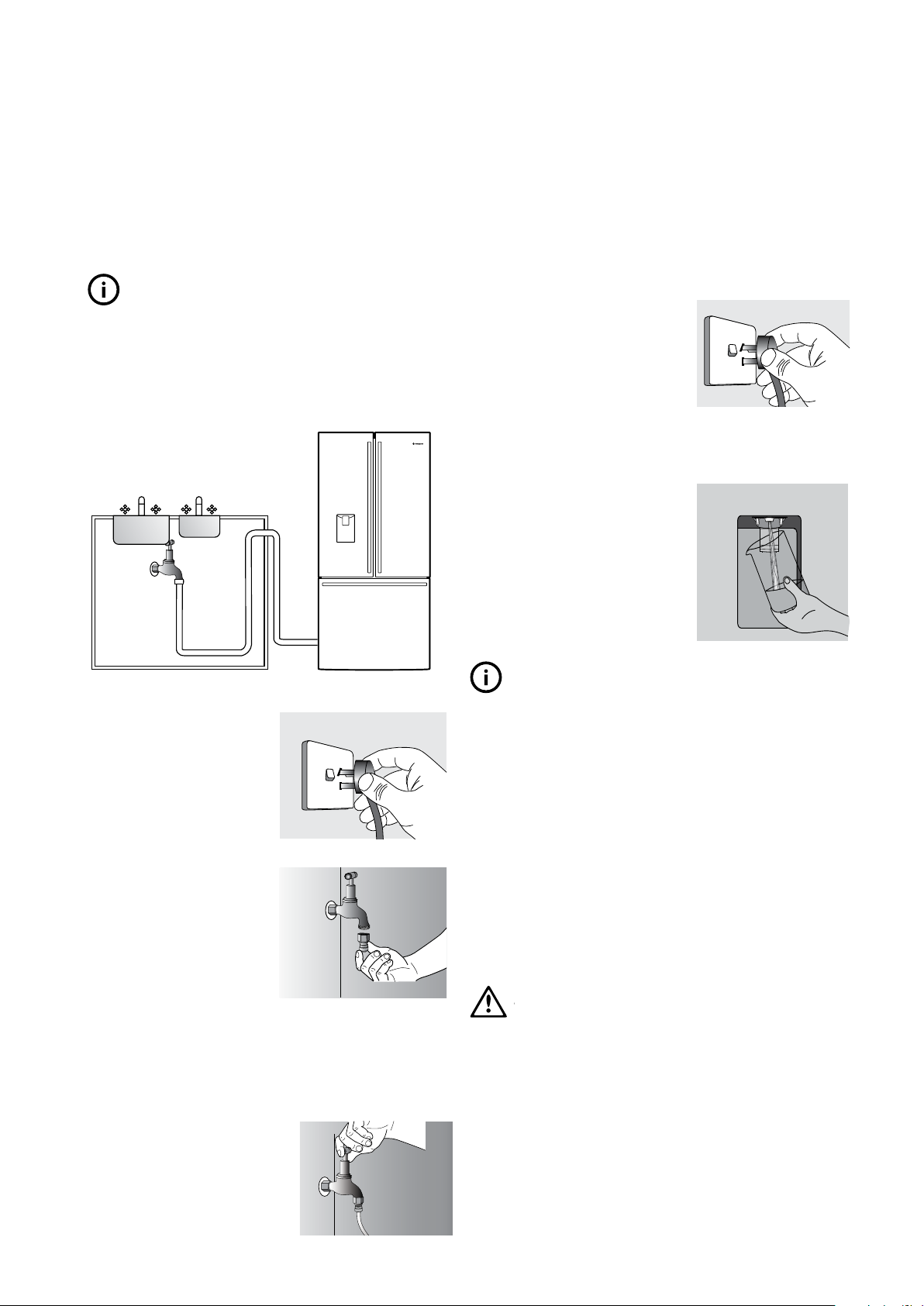

Water supply & plumbing ...................................................... 12

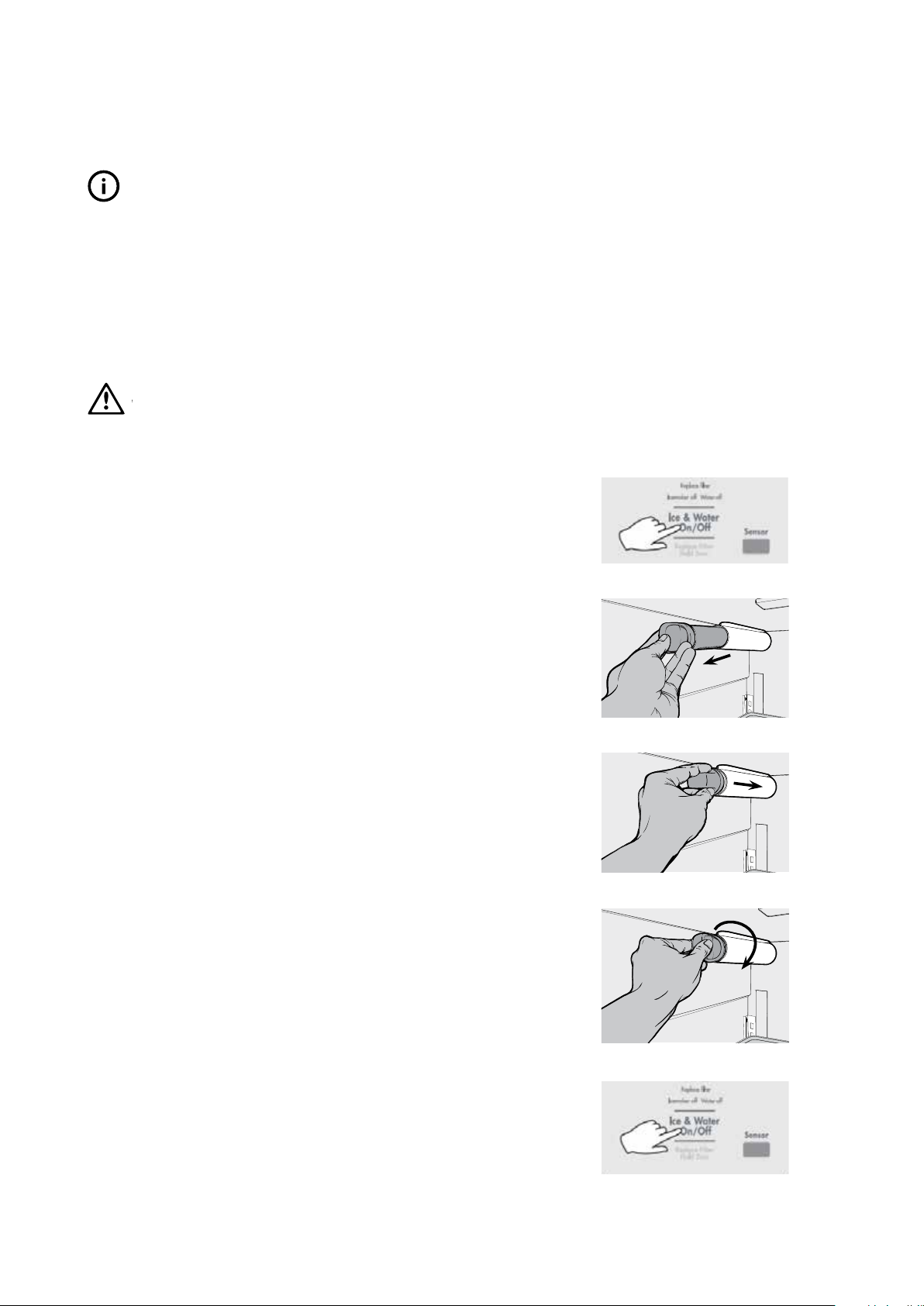

Replacing the water filter ..............................................................14
Using your refrigerator
Removing Features ................................................................... 15
Crisper Bin .....................................................................................15
SpillSafe™ glass shelves ..........................................................15
Freezer Shelves ........................................................................... 15
Drawers with telescopic slides ............................................16
Twist & Serve ice ........................................................................16
LED Lighting ................................................................................ 17
Temperature control ................................................................. 17
About the User Interface

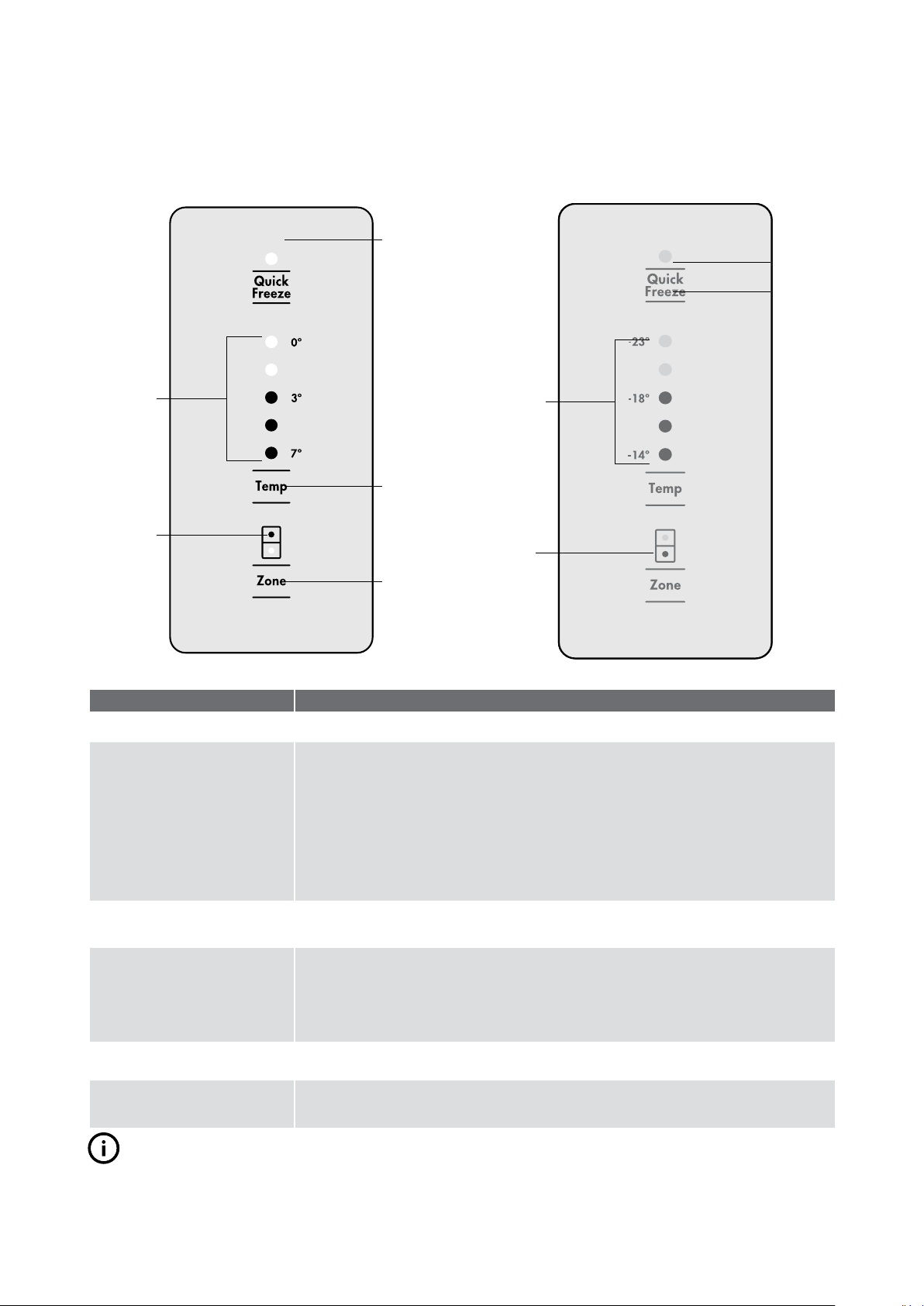

Top mount & single door models .......................................18
Bottom mount/French door models ..............................20
All freezer models ......................................................................21

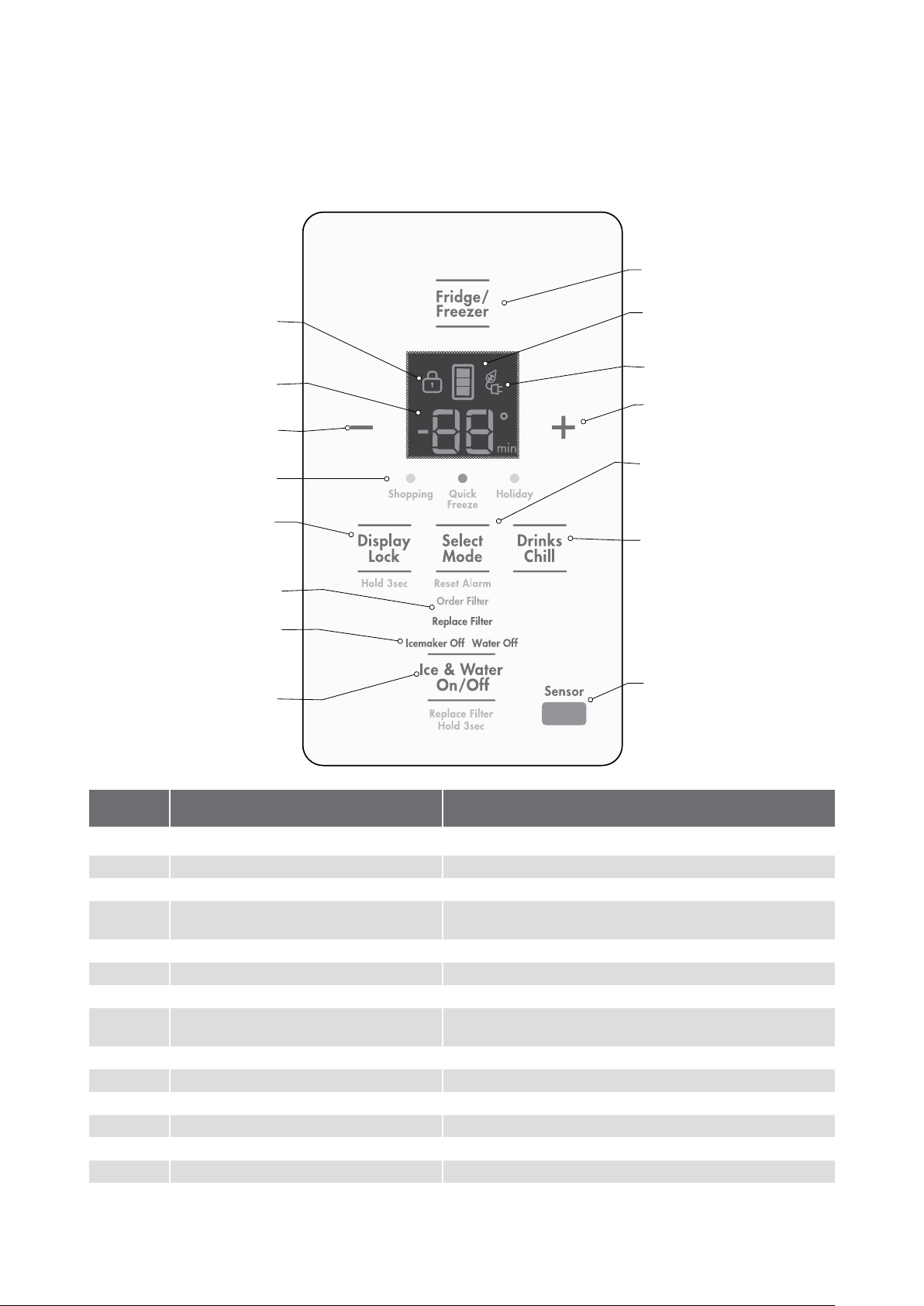

Bottom mount/French door Ice & Water .....................22
General information
Error Codes ..................................................................................23
Cleaning the refrigerator .......................................................24
Food storage guide .................................................................25
Troubleshooting.........................................................................26
Ice & water troubleshooting ................................................29
Warranty ........................................................................................31
Model number:........................................................................................
Serial number: .........................................................................................
2 CONTENTS
WARNING
IMPORTANT SAFETY
WARNING
INSTRUCTIONS
Note: You must read these warnings carefully before installing or using the refrigerator. If you need assistance, contact your customer care centre. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.
WARNING
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
It is essential the power point is properly earthed to ground. Consult a qualified electrician if you are unsure.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Unplug the refrigerator before cleaning or moving it to avoid electric shock.
Never unplug the refrigerator by pulling the electrical cord as this may damage it. Grip the plug firmly and pull straight out.
If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Don’t use a steam cleaner. If live components come into contact with condensing steam, they may short­circuit or cause an electric shock.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. If pressurised aerosol containers bear the word ‘flammable’ and/or a small flame symbol, do not store them inside any refrigerator or freezer. If you do so you may cause an explosion.
Do not damage the refrigerant circuit.
This appliance contains insulation formed with flammable blowing gases. Avoid safety hazards by carefully disposing of this appliance.
If you wish to discard this refrigerator, please contact your local authorities and ask for the correct method of disposal.
When you dispose of your old refrigerators and freezers, remove any doors. Children can suffocate if they get trapped inside.
The plug must be accessible when the appliance is in position.
Never try to repair the refrigerator yourself, only use a qualified or authorised service person for repairs.
WARNING
R600a refrigerant warning
This appliance contains flammable R600a refrigerant. Avoid safety hazards by carefully installing, handling, servicing and disposing of this appliance.
Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation.
Leaking refrigerant may cause eye injuries or ignite.
The room for installing appliance must be at least 1m3 per 8g of refrigerant. The amount of refrigerant in the appliance can be found on the rating plate inside the appliance.
If you are unsure of the refrigerant check the rating plate inside the refrigerator compartment.
It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland Australia the Authorisation Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.
Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3SAFETY
TOP MOUNT REFRIGERATOR FEATURES
Freezer temperature
control
Refer to the section
“Temperature control” for
details on using this feature.
Twist & Serve Ice
Refer to the section “Using
your Refrigerator” for details
on removing, relocating and
Your refrigerator is fitted with
Use the deli drawer to store foods like small goods, fresh or cooked meat and cheese, or as
an additional crisper. The drawer
will prevent strong food odours
from impacting the rest of the
refrigerator. To remove the deli
drawer, pull it forward, then lift it
up and pull it further forward.
Change the humidity by sliding the humidity control. Less humid conditions are recommended for
fruit, while more humid conditions
are recommended for vegetables.
vegetables, fruit or small goods.
Change the humidity by sliding
organise and separate fruit
using this feature.
LED lighting
LED lighting.
Deli drawer
Humidity control
FlexFresh crisper
Use the crisper to store
the humidity control.
Crisper divider
Use the crisper divider to
and vegetables.
SpillSafeTM glass shelves
The glass shelves improve visibility and isolate leaks-
preventing spills from dripping
down to the shelves below.
WTB4604S illustrated
Adjustable freezer bin divider
Use the dividers to organise stored items by twisting to lock into the holes provided.
FamilySafe lockable compartment
This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines. To operate the lock, turn the knob located on the front of the bin.
FlexStor door bins
Slide FlexStor bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage bin with fingers
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
4 FEATURES

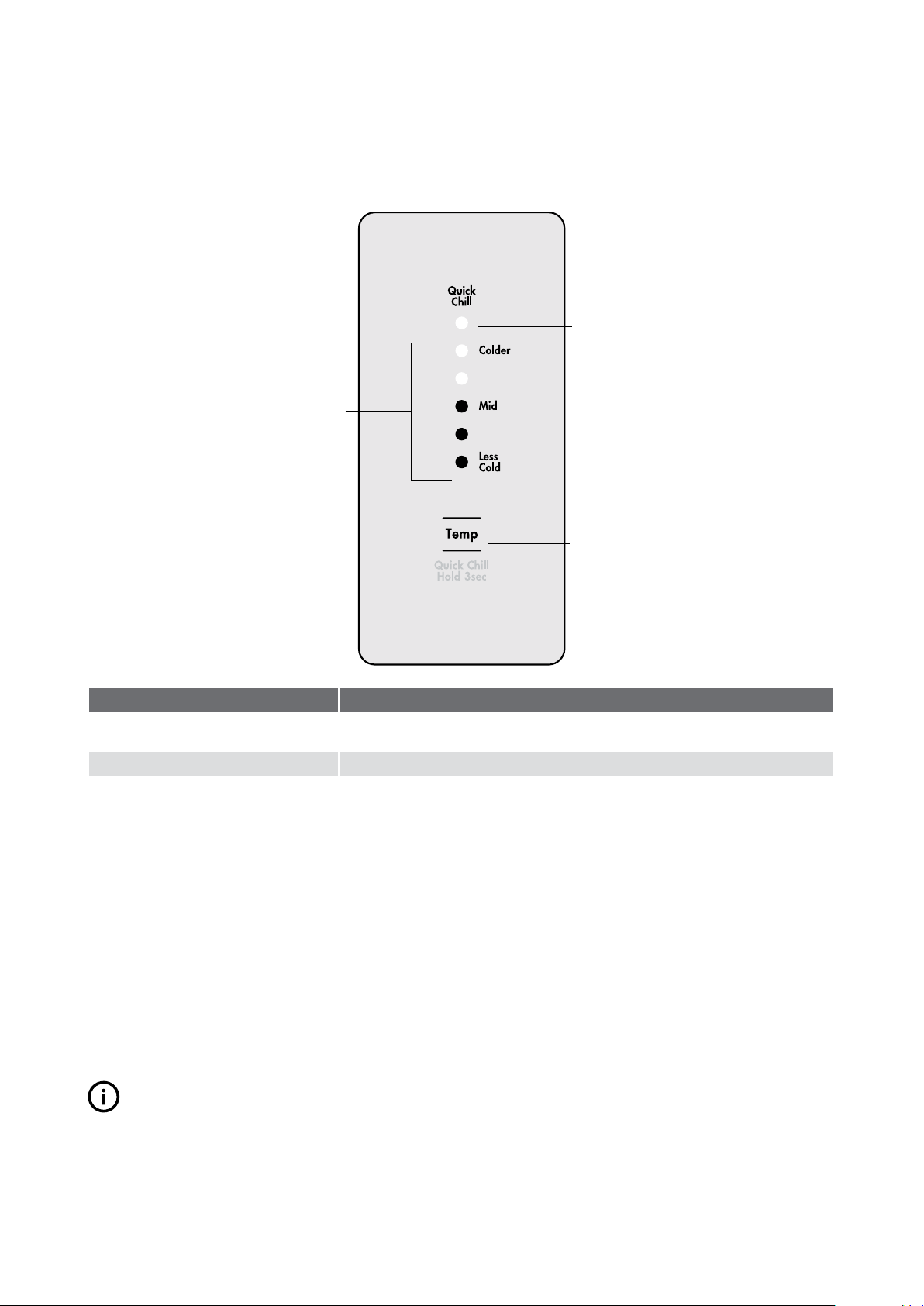

Refrigerator control panel
From this panel you can control the temperature of the refrigerator compartment as well as setting the quick chill function or resetting the door alarm.

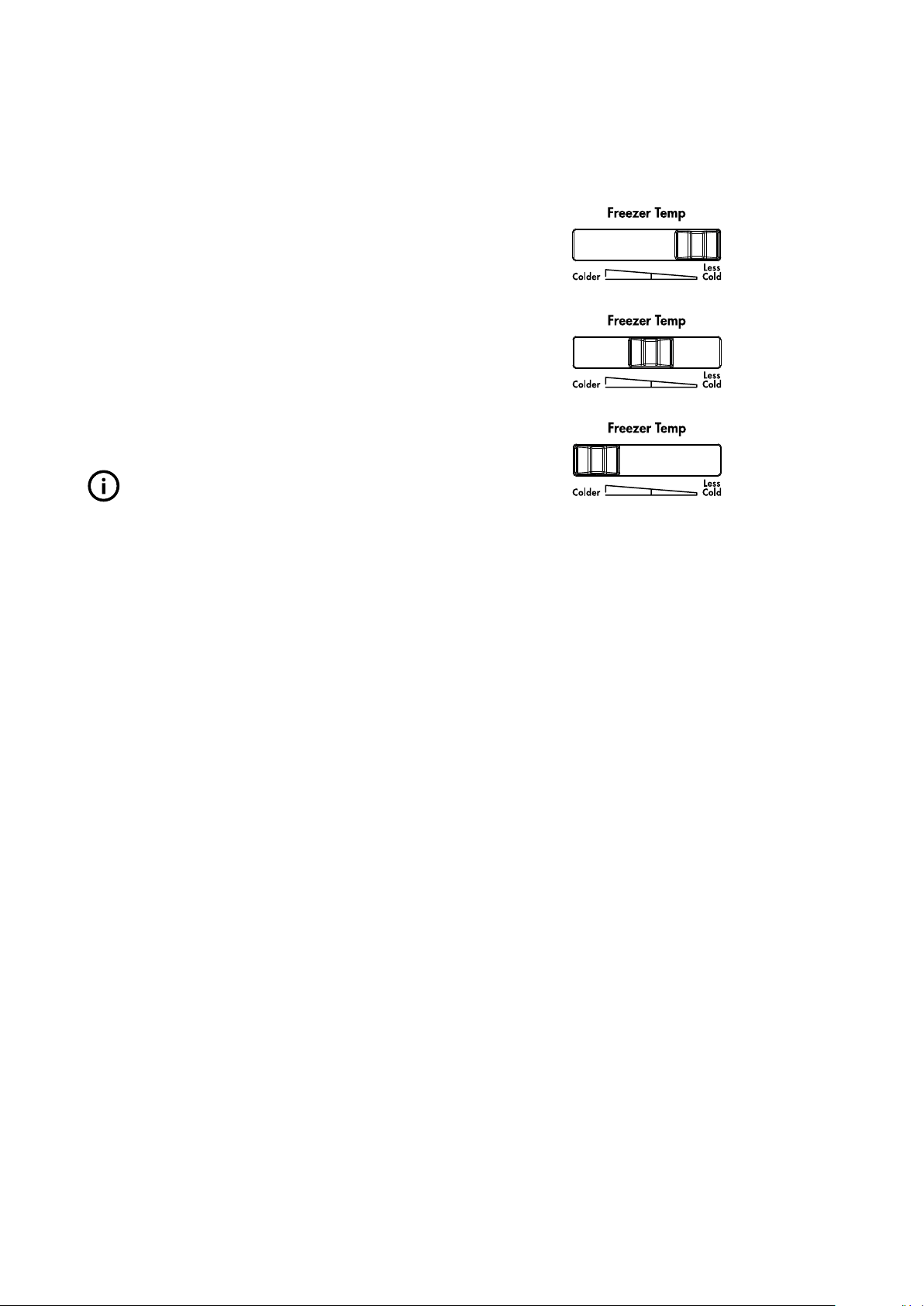

Freezer control
This is a simple slide control to adjust the temperature of your freezer compartment.
For further information on how to use this feature refer to the section “Using your Refrigerator”.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
BOTTOM MOUNT REFRIGERATOR FEATURES
LED lighting
Your refrigerator is fitted with
LED lighting.
Bottle rack
(Available in selected
models only)
FlexFresh crisper
Use the crisper to store
vegetables, fruit or small goods.
Change the humidity by sliding
the humidity control.
Humidity control
Change the humidity by sliding the humidity control. Less humid conditions are recommended for
fruit, while more humid conditions
are recommended for vegetables.
Crisper divider
Use the crisper divider to organise
and separate fruit and vegetables.
Twist & Serve Ice
Refer to the section “Using
your Refrigerator” for
details on removing and
using this feature.
Freezer storage bin
Refer to the section “Using
your Refrigerator” for details
on removing, and usi
ng
this feature.
FamilySafe lockable compartment
This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines. To operate the lock, turn the knob located on the front of the bin.
FlexStor bins
Slide FlexStor bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage bin with fingers
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
WBE5304S illustrated
SpillSafeTM glass shelves
The glass shelves improve visibility and isolate leaks-
preventing spills from dripping
down to the shelves below.
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
5FEATURES
FRENCH DOOR REFRIGERATOR FEATURES
LED lighting
Your refrigerator is fitted with
LED lighting.
Bottle rack
(Available in selected
models only)
FlexFresh crisper
Use the crisper to store
vegetables, fruit or small goods.
Change the humidity by sliding
the humidity control.
(dual crispers in 600L models)
Humidity control
Change the humidity by sliding
the humidity control. Less humid conditions are recommended for
fruit, while more humid conditions
are recommended for vegetables.
Crisper divider
Use the crisper divider to organise
and separate fruit and vegetables.
(single crisper models only)
Twist & Serve Ice
Refer to the section “Using
your Refrigerator” for details
on removing and using
this feature.
Freezer storage bin
Refer to the section “Using
your Refrigerator” for details on
removing, and using this feature.
WHE5200S illustrated
FamilySafe lockable compartment
This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines. To operate the lock, turn the knob located on the front of the bin.
FlexStor door bins
Slide FlexStor bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage bin with fingers
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
SpillSafeTM glass shelves
The glass shelves improve visibility and isolate leaks­preventing spills from dripping down to the shelves below.
6 FEATURES
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
BOTTOM MOUNT ICE & WATER REFRIGERATOR FEATURES
LED lighting
Your refrigerator is fitted with
LED lighting.
Water filter
Bottle rack
(Available in selected
models only)
FlexFresh crisper
Use the crisper to store
vegetables, fruit or small goods.
Change the humidity by sliding the
humidity control.
Humidity control
Change the humidity by sliding
the humidity control. Less humid
conditions are recommended for
fruit, while more humid conditions
are recommended for vegetables.
Crisper divider
Use the crisper divider to organise
and separate fruit and vegetables.
Automatic Ice maker
Refer to the section “Using your
Refrigerator” for details on using
this feature.
Ice bin & Ice scoop
Use the ice bin for ice storage
Use ice scoop to gather ice
from bin
Freezer storage bin
Refer to the section “Using
your Refrigerator” for details
on using this feature.
FamilySafe lockable compartment
This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines. To operate the lock, turn the knob located on the front of the bin.
FlexStor door bins
Slide FlexStor bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage
WBE5360S illustrated
bin with fingers
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
SpillSafeTM glass shelves
The glass shelves improve visibility and isolate leaks­preventing spills from dripping down to the shelves below.
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function, controlling the Ice Maker or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
7FEATURES
FRENCH DOOR ICE & WATER REFRIGERATOR FEATURES
LED lighting
Your refrigerator is fitted with
LED lighting.
Water filter
Bottle rack
(Available in selected
models only)
FlexFresh crisper
Use the crisper to store
vegetables, fruit or small goods.
Change the humidity by sliding
the humidity control.
(dual crispers in 600L models)
Humidity control
Change the humidity by sliding
the humidity control. Less humid
conditions are recommended for
fruit, while more humid conditions
are recommended for vegetables.
Crisper divider
Use the crisper divider to
organise and separate fruit
and vegetables.
(single crisper models only)
Automatic ice maker
Refer to the section “Using
your Refrigerator” for details
on using this feature.
Ice bin & Ice scoop
Use the ice bin for ice storage
Use ice scoop to gather ice
from bin
Freezer storage bin
Refer to the section “Using
your Refrigerator” for details
on using this feature.
WHE5260 illustrated
FamilySafe lockable compartment
This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines. To operate the lock, turn the knob located on the front of the bin.
FlexStor bins
Slide FlexStor bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage bin with fingers
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
SpillSafeTM glass shelves
The glass shelves improve visibility and isolate leaks­preventing spills from dripping down to the shelves below.
8 FEATURES
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function, controlling the Ice Maker or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
SINGLE DOOR REFRIGERATOR FEATURES
LED Lighting
Your refrigerator is fitted with
LED lighting.
Deli drawer
Use the deli drawer to store foods like small goods, fresh or cooked meat and cheese,
or as an additional crisper.
The drawer will prevent strong
food odours from penetrating
the rest of the refrigerator. To
remove the deli drawer, pull it
forward, then lift it up and pull
it further forward.
FamilySafe lockable compartment
This compartment can be used to store dairy and is also lockable for storing items like cosmetics and medicines. To operate the lock, turn the knob located on the front of the bin.
FlexStor bins
Slide FlexStor bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
FlexFresh crisper
Use the crisper to store
vegetables, fruit or small goods.
Humidity control
Change the humidity by sliding the humidity control. Less humid conditions are recommended for
fruit, while more humid conditions
are recommended for vegetables.
Crisper divider
Use the crisper divider to
organise and separate fruit
and vegetables.
SpillSafeTM glass shelves
The glass shelves improve visibility and isolate leaks-
preventing spills from dripping
down to the shelves below.
Refrigerator control panel
From this panel you can control
the temperature of the refrigerator compartment as well as setting the quick chill function or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
WRB5004S
illustrated
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage bin with fingers
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Features may vary depending on model. Not all models will have features listed.
9FEATURES
SINGLE DOOR FREEZER FEATURES
LED lighting
Your refrigerator is fitted with
LED lighting.
Storage bins
Refer to the section “Using
your Refrigerator” for details on
removing, and using this feature.
Twist & serve ice
Refer to the section “Using your Refrigerator” for details on removing, relocating and using this feature.
WFB4204S illustrated

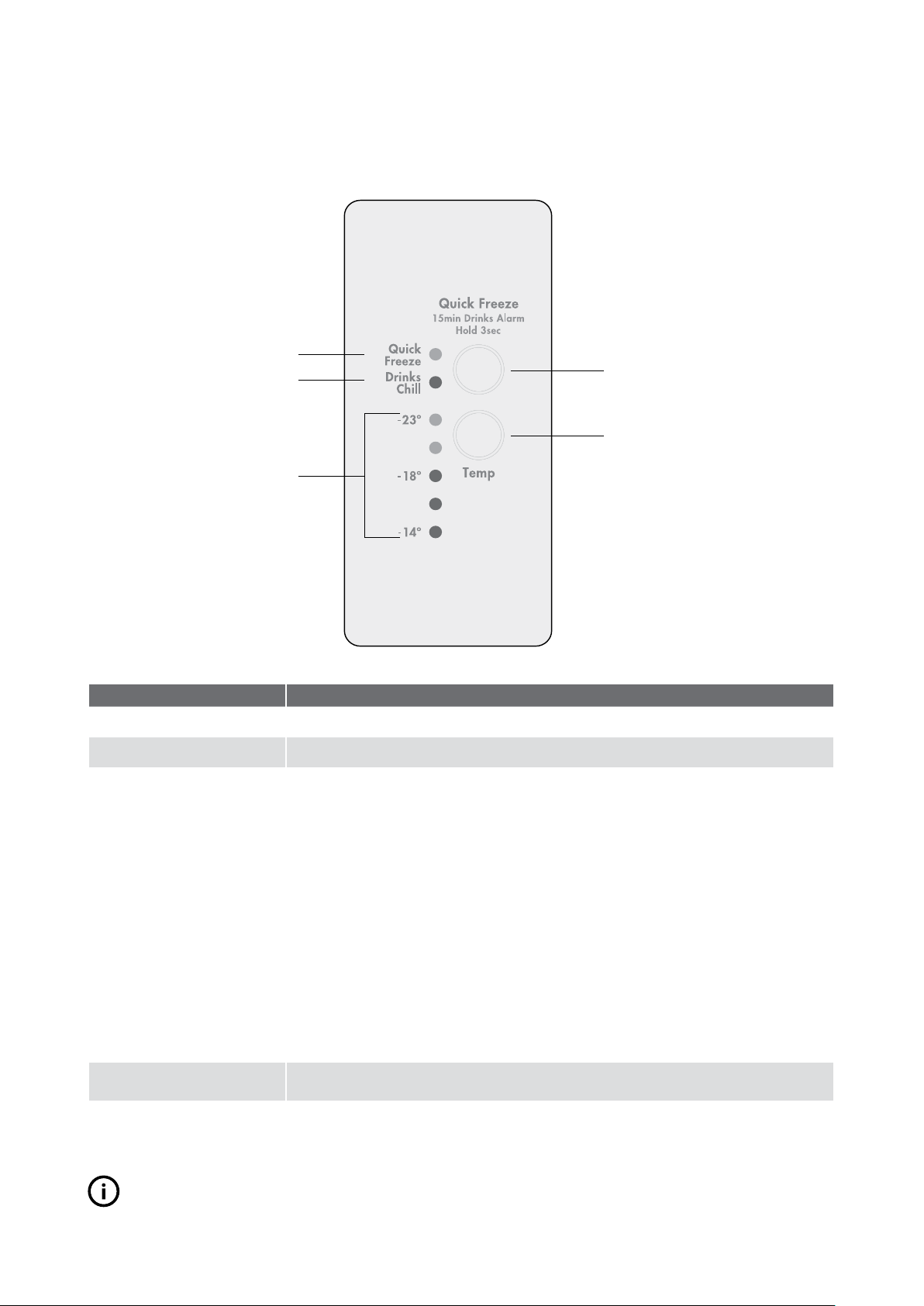

Freezer control
From this panel you can control the temperature of the freezer as well as setting the quick freeze and drinks chill functions or reset the door alarm.
For further information on how to use this feature refer to the section “Controlling your Refrigerator”.
Features may vary depending on model. Not all models will have features listed.
10 FEATURES
Loading...
+ 22 hidden pages
