WD Passport
™
POCKET DRIVE
Quick Install Guide
WD Passport POCKET DRIVE
Quick Install Guide
Important:
WD recommends installing the latest service packs and
updates. For Windows®, go to the Start menu and select
Windows Update. For Mac
select Software Update.
®
, go to the Apple menu and
For Windows 98SE, you must install the USB Mass
Storage driver on your system before connecting the
pocket drive. Visit support.wdc.com, click Knowledge
Base, and search for answer ID 1286.
Connecting the Drive

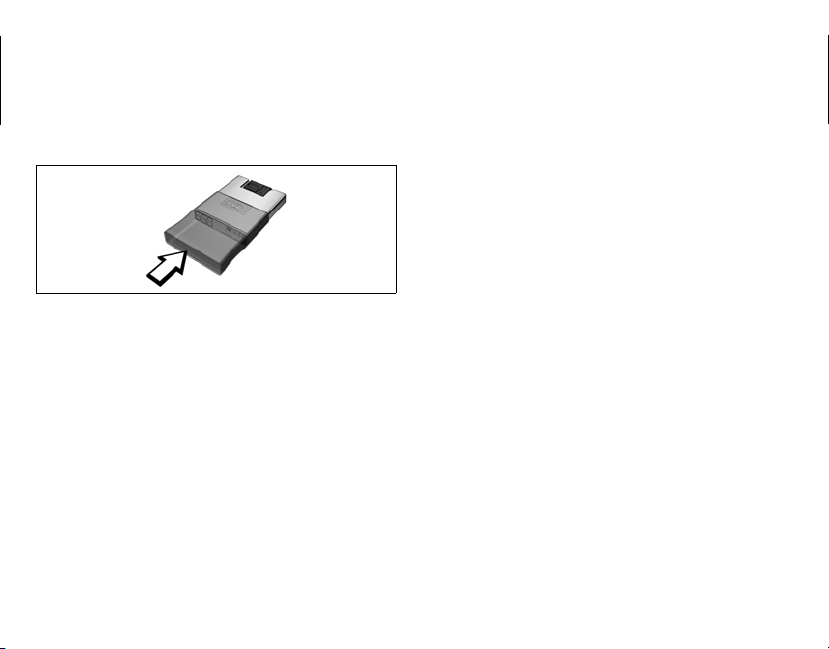

1 Slide out the connector 2 Rotate the connector if necessary 3 Connect to your computer
Disconnecting the Drive
Windows
Double-click the Safely Remove Hardware icon in your
system tray (typically in the bottom right corner of your
screen). Select USB Mass Storage Device and click Stop.
Click OK to confirm your selection. Now you can safely
disconnect the drive from your computer.
Macintosh
the desktop, and drag it to the Trash icon. After the disk
icon disappears, you can safely disconnect the drive from
your computer.
1
®
Locate the Removable Drive(s) icon for this device on
Using WD Sync
Go to My Computer and double-click the
WD Passport drive icon. Locate and double-click
wdsync.exe to launch WD Sync. Follow the
™
instructions as prompted.
Protecting the Drive
As a safeguard, slip on the protective sleeve. You can
purchase additional sleeves in a variety of colors from the
WD Store at store.wdc.com.
Limited Warranty
WD warrants that the Product, in the course of its normal use, will
be free from defects in material and workmanship for a period of one (1)
year, unless otherwise required by law, and will conform to WD’s
specification therefor. This limited warranty period shall commence on
the purchase date appearing on your purchase receipt. WD shall have no
liability for any Product returned if WD determines that the Product
was stolen from WD or that the asserted defect a) is not present, b)
cannot reasonably be rectified because of damage occurring before WD
receives the Product, or c) is attributable to misuse, improper
installation, alteration (including removing or obliterating labels and
opening or removing external enclosures, unless authorized to do so by
WD or an authorized service center), accident or mishandling while in
the possession of someone other than WD. Subject to the limitations
specified above, your sole and exclusive warranty shall be, during the
period of warranty specified above and at WD’s option, the repair or
replacement of the Product. The foregoing warranty of WD shall extend
to repaired or replaced Products for the balance of the applicable period
of the original warranty or ninety (90) days from the date of shipment of
a repaired or replaced Product, whichever is longer.
The foregoing limited warranty is WD’s sole warranty and is
applicable only to products sold as new. The remedies provided herein
are in lieu of a) any and all other remedies and warranties, whether
expressed, implied or statutory, including but not limited to, any
implied warranty of merchantability or fitness for a particular purpose,
and b) any and all obligations and liabilities of WD for damages
including, but not limited to accidental, consequential, or special
damages, or any financial loss, lost profits or expenses, or lost data
arising out of or in connection with the purchase, use, or performance
of the Product, even if WD has been advised of the possibility of such
damages. In the United States, some states do not allow exclusion or
limitations of incidental or consequential damages, so the limitations
above may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
For Service and Literature
support.wdc.com
www.westerndigital.com
800.ASK.4WDC North America
949.672.7199 Spanish
+800.6008.6008 Asia Pacific
+31.20.4467651 EMEA
Western Digital
20511 Lake Forest Drive
Lake Forest, California 92630 U.S.A.
Western Digital is a registered trademark; and WD, the WD logo,
WD Passport, and WD Sync are trademarks of Western Digital
Technologies, Inc. Other marks may be mentioned herein that
belong to other companies.
© 2006 Western Digital Technologies, Inc. All rights reserved.
2079-001068-A01 May 2006
