Industrial and IoT
Storage Solutions
• Decades of innovation in the flash memory Industry
• Broad portfolio of NAND flash products
for industrial and IoT applications
• World-class fabs
• Vertically integrated products (including controller,
firmware, assembly and testing)
• Extensive ecosystem integration and system-level expertise
• Remote monitoring capabilities
3
1
| Storage Soluti ons for I ndustrial and IoT
| Industrial and IoT Storage Solutions
Empowering IoT and Industrial Innovation
The convergence of ubiquitous connectivity and compute capability is driving an exponential growth in
connected devices and connected sensors, generating incredible volumes of data and enabling vast new types
of transformative applications and business models. Adding to this complicated but exciting picture are the
tremendous amounts of data rapidly flowing from ar tificial intelligence and machine learning. In addition to
capturing this data locally as primary or backup storage, edge storage devices, such as Western Digital embedded
storage, Solid State Drives (SSDs) and industrial cards, will help maximize network efficiency and enable systems to
analyze the data and act on the results in real-time.
Meeting Industrial and IoT Demanding Environmental, Endurance
and Reliability Requirements
Leveraging 30 years of expertise in NAND flash memory and storage systems, Western Digital IndustrialGrade products deliver edge storage solutions for industrial and IoT applications requiring durability, high
reliability, and high-intensity recording across a wide range of operational requirements. Designed and tested
to withstand demanding environmental conditions, such as extreme temperatures, humidity and vibration, our
portfolio features advanced memory management firmware, which includes power immunity, auto/manual
read refresh, error-correcting code (ECC), and wear leveling. Data (write)-intensive applications can rely on
Western Digital Industrial products to capture every critical moment, log each event, and ensure quality of
service to end-users. These high-endurance solutions offer extended product life cycles which can reduce
total cost of ownership (TCO) by eliminating costly redesigns and minimizing unnecessary maintenance calls.
Serving Industrial and IoT Applications
Industrial PC
Factory Automation
Transportation POS and Ultra-thin Devices
Networking
Medical and Agriculture
Digital Signage
SoM and SBC
Industrial and IoT Storage Solutions |
2
Advanced Features
e.MMC Embedded Flash Drives
iNAND® IX EM122 and EM132 e.MMC 5.1 storage solutions offer
dependable and robust embedded storage options to system
designers in the Industrial and IoT market. The EM132 is the first
256GB and 3D NAND-based e.MMC in the Industrial and IoT market.
Features and Benefits
• e.MMC 5.1 interface
• 8GB to 256GB in small form factor
• Wide temperature range: –25°C to 85°C (I) and –40°C to 85°C(XI)
• Auto and manual refresh, enhanced health status, smart partitioning
UFS Embedded Flash Drive
iNAND IX EM312 the industrial-grade UFS version 2.1 based on 3D NAND
technology, delivers higher capacities and up to 2.5 times the
performance of e.MMC-based products.
Features and Benefits
• UFS 2.1 interface for high data speeds
• 16GB to 256GB in small form factor
• Wide temperature range: –25°C to 85°C (I) and –40°C to 85°C(XI)
• Fast boot, auto refresh, manual refresh, enhanced health status
PCIe SSD
Western Digital IX SN530, PC SN530, CL SN720, CL SN520, and
PC SN730 NVMeTM SSDs are designed to capture massive amounts
of sensor and imaging (video) data from POS, delivery robots, factory
automation, industrial PCs and laptops and gaming devices—some
generating terabytes of data per day.
Features and Benefits
• PCIe Gen3×4 NVMe 1.4
• M.2 2280, M.2 2242 and
M.2. 2230 form factors
• High capacities up to 2TB
• TLC and SLC configurations for higher
endurance of up to 24 PBW (IX SN530)
• Temperature range:
-40°C–85°C (IX SN530)
0°C–85°C (CL series)
0°C–70°C (PC SN730 & PC SN530)
Note: One megaby te is equal to one m illion bytes, one giga byte (GB) is equal to o ne billion bytes and on e terabyte (TB) i s equal to one trillion by tes.
Actual u ser capacit y may be less due to op erating environmen t.
3
| Industrial and IoT Storage Solutions
Advanced Features
SATA SSD
Western Digital PC SA530 and SanDisk X600 SATA SSDs deliver leading-
edge performance, high capacity, and enhanced endurance. In capacities
of up to 1TB, the PC SA530 3D NAND SATA SSD is optimized for the
demanding power management requirements of ultra-thin and small
form factor products.
Features and Benefits
• X600 – 128GB
• PC SA530 – 256GB to 1TB
• 2.5” and M.2 2280 form factors
• Sequential R/W up to 560/530 MB/s
• Random R/W up to 95K/84K IOPS
SD Cards
Industrial SD Card IX LD332 and LD342 are ideal for Industrial and
IoT applications that require a removable storage media like drones,
drive recorder, digital signage, aviation, and body and dash cams.
Features and Benefits
• 8GB – 512GB
• High endurance (3K P/E Cycle)
• Wide temperature range: –25°C to 85°C (I) and –40°C to 85°C(XI)
• BOM control
• Extended longevity
microSDTM Cards
Industrial microSD Card IX QD332, QD334 and QD342 offer industrial-
grade extended temperature flexibility to support customers that not
only want a removable solution but also a small form factor with
extreme endurance. SLC, MLC, and TLC solutions are available.
Features and Benefits
• 8GB to 256GB
• Wide temperature range:
–25°C to 85°C (I) and –40°C to 85°C(XI)
• Extreme endurance (Up to 30K P/E cycle)
• Longevity
• BOM control
• Auto/manual refresh, health
status, host lock
Industrial and IoT Storage Solutions |
4
Industrial Embedded Flash Drives
iNAND IX EM132 iNAND IX EM122 iNAND IX EU312
Interface
1
Capacity
Operating Temperature
NAND Flash Technology
Ordering Information
–40°C-85°C (XI) 32G B – 256GB
e.M MC 5 .1 e.M MC 5 .1 UFS 2 .1
16GB–256GB 8GB–64GB 16GB–256GB
–25°C – 85°C (I)
–25°C – 85°C (I)
–40°C – 85°C (XI)
–25°C – 85°C (I)
–40°C – 85°C (XI)
3D TLC 2D MLC 3D TLC
SDINBDA6-XXXG-I1/XI1 SDINBDG4-XXXG-I2/XI2 SDINDDH6-XXXG-I/XI
Industrial SD Cards Industrial microSD Cards
Industrial IX LD342 Industrial IX LD332 Industrial IX QD342 Industrial IX QD332 Industrial IX QD334
Interface SD 6.0 UHS-I 104 SD 5.1 UHS-I 104 SD 6.0 UHS-I 104 SD 5.1 UHS-I 104 SD 5.1 UHS-I 104
1
Capacity
Operating Temperature –25°C – 85°C
NAND Flash Technology 3D TLC 2D MLC 3D TLC 2D MLC 2D SLC
Speed Class C10, U1, U3, V10, V30 C10 C10, U1, U3, V10, V30 C10, U1 C10, U3
Performance R/W2 Up to 100/50 MB/s Up to 80/50 MB/s Up to 100/50 MB/s Up to 80/50 MB/s Up to 90/50 MB/s
Ordering Information SDSDAF4-XXXG-I SDSDAF3-XXXG-I/XI SDSDQAF4-XXXG-I SDSDQAF3-XXXG-I/XI SDSDQED-XXXG-XI
16GB to 512GB 8GB to 64GB 16GB to 256GB 8GB to 128GB 8GB to 64GB
–25°C – 85°C (I)
–40°C – 85°C (XI)
–25°C – 85°C
–25°C – 85°C (I)
–40°C – 85°C (XI)
–40°C – 85°C (XI)
SATA Drives for Industrial and IoT Applications
Commercial X600 Commercial PC SA530
Interface SATA III (Rev 3. 2) SATA III (Rev 3. 2)
Form Factor 2.5”/7 mm and M.2 2280 2.5”/7 mm and M.2 2280
1
Capacity
Operating Temperature 0°C – 85°C 0°C – 70° C
NAND Flash Technology 3D TLC 3D TLC
Performance R/W
Endurance
2
3
2.5”/7 mm non-SED SD9SB8W-128G SDASB8Y-XXXG/1T00 (1TB)
2.5”/7 mm SED SD9TB8W-128G SDATB8Y-XXXG/1T00 (1TB)
M.2 2280 non-SED SD9SN8W-128G SDASN8Y-XXXG/1T00(1TB)
M.2 2280 SED SD9TN8W-128G SDATN8Y-XXXG/1T00(1TB)
5
| Industrial and IoT Storage Solutions
128GB 256GB to 1TB
Up to 560/530 MB/s Up to 560/530 MB/s
Up to 500 TBW Up to 400 TBW

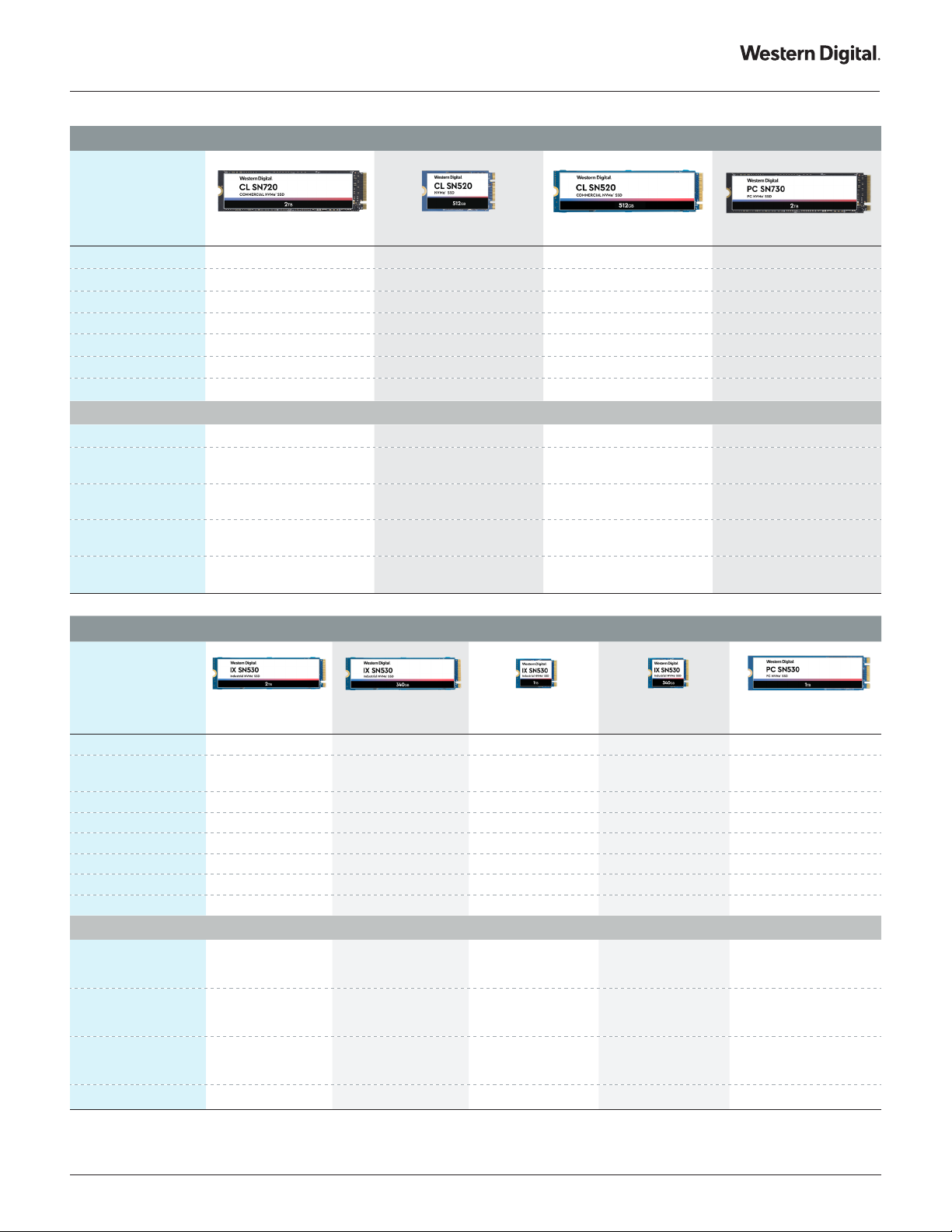

Solid State Drives (PCIe/NVMe)
Commercial CL SN720 Commercial CL SN520 Commercial CL SN520 Commercial PC SN730
Interface PCIe Gen3×4 NVMe 1.3 PCIe Gen3×2 NVMe 1.3 PCIe Gen3×2 NVMe 1.3 PCIe Gen3×4 NVMe 1.3
Form Factor M.2 2280 M.2 2242 M.2 2280 M.2 2280
1
Capacity
Operating Temperature 0°C – 85°C 0°C – 85°C 0°C – 85°C 0°C – 70° C
NAND Flash Technology 3 D TLC 3D TLC 3D TLC 3D TLC
Performance R/W
Endurance
2
3
Ordering Information
128GB
256GB SDAQNT W-256G -1022 SDAPMUW-256G-1022 SDAPNUW-256G -1022
512GB SDAQNTW-512G-1022 SDAPMUW-512G-1022 SDAPNUW-512G-1022
1TB SDAQNT W-1T00–1022
256GB to 2TB 128GB to 512TB 128GB to 512TB 256GB to 1TB
Up to 3,470/3,000 MB/s Up to 1,700/1,450 MB/s Up to 1,700/1,450 MB/s Up to 3,400/3,100 MB/s
Up to 1600 TBW Up to 400 TBW Up to 400 TBW Up to 400 TBW
SDAPMUW-128G-1022 SDAPNUW-128G-1022
SDBPNTY-256G (Non-SED)
SDBQNTY-256G (SED)
SDBPNTY-512G (Non-SED)
SDBQNTY-512G (SED)
SDBPNTY-1TOO (Non-SED)
SDBQNTY-1TOO (SED)
2TB SDAQNTX-2T0 0–1022
Solid State Drives (PCIe/NVMe)
Industrial-grade
IX SN530
Interface PCIe Gen3×4 NVMe 1.4 PCIe Gen3×4 NVMe 1.4 PCIe Gen3×4 NVMe 1.4 PCIe Gen3×4 NVMe 1.4 PCIe Gen3×4, NVMe v1.4
Form Factor
1
Capacity
M.2 2280-S3-M M.2 2280-S3-M M.2 2230-S3-M M.2 2230-S3-M
256GB to 2TB 85GB to 340GB 256GB to 1TB 85GB to 340GB 256GB to 1TB
Operating Temperature -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C 0°C to 70°C
NAND Flash Technology 3D TLC 3D SLC 3D TLC 3D SLC 3D TLC
Performance R/W
Performance sustain W
Endurance
2
3
Up to 2,500/1,800 MB/s Up to 2,400/1,950 MB/s Up to 2,400/1,950 MB/s Up to 2,400/1,950 MB/s Up to 2400/1950 MB/s
2
Up to 540 Up to 1,950 MB/s Up to 540 MB/s Up to 1,950 MB/s -
Up to 5,200 TBW Up to 24 PBW Up to 2,600 TBW Up to 24 PBW Up to 400 TBW
Ordering Information
256GB / 85GB SDBPNPZ-256G-XI SDBPNPZ-085G-XI SDBPTPZ-256G-XI SDBPTPZ-085G-XI
512GB / 170GB
1TB / 340G B SDBPNPZ-1T00-XI SDBPNPZ-340G-XI SDBPTPZ-1T00-XI SDBPTPZ-340G-XI
2TB SDBPNPZ-2T00-XI — — — —
SDBPNPZ-512G-XI SDBPNPZ-170G-XI SDBPTPZ-512G-XI SDBPTPZ-170G-XI
Industrial-grade
IX SN530
Industrial-grade
IX SN530
Industrial-grade
IX SN530
Commercial-grade
PC SN530
M.2 2230-S3-M, M.2242-S3-M,
M.2280-S3-M
SDBPTPZ-256G (M.2 2230)
SDBPMPZ-256G (M.2 2242)
SDBPNPZ-256G (M.2 2280)
SDBPTPZ-512G (M.2 2230)
SDBPMPZ-512G (M.2 2242)
SDBPNPZ-512G (M.2 2280)
SDBPTPZ-1T00 (M.2 2230)
SDBPMPZ-1T00 (M.2 2242)
SDBPNPZ-1T00 (M.2 2280)
1
1 gigaby te (GB) = 1 billion bytes. Actu al user c apaci ty less.
2
Based on intern al testing; per form ance may b e lower depending on hos t device, usage an d other f actor s. 1MB=1,0 00,000 by tes.
3
TBW (teraby tes written) val ues cal culate d using JEDEC client workload (JESD219) and var y by prod uct ca pacit y.
Industrial and IoT Storage Solutions |
6
5601 Great Oaks Pa rkway
San Jose, CA 95119, USA
www.westerndigital.com
© 2021 Western D igital Corpo ration or its af filiates. All rig hts reserved . Produced 03/21. Western D igital, the West ern Digital lo go, SanDisk, the S anDisk
logo and iNAND are registered trademarks or trademarks of Western Digital Corporation or its affiliates in the US and/or other countries.
The NVMe wo rd mark is a tradem ark of NVM Expres s, Inc. The micro SD, microSDHC an d microSDXC marks an d logos are trade marks of SD-3C, L LC.
All other m arks are the prop erty of their r espective owne rs. Western Digi tal Technologie s, Inc. is the sell er of record and lic ensee in the Amer icas of
SanDis k products. Re ferences in this p ublication to Wes tern Digital an d SanDisk prod ucts do not impl y that they will be m ade available in a ll countries.
Produc t specificatio ns provided are sa mple specific ations and do not co nstitute a warr anty. Pictures show n may vary from ac tual product s.
