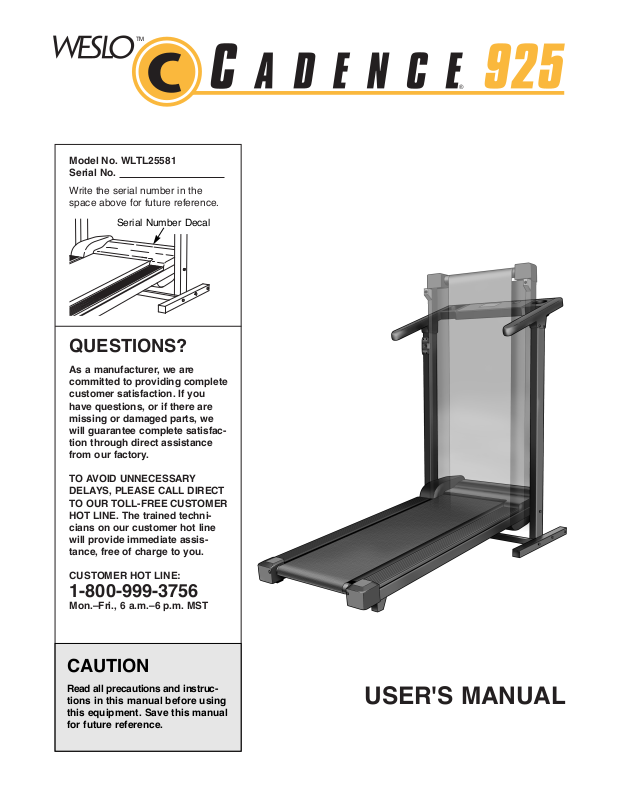

Weslo 925925 User Manual

¨

TM

USER'S MANUAL

QUESTIONS?

As a manufacturer, we are
committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfac­tion through direct assistance
from our factory.

TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni­cians on our customer hot line
will provide immediate assis­tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Model No. WLTL25581
Serial No.

Write the serial number in the
space above for future reference.

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

Serial Number Decal

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: A PART LIST and an EXPLODED DRAWING are attached in the center of this manual. Remove the PART
LIST and EXPLODED DRAWING before beginning assembly.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

2. Use the treadmill only as described in this
manual.

3. Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should not be used by persons
weighing more than 250 pounds.

8. Never allow more than one person on the
treadmill at a time.

9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose

clothing that could become caught in the
treadmill. Athletic support clothes are recom­mended for both men and women. Always

wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

10. When connecting the power cord (see HOW
TO PLUG IN THE POWER CORD on page 7),
plug the power cord into a surge protector
(not included) and plug the surge protector
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit.

11. Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or
less in length. Do not use an extension cord.

12. Keep the power cord and the surge protector
away from heated surfaces.

13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 4 if the tread­mill is not working properly.)

14. Never start the treadmill while you are stand­ing on the walking belt. Always hold the
handrails while using the treadmill.

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read

the following important precautions and information before operating the treadmill.

3

15. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.

16. The pulse sensor is not a medical device.

Various factors, including the user's move­ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.

17. To reduce the possibility of the treadmill
overheating, do not operate the treadmill
continuously for longer than one hour.

18. Never leave the treadmill unattended while it
is running. Always remove the key when the
treadmill is not in use.

19. Do not change the incline of the treadmill by
placing objects under the treadmill.

20. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO MOVE
THE TREADMILL on page 10.) You must be
able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.

21. When storing the treadmill, make sure that
the storage latch is fully closed.

22. Inspect and tighten all parts of the treadmill
every three months.

23. The roller guards must be 1/8 inch from the
rear roller (see the drawing on page 4).
Remove the key and adjust the roller guards,
if necessary.

24. Never drop or insert any object into any

opening.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser­vice representative only.

26. This treadmill is intended for in-home use
only. Do not use this treadmill in any com­mercial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. ICON assumes no responsibility for personal injury or prop­erty damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decal shown at the right has been
placed on your treadmill. If the decal is
missing, or if it is not legible, please call
our Customer Service Department, toll­free, to order a free replacement decal
(see ORDERING REPLACEMENT PARTS
on the back cover of this manual). Apply
the decal in the location shown.

4

BEFORE YOU BEGIN

Thank you for selecting the WESLO¨CADENCE 925
treadmill. The CADENCE 925 treadmill combines
advanced technology with innovative design to let you
enjoy an excellent form of cardiovascular exercise in
the convenience and privacy of your home. And when
youÕre not exercising, the unique CADENCE 925 can
be folded up, requiring less than half the floor space of
other treadmills.

For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,

please call our Customer Service Department toll-free

at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is WLTL25581. The serial
number can be found on a decal attached to the tread­mill (see the front cover of this manual for the loca­tion).

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

Handrails

Console

Storage Latch

Speed Control

Key/Clip

Circuit Breaker

Walking Belt

Foot Rails

Power Cord

FRONT

BACK

RIGHT SIDE

Rear Roller
Adjustment Bolts

Water Bottle Holder

(Bottle not included)

Accessory Tray

5

ASSEMBLY

Before beginning assembly, carefully read the
following information and instructions:

¥ Assembly requires two people.

¥ Place all parts in a cleared area and remove the

packing materials; do not dispose of the packing
materials until assembly is completed.

¥ As you assemble the treadmill, be sure that all

parts are oriented as shown in the drawings.

The following tools (not included) are required
for assembly:

¥ Two (2) adjustable wrenches

¥ One (1) phillips screwdriver

Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches, or a set of ratchet wrenches.

1. With the help of a second person, carefully lay the
treadmill on its side. Position one of the Base Legs
(55) on one of the Uprights (37) as shown. Make
sure that the Base Leg Pads (31) and the Front
Wheel (34) are in the indicated positions. Attach the
Base Leg with two Base Leg Bolts (28), two Base
Leg Washers (29), and two Base Leg Nuts (30).

With the help of a second person, carefully turn the
treadmill onto its other side. Attach the other Base
Leg (55) as described above.

With the help of a second person, carefully raise the
treadmill to the upright position so that both Base
Legs (55) are resting flat on the floor.

2. Hold the treadmill firmly with both hands and lower
the treadmill to the floor. To decrease the possibili-

ty of injury, bend your legs and keep your back
straight.

2

1

28

29

31

55

34

37

30

6

3. Carefully rotate the Console Base (45) to the posi­tion shown. Insert two Handrail Bolts (77) through
the Console Base and the Upright (37). The

Handrail Bolts must be inserted from the inside
as shown. Attach a Handrail Nut (86) and Handrail

Washer (85) to each Handrail Bolt.

Tighten all four Handrail Bolts (77) as tightly as
possible. Carefully lift up and push down on the
handrails to make sure that the Console Base
(45) does not move. Regularly inspect and tight­en all four Handrail Bolts.

4. Attach the Frame Guide (66) to the left side of the
Frame (21) with two Frame Guide Screws (44) as
shown. Note: Be careful not to overtighten the
Screws. Make sure that the thick end of the

Frame Guide is at the bottom.

5. Remove the backing from the Adhesive Clip (2).
Press the Adhesive Clip onto the base of the Upright
(37) in the indicated location. Press the Allen
Wrench (35) into the Adhesive Clip.

6. The Console (49) requires two "AA" batteries (not

included); alkaline batteries are recommended.

Open the Battery Cover (48) as shown. Press two
batteries into the battery compartment, with the nega­tive (Ð) ends of the batteries touching the springs.
Close the battery cover, push up on the battery cover
tab, and then push the tab forward as shown in the
inset drawing. Be sure that the tab locks into place.

7. Make sure that all parts are properly tightened
before you use the treadmill. The use of the remain­ing parts will be described in other sections of this
manual. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

4

5

21

35

37

2

66

Thick end

44

37

45

86

85

77 77

86

85

77

77

37

45

Handrails

3

6

48

49

Batteries

Battery

Cover Tab
