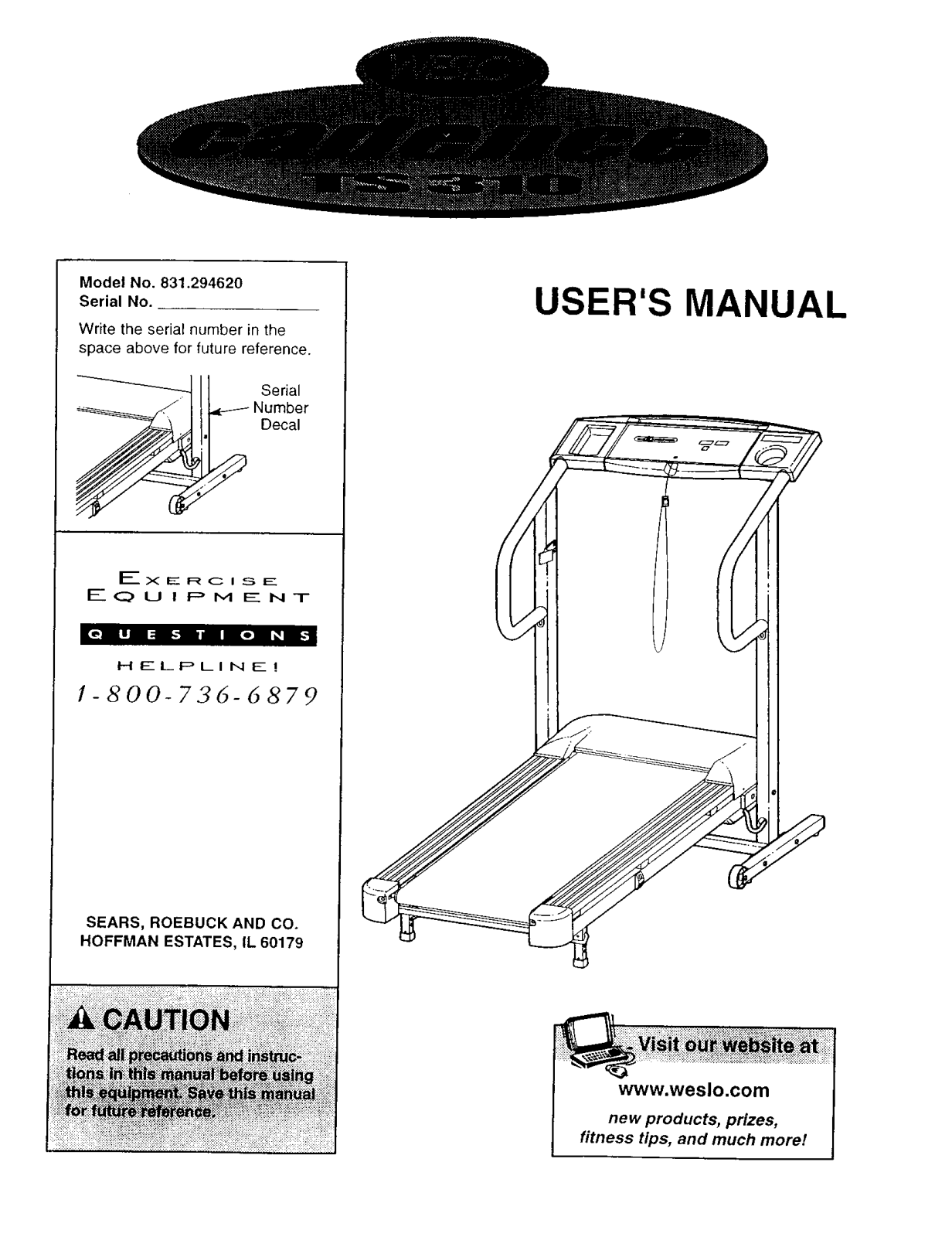

Model No. 831.294620
Serial No.
Write the serial number in the
space above for future reference,
Serial
Decal
F___-x Ez.t_t (D i .5 E
EO u i PM ENT
HELPLINE!
1-800-736-6879
USER'S MANUAL
SEARS, ROEBUCK AND CO.
HOFFMAN ESTATES, IL 60179
www.weslo.com
new products, prizes,
fitness tips, and much morel
i

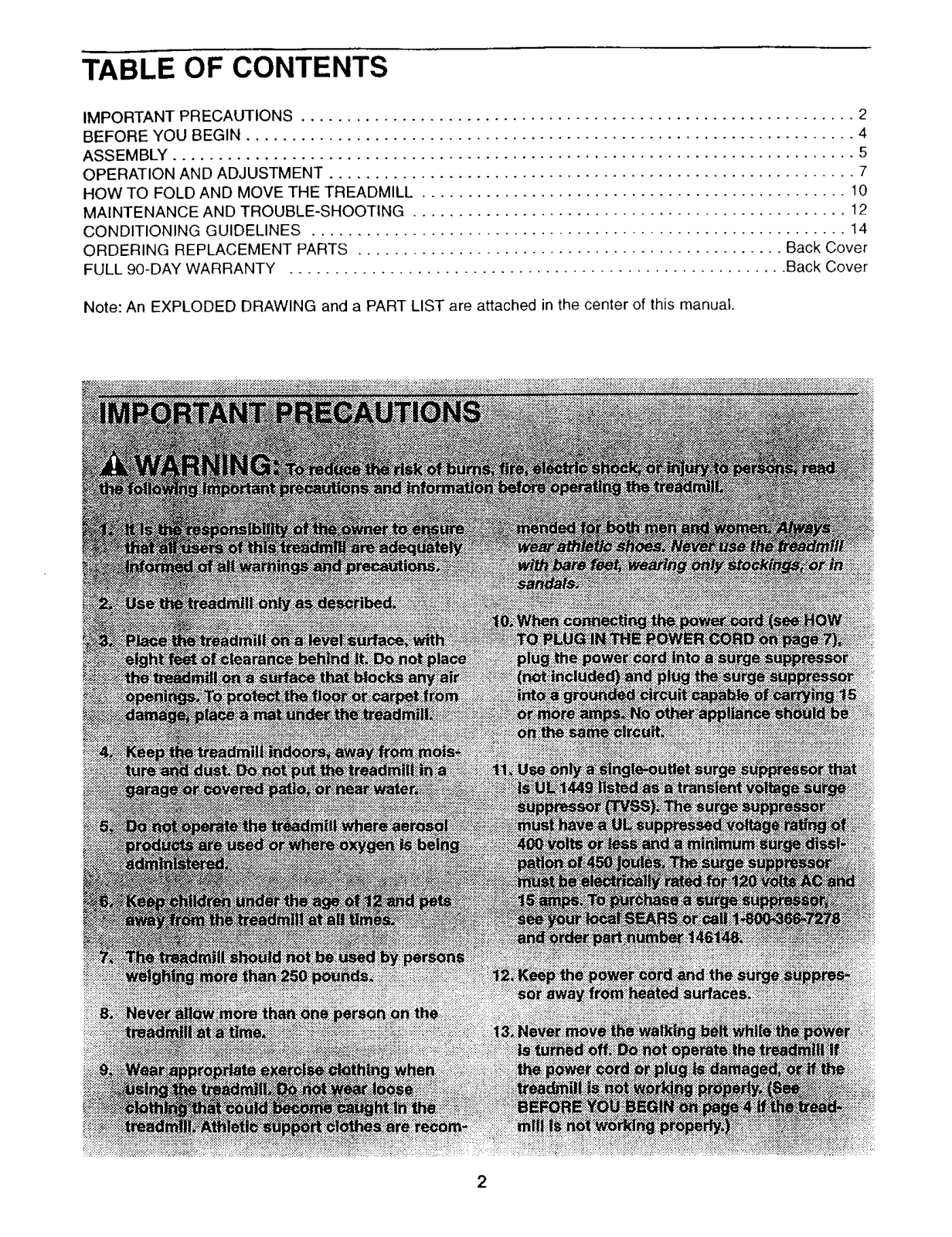

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ............................................................. 2
BEFORE YOU BEGIN ................................................................... 4
ASSEMBLY ........................................................................... 5

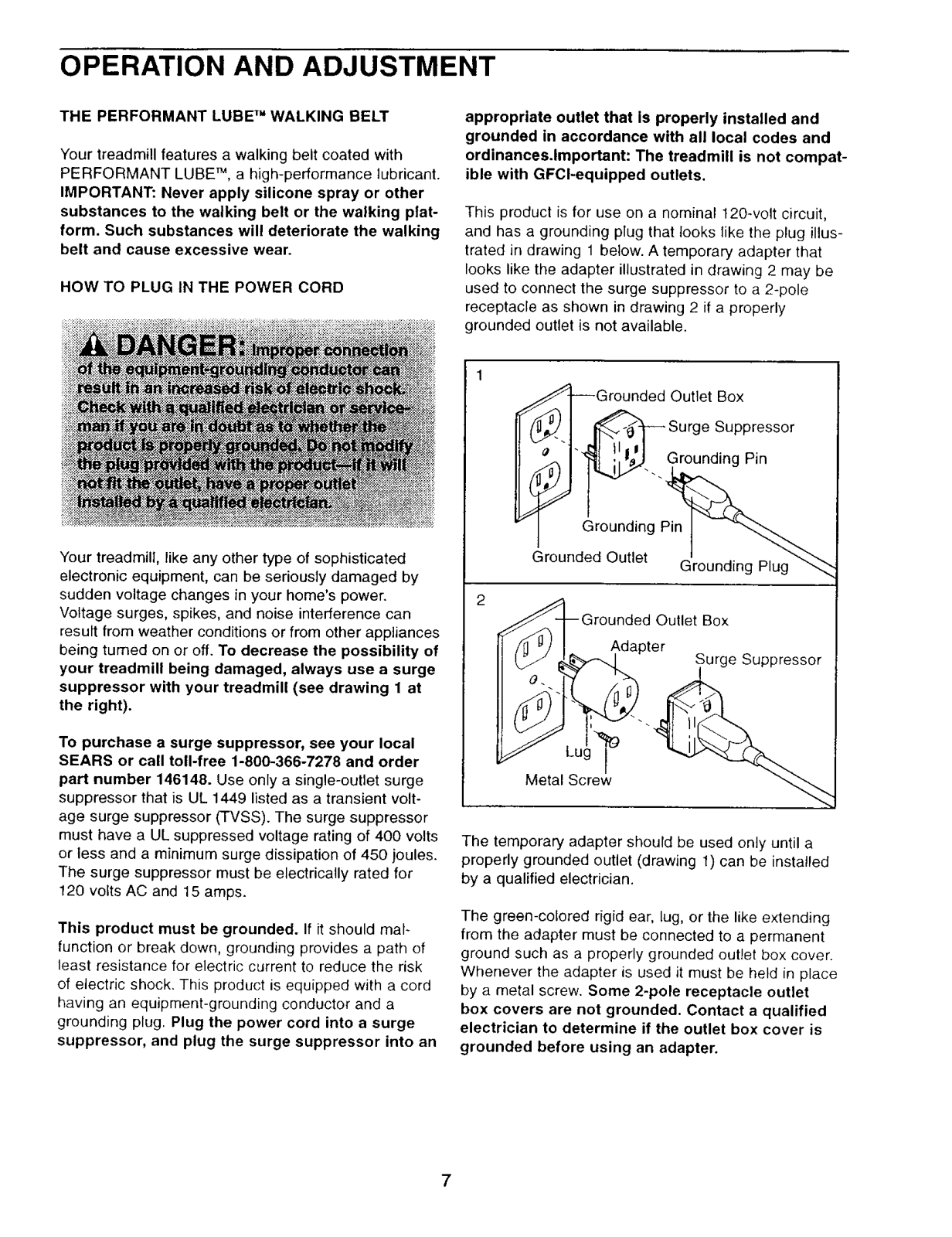

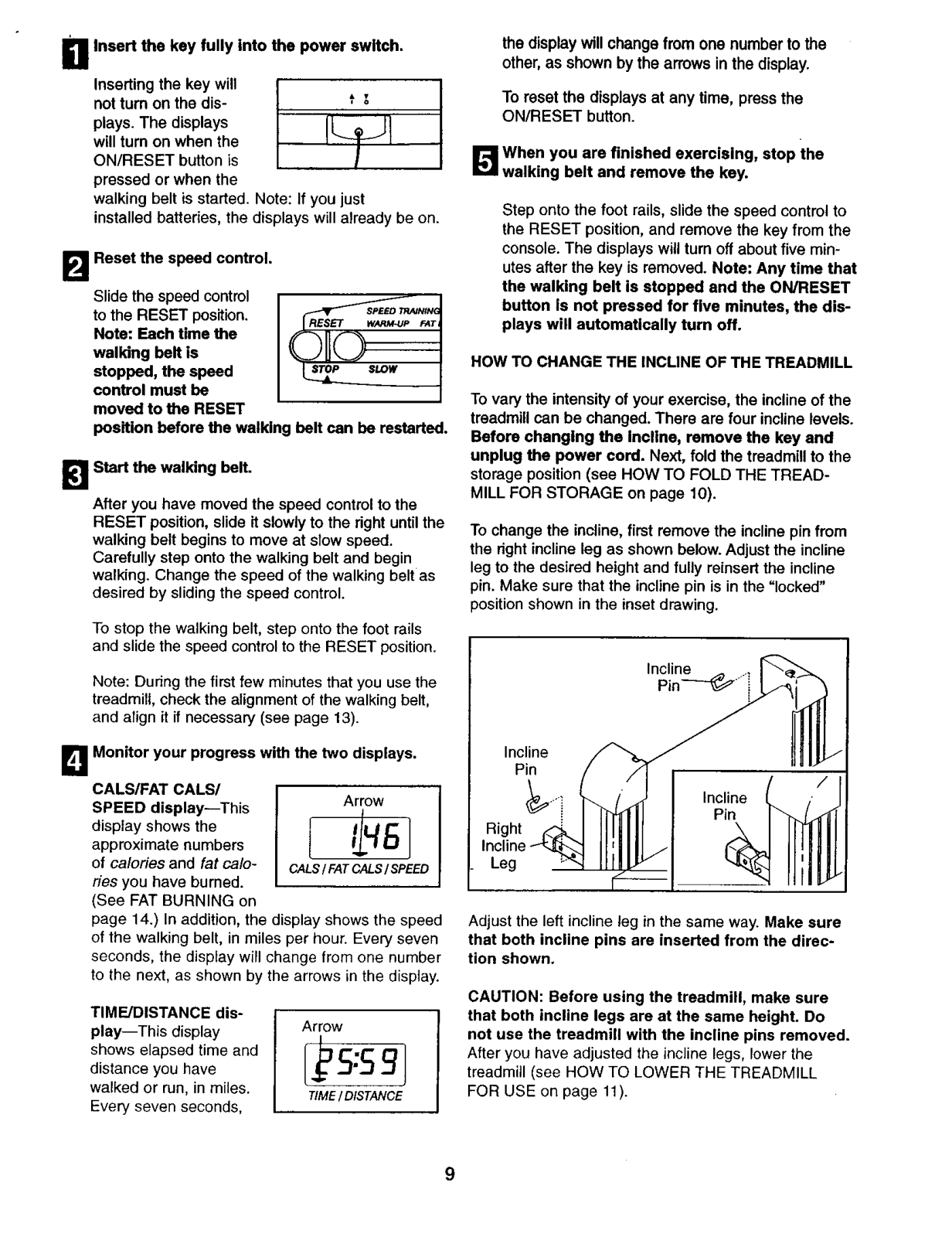

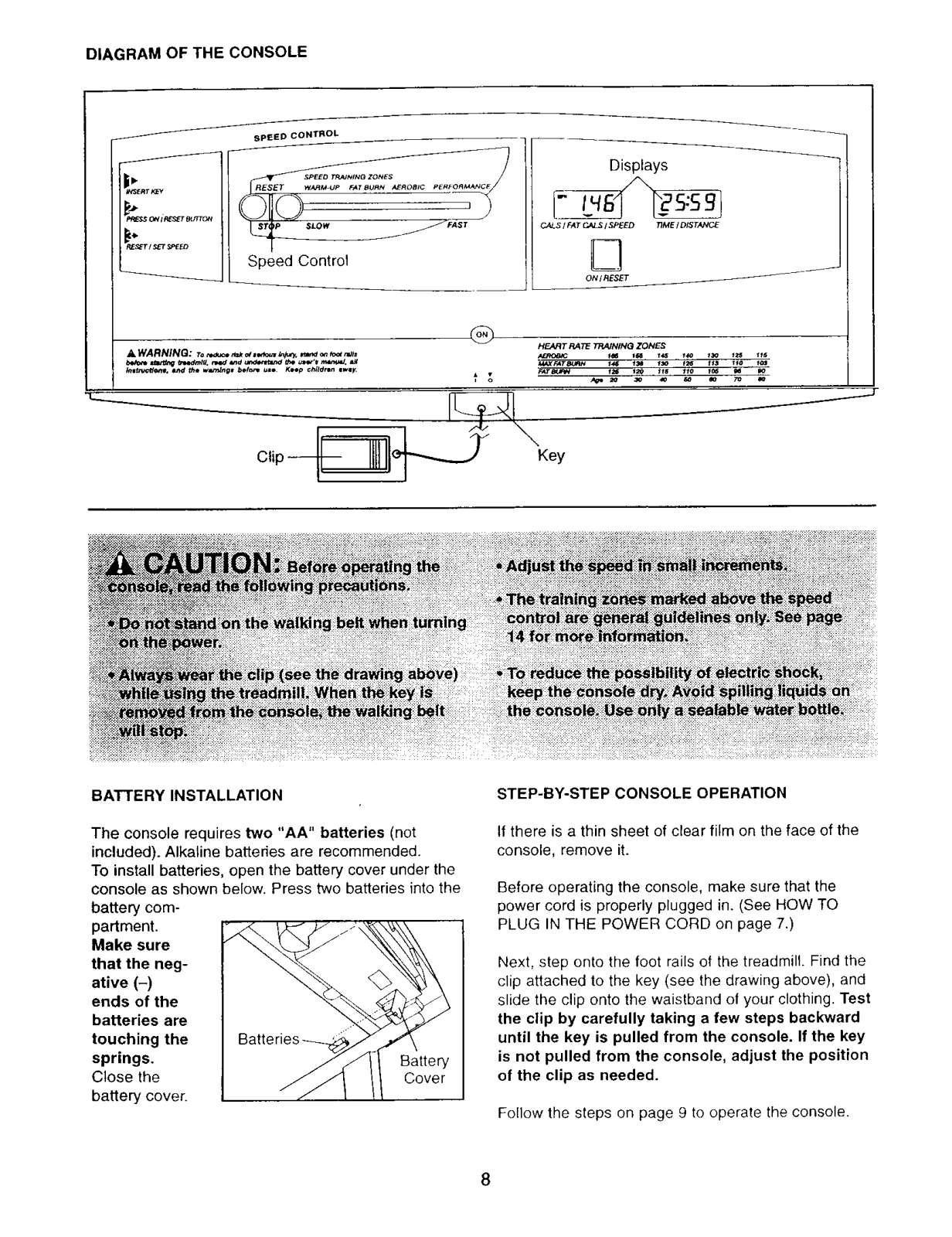

OPERATION AND ADJUSTMENT .......................................................... 7

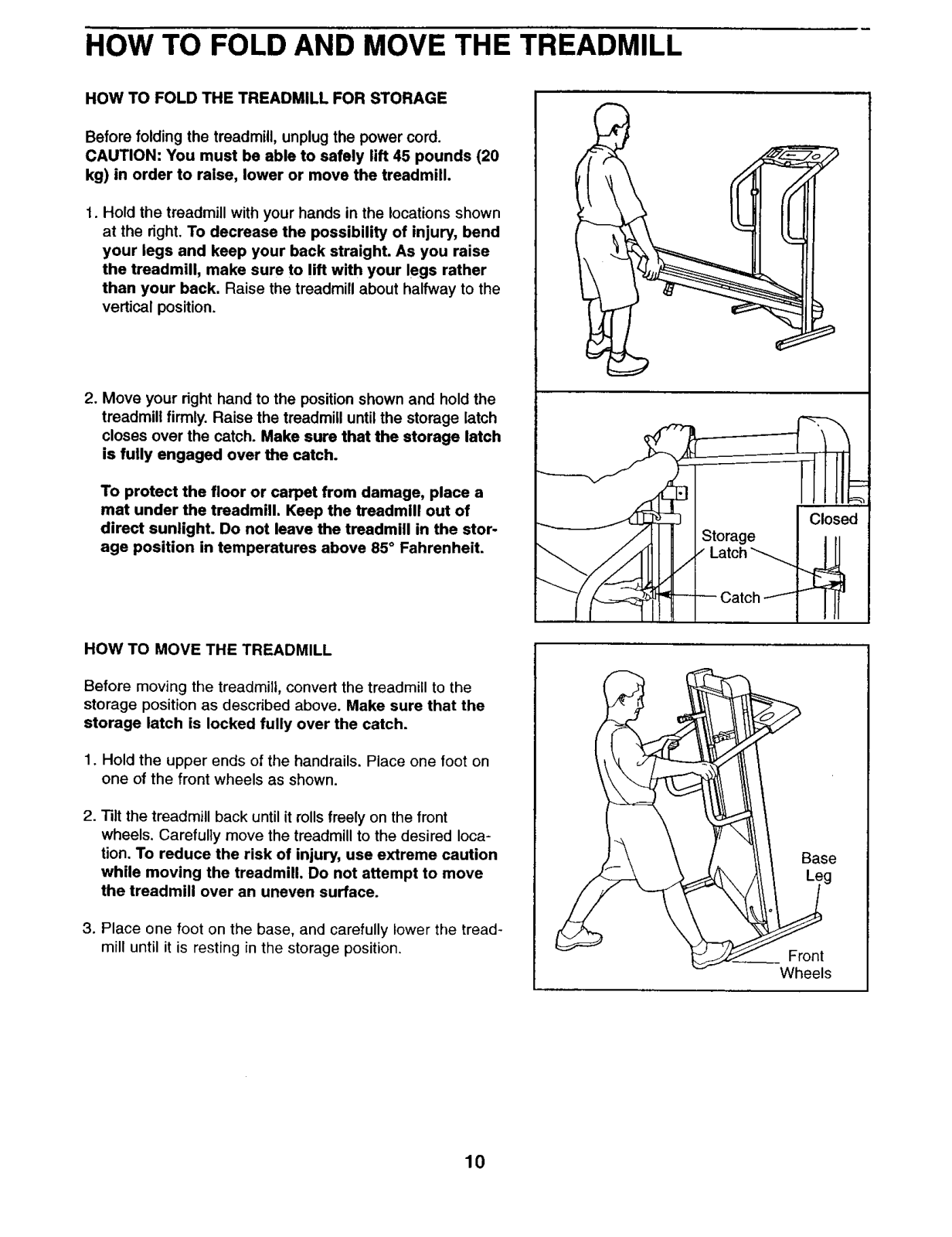

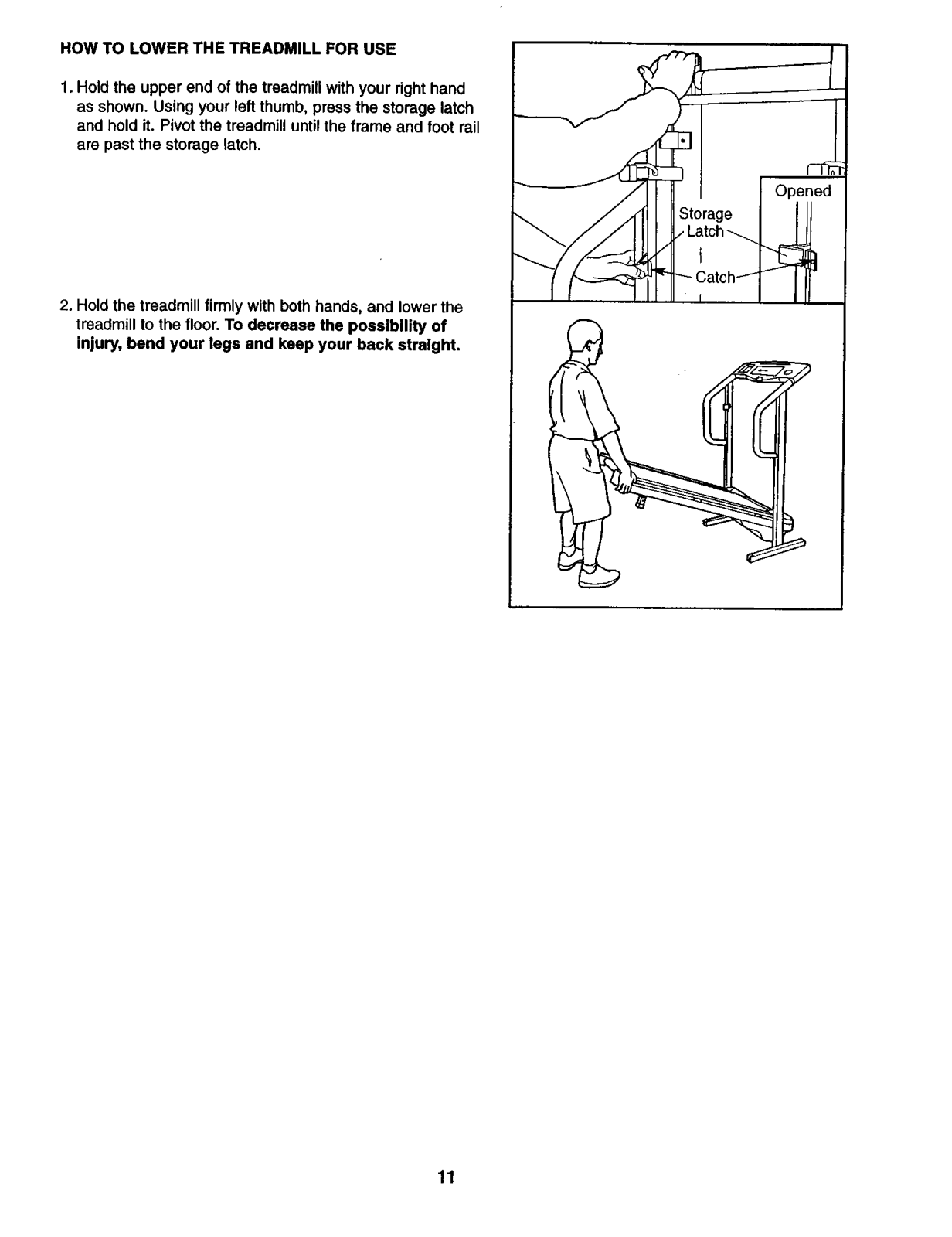

HOW TO FOLD AND MOVE THE TREADMILL ............................................... 10

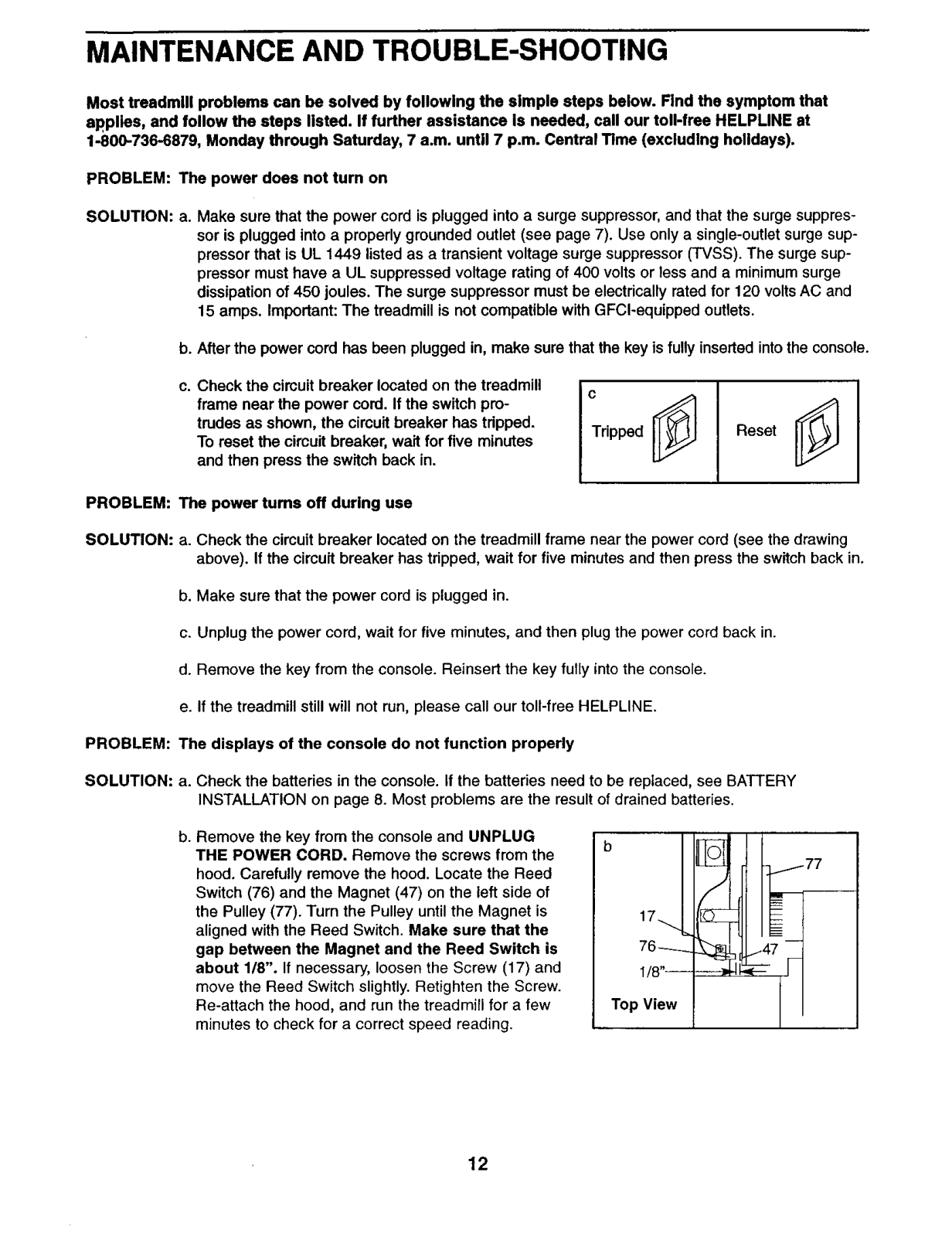

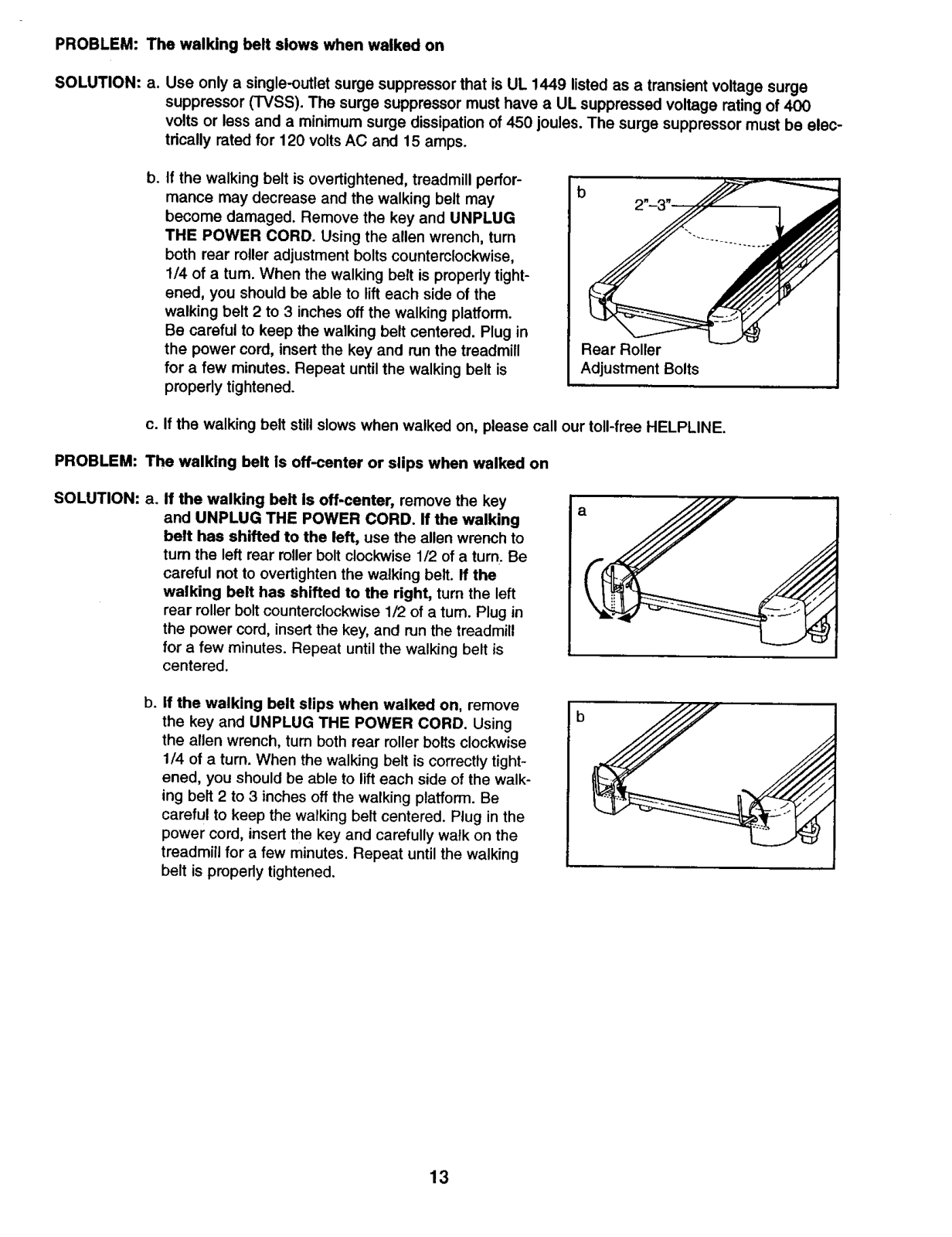

MAINTENANCE AND TROUBLE-SHOOTING ................................................ 12

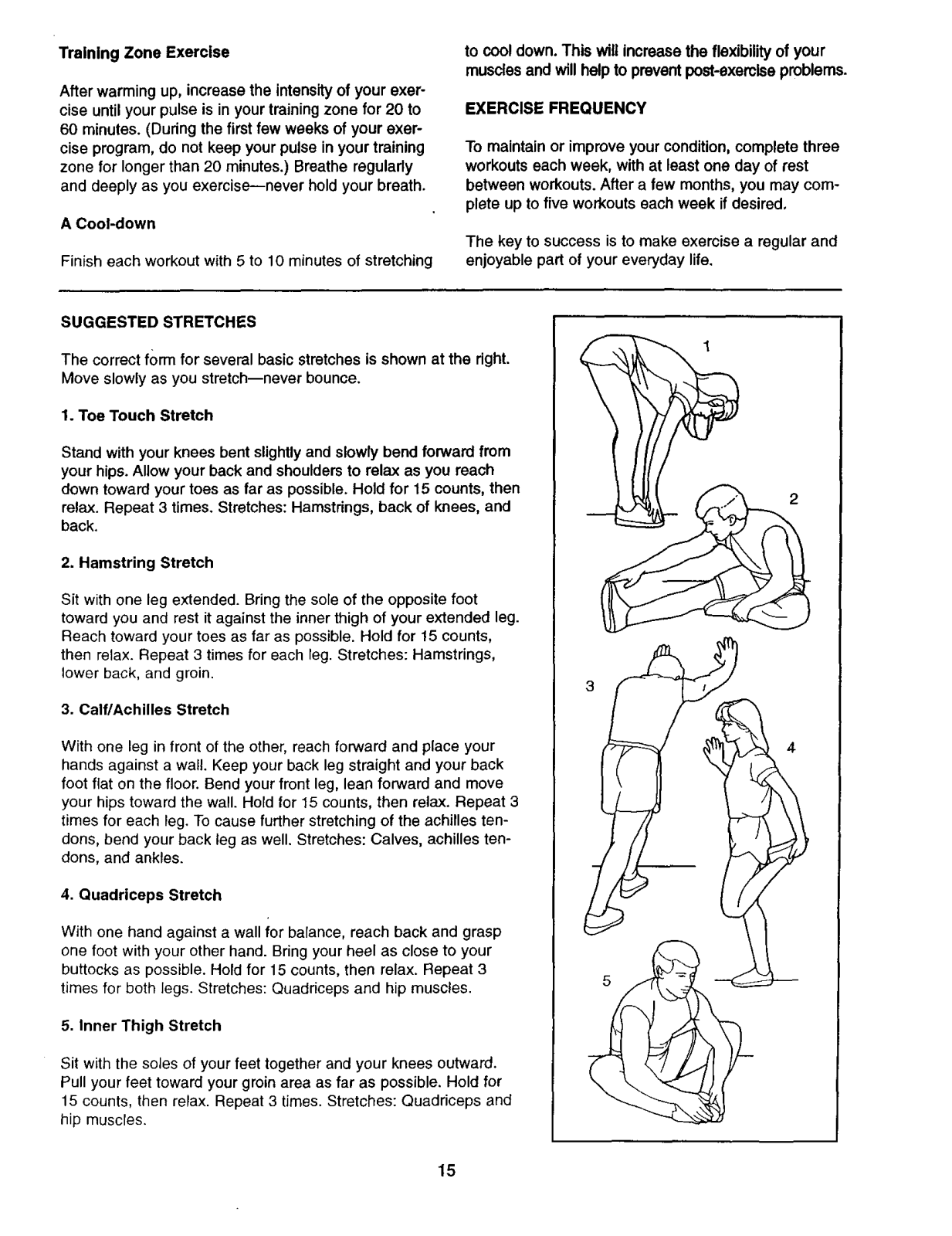

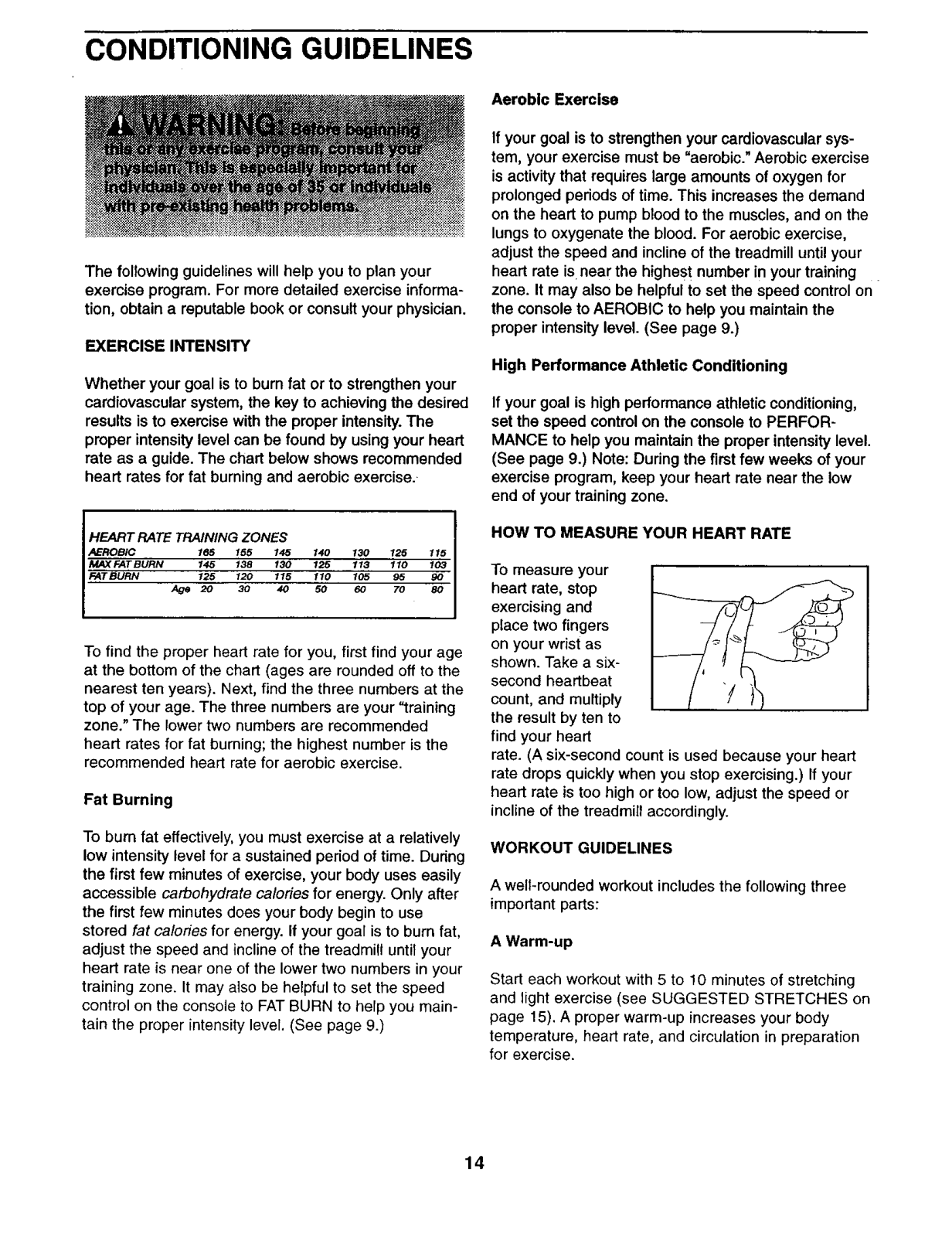

CONDITIONING GUIDELINES ........................................................... 14

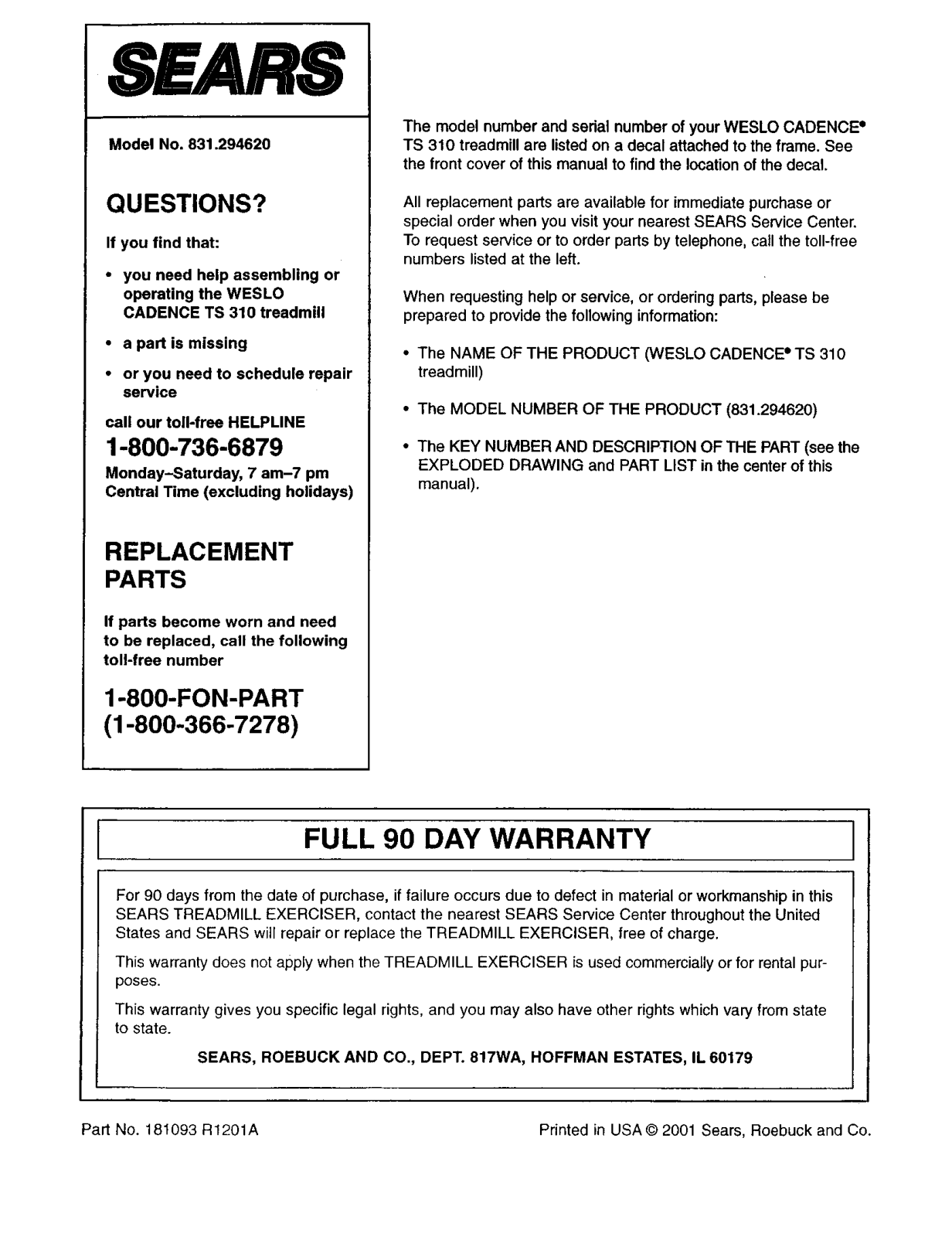

ORDERING REPLACEMENT PARTS ............................................... Back Cover
FULL 90-DAY WARRANTY ....................................................... Back Cover

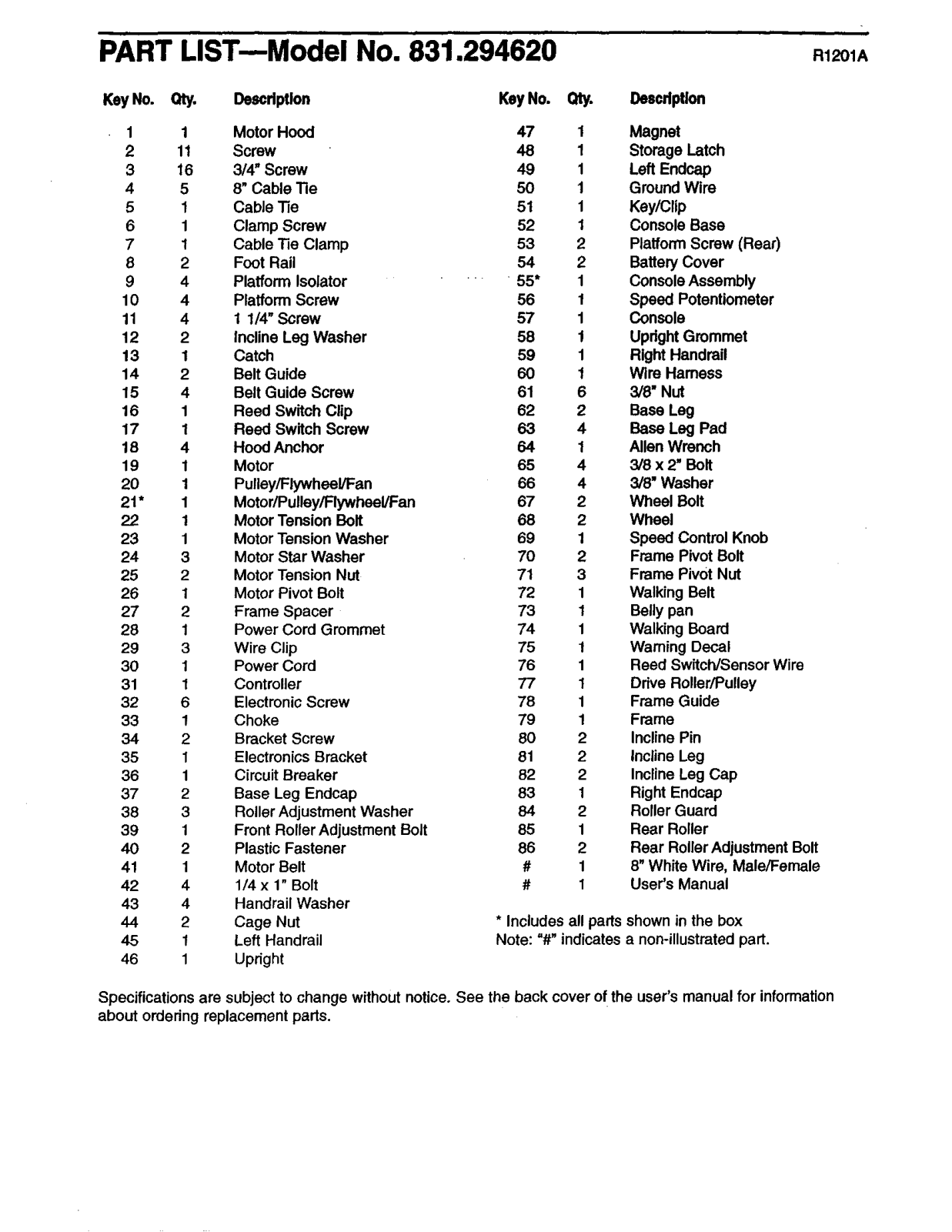

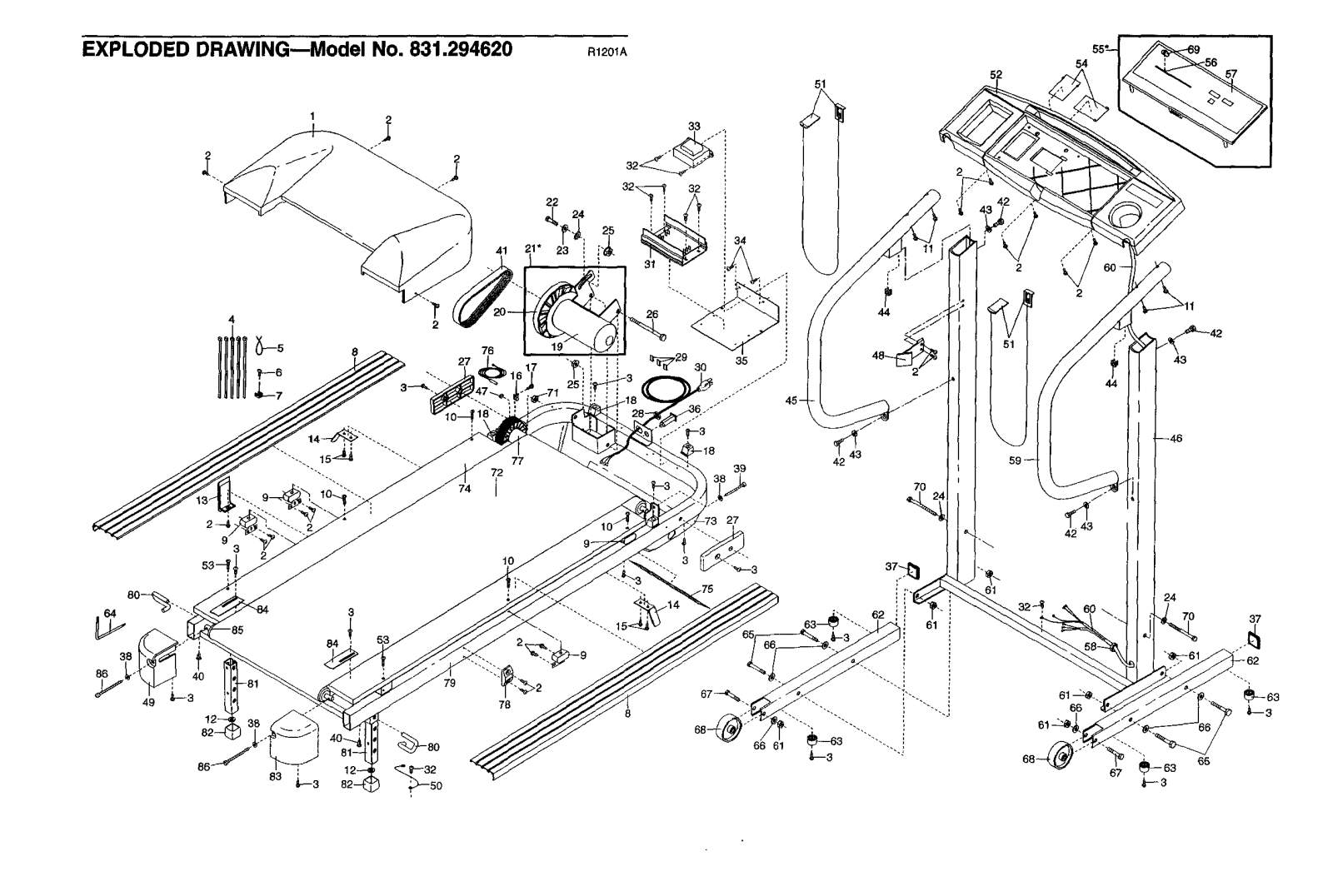

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
2

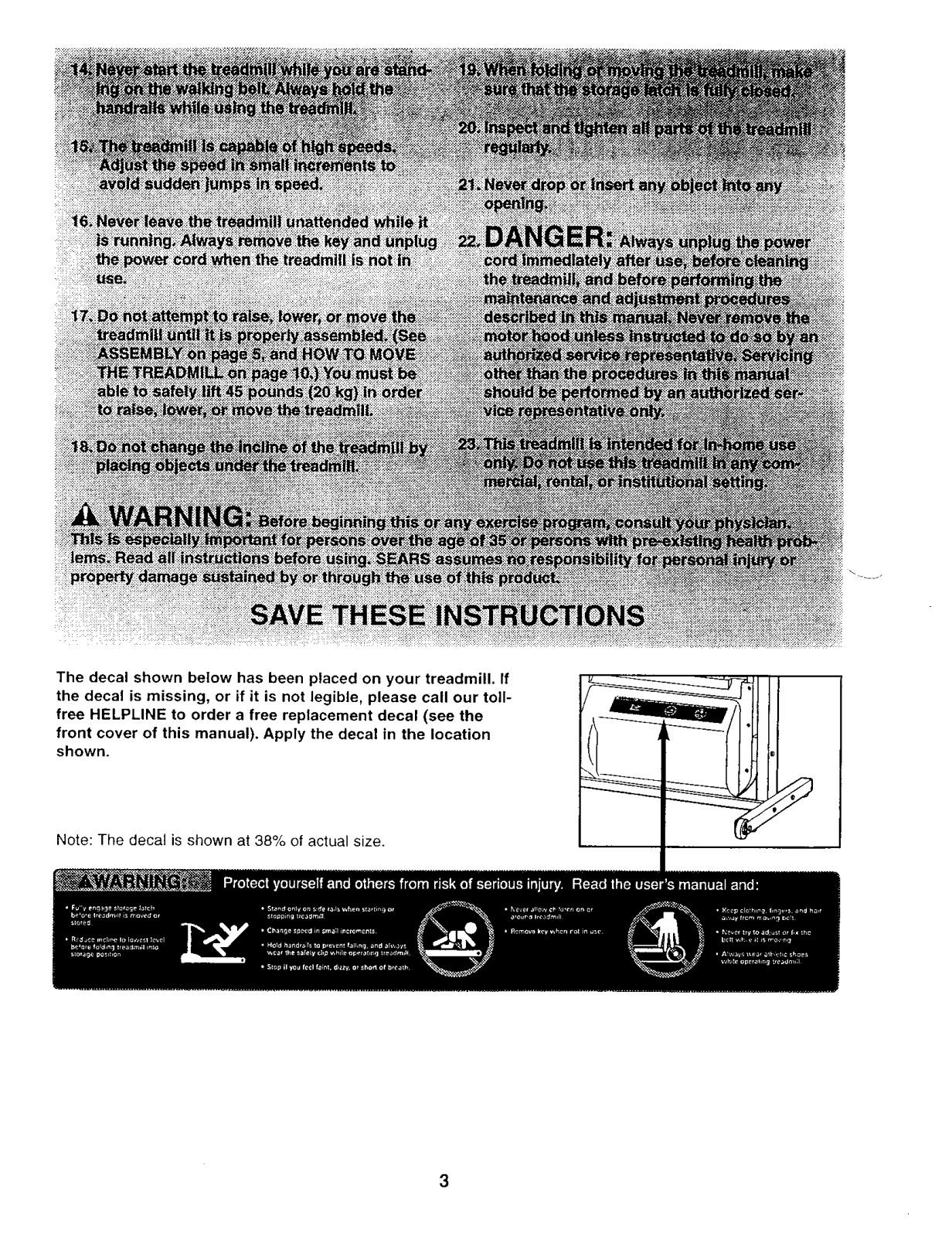

The decal shown below has been placed on your treadmill. If
the decal is missing, or if it is not legible, please call our toll-
free HELPLINE to order a free replacement decal (see the
front cover of this manual). Apply the decal in the location
shown.
Note: The decal is shown at 38% of actual size.

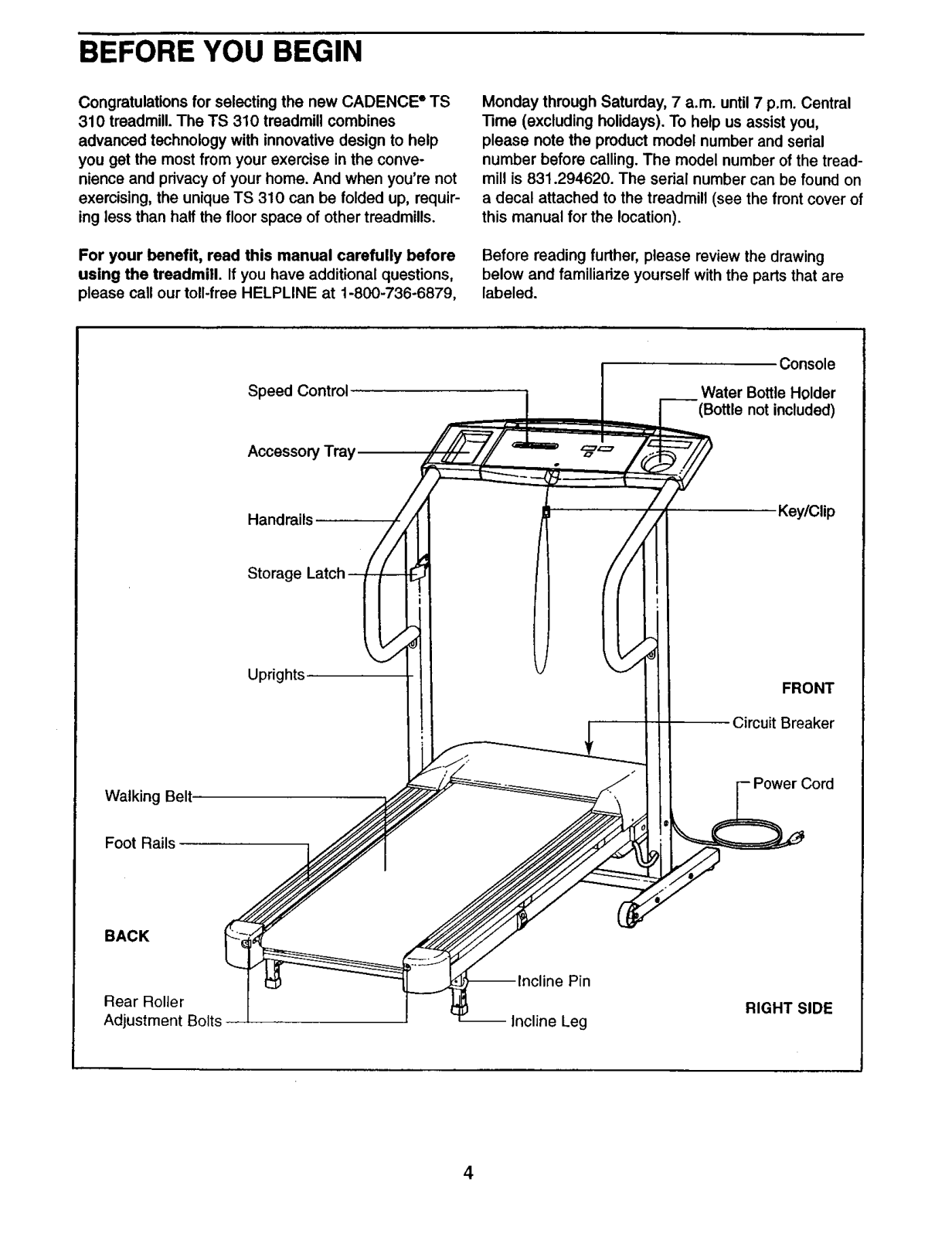

BEFORE YOU BEGIN
Congratulations for selecting the new CADENCE" TS
310 treadmill. The TS 310 treadmill combines
advanced technology with innovative design to help
you get the most from your exercise in the conve-
nience and pdvacy of your home. And when you're not
exercising, the unique TS 310 can be folded up, requir-
ing less than haft the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our toll-free HELPLINE at 1-800-736-6879,
Speed Control
Accessory Tray
Handrails
Monday through Saturday, 7 a.m. until 7 p.m. Central
rime (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling. The model number of the tread-
mill is 831.294620. The serial number can be found on
a decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please review the drawing
below and familiadze yourself with the parts that are
labeled.
Console
Water Bottle Holder
(Bottle not included)
-Key/Clip
Walking Belt-
Foot Rails
BACK
Rear Roller
Adjustment Bolts
Storag,
Uprights.
FRONT
Circuit Breaker
Cord
RIGHT SIDE
-- Incline Leg
4

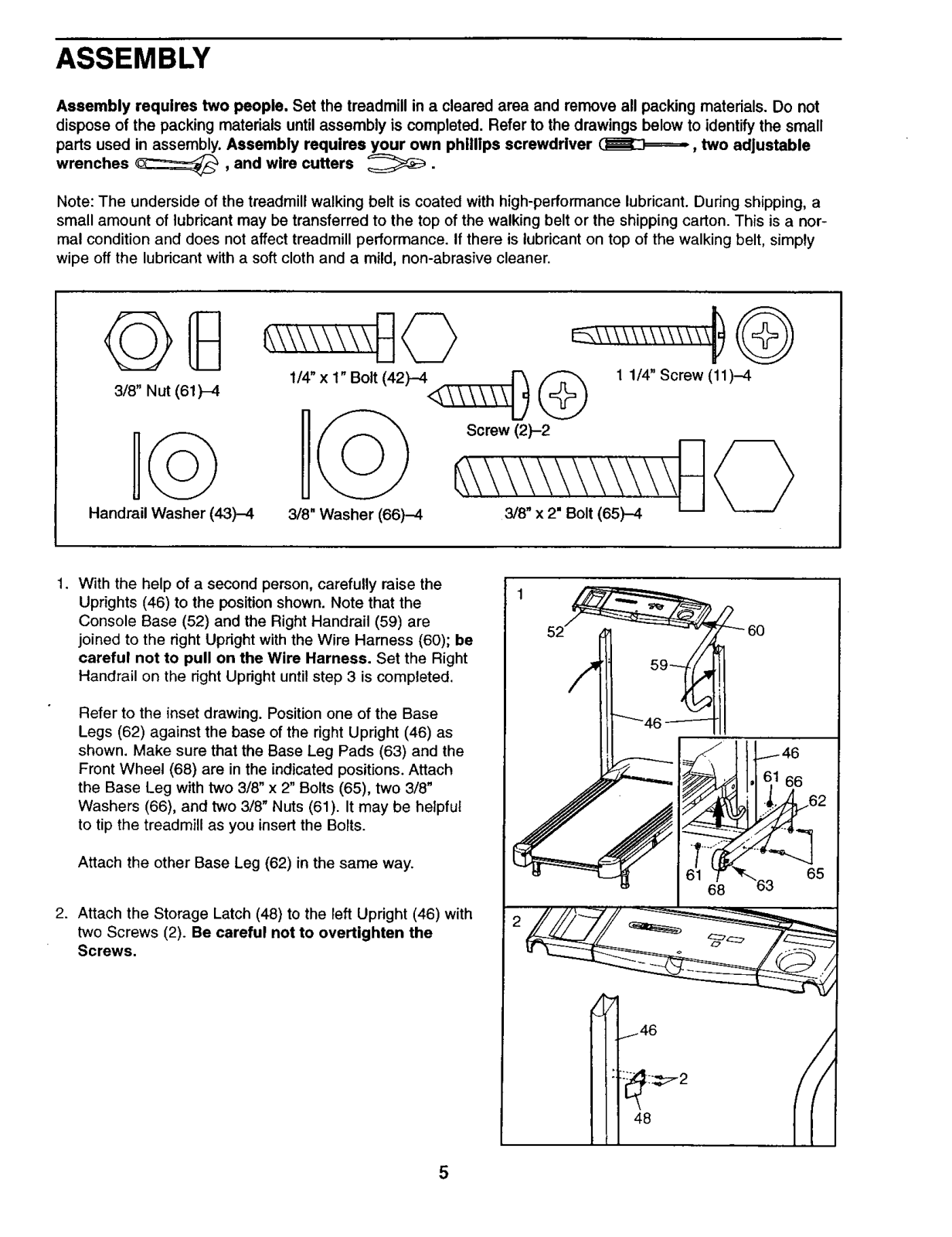

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the small
parts used in assembly. Assembly requires your own phillips screwdriver (]_, two adjustable
wrenches _ , and wire cutters _.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a nor-
mal condition and does not affect treadmill performance. If there is lubricanton top of the walking belt, simply
wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
@
1 1/4" Screw (11)-4
3/8" Nut (61)-4
Screw (2)-2
N
I
Handrail Washer (43)-4
3/8 x 2 Bolt (65)-4 [_
1. With the help of a second person, carefully raise the
Uprights (46) to the position shown. Note that the
Console Base (52) and the Right Handrail (59) are
joined to the right Updght with the Wire Harness (60); be
careful not to pull on the Wire Harness. Set the Right
Handrail on the right Upright until step 3 is completed.
Refer to the inset drawing. Position one of the Base
Legs (62) against the base of the right Upright (46) as
shown. Make sure that the Base Leg Pads (63) and the
Front Wheel (68) are in the indicated positions. Attach
the Base Leg with two 3/8" x 2" Bolts (65), two 3/8"
Washers (66), and two 3/8" Nuts (61). It may be helpful
to tip the treadmill as you insert the Bolts.
Attach the other Base Leg (62) in the same way.
2. Attach the Storage Latch (48) to the left Upright (46) with
two Screws (2). Be careful not to overtighten the
Screws.
1 52"___ 60
_r-....63 65
68
46

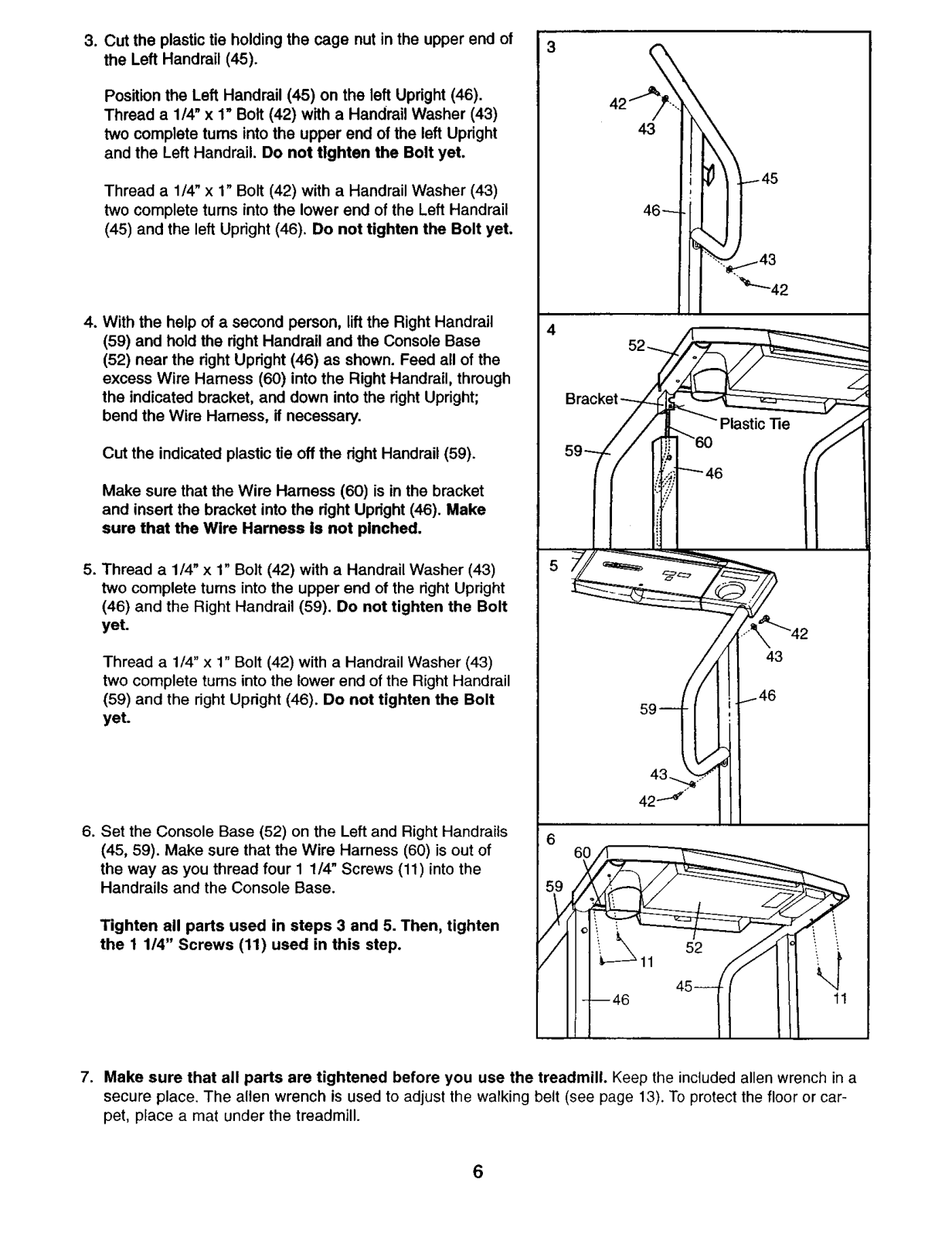

3. Cut the plastic tie holding the cage nut in the upper end of
the Left Handrail (45).
Position the Left Handrail (45) on the left Upright (46).
Thread a 114"x 1" Bolt (42) with a Handrail Washer (43)
two complete turns into the upper end of the left Upright
and the Left Handrail. Do not tighten the Bolt yet.
Thread a 114"x 1" Bolt (42) with a Handrail Washer (43)
two complete turns into the lower end of the Left Handrail
(45) and the left Upright (46). Do not tighten the Bolt yet.
3
4. With the help of a second person, lift the Right Handrail
(59) and hold the dght Handrail and the Console Base
(52) near the right Upright (46) as shown. Feed all of the
excess Wire Hamess (60) into the Right Handrail, through
the indicated bracket, and down into the right Upright;
bend the Wire Harness, if necessary.
Cut the indicated plastic tie off the dght Handrail (59).
Make sure that the Wire Harness (60) is in the bracket
and insert the bracket into the right Upright (46). Make
sure that the Wire Harness is not pinched.
5. Thread a 1/4" x 1" Bolt (42) with a Handrail Washer (43)
two complete turns into the upper end of the dght Upright
(46) and the Right Handrail (59). Do not tighten the Bolt
yet.
Thread a 1/4" x 1" Bolt (42) with a Handrail Washer (43)
two complete turns into the lower end of the Right Handrail
(59) and the right Updght (46). Do not tighten the Bolt
yet.
6t_ _45
4
52---...
_.604_lastic l]e
59
._43
_L----42
_46
43
4
42----4
6. Set the Console Base (52) on the Left and Right Handrails
(45, 59). Make sure that the Wire Harness (60) is out of
the way as you thread four 1 1/4" Screws (11) into the
Handrails and the Console Base.
Tighten all parts used in steps 3 and 5. Then, tighten
the 1 1/4" Screws (11) used in this step.
7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or car-
pet, place a mat under the treadmill.
6
59
11
6
