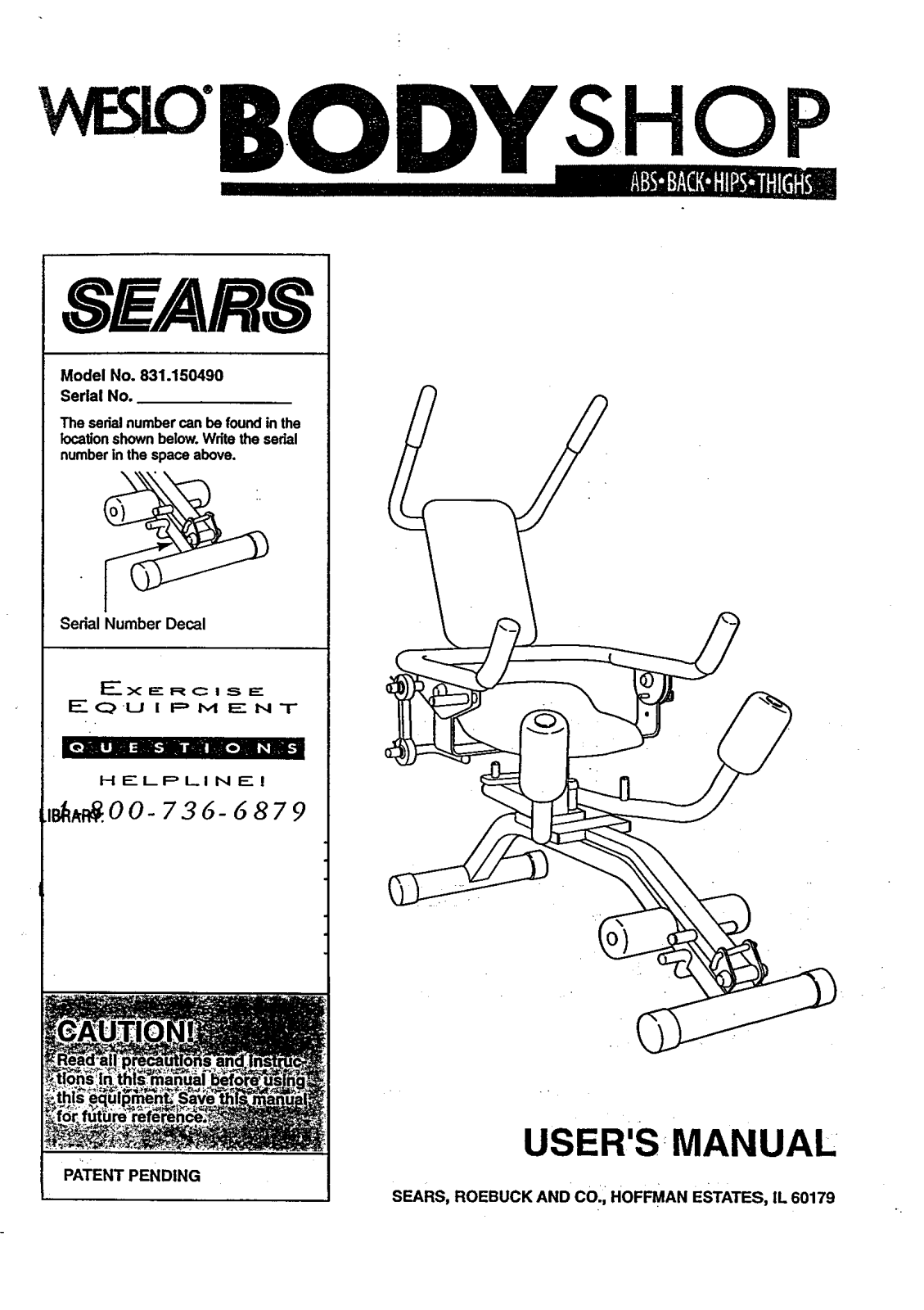

Weslo 831150490 Owner’s Manual
OB.ODYS H0 p
SEARS
Model No. 831.150490
Serial No.
The sedal numbercanbe foundinthe
locationshownbelow.Writethe serial
numberinthe space above.
\
i.
Serial Number Decal
F"x i_ R C:: i S i_
EQU I P M E N T
H ELPLI N IE !
.=B_t_.O0- 736- 6879
PATENT PENDING
USER'S MANUAL
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
vVESLOBODYSH0 P

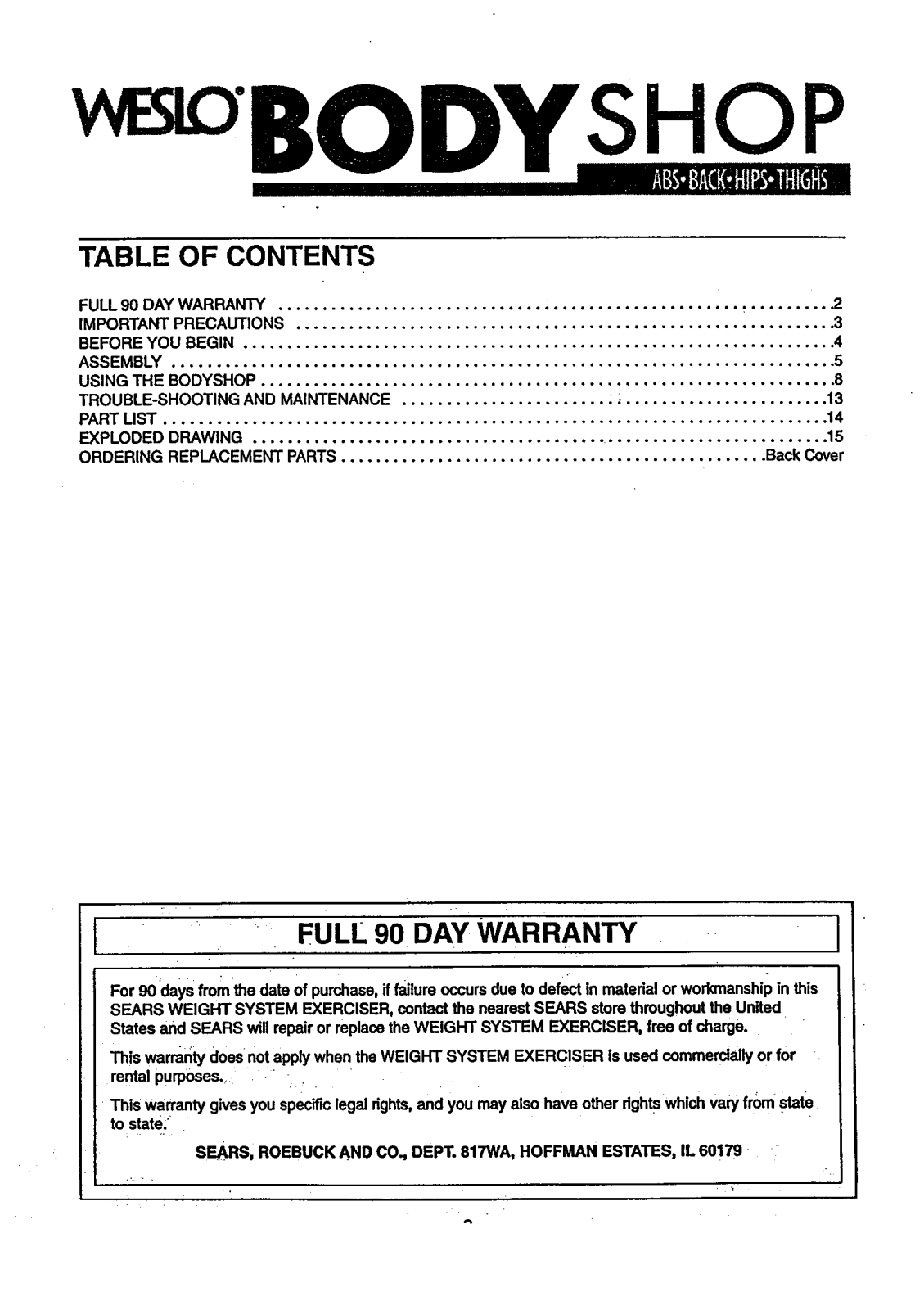

TABLE OF CONTENTS
FULL 90 DAY WARRANTY .................................................... ?......... .2
IMPORTANT PRECAUTIONS ............................................................. 3
BEFORE YOU BEGIN ................................................................... 4
ASSEMBLY ........................................................................... 5

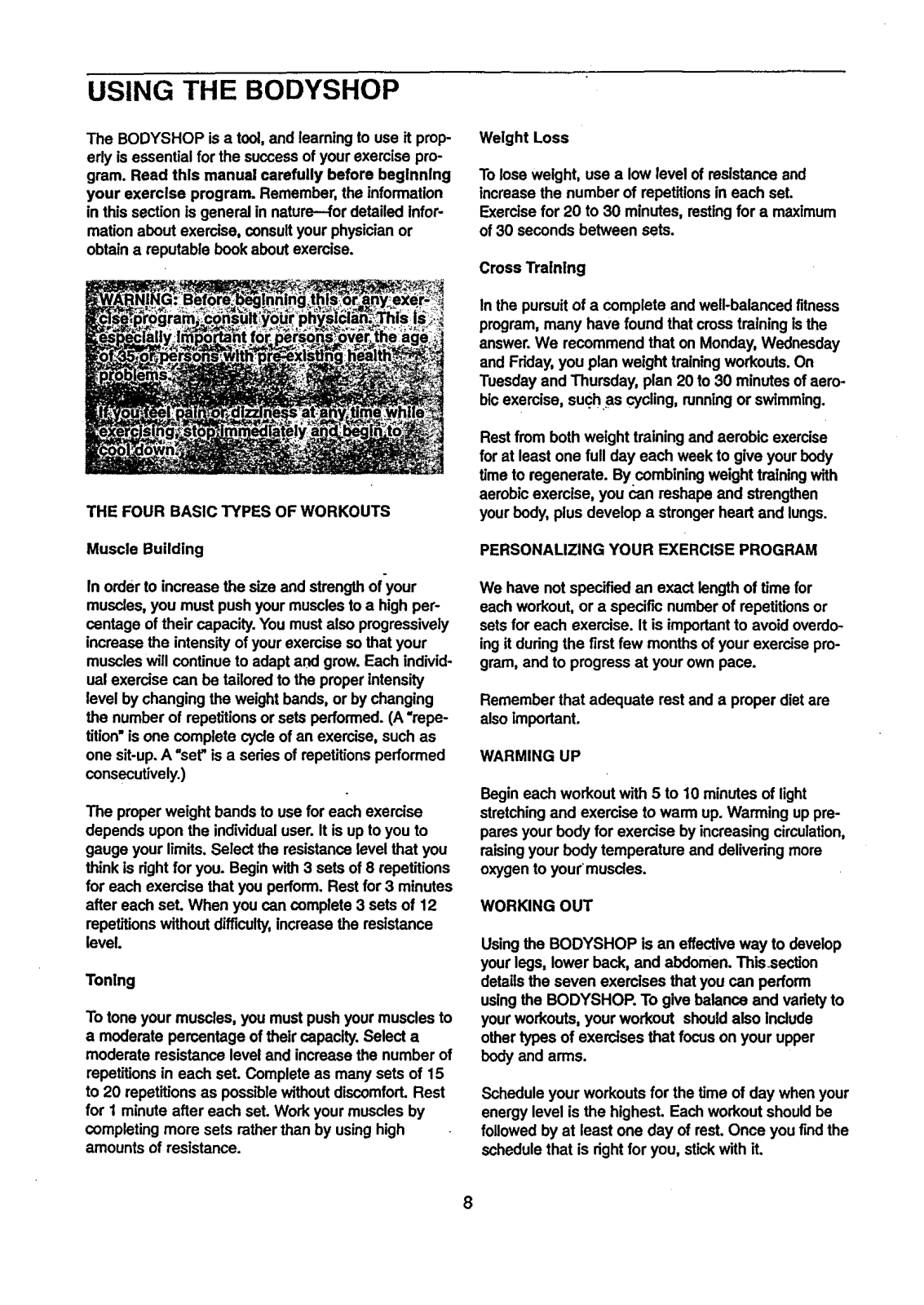

USING THE BODYSHOP ............. .................................................... 8

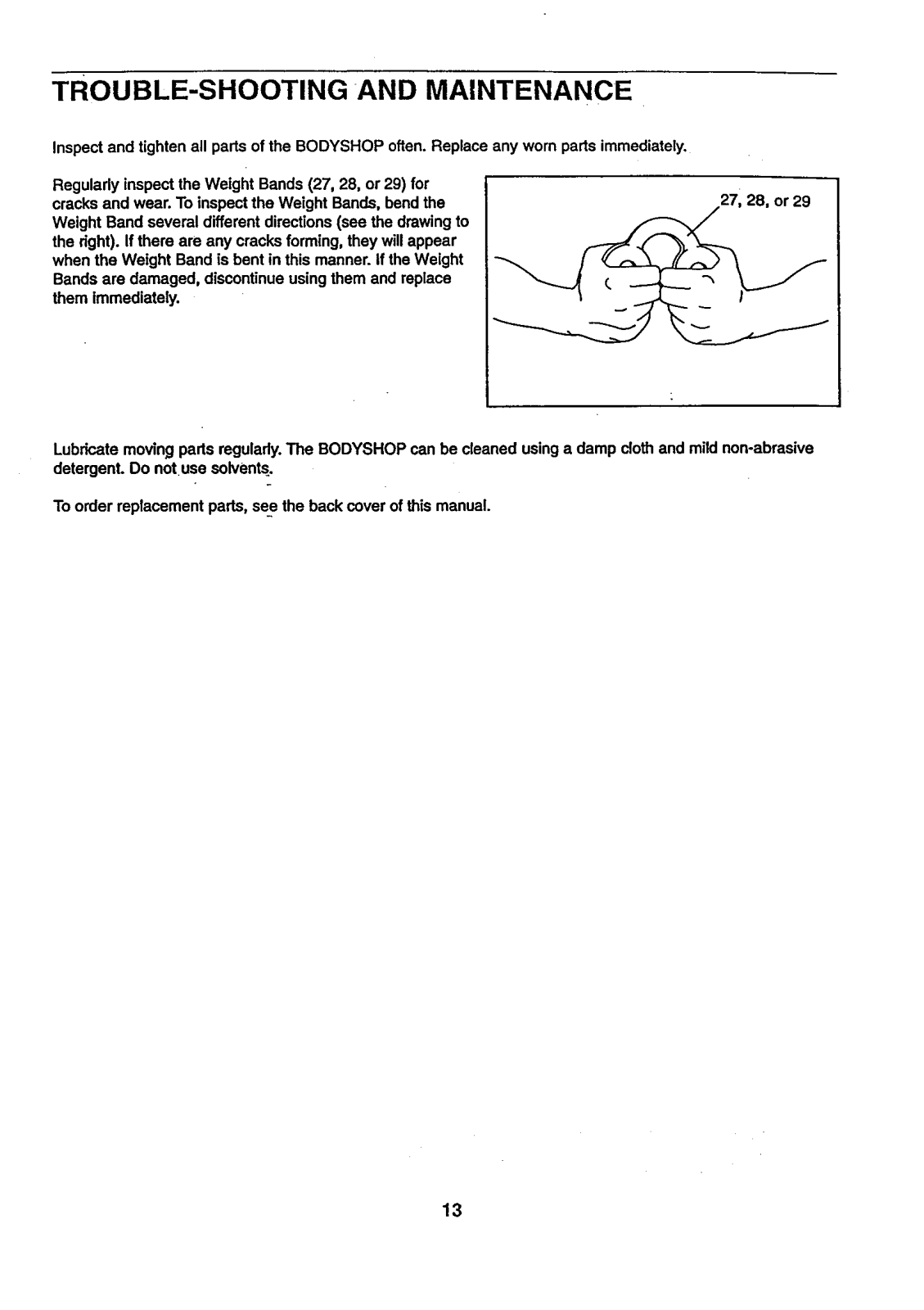

TROUBLE-SHOOTING AND MAINTENANCE ....................... ; _....................... 13

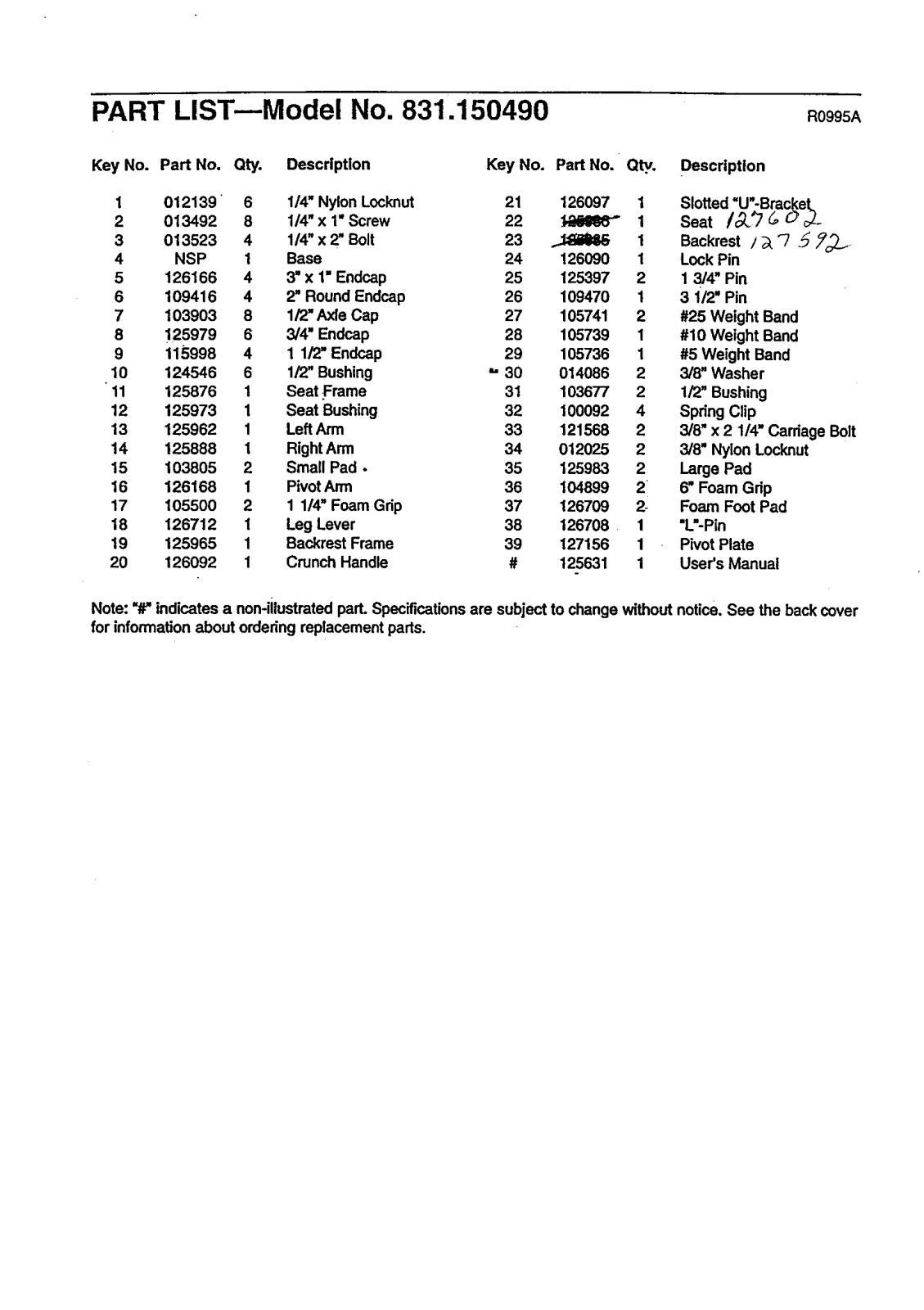

PART LIST ........................................................................... 14

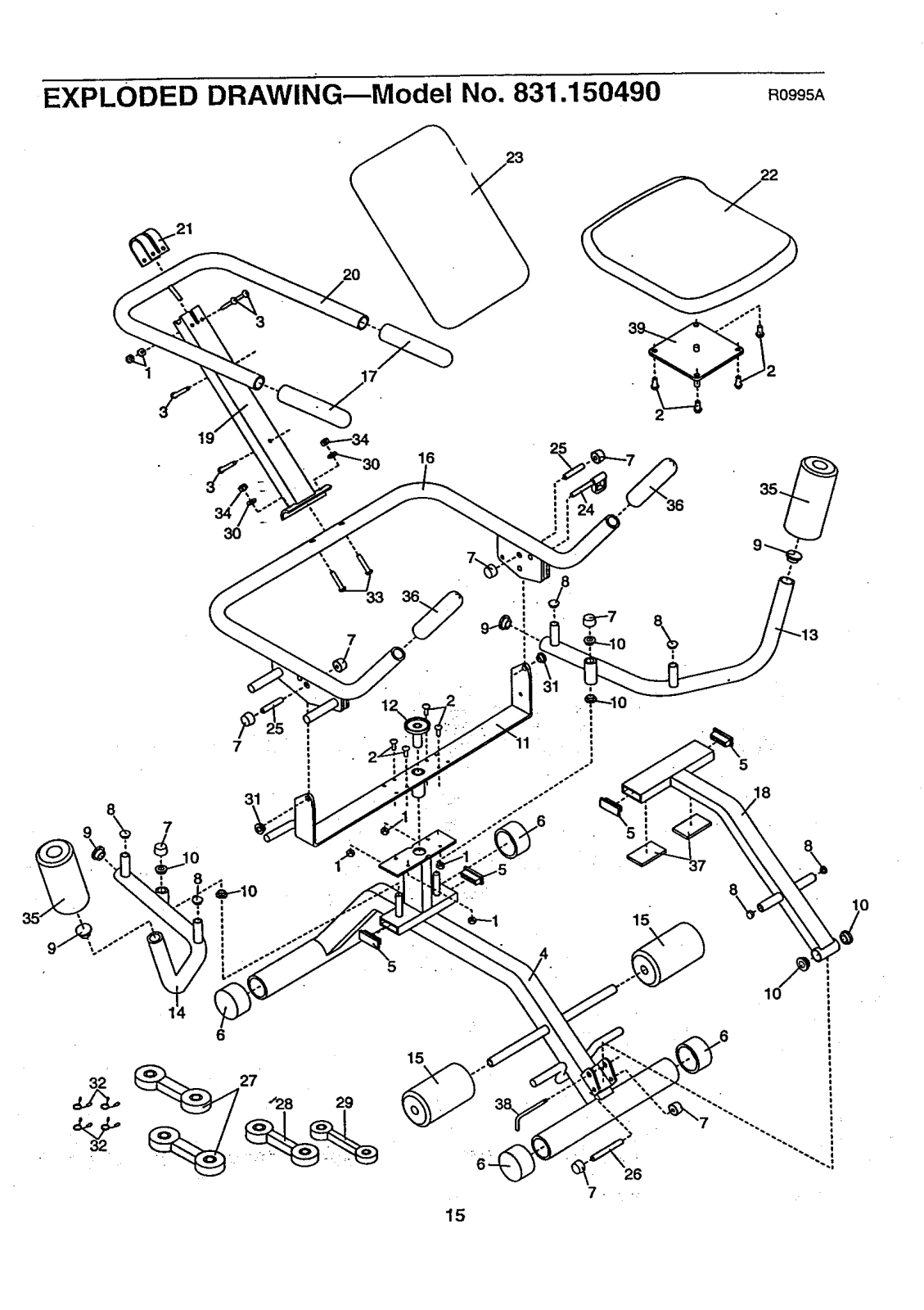

EXPLODED DRAWING .................................................................. 15
ORDERING REPLACEMENT PARTS ................................................ Beck Cover
I FULL 90 DAY WARRANTY I
For 90=days from the date of purchase, if failure occurs due to defect in matedal or workmanship in this
SEARS WEIGHT SYSTEM EXERCISER, contact the nearest SEARS store throughout the United
States and SEARS will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.
This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for
rental purposes.
This warranty gives you specific legal rights,and you may also have other dghtswhich Veryfrom state
to state_
SEARS, ROEBUCK AND CO.i DEPT. 817WA, HOFFMAN ESTATES_ IL 60179
IMPORTANT PRECAUTIONS
BEFORE YOU BEGIN
Thank you for selecting the versatile WESLO °
BODYSHOR The BODYSHOP offersa selection of
weight stations designed to develop several major
muscle groups. Whether your goal is to tone your
body, develop greater muscular strength,or improve -
your cardiovascular system, the BODYSHOP will help
you to achieve the specific results you want.
For your benefit, read this manuel carefully before
using the WESLO ° BODYSHOR Ifyou have addi-
tional questions, please call our toll-free HELPLINE at
Crunch Handle
1-800-736-6879, Monday through Saturday, 7a.m.
until7 p.m. Central "13me(excluding holidays). To help
us assist you, please note the product model number
and serial number before calling. The model number
is 831.150490. The serial number can be found on a
decal attached to the BODYSHOP (see the front
cover of this manual).

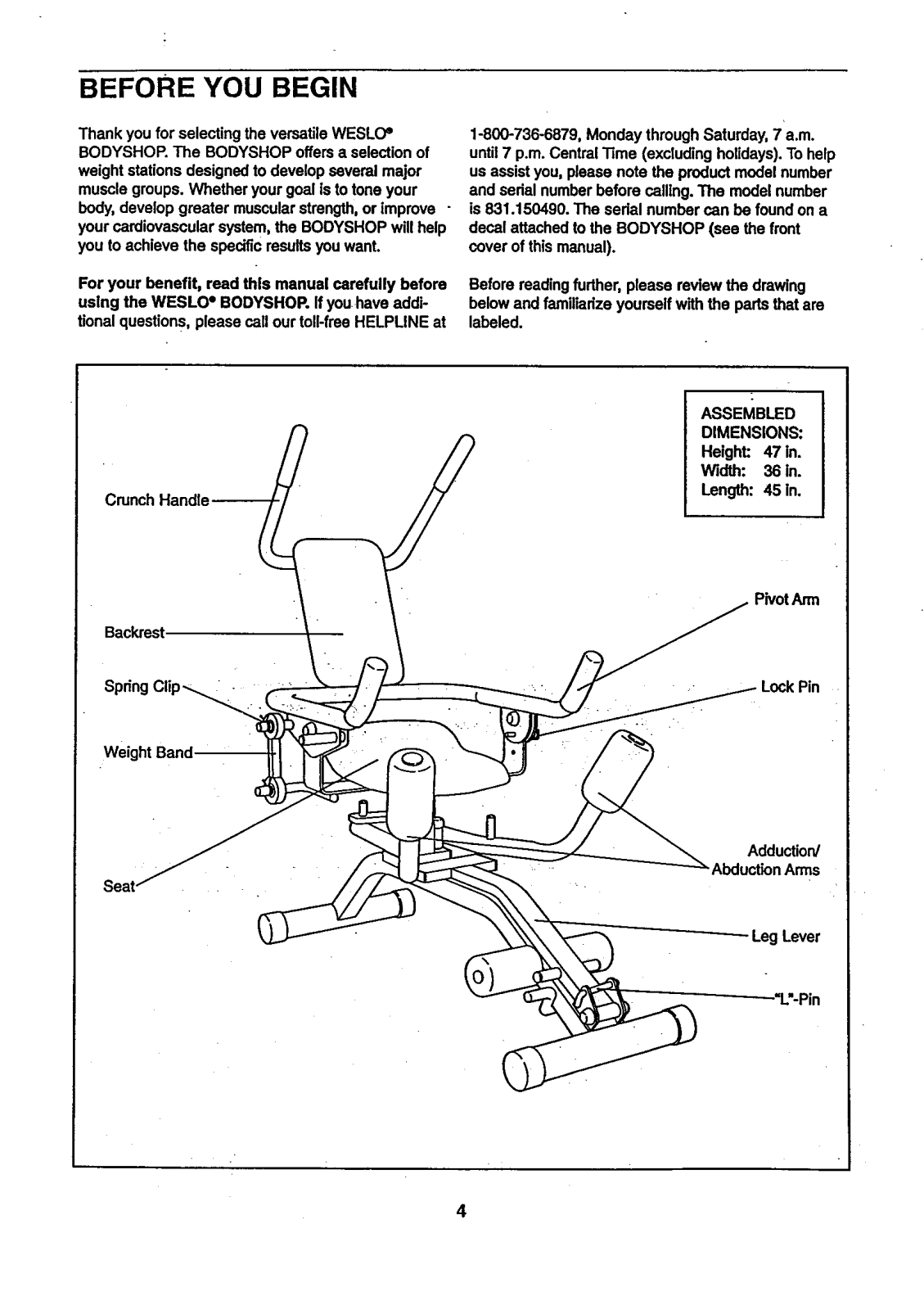

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED
DIMENSIONS:
Height: 47 In.
Width: 36 In.
Length: 45 In.
Backrest
Spring Clip
weight Band
PivotArm
Lock Pin
Adduction/
.Abduction Arms
-Leg Lever
\
4
ASSEMBLY
Before beginning assembly, carefully read the THE FOLLOWING TOOLS (NOT INCLUDED) ARE
following information and Instructions: REQUIRED FOR ASSEMBLY:
• Place all parts of the BODYSHOP in a Cleared
area and remove the packing matedals; do not
dispose of the packing materials until assembly is
completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• For help identifying the small pads used in
assembly, use the PART IDENTIFICATION
CHART below.
• As you assemble the BODYSHOP, be sure that
all parts are oriented as shown in the drawings.

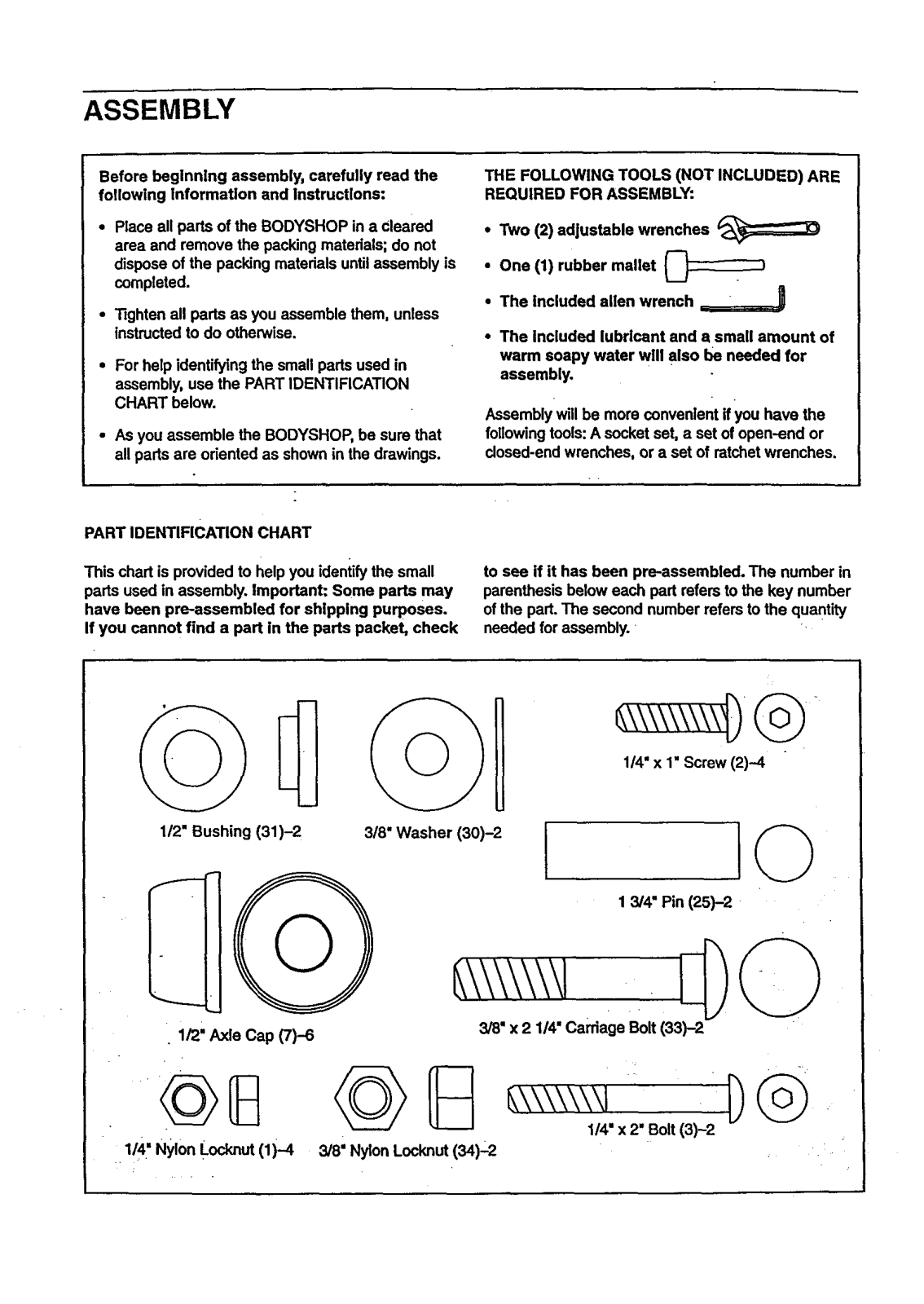

PART IDENTIFICATION CHART
This chart is provided to help you ideniify the small
pads used in assembly. Important: Some parts may
have been pre-assembled for shipping purposes.
If you cannot find a part in the parts packet, check
• Two (2) adjustable wrenches
• One (1) rubber mallet
• The included allen wrench
• The Included lubricant and a small amount of
warm soapy water will also be needed for
assembly.
Assembly will be more convenient ifyou have the
following tools:A socket set, a set of open-end or
closed-end wrenches, or a set of ratchet wrenches.
to see if it has been pre-assembled. The number in
parenthesis below each part refers to the key number
of the part. The second number refers to the quantity
needed for assembly.
1/2" Bushing (31)-2
G
• 1/2" Axle Cap (7)-6
1/4" Nylon Locknut (1)--4
1/4" x 1"Screw (2)-4
3/8" Washer (30)-2
1 3/4" Pin (25)-2
3/8" x 2 1/4' Carriage Bolt (33)-2
D©
1/4" x 2" Bolt (3)-2
3/8" Nylon Locknut (34)-2
