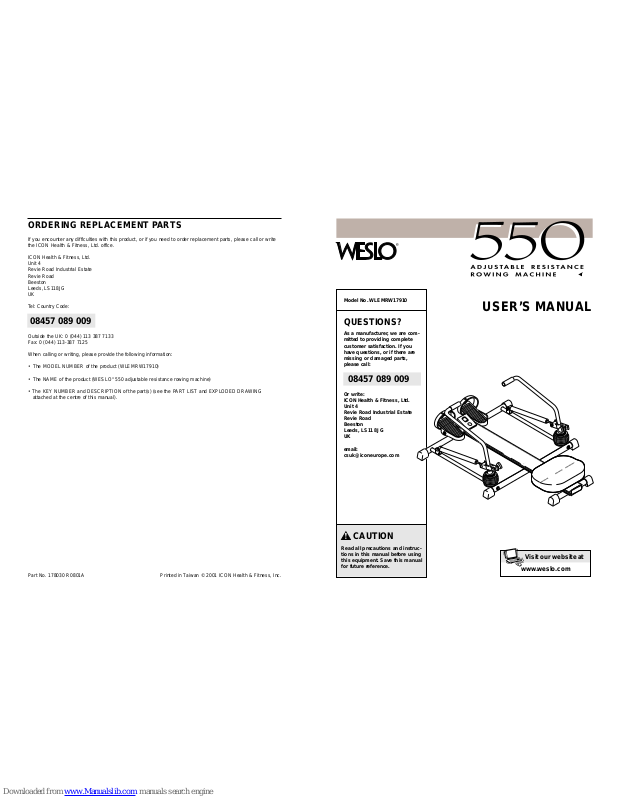

USER’S MANUAL

Model No. WLEMRW17910

Part No. 178030 R0801A Printed in Taiwan ©2001 ICON Health & Fitness, Inc.

www.weslo.com

Visit our website at

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:

Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS11 8JG
UK

email:
[e-mail]

08457 089 009

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

ORDERING REPLACEMENT PARTS

If you encounter any difficulties with this product, or if you need to order replacement parts, please call or write
the ICON Health & Fitness, Ltd. office.

ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK

Tel: Country Code:

Outside the UK: 0 (044) 113 387 7133
Fax: [phone]

When calling or writing, please provide the following information:

• The MODEL NUMBER of the product (WLEMRW17910)

• The NAME of the product (WESLO

®

550 adjustable resistance rowing machine)

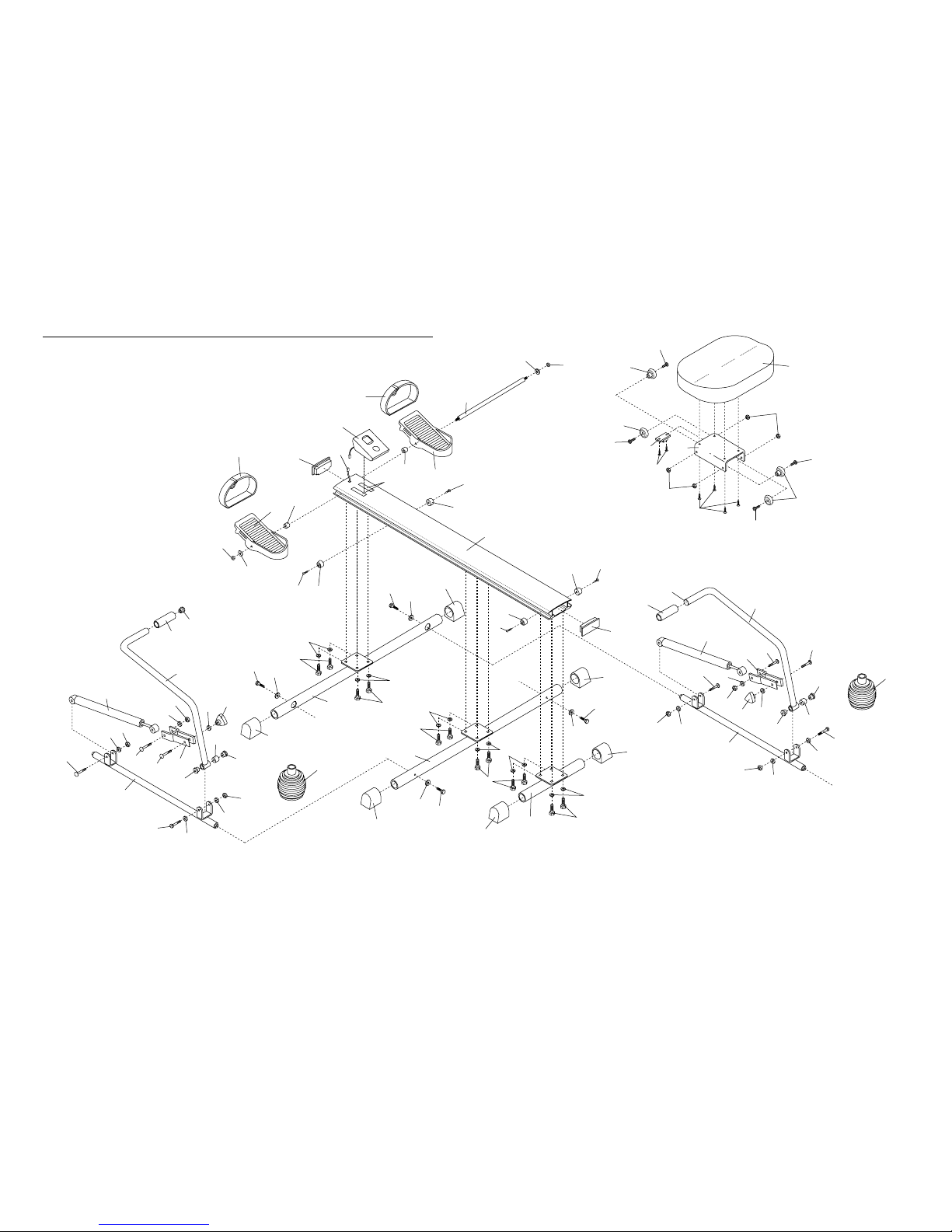

• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING
attached at the centre of this manual).

08457 089 009

72

BEFORE YOU BEGIN

Thank you for selecting the WESLO®550 adjustable
resistance rowing machine. Rowing is one of the most
effective exercises known for toning the body,
strengthening the muscles, and building the cardiovas­cular system. The WESLO 550 is designed to let you
enjoy this effective exercise in the convenience and
privacy of your home.

For your benefit, read this manual carefully before
you use the WESLO 550. If you have additional ques-

tions, please call our Customer Service Department at
08457 089 009.

To help us assist you, please note the product model
number before calling. The model number is
WLEMRW17910.

1. Read all instructions in this manual before
using the rowing machine. Use the rowing
machine only as described.

2. It is the responsibility of the owner to ensure
that all users of the rowing machine are ade­quately informed of all warnings.

3. Use the rowing machine indoors, on a level
surface, away from moisture and dust. Place
a mat under the rowing machine to protect
the floor or carpet.

4. Inspect and properly tighten all parts of the
rowing machine regularly. Replace worn parts
immediately.

5. Keep children under 12 and pets away from
the rowing machine at all times.

6. Wear appropriate clothing when exercising.
Always wear athletic shoes for foot protection.

7. Keep your hands away from moving parts.

8. If you experience dizziness or pain at any
time while exercising, stop immediately and
begin cooling down.

9. The rowing machine is intended for in-home
use only. Do not use the rowing machine in a
commercial, rental, or institutional setting.

HOW TO OPERATE THE MONITOR

To turn on the power, press the monitor button.
To switch modes, press the button until the desired

mode is displayed (black triangles mark the selected
modes). The monitor features the following modes:

• SCAN—The monitor displays the time and calorie
modes, switching every five seconds.

• COUNT (CNT)—The monitor displays the number of
repetitions you have completed, up to 9,999.

• TIMER (TMR)—The monitor counts the time, begin­ning when you start exercising (up to 99 minutes).
After 5 seconds of inactivity, the timer pauses.

• CALORIE (CAL)—The monitor displays the approxi­mate number of calories burned. Note: Use this
mode only for comparison; do not use this mode for
medical purposes.

To reset the monitor, press the button and hold it for
two seconds. The monitor automatically turns off

after five minutes of inactivity.

HOW TO ADJUST THE RESISTANCE

To vary the
intensity of
your exer­cise, the
resistance of
the rowing
arms can be
changed.
The resis­tance is
determined
by the positions of the clamps on the rowing arms. To
change the resistance, first loosen the clamp knobs.
To increase the resistance, slide the clamps higher on
the rowing arms; to decrease the resistance, slide the
clamps lower. Tighten the clamp knobs. Refer to the

marks on the rowing arms to make sure that both
clamps are at the same height.

PROPER ROWING FORM

Sit on the seat, facing the footrests. Place your feet in
the footrests and adjust the straps to fit your feet.
Hold the handles of the rowing arms with an overhand
grip. Correct rowing form consists of three phases:

1. The first phase is the CATCH. Slide the seat for­ward until your knees are almost touching your
chest. Pivot the rowing arms forward until your
hands are close to your feet.

2. The second phase is the DRIVE. Push backward
using your legs. Keep your back straight. Lean back
slightly at the hips (not at the waist) and begin
pulling the rowing arms toward your chest. Keep
your elbows outward.

3. The third phase is the FINISH. Your legs should be
nearly straight. Continue to pull the rowing arms
until your hands are even with your chest.

After the finish phase, extend your arms forward and
pull the seat forward using your legs. Repeat, moving
through all three phases with a smooth, fluid motion.
Remember to breathe normally as you row—never
hold your breath.

ALTERNATE ROWING

Sit on the rowing machine as described above and
extend your legs until they are nearly straight. Keep
your back straight. Alternately pull the right rowing arm
and then the left rowing arm toward your chest.

SIT-UPS

Sit on the rowing machine as described above. Make
sure that your feet are properly strapped into the
footrests. Bend your knees slightly and clasp your
hands behind your head. Perform as many sit-ups as
desired.

OPERATING THE ROWING MACHINE

Increase

Clamp

Knob

Clamp

Decrease

WARNING:To reduce the risk of serious injury, read the following important precautions

before using the rowing machine.

IMPORTANT PRECAUTIONS

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

WESLO is a registered trademark of ICON Health & Fitness, Inc.

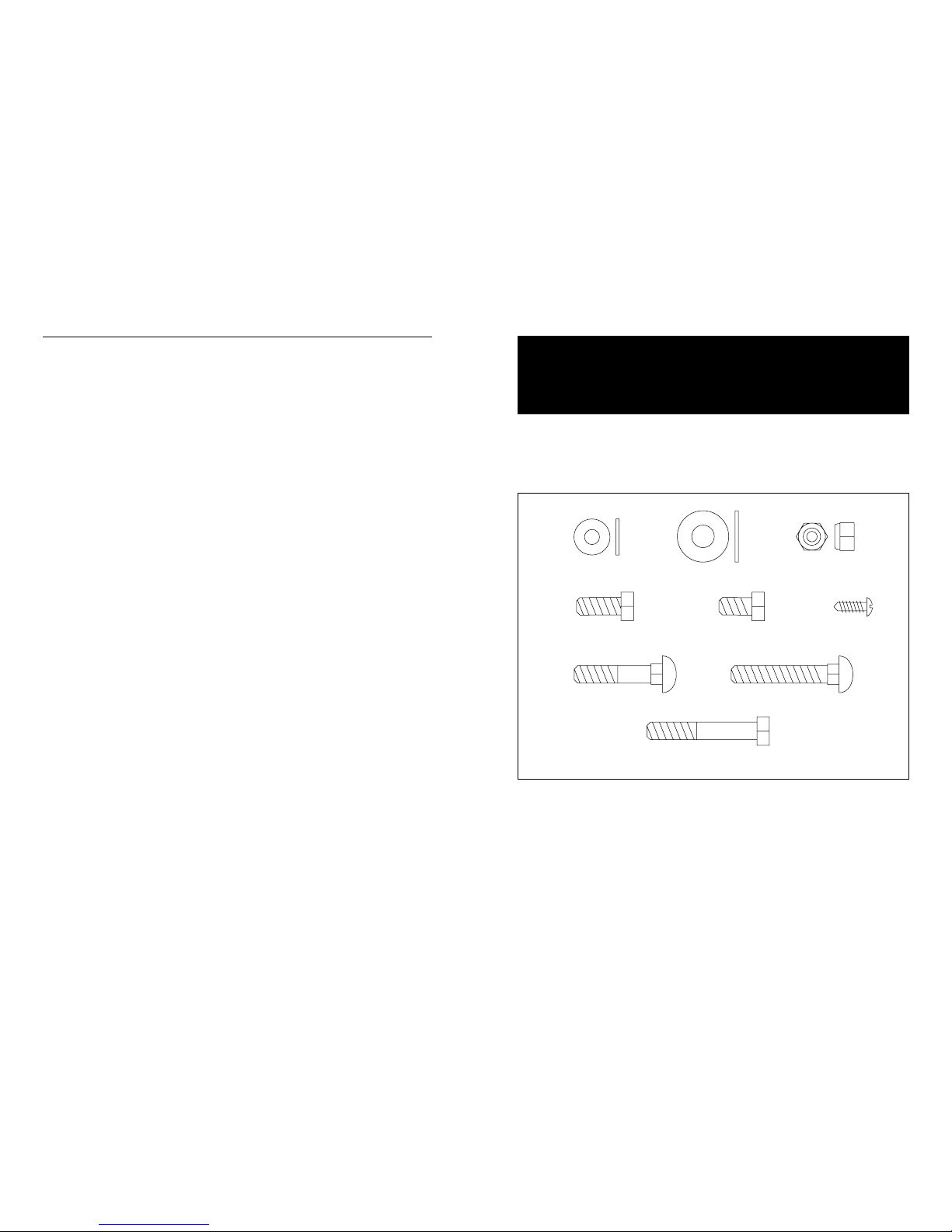

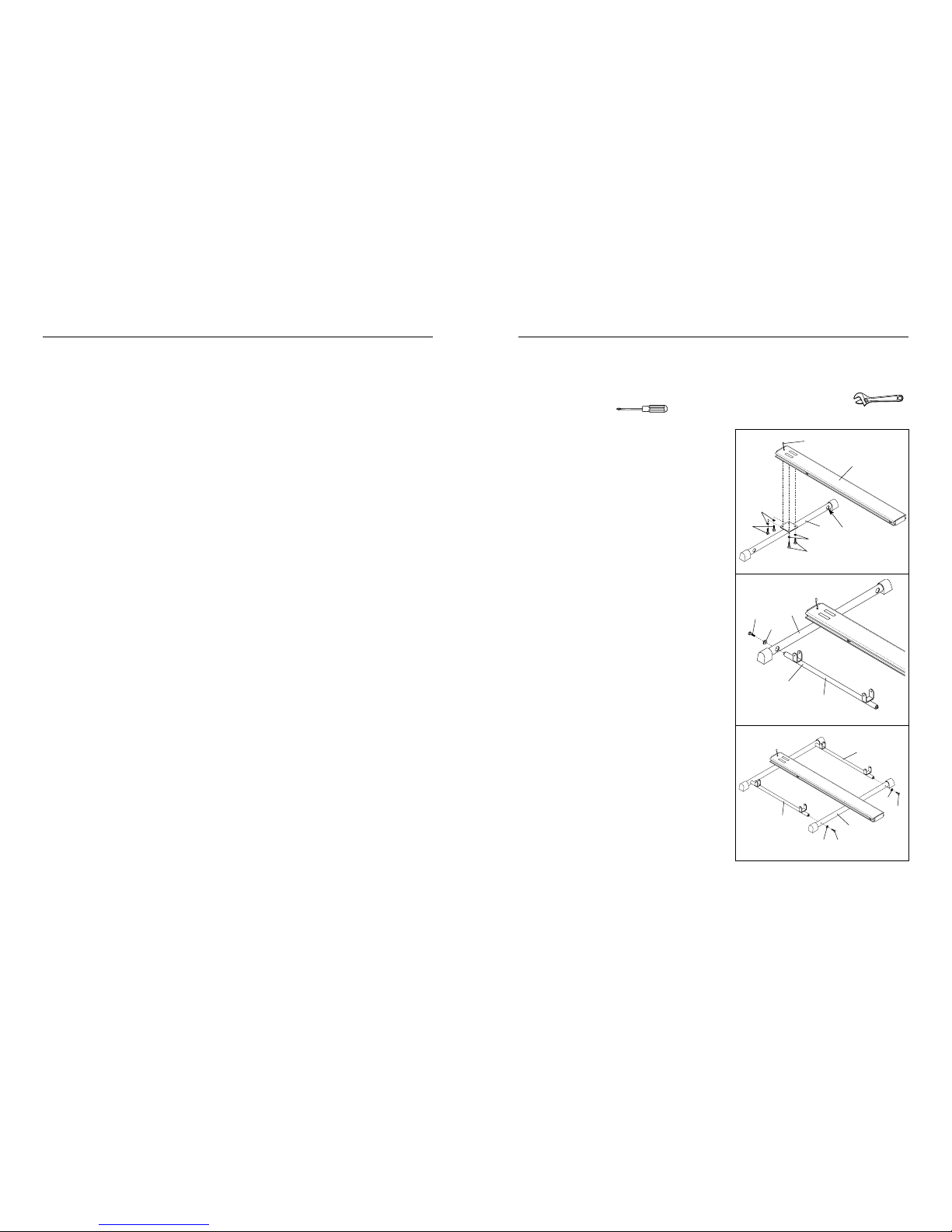

1. Note: As you assemble the rowing machine, use

the PART IDENTIFICATION CHART in the centre
of this manual for help identifying small parts.

Orient the Rail (2) so the Reed Switch Wire (39) is at
the indicated end. Orient one of the Long Stabilizers
(1) so the large holes are on the indicated side.

Attach the Long Stabilizer (1) to the Rail (2) with four
Short Stabilizer Bolts (7) and four Small Washers (22).

2. Orient one of the Connector Tubes (32) so the nar­row bracket is at the indicated end. Attach the
Connector Tube to the Long Stabilizer (1) with a
Long Stabilizer Bolt (14) and a Small Washer (22).

Do not overtighten the Long Stabilizer Bolt.

Attach the other Connector Tube (not shown) to the
Long Stabilizer (1) in the same way.

3. Slide the other Long Stabilizer (1) onto the ends of
the two Connector Tubes (32).

Attach the Long Stabilizer (1) to the Connector
Tubes (32) with two Long Stabilizer Bolts (14) and
two Small Washers (22). Do not overtighten the

Long Stabilizer Bolts.

3

1

39

2

Large

Hole

1

22

22

7

7

14

1

32

22

14

22

32

Narrow
Bracket

32

22

14

1

3

ASSEMBLY

Place all parts of the rowing machine in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed. Read each step carefully before beginning.

ASSEMBLYREQUIRES THE FOLLOWING TOOLS (NOT INCLUDED): An adjustable wrench
and a phillips screwdriver .

2

6

MAINTENANCE AND STORAGE TIPS

Inspect and tighten all parts of the rowing machine
regularly. Replace worn parts immediately.

Wipe the rail and the wheels on the seat bracket regu­larly to keep them free of dust and dirt. The rowing
machine can be cleaned using a soft cloth and mild
detergent. Keep liquids away from the monitor.

If the monitor does not function properly, replace the
batteries. Most problems are the result of drained bat-

teries. See assembly step 11 on page 5 for battery
installation instructions.

The rowing machine can be stored in a vertical posi­tion to conserve space. Store the rowing machine in
a location where children cannot tip it. Remove the
batteries from the monitor when storing the rowing
machine.

11. Insert two 1,5V (“AA”) batteries (not included) into the
Monitor (15). Alkaline batteries are recommended.
Make sure that the batteries are oriented correctly.

Connect the wire extending from the Monitor (15) to
the Reed Switch Wire (39). Remove the protective
tape from the Fastener Strips (36). Press the Monitor
onto the Fastener Strips; be careful not to pinch the

wires.

54

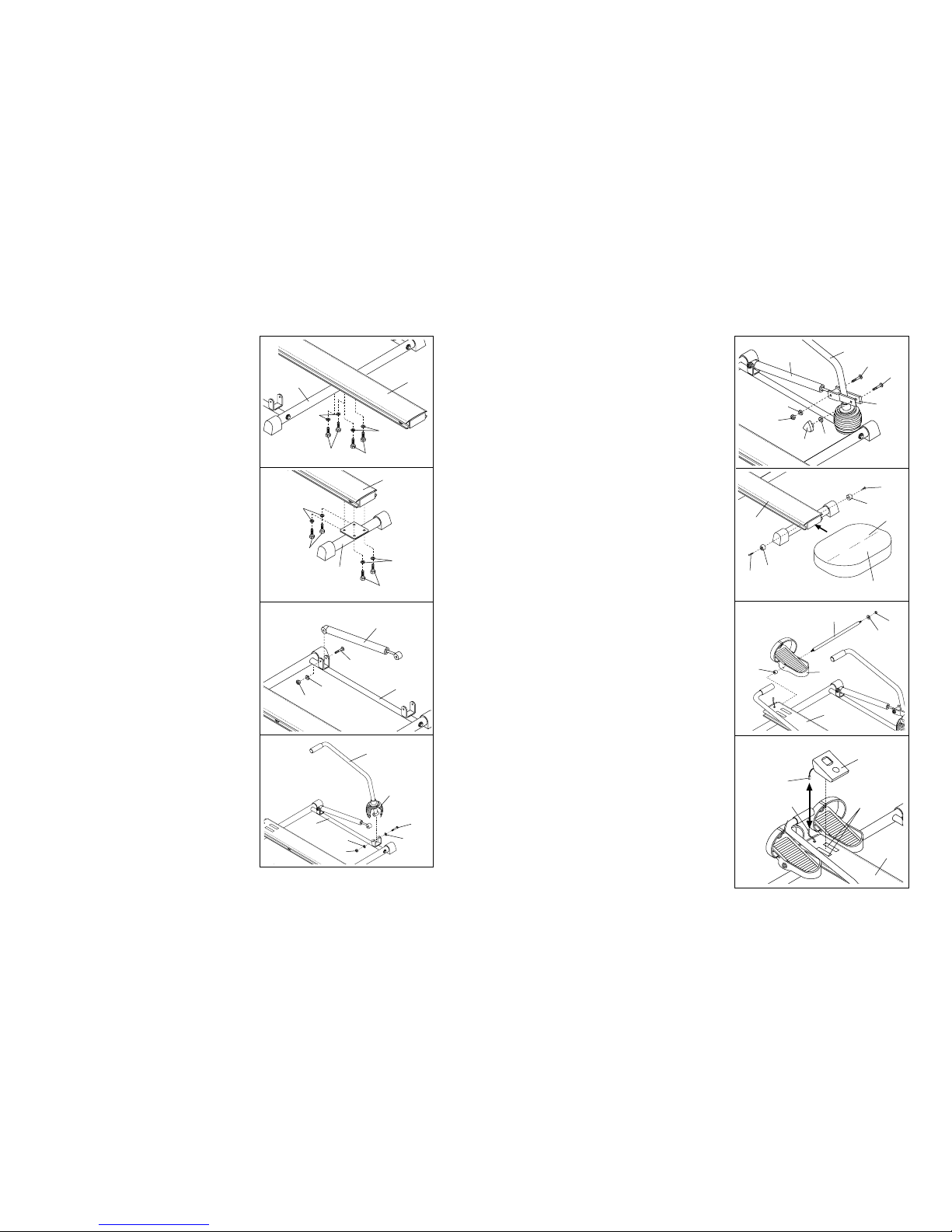

7. Orient the Right Rowing Arm (17) as shown. Attach
the Right Rowing Arm to the indicated bracket on the
right Connector Tube (32) with a Rowing Arm Bolt
(28), two Small Washers (22), and an M8 Nylon
Locknut (9). Slide the Rubber Cover (35) down so it
covers the bracket.

Attach the Left Rowing Arm (not shown) in the same
way.

6. Orient a Resistance Cylinder (26) as shown. Attach
the Resistance Cylinder to the indicated bracket on
the right Connector Tube (32) with a Cylinder Bolt
(25), a Small Washer (22), and an M8 Nylon Locknut
(9).

Attach the other Resistance Cylinder (not shown) in
the same way.

4. Attach the Long Stabilizer (1) to the Rail (2) with four
Short Stabilizer Bolts (7) and four Small Washers (22).

5. Attach the Short Stabilizer (3) to the Rail (2) with four
Short Stabilizer Bolts (7) and four Small Washers (22).

22

9

25

26

32

6

7

22

22

7

7

2

1

22

22

7

7

2

3

32

9

22

35

17

28

22

8. Attach the indicated end of a Clamp (20) to the right
Resistance Cylinder (26) with a Cylinder Bolt (25), a
Small Washer (22), and an M8 Nylon Locknut (9).

Secure the other end of the Clamp (20) to the Right
Rowing Arm (17) with a Clamp Bolt (40), a Small
Washer (22), and a Clamp Knob (21).

Attach the other Clamp (not shown) to the left
Resistance Cylinder and the Left Rowing Arm (not
shown) in the same way. Make sure that both

Clamps are at the same height.

10. Slide the Footrest Shaft (13) into the indicated hole in
the Rail (2).

Slide a Plastic Spacer (12) and a Footrest (10) onto
the right end of the Footrest Shaft (13). Secure the
Footrest with a Large Washer (8) and an M8 Nylon
Locknut (9).

Secure the other Footrest (not shown) to the left end
of the Footrest Shaft (13) in the same way.

9. Remove the two indicated Seat Stops (5).
Slide the Seat (23) onto the Rail (2). Make sure that

the thick edge of the Seat is oriented as shown
and that the Wheels (not shown) under the Seat
are in the grooves in the sides of the Rail.

Reattach the two Seat Stops (5) with the Seat Stop
Screws (4).

8

5

Thick Edge

4

2

5

4

23

9

10

17

26

22

9

22

21

25

40

20

12

2

9

8

13

10

4

5

12. Make sure that all parts are properly tightened
before you use the rowing machine. Place a mat
under the rowing machine to protect the floor or carpet.

11

Wire

15

36

39

2

Small Washer (22)–26

Seat Screw/

Stop Screw (4)–2

Large Washer (8)–2

Short Stabilizer Bolt (7)–12

M8 Nylon Locknut (9)–8

Rowing Arm Bolt (28)–2

Long Stabilizer Bolt (14)–4

Clamp Bolt (40)–2

Cylinder Bolt (25)–4

REMOVE THIS PART IDENTIFICATION CHART, PART

LIST, AND EXPLODED DRAWING FROM THE MANUAL.

Save this page for future reference.

PART LIST—Model No. WLEMRW17910 R1001A

Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.

Key

No. Qty. Description

1 2 Long Stabilizer
2 1 Rail
3 1 Short Stabilizer
4 8 Seat Screw/Stop Screw
5 4 Seat Stop
6 2 Rail Cap
7 12 Short Stabilizer Bolt
8 2 Large Washer

9 8 M8 Nylon Locknut
10 2 Footrest
11 2 Strap
12 2 Plastic Spacer
13 1 Footrest Shaft
14 4 Long Stabilizer Bolt
15 1 Monitor
16 2 Rowing Arm Cap
17 1 Right Rowing Arm
18 1 Left Rowing Arm
19 2 Handgrip
20 2 Clamp
21 2 Clamp Knob

Key
No. Qty. Description

22 26 Small Washer
23 1 Seat
24 1 Seat Bracket
25 4 Cylinder Bolt
26 2 Resistance Cylinder
27 1 Magnet
28 2 Rowing Arm Bolt
29 2 Rowing Arm Sleeve
30 4 Rowing Arm Bushing
31 2 Magnet Screw
32 2 Connector Tube
33 4 Wheel
34 6 Endcap
35 2 Rubber Cover
36 2 Fastener Strip
37 4 Seat Nut
38 4 Wheel Bolt
39 1 Reed Switch/Reed Switch Wire
40 2 Clamp Bolt

# 1 User’s Manual

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis following
each part description refers to the key number of the part. The number after each key number refers to the
quantity needed for assembly. Important: Some parts may have been pre-assembled for shipping purpos-

es. If you cannot find a part in the parts bags, check to see if it has been pre-assembled.

19

12

11

10

9

10

11

13

12

19

8

6

15

8

9

4

5

5

4

2

14

22

34

22

7

22

7

22

7

22

7

22

7

14

22

34

21

22

29

30

30

25

9

22

20

26

9

22

25

28

22

22

9

14

22

34

16

18

14

22

34

3

34

5

4

4

5

6

28

22

22

9

32

22

9

25

9

21

22

22

26

25

20

40

30

30

29

17

16

33

37

38

4

24

38

38

33

33

38

23

37

35

35

34

36

32

1

1

39

27

31

40

EXPLODED DRAWING—Model No. WLEMRW17910 R1001A
