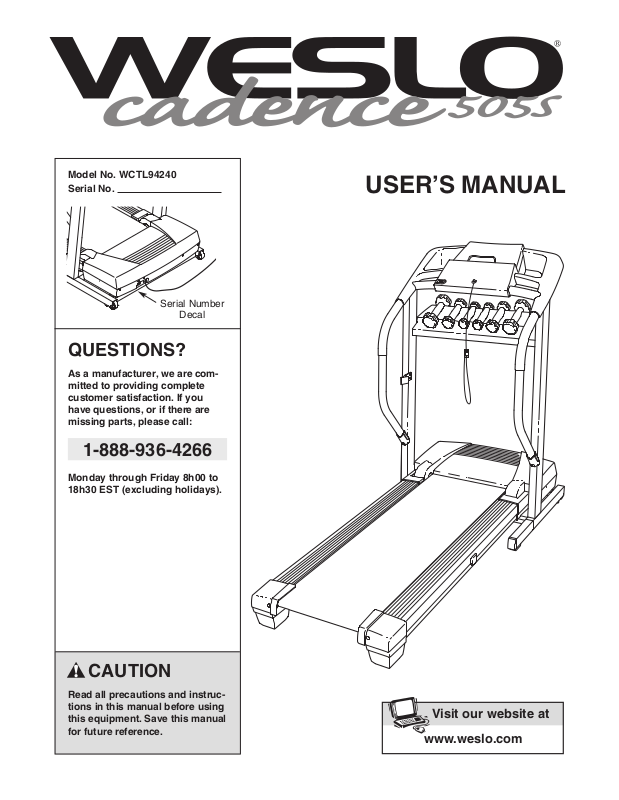

Weslo 505S User Manual

Model No. WCTL94240

www.weslo.com

Visit our website at

Serial No.

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:

1-888-936-4266

USER’S MANUAL

Monday through Friday 8h00 to
18h30 EST (excluding holidays).

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

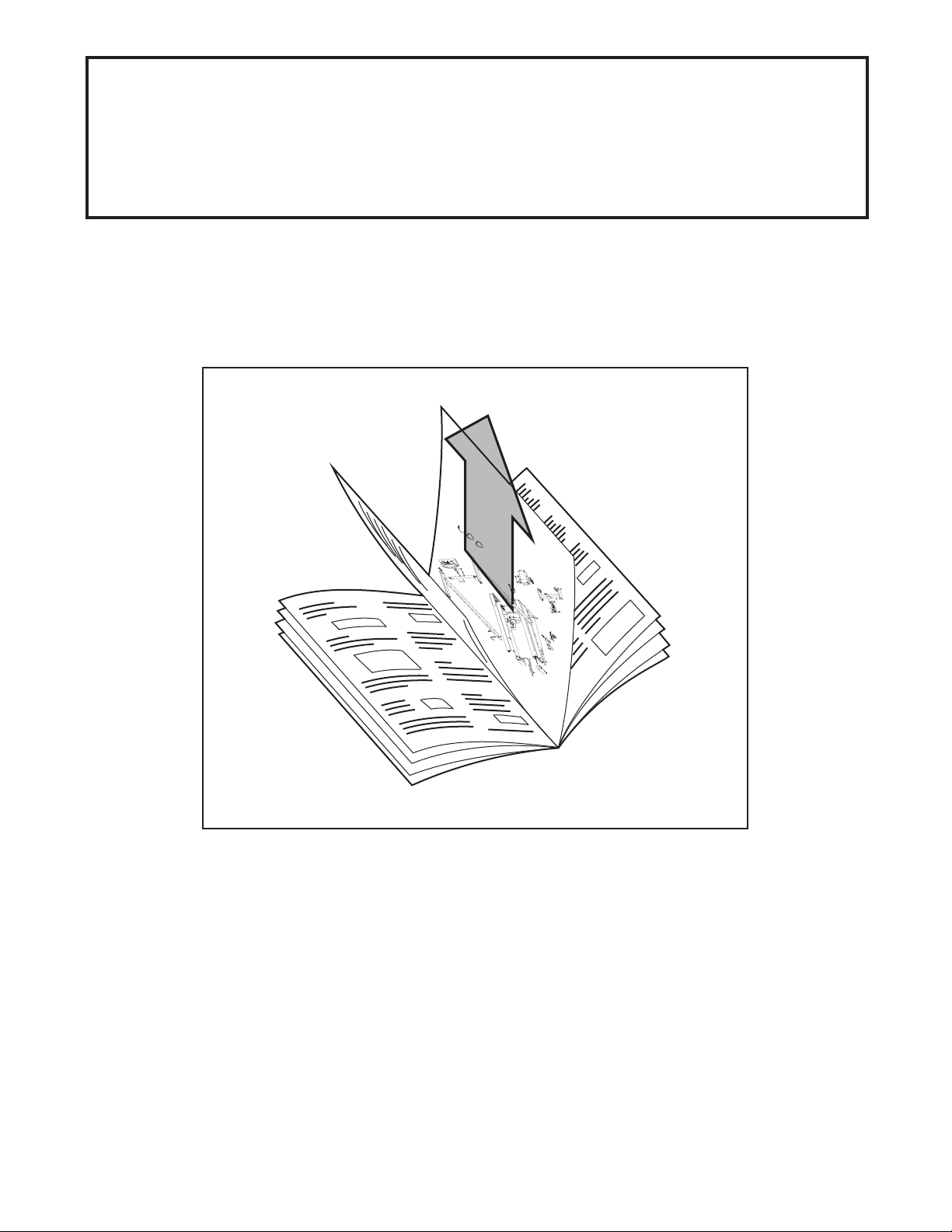

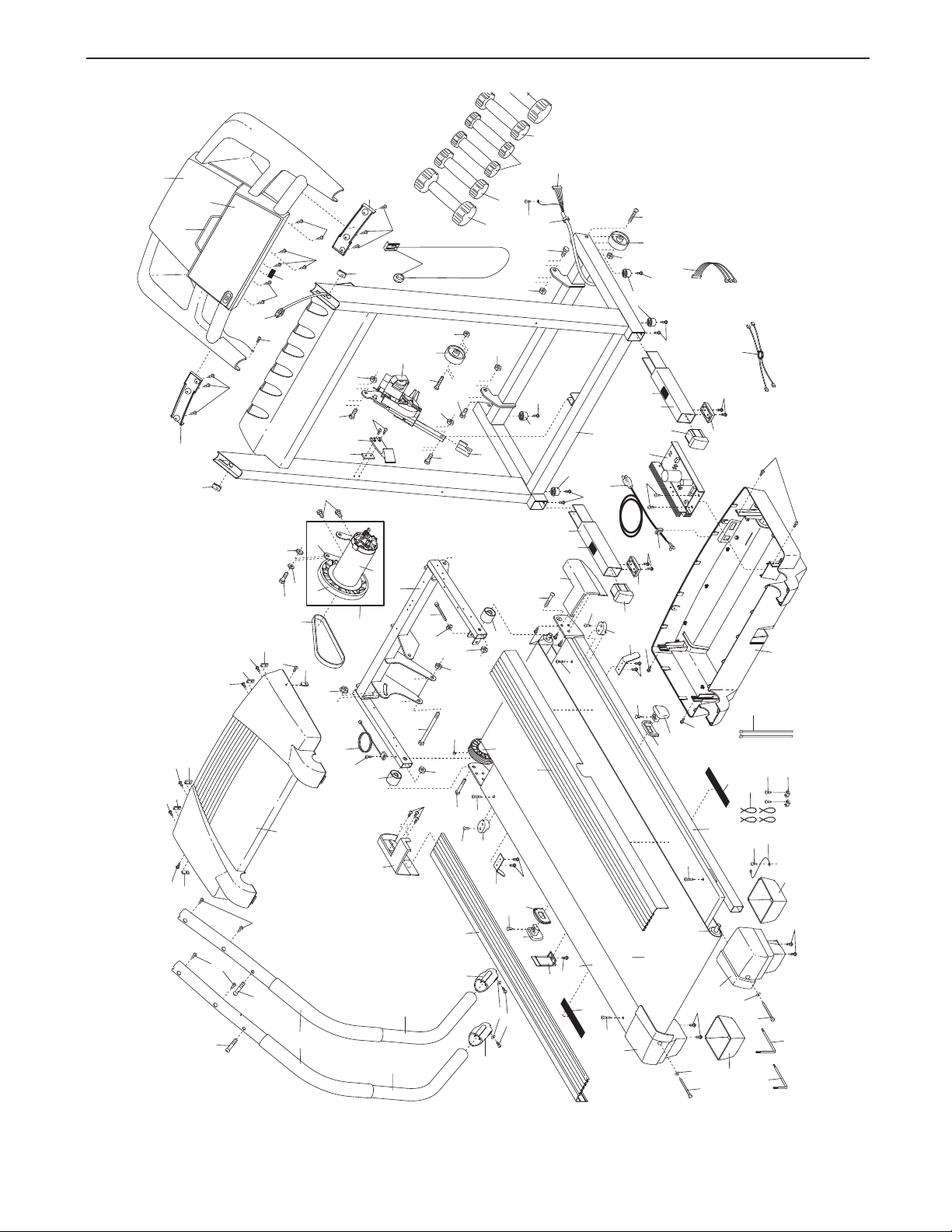

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

WESLO is a registered trademark of ICON IP, Inc.

2

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at
least 2 m (8 ft.) of clearance behind it and 0.5
m (2 ft.) on each side. Do not place the tread­mill on any surface that blocks air openings.
To protect the floor or carpet from damage,
place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should be used only by persons
weighing 115 kg (250 lbs.) or less.

8. Never allow more than one person on the
treadmill at a time.

9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.

shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

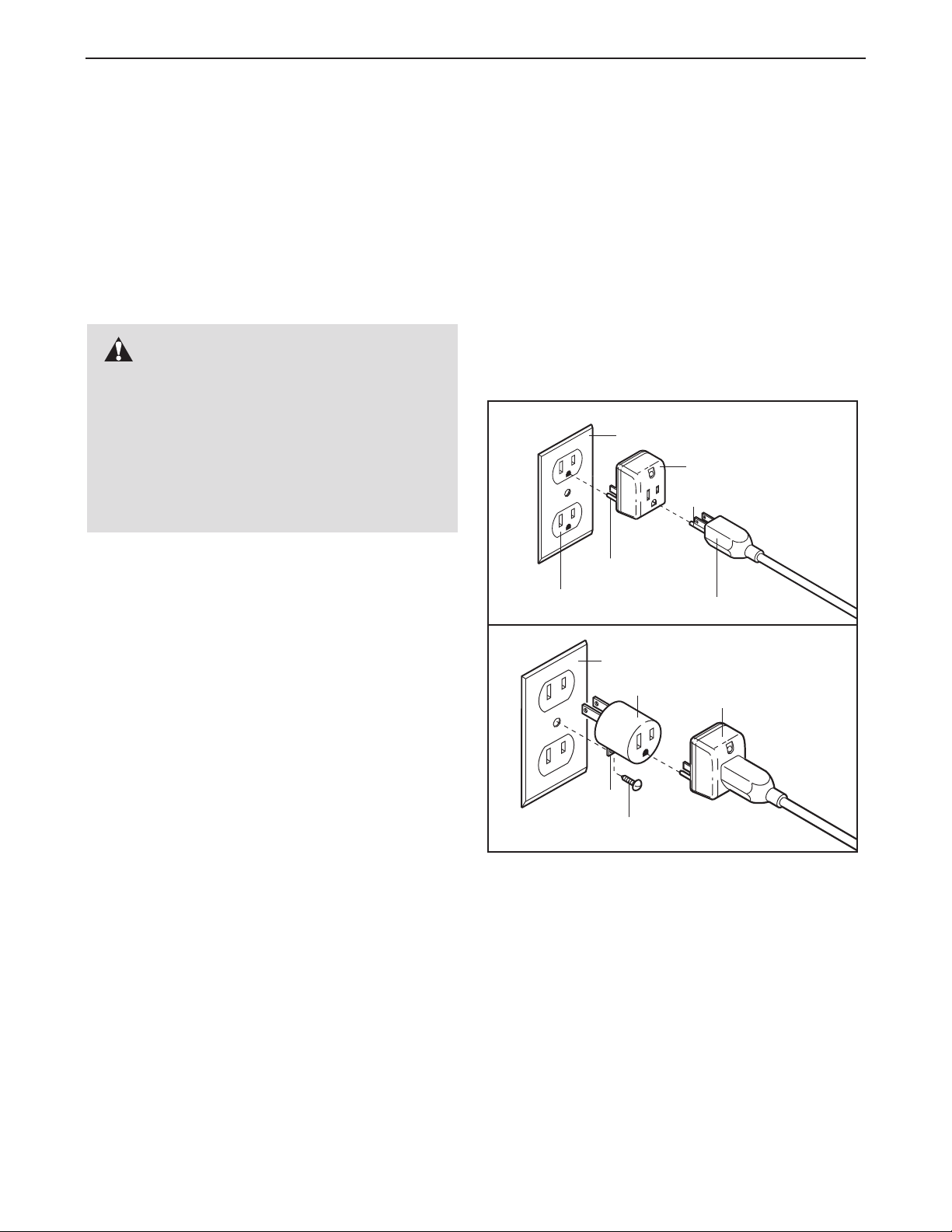

10. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.

11. Use only a CUL-listed surge suppressor of 450
joules minimum surge dissipation with voltage
rating of 400 volts or less, rated at 15 amps,
with a 1 mm2(14-gauge) cord of 1.5 m (5 ft.) or
less in length. Do not use an extension cord.

Always wear athletic

12. Failure to use a properly functioning surge
suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.

13. Keep the power cord and the surge suppres­sor away from heated surfaces.

14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE­FORE YOU BEGIN on page 5 if the treadmill is
not working properly.)

15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the
handrails while using the treadmill.

16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.

17. The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.

18. Do not use the hand weights at speeds faster
than walking speeds. Using weights and not
holding the handrails may compromise your
ability to maintain your balance. Exercises
using weights should be attempted only by
experienced users.

19. Never leave the treadmill unattended while it
is running. Always remove the key and unplug
the power cord when the treadmill is not in
use.

20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD

TREADMILL on page 14.)

MOVE

AND
You must be able to safely lift 20 kg (45 lbs. )
to raise, lower, or move the treadmill.

THE

3

21. When folding or moving the treadmill, make

!

!

sure that the storage latch is fully closed.

Inspect and properly tighten all parts of the

22.
treadmill regularly.

23. Never insert any object into any opening.

maintenance and adjustment procedures de­scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser­vice representative only.

24. DANGER: Always unplug the power

cord immediately after use, before cleaning
the treadmill, and before performing the

25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer­cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown have been placed on your treadmill. If a decal is missing, or if it
is not legible, please call toll-free 1-888-936-4266 and order a free replacement
decal. Apply the decal in the location shown. Note: The decals are not shown at ac­tual size.

4

BEFORE YOU BEGIN

Thank you for selecting the new
505s treadmill. The
advanced technology with innovative design to help you
get the most from your exercise in the convenience of
your home. And when you’re not exercising, the
CADENCE 505s treadmill can be folded up, requiring
less than half the floor space of other treadmills.

For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,

please call our Customer Service Department at

CADENCE 505s treadmill combines

Accessory Tray

Weight Rack

Handrail

WESLO

®

CADENCE

1-888-936-4266, Monday through Friday 8h00 until
18h30 eastern time (excluding holidays). To help us
assist you, please note the product model number and
serial number before calling. The model number of the
treadmill is WCTL94240. The serial number can be
found on a decal attached to the treadmill (see the
front cover of this manual for the location).

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.

Bookrack

Console

Hand Weights

Key/Clip

Storage Latch

Walking Belt

Foot Rail

BACK

Rear Roller
Adjustment Bolts

Upright

Reset/Off

Circuit Breaker

Power Cord

RIGHT SIDE

Cushioned Walking Platform

for maximum exercise comfort

5

ASSEMBLY

!

!

3/4” Screw (2)–6

Wheel Nut (32)–2

2” Bolt (64)–2

1/2” Ground Screw

(75)–1

1” Tek Screw (39)–6

2 1/2” Bolt (37)–2

Washer (38)–2

3/4” Tek Screw (58)–2

1/2” Screw (49)–6

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included allen wrenches and your own phillips screwdriver ,
rubber mallet , and adjustable wrench .

For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, first

check to see if it has been pre-assembled. If a part is missing, call 1-888-936-4266.

1. Make sure that the power cord is unplugged.

With the help of another person, carefully raise the
Uprights (69), with the Right Handrail (72), to the vertical
position. Note: Be careful not to pull on the Wire
Harness (42) in the Right Handrail.

Insert one of the Extension Legs (63) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights as
you insert the Extension Leg.) Make sure that the Base
Pad (61) is under the Extension Leg.

Insert the other Extension Leg (63) in the same way.

1

6

42

72

69

63

61

With the help of another person, carefully lower the

2.
Uprights (69) as shown. Note: It may be helpful to place
one foot on one of the Extension Legs [63] as you tip the
Uprights. Make sure that the Extension Legs remain

in the Uprights.

2

69

66

64

39

Attach each Extension Leg (63) with two 1” Tek Screws
(39) and a Round Base Pad (57) as shown. Attach the

lower Tek Screw, without the Round Base Pad, first.

Attach two more Round Base Pads (57) to the base of
the Uprights (69) with two 1” Tek Screws (39). Note: One
replacement Round Base Pad may be included. If a
Round Base Pad becomes worn and needs to be re­placed, use the replacement Round Base Pad.

Attach the two Wheels (66) with two 2” Bolts (64) and
two Wheel Nuts (32) as shown.

Bolts.

With the help of another person, carefully raise the
Uprights (69) to the vertical position.

3. Cut the plastic tie holding the Upright Wire (42) in the
right Upright (69).

Press a Handrail Cap (40) onto the lower end of the
Right Handrail (72) as shown. Attach the upper end of
the Right Handrail to the right Upright (69) with a 2 1/2”
Bolt (37). Be careful not to pinch the Upright Wire.
Firmly tighten the Bolt. Attach the lower end of the
Right Handrail and the Handrail Cap with a 3/4” Tek
Screw (58) and a Washer (38).

The Wheels should be able to spin freely.

Do not overtighten the

32

66

64

69

63

3

37

32

57

57

69

39

39

63

71

42

37

57

57

39

72

Attach the Left Handrail (71) in the same way. Note:
There is not an upright wire on the left side.

69

40

38

58

40

38

58

7

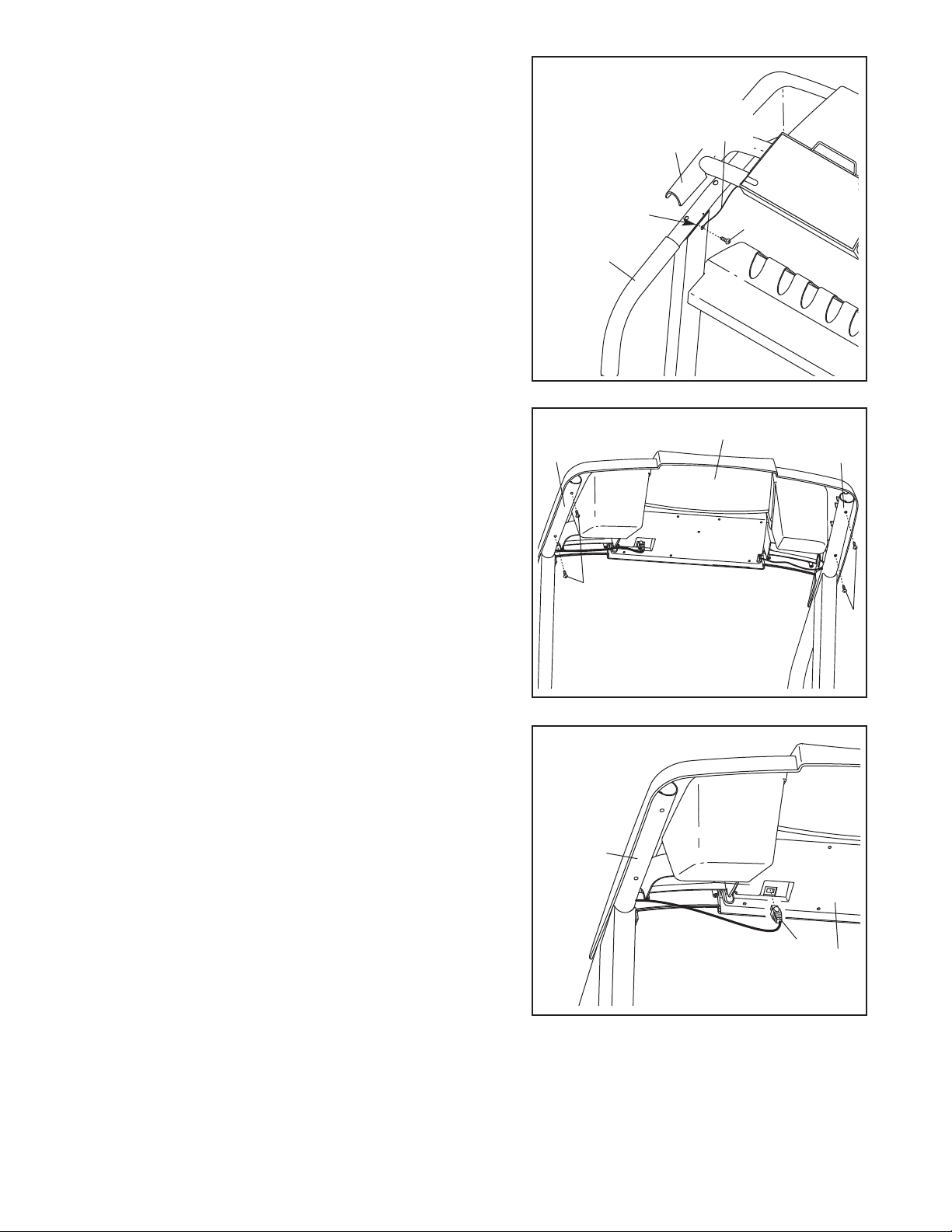

4. Hold the Console Base (47) near the Left Handrail (71).
Attach the end of the ground wire on the Console Base
to the indicated small hole in the Left Handrail with the
1/2” Ground Screw (75).

4

Ground

Wire

47

Small

Hole

71

75

5. Set the Console Base (47) on the Right Handrail (72) and
the Left Handrail (71). Attach the Console Base with four
3/4” Screws (2).

them; do not overtighten the Screws.

6. Touch the Right Handrail (72) to discharge any static.
Press the end of the Upright Wire (42) into the socket in the
bottom of the Console Base (47). The connector should
slide easily into the socket and snap into place. If the
connector does not slide easily and snap into place, turn
the connector and then insert it.

Start all four Screws before tightening

5

6

72

47

71

2

2

72

42

47

8

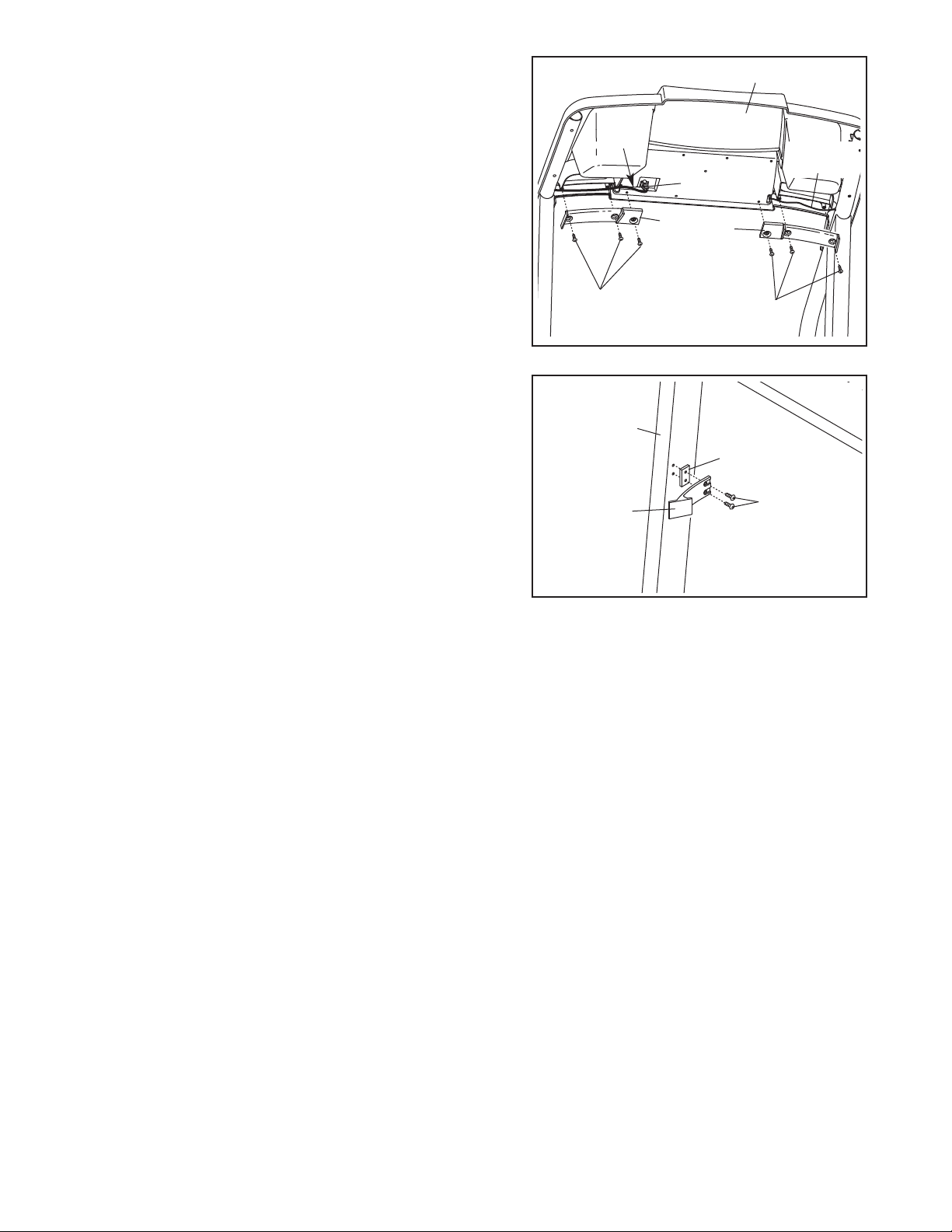

7. Press the Upright Wire (42) into the slot in the underside
of the Console Base (47) in the indicated area. Cover the
Upright Wire with the Right Grip Plate (36).
not to pinch the Upright Wire. Tighten three 1/2”
Screws (49) into the Right Grip Plate and the Console
Base.

Attach the Left Grip Plate (34) over the ground wire and
the other wires with three 1/2” Screws (49). Be careful

not to pinch any of the wires.

Be careful

7

Slot

42

36

47

Ground

Wire

32

49

8. Attach the Storage Latch (29) and the Latch Spacer (27)
to the left Upright (69) with two 3/4” Screws (2) as shown.

Do not overtighten the Screws.

9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 17). To protect the floor or carpet, place a mat under the treadmill.

8

69

29

49

27

2

9

OPERATION AND ADJUSTMENT

PERFORMANT LUBE

THE

Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking
belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

TM

WALKING BELT

DANGER: Improper connection

of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service­man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.

Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).

plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.

1

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Grounding Pin

Grounded Outlet

2

Grounded Outlet Box

Adapter

Grounding Plug

Surge Suppressor

Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpect
edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding

-

Lug

Metal Screw

The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.

The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec
trician to determine if the outlet box cover is
grounded before using an adapter.

10

-

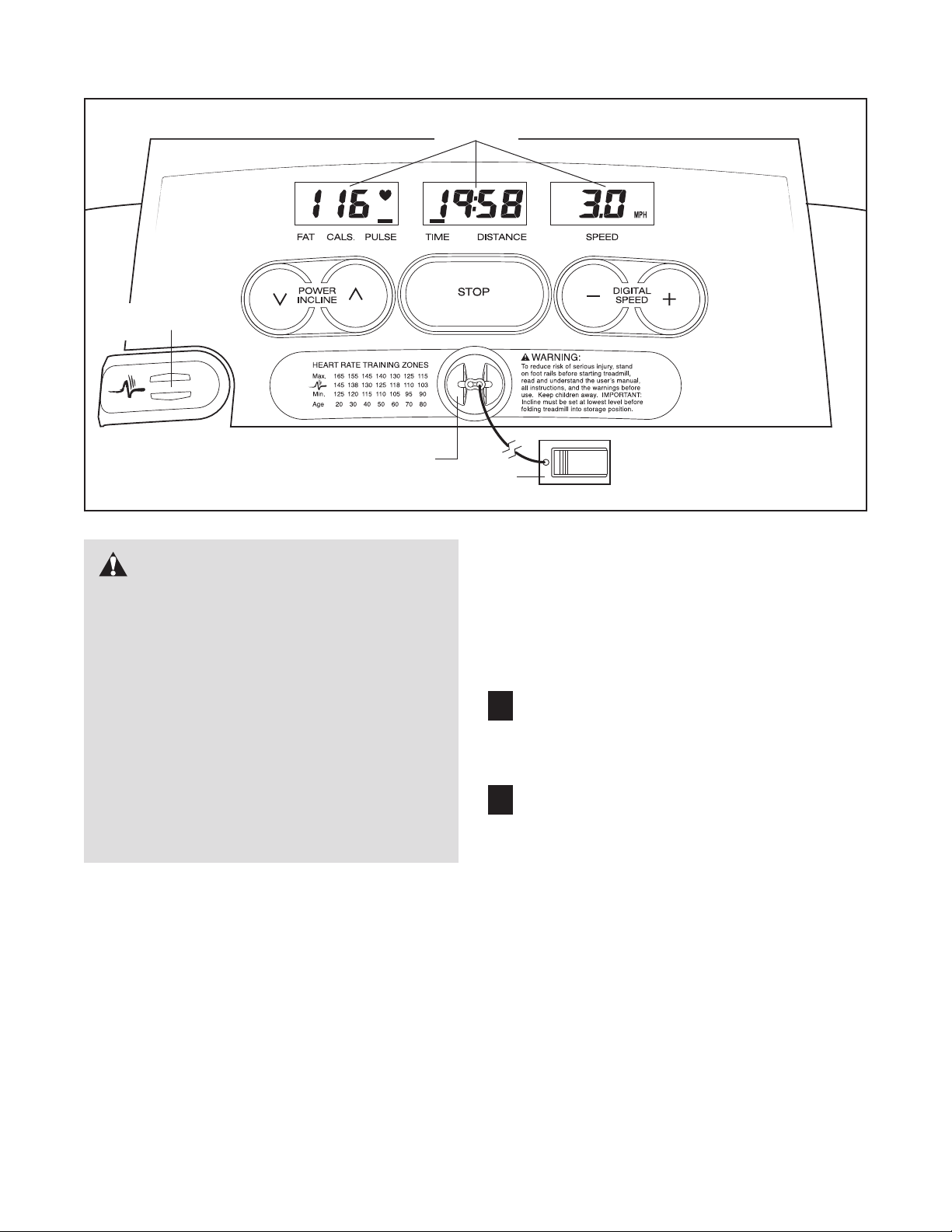

CONSOLE DIAGRAM

Pulse Sensor

Displays

Note: If there is a thin sheet of plastic
on the console, remove the plastic.

Key

CAUTION: Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn­ing on the power.

• Always wear the clip (see the drawing
above) while operating the treadmill.

• Adjust the speed in small increments to
avoid sudden jumps in speed.

• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed
water bottle in the accessory trays.

STEP-BY-STEP CONSOLE OPERATION

Before operating the console, make sure that the
power cord is properly plugged in (see page 10). The
reset/off circuit breaker, located on the treadmill frame
near the power cord, should be in the reset position
(see page 16).

Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above), and
slide the clip onto the waistband of your clothes.

Clip

Insert the key into the console. A tone will sound and
the three displays will light.

taking a few steps backward until the key is pulled
from the console. If the key is not pulled from the
console, adjust the position of the clip.

Follow the steps below to operate the console.

Insert the key into the console.

Test the clip by carefully

1

When the key is inserted, a tone will sound and
the three displays will light.

button to start

Press the Speed

2

belt.

A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.

As you exercise, change the speed of the walking
belt as desired by pressing the Speed
Each time a button is pressed, the speed setting
will change by 0.1 mph; if a button is held down,
the speed setting will change in increments
mph.

Note: The console can display speed and
distance in either miles or kilometers (see
SPEED DISPLAY on page 12). For simplicity, all
instructions in this section refer to miles.

+

the walking

buttons

.

of 0.5

1

1

To stop the walking belt, press the Stop button.
The Time/Distance display will begin to flash.

Note: During the first few minutes that the treadmill
is used, inspect the alignment of the walking belt,
and align it if necessary (see page 16).

Change the incline of the treadmill as desired.

3

To change the incline of the treadmill, press either
of the Incline buttons until the desired incline level
is reached.

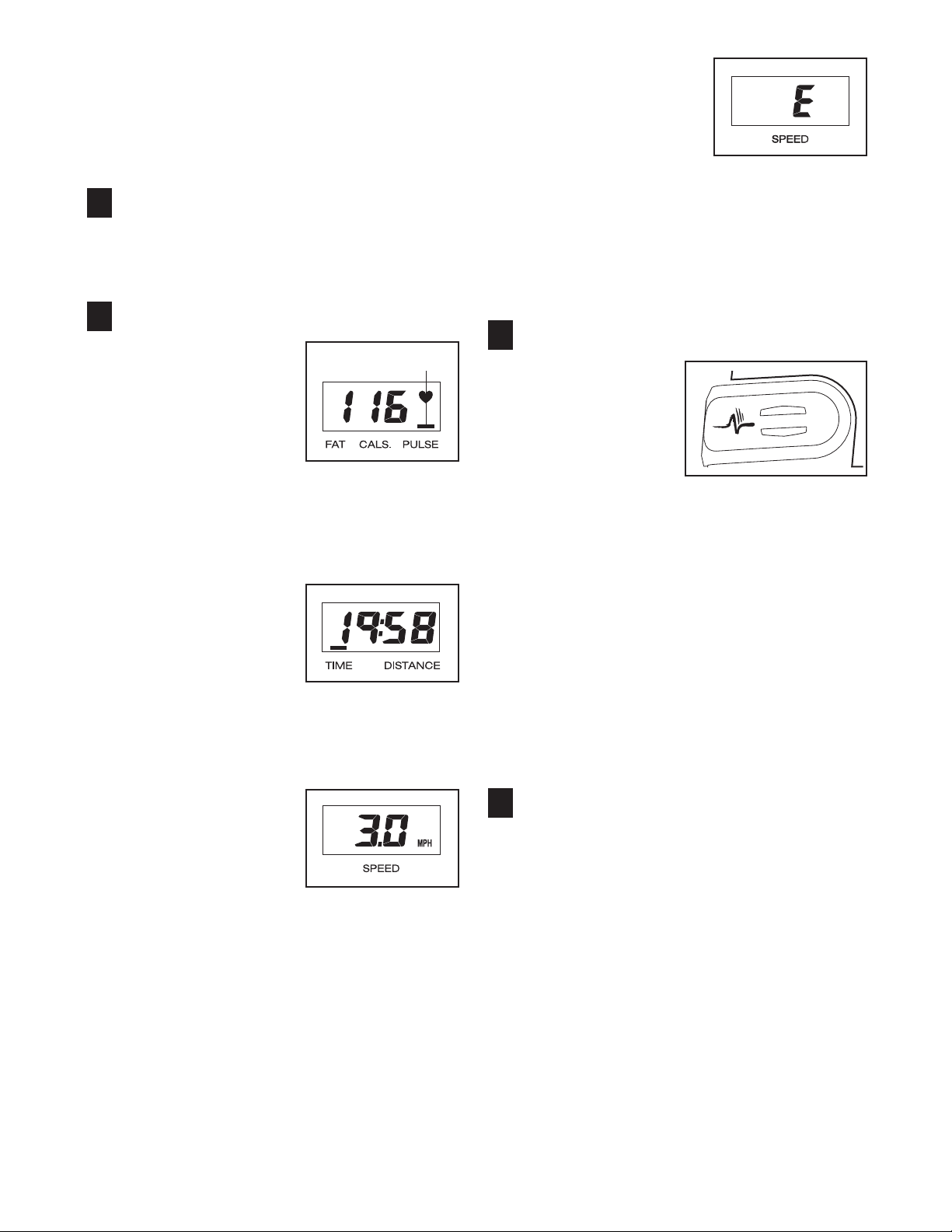

Follow your progress with the three displays.

4

Fat Calories/Calories/
Pulse display

display shows the ap­proximate numbers of fat
calories and calories you
have burned (see FAT
BURNING on page 18).
The display will change
from one number to the other every few seconds,
as shown by the mode indicators. This display will
also show your heart rate when you use the pulse
sensor (see step 5).

Time/Distance
display—This display

shows the elapsed time
and the distance that
you have walked or run.
The display will change
from one number to the
other every few seconds, as shown by the mode
indicators. Note: When the Stop button is pressed,
this display will flash.

—This

Mode Indicator

while inserting the key
into the console. An “E”
for English miles or an
“M” for metric kilometers
will appear in the Speed
display. Press the Speed
+ button to change the
unit of measurement. When the desired unit of
measurement is selected, remove the key and
then reinsert it.

To reset the displays, press the Stop button, re­move the key, and then reinsert the key.

Measure your heart rate if desired.

5

To measure your
heart rate, stand on
the foot rails and
place your thumb
on the pulse sen­sor.

Do not press
too hard, or the
circulation in your
thumb will be restricted and your pulse will not
be detected.

shaped indicator in the Fat Calories/Calories/
Pulse display will begin to flash, and then your
heart rate will be shown. Hold your thumb on the
pulse sensor for about 15 seconds for the most ac­curate reading.

If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as de­scribed above. Remember to stand still while mea­suring your heart rate.

After a few seconds, the heart-

Speed display—This
display shows the speed
of the walking belt.

Note: The console can display speed and dis
tance in either miles or kilometers. To change the
unit of measurement, hold down the Stop button

-

12

When you are finished exercising, remove the

6

key.

Step onto the foot rails, press the Stop button, and
remove the key from the console. Keep the key in a
secure place. Move the reset/off circuit breaker to
the off position and unplug the power cord.

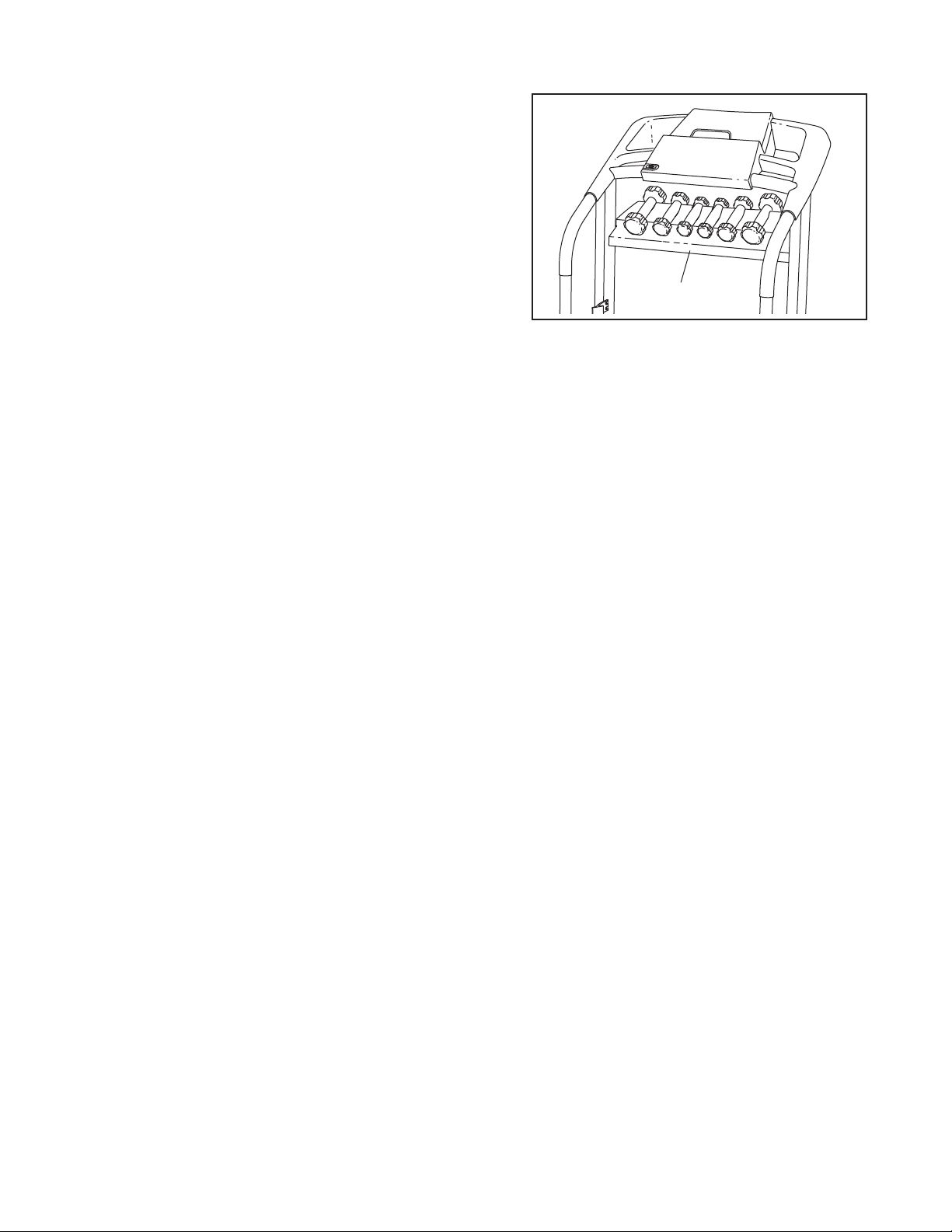

HOW TO USE THE HAND WEIGHTS

To exercise your upper body as you walk on the treadmill,
hold the 2-pound (0.9 kg) weights at your sides or press the
weights
exercise, use the 3-pound (1.4 kg) or 5-pound (2.3 kg)
weights. The hand weights can be stored in the weight rack.

WARNING: Do not use the hand weights at speeds
faster than walking speeds. Using weights and not
holding the handrails may compromise your ability to
maintain your balance. Exercises using weights should
be attempted only by experienced users.

above your head. To increase the intensity of your

Weight Rack

13

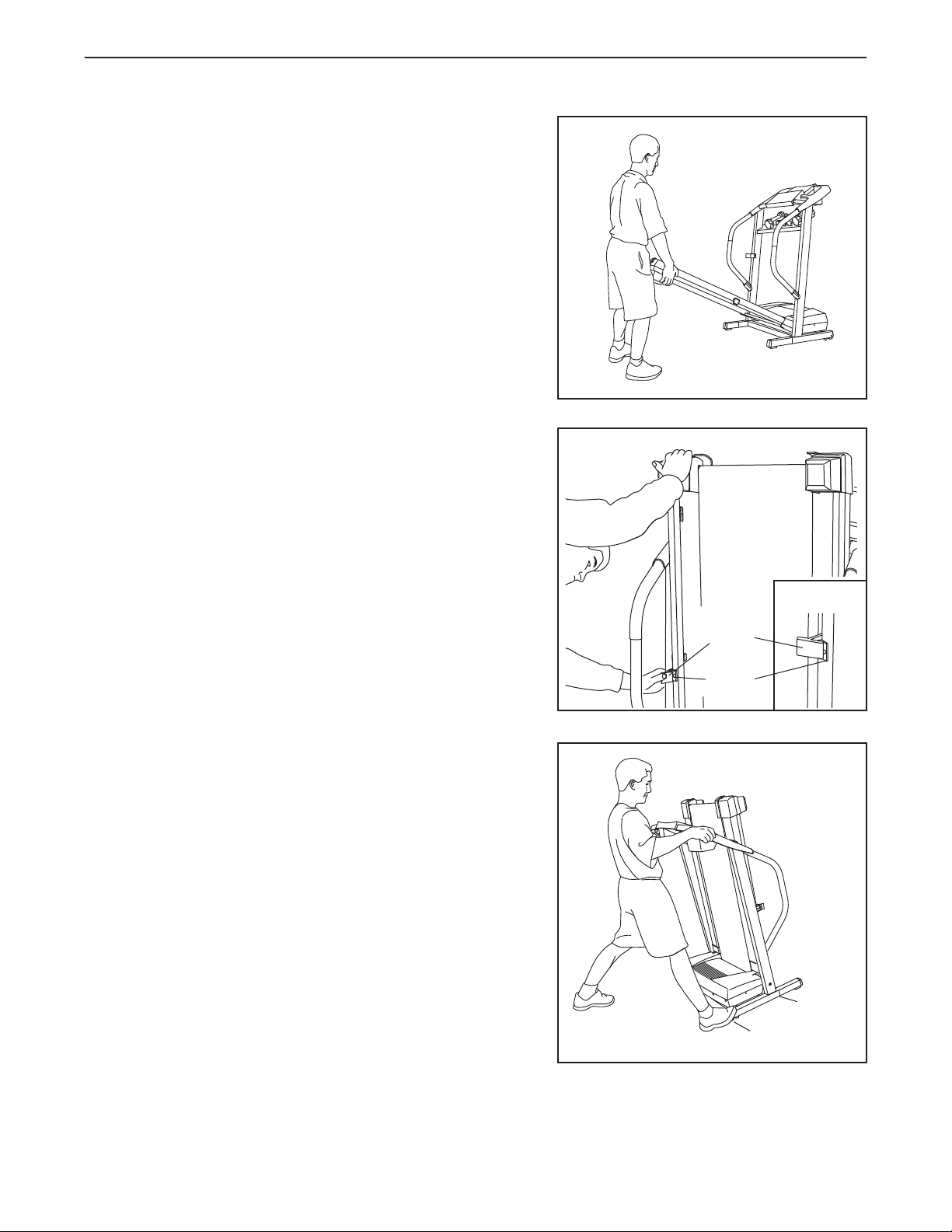

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be per­manently damaged.
You must be able to safely lift 20 kg (45 lbs.) to raise, lower,
or move the treadmill.

1. Hold the treadmill with your hands in the locations shown at
the right.

legs and keep your back straight. As you raise the tread­mill, make sure to lift with your legs rather than your
back.

tion.

2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left thumb, press the storage latch
to the left. Raise the treadmill until the storage latch closes
over the catch. Make sure that the storage latch is fully

engaged over the catch.

To decrease the possibility of injury, bend your

Raise the treadmill about halfway to the vertical posi-

Next, unplug the power cord. CAUTION:

To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sun­light. Do not leave the treadmill in the storage position in
temperatures above 30° C (85° F).

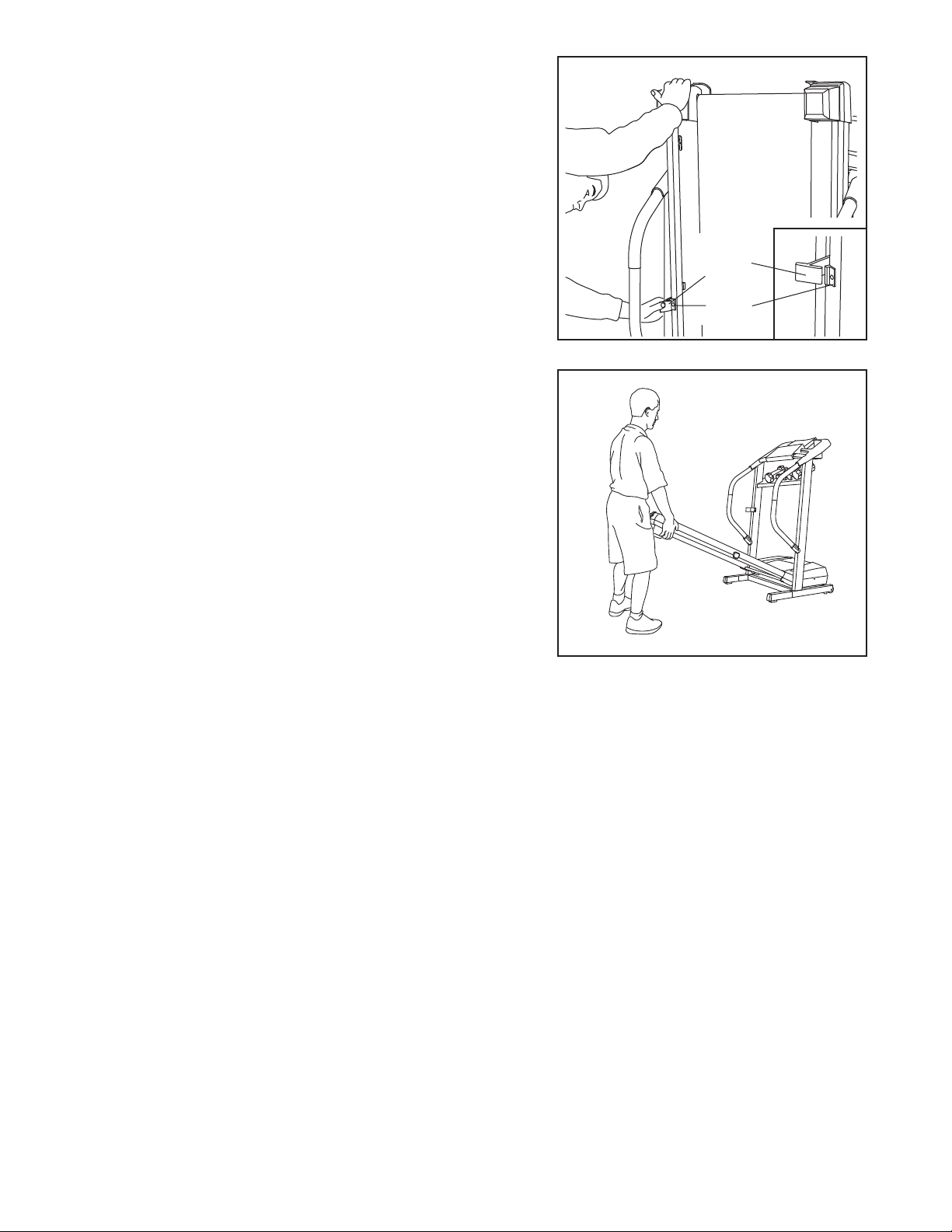

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the frame is se-

curely held by the storage latch.

1. Hold the upper ends of the handrails. Place one foot on the
base as shown.

2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location.

duce the risk of injury, use extreme caution while mov­ing the treadmill. Do not move the treadmill over an un­even surface.

Place one foot on the base, and carefully lower the treadmill

3.
until it is resting in the storage position.

To re

-

Engaged

Storage

Latch

Catch

Base

Front Wheels

14

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand.

Press the storage latch to the left. Pivot the treadmill down
until the frame and foot rail are past the storage latch.

2. Hold the treadmill firmly with both hands, and lower the tread-

mill to the floor. Do not drop the treadmill frame to the

floor. To decrease the possibility of injury, bend your legs
and keep your back straight.

Storage

Latch

Catch

15

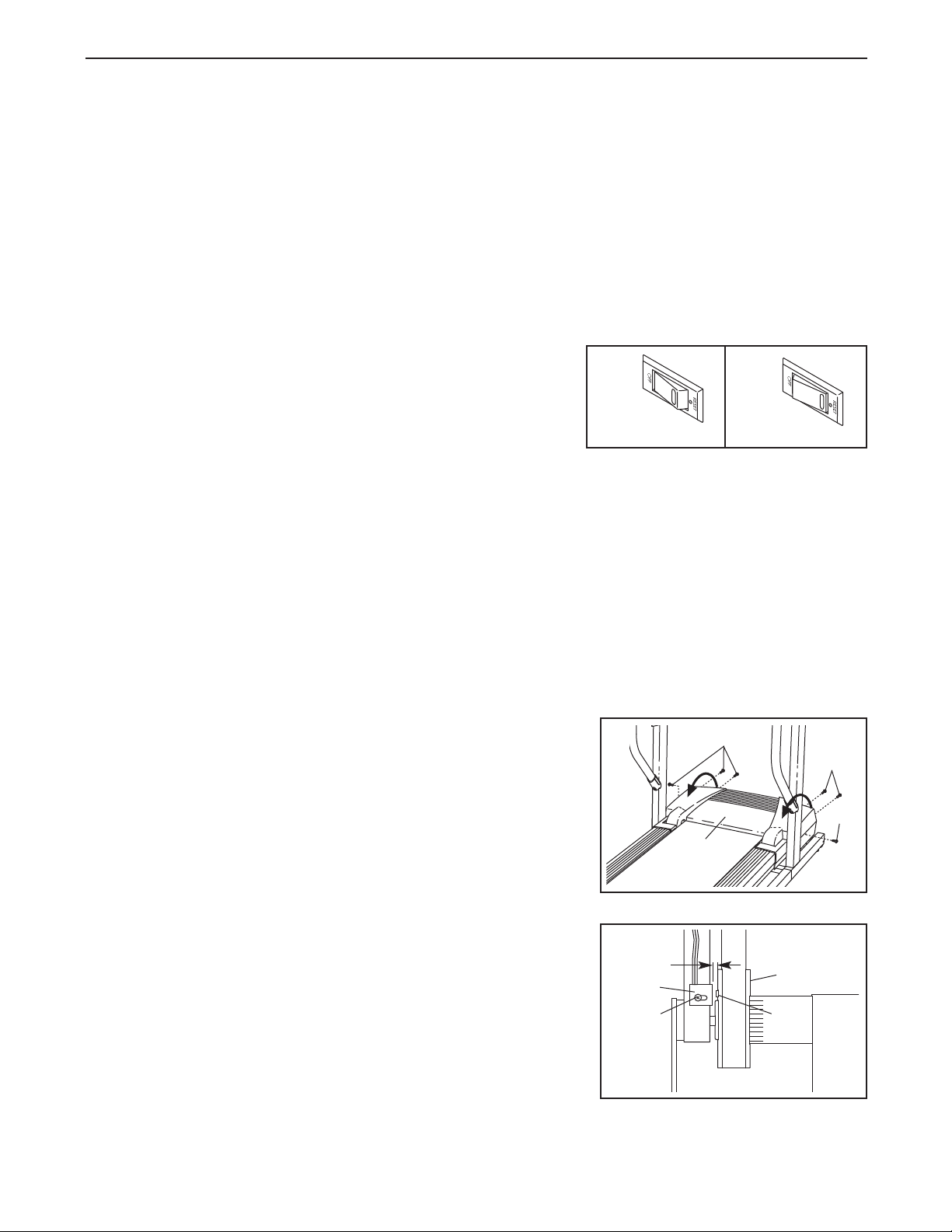

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call 1-888-936-4266.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres­sor that meets all of the specifications described on page 10. Important: The treadmill is not com­patible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the reset/off circuit breaker located on the

treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing

above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the treadmill still will not run, please call toll-free 1-888-936-4266.

PROBLEM: The displays of the console do not function properly

SOLUTION:

a. Remove the key from the console and UNPLUG THE

POWER CORD. Remove the six 3/4” Screws (2) from

the Hood (1), and carefully pivot the Hood off.

c

Tripped

a

Reset

2

2

Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until the
Magnet is aligned with the Reed Switch.

that the gap between the Magnet and the Reed
Switch is about 3 mm (1/8 in.).

the Screw (58), move the Reed Switch slightly, and
then retighten the Screw. Re-attach the Hood, and run
the treadmill for a few minutes to check for a correct
speed reading.

If necessary, loosen

Make sure

16

3 mm

10

58

Top

View

2

1

17

18

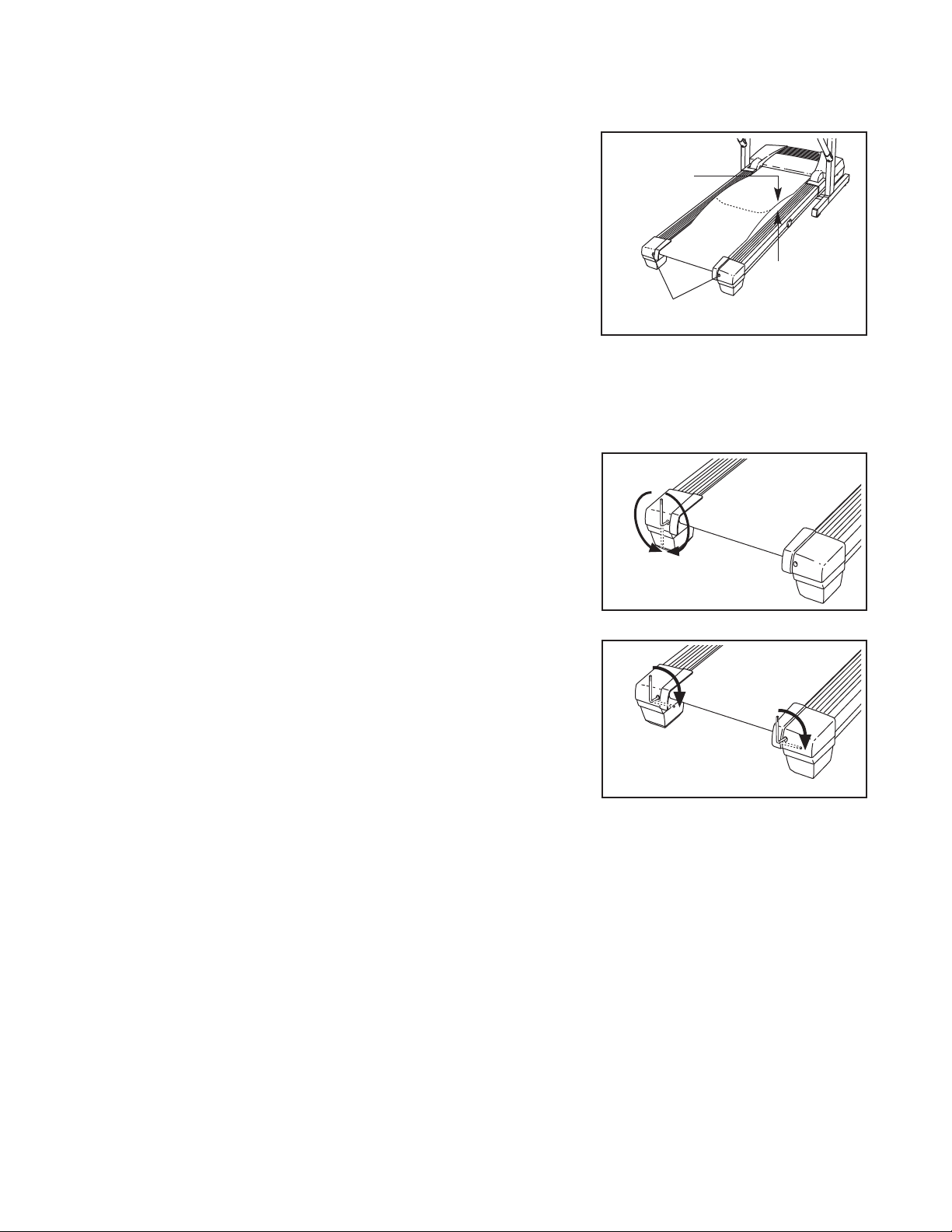

PROBLEM: The walking belt slows when walked on

Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.

SOLUTION:

PROBLEM: The walking belt is off-center or slips when walked on

a.

If the walking belt is overtightened, treadmill perfor-

b.

mance may decrease and the walking belt may be­come damaged. Remove the key and
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 5–7
cm (2–3 in.) off the walking platform. Be careful to
keep the walking belt centered. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is properly tight­ened.

c. If the walking belt still slows when walked on, please call 1-888-936-4266.

UNPLUG THE

b

5–7 cm

Rear Roller Adjustment Bolts

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not
to overtighten the walking belt. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tight­ened, you should be able to lift each side of the walk­ing belt 5–7 cm (2–3 in.) off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.

a

b

17

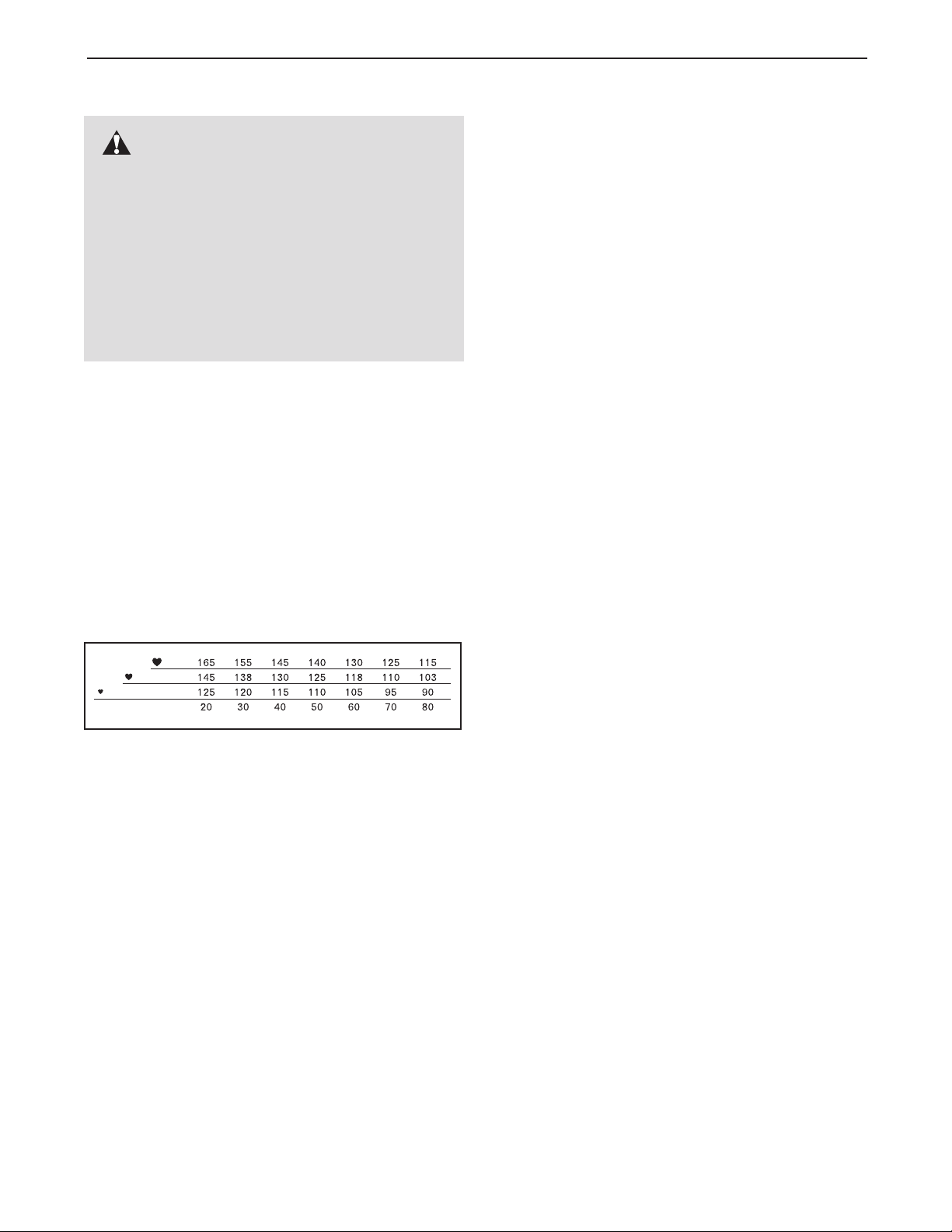

CONDITIONING GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physi­cian. This is especially important for individu
als over the age of 35 or individuals with pre­existing health problems.

The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.

The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

-

ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the tread
mill until your heart rate is near the lowest number in
your training zone.

For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular system,
your exercise must be “aerobic.” Aerobic exercise is ac­tivity that requires large amounts of oxygen for pro
longed periods of time. This increases the demand on
the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise, ad
just the speed and incline of the treadmill until your heart
rate is near the highest number in your training zone.

-

-

-

Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “train
ing zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the
pulse sensor.

Fat Burning

To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible

carbohydrate calories for en-

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.

Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.

-

A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post­exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.

18

ORDERING REPLACEMENT PARTS

To order replacement parts, call toll-free 1-888-936-4266, Monday through Friday 8h00 until 18h30 Eastern Time
(excluding holidays). When ordering parts, please be prepared to give the following information:

• the MODEL NUMBER OF THE PRODUCT (WCTL94240)

• the NAME OF THE PRODUCT (WESLO®CADENCE 505s treadmill)

• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST

attached in the center of this manual)

ICON OF/DU CANADA, Inc.
900 de l’Industrie
St-Jérôme, Québec
Canada, J7Y 4B8

PLACE
STAMP

HERE

19

LIMITED WARRANTY

®

of

/du Canada Inc.

™

ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and material,
under normal use and service conditions, for a period of one (1) year from the date of purchase. This warranty
extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at
ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are
made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product
caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided
by an ICON authorized service center, to products used for commercial or rental purposes, or to products used
as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property, loss
of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of
whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential dam­ages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any
and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited
in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an im­plied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from province to province
or so specified by the retailer of your equipment.

ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8

IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE
NAME:

PHONE:
ADDRESS:
COUNTY:
MODEL NO.

SERIAL NO.

RETAILER NAME:

1) Primary user(s) of product:

o Male o Female o Family

2) Age of primary user:

o 0–24 o 35–44 o 55–64
o 25–34 o 45–54 o 65 and over

3) Annual household income:

o 0–9,999 o 15,000–19,999
o 10,000–14,999 o 20,000+

4) How many times a week do you exercise?

o Less than 3 times o 3 times or more

Have you ever purchased an ICON product before?

5)

o Yes o No

6) Where did you first see or hear about ICON products?

o Magazine o Friend/relative
o Newspaper Ad o Store
o Other

7) What was the primary reason for purchasing this ICON product?

o Store Employee o Television Ads o Colour
o Electronic Features o Magazine Ads o Price
o Product Design o Product Innovation
o Other Features

POSTCODE:

RETAILER ADDRESS:

PRODUCT WARRANTY REGISTRATION

PURCHASE DATE:

8) Did you consider purchasing fitness equipment from another
manufacturer?

o No o Yes

What other manufacturer?

9) Based on your impression of what you have purchased,
would you buy another

o Yes o No o No Opinion

If not, what other brand equipment would you purchase?

10) What other type of exercise equipment do you own?

o Bicycle o Exercise Cycle o Treadmill
o Home Gym o Weight Bench o Stepper
o Cardio Glide o Other

11) Which type of magazines do you read regularly?

o Sports o Fitness o Motoring
o Business o Computer o General

Do you wish to be sent further bulletins about

12)

o Yes o No

product?

ICON

ICON products?

THANK YOU FOR YOUR TIME

© 2004 ICON IP, Inc. Printed in Canada

Part No. 211818 R0704A

Printed in Canada

2004 ICON IP, Inc.

©

34

REMOVE THIS EXPLODED DRAWING AND PART

LIST FROM THE MANUAL

Save this EXPLODED DRAWING and PART LIST for future reference.

Note: Specifications are subject to change without notice. For information about
ordering replacement parts, see the back cover of the User’s Manual.

PART LIST—Model No. WCTL94240 R0704A

Key

Qty. Description

No.

1 1 Hood
2 19 3/4” Screw
3 1 Motor Belt
4 1 Motor Tension Bolt
5 1 Motor Tension Washer
6 1 Motor Star Washer
7 1 Flywheel
8 1 Motor

9* 1 Motor Assembly
10 1 Reed Switch
11 1 English Latch

Warning Decal
12 2 Frame Spacer
13 5 Frame Pivot

Nut/Motor Nut
14 2 Frame Pivot Bolt
15 2 Walking Platform

Screw
16 1 Left Foot Rail
17 1 Front Roller/Pulley
18 1 Magnet
19 1 Motor Pivot Bolt
20 2 Motor Bracket Bolt
21 1 Right Foot Rail

Endcap
22 6 Belly Pan Clip
23 1 Front Roller

Adjustment Bolt
24 2 Handrail Foam
25 2 Front Isolator
26 6 Ground Screw
27 1 Latch Spacer
28 1 Motor Tension Nut
29 1 Storage Latch
30 1 Latch Catch
31 1 Right Rear

Endcap Pad
32
33 2 U-Nut
34 1 Left Grip Plate

2 Wheel Nut

Key

Qty. Description

No.

35 2 Front Plateform Screw
36 1 Right Grip Plate
37 2 2 1/2” Bolt
38 5 Washer
39 6 1” Tek Screw
40 2 Handrail Cap
41 1 5/32” Allen Wrench
42 1 Upright Wire
43 1 Console
44 1 French Latch Warning

Decal
45 1 Filter Wire
46 1 Book Holder
47 1 Console Base
48 2 Hand Weight (2 lbs.)
49 6 1/2” Screw
50 1 Key/Clip
51 1 Incline Motor
52 1 Incline Bracket
53 1 Incline Motor

Bolt (lower)
54 2 Incline Pivot Bolt
55 2 Incline Pivot Nut
56 1 Motor Controller Wire
57 4 Round Base Pad
58 18 3/4” Tek Screw
59 1 Controller
60 1 Lift Frame
61 2 Base Pad
62 2 Warning Decal
63 2 Extension Leg
64 2 2” Bolt
65 2 Base Endcap
66 2 Wheel
67 6 Endcap Screw
68 2 8” Cable Tie
69 1 Upright/Base
70
71 1 Left Handrail
72 1 Right Handrail

1 Grommet

Key

Qty. Description

No.

73 2 Hand Weight (5 lbs)
74 1 Left Foot Rail Endcap
75 1 1/2” Ground Screw
76 2 Isolator Insert
77 1 Incline Motor Bolt

(upper)
78 1 Motor Mount Bracket
79 1 Power Cord
80 1 Power Cord Grommet
81 1 Belly Pan
82 2 Belt Guide
83 4 Belt Guide Screw
84 2 Plastic Fastener
85 2 Isolator Cushion
86 1 Frame
87 4 Releasable Tie
88 1 Warning Decal
89 2 Cable Tie Clamp
90 1 Ground Wire
91 1 Left Rear Endcap Pad
92 2 Rear Roller

Adjustable Bolt
93 1 Right Rear Endcap
94 1 Allen Wrench
95 1 Left Rear Endcap
96 1 Walking Belt
97 1 Walking Platform
98 1 Right Foot Rail
99 2 Hand Weight (3 lbs)

100 1 Rear Roller

# 1 8” Green Wire, 2 Ring
# 1 4 ” Red Wire, M/F
# 1 12” Green Wire, F/R
# 1 User’s Manual

*Includes all parts shown in the box
#These parts are not illustrated

58

63

65

62

67

2

31

49

49

25

58

25

58

72

58

40

40

38

28

10

58

12

19

13

13

60

23

13

12

14

21

98

18

17

14

35

74

16

82

83

97

15

96

86

15

95

92

38

92

38

93

81

58

83

82

58

79

80

39

69

39

55

54

55

54

13

57

39

39

57

51

77

13

62

63

64

32

66

26

90

26

89

87

68

100

65

42

26

70

35

94

41

91

11

58

56

3

4

5

6

7

8

9*

78

20

85

84

84

85

2

29

58

30

75

58

61

58

61

58

76

76

67

47

46

43

57

36

34

45

33

33

50

73

99

73

99

48

32

64

66

37

2

1

2

2

53

52

2

2

42

88

37

71

24

2

27

22

22

22

2

2

22

26

59

2

22

2

22

38

44

EXPLODED DRAWING—Model No. WCTL94240 R0704A
