Model No. WETL14805.1
Serial No.
Write the serial number in the
space above for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:
08457 089 009
USER'S MANUAL
or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERA
HOW
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

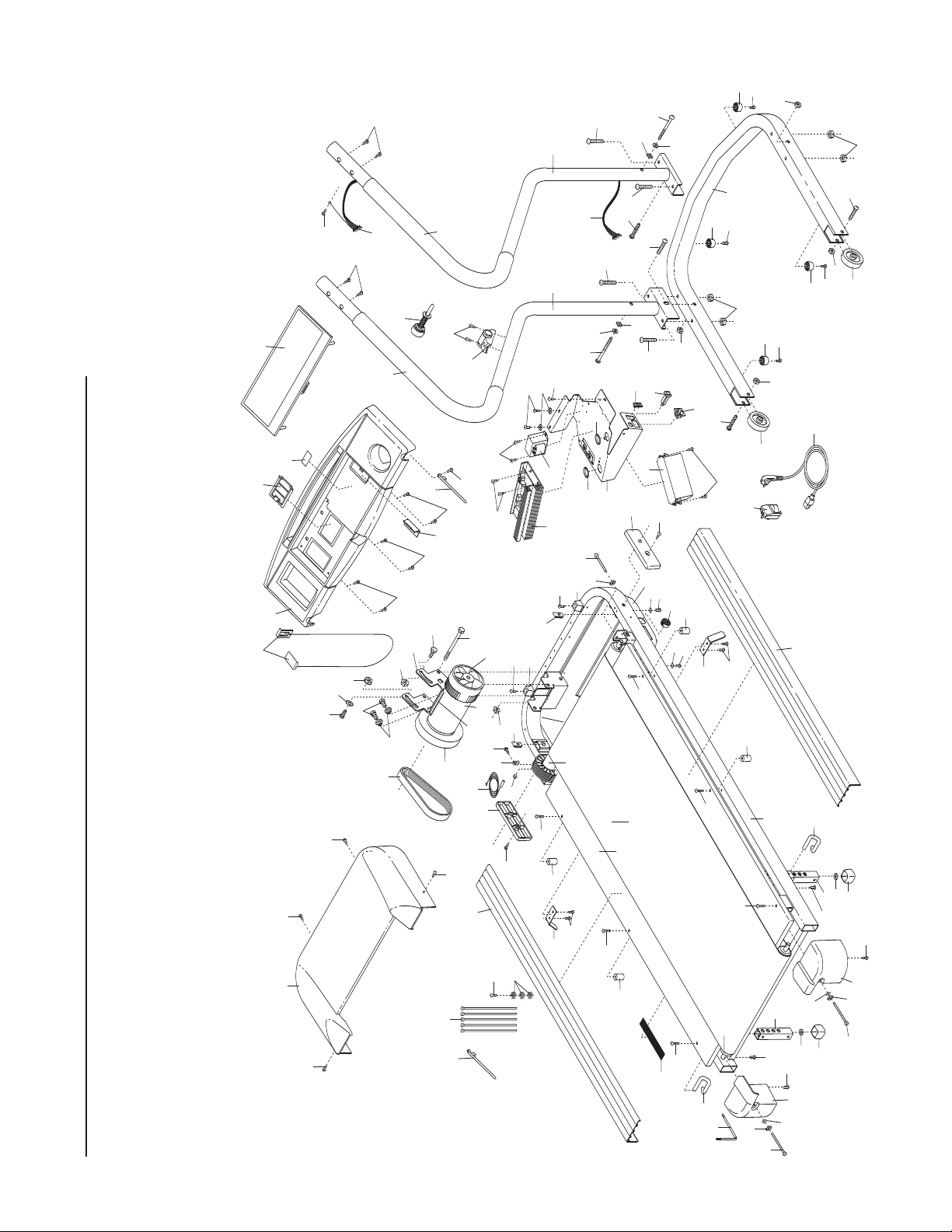

Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the
center of this manual.
TION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
WESLO is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
the following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
hat all users of this treadmill are adequately
t
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least 2.5 m (8 ft.) of clearance behind it and
0.5 m (2 ft.) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 115 kg (250 lbs.).
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes while using
the treadmill. Do not wear loose clothes that
could become caught in the treadmill. Athletic
support clothes are recommended for both
men and women.
Never use the treadmill with bare feet, wear
Always wear athletic shoes.
-
ing only stockings, or in sandals.
10. When connecting the power cord (see page
10), plug the power cord into an earthed circuit. No other appliance should be on the
same circuit. When replacing the fuse, an
ASTA approved BS1362 type should be fitted
to the fuse carrier. A 13 amp fuse should be
used.
11. If an extension cord is needed, use only a 3-
conductor, 1mm
longer than 1.5 m (5 ft.).
2
(14-gauge) cord that is no
12. Keep the power cord away from heated suraces.
f
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING if the treadmill is not working
properly.)
14. Never start the treadmill while you are stand-
ing on the walking belt.
handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
16. The pulse sensor is not a medical device.
Various factors, including your movement, may
affect the accuracy of heart rate readings. The
pulse sensor is intended only as an exercise
aid in determining heart rate trends in general.
17. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and move the on/off switch
to the off position when the treadmill is not in
use. (See the drawing on page 5 for the location of the on/off switch.)
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY and HOW TO MOVE THE TREADMILL.) Y
pounds (20 kg) to raise, lower, or move the
treadmill.
19. Do not change the incline of the treadmill by
placing objects under the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
Inspect and properly tighten all parts of the
21.
treadmill regularly.
22. Never drop or insert any object into any
opening.
ou must be able to safely lift 45
Always hold the
3
ther than the procedures in this manual
3.
2
DANGER: A
cord immediately after use, before cleaning
he treadmill, and before performing the
t
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
lways unplug the power
o
should be performed by an authorized service representative only.
4. This treadmill is intended for in-home use
2
only. Do not use this treadmill in any com-
ercial, rental, or institutional setting.
m
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown here has been placed on the treadmill. If the decal is missing, or if it is not legible, call
the toll-free telephone number on the front cover of this manual and order a free replacement decal.
Apply the decal in the location shown. Note: The decal is not shown at actual size.
4
BEFORE YOU BEGIN
Thank you for selecting the new WESLO®CADENCE
200 treadmill. The CADENCE 200 treadmill is
designed to help you reach your exercise goals in the
onvenience and privacy of your home. And when
c
you’re not exercising, the unique CADENCE 200 can
be folded up, requiring less than half the floor space of
other treadmills.
or your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Accessory Tray
Key/Clip
Storage Latch
ing this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting
s. The model number of the treadmill is
u
WETL14805.1. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please familiarise yourself with
the parts that are labelled in the drawing below.
Console
Water Bottle Holder*
Handrail
Walking Belt
Foot Rails
BACK
Rear Roller
Adjustment Bolts
FRONT
Circuit Breaker
On/Off Switch
RIGHT SIDE
Incline Pin
Incline Leg
*No water bottle is included
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
ispose of the packing materials until assembly is completed.
d
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not
ffect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a
a
soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver , two
adjustable spanners , and needlenose pliers .
To identify the assembly hardware, see the PART IDENTIFICATION CHART in the center of this manual.
WARNING: Do not plug in the power
cord until the treadmill is completely assembled.
1. Orient the Base (46) so the holes for the four Base Pads
(63) are on top. Attach the four Base Pads to the Base
with the four 1” Tek Screws (5).
Attach the two Wheels (68) to the Base (46) with two 2”
Bolts (62) and two Wheel Nuts (13) as shown.
overtighten the Bolts; the Wheels must be able to
turn freely.
2. Identify the Right Handrail (59), which has a large hole in
one side. Have a second person hold the Base (46) in a
vertical position, with the Base Pads (63) on the side
shown. Next, hold the Right Handrail against the Base so
the large hole is in the position shown. Attach the Right
Handrail with two 2 1/2” Bolts (65) and two 5/16” Nuts
(61), and a 2” Bolt (62) and a 3/8” Nut (56) as shown.
not tighten the Bolts yet.
Attach the Left Handrail (not shown) to the Base (46) in
the same way.
Do not
Do
1
62
2
68
5
63
13
Large Hole
62
68
5
46
5
63
63
5
63
13
62
46
63
65
61
56
59
65
6
3. Hold a Frame Spacer (27) against the right side of the
rame (79) as shown. Insert a 4” Bolt (70) into the indi-
F
cated hole in the Frame Spacer and the Frame. Next,
tighten a 3/4” Tek Screw (3) into the Frame Spacer and
the Frame. Then, remove the Bolt. Repeat this step on
the other side of the Frame.
3
27
3
0
7
79
4. Raise the Right Handrail (59) and the Left Handrail (not
shown) so the Base (46) is flat on the floor. Position the
Handrails near the Frame (79).
Locate the Wire Harness (60). Next, locate the long
piece of tape in the large hole near the lower end of the
Right Handrail (59). Wrap the end of the tape around the
end of the Wire Harness as shown in drawing 4a. Then,
tighten the included plastic tie securely around the tape
and the Wire Harness as shown in drawing 4b.
4
4a
60
Tape
59
Tape
60
4b
60
Tie
5. Carefully pull the opposite end of the tape to pull the
Wire Harness (60) up through the Right Handrail (59)
and out of the hole in the side of the Right Handrail.
Attach the end of the ground wire to
(59) with the Silver Ground Screw (69).
Remove the tape from the Wire Harness (60).
the Right Handrail
5
Ground Wire
60
ape
T
59
69
7
. With the help of a second person, lift and hold the
6
rame between the Handrails. Finger tighten a 4” Bolt
F
(70) with a 3/8” Washer (66) and a 3/8” Star Washer
(29) through the Right Handrail and the Frame Spacer
(27) into the Frame.
Repeat this step on the left side of the treadmill.
Do not tighten the Bolt yet.
6
59
46
29
66
27
79
70
7. Hold the Console Base (52) near the Right Handrail (59)
and the Left Handrail (not shown). Insert the Wire
Harness (60) through the looped plastic tie and then
through the hole in the Console Base.
8. Hold the Console (55) near the Console Base (52).
Touch the Right Handrail (59) to discharge any static.
Connect the end of the Wire Harness (60) to the back of
the Console (55) in the location shown by the arrow.
connector should slide easily into the socket and
snap into place
not slide easily and snap into place, turn the connector
and then insert it. IF THE CONNECTOR IS NOT
INSERTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON.
(see drawing 8b). If the connector does
The
7
52
59
Tie
60
8
52
60
55
60
60
59
8b
60
8
9. Securely tighten a plastic tie around the Wire Harness
(60) and under the indicated hook on the Console (55) to
revent the Wire Harness from slipping. Tighten the plas-
p
tic tie and cut off the end.
See drawing 9a. Set the Console (55) in the Console Base
Make sure that the Wire Harness (not shown) is
(52).
not pinched. Next, set the Console Base on the Handrails
(53, 59). Insert as much of the Wire Harness as possible
into the hole in the Right Handrail (59). See step 7.
Tighten the plastic tie and cut off the end.
Loosely thread six 3/4” Screws (2) into the Console Base
(52) and the Console (55). Loosely thread four 3/4”
Screws into the Handrails (only two Screws are shown).
Start all ten Screws and then tighten them; do not
overtighten the Screws.
9
9a
59
Hook
Tie
60
2
55
52
55
2
2
53
10. Lower the Handrails (53, 59) until they are touching the
floor.
See 10a. Position the Handrails (53, 59) so the treadmill
Frame (79) is centered between them.
Firmly tighten the four 2 1/2” Bolts (65), the two 2” Bolts
(62), and the two 3 1/2” Bolts (70). Be careful not to
overtighten the Bolts.
11. Orient the Latch Housing (48) so the large hole is on the
indicated side.
Handrail (53) with two 3/4” Screws (2);
Screws and then tighten them.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are two collars, place one on each side of the spring.) Next, insert
the pin into the Latch Housing (48).
knob back onto the pin.
Attach the Latch Housing to the Left
start both Latch
Then, tighten the
10
10a
59
1
1
Knob
53
Large Hole
53, 59
79
Top View
79
2
48
65
70
65
Spring
62
53
Collar
Pin
12. Make sure that all parts used in assembly are properly tightened before you use the treadmill. Keep
o pro
the included hex key in a secure place; the hex key is used to adjust the walking belt (see page 17).
tect the floor or carpet, place a mat under the treadmill.
T
9
-
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunction or break
down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a power cord having an equipment-earthing conductor and an
earthing plug.
be replaced with a manufacturer-recommended power cord.
See drawing 1. Plug the indicated end of the power cord into the
socket on the treadmill.
See drawing 2. Press the pins on the power cord into the metal clips
in the adapter as shown. Close the adapter cover over the end of
the power cord and tighten the screw in the adapter.
Make sure that the adapter cover is secure and the screw has
been tightened before using the power cord.
See drawing 3. Plug the power cord into an appropriate outlet that is
properly installed and earthed in accordance with all local codes and
ordinances. Important: The treadmill is not compatible with
GFCI-equipped outlets.
Important: If the power cord is damaged, it must
Important:
1
2
Screw
Adapter
3
Socket on treadmill
Adapter
Cover
Pins
Metal
Clips
Outlet
DANGER: Improper connection of the equipment-earthing conductor can result in an
increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly earthed. Do not modify the plug provided with the product—if it
will not fit the outlet, have a proper outlet installed by a qualified electrician.
10
Key
Clip
STEP-BY-STEP CONSOLE OPERATION
Before operating the
console, make sure that
the power cord is properly plugged in (see
page 10). Next, locate
the on/off switch on the
treadmill frame near the
power cord, and make sure that the switch is in the
“on” position.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing at the top of
this page), and slide the clip onto the waistband of your
clothes. Then, insert the key into the console; a tone
will sound and the display will light.
carefully taking a few steps backward until the key
is pulled from the console. If the key is not pulled
from the console, adjust the position of the clip.
Note: If there is a sheet of clear plastic on the face of
the console, peel of
the walking platform, always wear clean athletic shoes
while using the treadmill. The first time the treadmill is
used, observe the alignment of the walking belt, and
center the walking belt if necessary (see page 17).
f the plastic.
On
Position
Test the clip by
o prevent damage to
T
Follow the steps below to operate the console.
Insert the key fully into the console.
1
See the instructions at the left.
Start the walking belt.
2
To start the walking belt, press the Speed
increase button. The walking belt will begin to
move at 1 mph. As you exercise, change the
speed of the walking belt as desired by pressing
the Speed increase and decrease buttons. Each
time a button is pressed, the speed setting will
change by 0.1 mph; if a button is held down, the
speed setting will change in increments of 0.5
mph.
Note: After the buttons are pressed, it may take a
moment for the walking belt to reach the selected
speed setting. The console can display speed and
distance in either miles or kilometers (see step 3
on page 12). For simplicity
section refer to miles.
o stop the walking belt, press the Stop button.
T
The time will begin to
, all instructions in this
flash in the display
.
11
Monitor your progress with the display.
ETWE14805
(WETL14805)
ETWE14805
(WETL14805)
3
The display features seven modes:
• Time—This mode displays the elapsed time.
• Speed—This mode displays the speed of the
walking belt.
• Distance—This mode displays the distance that
you have walked or run.
• Calories—This mode displays the approximate
number of calories you have burned.
• Fat Calories—This mode displays the approximate number of fat calories you have burned
(see FAT BURNING on page 18).
• Pulse—This mode displays your heart rate
when you use the pulse sensor.
• Scan—This mode displays the time, speed, distance, calories, fat calories, and pulse modes,
for a few seconds each, in a repeating cycle.
Note: The pulse mode will be displayed only
while the pulse sensor is being used.
Each time the
key is inserted
into the console,
the Scan mode
will be selected.
The SCAN mode
indicator will
appear in the display, and a second mode indicator will show which mode is currently displayed.
Note: If you have selected a different mode,
repeatedly press the Display Mode button to reselect the scan mode.
To select the
Time, Speed,
Distance,
Calories, Fat
Calories, or
Pulse mode for
continuous display, repeatedly press the Display Mode button.
The mode indicators will show which mode is
selected. Make sure that the SCAN mode indicator does not appear
To reset the displays, press the Stop button,
remove the key, and then reinsert the key.
Note: The console can display speed and distance in either miles or kilometers (the letters
“MPH” or “Km/H” will appear when the Speed
mode is displayed). To change the unit of measurement, first hold down the Stop button while
inserting the key
into the console,
and then release
the Stop button.
An “E” (for
English) or an “M”
(for metric) will
appear in the display. Press the Speed increase button to change
the unit of measurement. Then, remove the key
and reinsert it.
Measure your heart rate if desired.
4
To measure your heart rate, stand on the foot rails
and place your thumb on the pulse sensor (see
the drawing at the top of page 11). Do not press
too hard, or the circulation in your thumb will
be restricted and your pulse will not be detected. After a few seconds, the heart-shaped indica-
tor in the display will begin to flash each time your
heart beats, one or two dashes will appear, and
then your heart rate will be shown. Hold your
thumb on the pulse sensor for about 15 seconds
for the most accurate reading.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds. Then, place your thumb on the pulse sensor
as described above. Remember to stand still while
measuring your heart rate.
When you are finished exercising, remove the
5
key from the console.
Step onto the foot rails, press the Stop button, and
remove the key from the console. Keep the key in a
secure place. Then, switch the on/off switch to the
“off” position and unplug the power cord.
.
12
HOW TO CHANGE THE INCLINE OF THE
TREADMILL
To vary the intensity of your exercise, the incline of
the treadmill can be changed; there are four incline
levels. Before changing the incline, remove the key
nd unplug the power cord. Next, fold the treadmill
a
to the storage position (see HOW TO FOLD THE
READMILL FOR STORAGE on page 14).
T
To change the incline, first remove the incline pin from
one of the incline legs as shown at the right. Next,
adjust the incline leg to the desired height, and fully
reinsert the incline pin. Make sure that the incline pin
is in the “locked” position shown in the inset drawing.
Adjust the other incline leg in the same way.
sure that both incline pins are inserted from the
direction shown in the drawing.
Make
Incline
Pin
ncline
I
in
P
Incline
Pin
CAUTION: Before using the treadmill, make sure
that both incline legs are at the same height. Do
not use the treadmill with the incline pins
removed.
lower the treadmill (see HOW TO LOWER THE
TREADMILL FOR USE on page 15).
After you have adjusted the incline legs,
13
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord.
CAUTION: You must be able to safely lift 45 pounds (20
g) to raise, lower or move the treadmill.
k
1. Hold the treadmill with your hands in the location shown
by the arrow at the right. To decrease the possibility of
injury, bend your legs and keep your back straight.
As you raise the frame, make sure to lift with your
legs rather than your back.
halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the lock knob to
the left and hold it. Raise the treadmill until the frame
passes the lock pin. Slowly release the lock knob. Make
sure that the frame is securely held by the lock pin.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 30° C (85° F).
Raise the frame about
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
frame is securely held by the lock pin.
1. Hold the handrails, and place one foot against one of the
wheels.
ilt the treadmill back until it rolls freely on the wheels.
2. T
Carefully move the treadmill to the desired location.
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not move the treadmill over
an uneven surface.
3. Place one foot against one of the wheels, and carefully
lower the treadmill to the storage position.
To
Handrails
Wheel
Frame
Lock
Knob
Lock
Pin
Closed
Base
14
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left hand, pull the lock knob to the
left and hold it. Pivot the treadmill down until the frame is
past the lock pin. Slowly release the lock knob.
2. Hold the frame firmly with both hands, and lower the
frame to the floor. Do not drop the frame to the floor.
To decrease the possibility of injury, bend your legs
and keep your back straight.
Frame
Lock
Knob
Lock
Pin
Opened
15
TROUBLESHOOTING
Tripped
Reset
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet (see page 10). If an
extension cord is needed, use only a 3-conductor, 1mm
1.5 m (5 ft.).
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
d. Check the on/off switch located on the frame near
the power cord. The switch must be in the “on”
position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
2
(14-gauge) cord that is no longer than
c
Tripped Reset
d
On
Position
c. Remove the key from the console. Reinsert the key fully into the console.
d. Make sure that the on/off switch is in the “on” position (see d. above).
e. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The displays of the console do not function properly
SOLUTION:
a. Remove the key from the console and UNPLUG THE
POWER CORD.
Carefully remove the hood. Locate the Reed Switch
(76) and the Magnet (47) on the left side of the Pulley
urn the Pulley until the Magnet is aligned with
(77). T
the Reed Switch. Make sure that the gap between
the Magnet and the Reed Switch is about 1/8”. If
necessary
Switch slightly
Reattach the hood, and run the treadmill for a few
minutes to check for a correct speed reading.
, loosen the Screw (3), move the Reed
Remove the screws from the hood.
, and then retighten the Screw
.
a
1/8”
3
76
Top View
77
47
16
PROBLEM: The walking belt slows when walked on
OLUTION: a
S
. If an extension cord is needed, use only a 3-conductor, 1mm
than 1.5 m (5 ft.).
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
rear roller bolts counterclockwise, 1/4 of a turn. When
the walking belt is properly tightened, you should be
able to lift each edge of the walking belt 2 to 3 inches
off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION:
a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the hex key to turn
the left rear roller bolt clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the bolt
counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
2
14-gauge) cord that is no longer
(
b
2”–3”
Rear Roller Bolts
a
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the hex key, turn both rear roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each side of the walking belt
2 to 3 inches off the walking platform. Be careful to
keep the walking belt centered. Then, plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
b
17
CONDITIONING GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
hysician. This is especially important for
p
individuals over the age of 35 or individuals
with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
begin to use stored
is to burn fat, adjust the speed and incline of the
readmill until your heart rate is near the lowest num-
t
ber in your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time.
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up
increases your body temperature, heart rate and circulation in preparation for exercise.
fat calories
for energy. If your goal
This increases the demand
o find the proper heart rate for you, first find your age
T
near the bottom of the chart (ages are rounded of
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes does your body
carbohydrate calories
f to
for ener-
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—
never hold your breath.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent postexercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months, you may complete up to five workouts each week if desired. The
key to success is to make exercise a regular and
enjoyable part of your everyday life.
18
SUGGESTED STRETCHES
he correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
T
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times
for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
19
PART LIST—Model No. WETL14805.1 R0905A
Key No. Qty. Description Key No. Qty. Description
1 1 Motor Hood
2 13 3/4” Screw
3 16 3/4” Tek Screw
4
5 4 1” Tek Screw
6 1 Warning Decal, Console
7 3 Cable Tie Clamp
8 2 Foot Rail
9 4 Isolator
10 4 Front Platform Screw
11 3 Rear Roller Star Washer
12 2 Incline Leg Washer
13
14 2 Belt Guide
15 4 Belt Guide Screw
16 1 Reed Switch Clip
17 1 Reed Switch Screw
18 2 Hood Anchor
19 1 Drive Motor
20 2 Wire Tie
21 2 Frame U-nut
22 2 Motor Tension Bolt
23 1 Motor Isolator Plate
24 1 Motor Star Washer
25 2 Motor Tension Nut
26 1 Motor Pivot Bolt
27 2 Frame Spacer
28 1 Outlet Adapter
29 2 3/8” Star Washer
30 1 Power Cord
31 1 Controller
32 11 Electronic Screw
33
34 2 Bracket Grommet
35 1 Electronics Bracket
36 1
37
38 9 Roller Adjustment Washer
39 1
40
41 1 Motor Belt
42 1 Receptical
43
44 1 Latch Pin Assembly
45 2 Rear Platform Screw
46 1 Base
47 1 Magnet
48 1 Latch Housing
49 1 Left Endcap
50
5 8” Cable Tie
3 Wheel Nut
1
1
2
2
1
Filter
On/Off Switch
Circuit Breaker
Front Roller Adjustment Bolt
Plastic Fastener
Rear Roller Adjustment Bolt
Motor Bracket
51 1 Key/Clip
52 1 Console Base
53 1 Left Handrail
4 1 Console Cover
5
55 1 Console
56 2 3/8” Nut
57 2 Handrail Foam
58 1 Belly Pan Grommet
59 1 Right Handrail
60 1 Wire Harness
61 4 5/16” Nut
62 4 2” Bolt
63
64 1 Hex Key
65 4 2 1/2” Bolt
66 8 3/8” Washer
67 1 Flywheel
68 2 Wheel
69 1 Silver Ground Screw
70 2 4” Bolt
71 2 Plastic Bushing
72 1 Walking Belt
73 1 Belly Pan
74 1 Walking Board
75 1 Large Warning Decal
76 1 Reed Switch/Sensor Wire
77 1 Drive Roller/Pulley
78 2 Drive Motor Bolt
79 1 Frame
80 2 Incline Pin
81 2 Incline Leg
82 2 Incline Leg Cap
83
84 1 Console Insert
85 1 Rear Roller
86 1
#
# 1 8” Red Wire, M/F
#
#
# 1 6” Blue Wire, M/F
# 1 8” Blue Wire, 2F
#
# 1 8” White Wire, 2F
# 1 8” Green/Yellow Wire, F/Ring
# 1 10” Green/Yellow Wire, F/Ring
# 1 User’s Manual
Note: “#” indicates a non-illustrated part.
4 Base Pad
1
1
1
1
1
Right Endcap
ransformer
T
4” Green/Y
6” Black Wire, M/F
12” Blue W
4” Black Wire, 2F
ellow W
ire, 2F
ire
Specifications are subject to change without notice. See the back cover of the user’s manual for information
about ordering replacement parts.
H
andrail Bolt (20)–4
Frame Bolt (32)–2
3/8” Washer
(66)–2
Wheel Nut (13)–2
Silver Ground
Screw (69)–1
3/8” Star
Washer (29)–2
2” Bolt (62)–4
2 1/2” Bolt (65)–4
3/8” Nut (56)–2
5/16” Nut (61)–4
3/4” Tek Screw (3)–2
3/4” Screw (2)–12
1” Tek Screw (5)–4
4” Bolt (70)–2
PART IDENTIFICATION CHART
Remove this chart and use it to identify small parts during assembly. Save
this chart and the EXPLODED DRAWING/PART LIST for future reference.
61
56
21
21
32
7
4
3
3
3
3
22
24
25
26
19
13
76
27
3
47
16
3
10
3
18
51
3
18
39
27
3
8
10
3
3
79
14
73
77
74
72
45
15
80
82
81
38
83
43
82
81
85
49
38
43
64
45
80
14
15
8
1
3
3
12
12
41
40
40
62
68
13
63
5
2
52
57
36
59
46
61
9
60
70
29
62
65
65
65
10
10
31
35
86
32
32
33
63
5
62
63
5
69
70
29
65
66
66
75
11
11
11
68
13
58
9
9
9
53
63
5
62
2
32
32
2
48
44
42
37
56
30
28
2
2
2
2
55
6
54
22
25
60
34
34
84
20
78
57
32
11
38
38
20
50
67
17
23
71
EXPLODED DRAWING—Model No. WETL14805.1 R0905A
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd.
Customer Service Department
nit 4, Revie Road Industrial Estate
U
Revie Road
Beeston
Leeds, LS118JG
UK
Tel:
08457 089 009
Outside the UK: 0 (044) 113 387 7133
Fax: 0 (044) 113 387 7125
To help us assist you, please be prepared to give the following information:
• the MODEL NUMBER of the product (WETL14805.1)
• the NAME of the product (WESLO CADENCE 200 treadmill)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING in the centre of this manual)
Part No. 230205 R0905A Printed in Canada © 2005 ICON IP, Inc.
Loading...
