USER'S MANUAL
QUESTIONS?
As a manufacturer, we are
committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. WESY19000
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal (under seat)
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
¨
2
TABLE OF CONTENTS
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

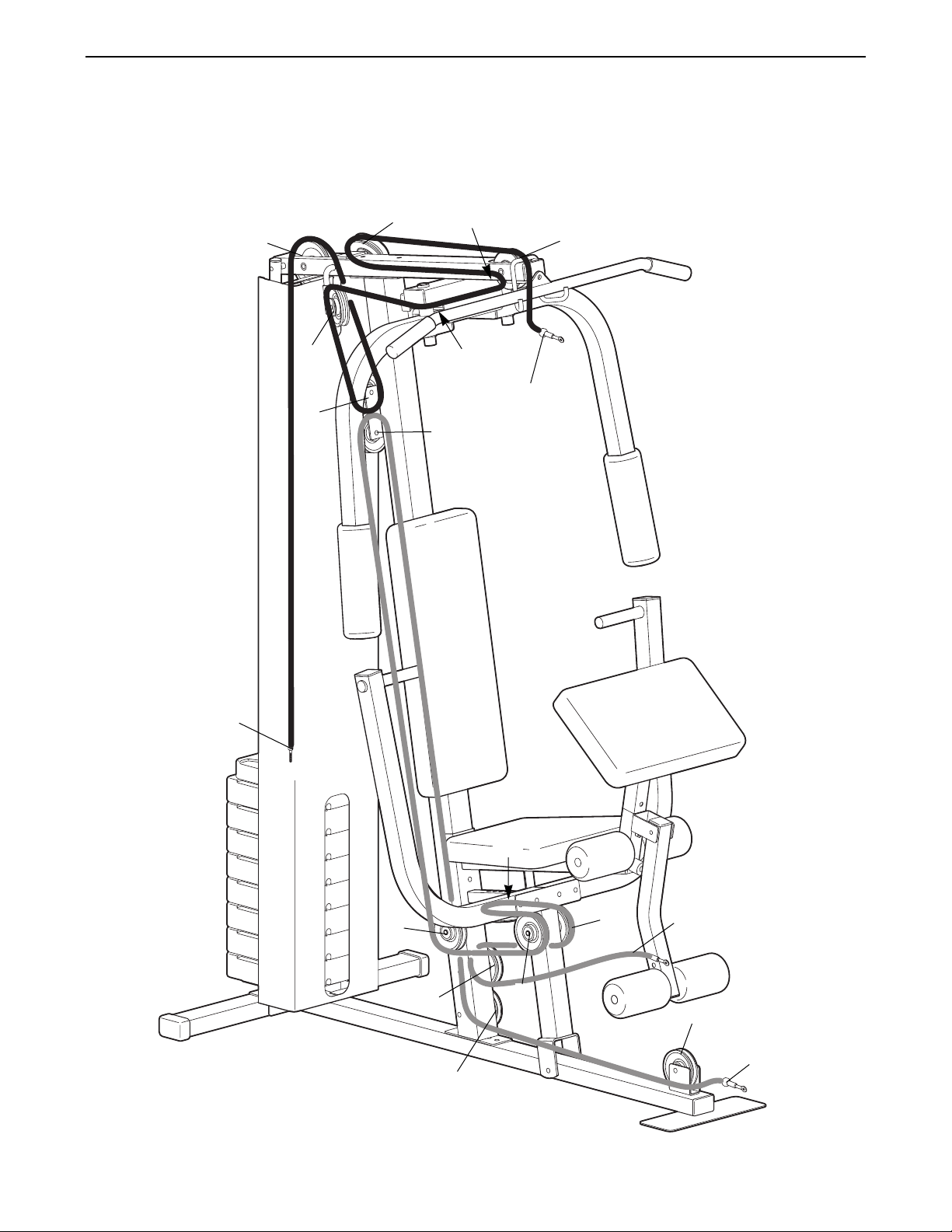

CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

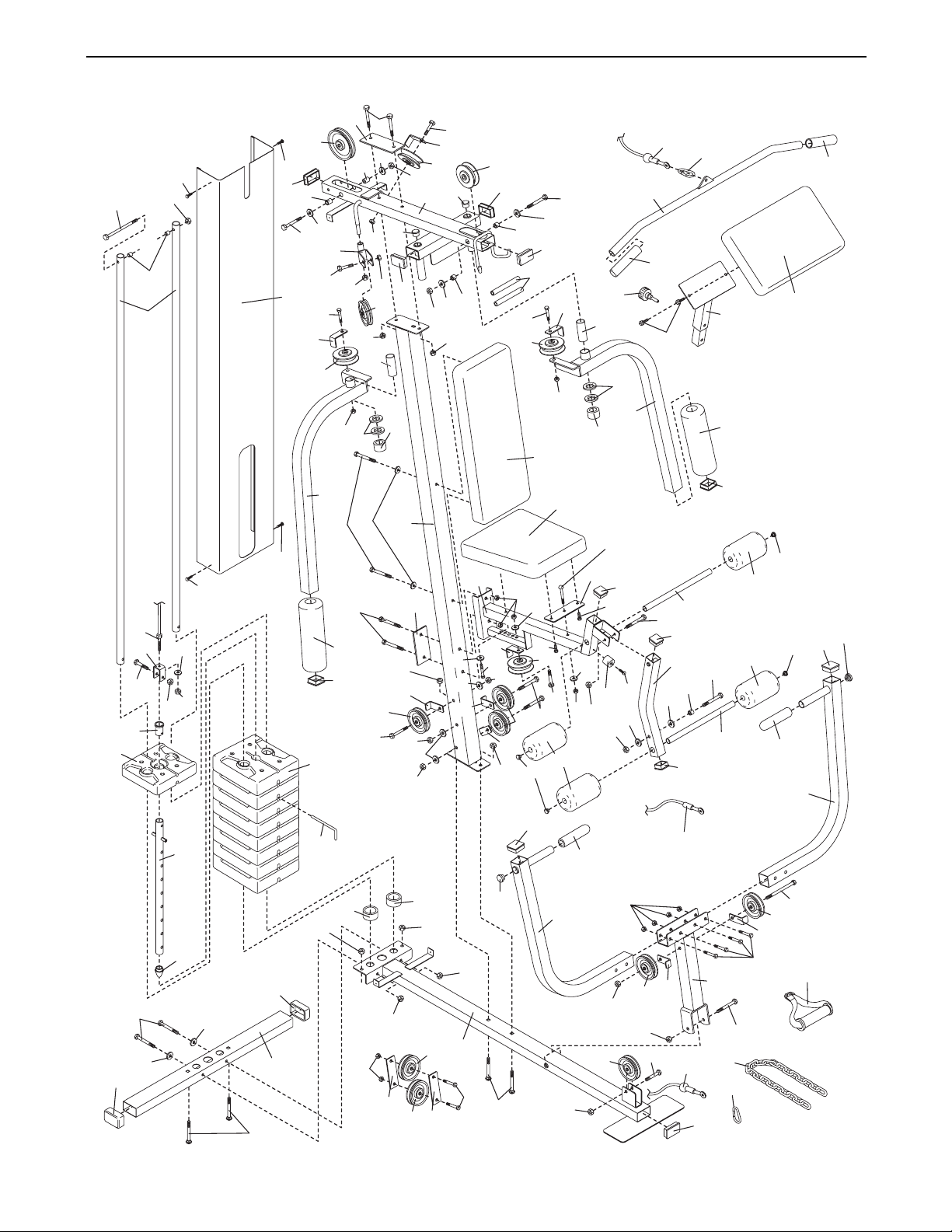

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.
All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to
a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or
repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth
above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
WEIDER¨is a registered trademark of ICON Health & Fitness, Inc.
3
1. Read all instructions in this manual and in
the accompanying literature before using the
training system.
2. It is the responsibility of the owner to ensure
that all users of the training system are adequately informed of all precautions.
3. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
4. Use the training system only on a level surface. Place a mat beneath the training system to protect the floor or carpet.
5. Inspect and tighten all parts often. Replace
any worn parts immediately.
6. The training system is designed to be used
by only one person at a time.
7. Keep children under the age of 12 and pets
away from the training system at all times.
8. Keep hands and feet away from moving
parts.
9. Always wear athletic shoes for foot protection.
10. Always stand on the foot plate when performing an exercise that could cause the
training system to tip.
11. Never release the press arm, butterfly arms,
leg lever, lat bar, or nylon strap while weights
are raised. The weights will fall with great
force.
12. Make sure that the cables remain on the pulleys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
13. Always disconnect the lat bar from the training system when performing an exercise that
does not use the lat bar.
14. Important: The warning decal shown below
has been attached to the training system in
the location shown. If the decal is missing or
illegible, please call our customer hotline at
the number on the front cover of this manual
to order a free replacement decal. Apply the
new decal in the appropriate location.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precautions
before using the training system.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
Foot Plate
Low Pulley Station
High Pulley Station
Lat Bar
Leg Lever
Butterfly Arm
Curl Pad
Curl Frame
Press Arm
Weight Stack
Backrest
Shroud
Seat
Thank you for selecting the versatile WEIDER¨245
training system. The WEIDER¨245 offers a selection
of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the WEIDER
¨
245 will help you achieve the specific results you want.
For your benefit, read this manual carefully before
using the WEIDER¨245 training system. If you have
additional questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is WESY19000. The
serial number can be found on a decal attached to the
training system (see the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
5
ASSEMBLY
Make sure you have the following tools:
¥ Two (2) adjustable wrenches
¥ One (1) standard screwdriver
¥ One (1) phillips screwdriver
¥ One (1) rubber mallet
¥ You will also need grease or petroleum jelly, a
small amount of soapy water, and clear tape or
masking tape.
Note: Assembly will be more convenient if you have
a socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
How to Identify Parts

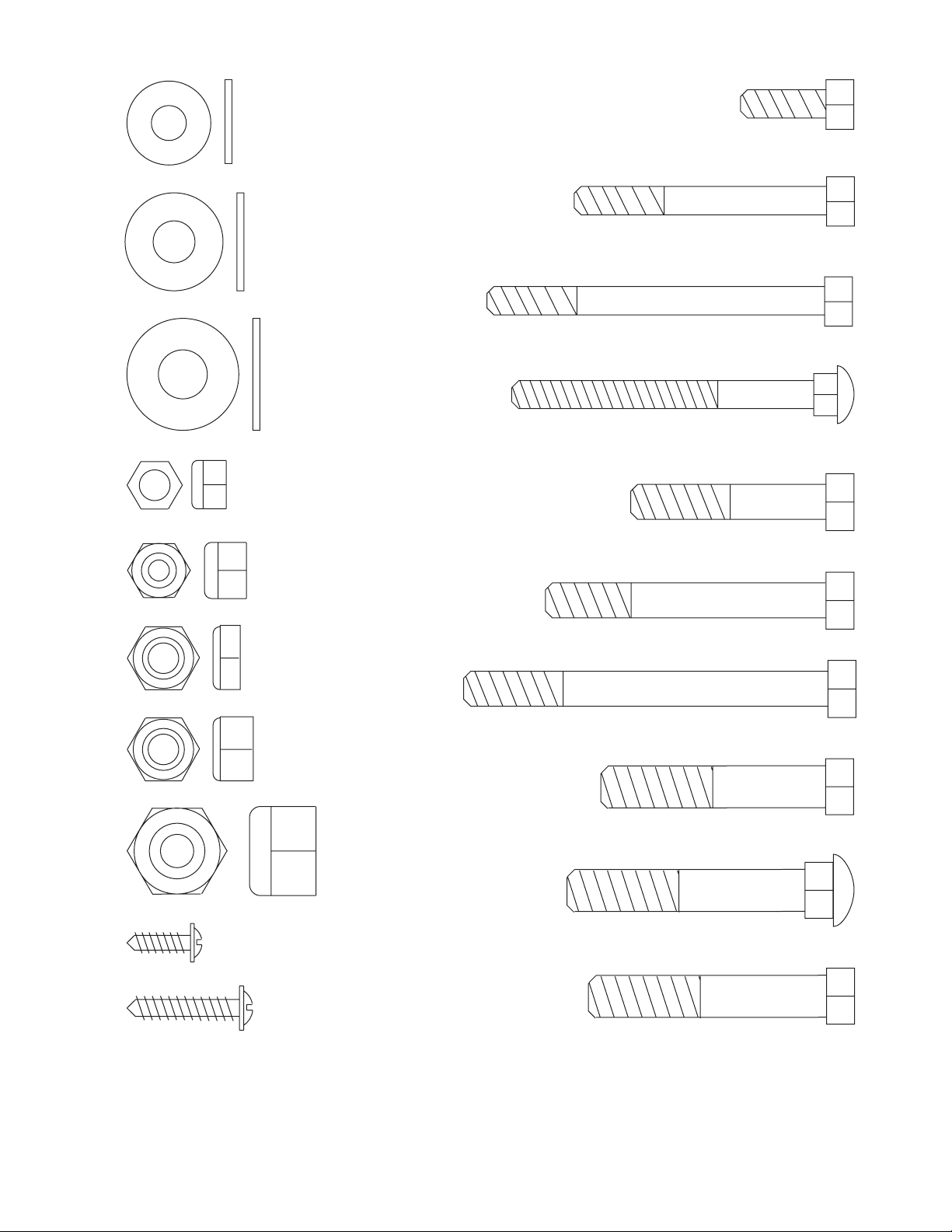

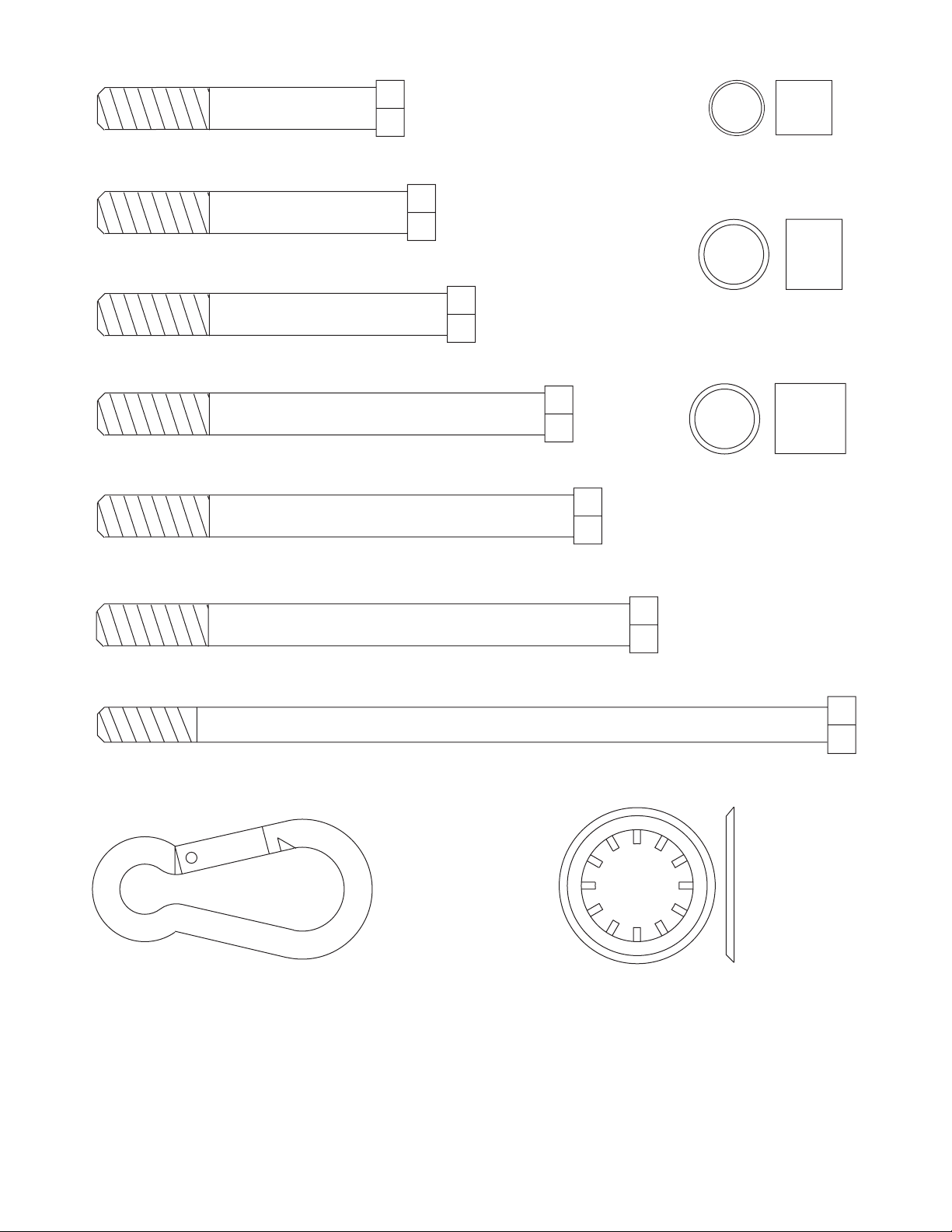

To help you identify the small parts used in assembly,
we have included a Part Identification Chart in the
center of this manual. Place the chart on the floor
and use it to easily identify parts during each assembly step. Note: Some small parts may have been
pre-attached. If a part is not in the parts bag,
check to see if it has been pre-attached.
How to Orient Parts
As you assemble the training system, make sure
that all parts are oriented exactly as shown in the
drawings.
Tightening Parts
Tighten all parts as you assemble them, unless
instructed to do otherwise.
Questions?
If you have questions after reading the assembly
instructions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time.
Assembly Requires Two Persons
For your convenience and safety, assemble the
training system with the help of another person.
Set Aside Enough Time
Due to the many features of the training system,
the assembly process will require about six hours.
By setting aside plenty of time and by deciding to
make the task enjoyable, assembly will go smoothly.
You may want to assemble the training system over
a couple of evenings.
Select a Location for the Training
System
Because of its weight and size, the training system
should be assembled in the location where it will be
used. Make sure that there is enough room to walk
around the training system as you assemble it.
How to Unpack the Box
To make assembly as easy as possible, we have
divided the assembly process into four stages. The
parts needed for each stage are found in individual
bags. Important: Wait until you begin each stage
to open the parts bag for that stage. Place all
parts of the training system in a cleared area and
remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
Make Assembly Easier for Yourself!
Everything in this manual is designed to
ensure that the training system can be
assembled successfully by anyone. Before
beginning assembly, make sure to read the
information on this page; this brief introduction will save you much more time than
it takes to read it!
The Four Stages of the Assembly Process
Frame AssemblyÑYou will begin by assembling
the base and the uprights that form the skeleton of
the training system.
Arm AssemblyÑDuring this stage you will
assemble the arms and the leg lever.
Cable AssemblyÑDuring this stage you will
attach the cables and pulleys.
Seat AssemblyÑDuring the final stage you will
assemble the seat, backrest, leg lever, curl post,
and shroud.
3
4
FRAME ASSEMBLY
6
1
21
42
4
19
25
Pin
Groove
62
3. Attach the Front Upright (42) to the Base (4)
using two 3/8Ó x 2 1/4Ó Bolts (1) and two 3/8Ó
Nylon Locknuts (21). Do not tighten the
Nylon Locknuts yet.
4. Slide a Weight Bumper (19) down over each
Weight Guide (62).
Slide the Weights (25) onto the Weight Guides
(62) as indicated. Make sure all of the
Weights are oriented exactly as shown,
with the deep pin grooves on the bottom
and facing the indicated direction.
1. Press a 1 1/2Ó x 2 1/2Ó Outer Cap (73) onto
each end of the Stabilizer (5). Press a 1 1/2Ó x
2 1/2Ó Inner Cap (27) into the indicated end of
the Base (4).
Attach the Base (4) to the Stabilizer (5) using
two 3/8Ó x 2 1/4Ó Carriage Bolts (1) and two
3/8Ó Nylon Locknuts (21). Make sure that the
Base is oriented exactly as shown.
2. Insert the Weight Guides (62) into the indicated
holes in the Base (4) and the Stabilizer (5).
Attach the Weight Guides to the Base and the
Stabilizer using two 5/16Ó x 3 1/4Ó Bolts (14),
two 5/16Ó Flat Washers (70), and two 5/16Ó
Nylon Locknuts (3).
2
62
14
70
3
4
5
3
70
73
27
21
1
5
4
73
1
5. Insert the Weight Tube Cap (72) into the indicated end of the Weight Tube (63). Slide the
Weight Tube into the center holes in the
Weights (25). Slide the Top Weight (56) down
onto the Weight Guides (62) as shown.
6. Press four 1 1/2Ó x 2 1/2Ó Inner Caps (27) into
the Top Frame (55) as shown. Press two 1Ó
Inner Caps (10) into the small holes in the
Top Frame.
7. Attach the Top Frame (55) to the Front
Upright (42) using two 3/8Ó x 2 1/2Ó Bolts (7),
a Back Plate (71), and two 3/8Ó Nylon
Locknuts (21). Do not tighten the Nylon
Locknuts yet.
7
5
72
25
63
56
62
55
27
27
10
10
27
27
71
7
55
21
42
21
6
FRAME ASSEMBLY
7
ARM ASSEMBLY FRAME ASSEMBLY
8. Attach the Top Frame (55) to the Weight
Guides (62) using a 5/16Ó x 6Ó Bolt (60), two
1/2Ó x 1/2Ó Spacers (61), and a 5/16Ó Nylon
Locknut (3) as shown.
Tighten all Nylon Locknuts used in steps 3
through 8.
9. Lubricate a 3/8Ó x 4Ó Bolt (16). Attach the
Press Frame (17) to the Base (4) using the
Bolt and a 3/8Ó Nylon Locknut (21). Do not
overtighten the Nylon Locknut; the Press
Frame must be able to pivot freely.
10. Press a 1 3/4Ó Square Inner Cap (44) and a
1Ó Round Inner Cap (49) into the indicated
end of each Press Arm (46).
Attach the Press Arms (46) to the Press
Frame (17) using four 5/16Ó x 2 1/2Ó Bolts
(22) and four 5/16Ó Nylon Locknuts (3).
8
8
17
16ÑLubricate
21
4
46
17
44
49
22
3
46
60
62
3
61
55
9
10
9
ARM ASSEMBLY
11. Attach the Seat Plate (37) to the Seat Frame
(36) using a 1/4Ó x 2 1/4Ó Carriage Bolt (38), a
1/4Ó Flat Washer (78), and a 1/4Ó Nylon
Locknut (2).
12. Attach a Bumper (87) to the Seat Frame (36)
using a #10 x 1Ó Screw (80).
13. Attach the Seat Frame (36) to the Front
Upright (42) using two 3/8Ó x 3 1/4Ó Bolts (8),
a Back Plate (71), and two 3/8Ó Nylon
Locknuts (21).
14. Press a 1 1/2Ó Square Inner Cap (32) into
each end of the Leg Lever (29) and the indicated end of the Seat Frame (36).
Lubricate a 5/16Ó x 2 1/2Ó Bolt (22). Attach the
Leg Lever (29) to the Seat Frame (36) using
the Bolt and a 5/16Ó Nylon Locknut (3). Do
not overtighten the Nylon Locknut; the
Leg Lever must be able to pivot freely.
11
36
37
38
78
2
36
87
80
29
32
32
22
36
3
32
21
42
36
12
13
8
71
14
18
15
48
47
Bracket
Lubricate
55
65
68
45
44
47
16
17
CABLE ASSEMBLY ARM ASSEMBLY
10

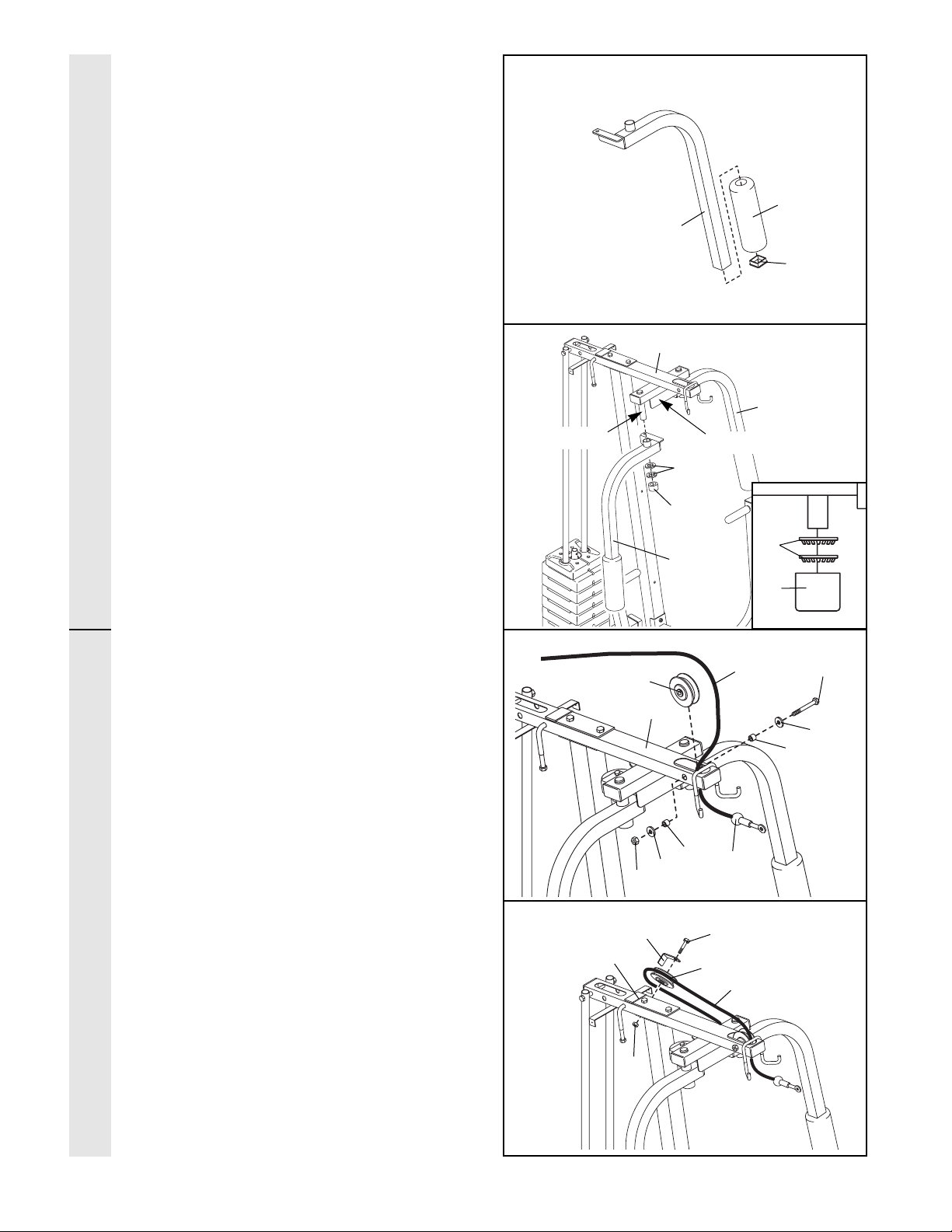

15. Press a 1 3/4Ó Square Inner Cap (44) into the
lower end of the Left Arm (47). Using a small
amount of soapy water, slide a Foam Arm
Pad (45) onto the Left Arm.
Assemble the Right Arm (48, not shown) in
the same manner.
16. Lubricate both axles on the Top Frame (55).
Slide the Right Arm (48) onto the right axle.
Note: Be careful not to confuse the Right
Arm with the Left Arm (47). Make sure that
the upper end of the Right Arm is behind
the indicated bracket on the Top Frame (55).
Tap two 1Ó Retainers (68) and a 1Ó Round
Outer Cap (65) onto the right axle. Make sure
the teeth on the Retainers bend toward the
Round Outer Cap, as shown in the inset
drawing.
Attach the Left Arm (47) in the same manner.
17. Important: As you assemble the Short
Cable (23) in steps 17Ð22, refer to the
Cable Diagram on page 19.
Route the Short Cable (23) up through the
hole in the Top Frame (55) as shown. Make
sure the ball is on the indicated side. Insert a
ÒVÓ Pulley (6) into the hole in the Top Frame.
Attach the ÒVÓ Pulley using a a 3/8Ó x 3 1/4Ó
Bolt (8), two 3/8Ó Flat Washers (9), two 5/8Ó x
1/2Ó Spacers (82), and a 3/8Ó Nylon Locknut
(21) as shown. Do not overtighten the Nylon
Locknut. The Pulley must be able to turn
freely.
18. Route the Short Cable (23) around another
ÒVÓ Pulley (6). Hold a Long Cable Trap (50)
against the Pulley so that it secures the Short
Cable in the groove of the Pulley.
Attach the Pulley (6) and the Long Cable Trap
(50) to the indicated bracket on the Top
Frame (55) using a 3/8Ó x 2 1/4Ó Bolt (76) and
a 3/8Ó Nylon Jamnut (67). Do not overtight-
en the Nylon Jamnut. The Pulley must be
able to turn freely.
76
67
55
50
6
21
82
55
Ball
82
9
9
8
23
23
6
65
68
19. Route the Short Cable (23) around two ÒVÓ
Pulleys (6). Attach the ÒVÓ Pulleys and two
Cable Traps (50) to the Left Arm (47) and the
Right Arm (48) as shown, using two 3/8Ó x
2 1/2Ó Bolts (7) and two 3/8Ó Nylon Locknuts
(21). Do not overtighten the Nylon
Locknuts. The Pulleys must be able to
turn freely.
20. Remove the 1/2Ó Nylon Locknut (81) from the
rod on the Top Frame (55). Attach the Pulley
Bracket (20) to the rod on the Top Frame with
the 1/2Ó Nylon Locknut. Route the Short
Cable (23) through the Pulley Bracket as
shown. Do not overtighten the Nylon
Locknut. The Pulley Bracket must be able
to pivot freely.
21. Loop the Short Cable (23) as shown. Route
the Short Cable up through the hole in the
Top Frame (55).
Open the bag marked ÒPro-PulleyÓ. Remove
the 4 1/2Ó Pulley (74). Route the Short Cable
(23) over the Pulley and insert the Pulley into
the hole in the Top Frame (55). Attach the 4
1/2Ó Pulley using a 3/8Ó x 3 1/4Ó Bolt (8), two
3/8Ó Flat Washers (9), two 5/8Ó x 3/4Ó Spacers
(40), and a 3/8Ó Nylon Locknut (21) as shown.
Do not overtighten the Nylon Locknut. The
Pulley must be able to turn freely.
22. Attach the indicated end of the Short Cable
(23) to the ÒUÓ Bracket (57) with a 1/4Ó Flat
Washer (78) and a 1/4Ó Nylon Locknut (2).
Slide the Weight Tube Sleeve (11) onto the
Weight Tube (63). Make sure that the groove
in the bottom of the Weight Tube Sleeve is
over the pin of the Weight Tube.
Attach the ÒUÓ Bracket (57) to the Weight
Tube (63) using a 5/16Ó x 1 3/4Ó Bolt (86) and
a 5/16Ó Nylon Locknut (3).
21
22
19
7
47
48
6
21
50
23
20
11
23
74
21
40
40
23
57
86
11
63
8
Loop
9
9
CABLE ASSEMBLY
20
Rod
81
23
55
55
78
3
2
26
23
24
25

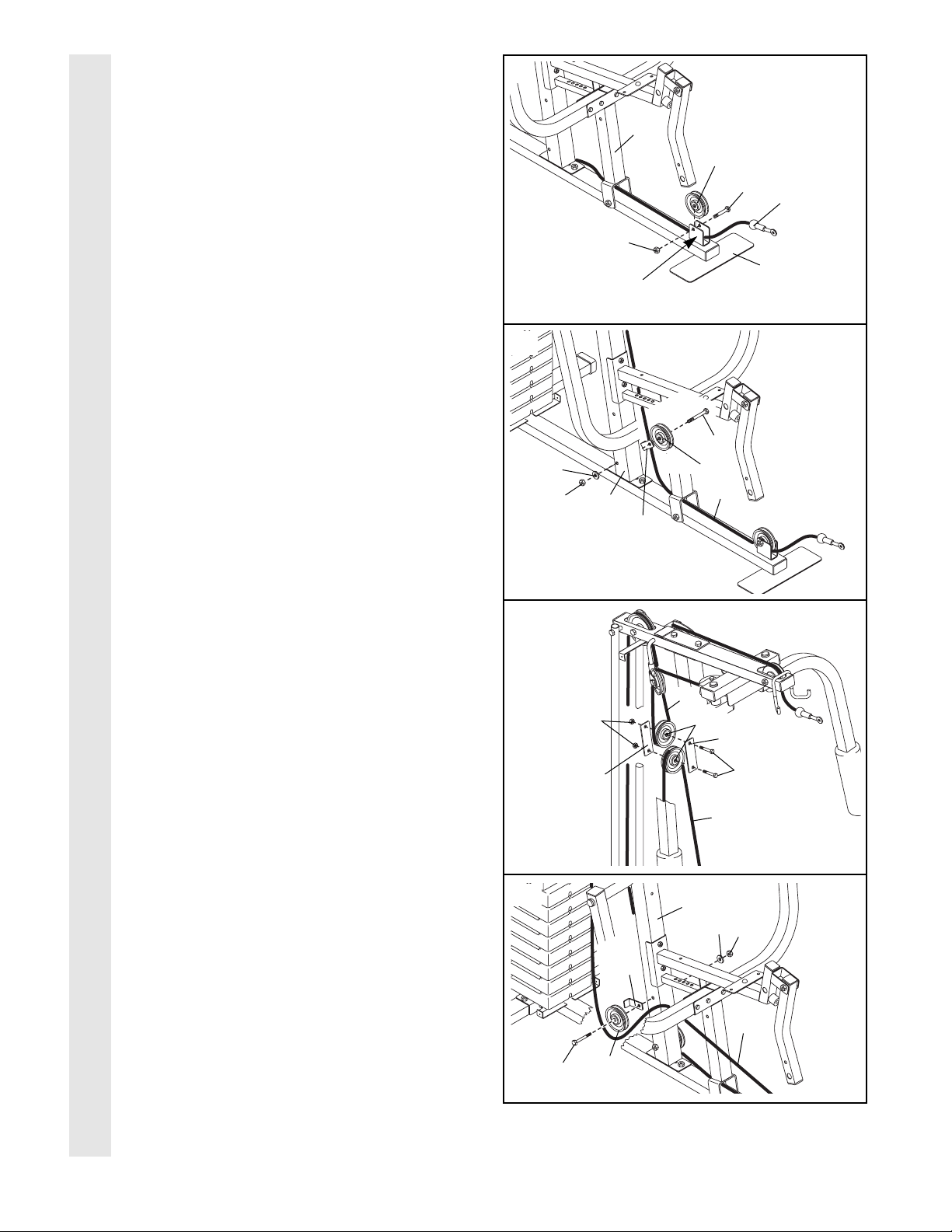

23. Important: As you assemble the Long
Cable (23) in steps 23Ð30, refer to the
Cable Diagram on page 19.
Route the Long Cable (69) as shown between
the Base (4) and the Press Frame (17). Lay
the Long Cable in the bracket on the Base.
Attach the Pro-Pulley (77) to the bracket
using a 3/8Ó x 2Ó Bolt (12) and a 3/8Ó Nylon
Locknut (21). Do not overtighten the Nylon
Locknut. The Pulley must be able to turn
freely.
24. Hold the Long Cable (69) against a 3 1/2Ó
Pulley (15). Hold a Cable Trap (66) against
the Pulley to hold the Cable in place.
Attach the 3 1/2Ó Pulley (15) and the Cable
Trap (66) to the Front Upright (42) as indicated, using a 3/8Ó x 4 1/4Ó Bolt (64), a 3/8Ó Flat
Washer (9), and a 3/8Ó Nylon Locknut (21).
Do not overtighten the Nylon Locknut. The
Pulley must be able to turn freely.
25. Remove the pre-assembled 3 1/2Ó Pulleys
(15) from the Pulley Plates (58). Route the
Short Cable (23) around one of the Pulleys.
Reattach a Pulley Plate (58) to each side of
the Pulley with a 3/8Ó x 2Ó Bolt (12) and a 3/8Ó
Nylon Locknut (21). Do not tighten the
Nylon Locknut yet.
Route the Long Cable (69) around the other
3 1/2Ó Pulley (15). Attach the Pulley to the
bottom set of holes in the Pulley Plates (58)
with a 3/8Ó x 2Ó Bolt (12) and a 3/8Ó Nylon
Locknut (21). Do not overtighten the Nylon
Locknuts; the Pulleys must be able to turn
freely.
26. Route the Long Cable (69) around a 3 1/2Ó
Pulley (15) as shown. Hold a Cable Trap (66)
against the Pulley so that the Cable is held
securely in the groove.
Attach the 3 1/2Ó Pulley (15) and the Cable
Trap (66) to the Front Upright (42) as shown,
using a 3/8Ó x 4 1/4Ó Bolt (64), a 3/8Ó Flat
Washer (9), and a 3/8Ó Nylon Locknut (21).
Do not overtighten the Nylon Locknut. The
Pulley must be able to turn freely.
12
CABLE ASSEMBLY
69
12
77
21
Bracket
17
4
21
58
21
42
66
69
64
9
69
21
42
9
15
15
23
12
58
69
66
64
15

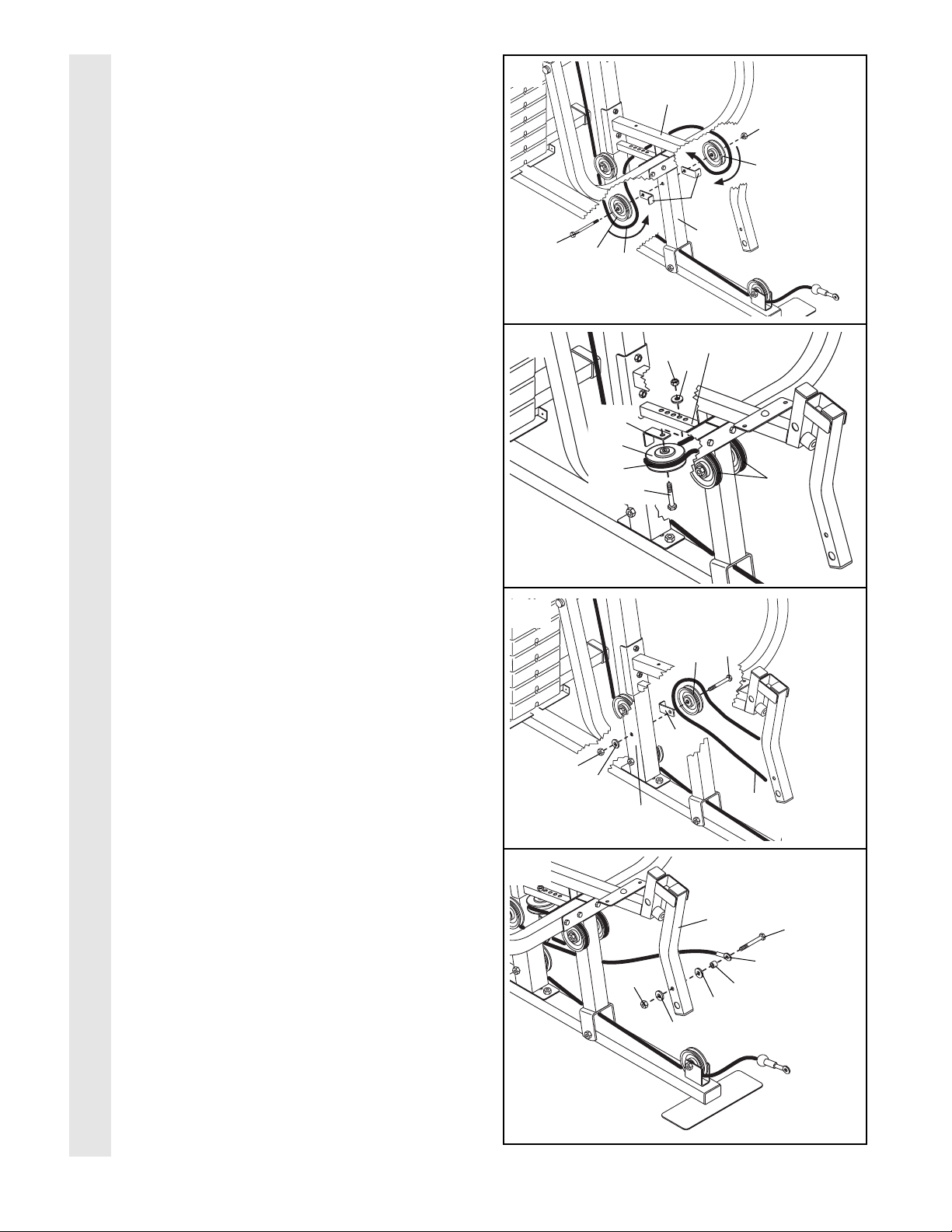

27. Slide a 3 1/2Ó Pulley (15) and a Cable Trap
(66) onto the 3/8Ó x 5Ó Bolt (75). Insert the
Bolt into the indicated side of the Press
Frame (17). Route the Long Cable (69) up
around the Pulley, behind the Press Frame,
and under the Seat Frame (36).
Slide a Cable Trap (66) and a 3 1/2Ó Pulley
(15) onto the 3/8Ó x 5Ó Bolt (75). Route the
Long Cable (69) down around the Pulley.
Make sure that both Cable Traps are oriented as shown. Tighten a 3/8Ó Nylon
Locknut (21) onto the Bolt. Do not overtighten the Nylon Locknut; the Pulleys must be
able to turn freely.
28. Locate the section of the Long Cable (69)
between the two 3 1/2Ó Pulleys (15) attached
in step 27. Route this section of the Long
Cable around a ÒVÓ Pulley (6). Hold a Cable
Trap (66) against the Pulley to keep the
Cable in the groove of the Pulley.
Attach the ÒVÓ Pulley (6) and the Cable Trap
(66) to the second hole from the front of the
Seat Frame (36) using a 3/8Ó x 3 1/4Ó Bolt (8),
a 3/8Ó Flat Washer (9), and a 3/8Ó Nylon
Locknut (21). Do not overtighten the Nylon
Locknut; the Pulley must be able to turn
freely.
29. Route the Long Cable (69) around a 3 1/2Ó
Pulley (15). Hold a Cable Trap (66) against
the Pulley to hold the Long Cable in place.
Attach the 3 1/2Ó Pulley (15) and the Cable
Trap (66) to the Front Upright (42) using a
3/8Ó x 4 1/4Ó Bolt (64), a 3/8Ó Flat Washer (9),
and a 3/8Ó Nylon Locknut (21). Do not over-
tighten the Nylon Locknut; the Pulley must
be able to turn freely.
30. Attach the end of the Long Cable (69) to the
Leg Lever (29) using a 3/8Ó x 2 3/4Ó Bolt (85),
a 5/8Ó x 1/2Ó Spacer (82), two 3/8Ó Flat
Washers (9), and a 3/8Ó Nylon Jamnut (67).
13
27
75
36
15
66
17
69
15
21
28
69
29
82
9
67
9
85
69
15
66
21
42
9
64
29
30
CABLE ASSEMBLY
36
15
69
6
66
8
9
21
31. Attach the Seat (13) to the Seat Frame (36)
using two 1/4Ó x 3/4Ó Bolts (18), a 1/4Ó x 2 1/4Ó
Bolt (33), and a 1/4Ó Flat Washer (78).
32. Attach the Backrest (41) to the Front Upright
(42) using two 1/4Ó x 3Ó Bolts (43) and two
1/4Ó Flat Washers (78).
33. Insert 3/4Ó Round Inner Caps (34) into both
end of two Pad Tubes (28). Slide the Pad
Tubes into the holes in the Leg Lever (29)
and the Seat Frame (36). Slide Foam Pads
(30) onto both ends of the Pad Tubes.
34. Attach the Curl Pad (24) to the Curl Post (35)
with two 1/4Ó x 3/4Ó Bolts (18).
To attach the Curl Post (35) to the training
system, first remove the 1 1/2Ó Square Inner
Cap (32) from the Seat Frame (36). Insert the
Curl Post into the Seat Frame and tighten the
Knob (51) into the Seat Frame and the Curl
Post.
Note: When the Curl Post (35) is not in
use, replace the 1 1/2Ó Square Inner Cap
(32).
14
SEAT ASSEMBLY
31
13
18
32
41
78
78
42
43
43
33
30
30
30
28
29
36
34
34
34
24
35
18
51
36
32
33
78
36
35. Attach the Shroud (59) to the brackets on the
Top Frame (55) and the Base (4) using four
#8 x 1/2Ó Screws (79).
15
35
79
79
59
55
79
4
SEAT ASSEMBLY
36. Make sure that all parts have been properly
tightened. The use of the remaining parts will
be explained in ADJUSTMENT, beginning on
page 16 of this manual.
Before using the training system, pull each
cable a few times to be sure that the cables
move smoothly over the pulleys. If one of the
cables does not move smoothly, find and correct the problem. IMPORTANT: If the cables
are not properly installed, they may be
damaged when heavy weight is used. See
the Cable Diagram on page 19 of this manual for proper cable routing. If there is
any slack in the cables, you will need to
remove it by tightening the cables. See
Trouble-Shooting and Maintenance on
page 18.
16
54
39
53
52
23
25
26
CHANGING THE WEIGHT SETTING
To change the weight setting of the weight stack,
insert the Weight Pin (26) under the desired Weight
(25). Be sure to insert the Weight Pin until the bent
end of the Weight Pin is touching the Weights, and
turn the bent end downward. The weight setting of the
weight stack can be changed from 6.5 pounds to 86.5
pounds, in increments of 10 pounds. Note: Due to
the cables and pulleys, the actual amount of
resistance at each exercise station may vary from
the weight setting. Use the WEIGHT RESISTANCE
CHART on page 17 to find the actual amount of
resistance at each weight station.
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION OR THE LOW PULLEY STATION
Attach the Lat Bar (54) to the Short Cable (23) or the
Long Cable (69, not shown) with a Cable Clip (53).
For some exercises, the Chain (52) should be
attached between the Lat Bar and the Cable with two
Cable Clips. Adjust the length of the Chain
between the Lat Bar and the Cable so the Lat Bar
is in the correct starting position for the exercise
to be performed.
The Nylon Strap (39) can be attached in the same
manner.
ADJUSTMENT
The instructions below describe how each part of the training system can be adjusted. Refer to the exercise
guide accompanying this manual to see how the training system should be used for each exercise. IMPOR-
TANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct starting position for the exercise to be performed. If there is any slack in the cables or chain as an exercise
is performed, the effectiveness of the exercise will be reduced.
ATTACHING AND REMOVING THE CURL PAD
For some exercises, the Curl Pad (24) must be
attached to the training system. Remove the 1 1/2Ó
Square Inner Cap (32) from the Seat Frame (36).
Insert the Curl Post (35) into the Seat Frame, and
tighten the Knob (51) into the Seat Frame and the
Curl Post.
To remove the Curl Post (35) from the Seat Frame
(36), first remove the Knob (51). Lift the Curl Post off
the Seat Frame and insert the 1 1/2Ó Square Inner
Cap (32).
35
24
36
32
51
17
WEIGHT RESISTANCE CHART
This chart shows the approximate weight resistance at each exercise station. ÒTopÓ refers to the 6.5 lb. top
weight. The other numbers refer to the 10 lb. weight plates. The butterfly arm resistance listed is the resistance
for each butterfly arm.The actual resistance at each weight station may vary due to differences in individ-
ual weight plates, as well as friction between the cables, pulleys, and weight guides.
WEIGHT High Pulley Arm Press Butterfly Leg Raise Low Pulley
PLATES (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)
Top2222201815
13842393231
25362584747
36982776262
4 84 102 98 77 78
5 100 122 114 91 94
6 115 142 133 106 110
7 131 162 152 121 125
8 146 182 171 136 141
18
TROUBLE-SHOOTING AND MAINTENANCE
Inspect and tighten all parts each time you use the training system. Replace any worn parts immediately. The
training system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the training
system, can stretch slightly when it is first used. If
there is slack in the cables before resistance is felt,
the cables should be tightened.
Slack can be removed from the cables by tightening
the Short Cable (23). To tighten the Short Cable, first
loosen the 1/4Ó Nylon Locknut (2) on the end of the
Short Cable. Next, tighten the end of the Short Cable
further into the ÒUÓ Bracket. Retighten the 1/4Ó Nylon
Locknut against the 1/4Ó Flat Washer (78).
To remove slack from the Long Cable (69), remove
the ÒVÓ Pulley (6) and the Cable Trap (not shown)
from the Seat Frame (36). Then, reattach the Pulley
and the Cable Trap to a hole further back in the Seat
Frame.
Make sure that the cables are not too tight, or the top
weight will be lifted off the weight stack.
If the cables need to be replaced, see the back cover
of this manual.
23
78
2
69
6
36
19
CABLE DIAGRAM
The diagram below shows the proper routing of the Short Cable (23) and the Long Cable (69). Use the diagram
to be sure that the cables and the cable traps have been assembled correctly. If the cables have not been correctly routed, the training system will not function properly and damage may occur. The cable traps should be
positioned so that the cables will not come off the pulleys. Be sure that the cable traps do not touch or bind
the cables.
1ÑHigh Pulley
1ÑLow Pulley
9ÑLeg Lever
Long CableÑ69
2
3
4
3
Short CableÑ23
5
6
2
4
5
7
8
6
8ÑWeight
Stack
7
20
NOTES
21
NOTES
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice.
PART LISTÑModel No. WESY19000 R0800A
Key No. Qty. Description
1 4 3/8Ó x 2 1/4Ó Carriage Bolt
2 2 1/4Ó Nylon Locknut
3 9 5/16Ó Nylon Locknut
4 1 Base
5 1 Stabilizer
6 5 ÒVÓ-Pulley
7 4 3/8Ó x 2 1/2Ó Bolt
8 5 3/8Ó x 3 1/4Ó Bolt
9 10 3/8Ó Flat Washer
10
2 1Ó Inner Cap
11 1 Weight Tube Sleeve
12 4 3/8Ó x 2Ó Bolt
13 1 Seat
14 2 5/16Ó x 3 1/4Ó Bolt
15 8 3 1/2Ó Pulley
16 1 3/8Ó x 4Ó Bolt
17 1 Press Frame
18 4 1/4Ó x 3/4Ó Bolt
19 2 Weight Bumper
20 1 Pulley Bracket
21 22 3/8Ó Nylon Locknut
22 5 5/16Ó x 2 1/2Ó Bolt
23 1 Short Cable
24 1 Curl Pad
25 8 Weight
26 1 Weight Pin
27 5 1 1/2Ó x 2 1/2Ó Inner Cap
28 2 Pad Tube
29 1 Leg Lever
30 4 Foam Pad
31 4 Hand Grip
32 3 1 1/2Ó Square Inner Cap
33 1 1/4Ó x 2 1/4Ó Bolt
34 4 3/4Ó Round Inner Cap
35 1 Curl Post
36 1 Seat Frame
37 1 Seat Plate
38 1 1/4Ó x 2 1/4Ó Carriage Bolt
39 1 Nylon Strap
40 2 5/8Ó x 3/4Ó Spacer
41 1 Backrest
42 1 Front Upright
43 2 1/4Ó x 3Ó Bolt
44 4 1 3/4Ó Square Inner Cap
45 2 Foam Arm Pad
Key No. Qty. Description
46 2 Press Arm
47 1 Left Arm
48 1 Right Arm
49 2 1Ó Round Inner Cap
50 4 Long Cable Trap
51 1 Knob
52 1 Chain
53 2 Cable Clip
54 1 Lat Bar
55 1 Top Frame
56 1 Top Weight
57 1 ÒUÓ-Bracket
58 2 Pulley Plate
59 1 Shroud
60 1 5/16Ó x 6Ó Bolt
61 2 1/2Ó x 1/2Ó Spacer
62 2 Weight Guide
63 1 Weight Tube
64 3 3/8Ó x 4 1/4Ó Bolt
65 2 1Ó Round Outer Cap
66 5 Cable Trap
67 2 3/8Ó Nylon Jamnut
68 4 1Ó Retainer
69 1 Long Cable
70 2 5/16Ó Flat Washer
71 2 Back Plate
72 1 Weight Tube Cap
73 2 1 1/2Ó x 2 1/2Ó Outer Cap
74 1 4 1/2Ó Pulley
75 1 3/8Ó x 5Ó Bolt
76 1 3/8Ó x 2 1/4Ó Bolt
77 1 Pro-Pulley
78 5 1/4Ó Flat Washer
79 4 #8 x 1/2Ó Screw
80 1 #10 x 1Ó Screw
81 1 1/2Ó Nylon Locknut
82 3 5/8Ó x 1/2Ó Spacer
83 2 Lat Bar Holder Sleeve
84 2 1 1/4Ó x 2 1/2Ó Plastic Bushing
85 1 3/8Ó x 2 3/4Ó Bolt
86 1 5/16Ó x 1 3/4Ó Bolt
87 1 Bumper
# 1 UserÕs Manual
# 1 Exercise Poster
# 1 Exercise Chart Decal
22
2
21
66
15
64
9
21
21
8
43
21
68
65
48
42
45
44
79
79
79
79
3
61
62
60
23
86
57
56
63
26
25
73
14
73
5
21
58
15
15
12
58
1
4
3
3
21
21
21
19
19
77
12
27
53
21
21
15
17
16
52
39
22
3
15
75
46
46
31
49
44
34
30
28
29
32
31
49
44
34
30
64
8
21
66
15
2
3
18
6
21
66
9
50
33
21
38
37
18
36
87
80
32
22
28
30
34
13
41
65
68
21
6
50
7
44
45
24
35
18
31
31
53
23
54
21
21
6
50
7
15
81
12
59
20
21
67
27
10
21
82
27
82
8
27
6
10
55
40
8
6
50
76
21
7
40
74
27
47
32
1
9
71
9
83
9
9
84
84
78
3
78
71
9
78
78
9
82
85
9
67
51
72
70
70
66
66
69
69
11
EXPLODED DRAWINGÑModel No. WESY19000 R0800A
23
3/8" Nylon Locknut (21)
3/8" Flat Washer (9)
1/4" x 3/4" Bolt (18)
3/8" Nylon Jam Nut (67)
1/4" Nylon Locknut (2)
5/16" Flat Washer (70)
1/4" Flat Washer (78)
Ê
5/16" Nylon Locknut (3)
5/16" x 1 3/4" Bolt (86)
1/4" x 2 1/4" Bolt (33)
1/4" x 3" Bolt (43)
3/8" x 2" Bolt (12)
5/16" x 2 1/2" Bolt (22)
5/16" x 3 1/4" Bolt (14)
3/8" x 2 1/4" Bolt (76)
3/8" x 2 1/4" Carriage Bolt (1)
1/4" x 2 1/4" Carriage Bolt (38)
#10 x 1" Screw (88)
1/2" Nylon Locknut (81)
#8 x 1/2" Screw (79)
Cable Clip (53)
1" Retainer (68)
5/16" x 6" Bolt (60)
1/2" x 1/2" Spacer (61)
3/8" x 2 3/4" Bolt (85)
3/8" x 2 1/2" Bolt (7)
3/8" x 3 1/4" Bolt (8)
3/8" x 4" Bolt (16)
5/8" x 1/2" Spacer (82)
5/8" x 3/4" Spacer (40)
3/8" x 5" Bolt (75)
3/8" x 4 1/4" Bolt (64)
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
¥ The MODEL NUMBER of the product (WESY19000)
¥ The NAME of the product (WEIDER¨245 Training System)
¥ The SERIAL NUMBER of the product (see the front cover of this manual)
¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on
pages 22 and 23).
Part No. 166861 R0800A Printed in Canada © 2000 ICON Health & Fitness, Inc.
Loading...
