Model No. 150722
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance from our factory.
USER’S MANUAL
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will
provide immediate
assistance, free of
charge.
CUSTOMER HOT LINE:
1-877-992-5999
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
Keep hands and
fingers clear of
this area.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENTS
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
WARNING DECAL PLACEMENT
The decals shown here have
been placed on the exercise
rack. If a decal is missing or
illegible, please call our
Customer Service Department
toll-free at 1-877-992-5999,
Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time, to
order a free replacement
decal. Apply the decal in the
location shown.
WEIDER is a registered trademark of ICON IP
2
, Inc.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Keep the weight bench indoors, away from
moisture and dust. Do not put the weight
bench in a garage or covered patio, or near
water.
6. Make sure all parts are properly tightened
each time the weight bench is used. Replace
any worn parts immediately.
9. Always exercise with a partner. When you are
performing bench press exercises, your partner should stand behind you to catch the barbell if you cannot complete a repetition.
10. When using the backrest in an inclined position, make sure that the support rod is inserted completely through both uprights, and
that the support rod is turned to the locked
position.
11. Do not use a barbell that is longer than six
feet with the weight bench.
12. The weight bench is designed to support a
maximum of 460 pounds, including the user,
a weight bar, and weights. Do not place more
than 210 pounds, including a weight bar and
weights, on the weight rests. Do not place
more than 130 pounds on the leg lever.
13. When you are using the leg lever, place a barbell with the same amount of weight on the
weight rests to balance the bench.
7. Keep children under 12 and pets away from
the weight bench at all times.
8. Always make sure there is an equal amount
of weight on each side of your barbell when
you are using it. When adding or removing
weights, always keep some weight on both
ends of the barbell to prevent the barbell
from tipping. Note: The weight bench does
not include weights or a barbell.
14. Keep hands and feet away from moving parts.
Always wear athletic shoes for foot protection while exercising.
15. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the WEIDER®400 weight
bench. The versatile weight bench is designed to be
used with your own weight set (not included) to devel
op every major muscle group of the body. Whether
your goal is a shapely figure, dramatic muscle size
and strength, or a healthier cardiovascular system, the
weight bench will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have additional ques-
tions, please call our Customer Service Department toll-
free at 1-886-997-6999, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
-
o help us assist you, please note the product model
T
number and serial number before calling. The model
number is 150721.
a decal attached to the weight bench (see the front
cover of this manual).
Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
The serial number can be found on
Weight Rests
Backrest
Seat
Leg Lever
Weight
Tube
Support
Rod
Upright
4
ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled successfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two people.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICA
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
TION CHART.
1. Before assembling this product, make sure
that you have read and understand the information in the box above.
Slide the Right Crossbar (3) into the Left
Crossbar (2), with the decal on top. Note: the
crossbar can be adjusted for use with either a
standard barbell or a mid-width barbell. For a
standard barbell, align the set of holes indicated by the arrows. For a mid-width barbell,
align the holes on the ends of the Crossbars.
Attach the Frame (4) to the Crossbars (2, 3) with
two M8 x 65mm Bolts (20), two M8 x 55mm Bolts
(18), and four M8 Nylon Locknuts (24). Note: The
Bolts should fit inside of the holes in the Left
Crossbar (2). Do not tighten the Locknuts yet.
2. Insert a 38mm Square Inner Cap (17) into the
Front Leg (5).
Slide the welded tube on the Front Leg (5) into
the Frame (4). Secure the Front Leg with two M8
x 40mm Carriage Bolts (28), two M8 Washers
(26), and two M8 Nylon Locknuts (24). Do not
tighten the Locknuts yet.
1
3
20
18
4
24
24
2
17
5
28
2
Decal
4
26
24
5
3. Attach the Crossbars (2, 3) to the Uprights (1)
with four M8 x 65mm Bolts (20), two Support
Plates (10), and four M8 Nylon Locknuts (24).
not tighten the Locknuts yet. Note the position
of the name decal and
are oriented as shown.
make sure the Uprights
Do
3
1
1
24
3
Name
Decal
2
20
20
10
24
24
20
10
4. Press a 25.4mm Round Inner Cap (15) into the
indicated end of the Weight Tube (31). Slide the
Weight Tube through the hole in the Leg Lever (6).
Attach the Weight Tube with an M8 x 50mm Bolt
(29), two M8 Washers (26), a Sleeve (30), and an
M8 Nylon Locknut (24). Press a 25.4mm Angle
Cap (16) onto the other end of the weight tube.
Tap three 38mm Square Inner Caps (17) into the
Leg Lever (6) as shown.
Lubricate the M10 x 60mm Bolt (21). Attach the
Leg Lever (6) to the Front Leg (5) with the Bolt and
an M10 Nylon Locknut (27). Do not overtighten
the Locknut; the Leg Lever must be able to
pivot freely.
Press four 25.4mm Square Inner Caps (19) into
5.
ubes (7).
the Backrest
Attach the Backrest Tubes (7) to the Backrest (8)
in the indicated locations, with three M6 x 38mm
Screws (23) and three M6 Washers (25).
tighten the Screws yet.
T
Do not
4
6
17
24
26
15
5
31
8
17
17
27
21
30
16
26
5
29
19
19
25
23
19
25
23
25
23
7
7
6
6. Press two 25.4mm Inner Caps (15) into the ends
of the Support Rod (11). Slide the Support Rod
through a set of holes in the Uprights (1) and turn
it to the locked position.
See the inset drawing. With the help of a second person, slide the indicated ends of the
Backrest Tubes (7) onto the welded axle on the
Frame (4).
Attach the left Backrest Tube (7) to the Backrest
(8) with a fourth M6 x 38mm Screw (23) and M6
Washer (25). Tighten all four Screws in the
Backrest.
Rest the Backrest (8) on the Support Rod (11).
Tighten the M8 Nylon Locknuts (24) used in
steps 1–3.
6
1
15
11
8
25
7
4
23
7
1
15
7. Attach the Seat (9) to the brackets on the Frame
(4) with four M6 x 16mm Screws (22).
8. Press two 19mm Round Inner Caps (14) into
ube (13). Slide the Pad Tubes through
each Pad
the holes in the Leg Lever (6). Slide a Foam Pad
(12) onto each side of each Pad Tube.
T
7
Welded Axle
4
7
9
4
22
22
8
12
6
14
9. Make sure that all parts are properly tightened
before you use the weight bench. The use of
all remaining parts will be explained in ADJUSTMENTS, beginning on the next page.
13
14
14
12
7
ADJUSTMENTS
The weight bench is designed to be used with your own weight set (not included). The steps below explain how
the weight bench can be adjusted. See EXERCISE GUIDELINES on page 9 for important exercise information
and refer to the accompanying exercise guide to see the correct form for several exercises. Refer also to the
exercise information accompanying your weight set (not included) for additional exercises.
Inspect and tighten all parts each time the weight bench is used. Replace any worn parts immediately. The
weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ADJUSTING THE BACKREST
The Backrest (8) can be used in a decline position,
three incline positions, or a flat position. To use the
Backrest in the decline position, remove the Support
1) and lay the Backrest on the Crossbar (2).
Rod (1
1
To use the Backrest (8) in an incline position, lift the
Backrest and insert the end of the Support Rod (11)
without the locking clip through one of the top three
sets of holes in the Uprights (1). Rotate the locking
clip into place around the Upright.
To use the Backrest (8) in the flat position, lift the
Backrest and insert the end of the Support Rod (11)
without the locking clip through the bottom set of
holes in the Uprights (1). Rotate the locking clip into
place around the Upright.
WARNING: When using the
Backrest (8) in an incline or level position,
make sure that the Support Rod (11) is inserted completely through both Uprights (1) and
is turned to the locked position.
ACHING WEIGHTS
TT
A
To use the Leg Lever (6), slide the desired weights
(not included) onto the weight tube.
8
Weight Tube
1
1
2
6
1
WARNING: Do not place more
than 50 pounds on the Leg Lever (6).
Weight
8
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
o increase the size and strength of your muscles,
T
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of weight for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of weight that is right
for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of weight and increase the number of repetitions in each set. Complete as many sets of 15 to 20
repetitions as possible without discomfort. Rest for 1
minute after each set. Work your muscles by completing more sets rather than by using high amounts of
weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross T
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
raining
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
-
9
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L

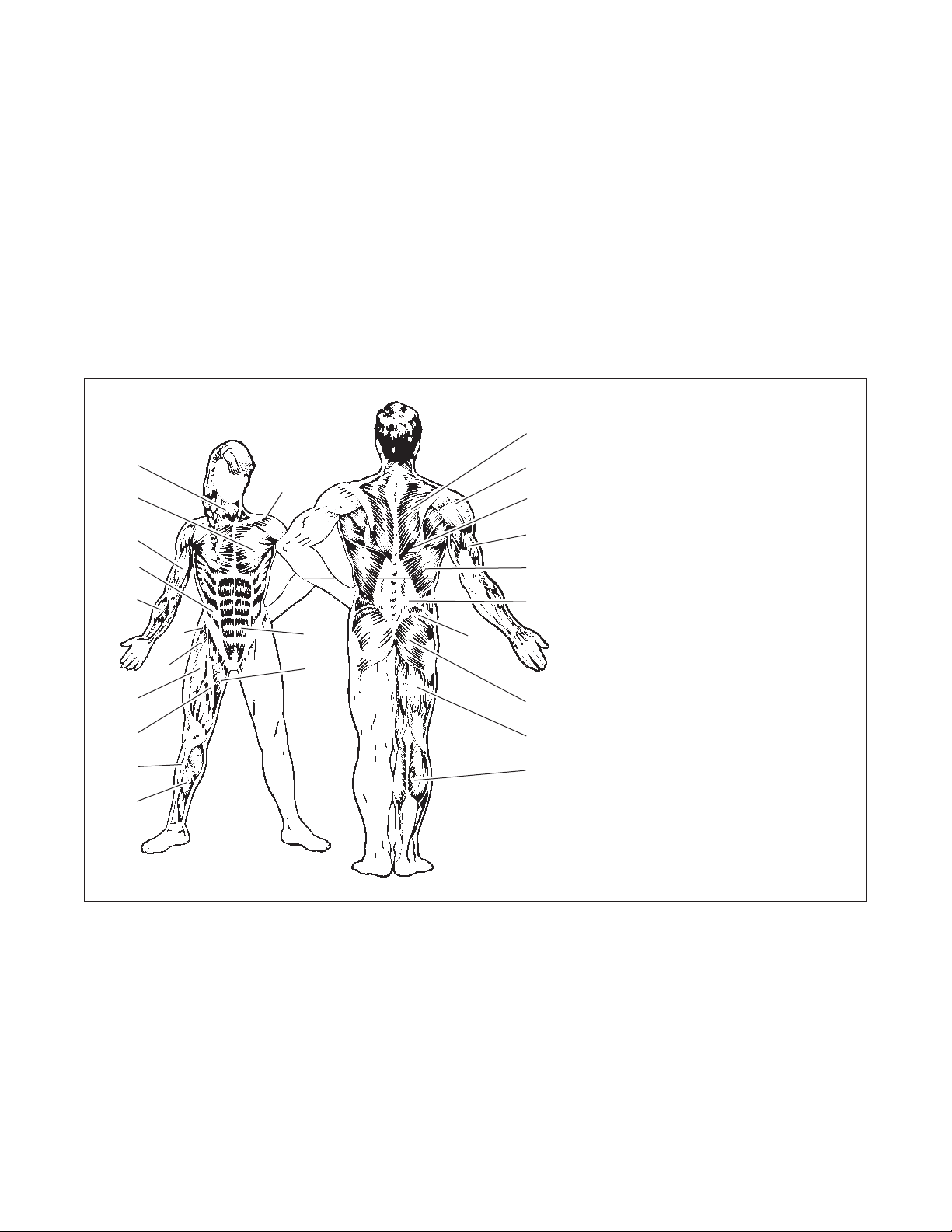

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
•
building workout.
Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 11 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the weight used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to achieving the greatest results is to make exercise a regular
and enjoyable part of your everyday life.
10
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
FRIDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
11
M10 x 60mm Bolt (21)
M8 Nylon Locknut (24)
M8 Washer (26)
M10 Nylon Locknut (27)
M8 x 50mm Bolt (29)
M6 Washer (25)
M8 x 55mm Bolt (18)
M6 x 16mm Screw (22)
M6 x 38mm Screw (23)
M8 x 65mm Bolt (20)
M8 x 40mm Carriage Bolt (28)
PART IDENTIFICATION CHART
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST in the center of the this manual.
Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts
bags, check to see if it has been pre-assembled.
Important:
PART LIST—Model No. 150722 R1004A
Key No. Qty. Description
1 2 Upright
2 1 Left Crossbar
3
4 1 Frame
5 1 Front Leg
6 1 Leg Lever
7 2 Backrest Tube
8 1 Backrest
9 1 Seat
10 2 Support Plate
11 1 Support Rod
12 4 Foam Pad
13 2 Pad Tube
14 4 19mm Round Inner Cap
15 3 25.4mm Round Inner Cap
16 1 25.4mm Angle Cap
17 4 38mm Square Inner Cap
“#” Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of
this manual for information on ordering replacement parts.
1 Right Crossbar
Key No. Qty. Description
18 2 M8 x 55mm Bolt
19 4 25.4mm Square Inner Cap
20
21 1 M10 x 60mm Bolt
22 4 M6 x 16mm Screw
23 4 M6 x 38mm Screw
24 11 M8 Nylon Locknut
25 4 M6 Washer
26 4 M8 Washer
27 1 M10 Nylon Locknut
28 2 M8 x 40mm Carriage Bolt
29 1 M8 x 50mm Bolt
30 1 Sleeve
31 1 Weight Tube
# 1 User’s Manual
# 1 Exercise Guide
6 M8 x 65mm Bolt
22
26
24
24
24
22
28
27
21
17
12
12
16
5
17
15
6
14
13
14
12
12
14
13
14
11
15
15
24
24
10
1
20
20
18
20
20
3
2
20
24
10
1
9
8
7
7
19
19
19
19
25
23
25
23
25
23
25
23
4
17
17
29
26
30
26
24
31
EXPLODED DRAWING—Model No. 150722 R1004A
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-877-992-5999, Monday
through Friday
pared to give the following information:
1. The MODEL NUMBER of the product (150722)
, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-
2. The NAME of the product (WEIDER
3. The SERIAL NUMBER of the product (see the front cover of this manual)
4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING at the
center of this manual)
®
400 weight bench)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products
used for commercial or rental purposes; or products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEAL
Part No. 220768 R1004A
TH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Printed in China
© 2004 ICON IP, Inc.
Loading...
