SAFETY RULES
Y
IMPORTANT WARNINGSAND
SAFET
INSTRUCTIONS
WARNING:
When using electric gardening appli ances, basic saf ety pr ecauti ons should al ways be followed to reduce the risk of fire, electric shock, and serious injury. The warnings and safety instructions in this manual must be followed to reduce the risk of fire, electric shock, or injury, and to provide reasonable safety and efficiency in using this unit. The operator is responsible for following the warnings and instructions in this manual and on the unit. Read the entire instruction manual before assembling and using the unit! Re­strict the use of this unit to persons who read, understand, and follow the warnings and instructions in this manual and on the unit. Never allow children to use this unit. Do not allow the unit to be used as a toy. Close attention is necessary when used near children. Always disconnect unit from power source before servicing, cleaning, performing main­tenance, or storing. Nonconforming replacement components or the removal of safety devices may cause damage to the unit and possible injury to the operator or bystanders. Use only accessories and replacement parts as recommended. Use only for jobs ex­plained in this manual.
OPERATOR SAFETY
S Always wear safety glasses or similar
eyeprotectionwhenoperating,servic­ing, or performing maintenance on your unit. Wearingeye protection can help to prevent rocks or debris from being blown or ricocheting into eyes and face which can result in blindness or serious injury.
S Always wear a respirator or face mask
when working with the unit in dusty envi­ronments.
S Dress safely in long pants. Do not go
barefoot or wear short pants or sandals.
S Do not operate the unit when you are
tired, ill, upset, or if you are under the in­fluence of alcohol, drugs, or medication.
S Secure hair so it is above shoulder
length. Keep loose hair, loose clothing, fingers, and all other parts of the body away from openings and moving parts. Hair , jewelry , loose clothing, or clothing with loosely hanging straps, ties, tas­sels, etc., can be caught in moving parts.
ELECTRICAL SAFETY
WARNING:
Avoid a dangerous environment. To re­duce the risk of electrical shock, do not use in rain, in damp or wet locations, or around swimming pools, hot tubs, etc. Do not expose to snow,rain, or water to avoid the possibility of electrical shock. Do not use on wet surfaces. Do not handle exten­sion cord plug or unit with wet hands. Avoid dangerous situations. Do not use in
the presence of flammable liquids or gases to avoid creating a fire or explosion and/or causing damage to unit. Do not abuse cord.Never carry the unit by the ex­tension cord or yank extension cord to dis­connect unit. To unplug, grasp the plug, not the cord. Do not use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Turn off all con­trols before unplugging. Do not expose cords to heat,oil, or water . Do not use with damaged cord or plug. If unit is not work­ing as it should, has been dropped, dam­aged, left outdoors, or dropped into water, return it to your authorized service dealer for repair. Unplug the unit from the power source when not in use, before servicing, cleaning, performing maintenance, or storing. Do not put any object into open­ings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow. S Use only a voltage supply as shown on
the nameplate of the unit.
S Avoid dangerous environments. Do not
use in unventilated areas or where dust or explosive vapors can build up.
S To reduce the risk of electrical shock,
this unit has a polarized plug (one blade is wider than the other) and will require the use of a polarized exten­sion cord. The appliance plug will fit into a polarized extension c ord only one way. If the plug does n ot fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A
2
polarized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If plug does not fit fully into the wall outlet, reverse the plug. If it still d oes not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or ex­tension cord plug in any way.
S To reduce the risk of electr ical shock,
use extension cords specificall ymarked as suitable for outdoor appliances. The electrical rating of the cord must not be less than the rating of the unit. The cord must be marked with the suffi x “W-A” (in Canada, “W”). Make sure your exten­sion cord is in good condition. Inspect extension cord before use and replace if damaged. An undersized extension cordwillcauseadropinlinevoltagere­sulting in loss of power and overheating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. (NOTE: The correct size to be used depending on the cord length is shown in this manual. See
LECT AN EXTENSION CORD SEMBLY
S Do not use multiple cords. S Keep the extension cord clear of opera-
tor and obstacles at all times.
S Tie cord to cord retainer and connect to
recessed plug as shown in this manual to prevent damage to unit and/or exten­sion cord and to reduce the possibility of the extension cord disconnecting from the unit during operation.
S Do not attempt to repair unit. Inspect the
insulation and connectors on the unit and extension cord before each use. If there is any damage, do not use until damage is repaired by your authorized service dealer.
S Do not use the unitif the switch does not
turn the unit on and off properly . Have the unit repaired by your authorized ser­vice dealer.
S Avoid accidental starting. Be sure the
switch is in the your hand and fingers away from the switch while connecting the unit to the power source or when carrying a unit connected to the power source.
S Avoid any body contact with any
grounded conductor, such as metal fences, or pipes, to avoid the possibility of electric shock.
S Ground Fault Circuit Interrupter (GFCI)
protection should be provided on the cir­cuit or outlet to be used for this unit. Re­ceptacles are available having built-in
section).
OFF position and keep
SE-
in the AS-
GFCI protecti on and may be used for this measure of safety.
S Stop the motor immediately if you are
approached.
DOUBLE INSULATION CONSTRUCTION
This unit is double insulated to help protect against electric shock. Double insulation construction consists of two separate “layers” of electrical insula­tion instead of grounding. Tools and appliances built with a double insulation system are not in­tended to be grounded. No grounding means is provided on this unit, nor should a means of grounding be add­ed to this unit. As a result, the exten­sion cord us ed with your unit can be plugged into any standard 120 volt electrical outlet. Safety precautions must be observed when operating any electrical tool. The double insulation system only provides added protection against injury resulting from an internal electrical insulation failure.
WARNING:
All electrical repairs to this unit, including housing, switch, motor, etc., must be diag­nosed and repaired by qualified service personnel. Replacement parts for a double insulated appliance must be iden­tical to the parts they replace. A double in­sulated appliance is marked with the words “double insulation” or “double insu­lated”. The symbol square) may also be marked on the ap­pliance. Failure to have the unit repaired by authorized service personnel can cause the double insulation construction to become ineffective and result in serious injury.
UNIT/MAINTENANCE SAFETY
S Do not set the unit on any surface ex-
cept a clean, hard area while the unit is running. Debris such as gravel, sand, dust, grass, etc., could be picked up by the air intake and thrown out through the discharge opening, damaging the unit, property, or causing serious injury to by­standers or operator.
S Do not overreach or use from unstable
surfaces such as ladders, trees, steep slopes, rooftops, etc. Use extra care when cleaning on stairways. Keep firm footing and balance at all times. Keep hands out of tubes.
S Inspect the entire unit before each use
for worn, loose, missing, or damaged parts. Do not use until the unit is in proper working order.
3
(square within a
S This unit is double insulated. See the
DOUBLE INSULATION CONSTRUCTION
section. Have all internal service per­formed by qualified service repair per­sonnel to avoid creating a hazard or voiding your warranty .
S Have all maintenance other than the
recommended procedures described in the instruction manual performed by your authorized service dealer.
S Always see your authori ze d service
dealer to replace a damaged impeller. Parts that are chipped, cracked, broken, or damaged in any other way can fly apart and cause serious injury. Replace damaged parts before using the unit.
S Never place any object in the air intake
opening as this could restrict proper air flow and cause damage to the unit.
S Never douse the unit with water or other
liquids or squirt with a water hose. Clean theunitusingadampcloth.Wipeoff with a clean dry cloth. See
.
NANCE
S Check air intake openings and tube fre-
quently , always with the unit stopped and power source disconnected. Keep vents and tube free of debris which can accumulate and restrict proper air flow.
S Do not burn, incinerate , or expose this
unit to extreme heat.
S Store the unit unplugged in a high, cool,
dry , indoor area out of the reach of chil­dren.
S Use only recommended attachments
and replacement parts to avoid creating a hazard and/or voiding warranty.
S Maintain the unit according to recom-
mended procedures.
MAINTE-
BLOWER SAFETY
S Use only in daylight or in good artificial
light.
S Inspect the area before using the unit.
Remove all debris and hard objects such as rocks, glass, wire, etc., that can ricochet, be thrown, or otherwise cause injury or damage during operation.
S Never run the unit without the proper
equipment attached. When using the blower, always install blower tube. Use only recommended attachments.
S To avoid spreading fire, do not use blow-
er near leaf or brush fires, fireplaces, barbecue pits, ashtrays, etc.
S Never place objects inside the blower
tube; always direct the blowing debris away from people, animals, glass, and solid objects such as tr e es, automo­biles, walls, etc. The force of air can cause rocks, dirt, or sticks to be thrown or to ricochet which can hurt people or animals, break glass, or cause other damage.
S Never use for spreading chemicals, fer-
tilizers, or any other substances which may contain toxic materials.
STANDARDS
This product is listed by Underwriters Lab­oratories, Inc., in accordance with UL Standard 1017. If situations occur which are not covered in this manual, use care and good judg­ment. If you need assistance, contact your authorized service dealer or call 1--800--554-- 6723. Failure to follow all Safety Rules and Precautions can result in serious injury .
SAVE THESE INSTRUCTIONS
ASSEMBLY
WARNING: If received assembled,
ensure your unit is properly assembled and all fasteners are secure.
ATTACHING T HE BLOWER TUBE
1. Align the grooves on the blower tube with the grooves on the blower outlet.
2. Push the blower tube onto theblower outlet until it snaps into place (tube is secured by yellow tube release but­ton).
3. To remove the blower tube, press the tube release button while pulling on tube.
Blower outlet
4
Tube Release Button
Blower Tube

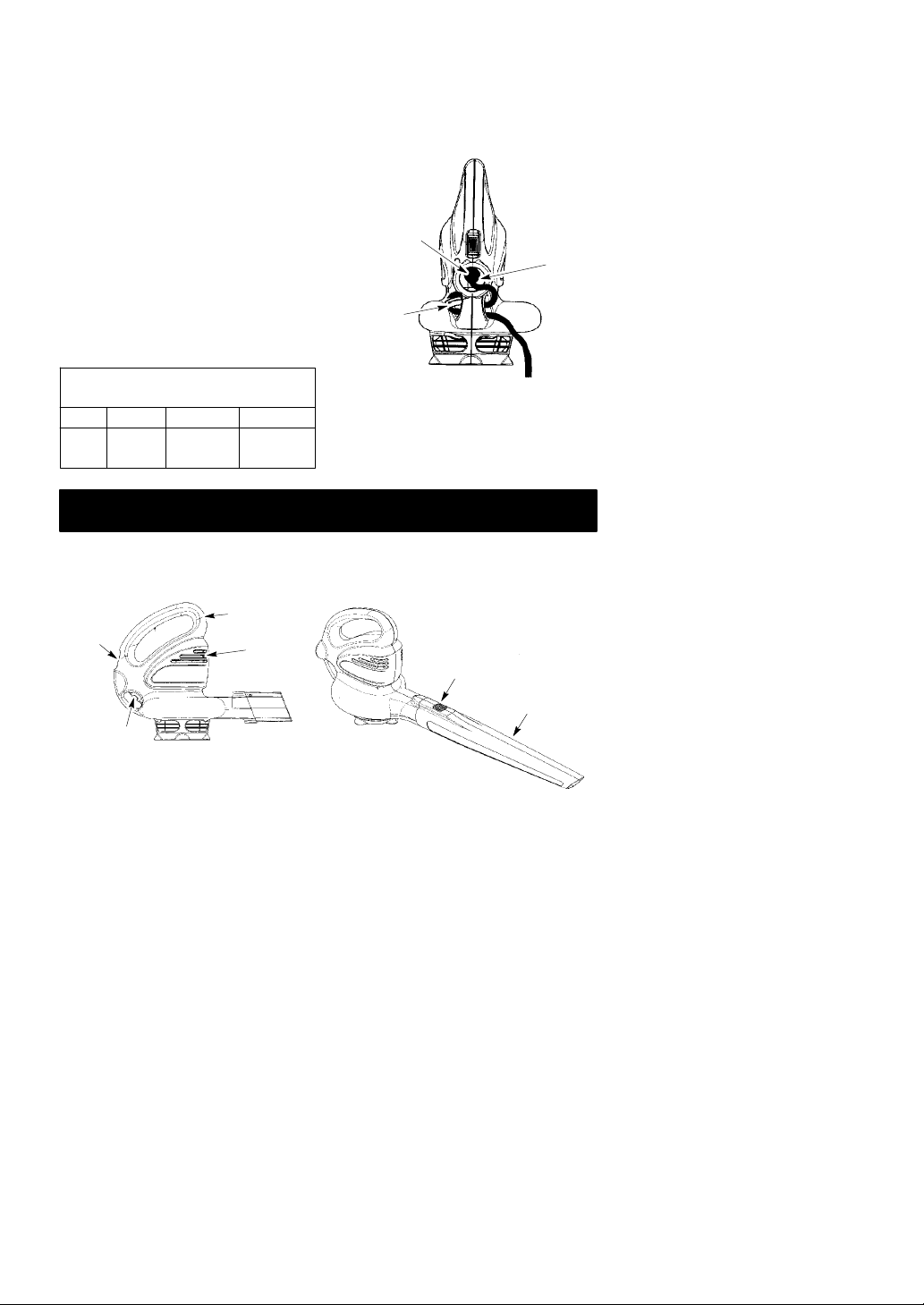

SELECT AN EXTENSION CORD
Use only a 120 A.C. voltage supply as shown on nameplate of the unit to power your blower. Theextensioncordusedtoreachthe power source must be:
D Specifically marked as suitable for out-
door use. The cord must be marked with
Secure the extension cord to the unit by threading the cord through the cord re­tainer (see illustration). Insert the cord receptacl e into the recessed plug.
CAUTION: Failuretousecordretain­er could result in damage to the unit, extension cord, or both.
the suffix “W-A” (in Canada “W”).
D Heavy enough to carry full current from
the power source to the unit. Otherwise, loss of power and overheating can oc­cur causing damage to unit. Refer to table for minimum wire gauge recom­mendations. The cord must be marked with the proper wire gauge. (Appropriate extension cords are available.) Do not use multiple cords.
D In good condition. Cord insulation must
be intact with no cracks or deterioration.
Cord Receptacle
Recessed
Plug
on Unit
Cord Retainer
Plug connectors must be undamaged.
DO NOT use multiple cords.
MINIMUM WIRE GAUGE
RECOMMENDATIONS
VOLTS
25 FT. 50 FT . 100 FT.
120
*American Wire Gauge
16
A.W.G.*
16
A.W.G.*
14
A.W.G.*
USING YOUR UNIT
KNOW YOUR ELECTRIC BLOWER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
Compare the illustrations to your unit to familiarize yourself with the location of
UNIT.
the various controls and adjustments. Save this manual for future reference.
ON/OFF Switch
Top Handle
Air Vents
Tube Release Button
Cord Retainer
ON/OFF SWITCH
The
ON/OFF SWITCH is used to activate
the motor.
BLOWER TUBE
The
BLOWER TUBE is designed to direct
the flow of air.
Blower Tube
TUBE RELEASE BUTTON
The
TUBE RELEASE BUTTON secures the
blower tube or elbow tube to the blower unit during operation. Also, pressing the tube release button allows removal of the blower tube or elbow tube.
5
STOPPING YOUR UNIT
To stop the unit, move the switch to the OFF (0) position.
STARTING YOUR UNIT
Move the position to turn on the unit.
ON/OFF switch to the ON (I)
ON/OFF
WARNING: Do not use the unit
without the blower tube properly attached to avoid flying debris and/or impeller con­tact which can cause serious injury. Al­ways wear eye protection to preventrocks or debris from being blown or ricocheting into the eyes and face which can result in blindness or serious injury.
OPERATING POSITION
Eye Protection
BLOWER
MAINTENANCE
WARNING: Inspect the area be-
fore using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc., that can ricochet, be thrown, or otherwise cause injury or damage during operation.
Use your unit as a blower for:
D Sweepingdebrisor grass clippingsfrom
driveways, sidewalks, patios, etc.
D Blowing grass clippings, straw, or
leaves into piles, or removing debris from corners, around joints, or between
bricks. Direct air flow by directing the blower tube down or to one side. Always work away from solid objects such as walks, large stones, vehicles, and fences. Clean corners by starting in corners and moving outward. This will help prevent an accumulation of debris which could fly into your face. Be careful when working near plants. The force of the air could damage tender plants.
WARNING: Disconnect power
source before performing maintenance.
GENERAL RECOMMENDATIONS
The warranty on this unit does not cover items that have been subjected to opera­tor abuse or negligence. To receive full value from the warranty, the operator must maintain unit as instructed in this manual. V ar ious adjustments will need to be made periodically to properly maintain your unit.
BEFORE EACH USE
CHECK FOR LOOSE FASTENERS AND PARTS
S Blower Tube
STORAGE
WARNING: Perform the following
steps after each use: S Stop unit and disconnect from the pow-
er source.
S Allow motor to cool before storing or
transporting.
S Store unit with all guards in place. Posi-
tion unit so that any sharp object cannot accidentally cause injury.
S Store unit unplugged, well out of the
reach of children.
CHECK FOR DAMAGED OR WORN PARTS
Contact your authorized service dealer for replacement of damaged or worn parts.
S
ON/OFF Switch -- Ensure switch func-
tionsproperlybymovingtheswitchto
the
OFF position. Make sure mot o r
stops; then restart motor and continue.
AFTER EACH USE
INSPECT AND CLEAN UNIT & LABELS
Stop unit and unplug extension cord. S After each use, inspect complete unit
for loose or damaged parts. Clean the
unit using a damp cloth. S Wipe off unit with a clean dry cloth.
SEASONAL STORAGE
Prepare unit for storage at the end of the season or if it will not be used for 30 days or more. If your blower is to be stored for a period of time: S Stop unit and disconnect from the pow-
er source.
S Clean the entire unit. S Clean air vents and air inlet of debris.
6
S Store your unit and extension cord in a
well ventilated area and covered, if pos­sible, to prevent dust and dirt accumula-
S Check entire unit for loose screws. Re-
place any damaged, worn, or broken
parts.
tion. Do not cover with plastic. Plastic cannot breathe and may cause con­densation and eventual rust or corro­sion.
TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect from the power source before
performing all of the recommended remedies below except remedies that re­quire unit to be operating.
SYMPTOM CAUSE REMEDY
Unit fails to operate.
Unit vibrates abnormally.
Impeller will not turn freely.
1. Switch in the OFF position.
2. Extension cord discon-­nected.
3. Circuit breaker tripped, or fuse blown.
4. Mechanical failure
1. Mechanical failure
1. Debris in air intake area.
2. Mechanical failure.
1.Slideswitchto
2. Reconnect extension cord.
3. Reset circuit breaker or fuse.
4. Contact your authorized service dealer.
1. Contact your authorized service dealer.
1. Clean unit. Remove any debris.
2. Contact your authorized
ON position.
service dealer.
LIMITED WARRANTY
WEED EATER warrants to the original purchaser that each new WEEDEATER
brand electric or cordless product is free from defects in material and workman­ship and agrees to repair or replace un­der this warranty any defective WEED EATER brand electric or cordless prod­uct within two (2) years from the original date of purchase. If your WEED EATER brand electric or cordless product should fail within the limited warranty period, return it, com­plete, prepaid, with proof of purchase, to the dealer from whom it was purchased for repair or replacement at the option of WEED EATER. This warranty is not transferable and does not cover damage or liability caused by improper handling, improper maintenance or the use of accessories and/or attachments not specifically rec­ommended by WEED EATER for this tool. Additionally, this warranty does not cover parts that will wear and require re­placement with reasonable use during the warranty period. This warranty does not cover predelivery setup or normal adjustments explained in the instruction manual.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. NO CLAIMS FOR CONSEQUENTIAL OR OTHER DAMAGES WILL BE ALLOWED, AND THERE ARE NO OTHER EXPRESS WARRANTIES EXCEPT THOSE EX­PRESSLY STIPULATED HEREIN. SOME STATES DO NOT ALLOW LIMITA­TIONS ON HOW LONG AN IMPLIED WAR­RANTY LASTS OR THE EXCLUSION OR LIMITAT IO NS O F IN CI DE NTA L OR C ON SE ­QUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU.
The policy of WEED EATER is to con- tinuously improve its products. There­fore, WEED EATERreservesthe right to change, modify, or discontinue models, designs, specifications, and accesso­ries of all products at any time without notice or obligation to any purchaser.
7
