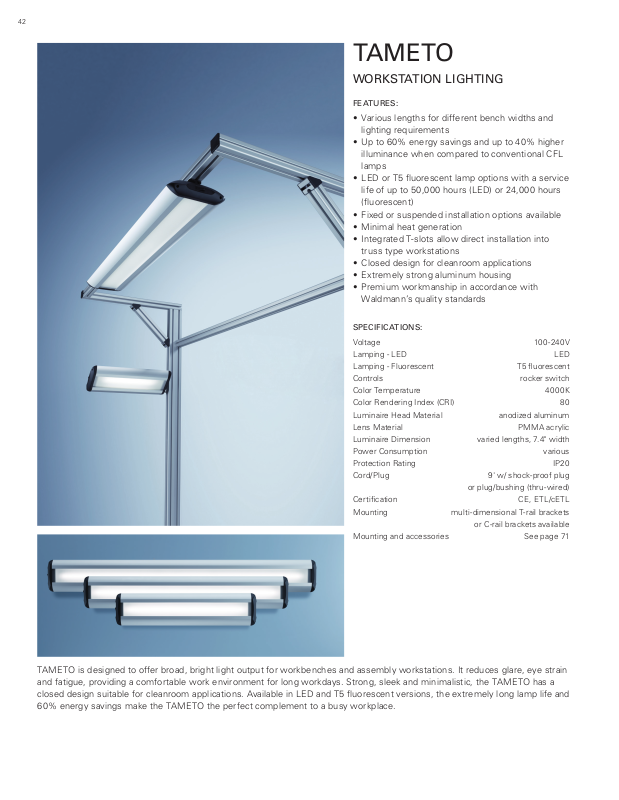

TAMETO
WORKSTATION LIGHTING
FE ATU RES:
• Various lengths for different bench widths and
lighting requirements
• Up to 60% energy savings and up to 40% higher
illuminance when compared to conventional CFL
lamps
• LED or T5 fluorescent lamp options with a service
life of up to 50,000 hours (LED) or 24,000 hours
(fluorescent)
• Fixed or suspended installation options available
• Minimal heat generation
• Integrated T-slots allow direct installation into
truss type workstations
• Closed design for cleanroom applications
• Extremely strong aluminum housing
• Premium workmanship in accordance with
Waldmann’s quality standards
SPECIFICATIONS:
Voltage 100-240V
Lamping - LED LED
Lamping - Fluorescent T5 fluorescent
Controls rocker switch
Color Temperature 4000K
Color Rendering Index (CRI) 80
Luminaire Head Material anodized aluminum
Lens Material PMMA acrylic
Luminaire Dimension varied lengths, 7.4" width
Power Consumption various
Protection Rating IP20
Cord/Plug 9' w/ shock-proof plug
or plug/bushing (thru-wired)
Certification CE, ETL/cETL
Mounting multi-dimensional T-rail brackets
or C-rail brackets available
Mounting and accessories See page 71
TAMETO is designed to offer broad, bright light output for workbenches and assembly workstations. It reduces glare, eye strain
and fatigue, providing a comfortable work environment for long workdays. Strong, sleek and minimalistic, the TAMETO has a
closed design suitable for cleanroom applications. Available in LED and T5 fluorescent versions, the extremely long lamp life and
60% energy savings make the TAMETO the perfect complement to a busy workplace.
Task & WorkbenchMachine Magnification & Inspection Accessories
DIMENSIONAL DATA
43
Shown with T-rail bracket (included)
TAMETO 1200 Pendant SuspendedTAMETO 900 Top Fixed Mount
B
A
187
50
300 – 1360
A
Measurements in millimeters
ORDERING INFORMATION
Wattage Light Source Length (A) Mounting Lumens Model Part #
20W LED 17.9" (456mm)
20W LED 25.8" (656mm)
29W LED 37. 6" (9 56mm )
38W LED 49 .5" (1256mm)
29W LED 37. 6" (9 56mm )
38W LED 49 .5" (1256mm)
26W T5HO fluorescent 25.8" (656mm)
42W T5HO fluorescent 37. 6" (9 56mm )
59W T5HO fluorescent 49 .5" (1256mm)
42W T5HO fluorescent 37. 6" (9 56mm )
59W T5HO fluorescent 49 .5" (1256mm)
Thru-wire options available. Call for details.
Side mount 14 00 SAHKQ 60 112 98 9 000
Top fixe d 1500 SAHQ 44 112 971 000
Top fixe d 2400 SAHQ 66 112 975 0 00
Top fixe d 3200 SAHQ 88 112 979 000
Suspended 240 0 SAHZQ 6 6 112 98 3 000
Suspended 3200 SAHZQ 8 8 112 987 0 00
Top rotating 1750 S AH 124 112 96 9 000
Top rotating 3100 S AH 139 112 973 00 0
Top rotating 4450 SAH 154 112 977 0 00
Suspended 310 0 S AHZ 13 9 112 981 000
Suspended 4450 SA HZ 15 4 112 985 0 00
187
65
50
- 006 364 07
- 006 361 65
- 00 5 556 19
- 00 5 556 77
- 006 338 60
- 0 06 347 90
- 006 311 73
- 00 5 56 029
- 005 561 83
- 006 339 77
- 0 06 342 73
Mounting Options Item Unit Part #
Mounting brackets, for use with top rotating versions Sold as pair 408 0 01 586
Adjustable mounting bracket for side mount version Sold individually 408 0 01 917
T-rail brackets (included)
Pair
N/A
- 005 780 88
- 005 612 05
