LINURA.EDGE
LED LINEAR LUMINAIRE / ENCLOSURE LIGHT
Page 2
2
Waldmann’s newest LED industrial surface-mounted luminaire is designed for applications on or inside a machine cabinet or enclosure. With its narrow profile and a tilt radius of +/-60°, LINURA.edge is
ideal for those small spaces where light is needed, but may be too small to accommodate most light
fixtures. The M12 connection makes it extremely simple to connect and operate. Great aesthetics with
high functionality - that’s LINURA.edge from Waldmann.
Performance - Quality smooth, even light for
better performance:
With the latest LED technology (>170 lm / W)
and a PMMA acrylic lens to distribute light with
optimum effect, the desired light level is easy to
achieve with smaller or fewer fixtures.
Quality - Robust housing, less downtime:
A strong aluminum profile and a lens made of
PMMA acrylic provide strength and resistance
from the surrounding environment. The special
sealing makes LINURA.edge resistant to high
ambient temperatures, liquids and dust (IP54).
Compact design -Slim, streamlined, less space
required:
Small dimensions (measuring less than an inch in
diameter) and 10 variable lengths based on a 5.5”
grid, make it easier than ever to get light where
you need it, where bright lighting is essential.
LINURA.edge RBG - Signaling as clear as
possible
Seven adjustable light colors for status
messages and design effects. Digital input
for powerless switching. Thru-wiring operation with white lights possible (common
actuation of both lights via one single feed
line).
Connection - More connection options, less
wiring:
LINURA.edge has an integrated M12 connection
and can connect with other fixtures. Control is
performed via digital interfaces, greatly reducing
the amount of wiring needed. Brackets (included)
allow for an adjustment range of + / - 60°.
Page 3

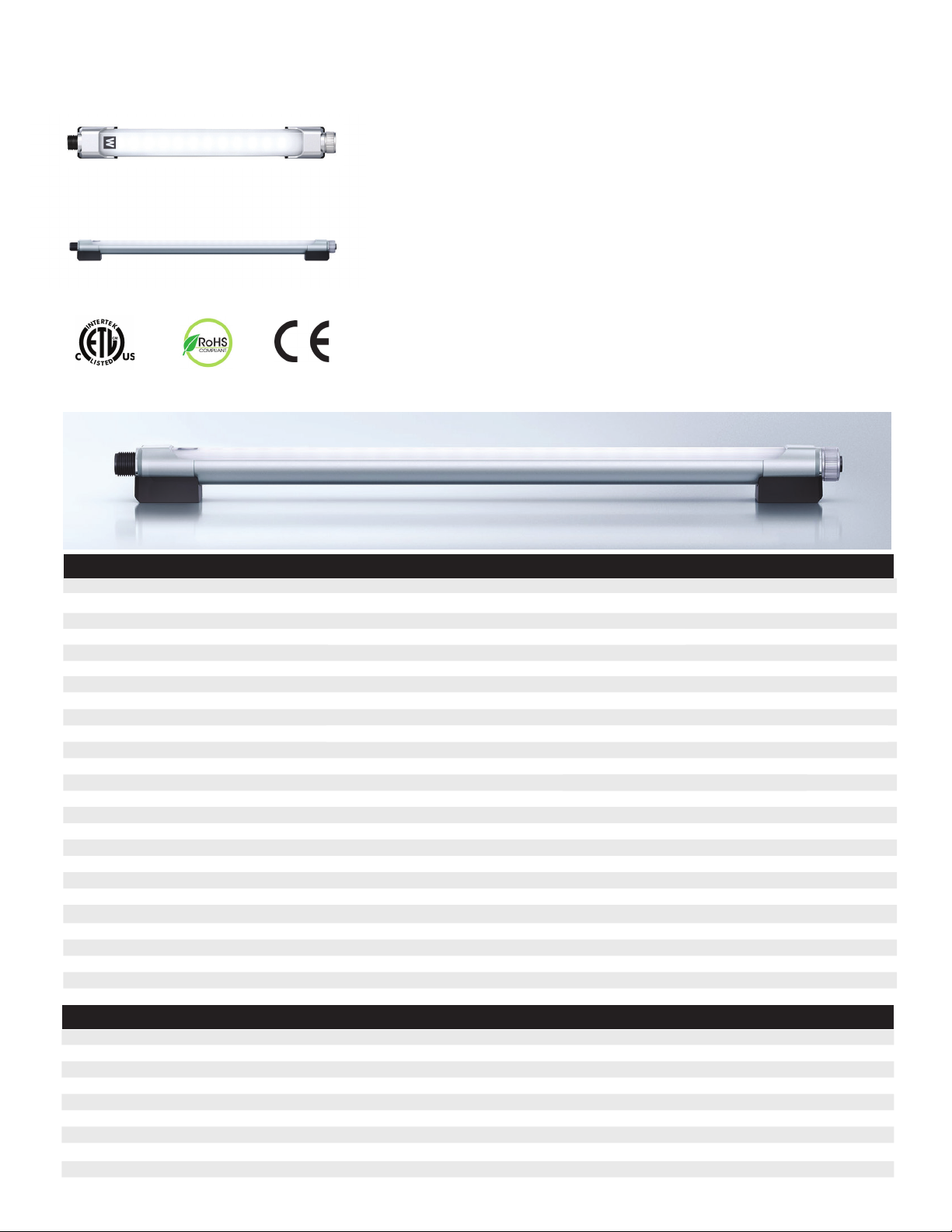

LED linear luminaire - LINURA.edge
Specifications
Light source: LED
Beam angle: 90°
Glare-free technology: direct beam with diffuser lens
Housing material: anodized aluminum
Lens material: PMMA plexiglass
Ambient temperature: 104° F
LED service life: > 60,000 hours [L70 B50]
Protection rating: IP54
Connection: M12 plug connector, A-coded
Voltage : 22–26 VDC
Certification: CE, cETLus
Accessories: M12 connector, cable, and operating device
3
ORDERING INFORMATION
Part # RGB Length Voltage Wattage Lumens Thru-wiring
114032000-00801320 No 7.7 in. 22-26V DC 3W 315 Yes
114033000-00801340 No 7.7 in. 22-26V DC 3W 315 No
114052000-00802116 Yes
114034000-00801344 No 13.2 in. 22-26V DC 6W 630 Yes
114035000-00801346 No 13.2 in. 22-26V DC 6W 630 No
114053000-00802117 Yes 13.2 in. 22-26V DC 6W 200
114036000-0 0801348 No 18.7 in. 22-26V DC 9W 945 Yes
114037000-00801349 No 18.7 in. 22-26V DC 9W 945 No
114054000-00802118 Yes
114038000-00801350 No 24.2 in 22-26V DC 12W 1260 Yes
114039000-00801355 No 24.2 in 22-26V DC 12W 1260 No
114055000-00802119 Yes 24.2 in 22-26V DC
114040000-00801356 No 29.7 in. 22-26V DC 15W 1575 Ye s
114041000-00801360 No 29.7 in. 22-26V DC 15W 1575 No
114042000-00801366 No 35.2 in. 22-26V DC 18W 1890 Ye s
114043000-00801374 No 35.2 in. 22-26V DC 18W 1890 No
114044000-00801380 No 4 0.7 in. 22-26V DC 21W 2205 Ye s
114045000-00801392 No 40.7 in. 22-26V DC 21W 2205 No
114046000-00801393 No 46.3 in. 22-26V DC 24W 2520 Ye s
114047000-00801394 No 46.3 in. 22-26V DC 24W 2520 No
114048000-00801396 No 51.7 in. 22-26V DC 27W 2835 Ye s
114049000-00801397 No 51.7 in. 22-26V DC 27W 2835 No
114050000-00801408 No 5 7. 2 i n. 22-26V DC 30W 3150 Yes
114051000-00801409 No 5 7.2 i n. 22-26V DC 30W 3150 No
7.7 in . 22-26V DC 3W 100
18.7 in. 22-26V DC 9W 300 No
12W 400 No
NoNo
No
NoNo
No
ACCESSORIES
Part # Description
US0009001 CONNECTOR/CABLE: 16' cord with 4-pin, A- coded for 24V, M12 connector, straight
US0009011 CONNECTOR/CABLE: 16' cord with 4-pin, A- coded for 24V, M12 connector, angled
US0009101 CONNECTOR/CABLE FOR RGB: 16’ cord with 5-pin, A-coded for 24V, M12 connector, straight
US 00 0 9111 CONNECTOR/CABLE FOR RGB: 16’ cord with 5 -pin, A-coded for 24V, M12 connector, angled
336884M10 CONNECTOR: M12 Connector, A- coded, 4 pin, male (for 24V)
209585029 OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
209585030 OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
209585032 OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz
