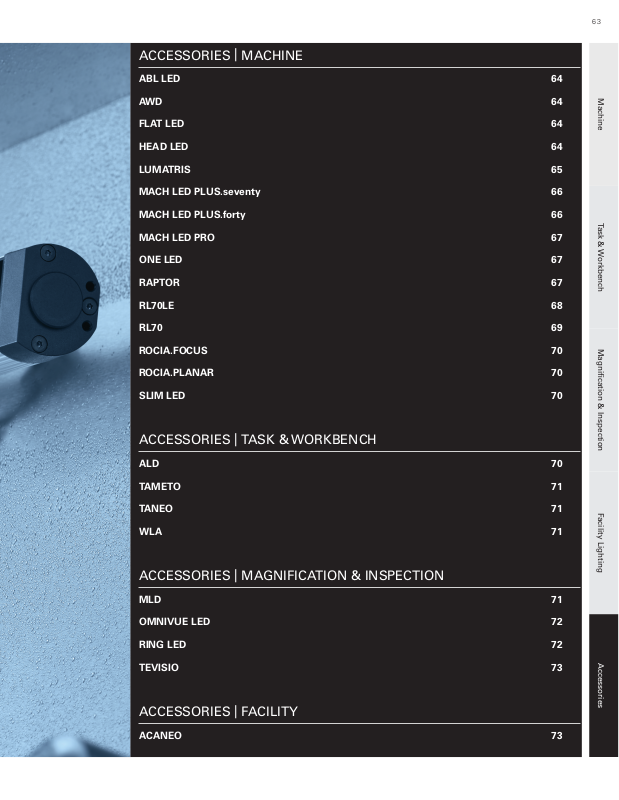

ACCESSORIES
ABL LED 64
AWD 64
FLAT LED 64
HEAD LED 64
LUMATRIS 65
MACH LED PLUS.seventy 66
MACH LED PLUS.forty 66
MACH LED PRO 67
ONE LED 67
RAPTOR 67
RL70LE 68
RL70 69
|
MACHINE
ROCIA.FOCUS 70
ROCIA.PLANAR 70
SLIM LED 70
ACCESSORIES
ALD 70
TAMETO 71
TANEO 71
WLA 71
ACCESSORIES
MLD 71
OMNIVUE LED 72
|
TASK & WORKBENCH
|
RING LED 72
TEVISIO 73
ACCESSORIES
ACANEO 73
|
FACILITY
Page 2
64
ABL LED ACCESSORIES
Item Description Part #
MOUNTING OPTION: Universal base for table/wall (included) 204090019
MOUNTING OPTION: Table clamp, 0" - 2.75" span 190007019-00014904
MOUNTING OPTION: Table clamp, 2.5" - 5.4" span 190033019-00014950
MOUNTING OPTION: Wall bracket, standard 300213018-00025178
MOUNTING OPTION: Magnetic base, 3.3" diameter 190057019-00015056
MOUNTING OPTION: Table base, rectangular, 10" x 6.7" x 1" 190036109-00058238
OPERATING DEVICE, Type A, 19.2 V-28.8 VDC, 700mA 209582019-00048793
AWD ACCESSORY
Item Description Part #
FLAT LED ACCESSORIES
Item Description Part #
OPERATING DEVICE, VLM, 95 V-240 VAC, 700mA 209585019-00045202
MOUNTING OPTION: Wall bracket, Black, 3.1" x 3.3" 191092019-00086727
MOUNTING OPTION: Swivel bracket 203081019-00019478
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC, 50/60 Hz 209585032
HEAD LED ACCESSORIES
Item Description Part #
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
ACCESSORY: M12 connector plug, straight (included) 330603020-00002947
Page 3
Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories
65
LUMATRIS ACCESSORIES
Item Description Part #
MOUNTING OPTION: Flush mounting frame, 9.7" x 3.7" 408001016-00595619
MOUNTING OPTION: Flush mounting frame, 16.5" x 3.7" 408001017-00595613
MOUNTING OPTION: Flush mounting frame , 23.5" x 3.7" 408001018-00595610
MOUNTING OPTION: Flush mounting frame , 30.3" x 3.7" 408001019-00595616
MOUNTING OPTION: Flush mounting frame, 16.5" x 6.7" 408001037-00518121
MOUNTING OPTION: Flush mounting frame, 30.3" x 6.7" 408001034-00514265
MOUNTING OPTION: Surface mounting bracket, set, for 3.7" length 408001015-00595587
MOUNTING OPTION: Surface mounting bracket, set, for 6.7" length 408001035-00514268
MOUNTING OPTION: 45° Rotating surface bracket, 3.7" width, set
40 80 01016
MOUNTING OPTION: Pivoting arm mount 408001033-00514262
CONNECTOR: M12 connector w/ 16' cable assembly (included), straight, A-coded, 24 VDC US0009101
CONNECTOR: M12 connector w/ 16' cable assembly (included), angled, A-coded, 24 VDC US0009011
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC, 50/60 Hz 209585032
Page 4
66
MACH LED PLUS.seventy ACCESSORIES
Item Description Part #
MOUNTING OPTION: End bracket set, adjustable, +/- 65º 408001876-00582065
MOUNTING OPTION: Clip bracket, adjustable, +/- 30º (sold separately) 408001878-00585535
MOUNTING OPTION: Protective cap set (not for use with end brackets) 408001875-00582072
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC, 50/60 Hz 209585032
CONNECTOR: M12 connector w/ 16' cable assembly (included), straight, A-coded, 18-30 VDC
CONNECTOR: M12 connector w/ 16' cable assembly (included), straight, S-coded, 100-240 VAC
US0009001
US0009201
CONNECTOR: M12 connector w/ 16' cable assembly (included), angled, A-coded, 18-30 VDC
CONNECTOR: M12 connector w/ 16' cable assembly (included), angled, S-coded, 100-240 VAC
MACH LED PLUS.forty ACCESSORIES
Item Description Part #
MOUNTING OPTION: End bracket set, adjustable, +/- 90º 408001403-00671626
MOUNTING OPTION: Clip bracket, adjustable, +/- 20º (sold separately) 408001402-00671623
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC, 50/60 Hz 209585032
CONNECTOR: M12 connector w// 16' cable assembly (included), straight, A-coded, 24 VDC
US0009011
US0009211
US0009001
CONNECTOR: M12 connector w/ 16' cable assembly (included), angled, A-coded, 24 VDC
US0009011
Page 5
Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories
MACH LED PRO ACCESSORIES
Item Description Part #
ONE LED ACCESSORIES
Item Description Part #
67
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC, 50/60 Hz 209585032
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC, 50/60 Hz 209585032
RAPTOR ACCESSORIES
Item Description Part #
MOUNTING OPTION: Table clamp, 0" - 2.75" span 190007019-00014904
MOUNTING OPTION: Table clamp, 2.5" - 5.4" span 190033019-00014950
MOUNTING OPTION: Wall bracket for universal base, 2.4" x 2.8" 300213018-00025178
MOUNTING OPTION: Magnetic base, 3.3" diameter 190057019-00015056
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50-60 Hz 209585029
Page 6
68
RL70LE ACCESSORIES
Item Description Part #
MOUNTING OPTION: Bracket, straight, galvanized steel, neoprene 190015019-00014930
MOUNTING OPTION: Bracket, long-L, galvanized steel, neoprene SK1021019-00010286
MOUNTING OPTION: Bracket, short-L, galvanized steel, neoprene 190015995
MOUNTING OPTION: Bracket, straight, galvanized steel, profiled rubber 190015719-00085498
MOUNTING OPTION: Bracket, long-L, galvanized steel, profiled rubber SK1021719-00085499
MOUNTING OPTION: Bracket, short-L, galvanized steel, profiled rubber SK0995719-00085652
MOUNTING OPTION: Bracket, straight, stainless steel, neoprene 190180019-00092731
MOUNTING OPTION: Bracket, long-L, stainless steel, neoprene 190183019-00093961
MOUNTING OPTION: Bracket, short-L, stainless steel, neoprene 190181019-00092728
MOUNTING OPTION: Bracket, straight, stainless steel, profiled rubber 190180719-00092730
MOUNTING OPTION: Bracket, long-L, stainless steel, profiled rubber 190169719-00089351
MOUNTING OPTION: Bracket, short-L, stainless steel, profiled rubber 190181719-00092729
MOUNTING OPTION: End caps (set of two), black plastic US0165012
MOUNTING BRACKET, Strap, Galv. Steel, Each 190027019-00057337
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50/60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC,  50/60 Hz 209585032
Page 7
Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories
69
RL70 ACCESSORIES
Item Description Part #
MOUNTING OPTION: Bracket, straight, galvanized steel, neoprene 190015019-00014930
MOUNTING OPTION: Bracket, long-L, galvanized steel, neoprene SK1021019-00010286
MOUNTING OPTION: Bracket, short-L, galvanized steel, neoprene 190015995
MOUNTING OPTION: Bracket, straight, galvanized steel, profiled rubber 190015719-00085498
MOUNTING OPTION: Bracket, long-L, galvanized steel, profiled rubber SK1021719-00085499
MOUNTING OPTION: Bracket, short-L, galvanized steel, profiled rubber SK0995719-00085652
MOUNTING OPTION: Bracket, straight, stainless steel, neoprene 190180019-00092731
MOUNTING OPTION: Bracket, long-L, stainless steel, neoprene 190183019-00093961
MOUNTING OPTION: Bracket, short-L, stainless steel, neoprene 190181019-00092728
MOUNTING OPTION: Bracket, straight, stainless steel, profiled rubber 190180719-00092730
MOUNTING OPTION: Bracket, long-L, stainless steel, profiled rubber 190169719-00089351
MOUNTING OPTION: Bracket, short-L, stainless steel, profiled rubber 190181719-00092729
MOUNTING OPTION: End caps (set of two), black plastic US0165012
OPERATING DEVICE: Remote ballast, T5 CFL, 100-277 VAC; 50/60 Hz 309503010-00550181
OPERATING DEVICE: Remote ballast, T8 LFL, 120-277 VAC; 50/60 Hz 309368010
Page 8
70
ROCIA.focus ACCESSORIES
Item Description Part #
ROCIA.planar ACCESSORIES
Item Description Part #
MOUNTING OPTION: Table clamp, 0" - 2.75" span 190007019-00014904
MOUNTING OPTION: Table clamp, 2.5" - 5.4" span 190033019-00014950
MOUNTING OPTION: Wall bracket for universal base, 2.4" x 2.8" 300213018-00025178
MOUNTING OPTION: Magnetic base, 3.3" diameter 190057019-00015056
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50-60 Hz 209585029
MOUNTING OPTION: Table clamp, 0" - 2.75" span 190007019-00014904
MOUNTING OPTION: Table clamp, 2.5" - 5.4" span 190033019-00014950
MOUNTING OPTION: Wall bracket for universal base, 2.4" x 2.8" 300213018-00025178
SLIM LED ACCESSORIES
Item Description Part #
ALD ACCESSORIES
Item Description Part #
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50-60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 20 W to run at 100-277 VAC, 50-60 Hz 209585029
OPERATING DEVICE: Max. Wattage = 50 W to run at 120 VAC, 50/60 Hz 209585030
OPERATING DEVICE: Max. Wattage = 96 W to run at 120-277 VAC, 50/60 Hz 209585032
MOUNTING OPTION: Table clamp (included) 0" - 2.75" span ILL00100C-00050472
MOUNTING OPTION: Wall Mount, black 3.5” x 2.5” x 2.5” 308218109
MOUNTING OPTION: Table base for pin mount, 10" diameter 190186019-00009644
MOUNTING OPTION: Floor stand with casters, 25" diameter D15595000
MOUNTING OPTION: 1/2" pin mount adapter, 1.77" length US0209022
MOUNTING OPTION: 1/2" pin mount adapter, 3.75" length US0209012
Page 9
Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories
TAMETO ACCESSORIES
Item Description Part #
MOUNTING OPTION: Mounting brackets, for use with top rotating versions 408001586-00578088
TANEO ACCESSORIES
Item Description Part #
MOUNTING OPTION: Wall bracket, heavy duty 226108019-00610754
MOUNTING OPTION: Table clamp with pin mount, 0" - 3.5" span (included) 19102506940
MOUNTING OPTION: 1/2" pin mount adapter, 1.77" length US0209022
71
WLA ACCESSORIES
Item Description Part #
MLD ACCESSORIES
Item Description Part #
MOUNTING OPTION: 1/2" pin mount adapter, 3.75" length US0209012
ACCESSORY: Magnifier Add-x lens, 3.5 diopter 190207019-00575900
MOUNTING OPTION: T- Bracket set 408109019-00728797
MOUNTING OPTION: Table clamp (included) 0” – 2.75” span ILL00100C-0050472
MOUNTING OPTION: Table base for pin mount 10” diameter 190186019-00009644
MOUNTING OPTION: Wall Mount, black 3.5” x 2.5” x 2.5” 308218109
MOUNTING OPTION: Floor stand with casters, 25" diameter D15595000
Page 10
72
OMNIVUE LED ACCESSORIES
Item Description Part #
MOUNTING OPTION: Table clamp (included), 0 - 3.5" span 19102506940
MOUNTING OPTION: ESD table clamp (included with ESD model), 0" - 2.6" span 191025069E2
MOUNTING OPTION: Wall bracket, 3" x 3" 308218109
MOUNTING OPTION: Floor stand with casters, 25" diameter D15595000
MOUNTING OPTION: 1/2" pin mount adapter, 1.77" length US0209022
MOUNTING OPTION: 1/2" pin mount adapter, 3.75" length US0209012
ACCESSORY: Add-x lens, 4 diopters (2X) 190080019
RING LED ACCESSORIES
Item Description Part #
ACCESSORY: Add-x lens, 4d + 12d (2X + 4X) 190080029
ACCESSORY: Add-x ESD lens, 4 diopters (2X) 190080049-00061280
MOUNTING OPTION: Universal base for table/wall, 2.4" x 2.4" (included) 204090019
MOUNTING OPTION: Decorative table clamp (included with M10 model) D14228000
MOUNTING OPTION: Wall bracket for universal base, 2.4" x 2.8" 300213018-00025178
MOUNTING OPTION: Magnetic base, 3.3" diameter 190057019-00015056
MOUNTING OPTION: Table base for pin mount, 10" diameter 190186019-00009644
MOUNTING OPTION: 1/2" Pin mount adapter, 1.77" length US0209022
MOUNTING OPTION: 1/2" Pin mount adapter. 3.75" length US0209012
Page 11
Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories
TEVISIO ACCESSORIES
Item Description Part #
73
MOUNTING OPTION: Table clamp - with pin mount, 3.5" span (included), 19102506940
MOUNTING OPTION: Wall bracket - heavy duty 226108019-00610754
MOUNTING OPTION: Table clamp, ESD safe 190100029-00089021
MOUNTING OPTION: 1/2" Pin mount adapter, 1.77" length US0209022
MOUNTING OPTION: 1/2" Pin mount adapter, 3.75" length US0209012
ACANEO ACCESSORIES
Item Description Part #
ACCESSORY: Add-x magnifier , 3.5 diopter (1.88X) 190208019-00575924
ACCESSORY: Plug-In converter, 100-240 VAC w/quick disconnect 309414070-00555523
MOUNTING OPTION: Ceiling bracket - fixed
MOUNTING OPTION: Ceiling bracket - adjustable
MOUNTING OPTION: Wall bracket
MOUNTING OPTION: One-point suspension bracket kit with cables
337818010-00695171
337818020-00695174
337763010-00682509
226234019
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
