Waldmann SPOT LED Catalog

LED INDUSTRIAL LUMINAIRES

7

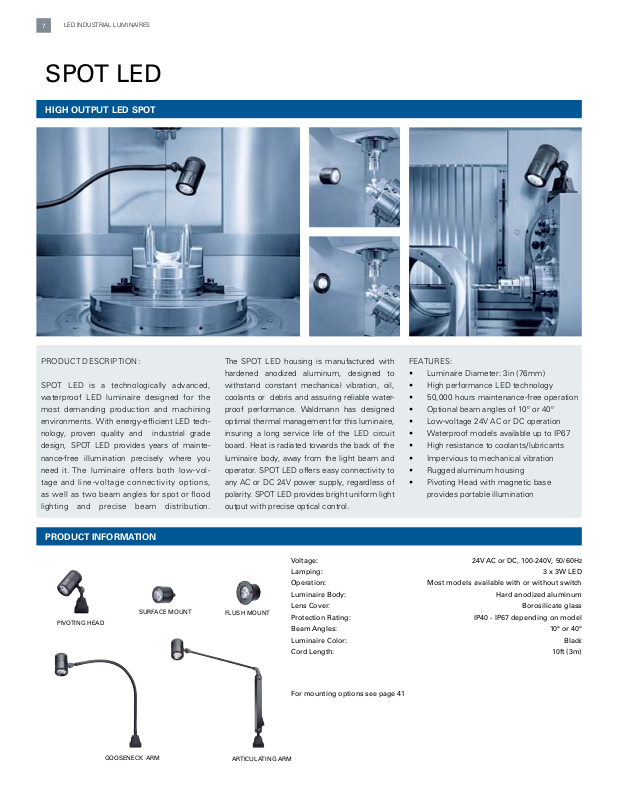

SPOT LED

HIGH OUTPUT LED SPOT       

PRODUCT DESCRIPTION :

SPOT LED is a technologically advanced,

waterproof LED luminaire designed for the

most demanding production and machining

environments. With energy-efficient LED tech-

nology, proven quality and industrial grade

design, SPOT LED provides years of mainte-

nance-free illumination precisely where you

need it. The luminaire offers bot h lo w-vol -

tage an d lin e -voltag e c onnectivi ty options,

as we ll as t wo beam angles for spot or flood

lighting and precise beam distribution.

PRODUCT INFORMATION

SURFACE MOUNT

PIVOTING HEAD

The SPOT LED housing is manufactured with

hardened anodized aluminum, designed to

withstand constant mechanical vibration, oil,

coolants or debris and assuring reliable water-

proof performance. Waldmann has designed

optimal thermal management for this luminaire,

insuring a long service life of the LED circuit

board. Heat is radiated towards the back of the

luminaire body, away from the light beam and

operator. SPOT LED offers easy connectivity to

any AC or DC 24V power supply, regardless of

polarity. SPOT LED provides bright uniform light

output with precise optical control.

Voltage: 24V AC or DC, 100-240V, 50/60Hz

Lamping: 3 x 3W LED

Operation: Most models available with or without switch

Luminaire Body: Hard anodized aluminum

FLUSH MOUNT

Lens Cover: Borosilicate glass

Protection Rating: IP40 - IP67 depending on model

Beam Angles: 10° or 40°

Luminaire Color: Black

Cord Length: 10ft (3m)

FEATURES:

• Luminaire Diameter: 3in (76mm)

• High performance LED technology

• 50,000 hours maintenance-free operation

• Optional beam angles of 10º or 40º

• Low-voltage 24V AC or DC operation

• Waterproof models available up to IP67

• High resistance to coolants /lubricants

• Impervious to mechanical vibration

• Rugged aluminum housing

• Pivoting Head with magnetic base

provides por table illumination

GOOSENECK ARM

For mounting options see page 41

ARTICULATING ARM

SPOT LED

ORDERING INFORMATION       

VERSION VOLTAGE BEAM ANGLE 100-240V TRANS. SWITCH IP RATING MODEL PART #

Pivoting Head 24V AC or DC 10° No No IP67 MCXFL 3 S 112 459 004

Pivoting Head 24V AC or DC 40° No No IP67 MCXFL 3 S 112 459 0 06

Pivoting Head 24V AC or DC 10° No Yes IP65 MCXFL 3 S 112 459 001

Pivoting Head 24V AC or DC 40° No Yes IP65 MCXFL 3 S 112 459 003

Pivoting Head 100-240V, 50/60Hz 10° Yes Yes IP40 (IP65)* MCXFL 3 N 112 459 007

Pivoting Head 100-240V, 50/60Hz 40° Yes Yes IP40 (IP65)* MCXFL 3 N 112 459 009

Gooseneck Arm 24V AC or DC 10° No Yes IP65 MCTFL 3 S 112 462 001

Gooseneck Arm 24V AC or DC 40° No Yes IP65 MCTFL 3 S 112 462 003

Gooseneck Arm 100-240V, 50/60 Hz 10° Yes Yes IP40 (IP65)* MCTFL 3 N 112 462 007

Gooseneck Arm 100-240V, 50/60 Hz 40° Yes Yes IP40 (IP65)* MCTFL 3 N 112 462 009

Articulating Arm 24V AC or DC 10° No Yes IP65 MCBFL 3 S 112 463 001

Articulating Arm 24V AC or DC 40° No Yes IP65 MCBFL 3 S 112 463 003

Articulating Arm 100-240V, 50/60Hz 10° Yes Yes IP40 (IP65)* MCBFL 3 N 112 463 007

Articulating Arm 100-240V, 50/60Hz 40° Yes Yes IP40 (IP65)* MCBFL 3 N 112 463 009

Surface Mount 24V AC or DC 10° No No IP67 MCAYL 3 S 112 461 001

Surface Mount 24V AC or DC 40° No No IP67 MCAYL 3 S 112 461 003

Flush Mount 24V AC or DC 10° No No IP67 MCEYL 3 S 112 460 001

Flush Mount 24V AC or DC 40° No No IP67 MCEYL 3 S 112 460 003

8

EXTERNAL OPERATING DEVICES

Required for 120-277V operation

DIMENSIONAL DATA

(mm)

PIVOTING HEAD GOOSENECK ARM ARTICULATING ARM

MAX WATTAGE OUTPUT VOLTAGE RANGE PART #

20W

50W

75W

30W Plug-in

24V DC

24V DC

24V DC

24V DC

120-240V, 50/60Hz

120V, 50/60Hz

120-277V, 50/60Hz

100-240V, 50/60Hz

209 585 029

209 585 030

209 585 031

309 414 040

SURFACE MOUNT

(mm) (mm)

FLUSH MOUNT

* IP40 (IP65) indicates IP40 rating for transformer, IP65 rating for luminaire
