Waldmann SNE Catalog

46

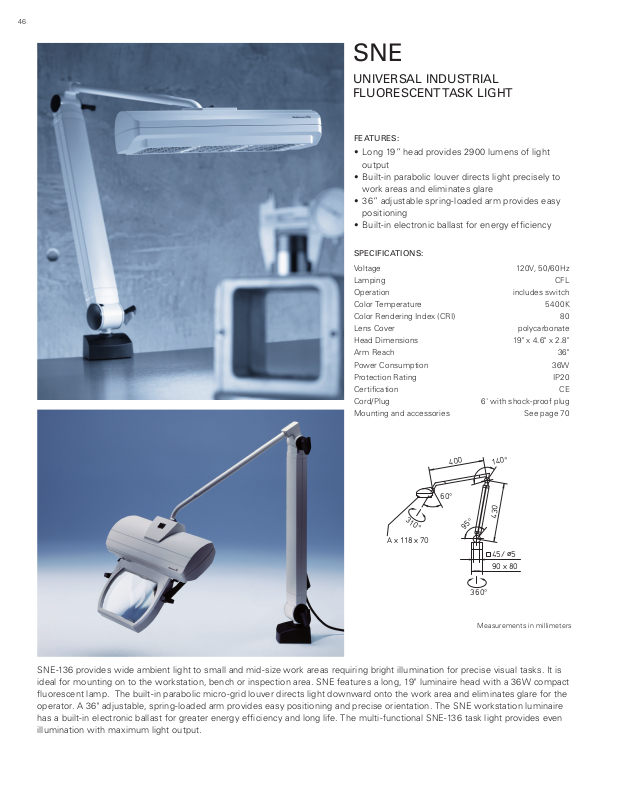

SNE

UNIVERSAL INDUSTRIAL
FLUORESCENT TASK LIGHT

FE ATU RES:

• Long 19” head provides 2900 lumens of light
output

• Built-in parabolic louver directs light precisely to
work areas and eliminates glare

• 36” adjustable spring-loaded arm provides easy
positioning

• Built-in electronic ballast for energy efficiency

SPECIFICATIONS:

Voltage 120V, 50/60Hz
Lamping CFL
Operation includes switch
Color Temperature 5400K
Color Rendering Index (CRI) 80
Lens Cover polycarbonate
Head Dimensions 19" x 4.6" x 2.8"
Arm Reach 36"
Power Consumption 36W
Protection Rating IP20
Certification CE
Cord/Plug 6' with shock-proof plug
Mounting and accessories See page 70

400

60°

310°

A x 118 x 70

140°

430

95°

45/ ø5
90 x 80

360°

Measurements in millimeters

SNE-136 provides wide ambient light to small and mid-size work areas requiring bright illumination for precise visual tasks. It is
ideal for mounting on to the workstation, bench or inspection area. SNE features a long, 19" luminaire head with a 36W compact
fluorescent lamp. The built-in parabolic micro-grid louver directs light downward onto the work area and eliminates glare for the
operator. A 36" adjustable, spring-loaded arm provides easy positioning and precise orientation. The SNE workstation luminaire
has a built-in electronic ballast for greater energy efficiency and long life. The multi-functional SNE-136 task light provides even
illumination with maximum light output.

Task & WorkbenchMachine Magnification & Inspection Accessories

SNE-136

47

Clip-on magnifier

ORDERING INFORMATION

Wattage Voltage Arm Reach Color Temp. Louver Model Part #

36W 120V 36" reach 5400K Yes SNE-136 138 462 003

Mounting Options Item Dimensions Part #

Table clamp with pin mount (included) 2.5" X 2.5" 191 025 069
Universal base for table/wall 2.4" x 2.4" 204 090 019
Table clamp (requires universal base) 2" – 5.4” span 190 033 019
Wall bracket 3" x 3" 226 108 019
Table base, rectangular for pin mount 10.5" x 6.7" x 1" 190 037 019
1/2" Pin mount adapter 1.77" length US0 209 022
1/2" Pin mount adapter 3.75" length US0 209 012

- 000 208 95

40

- 000 149 50

- 006 107 54

- 000 149 68

Accessories Item Magnification Part #

Clip-on magnifier 3 diopters (1.75X) 190 182 019
Add-x lens (snaps into clip -on magnifier) 4 diopters (2X) 190 080 019
Add-x lens (snaps into clip -on magnifier) 4 + 12 diopters (2X) 190 080 029

Replacement Lamps Item Color Temp Part #

36W CFL 4100K 450 036 M10
36W CFL (included) 5400K 450 036 190
36W CFL 6000K 450 036 222 - 000 622 34

- 000 787 02

- 000 414 93
