17
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“

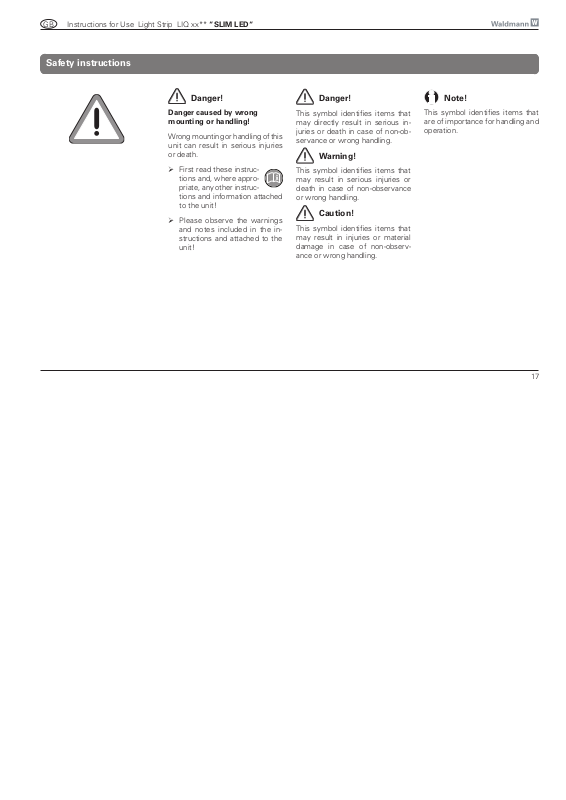

Safety instructionsSafety instructions
Danger!
Danger caused by wrong
mounting or handling!
Wrong mounting or handling of this
unit can result in serious injuries
or death.
First read these instruc- ¾
tions and, where appropriate, any other instructions and information attached
to the unit!
Please observe the warnings ¾
and notes included in the instructions and attached to the
unit!
Danger!
This symbol identifies items that
may directly result in serious injuries or death in case of non-observance or wrong handling.
Warning!
This symbol identifies items that
may result in serious injuries or
death in case of non-observance
or wrong handling.
Caution!
This symbol identifies items that
may result in injuries or material
damage in case of non-observance or wrong handling.
Note!
This symbol identifies items that
are of importance for handling and
operation.
18
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Safety instructions
Danger!
Explosion hazard!
Operating the light in rooms subject to explosion hazards can trigger an explosion.
Caution!
Risk of corrosion!
Operating the light in moist rooms
can result in damage to the light!
Operate in dry rooms not sub- ¾
ject to explosion hazards only!
The manufacturer cannot be held liable for damage caused by using the unit for purposes contrary
to the designated use or by ignoring safety instructions and warnings.
Caution!
Damage caused by wrong operating unit!
An unsuitable operating unit can
result in destroying the light.
Operate the light with the ope- ¾
rating units proposed by the
manufacturer only.
Lights of international ¾
protection class III must
be operated at safety extra low
voltage only!
Caution!
Damage caused by wrong connection!
A wrong mains voltage or polarity
can result in damaging or destroying the light.
The connection must be car- ¾
ried out by a skilled electrician
only!
Before putting the light into ¾
operation, the user has to check
whether the mains voltage is
identical to the rated voltage
specified on the rating plate!
19
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
General
Designated use:
Intended purpose:
This universally applicable light strip
has been developed especially for
illuminating elongated areas (e.g.
as a marker in corridors).
Place of use:
The light may only be operated in
dry rooms not subject to explosion
hazards.
Operating mode:
The light is designed for continuous
operation.
The manufacturer cannot be held liable for damage caused by using the unit for purposes contrary
to the designated use or by ignoring safety instructions and warnings.
Abbreviations and symbols
Safety information!
Important information!
Unit corresponds to international protection class II
(all-insulated)
Unit corresponds to international protection class III
(Operation with safety
extra low voltage (SELV))
Observe the disposal
instructions!
The light is suitable for
mounting on normally inflammable surfaces
LED light-emitting diode
VDE approval
ENEC approval
SEV approval
CE
Conformity mark
20
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Introduction
SLIM LED
LIQ xx* = Non-swivelling light
LIQ xx** = Swivelling light
The light strip SLIM LED has been developed as a universally applicable LED. It is available in different lengths and
with a different number of LEDs. Of each individual length, a swivelling and non-swivelling version is available.
All variants are available either without cover, with a clear cover or with a satin cover.
The light emitted by the light depends on the density (number per unit length) and the power of the LEDs.
The use of light-emitting diodes (LED) guarantees a significantly higher useful life.
The light is encapsulated and therefore absolutely maintenance-free. It is resistant to the ingress of liquids and
insensitive to normal mechanical stress.
The light is supplied with free strand ends for connection to safety extra low voltage (SELV).
Note: These instructions describe the swivelling version.
21
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Mounting 1
Fig. 11 Fig. 12
General
The light has been designed as
stationary light.
Note!
Danger of damaging the light!
Mount light, using suitable ¾
aids, at the selected mounting
surface such that falling down
is prevented.
Make sure that the cable [2.4] is ¾
laid in such a way that it cannot
be damaged!
Mounting steps
a) For the fastening distance (C),
please refer to the table below.
e) Mount the light holder to the
selected surface using suitable
screws (see Fig. 11).
Light A B C D
LIQ 6
LIQ 10
LIQ 12
LIQ 20
LIQ 24
LIQ 36
LIQ 40
LIQ 48
LIQ 60
LIQ 80
196 22.5
196 22.5
336 22.5
336 22.5
616 22.5
896 22.5
616 22.5
117 6 22.5
896 22.5
117 6 22.5
150
150
290
290
570
850
570
1130
850
1160
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
22
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Mounting 2
Fig. 13a Fig. 13b
13.2
c
a
e
b
13.1
13.3
General
After mounting the light holder
[13.2], the light module [13.1] can
be inserted (see Fig. 13a):
b) Push the slide [13. 3] out-
wards.
c) Insert the light module [13.1]
into the light holder [13.2].
d) Swivel the light module [13.1]
d
by 90° (the light exit side must
point forward).
e) Push the slide [13.3] inwards.
13.2
Dismounting
In order to dismount the light, the
light module [13.1] must be removed from the light holder [13.2].
Proceed as follows:
13.1
k
f
13.3
f) Push the sli de [13.3] out-
wards.
g) Swivel the light module [13.1]
g,h
j
to such an extent that the light
exit side points forward.
h) Swivel the light module [13.1]
by 90° again.
j) Take out the light module [13.1]
forwards.
k) D ismou nt th e light hold er
[13.2].
23
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Connection
Caution!
Damage caused by wrong connection!
An unsuitable operating unit or a
wrong connection can result in
destroying the light.
Operate the light with the ope- ¾
rating units proposed by the
manufacturer only.
The connection must be car- ¾
ried out by a skilled electrician
only.
Ensure correct polarity (see ¾
Fig. 15).
Connect the light modules ¾
only with the operating unit
switched off.
Fig. 15
(brown)
Operating unit
The light is supplied with free
strand ends for connection to
24 V DC.
The following protective measures
+
–
(white)
must be guaranteed when operating units are used:
Short circuit protection ¾
Overload protection ¾
Excess temperature protec- ¾
tion
24
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Function
Switching ON/OFF
The light is not equipped with a
switch of its own. It is switched
on/off via external switches or
connectors.
Dimming
If suitable operating units are used,
the light can be dimmed (pulsewidth modulation - PWM).
Swivelling
The light can be swivelled upwards
or downwards out of its centre
position by about 24°.
Maintenance and repair
The LED band used in the light is
completely encapsulated.
Maintenance
The light is completely maintenance-free.
Repair
A repair (e. g. in case of failure of
single LEDs) is not possible.
25
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Care Disposal
Note!
Risk of damage through wrong
care!
Wrong care may destroy the unit.
Clean the transparent cover at ¾
regular intervals!
Clean the light parts with a ¾
cloth impregnated with a suitable household cleaning agent
only!
Make sure the agents used ¾
are compatible with paints and
plastics!
Note!
Environmental hazard!
Wrong disposal endangers our
environment.
Return the unit at the ¾
end of its useful life to
the available recycling
systems!
26
GB Instructions for Use Light Strip LIQ xx** “SLIM LED“
Technical data
General:
Protection class III
Protection type IP67
Operating mode:
Continuous operation
Technical safety check
according to EN 60598-1
Dimensions:
Length depending on the type
Width 22.5 mm
Height 22.6 mm
Connecting cable
approx. 3,000 mm
Electric connection
Operating voltage 23-25 V DC
Power depending on the version
Values dependent on the
light:
LIQ 6 (6 LEDs)
Power approx. 4 W
LIQ 10 (10 LEDs)
Power approx. 2 W
LIQ 12 (12 LEDs)
Power approx. 8 W
LIQ 20 (20 LEDs)
Power approx. 3 W
LIQ 24 (24 LEDs)
Power approx. 15 W
LIQ 36 (36 LEDs)
Power approx. 22 W
LIQ 40 (40 LEDs)
Power approx. 6 W
LIQ 48 (48 LEDs)
Power approx. 29 W
LIQ 60 (60 LEDs)
Power approx. 9 W
LIQ 80 (80 LEDs)
Power approx. 12 W
Caution!
Risk of damage due to differences from the standard design.
If required, this series of units will
be supplemented by further variants. The technical data may therefore be subject to modifications.
Always observe the data and ¾
symbols given on the rating
plate!
