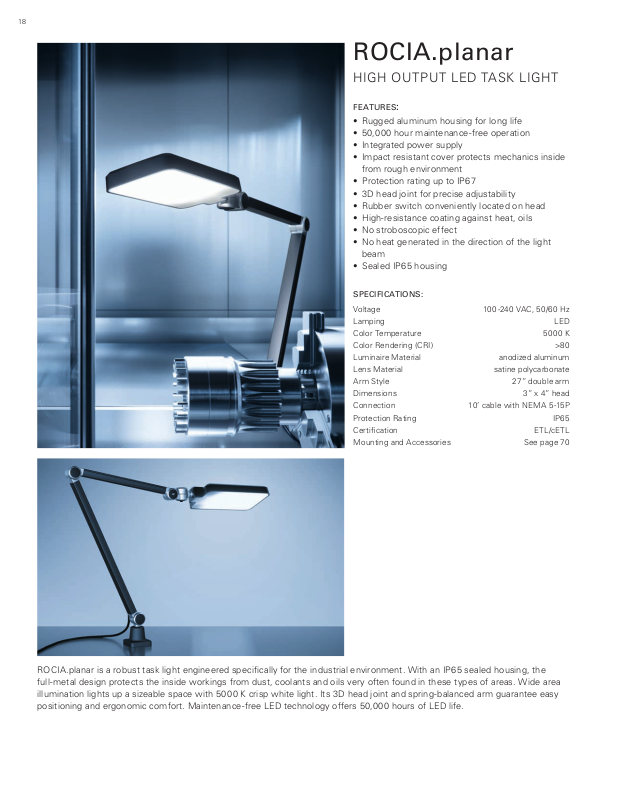

ROCIA.planar

HIGH OUTPUT LED TASK LIGHT

FE ATU RES:

• Rugged aluminum housing for long life

• 50,000 hour maintenance-free operation

• Integrated power supply

• Impact resistant cover protects mechanics inside
from rough environment

• Protection rating up to IP67

• 3D head joint for precise adjustability

• Rubber switch conveniently located on head

• High-resistance coating against heat, oils

• No stroboscopic effect

• No heat generated in the direction of the light
beam

• Sealed IP65 housing

SPECIFICATIONS:

Voltage 100-240 VAC, 50/60 Hz

Lamping LED

Color Temperature 5000 K

Color Rendering (CRI) >80

Luminaire Material anodized aluminum

Lens Material satine polycarbonate

Arm Style 27” double arm

Dimensions 3” x 4” head

Connection 10’ cable with NEMA 5-15P

Protection Rating IP65

Certification ETL /cETL

Mounting and Accessories See page 70

ROCIA.planar is a robust task light engineered specifically for the industrial environment. With an IP65 sealed housing, the
full-metal design protects the inside workings from dust, coolants and oils very often found in these types of areas. Wide area
illumination lights up a sizeable space with 5000 K crisp white light. Its 3D head joint and spring-balanced arm guarantee easy
positioning and ergonomic comfort. Maintenance-free LED technology offers 50,000 hours of LED life.

Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories

60

45 / ø 5.5

150°

360°

420

150°

65°

330°

237 x 121 x 38

225°

34 280

19

DIMENSIONAL DATA

ORDERING INFORMATION

Description Wattage Voltage IP Rating Lumens Model Part #

Double arm 18 W 100 -240 VAC IP65 150 0 RPD 1700/850 113458000-00699752

External Operating Devices Max. Wattage Input Output Part #

Mounting Options Item Dimensions Part #

Measurements in millimeters

20 W 100 -277 VAC, 50/ 60 Hz 24 VDC 209585029

Table clamp 0 – 2.75” 190007019-00014904

Table clamp 2.5” – 5.4” 190033019-00014950

Wall mount 2.4” x 2.8” 300213018-00021578
