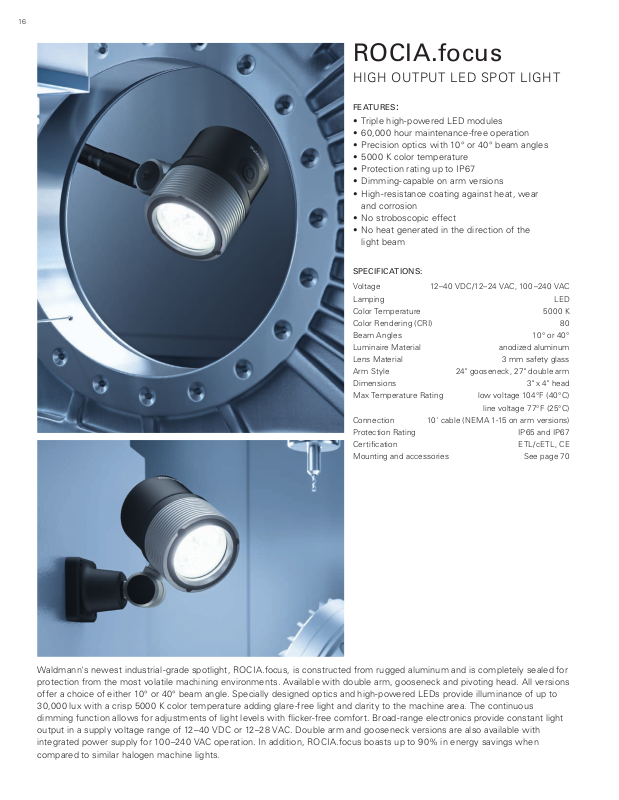

ROCIA.focus

HIGH OUTPUT LED SPOT LIGHT

FE ATU RES:

• Triple high-powered LED modules

• 60,000 hour maintenance-free operation

• Precision optics with 10° or 40° beam angles

• 5000 K color temperature

• Protection rating up to IP67

• Dimming- capable on arm versions

• High-resistance coating against heat, wear
and corrosion

• No stroboscopic effect

• No heat generated in the direction of the
light beam

SPECIFICATIONS:

Voltage 12–40 VDC/12–24 VAC, 100 –240 VAC

Lamping LED

Color Temperature 5000 K

Color Rendering (CRI) 80

Beam Angles 10° or 40°

Luminaire Material anodized aluminum

Lens Material 3 mm safety glass

Arm Style 24" gooseneck, 27" double arm

Dimensions 3" x 4" head

Max Temperature Rating low voltage 104°F (40°C)

line voltage 77°F (25°C)

Connection 10' cable (NEMA 1-15 on arm versions)

Protection Rating IP65 and IP67

Certification ETL /cETL, CE

Mounting and accessories See page 70

Waldmann's newest industrial-grade spotlight, ROCIA.focus, is constructed from rugged aluminum and is completely sealed for
protection from the most volatile machining environments. Available with double arm, gooseneck and pivoting head. All versions
offer a choice of either 10° or 40° beam angle. Specially designed optics and high-powered LEDs provide illuminance of up to
30,000 lux with a crisp 5000 K color temperature adding glare-free light and clarity to the machine area. The continuous
dimming function allows for adjustments of light levels with flicker-free comfort. Broad-range electronics provide constant light
output in a supply voltage range of 12–40 VDC or 12–28 VAC. Double arm and gooseneck versions are also available with
integrated power supply for 100 –240 VAC operation. In addition, ROCIA.focus boasts up to 90% in energy savings when
compared to similar halogen machine lights.

Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories

420

220°

220°

225°

17

DIMENSIONAL DATA

225°

102

ø 79

150°

65°

150°

45 / ø 5.5

60

Measurements in millimeters

360°

102

28070

ø 79

45 / ø 5.5

600

ø

48

60

305°

79 x 102

220°

225°

70

45 / ø 5.5

60

305°

ORDERING INFORMATION

Version Wattage Voltage Beam Angle IP Rating Lumens Model Part #

Double arm 9.5 W 100-240 VAC, 50/ 60 Hz 10° IP65 600 RFD 600/850/D 113181000-00680172

Double arm 9.5 W 100-240 VAC, 50/ 60 Hz 40° IP65 600 RFD 600/850/D 113181000-00680185

Double arm 8.5 W 12- 40 V DC /12-24 VAC 10° IP67 600 RFD 600/850/DS 113182000-00680110

Double arm 8.5 W 12- 40 V DC /12-24 VAC 40° IP67 600 RFD 600/850/DS 113182000-00680208

Gooseneck arm 9.5 W 100-240 VAC, 50/ 60 Hz 10° IP65 600 RFF 600/850/D 113183000-00680254

Gooseneck arm 9.5 W 100-240 VAC, 50/ 60 Hz 40° IP65 600 RFF 600/850/D 113183000-00680258

Gooseneck arm 8. 5 W 12- 40 V DC /12-24 VAC 10° IP67 600 RFF 600/850/DS 113184000-00680272

Gooseneck arm 8. 5 W 12- 40 V DC /12-24 VAC 40° IP67 600 RFF 600/850/DS 113184000-00680285

Pivoting head 8.5 W 12- 40 V DC /12-24 VAC 10° IP67 600 RFJ 600/850/S 113185000-00668613

Pivoting head 8.5 W 12- 40 V DC /12-24 VAC 40° IP67 600 RFJ 600/850/S 113185000-00680293

External Operating Devices Max. Wattage Input Output Part #

Mounting Options Item Dimensions Part #

Table clamp 0" - 2.75" span 190007019-00014904

Table clamp 2.5" - 5.4" span 190033019-00014950

20 W 100-27 7 VAC, 50/60 Hz 24 VDC 209585029

Wall mount 2.4" x 2.8" 300213018-00025178

Magnetic base 3.3" diameter 190057019-00015056
