Waldmann RL70LE Catalog
30

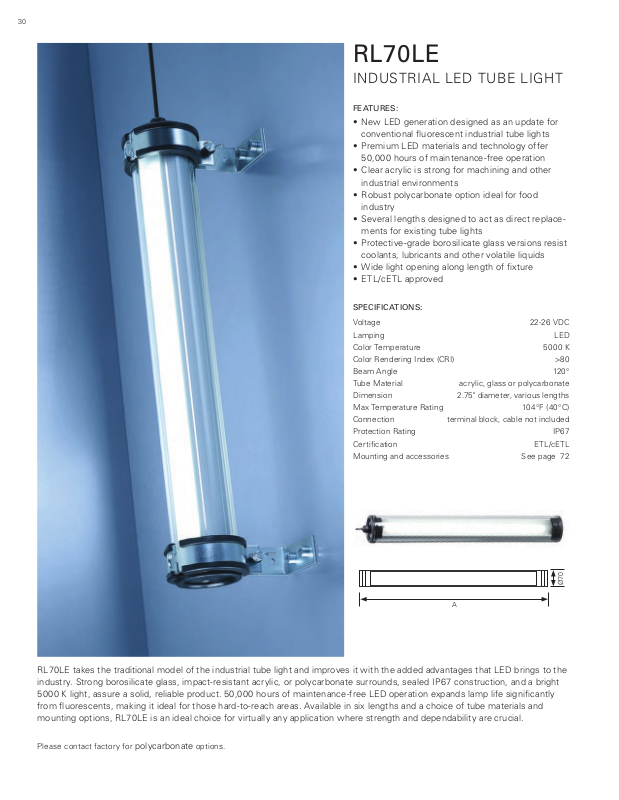

RL70LE
INDUSTRIAL LED TUBE LIGHT
FE ATU RES:
• New LED generation designed as an update for
conventional fluorescent industrial tube lights
• Premium LED materials and technology offer
50,000 hours of maintenance-free operation
• Clear acrylic is strong for machining and other
industrial environments
• Robust polycarbonate option ideal for food
industry
• Several lengths designed to act as direct replacements for existing tube lights
• Protective-grade borosilicate glass versions resist
coolants, lubricants and other volatile liquids
• Wide light opening along length of fixture
• ETL/cETL approved
SPECIFICATIONS:
Voltage 22-26 VDC
Lamping LED
Color Temperature 5000 K
Color Rendering Index (CRI) >80
Beam Angle 120°
Tube Material acrylic, glass or polycarbonate
Dimension 2.75" diameter, various lengths
Max Temperature Rating 104°F (40°C)
Connection terminal block, cable not included
Protection Rating IP67
Certification ETL/cETL
Mounting and accessories See page 72
A
RL70LE takes the traditional model of the industrial tube light and improves it with the added advantages that LED brings to the
industry. Strong borosilicate glass, impact-resistant acrylic, or polycarbonate surrounds, sealed IP67 construction, and a bright
5000 K light, assure a solid, reliable product. 50,000 hours of maintenance-free LED operation expands lamp life significantly
from fluorescents, making it ideal for those hard-to-reach areas. Available in six lengths and a choice of tube materials and
mounting options, RL70LE is an ideal choice for virtually any application where strength and dependability are crucial.
Please contact factory for polycarbonate options.
Ø70
ORDERING INFORMATION
Length (A) Tube Type Thru-Wiring Wattage Lumens Model Part #
14.6" Glass No 12.5 W
14.6" Acrylic No 12.5 W
14.6" Acrylic Yes 12.5 W
20" Glass No 19 W
20" Acrylic No 19 W
20" Acrylic Yes 19 W
25.6" Glass No 25 W
25.6" Acrylic No 25 W
25.6" Acrylic Yes 25 W
31" Glass No 31.5 W
31" Acrylic No 31.5 W
31" Acrylic Yes 31.5 W
42" Glass No 44 W
42" Acrylic No 44 W
42" Acrylic Yes 44 W
47.6" Glass No 50 W
47.6" Acrylic No 50 W
47.6" Acrylic Yes 50 W
950 RL70L E 24 N
950 RL70L E 24 N
950 RL70L E 24 DN
1400 RL70L E 36 N
1400 RL70L E 36 N
1400 RL70L E 36 DN
1900 RL70LE 48 N
1900 RL70LE 48 N
1900 RL70LE 48 DN
240 0 RL70L E 60 N
240 0 RL70L E 60 N
240 0 RL70L E 60 DN
330 0 RL70L E 84 N
330 0 RL70L E 84 N
330 0 RL70L E 84 DN
380 0 RL70L E 96 N
380 0 RL70L E 96 N
380 0 RL70L E 96 DN
113279000-00641386
113279000-00712020
113513000-00722105
113280000-00641389
113280000-00712023
113514000-00722108
113281000-00641392
113281000-00712026
113515000-00722111
113282000-00641395
113282000-00712029
113516000-00722114
113283000-00641398
113283000-00712032
113517000-00722117
113284000-00641401
113284000-00712036
113518000-00722121
31
Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories
MOUNTING ACCESSORIES
Straight
Long L
Short L
Molded End Cap
Item Bracket Material Insert Material Part #
Bracket, straight Galvanized Steel Neoprene 190015019-00014930
Bracket, long-L Galvanized Steel Neoprene SK1021019-00010286
Bracket, short-L Galvanized Steel Neoprene 190015995
Bracket, straight Galvanized Steel Profiled rubber 190015719-00085498
Bracket, long-L Galvanized Steel Profiled rubber SK1021719-00085499
Bracket, short-L Galvanized Steel Profiled rubber SK0995719-00085652
Bracket, straight Stainless Steel Neoprene 190180019-00092731
Bracket, long-L Stainless Steel Neoprene 190183019-00093961
Bracket, short-L Stainless Steel Neoprene 190181019-00092728
Bracket, straight Stainless Steel Profiled rubber 190180719-00092730
Bracket, long-L Stainless Steel Profiled rubber 190169719-00089351
Bracket, short-L Stainless Steel Profiled rubber 190181719-00092729
Strap Galvanized Steel na 190027019-00057337
End caps (set of 2) Black plastic na US0165012
*All RL models require 2 mounting brackets per fixture unless otherwise noted
External Operating Devices Max Wattage Input Output Part #
20 W 100-277 VAC; 50/6 0 Hz 24 VDC 209585029
50 W 120 VAC; 50/60 Hz 24 VDC 209585030
96 W 120-277 VAC; 50/ 60 Hz 24 VDC 209585032
