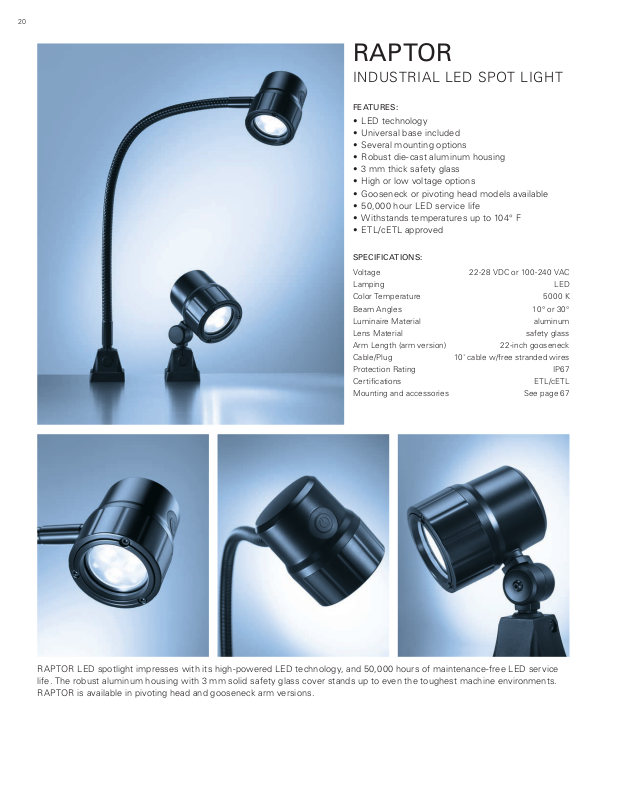

RAPTOR

INDUSTRIAL LED SPOT LIGHT

FE ATU RES:

• LED technology

• Universal base included

• Several mounting options

• Robust die-cast aluminum housing

• 3 mm thick safety glass

• High or low voltage options

• Gooseneck or pivoting head models available

• 50,000 hour LED service life

• Withstands temperatures up to 104° F

• ETL/cETL approved

SPECIFICATIONS:

Voltage 22-28 VDC or 100-240 VAC

Lamping LED

Color Temperature 5000 K

Beam Angles 10° or 30°

Luminaire Material aluminum

Lens Material safety glass

Arm Length (arm version) 22-inch gooseneck

Cable/Plug 10' cable w/free stranded wires

Protection Rating IP67

Certifications ETL /cETL

Mounting and accessories See page 67

RAPTOR LED spotlight impresses with its high-powered LED technology, and 50,000 hours of maintenance-free LED service
life. The robust aluminum housing with 3 mm solid safety glass cover stands up to even the toughest machine environments.
RAPTOR is available in pivoting head and gooseneck arm versions.

Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories

21

DIMENSIONAL DATA

ORDERING INFORMATION

Version Voltage Wattage Beam Angle Model Part #

Gooseneck 100-240 VAC; 50/60 Hz 6 W 10°

Gooseneck 100-240 VAC; 50/60 Hz 6 W 30°

Gooseneck 22-26 VDC 5 W 10°

Gooseneck 22-26 VDC 5 W 30°

Pivoting Head 22-26 VDC 5 W 10°

Pivoting Head 22-26 VDC 5 W 30°

SLF 500/750
SLF 500/750
SLF 500/750/S
SLF 500/750/S
SLJ 500/750/S
SLJ 500/750/S

113261000-00641180

113261000-00641183

113260000-00641130

113260000-00641177

113259000-00641127

113259000-00641174

External Operating Devices Max. Wattage Input Output Part #

20 W 100 -277 VAC, 50/60 Hz 24 VDC 209585029

Mounting Options Item Dimensions Part #

Table Clamp 0" - 2.75" span
Table Clamp 2.5" - 5.4" span
Wall Mount 2.4" x 2.8"
Magnetic Base 3.3" diameter

190007019-00014904

109033019-00014950

300213018-00025178

190057019-00015056
