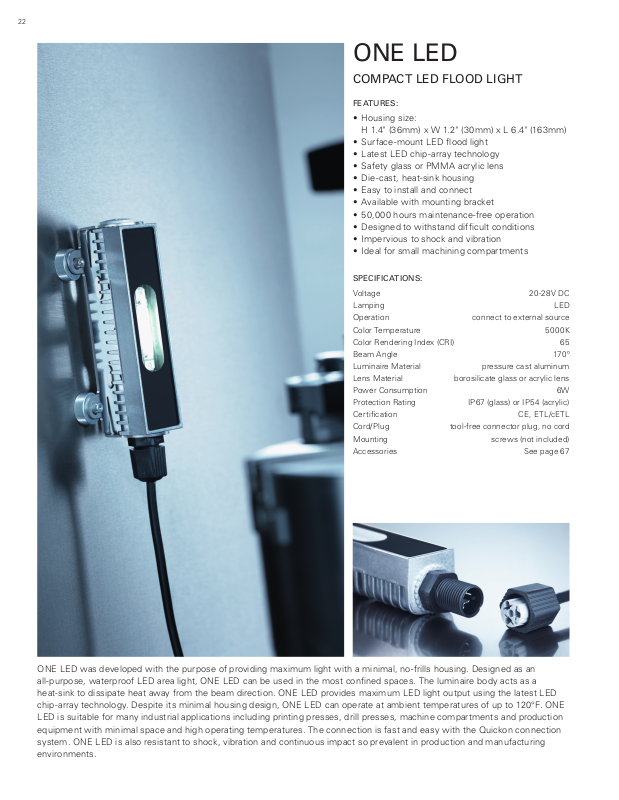

ONE LED
COMPACT LED FLOOD LIGHT
FE ATU RES:
• Housing size:
H 1.4" (36mm) x W 1.2" (30mm) x L 6.4" (163mm)
• Surface-mount LED flood light
• Latest LED chip-array technology
• Safety glass or PMMA acrylic lens
• Die-cast, heat-sink housing
• Easy to install and connect
• Available with mounting bracket
• 50,000 hours maintenance-free operation
• Designed to withstand difficult conditions
• Impervious to shock and vibration
• Ideal for small machining compartments
SPECIFICATIONS:
Voltage 20-28V DC
Lamping LED
Operation connect to external source
Color Temperature 5000K
Color Rendering Index (CRI) 65
Beam Angle 170º
Luminaire Material pressure cast aluminum
Lens Material borosilicate glass or acrylic lens
Power Consumption 6W
Protection Rating IP67 (glass) or IP54 (acrylic)
Certification CE, ETL/cETL
Cord/Plug tool-free connector plug, no cord
Mounting screws (not included)
Accessories See page 67
ONE LED was developed with the purpose of providing maximum light with a minimal, no-frills housing. Designed as an
all-purpose, waterproof LED area light, ONE LED can be used in the most confined spaces. The luminaire body acts as a
heat-sink to dissipate heat away from the beam direction. ONE LED provides maximum LED light output using the latest LED
chip-array technology. Despite its minimal housing design, ONE LED can operate at ambient temperatures of up to 120°F. ONE
LED is suitable for many industrial applications including printing presses, drill presses, machine compartments and production
equipment with minimal space and high operating temperatures. The connection is fast and easy with the Quickon connection
system. ONE LED is also resistant to shock, vibration and continuous impact so prevalent in production and manufacturing
environments.
Task & WorkbenchMachine Magnification & Inspection Accessories
29
30
DIMENSIONAL DATA
23
134
29
36
1.5
15
30
57
44
55
92.5
ø
5.5 (4x)
134
57
4 (2x)
55
ONE LED without bracketONE LED with bracket
Measurements in millimeters
ORDERING INFORMATION
Wattage Lens Material Mounting Bracket Protection Rating Lumens Model Part #
6W PMMA acrylic Not included IP54 400
6W PMMA acrylic Included IP54 400
6W Borosilicate glass Not included IP67 400
6W Borosilicate glass Included IP67 400
MVAL 1 S
MVAL 1 S
MVAL 1 S
MVAL 1 S
112 887 024 - 000 760 49
112 887 027 - 000 760 50
112 887 034 - 000 760 59
112 887 037 - 000 760 65
External Operating Devices Max. Wattage Input Output Part #
17W 120-277V DC, 50/60HZ 24V DC 209 585 028
Required for 120 -277V operation
20W 120-240V, 50/60Hz 24V DC
50W 120V, 50/60Hz 24V DC 209 585 030
309 537 010 - 006 704 53
75W 120-277V DC, 50/60Hz 24V DC 209 585 031
