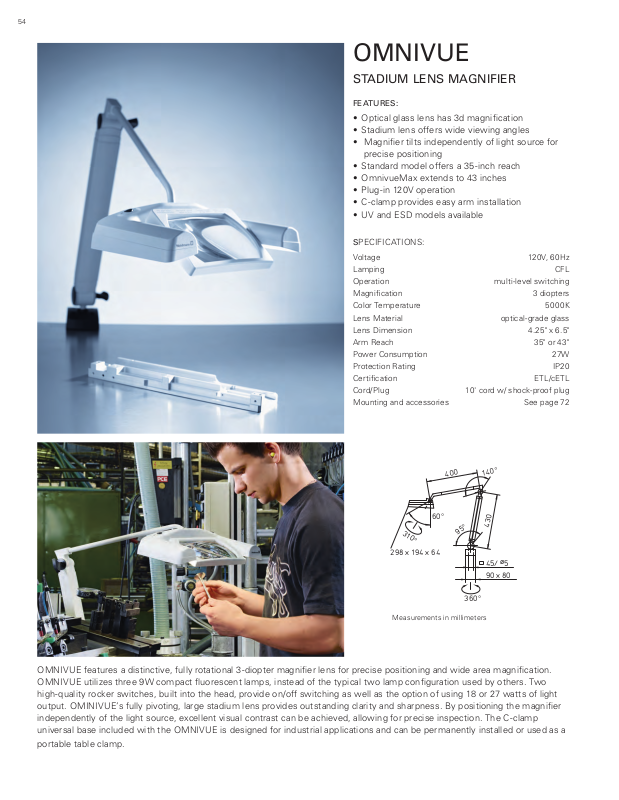

Waldmann OMNIVUE Catalog

140°

54

OMNIVUE

STADIUM LENS MAGNIFIER

FE ATU RES:

• Optical glass lens has 3d magnification

• Stadium lens offers wide viewing angles

• Magnifier tilts independently of light source for
precise positioning

• Standard model offers a 35-inch reach

• OmnivueMax extends to 43 inches

• Plug-in 120V operation

• C-clamp provides easy arm installation

• UV and ESD models available

SPECIFICATIONS:

Voltage 120V, 60Hz
Lamping CFL
Operation multi-level switching
Magnification 3 diopters
Color Temperature 5000K
Lens Material optical-grade glass
Lens Dimension 4.25" x 6.5"
Arm Reach 35" or 43"
Power Consumption 27W
Protection Rating IP20
Certification ETL/cETL
Cord/Plug 10' cord w/ shock-proof plug
Mounting and accessories See page 72

400

60°

310°

298 x 194 x 64

Measurements in millimeters

OMNIVUE features a distinctive, fully rotational 3-diopter magnifier lens for precise positioning and wide area magnification.

95°

430

45/ ø5

90 x 80

360°

OMNIVUE utilizes three 9W compact fluorescent lamps, instead of the typical two lamp configuration used by others. Two
high-quality rocker switches, built into the head, provide on/off switching as well as the option of using 18 or 27 watts of light
output. OMINIVUE’s fully pivoting, large stadium lens provides outstanding clarity and sharpness. By positioning the magnifier
independently of the light source, excellent visual contrast can be achieved, allowing for precise inspection. The C-clamp
universal base included with the OMNIVUE is designed for industrial applications and can be permanently installed or used as a

portable table clamp.

Task & WorkbenchMachine Magnification & Inspection Accessories

55

OMNIVUE OMNIVUE ESD

ORDERING INFORMATION

Wattage Arm Reach Magnification Color Temp. Model Part #

27W 35" reach 3 diopters 5000K Omnivue 118 790 000
27W 43" reach 3 diopters 5000K OmnivueMax 047 803 000
27W 35" reach 3 diopters 5000K Omnivue ESD 138 425 000
27W 43" reach 3 diopters 5000K OmnivueMax ESD 138 425 001

Mounting Options Item Dimensions Part #

Table clamp - with pin mount (included) 0" - 3.5" span 191 025 069 40
Table clamp (universal base required) 2.5" - 5.4” span 190 033 019
Universal base for table/wall 2.4" x 2.4" 204 090 019
Wall bracket - heavy duty (universal base required) 3" x 3" 226 108 019
Table base, rectangular, for pin mount 10" x 6.7" x 1" 190 037 019
1/2" Pin mount adapter 1.77" length US0 209 022
1/2" Pin mount adapter 3.75" length US0 209 012

- 000 149 50

- 006 107 54

- 000 149 68

Accessories Item Magnification Part #

Add-x lens 4 diopters (2X) 190 080 019
Add-x lens 4d + 12d (2X + 4X) 190 080 029
Add-x ESD lens 4 diopters (2X) 190 080 049

Replacement Lamps Item Color Temp. Part #

Compact fluorescent lamp (CFL) 5000K 950 900 038
UV compact fluorescent lamp (UV CFL) 5000K US0 007 013

- 000 612 80
