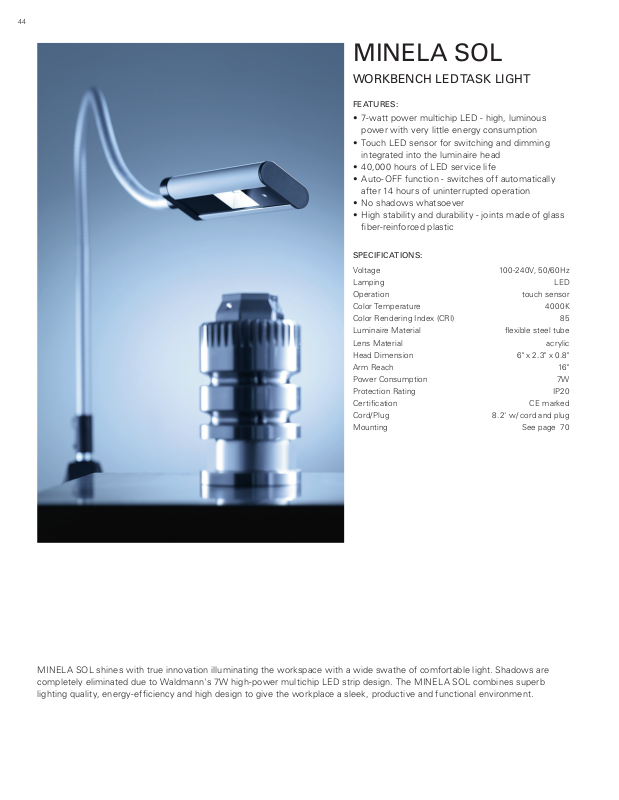

MINELA SOL

WORKBENCH LED TASK LIGHT

FE ATU RES:

• 7-watt power multichip LED - high, luminous
power with very little energy consumption

• Touch LED sensor for switching and dimming
integrated into the luminaire head

• 40,000 hours of LED service life

• Auto-OFF function - switches off automatically
after 14 hours of uninterrupted operation

• No shadows whatsoever

• High stability and durability - joints made of glass
fiber-reinforced plastic

SPECIFICATIONS:

Voltage 100-240V, 50/60Hz
Lamping LED
Operation touch sensor
Color Temperature 4000K
Color Rendering Index (CRI) 85
Luminaire Material flexible steel tube
Lens Material acrylic
Head Dimension 6" x 2.3" x 0.8"
Arm Reach 16"
Power Consumption 7W
Protection Rating IP20
Certification CE marked
Cord/Plug 8.2' w/ cord and plug
Mounting See page 70

MINELA SOL shines with true innovation illuminating the workspace with a wide swathe of comfortable light. Shadows are
completely eliminated due to Waldmann's 7W high-power multichip LED strip design. The MINELA SOL combines superb
lighting quality, energy-efficiency and high design to give the workplace a sleek, productive and functional environment.

Task & WorkbenchMachine Magnification & Inspection Accessories

45

55

Shown with optional universal base

223

500

360°

± 45°

156 x 59 x 21

ø 15

45 /ø 6

60

Measurements in millimeters

ORDERING INFORMATION

Wattage Voltage Arm Style Color Temp Lumens Model Part #

7W 120 -24 0V 16" reach gooseneck 4000K 330 SOL 1 112 929 000

Mounting Options Item Dimensions Part #

Decorative table clamp (included) 0" - 2.75" span ILL 001 00C - 000 504 72
Universal base for table/wall 2.4" x 2.4" 204 090 019
Table clamp, rectangular (universal base required) 2.5" - 5.4” span 190 033 019
Wall bracket (universal base required) 2.4" x 2.8" 300 213 018
Magnetic base 3.3" diameter 190 057 019
Table base, rectangular for pin mount 10.5" x 6.7" x 1" 190 037 019
1/2" Pin mount adapter 1.77 " length US0 209 022
1/2" Pin mount adapter 3.75" length US0 209 012

- 005 015 70

- 000 149 50

- 000 251 78

- 000 150 56

- 000 149 68
