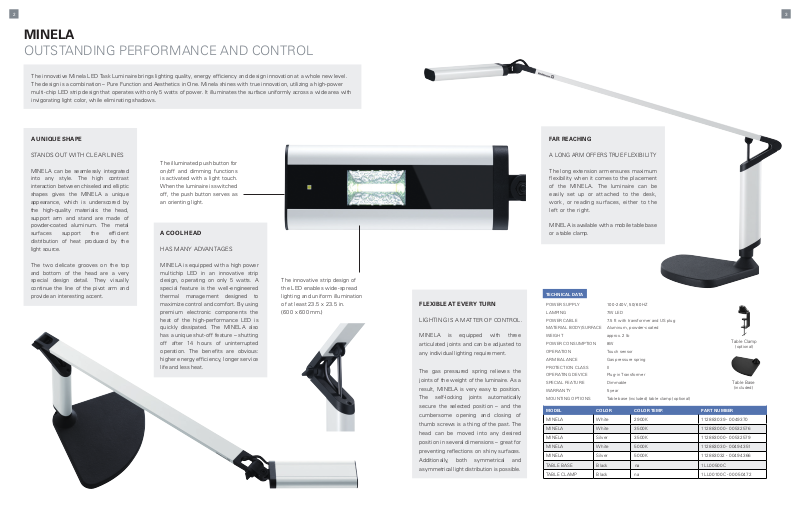

MINELA

OUTSTANDING PERFORMANCE AND CONTROL

The innovative Minela LED Task Luminaire brings lighting quality, energy efficiency and design innovation at a whole new level.
The design is a combination – Pure Function and Aesthetics in One. Minela shines with true innovation, utilizing a high-power
multi-chip LED strip design that operates with only 5 watts of power. It illuminates the surface uniformly across a wide area with
invigorating light color, while eliminating shadows.

A UNIQUE SHAPE

STANDS OUT WITH CLEAR LINES

MINELA can be seamlessly integrated
into any style. The high contrast
interaction between chiseled and elliptic
shapes gives the MINELA a unique
appearance, which is underscored by
the high-quality materials: the head,
support arm and stand are made of
powder-coated aluminum. The metal
surfaces support the efficient
distribution of heat produced by the
light source.

The two delicate grooves on the top
and bottom of the head are a very
special design detail. They visually
continue the line of the pivot arm and
provide an interesting accent.

The illuminated push button for
on/off and dimming functions
is activated with a light touch.
When the luminaire is switched
off, the push button serves as
an orienting light.

A COOL HEAD

HAS MANY ADVANTAGES

MINELA is equipped with a high power
multichip LED in an innovative strip
design, operating on only 5 watts. A
special feature is the well-engineered
thermal manage ment designed to
maximize control and comfort. By using
premium electronic components the
heat of the high-performance LED is
quickly dissipated. The MINELA also
has a unique shut-off feature – shutting
off after 14 hours of uninterrupted
operation. The bene fits are obvious:
higher energy efficiency, longer service
life and less heat.

The innovative strip design of
the LED enables wide-spread
lighting and uniform illumination
of at least 23.5 x 23.5 in.
(60 0x600 mm.)

FLEXIBLE AT EVERY TURN

LIGHTING

IS A MATTER OF CONTROL.

MINELA is equipped with three
articulated joints and can be adjusted to
any individual lighting re quirement.

The gas pressured spring relieves the
joints of the weight of the luminaire. As a
result, MINELA is very easy to position.
The self-locking joints automatically
secure the selected position – and the
cumbersome opening and closing of
thumb screws is a thing of the past. The
head can be moved into any desired
position in several dimensions – great for
preventing reflections on shiny surfaces.
Additionally, both symmetrical and
asymmetrical light distribution is possible.

FAR REACHING

A LONG ARM OFFERS TRUE FLEXIBILITY

The long extension arm ensures maximum
flexibility when it comes to the placement
of the MINELA. The luminaire can be
easily set up or attached to the desk,
work, or reading surfaces, either to the
left or the right.

MINELA is available with a mobile table base
or a table clamp.

TECHNICAL DATA

POWE R SUPP LY 100 - 240 V, 5 0 / 60 HZ
LAMPING 7W LED
POWER CABLE 7.5 ft with transformer and US plug
MATERIAL BODY/SURFACE Aluminum, powder-coated
WEIGHT approx. 2 lb
POWER CONSUMPTION 8W
OPERATION Touch sensor
ARM BALA NCE Gas pressure spring
PROTECTION CLASS II
OPERATING DEVICE Plug-in Transformer
SPECIAL FEATURE Dimmable
WARRANTY 5 year
MOUNTING OPTIONS Table base (included) table clamp (optional)

MODEL COLOR C O LO R T E M P. PART NUMBER

MINELA White 2900K 112883039 - 0049370

MINELA White 3500K 112883000 - 00532576

MINELA Silver 3500K 112883000 - 00532579

MINELA White 5000K 112883030 - 00494351

MINELA Silver 5000K 112883032 - 00494366

TABLE BASE Black

TABLE CLAMP Black na 1LL00100C - 00050472

na

1LL00500C

Table Clamp

(optional)

Table Base

(included)
