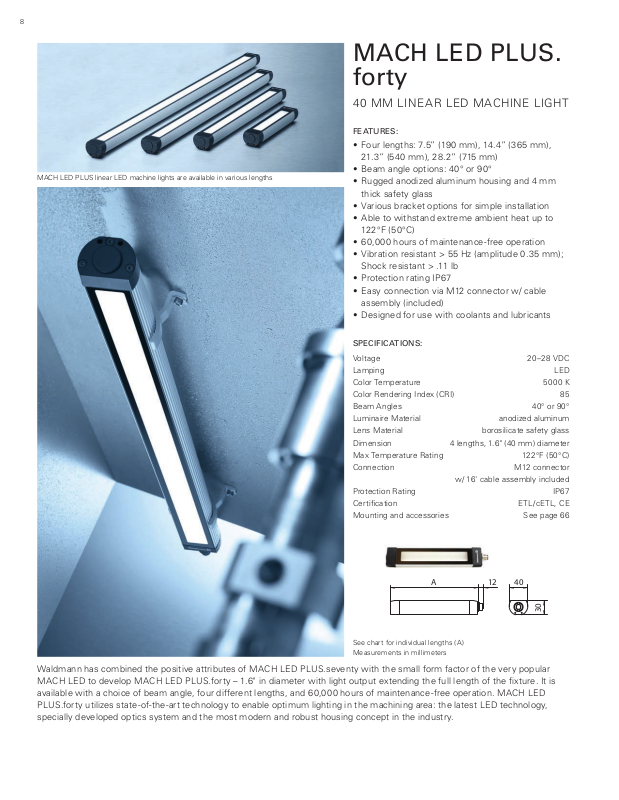

Waldmann MACH LED PLUS Catalog

8

MACH LED PLUS linear LED machine lights are available in various lengths

MACH LED PLUS.
forty

40 MM LINEAR LED MACHINE LIGHT

FE AT U RES:

• Four lengths: 7.5” (190 mm), 14.4” (365 mm),

21.3” (540 mm), 28.2” (715 mm)

• Beam angle options: 40° or 90°

• Rugged anodized aluminum housing and 4 mm
thick safety glass

• Various bracket options for simple installation

• Able to withstand extreme ambient heat up to
122 ° F (50°C)

• 60,000 hours of maintenance-free operation

• Vibration resistant > 55 Hz (amplitude 0.35 mm);
Shock resistant > .11 lb

• Protection rating IP67

• Easy connection via M12 connector w/ cable
assembly (included)

• Designed for use with coolants and lubricants

SPECIFICATIONS:

Voltage 20–28 VDC

Lamping LED

Color Temperature 5000 K

Color Rendering Index (CRI) 85

Beam Angles 40° or 90°

Luminaire Material anodized aluminum

Lens Material borosilicate safety glass

Dimension 4 lengths, 1.6" (40 mm) diameter

Max Temperature Rating 122°F (50°C)

Connection M12 connector

w/ 16' cable assembly included

Protection Rating IP67

Certification ETL/cETL, CE

Mounting and accessories See page 6 6

A

12

40

30

See char t for individual lengths (A)
Measurements in millimeters

Waldmann has combined the positive attributes of MACH LED PLUS.seventy with the small form factor of the very popular
MACH LED to develop MACH LED PLUS.forty – 1.6" in diameter with light output extending the full length of the fixture. It is
available with a choice of beam angle, four different lengths, and 60,000 hours of maintenance-free operation. MACH LED
PLUS.forty utilizes state-of-the-art technology to enable optimum lighting in the machining area: the latest LED technology,
specially developed optics system and the most modern and robust housing concept in the industry.

Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories

1 2

100

100

MACH LED PLUS.forty with 90° angle of illuminationMACH LED PLUS.forty with 40° angle of illumination

9

Measurement distance 100 cm

cm

80

60

40

20

0

Illuminance taking MLAL 57 S with
40° optics as an example

1600
1400

1200
1000

800
600

20 40 60 80 1000

E [lx]

cm

Measurement distance 100 cm

cm

80

60

40

20

0

20 40 60 80 1000

Illuminance taking MLAL 57 S with
90° reflector as an example

800

(Above) Thru-wire MACH LED PLUS.forty

ORDERING INFORMATION (No operating device included, which is only required for 120-240 VAC operation)

Version Wattage Length (A) Lumens Model Part #

20–28 VDC Versions

90° beam angle

40° beam angle

90° beam, thru-wire
90° beam angle
40° beam angle

90° beam, thru-wire

90° beam angle

40° beam angle

90° beam, thru-wire

90° beam angle

40° beam angle

90° beam, thru-wire

5 W 7.5" (190 mm) 480 MLAL 12 S
5 W 7.5" (190 mm) 490 MLAL 12 S
5 W 7.5" (190 mm) 480 MLAL 12 SD

10.5 W 14.4" (365 mm) 1080 MLAL 27 S

10.5 W 14.4" (365 mm) 1120 MLAL 27 S

10.5 W 14.4" (365 mm) 1080 MLAL 27 SD
16 W 21.3" (540 mm) 1680 MLAL 42 S
16 W 21.3" (540 mm) 1720 MLAL 42 S
16 W 21.3" (540 mm) 1680 MLAL 42 SD

21.5 W 28.2" (715 mm) 2280 ML AL 57 S

21.5 W 28.2" (715 mm) 2330 MLAL 57 S

21.5 W 28.2" (715 mm) 2280 ML AL 57 SD

113161000-00662575

113161000-00660033

113161000-00662600
113162000-00662685
113162000-00660681

113162000-00662706

113163000-00662717

113163000-00660684

113163000-00662735

113164000-00662806

113164000-00660687

113164000-00662833

600

E [lx]

cm

External Operating Devices Max. Wattage Input Output Part #

20 W 100-277 VAC, 50/60 Hz 24 VDC 209585029

Required for 100-277 VAC 50 W 120 VAC, 50/60 Hz 24 VDC 209585030

96 W 100-277 VAC, 50/60 Hz 24 VDC 209585032

Mounting Options Item Unit Part #

End bracket set, adjustable, stainless steel +/- 90° Sold as set 408001403-00671626

Clip bracket, adjustable, aluminum +/- 20° Sold individually 408001402-00671623

Accessories Item Type Voltage Part #

M12 connector w/ 16' cable assembly (included) straight A-coded 24 VDC US0009001

M12 connector w/ 16' cable assembly, angled A-coded 24 VDC US0009011
