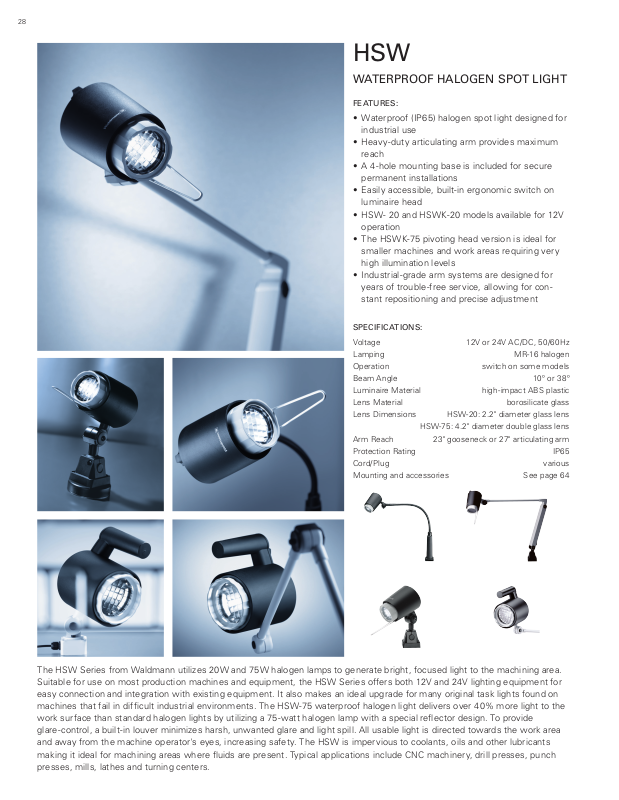

HSW
WATERPROOF HALOGEN SPOT LIGHT
FE ATU RES:
• Waterproof (IP65) halogen spot light designed for
industrial use
• Heavy-duty articulating arm provides maximum
reach
• A 4-hole mounting base is included for secure
permanent installations
• Easily accessible, built-in ergonomic switch on
luminaire head
• HSW- 20 and HSWK-20 models available for 12V
operation
• The HSWK-75 pivoting head version is ideal for
smaller machines and work areas requiring very
high illumination levels
• Industrial-grade arm systems are designed for
years of trouble-free service, allowing for constant repositioning and precise adjustment
SPECIFICATIONS:
Voltage 12V or 24V AC/DC, 50/60Hz
Lamping MR-16 halogen
Operation switch on some models
Beam Angle 10º or 38 º
Luminaire Material high-impact ABS plastic
Lens Material borosilicate glass
Lens Dimensions HSW-20: 2.2" diameter glass lens
HSW-75: 4.2" diameter double glass lens
Arm Reach 23" gooseneck or 27" articulating arm
Protection Rating IP65
Cord/Plug various
Mounting and accessories See page 64
The HSW Series from Waldmann utilizes 20W and 75W halogen lamps to generate bright, focused light to the machining area.
Suitable for use on most production machines and equipment, the HSW Series offers both 12V and 24V lighting equipment for
easy connection and integration with existing equipment. It also makes an ideal upgrade for many original task lights found on
machines that fail in difficult industrial environments. The HSW-75 waterproof halogen light delivers over 40% more light to the
work surface than standard halogen lights by utilizing a 75-watt halogen lamp with a special reflector design. To provide
glare-control, a built-in louver minimizes harsh, unwanted glare and light spill. All usable light is directed towards the work area
and away from the machine operator's eyes, increasing safety. The HSW is impervious to coolants, oils and other lubricants
making it ideal for machining areas where fluids are present. Typical applications include CNC machinery, drill presses, punch
presses, mills, lathes and turning centers.
Task & WorkbenchMachine Magnification & Inspection Accessories
180 °
8.18"
DIMENSIONAL DATA
300°
ø
71 x 85
HSWK-20
Pivoting Head
180°
45/ ø6
60
29
85
150 0
HSWK-75
Pivoting Head
15.75"
185˚
240˚
120˚
15.75"
1.77"/ø.02
2.36"
328˚
HSW T-20
Gooseneck Arm
HSW-20
Articulating Arm
ø5.55"
.05"
300˚
ø14x159
HSW -75
Articulating Arm
Measurements in millimeters
ORDERING INFORMATION
Description Wattage Voltage Switch Included Model Part #
Articulating arm 20W 12V Yes HSW-20
Articulating arm 20W 24V Yes HSW-20 112 043 010 - 000 782 14
Pivoting head 20W 12V No HSWK-20 112 081 000 - 000 781 97
Pivoting head 20W 24V No HSWK-20 112 081 010 - 000 781 98
Gooseneck arm 20W 12V Yes HSWT-20 112 049 012 - 000 788 84
Gooseneck arm 20W 24V Yes HSWT-20 112 049 010 - 000 788 85
Articulating arm 75W 12V Yes HSW-75 112 185 000 - 000 051 80
Articulating arm 75W 24V Yes HSW-75 112 185 010 - 000 052 46
Pivoting head 75W 12V No HSWK-75 112 187 003 - 000 051 85
Pivoting head 75W 24V No HSWK-75 112 187 013 - 0 00 052 36
112 043 000 - 000 782 10
Mounting Options Item Dimensions Part #
Universal base for table/wall (included) 2.4" x 2.4" 204 090 019
Table clamp 0" - 2.75” span 190 007 019
Table clamp 2.5" - 5.4" span 190 033 019
Wall bracket 2.4" x 2.8" 300 213 018
Magnetic base 3.3" diameter 190 057 019 - 000 150 56
Table base, rectangular* 10.5" x 6.7" x 1" 190 036 109
*HSW-20 articulating arm model only
Replacement Lamps Item Wattage Voltag e Beam Angle Part #
MR-16 halogen 20W 12V 10º (incl. in 12V) 320 471 090
MR-16 halogen 20W 12V 38º 320 471 110
MR-16 halogen 23W 24V 10º (incl. in 24V) 320 724 010
Bi-pin halogen 75W 12V na 320 283 030
Bi-pin halogen 75W 24V na 320 283 060
- 000 149 04
- 000 149 50
- 000 251 78
- 000 582 38
- 000 679 12
- 000 045 96
