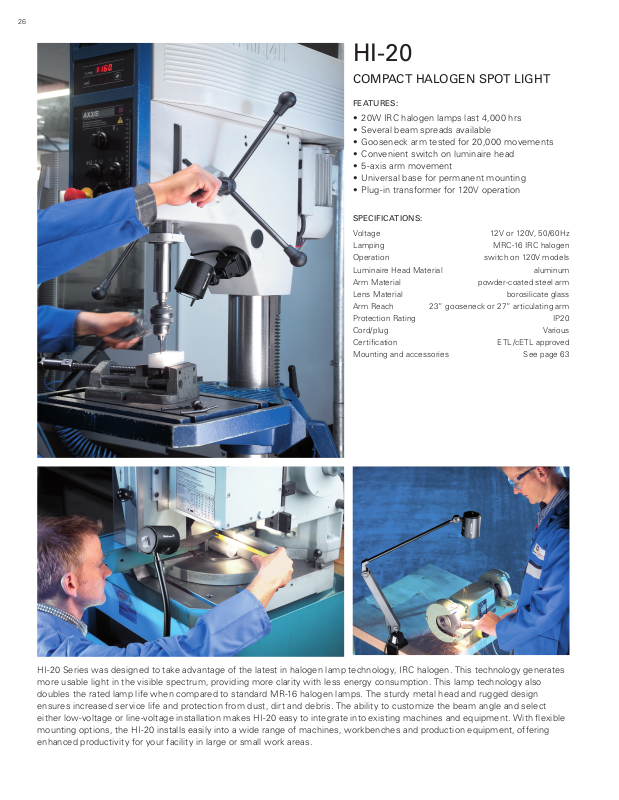

HI-20

COMPACT HALOGEN SPOT LIGHT

FE ATU RES:

• 20W IRC halogen lamps last 4,000 hrs

• Several beam spreads available

• Gooseneck arm tested for 20,000 movements

• Convenient switch on luminaire head

• 5-axis arm movement

• Universal base for permanent mounting

• Plug-in transformer for 120V operation

SPECIFICATIONS:

Voltage 12V or 120V, 50/60Hz
Lamping MRC-16 IRC halogen
Operation switch on 120V models
Luminaire Head Material aluminum
Arm Material powder-coated steel arm
Lens Material borosilicate glass
Arm Reach 23” gooseneck or 27” articulating arm
Protection Rating IP20
Cord/plug Various
Certification ETL/cETL approved
Mounting and accessories See page 63

HI-20 Series was designed to take advantage of the latest in halogen lamp technology, IRC halogen. This technology generates
more usable light in the visible spectrum, providing more clarity with less energy consumption. This lamp technology also
doubles the rated lamp life when compared to standard MR-16 halogen lamps. The sturdy metal head and rugged design
ensures increased service life and protection from dust, dirt and debris. The ability to customize the beam angle and select
either low-voltage or line-voltage installation makes HI-20 easy to integrate into existing machines and equipment. With flexible
mounting options, the HI-20 installs easily into a wide range of machines, workbenches and production equipment, offering
enhanced productivity for your facility in large or small work areas.

Task & WorkbenchMachine Magnification & Inspection Accessories

180 °

DIMENSIONAL DATA

27

180°

300°

85

ø

71 x 85

45/ ø6

60

150 0

Pivoting HeadGooseneck Arm Articulating Arm

Measurements in millimeters

ORDERING INFORMATION

Description Voltage 120V Transformer Incl. Model Part #

Gooseneck arm, 23” reach 12V No HITF-20 S
Gooseneck arm, 23” reach 120V Yes HITF-20 N 112 415 081 - 000 716 09
Articulating arm, 27” reach 12V No HIBF-20 S 112 416 065 - 000 716 70
Articulating arm, 27” reach 120V Yes HIBF-20 N 112 417 061 - 000 716 85
Pivoting head 12V No HIXF-20 S 112 418 065 - 000 716 48
Pivoting head 120V Yes HIXF -20 N 112 419 061 - 000 716 44

Mounting Options Item Dimensions Part #

Universal base for table/wall (included) 2.4" x 2.4" 204 090 019
Table clamp 0" - 2.75” span 190 007 019
Table clamp 2.5" – 5.4” span 190 033 019
Wall bracket 2.4" x 2.8" 300 213 018
Magnetic base 3.3" diameter 190 057 019 - 000 150 56

*Articulating arm model only

Table base, rectangular* 10.5" x 6.7" x 1" 190 036 109

112 379 025 - 000 684 01

- 000 149 04

- 000 149 50

- 000 251 78

- 000 582 38

Replacement Lamps Item Wattage Beam Angle Part #

MRC-16 IRC halogen 12W 10º 320 471 010
MRC-16 IRC halogen 12W 24º (included) 320 471 020
MRC-16 IRC halogen 12W 38º 320 471 030
MRC-16 IRC halogen 12W 60º 320 471 040
MR-16 IRC halogen 23W 10 º 320 724 010

Accessories Item Strength Mounting Part#

Clip-on magnifier 4 diopters Clip-on 190 062 019
Clip-on magnifier 4 + 12 diopters Clip-on 190 062 029

- 000 582 85

- 000 582 86

- 000 676 11

- 000 676 12

- 000 679 12

- 000 150 58

- 000 150 59
