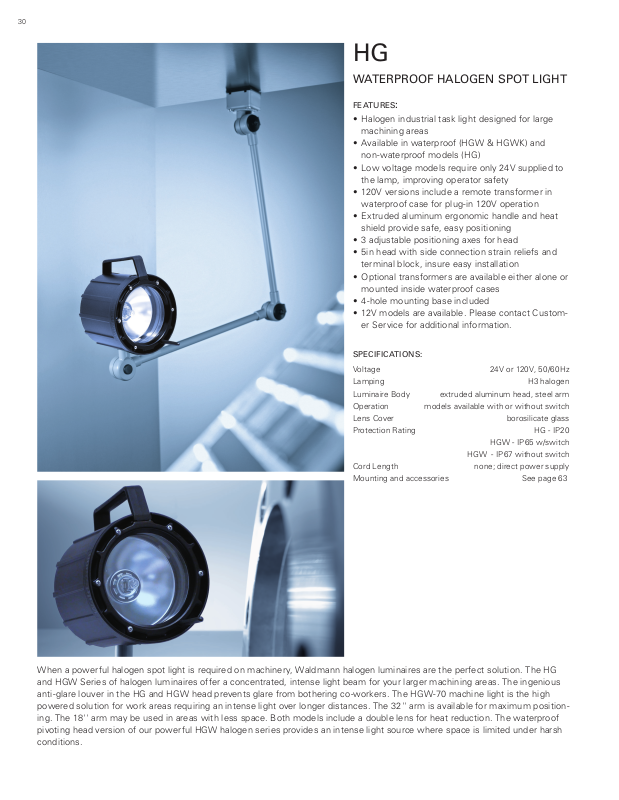

WATERPROOF HALOGEN SPOT LIGHT
FE ATU RES:
• Halogen industrial task light designed for large
machining areas
• Available in waterproof (HGW & HGWK) and
non-waterproof models (HG)
• Low voltage models require only 24V supplied to
the lamp, improving operator safety
• 120V versions include a remote transformer in
waterproof case for plug-in 120V operation
• Extruded aluminum ergonomic handle and heat
shield provide safe, easy positioning
• 3 adjustable positioning axes for head
• 5in head with side connection strain reliefs and
terminal block, insure easy installation
• Optional transformers are available either alone or
mounted inside waterproof cases
• 4-hole mounting base included
• 12V models are available. Please contact Customer Service for additional information.
SPECIFICATIONS:
Voltage 24V or 120V, 50/60Hz
Lamping H3 halogen
Luminaire Body extruded aluminum head, steel arm
Operation models available with or without switch
Lens Cover borosilicate glass
Protection Rating HG - IP20
HGW - IP65 w/switch
HGW - IP67 without switch
Cord Length none; direct power supply
Mounting and accessories See page 63
When a powerful halogen spot light is required on machinery, Waldmann halogen luminaires are the perfect solution. The HG
and HGW Series of halogen luminaires offer a concentrated, intense light beam for your larger machining areas. The ingenious
anti-glare louver in the HG and HGW head prevents glare from bothering co-workers. The HGW-70 machine light is the high
powered solution for work areas requiring an intense light over longer distances. The 32'' arm is available for maximum positioning. The 18'' arm may be used in areas with less space. Both models include a double lens for heat reduction. The waterproof
pivoting head version of our powerful HGW halogen series provides an intense light source where space is limited under harsh
conditions.
Task & WorkbenchMachine Magnification & Inspection Accessories
328°
355°
DIMENSIONAL DATA
180°
31
310°
400
45°
105
310°
255°
400
180°
ø
136 x 128
67
45/ ø6
70
ø
136 x 128
45/ ø6
60
60
328°
HGWK Pivoting Head HGW Articulating Arm
Measurements in millimeters
ORDERING INFORMATION
Description Voltage Arm Reach IP Rating Transformer Incl. Switch Incl. Model Part #
Pivoting head 24V na IP67 No No HGWK-70 008 308 800
Pivoting head 24V na IP65 No Yes HGWK-70 008 308 802
Pivoting head 120V na IP65 Yes Yes HGWK-70 008 308 806
Articulating arm 24V 18" reach IP65 No Ye s HGW-70 100 870 801
Articulating arm 24V 32" reach IP65 No Yes HGW-70 100 870 803
Articulating arm 120V 18" reach IP65 Yes Yes HGW-70 108 870 801
Articulating arm 120V 32" reach IP65 Yes Yes HGW-70 108 870 802
Mounting Options Item Dimensions Part #
Table clamp 0" - 2.75” span 190 007 019
Table clamp 2.5" – 5.4” span 190 033 019
Wall bracket 2.4" x 2.8" 300 213 018
Accessories Item Type Finish For Use With: Part #
Transformer 60VA, 120V Enclosed w/case 24V fixtures 150 127 M19
Transformer 60VA, 120V W/out case 24V fixtures 150 125 M19
Transformer 60VA, 230V W/out case 24V fixtures 150 048 019
Replacement Lamp Item Type Lens Finish For Use With: Part #
Halogen lamp H3, 60W n/a 24V and 120V fixtures 450 070 300
Halogen lamp H3, 55W n/a 12V fixtures 450 055 300
Replacement lens Hardened glass Clear na 305 412 010
Replacement lens Hardened glass Frosted na 305 412 020
Replacement lens Tempered glass Clear na 305 412 030
- 000 149 04
- 000 149 50
- 000 251 78
- 000 146 31
- 000 415 40
- 000 295 13
- 000 295 15
