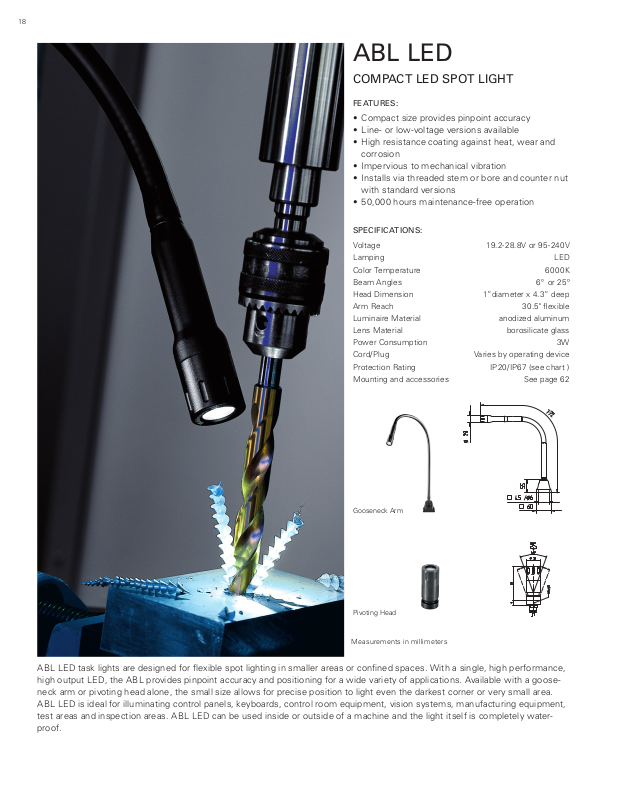

ABL LED
COMPACT LED SPOT LIGHT
FE ATU RES:
• Compact size provides pinpoint accuracy
• Line- or low-voltage versions available
• High resistance coating against heat, wear and
corrosion
• Impervious to mechanical vibration
• Installs via threaded stem or bore and counter nut
with standard versions
• 50,000 hours maintenance-free operation
SPECIFICATIONS:
Voltage 19.2-28.8V or 95-240V
Lamping LED
Color Temperature 6000K
Beam Angles 6º or 25º
Head Dimension 1”diameter x 4.3” deep
Arm Reach 30.5" flexible
Luminaire Material anodized aluminum
Lens Material borosilicate glass
Power Consumption 3W
Cord/Plug Varies by operating device
Protection Rating IP20/IP67 (see chart )
Mounting and accessories See page 62
Gooseneck Arm
Pivoting Head
Measurements in millimeters
ABL LED task lights are designed for flexible spot lighting in smaller areas or confined spaces. With a single, high performance,
high output LED, the ABL provides pinpoint accuracy and positioning for a wide variety of applications. Available with a gooseneck arm or pivoting head alone, the small size allows for precise position to light even the darkest corner or very small area.
ABL LED is ideal for illuminating control panels, keyboards, control room equipment, vision systems, manufacturing equipment,
test areas and inspection areas. ABL LED can be used inside or outside of a machine and the light itself is completely waterproof.
Task & WorkbenchMachine Magnification & Inspection Accessories
19
ORDERING INFORMATION
Version Voltage IP Rating Beam Angle Op Device Inc. Lumens Model Part #
Gooseneck arm 19.2-28.8V IP67 6° Spot Yes 191 AB LTL 1 112 385 M20
Gooseneck arm 19.2-28.8V IP67 25° Flood Yes 191 AB LTL 1 112 385 M21
Gooseneck arm 95 -240V IP20 6° Spot Yes 191 AB LTL 1 112 385 M10
Gooseneck arm 95-240V IP20 25° Flood Yes 191 AB LTL 1 112 385 M11
Gooseneck arm Per operating device* IP67 6° Spot No 191 AB LTL 1
Gooseneck arm Per operating device* IP67 25° Flood No 191 AB LTL 1 112 423 001 - 000 715 49
Pivoting head, threadmount Per operating device* IP67 6° Spot No 191 ABLL 1 112 353 002 - 000 587 09
Pivoting head, threadmount Per operating device* IP67 25° Flood No 191 ABLL 1 112 353 003 - 000 587 11
112 423 000 - 000 715 50
External Operating Devices Max. Wattage Input Output Part #
10W 95-240V, 700mA 24V DC
*Required 14W 19.2-28.8V, 700mA 24V DC 209 582 019 - 000 487 93
Mounting Options Description Dimensions Part #
Universal base for table/wall (included) 2.4" x 2.4" 204 090 019
Table clamp 0" - 2.75” span
Table clamp 2.5" - 5.4” span 190 033 019 - 000 149 50
Wall bracket 2.4" x 2.8" 300 213 018 - 000 251 78
Magnetic base 3.3" diameter 190 057 019 - 000 150 56
Table base, rectangular 10.5" x 6.7" x 1" 190 036 109 - 000 582 38
209 585 019 - 000 452 02
190 007 019 - 000 149 04
