VTech Safe & Sound, VM321, VM321-2, VM351, VM351-2 User Manual
®
Safe & SoundTM
Video and audio monitor
User’s manual
w w w.v t e c h c a n a d a . c o m
Models:
VM321/VM321-2/
VM351/VM351-2
Congratulations
on purchasing your new VTech product. Before using this product, please
read Important safety instructions on pages iii-iv of this manual.
This manual has all the feature operations and troubleshooting necessary
to install and operate your new VTech product. Please review this manual
thoroughly to ensure proper installation and operation of this innovative and
feature rich VTech product. For support, shopping, and everything new at
VTech, visit our website at www.vtechcanada.com.
i
Product introduction
ii
VM321/VM351 is a video and audio monitor which consists of one parent unit
(VM321 PU/VM351 PU) and one baby unit (VM321 BU/VM351 BU).
VM321-2/VM351-2 is a video and audio monitor which consists of one
parent unit (VM321-2 PU/VM351-2 PU) and two baby units (VM321-2 BU/
VM351-2 BU).
The parent unit may be shipped with a protective sticker covering the display.
Remove the protective sticker before use.
iii
Important safety instructions
When using your equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury, including the following:
Follow all warnings and instructions marked on the product.
Adult setup is required.
This product is intended as an aid. It is not a substitute for responsible and proper
adult supervision and should not be used as such.
This product is not intended for use as a medical monitor.
Do not use this product near water. For example, do not use it next to a bath tub,
wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement
or shower.
CAUTION: Use only the batteries indicated in this manual. There may be a risk of
explosion if a wrong type of battery is used for the parent unit. Use only the supplied
rechargeable battery or replacement battery pack (BT298555) for the parent unit.
Do not dispose of batteries in a fire. They may explode. Dispose of used battery
according to the information in The RBRC® seal (see page 39).
Use only the adapters included with this product. Incorrect adapter polarity or
voltage can seriously damage the product.
Baby unit power adapter: Input 100-120V AC 50/60 Hz; output: 6V DC 800 mA
Parent unit power adapter: Input 100-120V AC 50/60 Hz; output: 6V DC 800 mA
The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
Unplug the power cords before replacing batteries.
Do not cut off the power adapters to replace them with other plugs, as this causes a
hazardous situation.
Do not allow anything to rest on the power cords. Do not install this product where
the cords may be walked on or crimped.
This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply in your home,
consult your dealer or local power company.
Do not overload wall outlets or use an extension cord.
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
This product should not be placed in any area where proper ventilation is not
provided. Slots and openings in the back or bottom of this product are provided for
ventilation. To protect them from overheating, these openings must not be blocked
by placing the product on a soft surface such as a bed, sofa or rug. This product
should never be placed near or over a radiator or heat register.
Never push objects of any kind into this product through the slots because they may
touch dangerous voltage points or create a short circuit. Never spill liquid of any
kind on the product.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
iv
Important safety instructions (continued)
To reduce the risk of electric shock, do not disassemble this product, but take
it to an authorized service facility. Opening or removing parts of the product
other than specified access doors may expose you to dangerous voltages or
other risks. Incorrect reassembling can cause electric shock when the product is
subsequently used.
You should test the sound reception every time you turn on the units or move one of
the components.
Periodically examine all components for damage.
Be aware of possible loss of privacy while using public airwaves. Conversations
may be picked up by other nursery monitors, cordless phones, scanners, etc.
Children should be supervised to ensure that they do not play with the product.
The product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
SAVE THESE INSTRUCTIONS
Cautions
Use and store the product at a temperature between 32oF and 104oF.
Do not expose the product to extreme cold, heat or direct sunlight. Do not put the
product close to a heating source.
Batteries should not be exposed to excessive heat such as bright sunshine or fire.
Make sure the baby unit(s) and the adapter cord(s) are always out of reach of
the baby, at least 3 feet away from the baby or crib, to avoid a possible
strangulation hazard.
Never place the baby unit(s) inside the baby’s crib or playpen.
Never cover the baby unit(s) or parent unit with anything such as a towel or
a blanket.
Other electronic products may cause interference with your video and audio
monitor. Try installing your video and audio monitor as far away from these
electronic devices as possible: wireless routers, radios, cellular telephones,
intercoms, room monitors, televisions, personal computers, kitchen appliances
and cordless telephones.
Electromagnetic elds (EMF)
This VTech product complies with all standards regarding electromagnetic fields (EMF).
If handled properly and according to the instructions in this user’s manual, the product is
safe to be used based on scientific evidence available today.
18.
19.
20.
21.
22.
23.
1.
2.
3.
4.
5.
6.
7.
v
Table of contents
Getting started ...............................1
Parts checklist ................................. 1
Baby unit battery installation ........... 2
Baby unit installation ....................... 3
Baby unit installation options ........... 4
Tabletop to wall mount
installation ................................ 4
Parent unit battery installation ........10
Parent unit installation ....................12

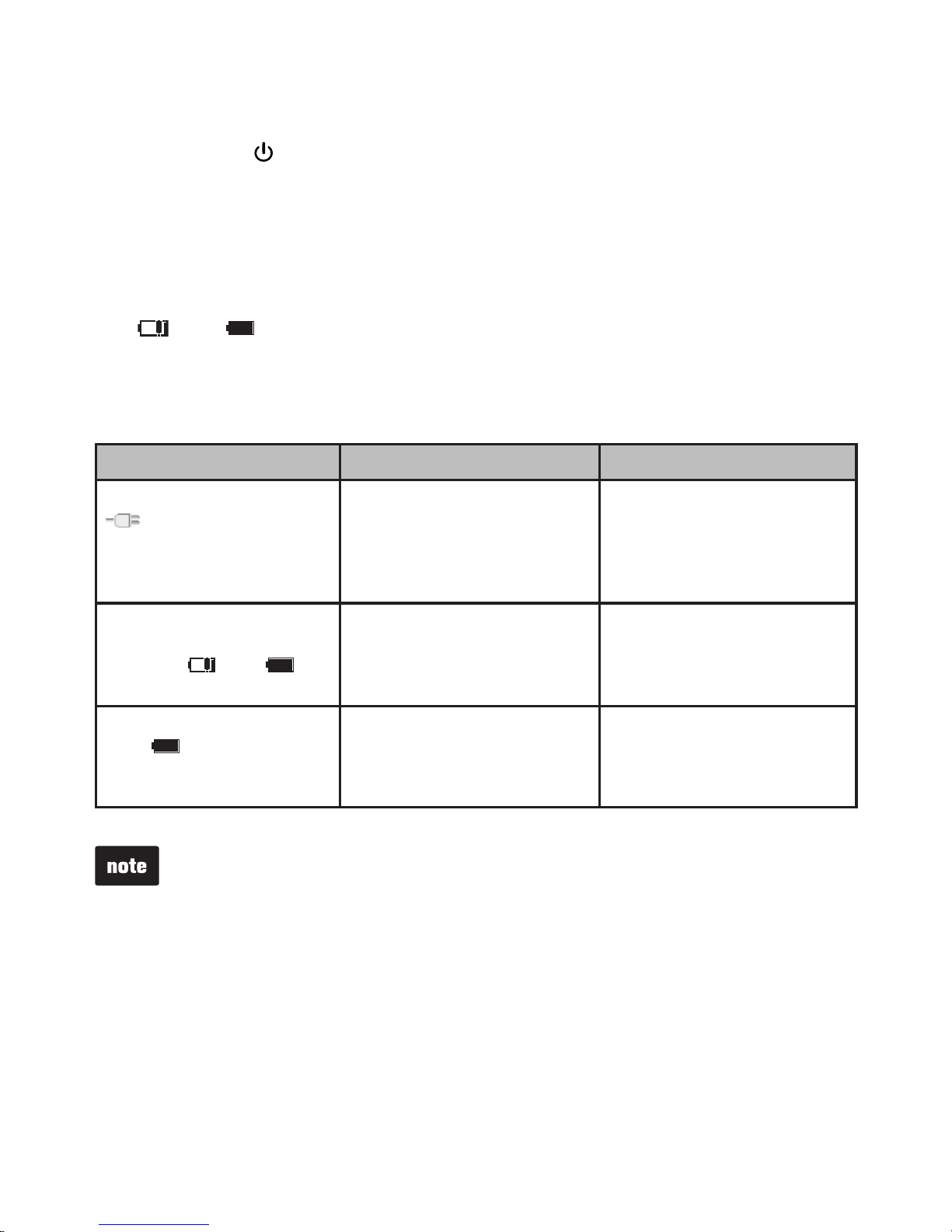

Parent unit battery charging ...........13

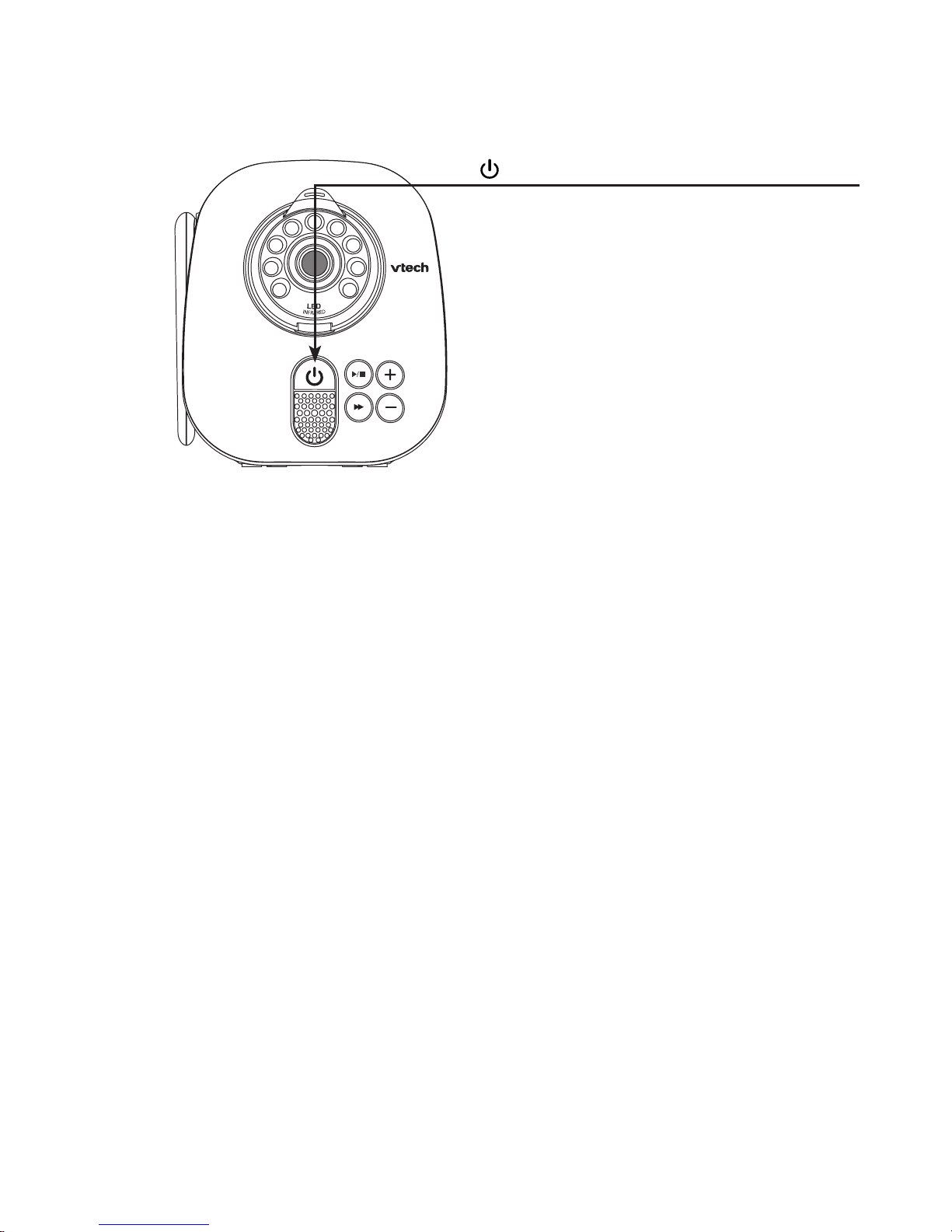

Baby unit overview .........................14
Baby unit lights ...............................15
Parent unit overview .......................16
Parent unit lights ............................17

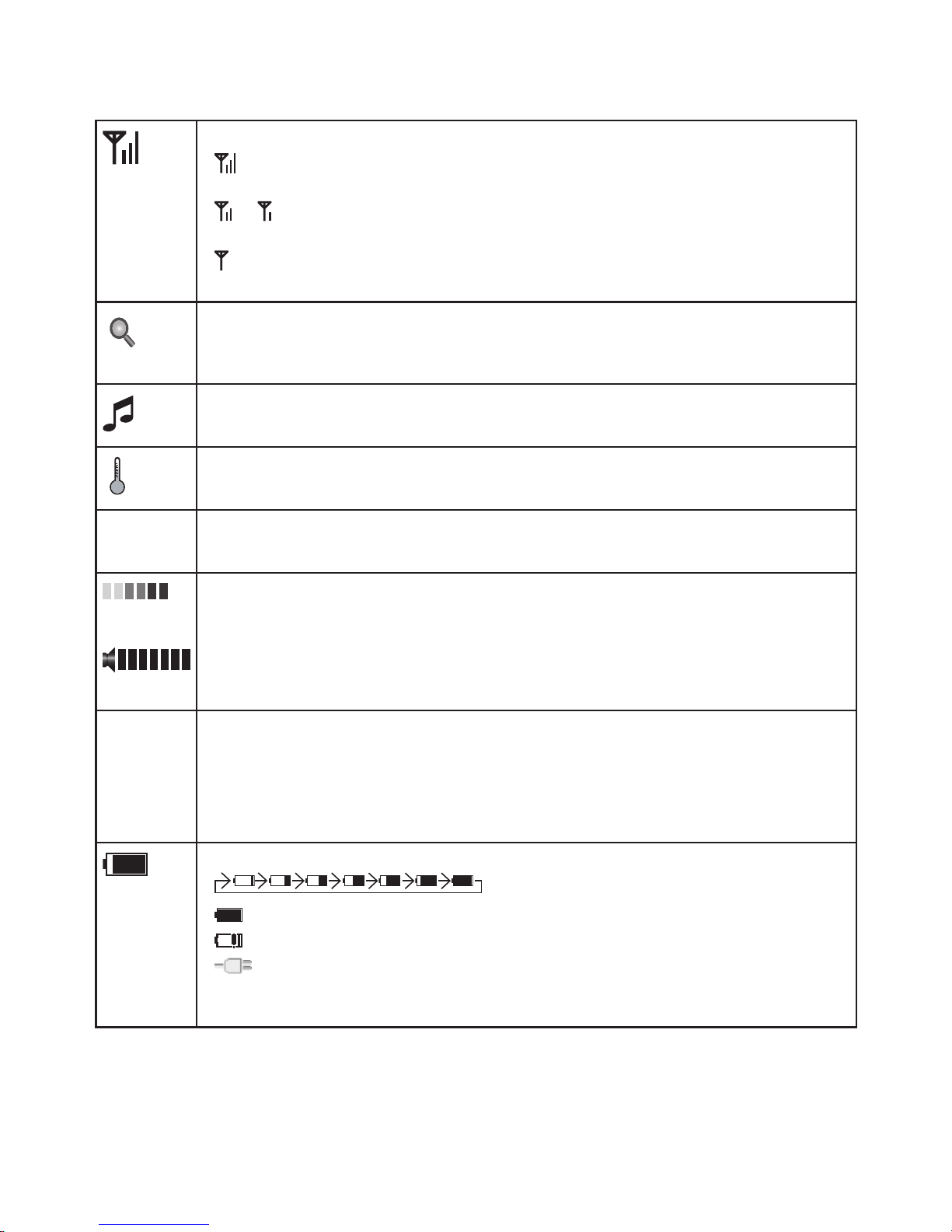

Parent unit display screen icons ....18
Positioning and operating range .....19
Position the video and audio
monitor ....................................19
Audio settings ...........................19
Operating range ........................19
Test your video and audio
monitor before use ..................... 20
Parent unit settings .....................21
Using the menu ..............................21
Monitoring mode ............................21
Alert tone ....................................... 22
Low battery tone alert .................... 22
No link alert .............................. 22
Sensitivity ...................................... 23
Temperature ...................................24
Minimum temperature ...............24
Maximum temperature ..............24
Temperature alert .................... 25
Temperature format ................. 25
Vibration ........................................ 26
Sound-activated screen ................. 26
LCD brightness .............................. 27
Pair/unpair CAM ............................ 27
Pair new CAM .......................... 27
Unpair CAM ............................. 28
Language....................................... 28
Baby unit operation .................... 29
Power on or off the baby unit ......... 29
Speaker volume ............................. 29
Play lullabies .................................. 29
Night vision .................................... 29
Parent unit operation .................. 30
Power on or off the parent unit ...... 30
Speaker volume ............................ 30
Zoom ............................................. 30
View ................................................31
Talk to the baby unit .......................31
Appendix ...................................... 32
Parent unit display screen
messages................................... 32
Parent unit battery ......................... 33
Troubleshooting ............................. 34
Operating range ............................. 38
Maintenance .................................. 38
Precautions for users of
implanted cardiac pacemakers ...39
The RBRC® seal ............................ 39
Limited warranty ............................ 40
FCC and IC regulations ................. 42
FCC Part 15 ............................. 42
Industry Canada ...................... 42
RF radiation exposure
statement ............................... 42
Technical specifications ................ 43
Index ............................................. 44
1
Important
information
Parts checklist
Check to make sure the package contains the following items. Save
your sales receipt and original packaging in the event warranty service
is necessary.
* indicates replacements are available. For more information, visit our website at
www.vtechcanada.com or call 1 (800) 267-7377.
Getting started
User’s manual * Impor tant
information *
Baby unit
(VM321 BU /VM321-2 BU/
VM351 BU/ VM351-2 BU)
(1 for VM321/ VM 3 51)
(2 for VM321-2/ V M351-2)
Parent unit
(VM321 PU/VM321-2 PU /
VM351 PU /VM351-2 PU)
Baby unit
power adapter *
(1 for VM 321/ VM351)
Parent unit battery Battery for
Parent unit
power adapter *
Baby unit battery
compartment cover *
(1 for VM321/ VM351)
Screws *
(2 for VM321/ VM351)
(4 for VM321-2/ V M351- 2)
Wall anchors *
(2 for VM321/ VM351)
(4 for VM321-2/ VM351-2)
Wall mount *
(1 for VM 321/ VM351)
(2 fo r VM321-2 /VM 3 51-2 )
2
Getting started

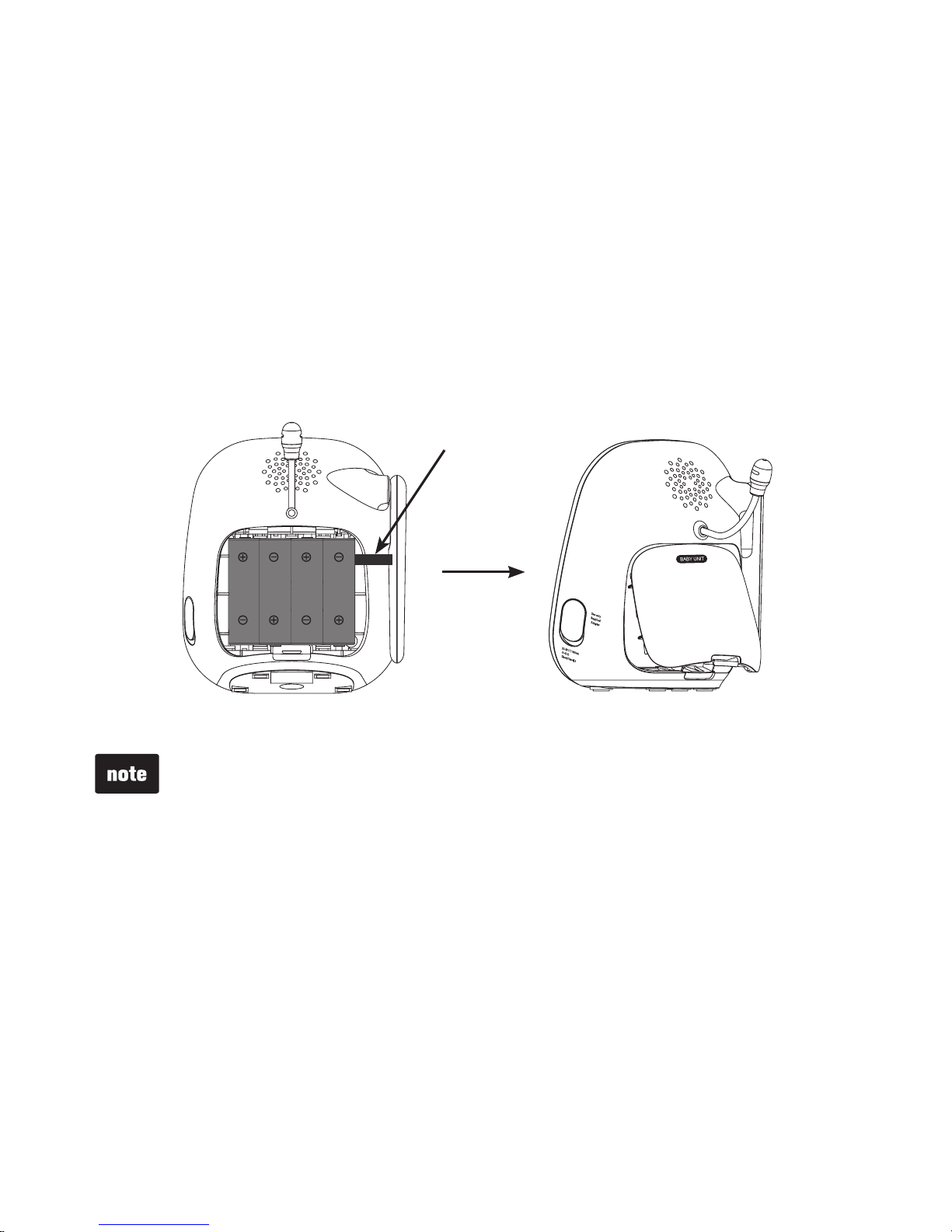

Baby unit battery installation
You can power up the baby unit by connecting it to AC power or to four
AA alkaline batteries. Even if the baby unit is connected to AC power, we
recommend you also install four AA alkaline batteries. This guarantees
continual operation in case of a power outage.
Install four AA alkaline batteries (not supplied) into the battery compartment,
matching the polarity markings (+ and -) inside the battery compartment.
Make sure the ribbon attached inside the battery compartment is put under the
batteries and the excess ribbon is tucked in properly. Then replace the battery
compartment cover.
Do not mix old and new batteries. Do not mix alkaline and standard
(carbon-zinc) batteries.
The operating time for using AA batteries is short, only for a few hours. If you
want to monitor your baby for a long time, we recommend you connect your
baby unit to AC power.
If the baby unit will not be used for a long time, disconnect and remove the
battery to prevent possible leakage.
You can use rechargeable AA batteries for the baby unit, but the baby unit
cannot charge rechargeable batteries.
•
•
•
•
Gently pull the ribbon
and lift up to remove
the bat teries
3
Getting started
Baby unit installation
Install the baby unit as shown below.
Make sure that the power outlet is not controlled by a wall switch. Bundle the
power cord neatly with the self-adhesive strap.
Use only the baby unit power adapters supplied with this product.
To order a replacement, visit our website at www.vtechcanada.com or call
1 (800) 267-7377.
The baby unit power adapters are intended to be correctly oriented in a vertical
or floor mount position. The prongs are not designed to hold the plug in place if
it is plugged into a ceiling, under-the-table or cabinet outlet.
Make sure the baby units and the power adapter cords are out of reach
of children.
•
•
•
Baby unit
Power outlet not
controlled by a
wall switch
Baby unit
power adapter
Self-adhesive strap
Raise the antenna for
better reception.
4
Getting started
Baby unit installation options
The baby unit is ready for tabletop use. Use the provided wall mount if you
want to mount it on a wall. Make sure to test the reception and the baby unit
position before completing the wall mounting installation (see Test your video
and audio monitor before use on page 20).
Tabletop to wall mount installation
Option 1: Use this method to fix the wall mount securely on the wall.
Place the wall mount on a wall and then use a pencil to mark the top two
holes as shown. Then remove the wall mount and drill two holes in the
wall (7/32” drill bit). Check for reception strength and camera angle before
drilling the holes.
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than a stud, insert the wall
anchors into the holes and tap gently on the ends with a hammer until the
wall anchors are flush with the wall.
1.
2.
5
Getting started
Baby unit installation options (continued)
Align the wall mount and screws with the holes in the wall as shown. Make
sure to attach the screw in the middle hole first so that the wall mount
position is fixed. Then attach the other screw in the top hole.
Place the baby unit on the wall mount and tighten the screw into the
threaded socket at the bottom to secure the baby unit.
3.
4.
6
Getting started
Bundle the power cord neatly with the self-adhesive strap. Make sure to
keep the power adapter cord away from children’s reach.
5.
Baby unit installation options (continued)
7
Getting started
Option 2: Use this method so that you can relocate the baby unit with the wall
mount easily.
Place the wall mount on a wall and then use a pencil to mark the top and
the bottom holes as shown. Then remove the wall mount and drill two
holes in the wall (7/32” drill bit). Check for reception strength and camera
angle before drilling the holes.
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than a stud, insert the wall
anchors into the holes and tap gently on the ends with a hammer until the
wall anchors are flush with the wall.
1.
2.
Baby unit installation options (continued)
8
Getting started
Baby unit installation options (continued)
Insert the screws into the holes and tighten the screws until only 1/4 inch
of the screws are exposed.
Place the baby unit on the wall mount and tighten the screw into the
threaded socket at the bottom to secure the baby unit. Align the holes on
the wall mount with the screws on the wall and slide the wall mount down
until it locks into place.
3.
4.
9
Getting started
Baby unit installation options (continued)
Bundle the power cord neatly with the self-adhesive strap. Make sure to
keep the power adapter cord away from children’s reach.
5.
10
Getting started
Parent unit battery installation
You can power up the parent unit by connecting it to AC power or to the
rechargeable battery provided. Even if the parent unit is connected to
AC power, we recommend you also install the battery. This guarantees
continual operation in case of a power outage.

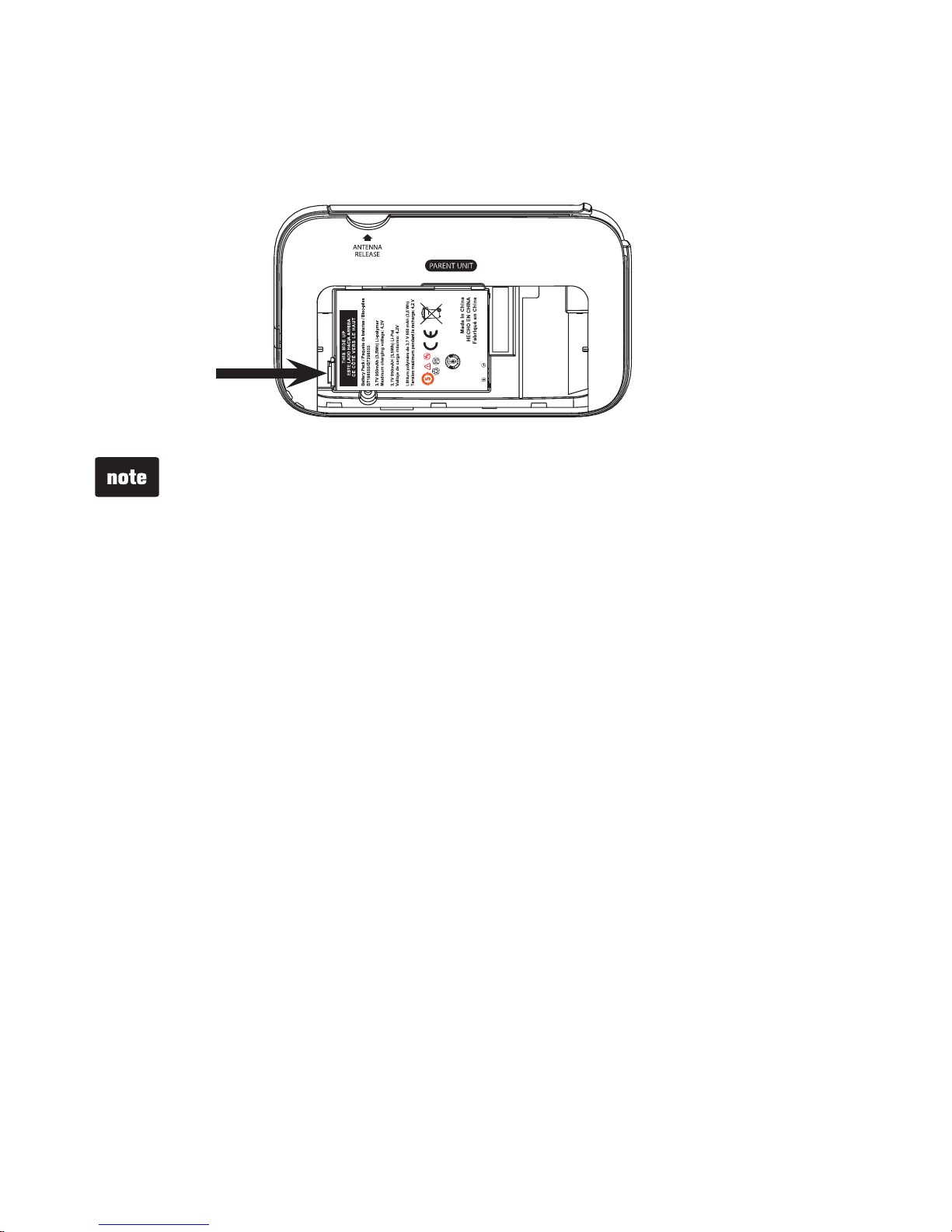

Install the battery as shown below.
With the label THIS SIDE UP facing up, insert the small tabs of the battery
into the slots inside the battery compartment. Make sure the metallic contact
is correctly oriented as shown below. Push the battery into the battery
compartment until it clicks securely into place.
Align the battery compartment cover flat against the battery compartment,
then slide it towards the center of the parent unit until it clicks into place.
1.
2.
Metallic
contact
Loading...
