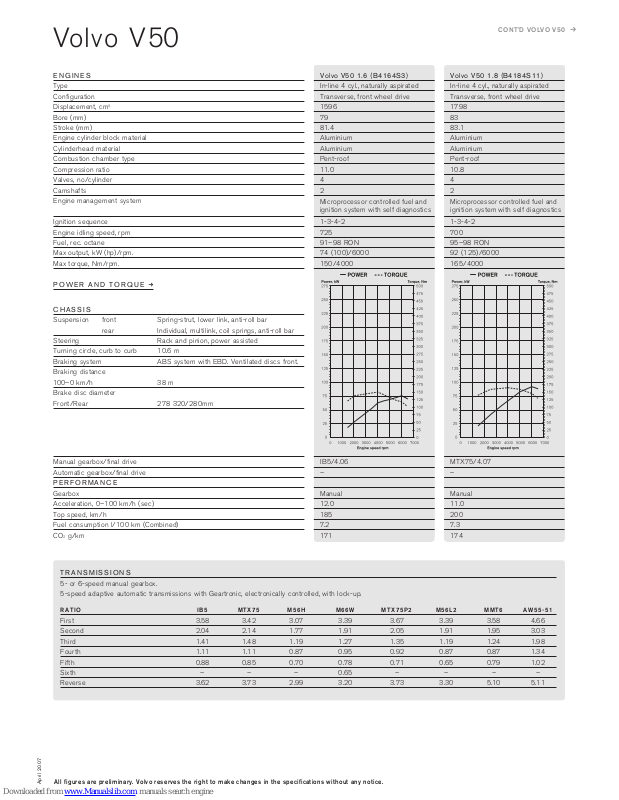

Volvo V50 User Manual

Apr il 2 007
E N G I N E S
Type Configuration Displacement, cm
3
Bore (mm) Stroke (mm) Engine cylinder block material Cylinderhead material Combustion chamber type Compression ratio Valves, no/cylinder Camshafts Engine management system
Ignition sequence Engine idling speed, rpm Fuel, rec. octane Max output, kW (hp)/rpm. Max torque, Nm/rpm.
P O W E R AN D T O R Q U E
R
Manual gearbox/final drive Automatic gearbox/final drive
P E R F O R M A N C E
Gearbox Acceleration, 0–100 km/h (sec) Top speed, km/h Fuel consumption l/100 km (Combined) CO2 g/km
C H A S S I S
Suspension front Spring-strut, lower link, anti-roll bar rear Individual, multilink, coil springs, anti-roll bar Steering Rack and pinion, power assisted Turning circle, curb to curb 10.6 m Braking system ABS system with EBD. Ventilated discs front. Braking distance 100–0 km/h 38 m Brake disc diameter Front/Rear 278 320/280mm
Volvo V50
Volvo V5 0 1.6 (B 416 4S3 )
In-line 4 cyl., naturally aspirated Transverse, front wheel drive 1596 79
81.4 Aluminium Aluminium Pent-roof
11.0 4 2
1-3-4-2 725 91–98 RON 74 (100)/6000 150/4000
IB5/4.06 –
Manual
12.0 185
7.2 171
Volvo V5 0 1.8 (B 418 4S1 1)
In-line 4 cyl., naturally aspirated Transverse, front wheel drive 1798 83
83.1 Aluminium Aluminium Pent-roof
10.8 4 2
1-3-4-2 700 95–98 RON 92 (125)/6000 165/4000
MTX75/4.07 –
Manual
11.0 200
7.3 174
Microprocessor controlled fuel and ignition system with self diagnostics
Microprocessor controlled fuel and ignition system with self diagnostics
T R A N S M I S S I O N S
5- or 6-speed manual gearbox. 5-speed adaptive automatic transmissions with Geartronic, electronically controlled, with lock-up.
RA TI O IB 5 MT X7 5 M5 6H M6 6W MT X7 5P 2 M5 6L 2 MM T6 AW 55 -5 1
First 3.58 3.42 3.07 3.39 3.67 3.39 3.58 4.66 Second 2.04 2.14 1.77 1.91 2.05 1.91 1.95 3.03 Third 1.41 1.48 1.19 1.27 1.35 1.19 1.24 1.98 Fourth 1.11 1.11 0.87 0.95 0.92 0.87 0.87 1.34 Fifth 0.88 0.85 0.70 0.78 0.71 0.65 0.79 1.02 Sixth 0.65 – Reverse 3.62 3.73 2.99 3.20 3.73 3.30 5.10 5.11
CON T’D VOLVO V 50 CON TD VOLVO V 50
All figures are preliminar y. Volvo reserv es the right t o m ake ch ang es in the s pecificati ons wi tho ut any notic e.
Apr il 2 007
M E A S U R E M E N T S AN D V O L U M E S
EX TE RI OR M EA SUR EM EN TS ( CM )
Length 452,2 Width 177.0 Height, curb 145.7 Wheelbase 264.0 Track, front, (15"/16"–17") 154.8/153,5 Track, rear, (15"/16"–17") 154.4/153,1 Ground clearance, curb 13.5 AWD 14.2
WE IG HT S/ MISC EL LAN EO US
Weight, curb, kg, (min–max, depending on model) 1254–1480 Fuel tank, l (min–max, depending on model) 52–62 Max. trailer weight, kg, (min–max, depending on model) 1200–1500 Max load, kg (options lower the cap.) 450 Max roof load, kg 75 Drag coefficient, Cd 0.32
IN TE RI OR M EA SUR EM EN TS ( CM )
Headroom with sunroof (front/rear) 96,9/96,8 Headroom without sunroof (front/rear) 98,8/96,8 Passenger compartment width at shoulder height (front/rear) 140.2/137.4 Leg room (front/rear) 105.7/87,3 Cargo volume, litres low floor high floor (ISO V211) 417 362 (ISO V212) 717 708 (ISO V214) 1307 1257 Cargo length (L203) 98,9 Cargo length with rear seat(s) folded down ISO (L202) 176,6 Load length with rear seat(s) and front passenger seat folded down 306,0
Height of luggage low floor high floor compartment (H201) 78,5 75.0
Cargo Floor low floor high floor Height to Ground (H502) 62,8 66.3 Rear opening height (H202) 68,5 Width of luggage compartment between wheelhouses (W201) 95,9 Rear opening width at floor, min. (W203) 100,2 Rear opening width above belt, min. (W205) 91,1 Rear opening maximum width 100,5
Volvo V5 0 2.4/140 ( B52 44S 5)
In-line 5 cyl., naturally aspirated Transverse, front wheel drive 2435 83 90 Aluminium Aluminium Pent-roof
10.3 4 2
1-2-4-5-3 720 91–98 RON 103 (140)/5000 220/4000
M56L/4.00 AW55-51/2.44
Manual Automatic
10.0 10.7 205 200
8.5 9.2 203 220
Volvo V5 0 2.4i/170 (B5 244 S4)
In-line 5 cyl., naturally aspirated Transverse, front wheel drive 2435 83 90 Aluminium Aluminium Pent-roof
10.3 4 2
1-2-4-5-3 720 91–98 RON 125 (170)/6000 230/4400
M56H/4.25 AW55-51/2.44
Manual Automatic
8.3 9.0 220 215
8.6 9.2 204 220
Microprocessor controlled fuel and ignition system with self diagnostics
Microprocessor controlled fuel and ignition system with self diagnostics
Volvo V5 0 T5 (B5 254 T7)
In-line 5 cyl., light press. turbo Transverse, front wheel drive 2521 83 93,2 Aluminium Aluminium Pent-roof
9.0 4 2
1-2-4-5-3 770 91–98 RON 169 (230)/5000 320/1500–5000
M66W/3.77 AW55-51/2.27
Manual Automatic
6.9 7.3 240 235
8.8 9.6 209 229
Volvo V5 0 T5 AWD (
B5254T7)
In-line 5 cyl., light press. turbo Transverse, all wheel drive 2521 83 93,2 Aluminium Aluminium Pent-roof
9.0 4 2
1-2-4-5-3 770 91–98 RON 169 (230)/5000 320/1500–5000
M66W/4.00 AW55-51/2.27
Manual Automatic
7.2 7.6 230 225
9.6 10.2 229 243
Microprocessor controlled fuel and ignition system with self diagnostics
Microprocessor controlled fuel and ignition system with self diagnostics
All figures are preliminar y. Volvo reserv es the right t o m ake ch ang es in the s pecificati ons wi tho ut any notic e.
