Volvo S40 2003 User Manual

2 0 0 3

VOLVO

S40 & V40

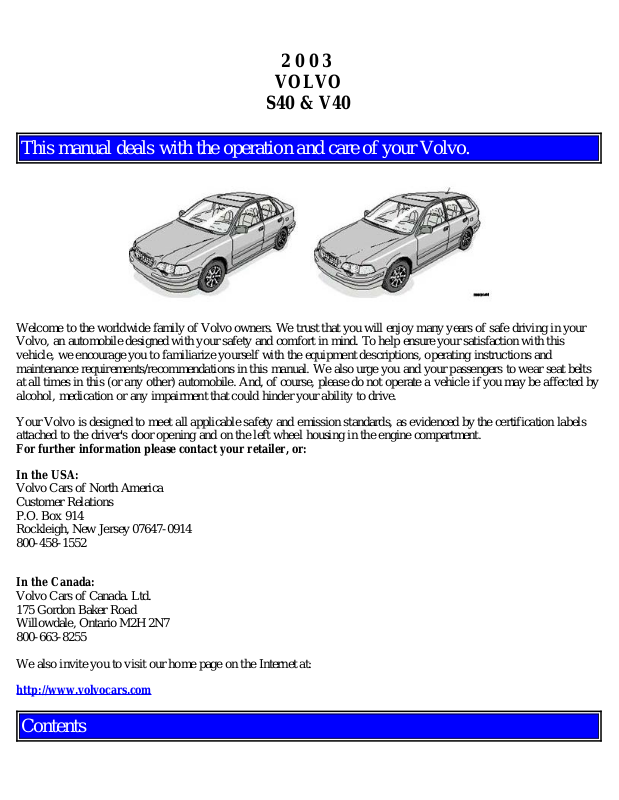

This manual deals with the operation and care of your Volvo.

Welcome to the worldwide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your ability to drive.

Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels attached to the driver's door opening and on the left wheel housing in the engine compartment.

For further information please contact your retailer, or: In the USA:

Volvo Cars of North America Customer Relations P.O. Box 914 Rockleigh, New Jersey 07647-0914 800-458-1552

In the Canada:

Volvo Cars of Canada. Ltd. 175 Gordon Baker Road Willowdale, Ontario M2H 2N7 800-663-8255

We also invite you to visit our home page on the Internet at:

http://www.volvocars.com

Contents

Chapter 1 - Occupant safety Chapter 2 - Instruments, switches and controls Chapter 3 - Body and interior Chapter 4 - Starting and driving Chapter 5 - Wheels and tires Chapter 6 - In case of an emergency Chapter 7 - Car care Chapter 8 - Volvo Service Chapter 9 - Specifications Chapter 10 - Audio systems Index Back Cover

General information

Important

Before you operate your car for the first time please familiarize yourself with the engine oil consumption information and refueling recommendations on pages 62 and 63. You should also be familiar with the information in the first four chapters of this manual.

Information contained in the balance of the manual is extremely useful and should be read after operating the vehicle for the first time.

The manual is structured so that it can be used for reference. For this reason, it should be kept in the car for ready access.

Do not export your Volvo to another country before investigating that country's applicable safety and exhaust emission requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada and other countries.

All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Please note that some vehicles may be equipped differently, depending on special legal requirements and that optional equipment described in this manual may not be available in all markets.

Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.

CALIFORNIA Proposition 65 Warning WARNING! Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals

known to the state of California to cause cancer, and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Shiftlock

When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front of the gear selector knob and move the selector from (P)ark.

If it is necessary to manually override the shiftlock system:

Turn the starting (ignition) key to position I Press firmly on the "SHIFTLOCK OVERRIDE" button located at the base of the gear selector While holding the override button down, press the button on the front of the gear selector Move the selector from the (P)ark position.

Keylock

When you switch off the ignition, the gear selector must be in the (P)ark position before the key can be removed.

Anti-lock Brake System (ABS)

The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 4 mph (6 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal.

Fuel filler door

When you lock the doors, the fuel filler door also locks, with a delay of 10 minutes. When all doors are unlocked, the fuel filler door is also unlocked. Your key, keyless remote, and the door lock button in the driver's door control pod will all unlock the fuel filler door. To open the unlocked fuel filler door, press at the forward edge of the door. See

pages 42 for information about locking and unlocking features.

Volvo and the environment

Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.

Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental

impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling are all important considerations.

In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates, naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991.

In use, Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system for all models as far back as the M/Y 1975 240. Advanced electronic engine controls, refined purification systems and cleaner fuels are bringing us closer to our goal.

After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of a car, which makes the car among the most recycled industrial products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling manuals, indicating the weight and material of individual components. For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50 grams) are marked with international symbols that indicate how the component is to be sorted for recycling.

In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles.

When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can:

Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with improperly inflated tires Follow the recommended maintenance schedule in your Warranty and Service Records Information booklet. Drive at a constant speed See an authorized Volvo retailer as soon as possible for inspection if the check engine (malfunction indicator) lamp

illuminates, or stays on after the vehicle has started

Properly dispose of any vehicle related waste such as used motor oil, used batteries, brake pads, etc. When cleaning your car, use Volvo's own car care products, all of which have systematically been adapted to the

environment For additional information regarding the environmental activities in which Volvo Cars of North America, LLC. and

Volvo Car Corporation are involved, visit our Internet Home Page at:

http://www.volvocars.com

Top of Page

2 0 0 3

VOLVO

S40 & V40

Chapter 1 - Occupant safety

pg. 1 Occupant safety

Occupant safety

Not wearing a seat belt is like believing "It'll never happen to me!" Volvo, the inventor of the three-point seat belt, urges you and all adult occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height. Volvo also believes no child should sit in the

front seat of a car and that no one under 4 feet 7 inches (140 cm) should ride as a passenger in the front seat of any vehicle equipped with a passenger side airbag.

Fact: In every state and province, some type of child-restraint legislation has been passed. Additionally, most states and provinces have already made it mandatory for occupants of a car to use seat belts.

So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my seat belt".

Seat belts 2

Volvo SRS 4

Side Impact Protection System - (SIPS) airbag 8

WHIPS 9

IC system 10

Child safety, Booster cushion 11

Child restraint anchorages 14

Reporting Safety Defects 16

pg. 2 Seat belts

Seat belts

Always fasten the seat belts before you drive or ride.

Two lights above the rear view mirror will be illuminated for 4-8 seconds after the starting (ignition) key is turned to the driving position. A chime will sound at the same time if the driver has not fastened his or her seat belt. The rear seats are provided with self-retracting inertial reel belts. The front seats are provided with single roller belts with tensioners.

To buckle:

Pull the belt out far enough to insert the latch plate into the buckle until a distinct snapping sound is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows:

if the belt is pulled out rapidly during braking and acceleration if the vehicle is leaning excessively when driving in turns

For the seat belt to provide maximum protection in the event of an accident, it must be worn correctly. When wearing the seat belt remember:

The belt should not be twisted or turned. The lap belt must be positioned low on the hips (not pressing against the abdomen). The shoulder section of the front seat belts adjusts automatically to the driver's height.

Adjusting the shoulder belt

Lap portion of the seat belt should sit low

Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut. Before exiting the car, check that the seat belt retracts fully after being unbuckled. If necessary, guide the belt back

into the retractor slot.

NOTE: Legislation in your state or province may mandate seat belt usage.

During pregnancy

Pregnant women should always wear seat belts. Remember that the belt should always be positioned in such a way as to avoid any possible pressure on the abdomen. The lap portion of the belt should be located low, as shown in the above illustration.

pg. 3 Seat belts, Head restraints

WARNING!

Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of position. Such use

could cause injury in the event of an accident.

As the seat belts lose much of their strength when exposed to violent stretching, they should be replaced after any

collision, even if they appear to be undamaged.

Never repair the belt on your own; have this work done by an authorized Volvo retailer only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a

detrimental effect on the amount of protection available to you in the event of a collision.

The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly. Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend

that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.

Rear head restraints

The rear head restraints can be adjusted according to the passenger's height. The restraint should be carefully adjusted

to support the occupant's head. The head restraint can be raised by pulling straight up or lowered by pressing the catch (1) at the base of the left head restraint support and pushing down.

Removing/replacing the head restraints

When folding the rear seats flat for carrying cargo (see page 55), head restraints should be fully removed by pulling all the way up, pressing the catch at base of the left support and pulling the head restraint all the way out. Be sure to reinstall and adjust head restraints to their proper position before allowing passengers to occupy the seats.

pg. 4 Volvo SRS

Passenger side SRS hatch

As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) on both the driver's and passenger's sides and seat belt tensioners in both front door pillars (4). The system is designed to supplement the protection provided by the three-point seat belt system.

The SRS system is indicated by the "SRS" embossed on the steering wheel pad and above the glove compartment, and by decals on both sun visors and on the far right side of the dash.

The airbags are folded and located in the steering wheel hub and above the glove compartment. They are designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The airbags may also deploy in certain non-frontal collisions where rapid deceleration occurs.

The airbag system includes inflators (1) surrounded by the airbags (2) and front seat belt tensioners for both of the front seats (4). To deploy the system, the sensor (3) activates the gas generators causing the airbags to be inflated with nitrogen gas. As the movement of the seats' occupants compresses the airbags, some of the gas is expelled at a controlled rate to provide better cushioning. Both seat belt tensioners also deploy, minimizing any seat belt slack.

The entire process, including inflation and deflation of the airbags, takes approximately two-tenths of a second.

WARNING!

As its name implies, SRS is designed to be a SUPPLEMENT to - not a replacement for - the three-point belt system. For maximum protection, wear seat belts at all times. Be aware that no system can prevent all possible injuries that may occur in an accident.

When installing any optional equipment, make sure that the SRS system is not damaged. Do not attempt to service any component of the SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your car to the nearest authorized Volvo retailer for inspection as soon as possible.

pg. 5 Volvo SRS

A self-diagnostic system incorporated into the sensor monitors the SRS, SIPS and IC-system. If a fault is detected, the "SRS" warning light will illuminate. The light is included in the warning/indicator light cluster in the instrument panel. Normally, the SRS warning lamp should light up when the ignition is switched on and should go out after 5 seconds or when the engine is started. Check that this light is functioning properly every time the car is started.

The following items are monitored by the self-diagnostic system:

Sensor unit SRS wiring Inflators

WARNING!

Never drive an SRS equipped car with your hands on the steering wheel pad / airbag housing. No objects, accessory equipment or stickers may be placed on, attached to or installed near the SRS cover in the

center of the steering wheel, the SRS cover above the glove compartment or the area affected by airbag deployment. If the SRS warning light stays on after the engine has started or if it comes on while you are driving, drive the car to

the nearest authorized Volvo retailer for inspection as soon as possible.

SRS decal on door pillar driver's side

There is no maintenance to perform on the SRS yourself. The month and year shown on the decal on the door pillar indicate when you should contact your Volvo retailer for specific servicing or replacement of airbags and seatbelt tensioners. This service must be performed by an authorized Volvo retailer.

Should you have any questions about the SRS system, please contact your authorized Volvo retailer or Volvo Customer Support:

In the USA: In Canada: Volvo Cars of North America Volvo Cars of Canada Ltd. Customer Relations 175 Gordon Baker Road P.O. Box 914 Willowdale, Ontario M2H 2N7 Rockleigh, New Jersey 07647-0914 1-800-663-8255 800-458-1552

pg. 6 Volvo SRS

SRS texts on outside of both sun visors

WARNING!

Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.

NOTE: Deployment of SRS components occurs only one time during an accident. In a collision where deployment occurs, the airbags and seat belt tensioners activate. Some noise occurs and a small amount of powder is released. The release of the powder may appear as smoke-like matter. This is a normal characteristic and does not indicate fire.

NOTE: Volvo's dual-threshold airbags use special sensors that are integrated with the front seat buckles. The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as, the severity of the collision. Collisions can occur where only one of the airbags deploys.

SRS texts on inside of both sun visors

SRS texts on the passenger's dash

SRS text at far right of dash

WARNING!

The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to

Children must never be allowed in the front passenger seat. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a front passenger side airbag.

Occupants in the front passenger's seat must never sit on the edge of the seat, sit leaning toward the instrument panel or otherwise sit out of position. The occupant's back must be as upright as comfort allows and be against the seat back with the seat belt properly fastened.

Feet must be on the floor, e.g. not on the dash, seat or out of the window.

No objects or accessory equipment, e.g. dash covers, may be placed on, attached to or installed near the SRS hatch (the area above the glove compartment) or the area affected by airbag deployment (see illustration on page 4).

There should be no loose articles, e.g. coffee cups, on the floor, seat or dash area.

Never try to open the SRS cover on the steering wheel or the passenger side SRS seam. This should only be done by an authorized Volvo service technician.

Failure to follow these instructions can result in injury to the vehicle occupants in an accident.

pg. 7 Volvo SRS

NOTE: The information on this page does not pertain to the Side Impact Protection System airbags.

When are the airbags deployed?

The SRS system is designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The SRS sensor is designed to react to both the impact of the collision and the inertial forces generated by it and to determine if the intensity of the collision is sufficient for the airbags to be deployed.

WARNING!

The SRS is designed to help prevent serious injury. Deployment occurs very quickly and with considerable force. During normal deployment and depending on variables such as seating position, one may experience abrasions, bruises, swellings, or other injuries as a result of airbag deployment.

If the airbags have been deployed, we recommend the following:

Have the car towed to an authorized Volvo retailer. Never drive with the airbags deployed. Have an authorized Volvo retailer replace the SRS system components. Use only new, Genuine Volvo Parts when replacing SRS components (airbags, seat belts, tensioners, etc.).

When are the airbags NOT deployed?

Not all frontal collisions activate the SRS system. If the collision involves a non-rigid object (e.g., a snow drift or bush), or a rigid, fixed object at a low speed, the SRS system will not necessarily deploy. Front airbags do not normally deploy in a side impact collision, in a collision from the rear or in a rollover situation. The amount of damage to the bodywork does not reliably indicate if the airbags should have deployed or not.

Seat belts - the heart of the Volvo safety system

provide the protection intended, seat belts must be worn at all times by everyone in the car.

The SRS system is a supplement to the seat belts.

WARNING!

If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor of the vehicle) or if your car has become flood-damaged in any way, do not attempt to start the vehicle or put the key in the ignition before disconnecting the battery (see below). This may cause airbag deployment which could result in personal injury. Have the car towed to an authorized Volvo retailer for repairs.

Before attempting to tow the car, use the following procedure to override the shiftlock system to move the gear selector to the neutral position.

Disconnect the battery

Wait at least one minute

Insert the key in the ignition and turn it to position 1

Press firmly on the shiftlock override button (located near the base of the gear selector)

While holding the override button down, move the gear selector from the park position.

WARNING!

Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of prolonged exposure.

Contents | Top of Page

2 0 0 3

VOLVO

S40 & V40

Chapter 2 - Instruments, switches and controls

pg. 17 Instruments, switches and controls

Instruments, switches and controls

Instruments, switches, controls etc. are described on the following pages.

Instruments

Indicator and warning lights 21

Headlights, Parking lights, Instrument illumination, Fog lights 24

Turn signals, Home Safe lighting, Wipers/washers 25

Ignition switch/steering wheel lock, Flashers, Heated rear window/mirrors 26

Trip Computer 27

Dynamic Stability Assistance 30

Cruise control 31 Heated seats, Parking brake 32 Auxiliary socket, Cupholder 33

Steering wheel adjustment 34

Heating, Ventilation and Air Conditioning 35

Electrically operated windows 38

pg. 18 Instruments, switches and controls

pg. 19 Instruments, switches and controls

The pages in this section provide detailed descriptions of the vehicle's instruments and controls. Note that vehicles may be equipped differently, depending on special legal requirements.

Page 1 Adjustable door mirrors 50 2 Air vents 35 3 Headlight switch 24 4 Front foglight 24 5 Instrument lighting 24 6 Rear foglight 24 7 Turn signals, high/low beams, Home Safe Lighting, cruise control 25, 31 8 Instruments, indicator and warning lights 20-21 9 Horn 10 Windshield wash/wipe, headlight wash/wipe 25 11 Blower control 36 12 Air distribution control 36 13 Hazard warning flashers 26 14 Passenger compartment temperature sensor 36 15 Temperature control 36 16 Glove compartment 45 17 Passenger airbag 4 18 Sunlight sensor for electronic climate control and LED for immobilizer and alarm 37, 44 19 Fuse box 96-97

20 Hood latch 53

21 Steering wheel height adjustment 34

2 Coolant temperature warning light

22 12-volt electrical outlet 33 23 AC on and off 36 24 Trip Computer 27 25 Coin holder 33 26 Recirculation 36-37 27 Cupholder 33 28 Defroster - door mirrors/rear window 26 29 Not in use 30 Dynamic Stability Assistance (DSA) 30 31 Controls for heated front seats 32 32 Switch for selecting door mirror left and right 50 33 Control for adjusting door mirrors 50 34 Door lock switch 42 35 Window left and right front 38 36 Window left and right rear 38 37 Cut-out switch windows rear 38

Some of the items listed on this page are available on certain models only.

pg. 20 Instruments

1 Coolant temperature gauge Do not drive the car with the pointer in the red range. The pointer should be approximately midway on the gauge

face when driving. If the pointer approaches the red range repeatedly, check coolant level. See page 117.

If this light comes on while driving, the coolant temperature is too high. Stop the engine and check the coolant level in

the expansion tank. See page 117.

3 Odometer 4 Speedometer

The longer the knob is turned, the faster the setting will change. 5 Trip odometer

This indicator measures shorter distances. The last digit indicates 1/10 mile/kilometer. 6 Button for setting clock/resetting trip odometer

In both cases, the ignition must be switched on

Clock: Without pressing the button, turn it clockwise to advance the clock, or counterclockwise to set the clock back. Trip odometer: Press the button to reset the trip odometer.

7 Tachometer

Reads thousands of engine rpm. The needle should never be in the solid red range.

8 Clock, Trip Computer/Ambient temperature NOTE: See page 27- 29 for information on the trip computer. 9 Low fuel level warning light

When this light comes on, there are approximately 1.9 US gal. (7 liters) of fuel remaining in the tank. 10 Fuel gauge

Fuel tank capacity: 16 US gallons (60 liters). When refuelling the fuel gauge needle will not register until the volume of gasoline in the tank exceeds 3.2 US gal. (12 liters).

pg. 21 Indicator and warning lights

1 Turn signal, left 2 Turn signal, right 3 Low washer fluid level 4 Brake light* failure warning 5 Turn signals - trailer (certain models) 6 Front fog lights on 7 Door open 8 Rear fog light on 9 Seat belt warning

10 High beams on

11 Fault in SRS system 12 Brake circuit not working (brake fluid level too low) and EBD 13 Battery charge failure 14 Parking brake applied 15 Low oil pressure 16 ABS (anti-lock brakes) malfunction 17 Automatic transmission: position W, 4 or 3 or L 18 Malfunction indicator light 19 Immobilizer on 20 Service Reminder Indicator 21 DSA (option) 22 High coolant temperature warning light 23 Low fuel warning light

Starting check After a few seconds, all lights except 16 and 19 will go out. Once the engine starts, these lights will also go out.

* Indicates failure of a brake light, not failure of the braking system (see item 12).

pg. 22 Warning lights

The warning lights described on pages 22 and 23 should never stay on when driving

When the ignition key is turned on and before the engine starts, all of the warning lights should go on to test the function of the bulbs. Should a light not go off after the engine has started, the system indicated should be inspected. However, the parking brake reminder light will not go off until the parking brake has been fully released.

Supplemental Restraint System (SRS)

If the light comes on (or stays on after the vehicle has started), the SRS diagnostic system has detected a fault. Drive to an authorized Volvo retailer for an inspection of the system. See the SRS section for more information.

Oil pressure warning light

If the light comes on while driving, stop the car and then stop the engine immediately and check the engine oil level. See page 114. If the light stays on after restart, have the car towed to the nearest authorized Volvo retailer. After

hard driving, the light may come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.

Parking brake reminder light

This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated between the front seats.

Canadian models are equipped with this warning light:

WARNING!

If the fluid level is below the lowest MIN mark in the brake fluid reservoir: DO NOT DRIVE. Tow the car to a Volvo retailer and have the brake system checked and any leakage repaired.

Brake failure warning light

If the light comes on while driving or braking, stop immediately, open the hood and check the brake fluid level

in the reservoir. See page 116 for reservoir position.

If the control lamp still stays on, the EBD (Electronic Brakeforce Distribution) is not working. Drive to your Volvo retailer. See ABS control lamp and also page 73. Canadian models are equipped with this warning light:

Bulb failure warning light

The light will come on if one of the brake light bulbs are defective when the brake pedal is pressed. Check the fuse and bulb. See sections "Replacing bulbs" and "fuses".

pg. 23 Warning lights, Daytime Running Lights

DSA (option)

Dynamic Stability Assistance

This is a system which helps keep the drive wheels from spinning. The light flashes if the road surface is slippery, the wheels are spinning and the system is working. The control light comes on if a fault occurs in the DSA system. It also comes on if the system is switched off via the switch. For more information see page 30.

Service Reminder Light

This light will come on according to preset service intervals or after 750 hours of driving or after 12 months, whichever occurs first. It is a reminder to the driver that the service interval has been exceeded. The light will stay on for 2 minutes after start until reset by the servicing retailer.

Anti-lock Brake system (ABS)

If the warning lamp lights up there is a malfunction of the ABS system (the standard braking system will however function). The vehicle should be driven to a Volvo retailer for inspection. See page 73

Malfunction Indicator Lamp

On-Board Diagnostics II (OBDII): As you drive, a computer called "OBDII" monitors your car's engine,

transmission, electrical and emission systems. The CHECK ENGINE light will light up if the computer senses a condition that potentially may need correcting. When this happens, please have your car checked by a Volvo retailer as soon as possible. A CHECK ENGINE light may have many causes. Sometimes, you may not notice a change in your car's behavior. Even so, an uncorrected condition could hurt fuel economy, emission cleanliness, and driveability. Extended driving without correcting the cause could even damage other components in your car.

for additional information.

Canadian models are equipped with this warning light:

NOTE: If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Check Engine Lamp may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps.

Daytime Running Lights:

The S40 and V40 come from the factory with daytime running lights activated. Carry out the following steps if you

will deactivate them (in the U.S. only *). These steps may be carried out again to reactivate and deactivate the daytime running lights as desired.

Programming for On or OFF

Turn the headlight switch to position Turn the ignition key in position II. Pull the turn signal lever towards you and hold it while turning the headlight switch to position 0.

WARNING!

Do not activate or deactivate the daytime running lights while driving. Laws in your area may mandate the use of daytime running lights. Check your local laws before deactivating daytime running lights.

* The use of daytime running lights is mandatory in Canada.

pg. 24 Headlights, Parking lights, Instrument illumination, Fog lights

A Headlights and parking lights

0 Switch position

Ignition key in positions 0+I: All lights switched off. Ignition key in position II:

Low beam headlights on (+ front and rear parking lights, license plate light and instrument lighting).

Switch position Parking lights front and rear. Ignition key in positions 0, I and II

Parking lights should only be used when the car is parked, never when the car is being driven. It also switches on the position lights in bumpers, and license plate light (and the instrument lights in position II).

Switch position Ignition key in positions 0 and I: All lights off. Ignition key in position II: Headlights on (+ parking lights front and rear, license plate light, position lights in

the bumpers and instrument lights).

Note: You have to turn the light switch to this position in order to switch on high beams. B Instrument lighting dimmer

Instrument lighting can be dimmed to 6% of maximum lighting.

C Rear fog light * The rear fog light (located in the driver's side tail light cluster) is considerably brighter than the normal tail lights and should be used only when the atmospheric conditions, such as fog, rain, snow, smoke or dust reduce the daytime or night-time visibility of other vehicles to less than 500 ft (150 meters).

- Rear fog light: press

D Front Fog lights Ignition key must always be in position II.

Headlight or parking lights must be activated

- Front fog lights (option): press Switching fog lights off

To switch the fog lights off, press the appropriate fog light switch again. If headlights or parking lights are switched off, the fog lights will also go out. The fog lights are also switched off when the ignition is switched off and must be switched back on manually if required when the ignition is switched on again.

The front fog lights switch off automatically when the high beams are switched on.

* By design, there is one rear fog light only, located in the driver's side tail light cluster.

- headlights or front fog lights must be activated

pg. 25 Turn signals, Home Safe lighting, Wipers/washers

Turn signals Wipers/washers

Turn signals

1 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn

signal lever to the first stop and holding it there. The lever will return to the neutral position when released.

2 Signal lever engaged for normal turns. 3 High beam/low beam switch (headlights on).

Move the lever towards the steering wheel and release it. 4 Headlight flasher (headlights off).

Move the lever towards the steering wheel. The headlight high beam will be on until the lever is released.

NOTE: A defective turn signal bulb will cause the turn signal indicator and remaining signal lights to flash more

rapidly than normal. Home Safe lighting

When you leave your car at night, you can make use of the exterior courtesy lighting function:

Remove the key from the ignition switch. Pull the turn signal lever towards the steering wheel (as when using the headlight flasher function).

The low beam headlights will now remain on for 30 seconds to light your way. Repeat the above measures if you want to switch off the Home Safe Lighting.

Wipers/washers 1 "Single sweep" position:

The switch returns automatically when released. 2 Intermittent wiper

The wipers will sweep approximately every 5 seconds (car speed depending).

3 Wipers, normal speed 4 Wipers, high speed 5 Windshield wiper/washer, headlight wiper/washer.

The wipers will make 2-3 sweeps across the windshield and headlights and 1 additional sweep after 3 seconds.

6 Tailgate window wiper (V40)

The tailgate wiper switch has three positions:

: Intermittent

O : Off

: Continuous

Tip function When pressing switch 7 briefly the wiper will make one sweep, independent of the interval Backing up When the vehicle is put into reverse with the windshield wipers on and tailgate wiper off, the rear window

wiper will come on for two sweeps. 7 Tailgate window washer (V40)

The washer keeps working for as long as you keep the button depressed. The wiper will make 2-3 sweeps after the lever is released and 1 sweep after 3 seconds.

Contents | Top of Page

2 0 0 3

VOLVO

S40 & V40

Chapter 3 - Body and interior

pg. 39 Body and interior

Body and interior

The seats, sun roof, mirrors, etc. are described on the following pages.

Keys

Remote keyless entry system 41

Doors and locks 42

Alarm 43

Trunk/Tailgate/Glove compartment 45

Opening the trunk from the inside (S40) 46

Front seats 47

Child safety locks 49

Rear/side view mirrors/Vanity mirrors 50

Interior lights, Sunroof 51

Sunroof 52

Hood/Luggage cover 53

Storage compartments 54

Folding rear seat 55

Securing cargo 56

Cargo space/Trunk light, Spare tire, Jack 57

Side cargo net, Cargo net 58

Weight distribution, Handling, Roadholding, Roof racks 59

pg. 40 Keys

Key

Your car is equipped with a remote control transmitter. This transmitter uses a radio frequency which will allow

The master key is integrated into the remote keyless entry system's remote control.

To fold out the key, press the button indicated by the downward pointing arrow in the illustration above.

To retract the key, press the button and fold the key into the slot in the remote control. The key activates all locks (ignition switch/steering wheel lock, all doors, fuel filler door, trunk/tailgate), and locks/unlocks the glove compartment.

Service Key (Valet key) This key (grey in color) activates only ignition switch/steering wheel lock and all doors, including the fuel filler door.

Immobilizer (start inhibitor) Each of the keys supplied with your car is electronically coded. When the key is inserted into the ignition switch, the code is transmitted to and compared with a code stored in the start inhibitor module. The car can only be started if a properly coded key is used. If you misplace a key, take the other keys to an authorized Volvo retailer. The existing code in the start inhibitor module and all the keys will be erased as an anti-theft measure and a new code will be programmed in.

NOTE: You should never keep more than one of your ignition keys on the ring at the same time. This could cause conflicting signals to be transmitted to the ignition switch, making it impossible to start the car.

This device complies with part 15 of the FCC rules. Operation is subject to the following condition: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

pg. 41 Remote keyless entry system

1 - Lock, 2-Unlock, 3-Open trunk/tailgate, 4-Panic button*

Remote keyless entry system

"keyless" entry into the passenger compartment or the trunk. You will be supplied with two coded key ring

transmitters, which will enable you to lock/unlock all doors and the trunk/tailgate and fuel filler door from a distance of 10-15 feet (3-5 meters). The Remote also activates/deactivates the alarm system that comes standard with this car.

The car can also be locked/unlocked with the key.

Using the remote control

Press the LOCK button once to lock all doors and trunk/tailgate.

Press the UNLOCK button once to unlock the driver's door and the fuel filler door only. Press this button again (within 10 seconds) to unlock other doors, trunk/tailgate.

Press the OPEN trunk/tailgate button to unlock the tailgate/trunk. NOTE: If only the driver's door is unlocked, the lock will automatically reengage (re-lock) and the alarm will be set

after 2 minutes unless the door has been opened. The lock/unlock and alarm features can also be utilized by using the keys. See the following page.

Remote control not functioning. If the remote control is not functioning, the car can be opened using the master or service key in the driver's door.

Note: The remote control will not function if a key is left in the ignition switch.

WARNING!

Volvo does not recommend using the transmitter to lock the doors from inside the car. The alarm would be activated and would sound when one of the doors is opened. The doors must not be locked using the remote transmitter while the vehicle is occupied. In case of an accident, this may hinder rapid access to the occupants of the vehicle.

*Panic function In an emergency situation, this feature can be used to attract attention, if you are within 10-15 feet (3-5) meters of the car. Activate the "panic" function by pressing the red panic button on the remote control for at least 3 seconds or by pressing this button twice within 3 seconds. The turn signals will flash, the interior lights will go on and the alarm will sound.

The "panic" alarm can be turned off after 5 seconds by pressing any of the buttons on the remote control or it will stop automatically after 25 seconds.

NOTE: The panic button will NOT unlock the car.

pg. 42 Doors and locks

Doors and locks Your car is equipped with a central locking system. The key (used on the driver's door) the remote control, or central locking button, will lock/unlock all doors, trunk/tailgate.

Turn the key once to unlock the driver's door and the fuel filler door.

Turn the key again within 10 seconds to unlock other doors, trunk/tailgate.

One turn with the key towards "lock" in the driver's door locks all doors, trunk/tailgate and fuel filler door with a 10 minutes delay in the fuel filler door.

WARNING!

If the doors are locked while driving, this may hinder rapid access to the occupants of the car in the event of an accident. (Also see information on "Child safety locks").

Central locking button

Central locking switch

You can use the button to lock or unlock all doors (unlock only for 25 seconds after locking by remote). LEFT side of button: lock RIGHT side of button: unlock

Note: If the key is in the ignition switch and you close the driver's door, the driver's door will be immediately unlocked again in order to prevent accidentally locking the car with the keys left inside the car.

pg. 43 Alarm

Alarm

The radio signal emitted from the transmitter, which is used to set/unset the alarm, is a "rolling code" signal. This means that the signal is changed randomly for each transmission and is intended to help prevent unauthorized recording of the code. When armed (set), the alarm continuously monitors a number of points on the car. The following conditions will set off the alarm:

The hood is opened

The trunk/tailgate is opened

A door is opened

The ignition switch is tampered with The alarm will sound for 30 second intervals, with a 10 second pause between intervals. This function cannot be interrupted.

If the battery or the siren are disconnected, the alarm will sound for five minutes Arming (setting) the alarm

The alarm can be armed in the following ways:

Press the LOCK button on the remote control (the turn signals will flash to confirm that the car is locked and the

alarm is armed)

Lock the car using the key in the driver's door (the LED on the dashboard will blink to indicate that the alarm is armed)

Disarming the alarm Press the UNLOCK button on the remote control or unlock the driver's door with the key.

Turning off (stopping) the alarm If the alarm is sounding, it can be stopped by pressing the UNLOCK button on the remote control or by unlocking the driver's door with the key.

Visual alarm signal If the alarm is set off, a visual alarm signal is given by flashing all turn signals and turning on the interior lighting for approximately 5 minutes.

Audible alarm signal If the alarm is set off, an audible alarm signal is given by the backup siren. One alarm cycle lasts for 30 seconds.

pg. 44 Alarm

LED alarm status signals The status of the alarm system is indicated by the red LED at the right side of the dash:

LED off - the alarm is not armed (set)

LED flashes once per second - the alarm is armed (set)

LED flashes rapidly before the ignition is switched on - the alarm has been triggered

LED flashes rapidly for 15 seconds after the ignition has been switched on - a fault has been detected in the alarm system. Contact a Volvo retailer.

Automatic relock If only the driver's door is unlocked with the remote control, the lock will automatically reengage (re-lock) and the alarm will be set after 2 minutes unless the door has been opened.

CAUTION: Do not attempt to service or repair any components of the alarm system yourself. This should only be done by an authorized Volvo retailer.

Battery Each remote transmitter is powered by a three-volt battery, type CR 2025. If the range of the transmitter is noticeably reduced, this indicates that the battery is weak and should be replaced.

+ 59 hidden pages
