Volvo C70 2008 User Manual

WEB EDITION
VOLVO C70
owner’s manual
Dear Volvo owner
THANK YOU FOR CHOOSING VOLVO
We hope that you will enjoy many years of driving pleasure in your Volvo. The car has been designed for the safety and comfort of you and your passengers. Volvo is one of the safest cars in the world. Your Volvo has also been designed to satisfy all current safety and environmental requirements.
In order to increase your enjoyment of the car, we recommend that you familiarise yourself with the equipment, instructions and maintenance information contained in this owner’s manual.
Contents
00 Introduction
Introduction ........................................6
Volvo Car Corporation and the
environment ........................................7
01 Safety
Seatbelts .......................................... 12
Airbag system .................................. 15
Airbags (SRS) ................................... 16
Activating/deactivating the
airbag (SRS) ..................................... 18
Side airbags (SIPS bags) .................. 20
Inflatable Curtain (IC) ....................... 22
WHIPS .............................................. 23
Roll-Over Protection System
(ROPS) .............................................. 25
When the systems deploy ................ 26
Crash mode ...................................... 27

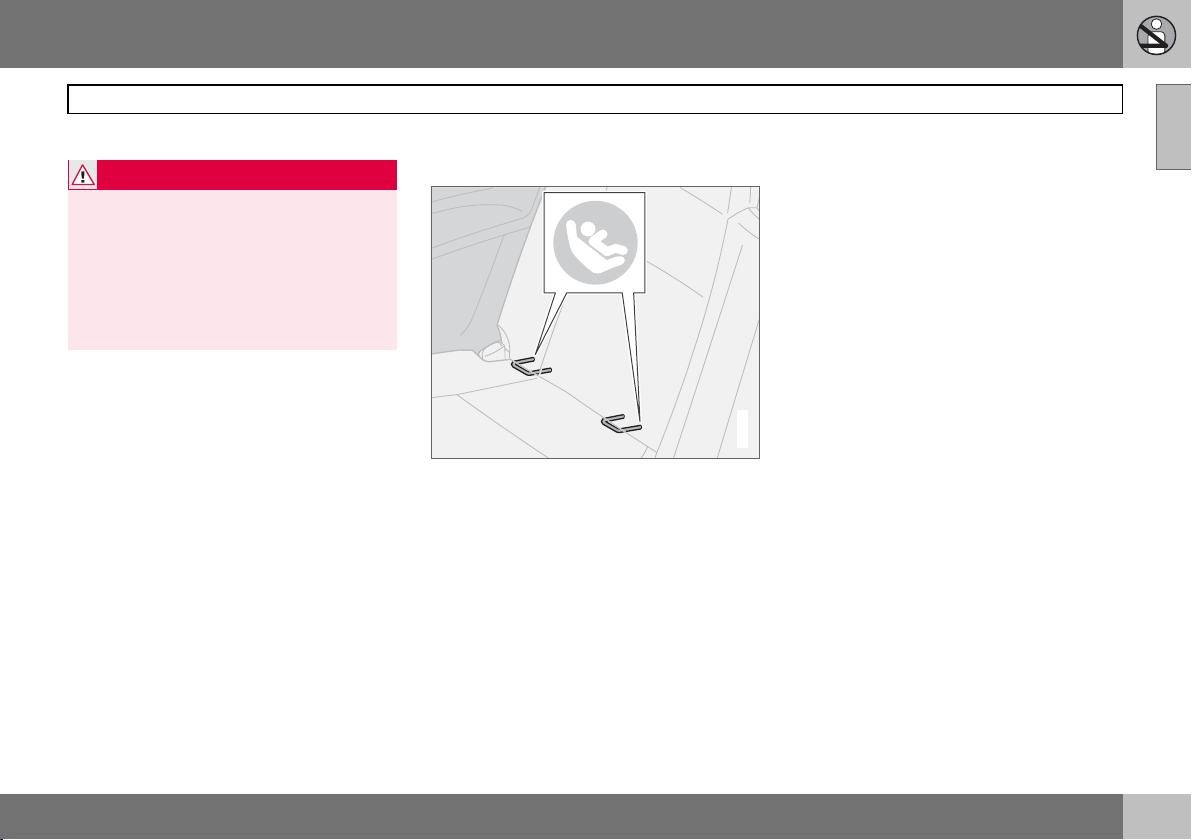

Child safety ...................................... 28
02 Instruments and controls
Overview, left-hand drive car ............34

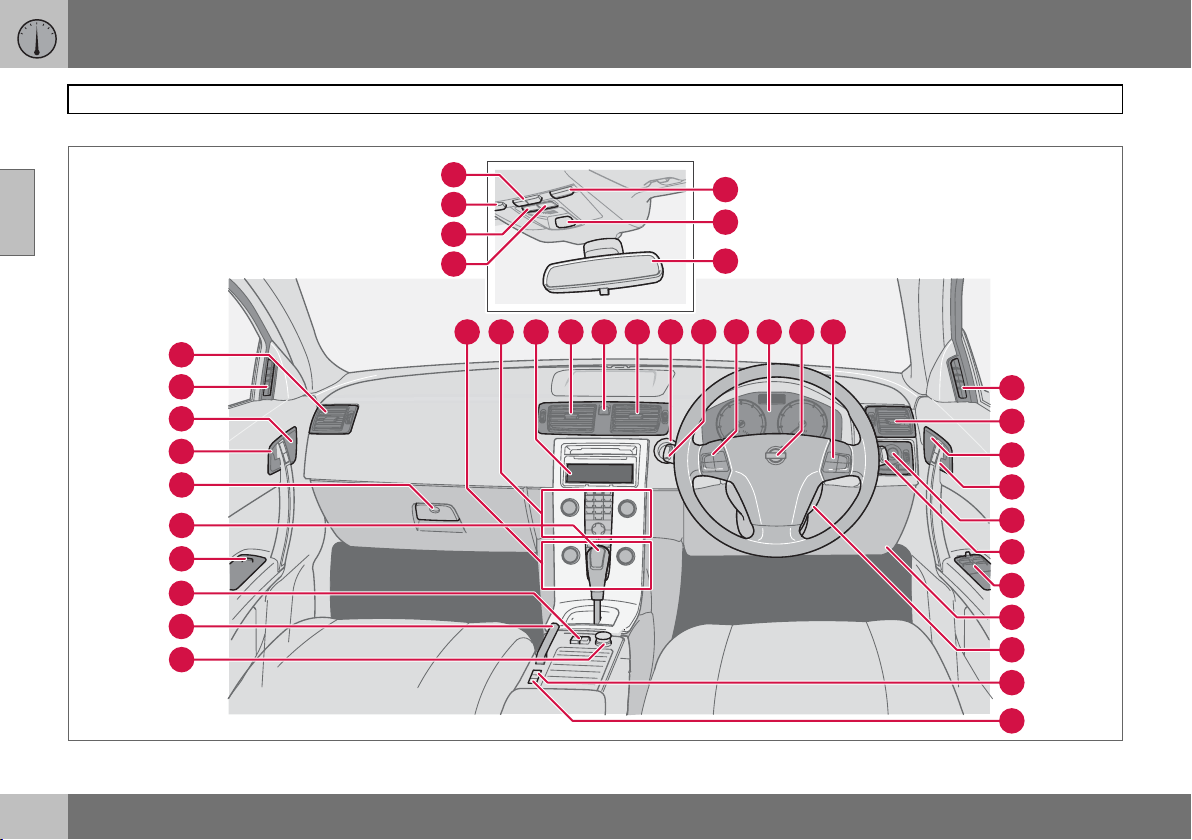

Overview, right-hand drive car ..........36

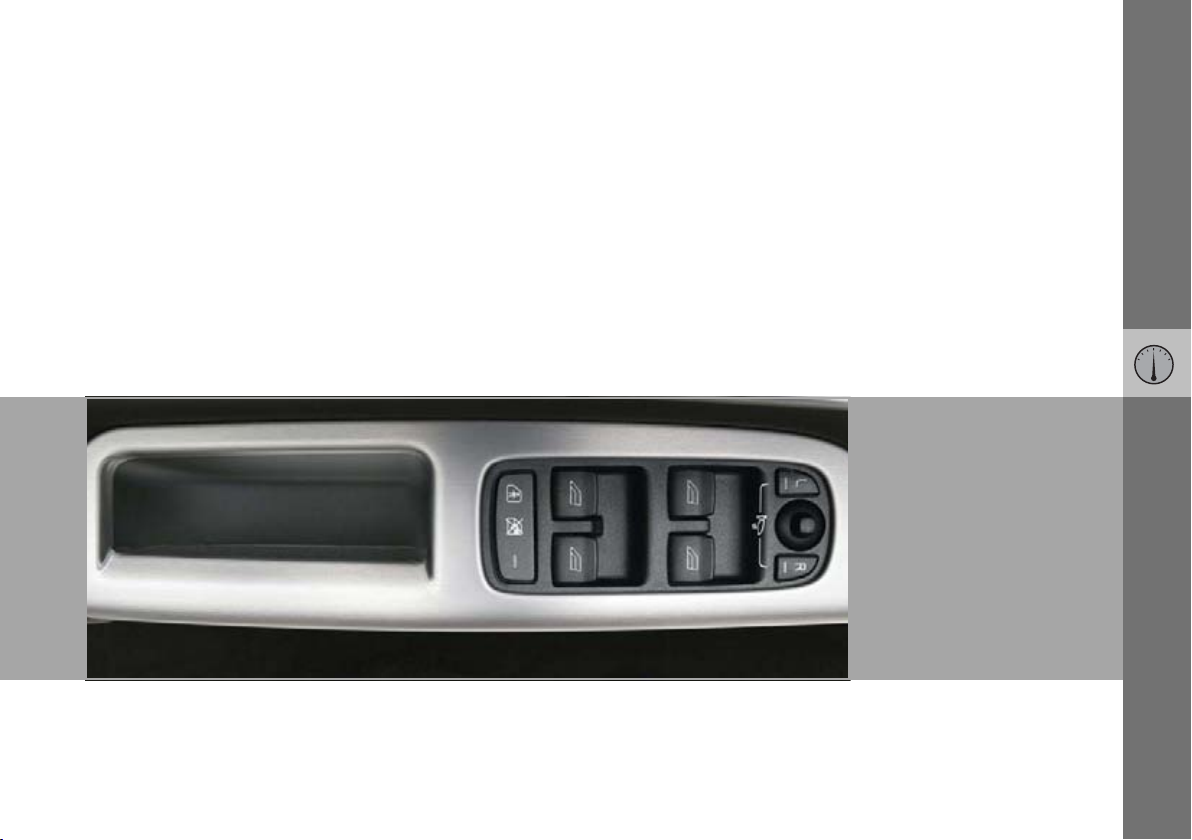

Driver’s door control panel ...............38

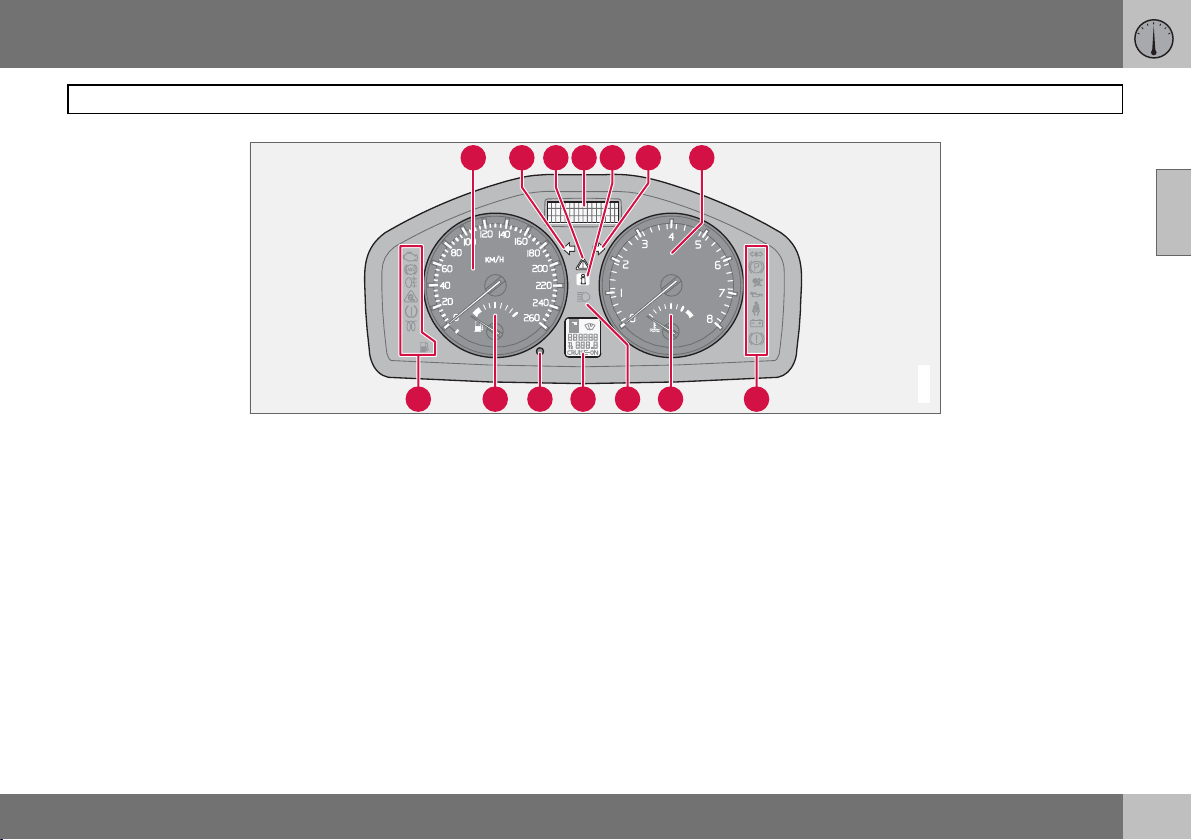

Combined instrument panel .............39

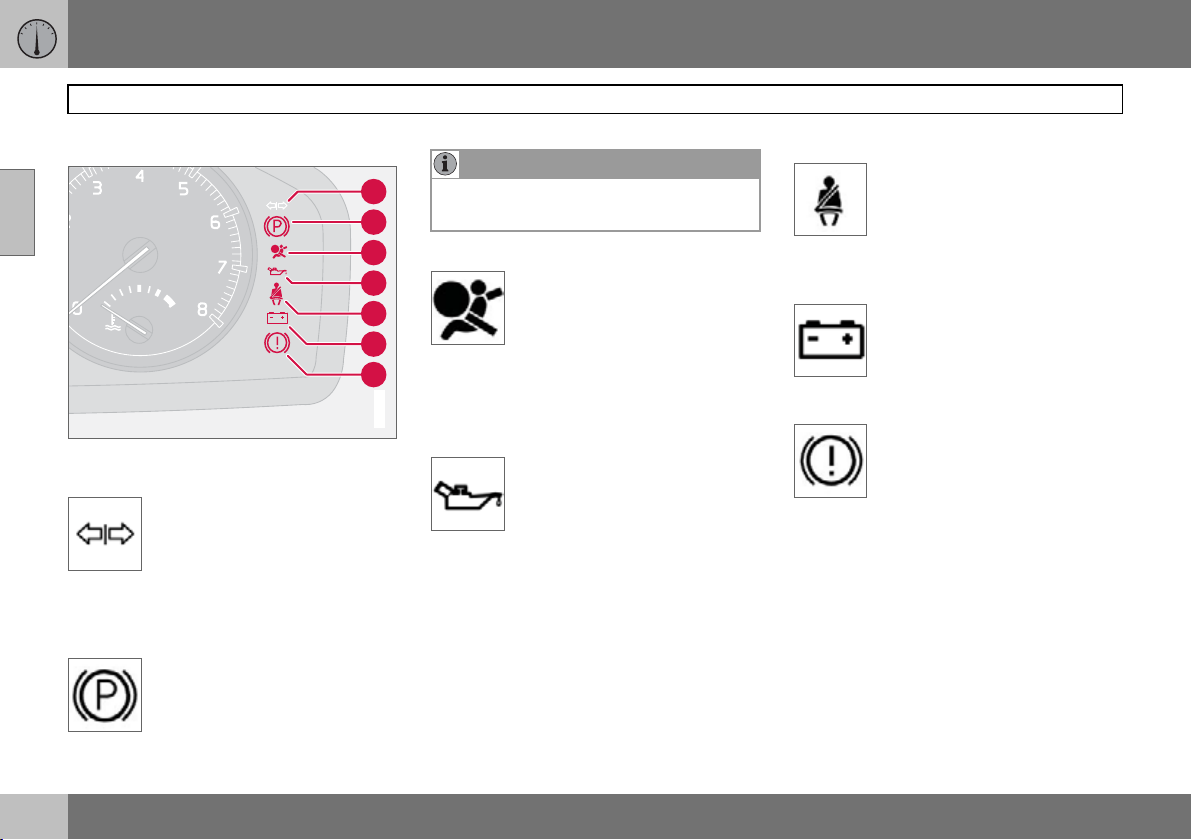

Indicator and warning symbols .........40
Information display ...........................44
Electrical socket ................................45
Lighting panel ...................................46

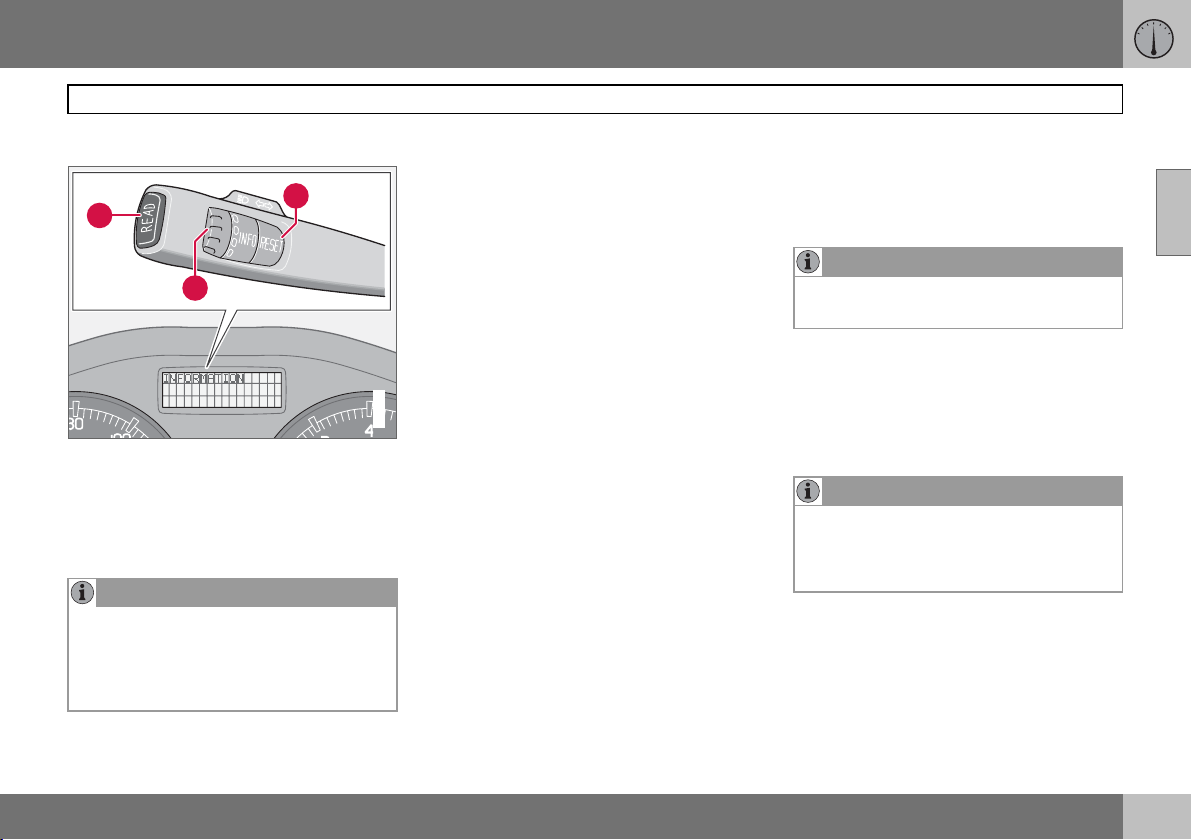

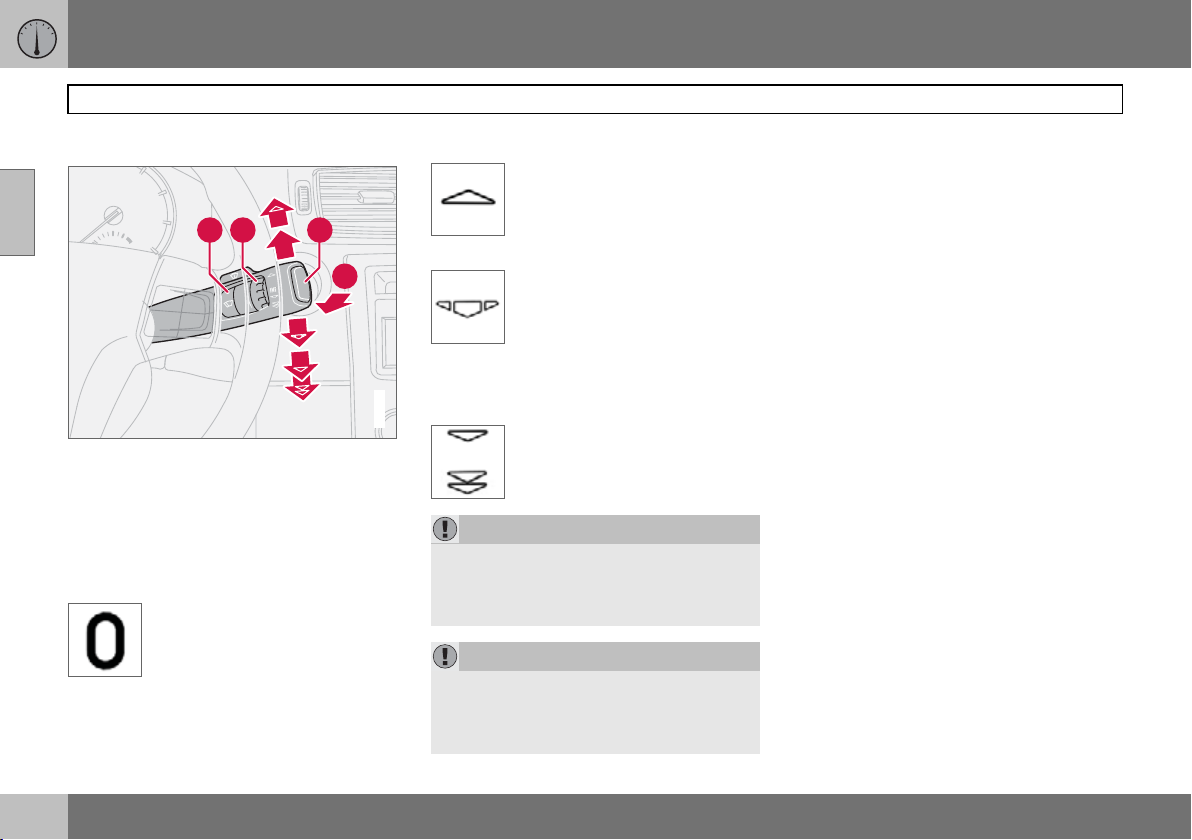

Left-hand stalk switch ......................48
Right-hand stalk switch ....................50
Cruise control (option) ......................52

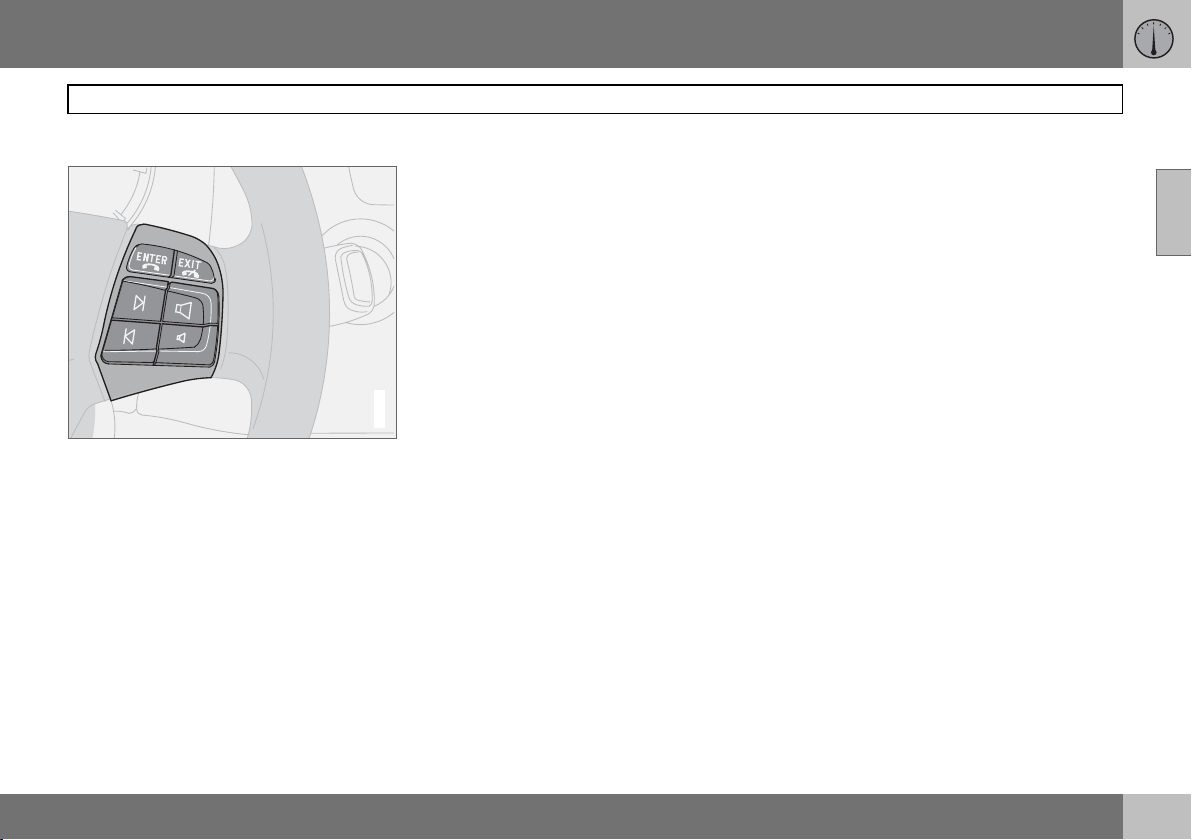

Steering wheel keypad (option) ........53

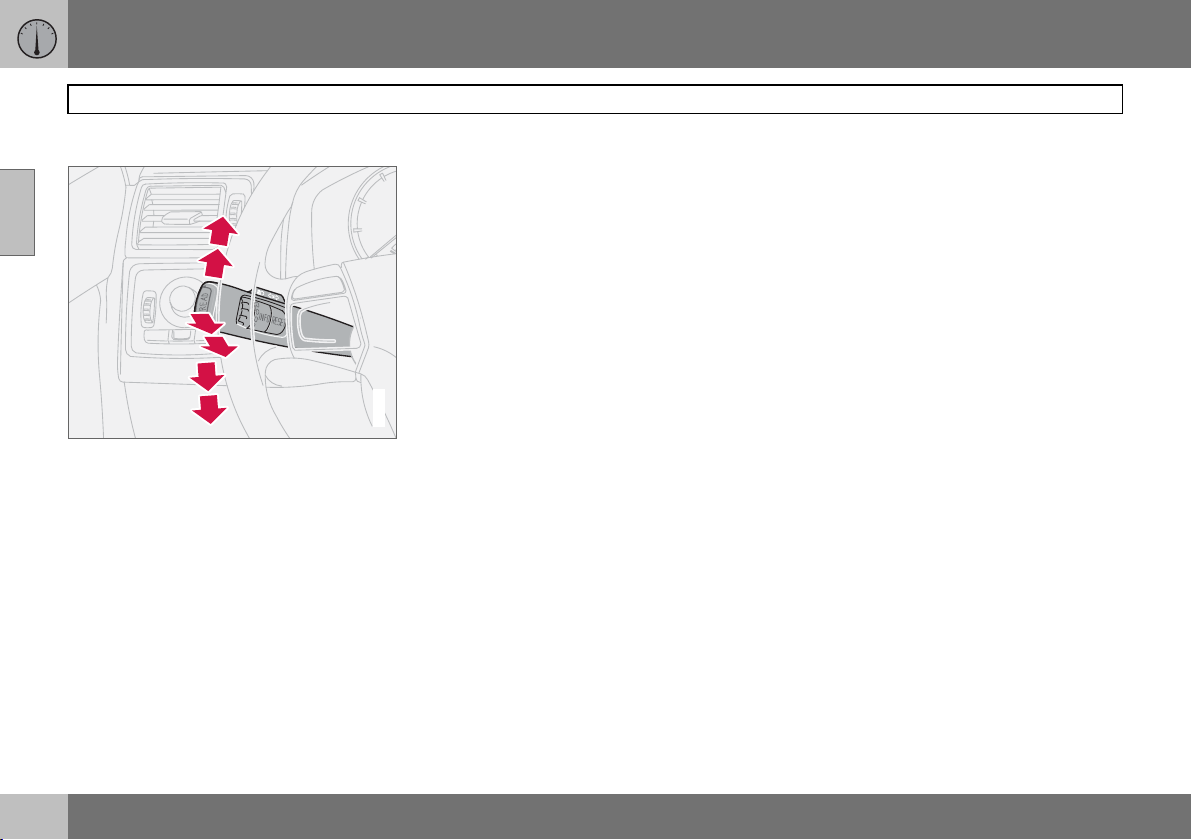

Steering wheel adjustment, hazard
warning flashers ................................54

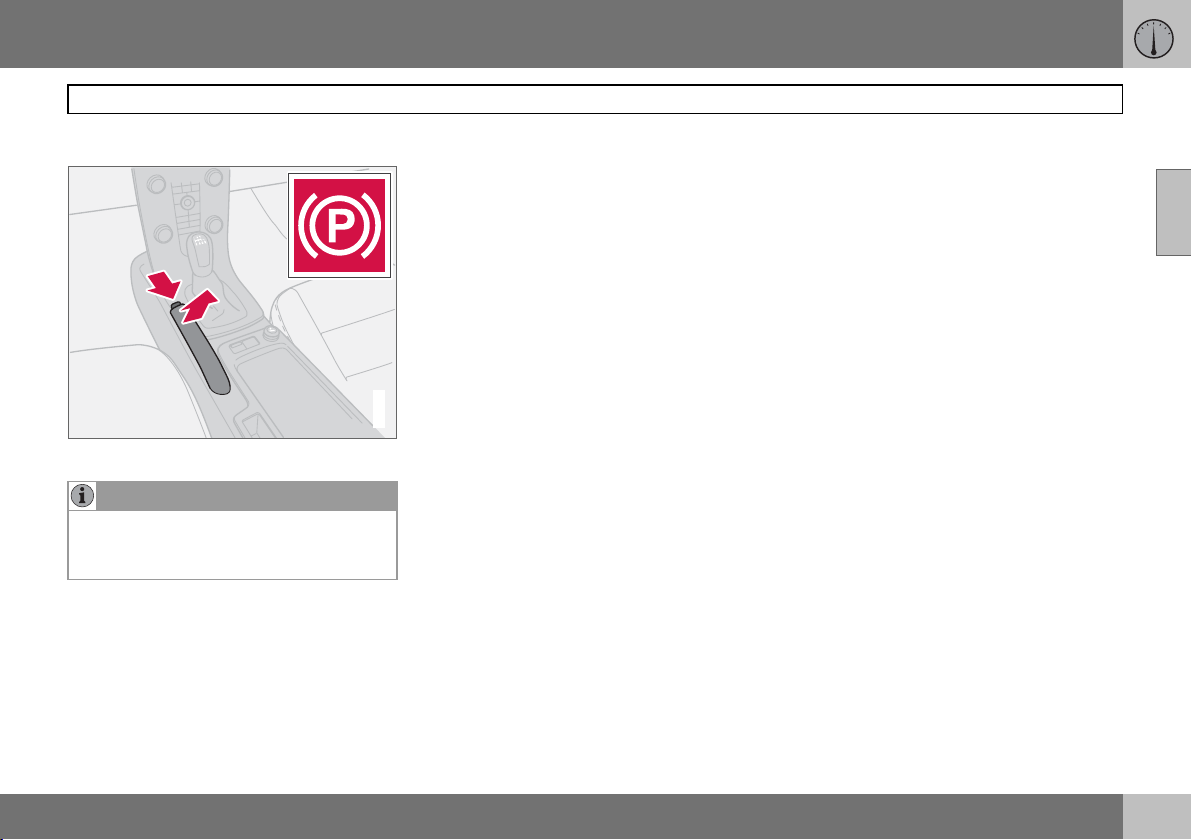

Parking brake ....................................55

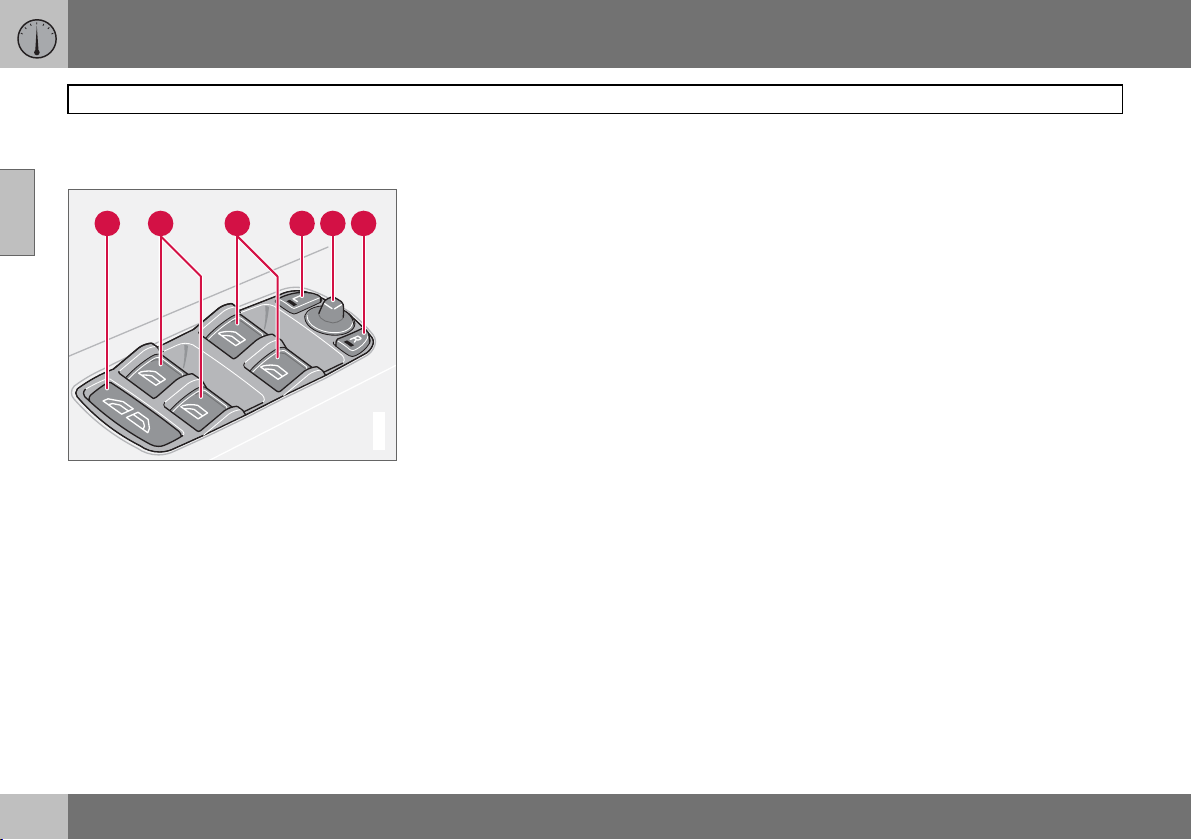

Power windows .................................56

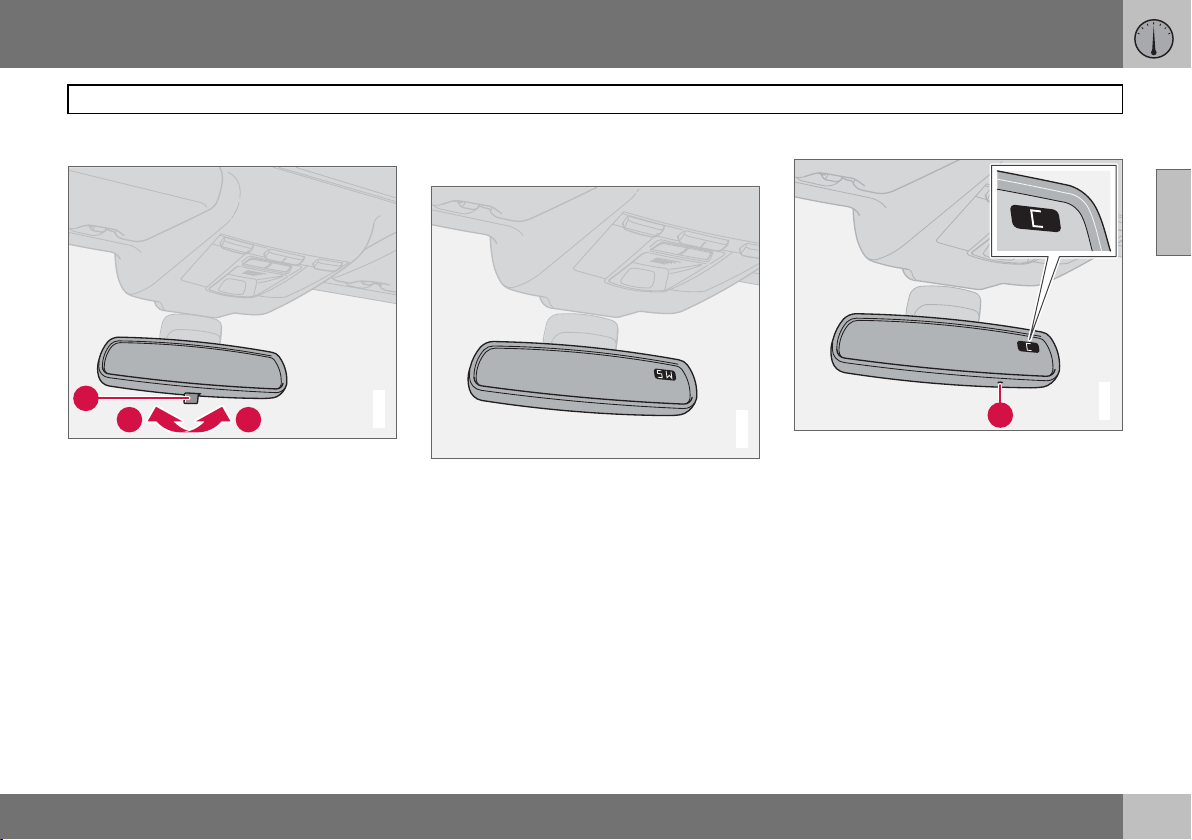

Rearview and door mirrors ...............57
Personal preferences ........................61
2
Contents
03 Climate control
General information on climate
control .............................................. 66

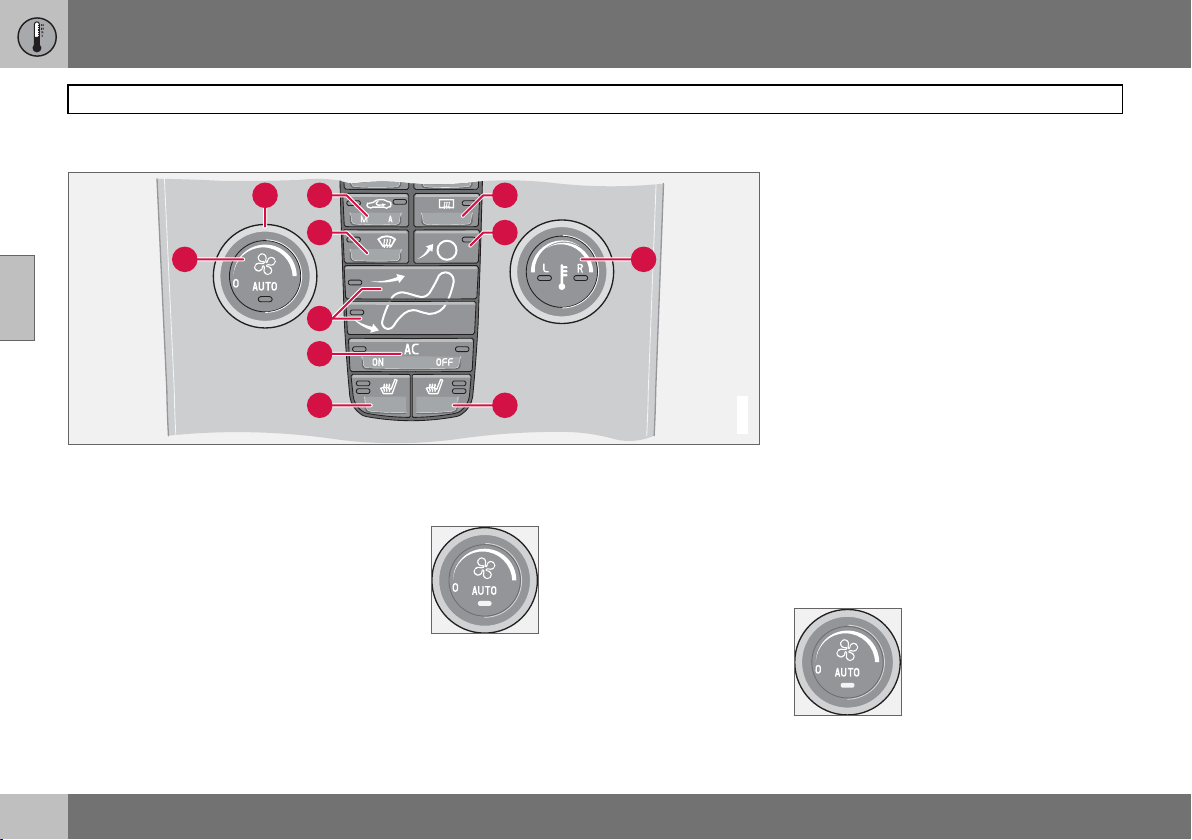

Electronic climate control, ECC ....... 68

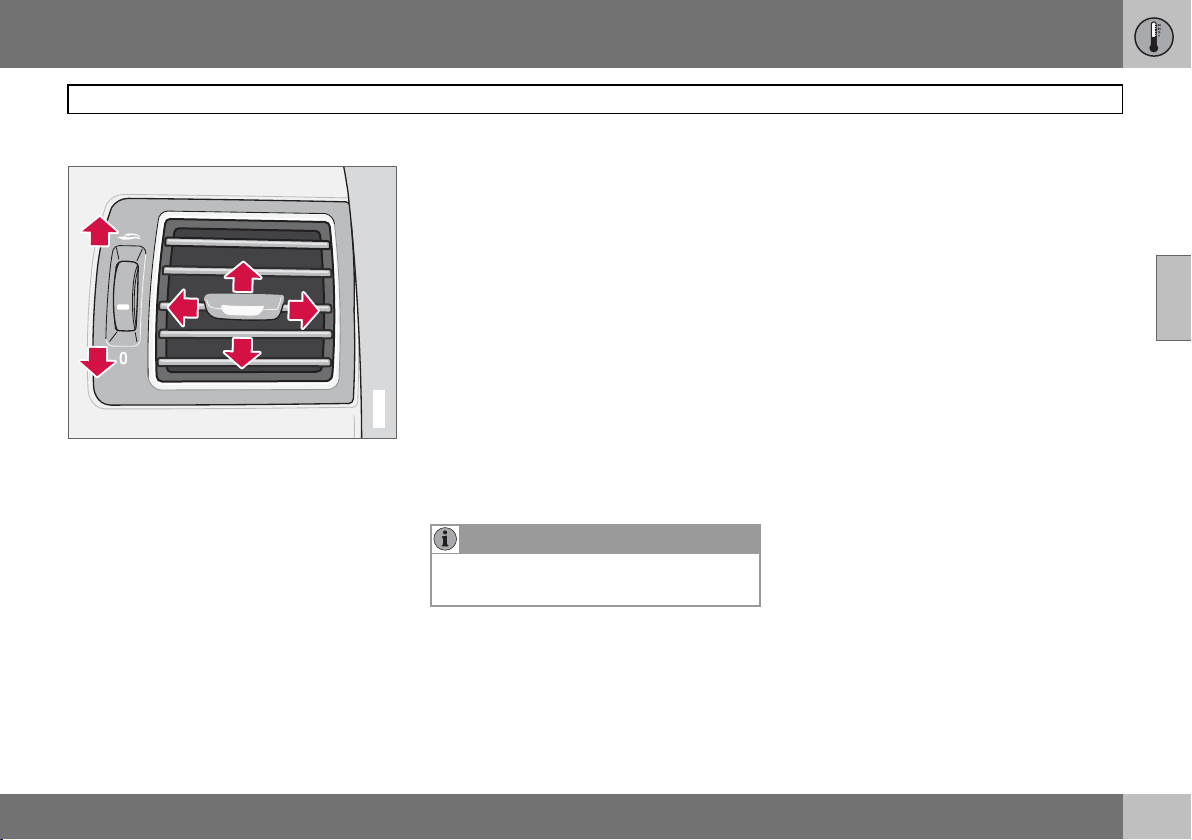

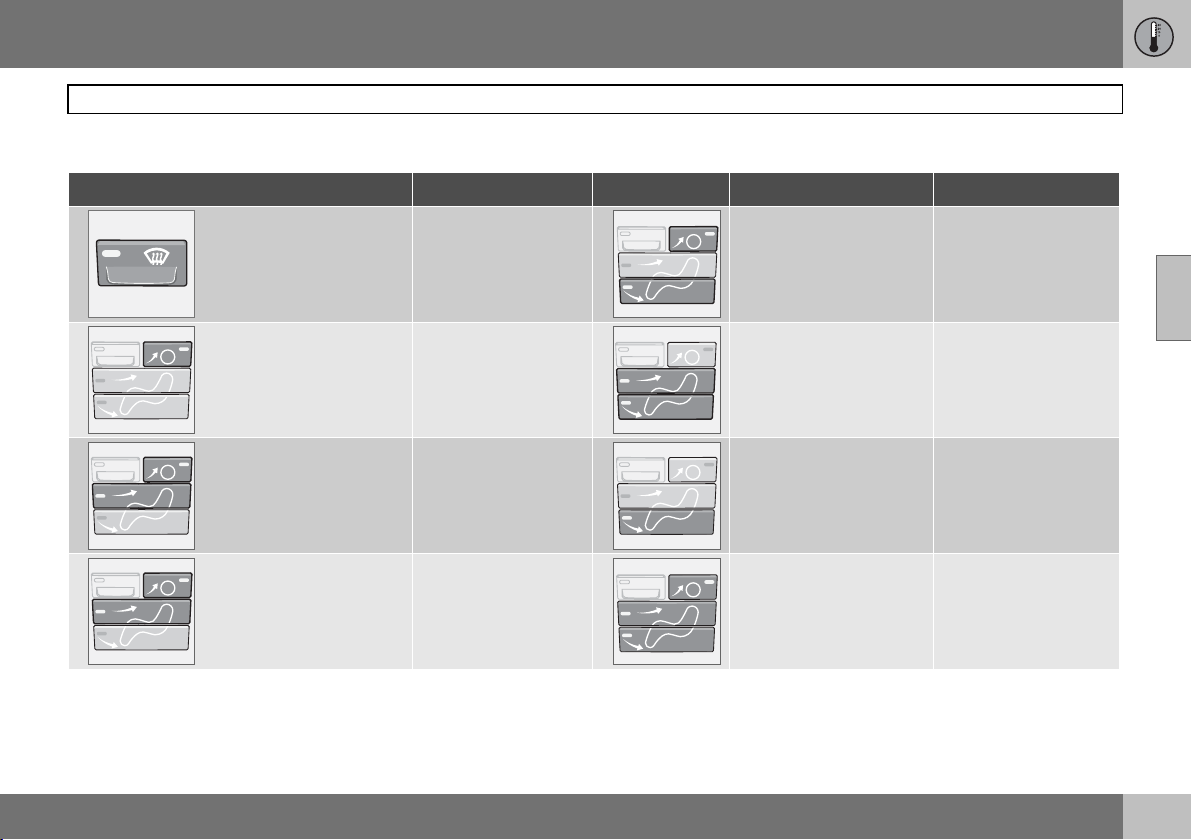

Air distribution .................................. 71
Fuel-driven heater (option) ............... 72
04 Interior
Front seats ........................................76

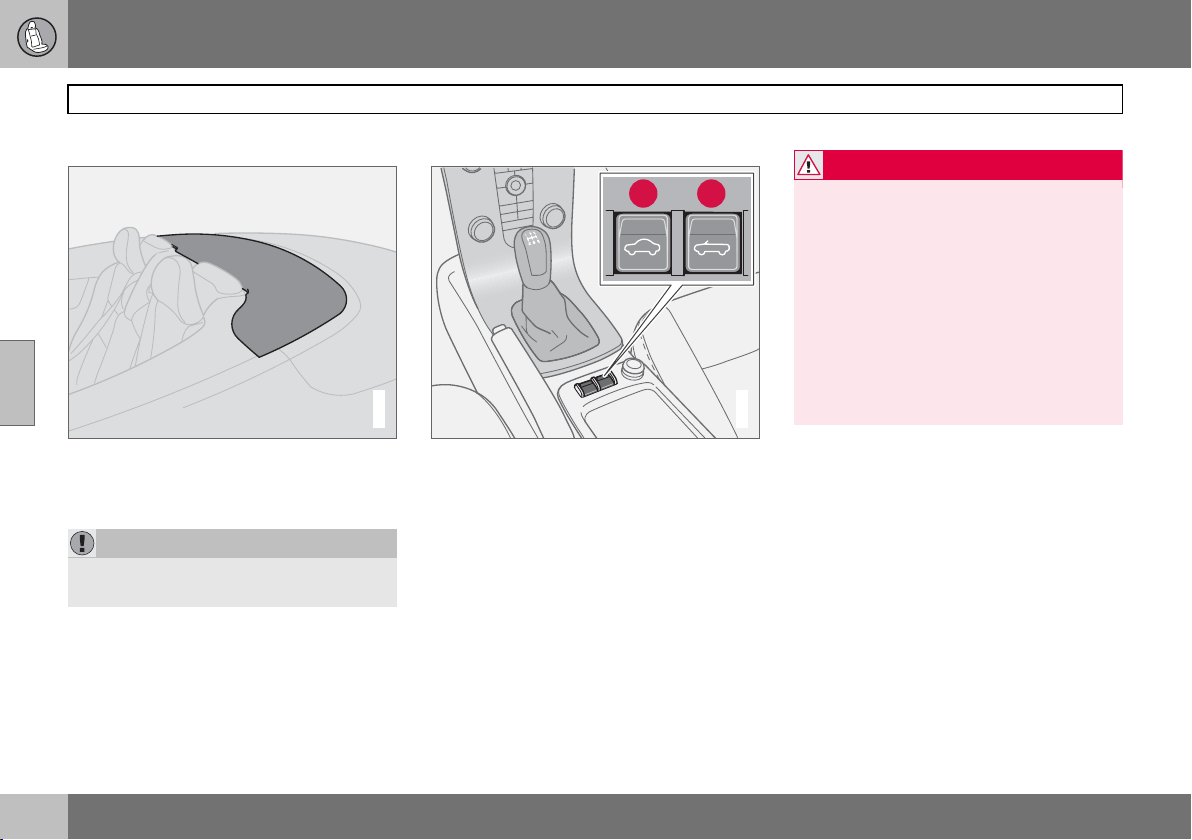

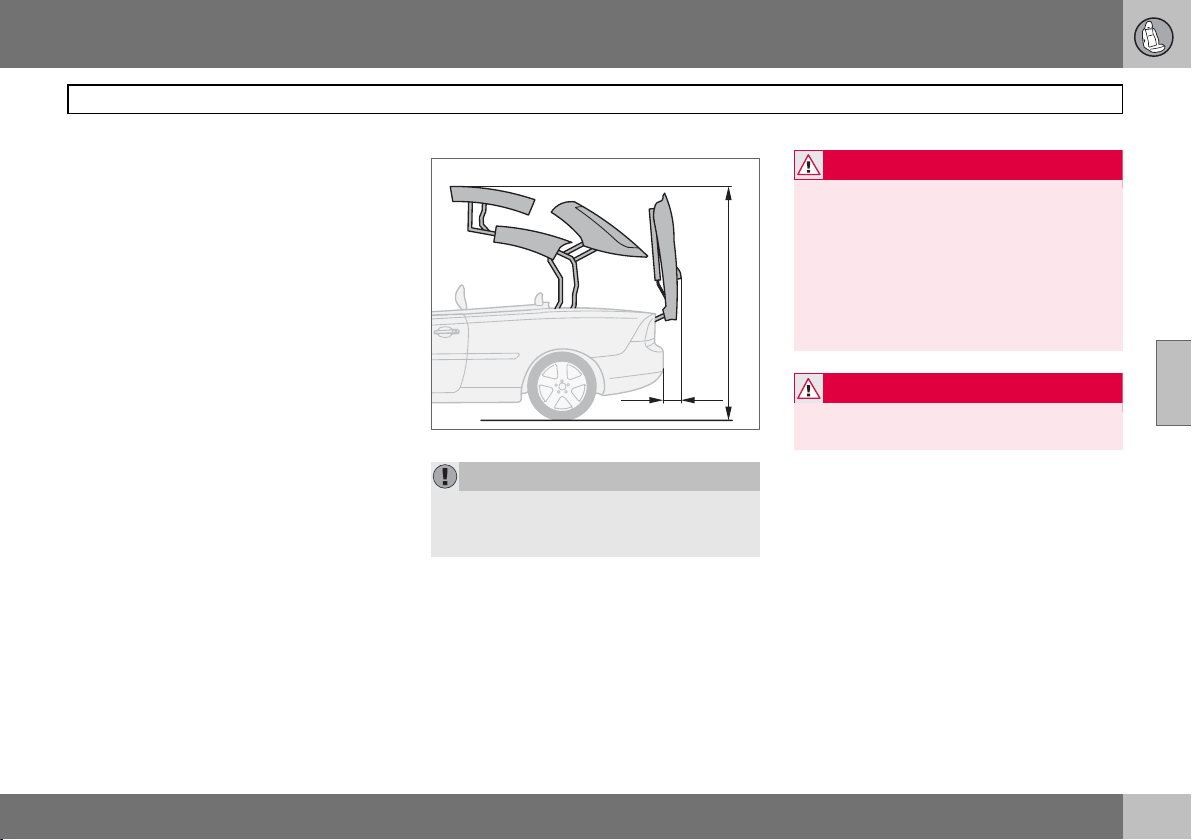

Electrically operated roof ..................79

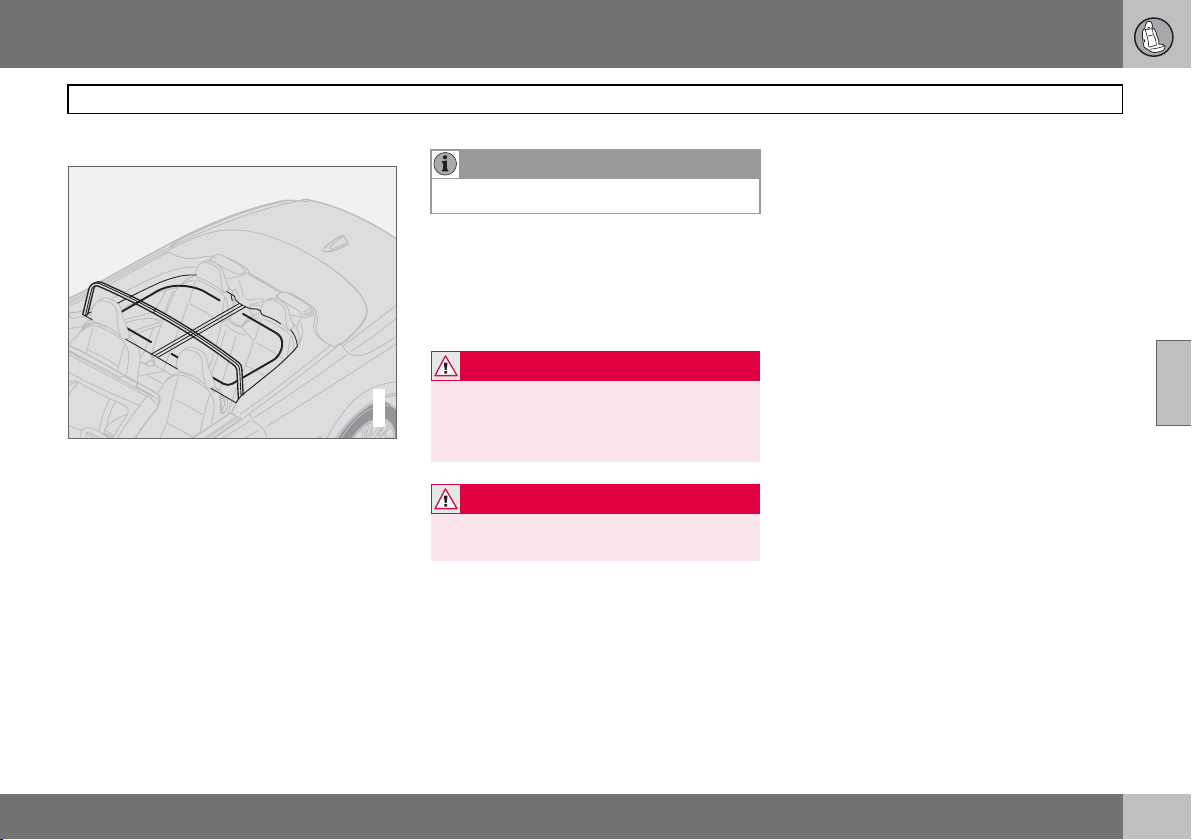

Wind deflector (option) .....................83

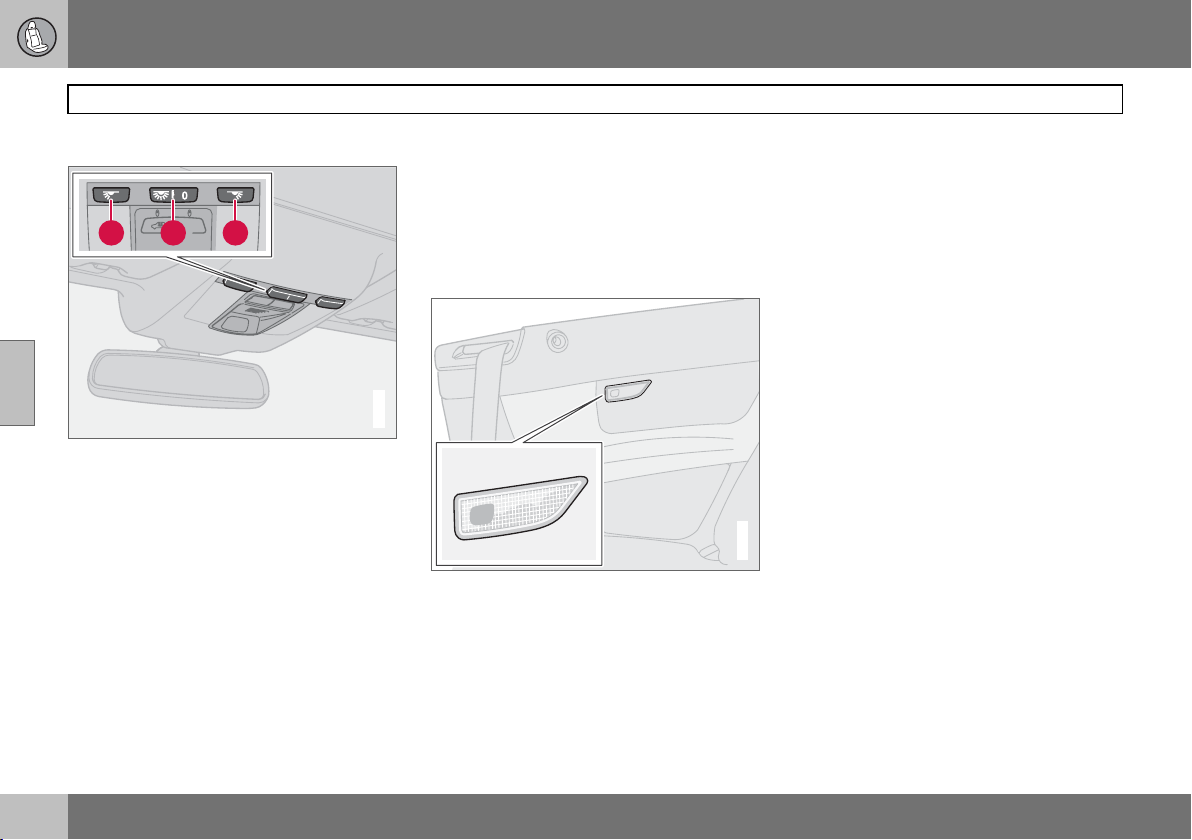

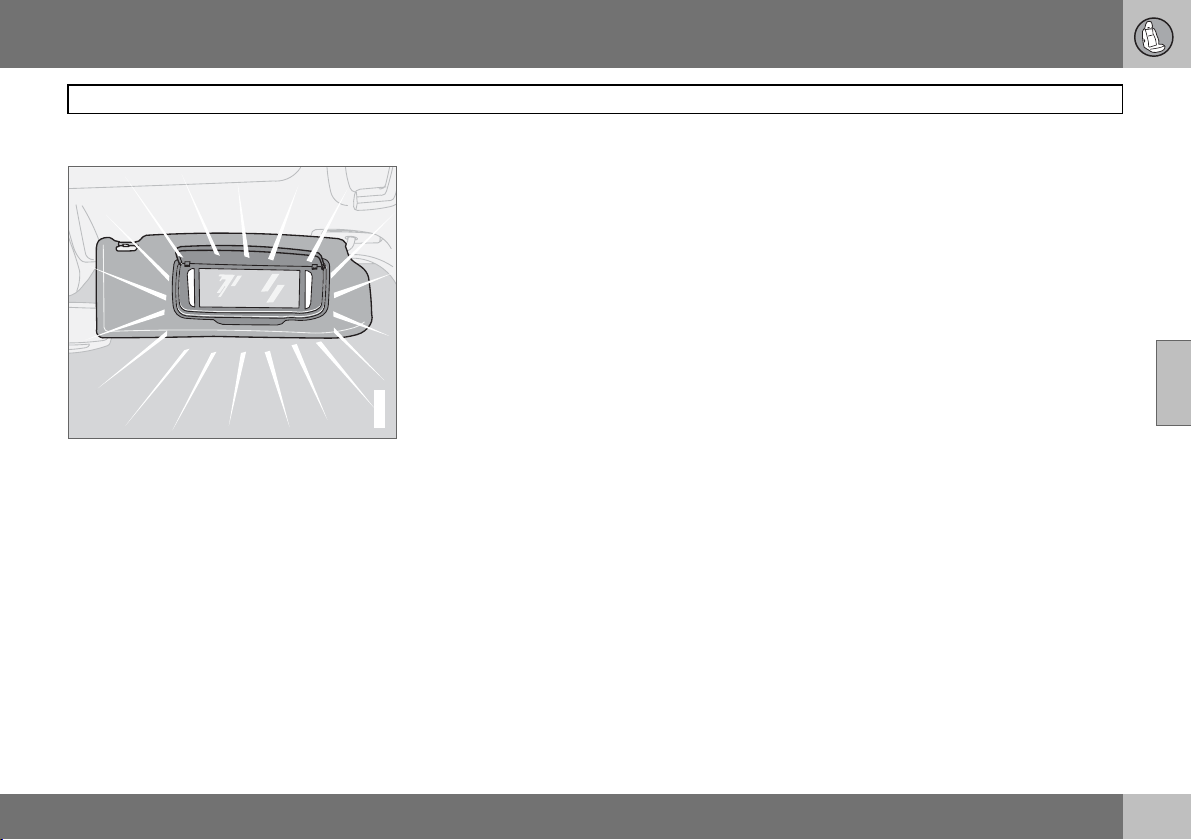

Interior lighting ..................................84

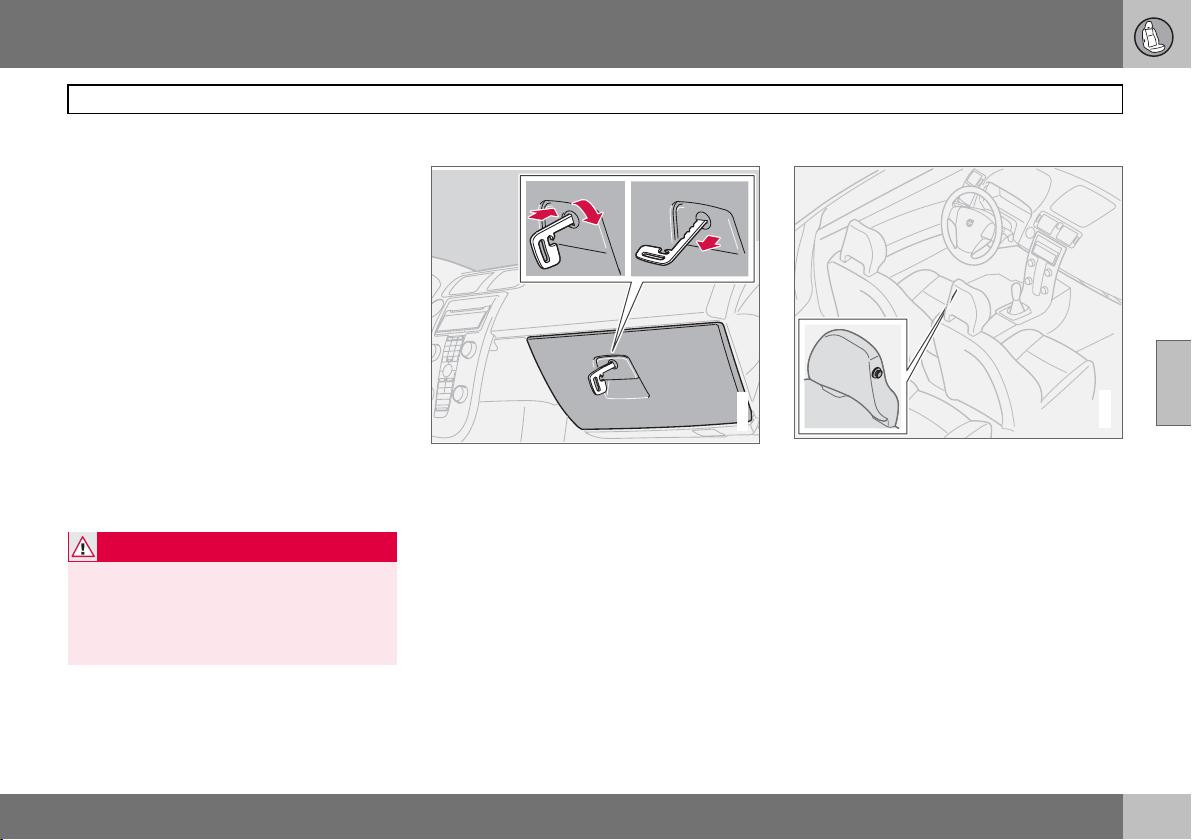

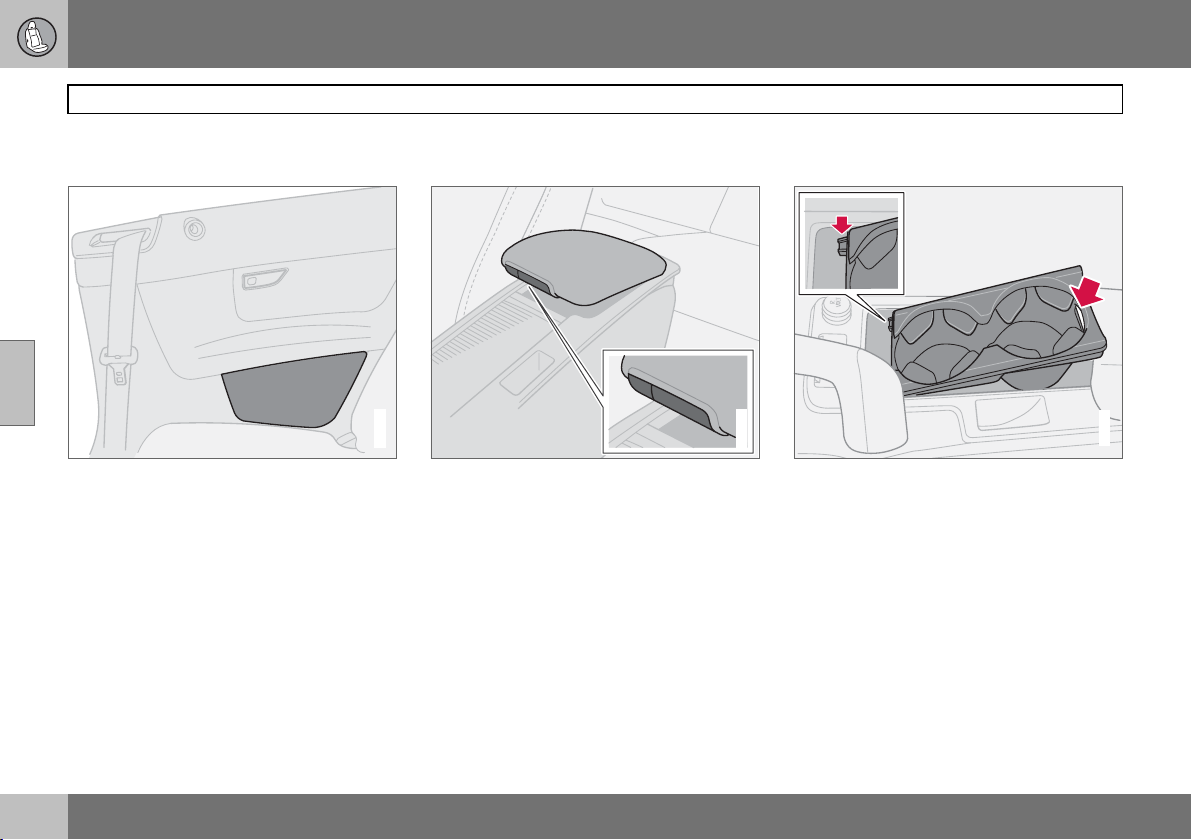

Storage spaces in the passenger
compartment ....................................86

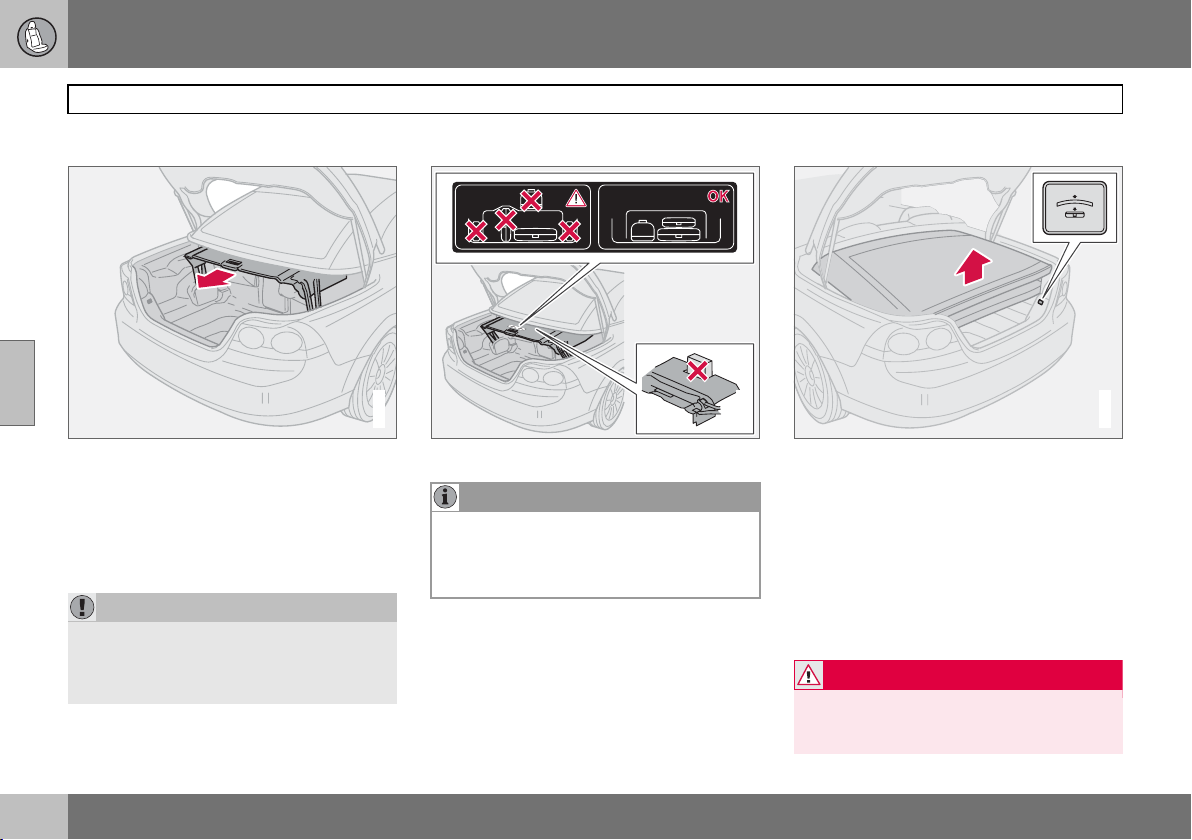

Cargo area ........................................90
05 Locks and alarm

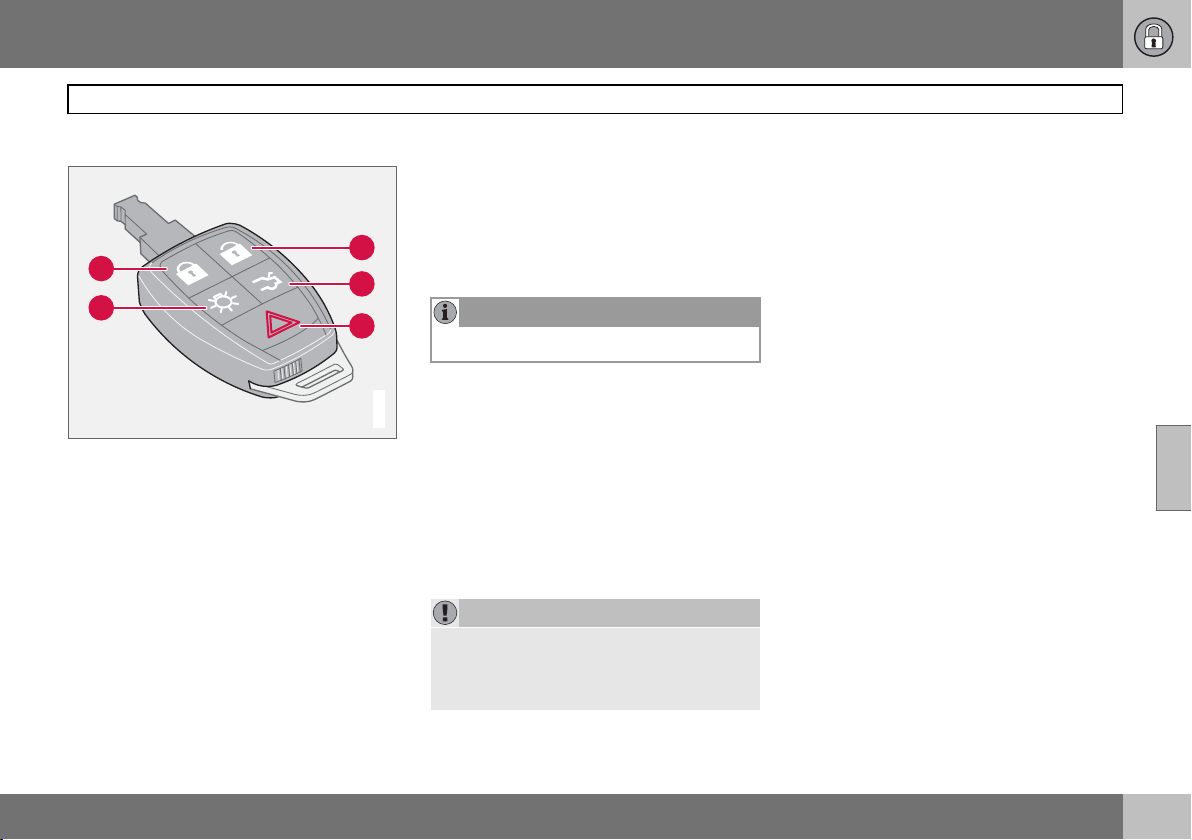

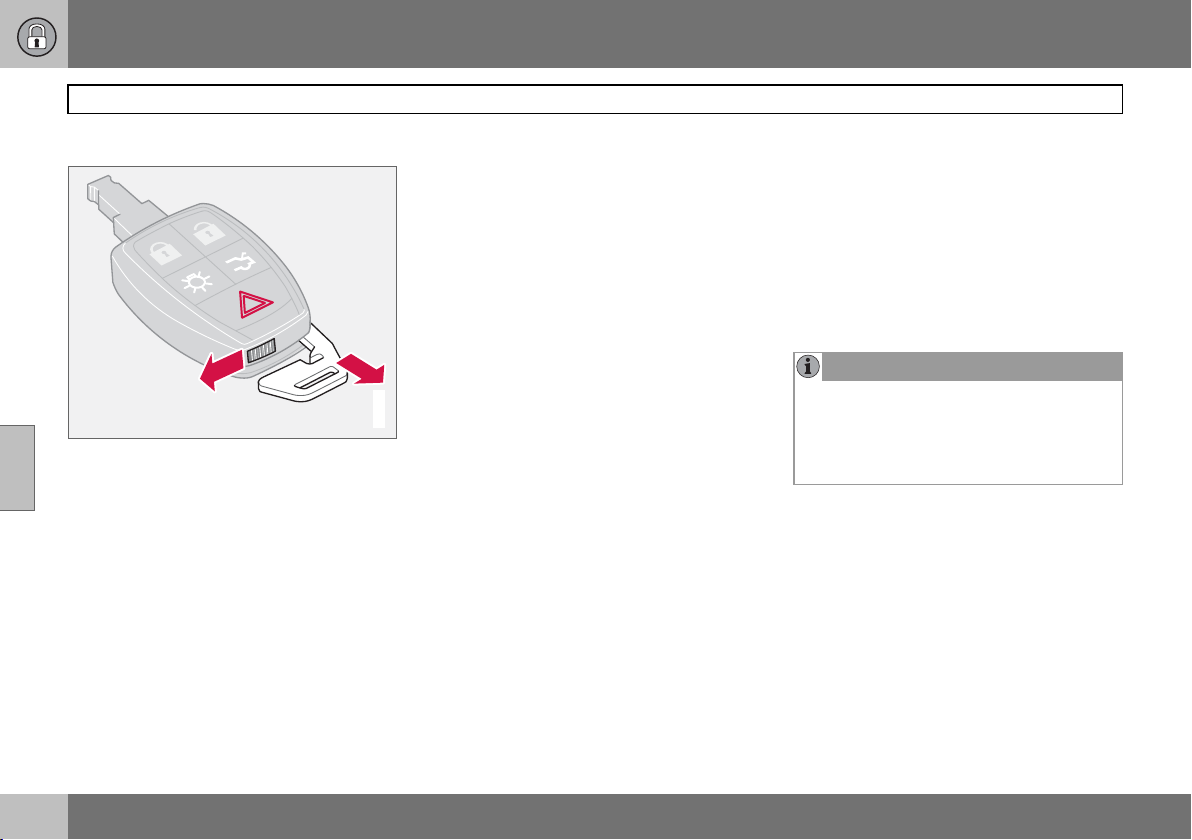

Remote control with key blade .........96
Active locks ......................................99
Privacy locking (option) ..................100
Keyless drive (option) ..................... 102
Battery in remote control ................ 105

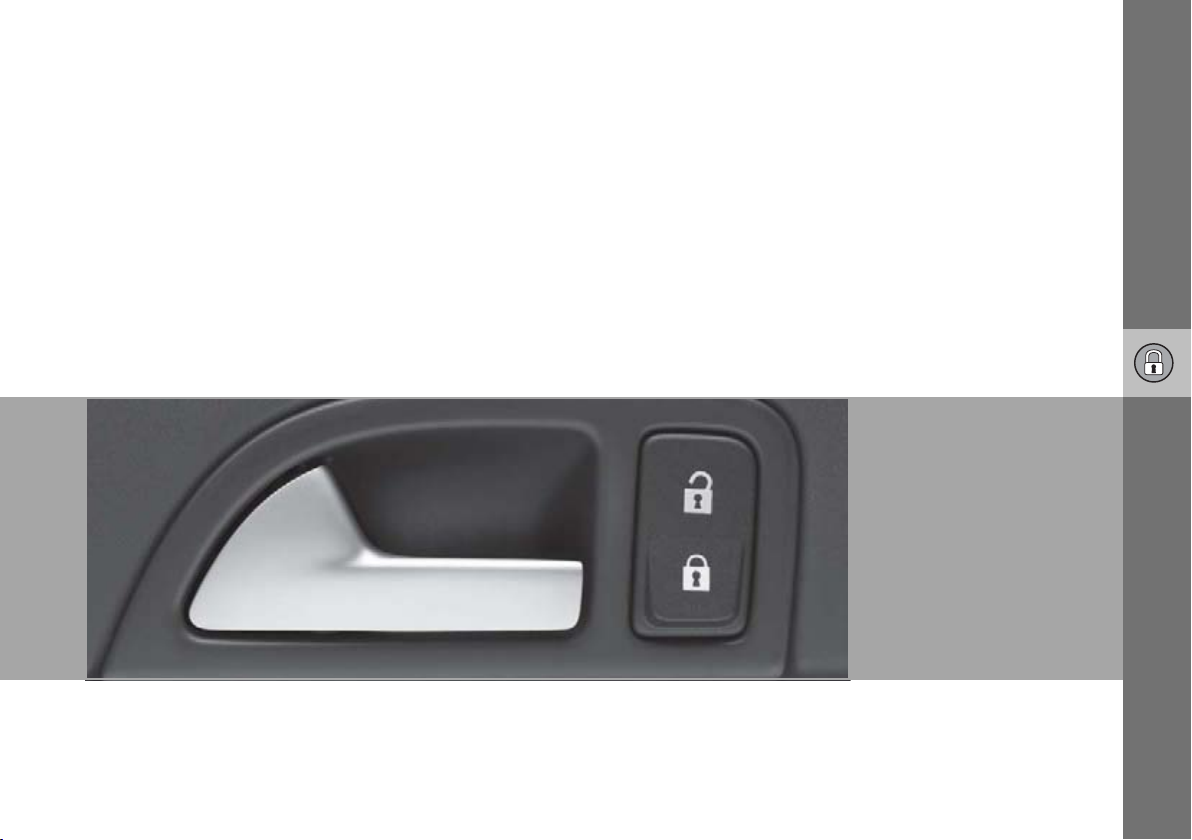

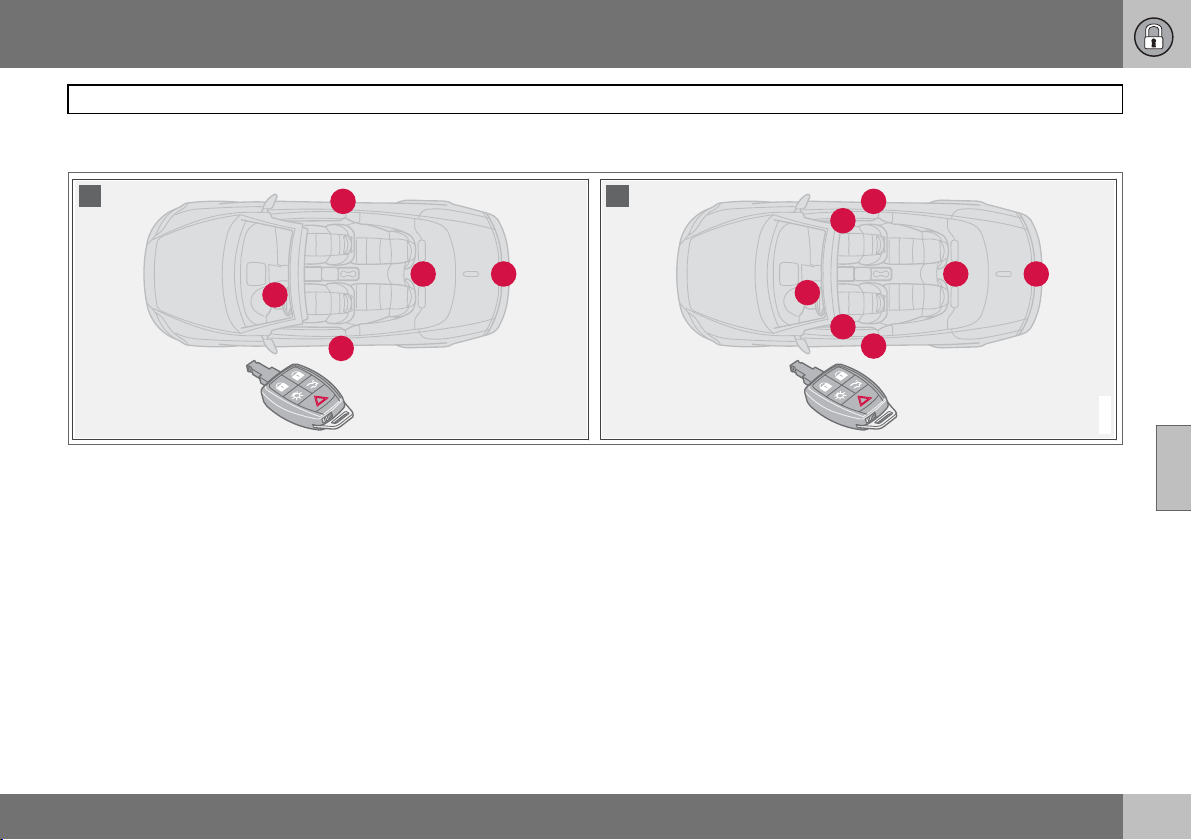

Locking and unlocking ...................106
Alarm (option) ................................. 110
3
Contents
06 Starting and driving
General ........................................... 116
Refuelling ........................................ 118
Starting the engine ......................... 119
Diesel particle filter (DPF) ...............120
Ignition switch and steering lock .... 121
Keyless drive ..................................122
Manual gearbox ..............................123
Automatic gearbox ......................... 125
Brake system .................................. 128
DSTC – Stability and traction
control system ................................ 130
Parking assistance (option) ............. 132
BLIS – Blind Spot Information
System (option) ...............................135
Towing and recovery ....................... 138
Jump starting .................................140
Driving with a trailer ........................ 141
Towing equipment .......................... 143
Detachable towbar ......................... 145
Loading ........................................... 150
Adjusting headlamp pattern ........... 151
07 Wheels and tyres
General ........................................... 154
Tyre pressure .................................. 158
Warning triangle and spare
wheel .............................................. 160
Changing wheels ............................ 162
Emergency puncture repair ............ 164
08 Car care
Cleaning ..........................................170
Touching up paintwork ....................173
Rustproofing ................................... 174
4
Contents
09 Maintenance and service
Volvo service .................................. 178
Self-maintenance ........................... 179
Bonnet and engine compartment .. 180
Diesel .............................................. 181
Oils and fluids ................................ 182
Wiper blades .................................. 187
Battery ............................................ 188
Replacing bulbs ............................. 190
Fuses .............................................. 196
10 Infotainment system
General ...........................................206
Audio functions ...............................207
Radio functions ...............................211
CD functions ...................................215
Menu structure – audio system ......217
Phone functions (option) .................218
Menu structure – phone ..................225
11 Specifications
Type designation .............................232
Dimensions and weights ................233
Engine specifications ..................... 235
Engine oil ........................................237
Fluids and lubricants ......................241
Fuel .................................................242
Catalytic converter .........................244
Electrical system ............................245
Type approval .................................247
5
Introduction
Introduction
Owner’s Manual
A good way of getting to know your new car is to read the owner’s manual, ideally before your first journey. This will give you the opportunity to familiarise yourself with new functions, to see how best to handle the car in different situations, and to make the best use of all the car’s features. Please pay attention to the safety instructions contained in the manual:
WARNING
"Warning!" texts indicate where there is a risk of personal injury in the event of the instructions not being followed.
IMPORTANT
"Important!" texts indicate a risk of damage to the car in the event of the instructions not being followed.
The equipment described in the owner’s manual is not present in all models. In addi­tion to standard equipment, this manual also describes options (factory fitted equipment) and certain accessories (extra equipment).
NOTE
Volvo cars are adapted for the varying requirements of different markets, as well as for national or local legal requirements and regulations. If you are uncertain over what is standard, an option or an accessory then contact your Volvo dealer.
The specifications, design features and illus­trations in this owner’s manual are not bind­ing. We reserve the right to make modifica­tions without prior notice.
© Volvo Car Corporation
6
Volvo Cars’ environmental philosophy
Introduction
Volvo Car Corporation and the environment
Environmental care, safety and quality are the three core values which influence all operations of the Volvo Car Corporation. We also believe that our customers share our consideration for the environment.
Your Volvo complies with strict international environmental standards and is also manu­factured in one of the cleanest and most resource-efficient plants in the world.
Volvo Car Corporation has global ISO certifi­cation, which includes the environmental standard (ISO 14001) covering factories, central functions, as well as several of our
other units. We also set requirements for our partners so that they work systematically with environmental issues.
EPI (Environmental Product Information) is supplied for all Volvo models. Here you can see how the environment is affected during the entire lifecycle of the car.
Read more at www.volvocars.com/EPI.
Fuel consumption
Volvo cars have competitive fuel consump­tion in each of their respective classes. Lower fuel consumption generally results in
lower emission of the greenhouse gas, car­bon dioxide.
It is possible for the driver to influence fuel consumption. For more information read under the heading Reducing environmental impact on page 8.
7
Introduction
Volvo Car Corporation and the environment
Efficient emission control
Your Volvo is manufactured following the concept Clean inside and out – a concept that encompasses a clean interior environ­ment as well as highly efficient emission con­trol. In many cases the exhaust emissions are well below the applicable standards.
Clean air in the passenger compartment
A passenger compartment filter prevents dust and pollen from entering the passenger compartment via the air intake.
1
A sophisticated air quality system, IAQS (Interior Air Quality System) ensures that the incoming air is cleaner than the air in the traf­fic outside.
The system consists of an electronic sensor and a carbon filter. The incoming air is moni­tored continuously and if there is an increase in the level of certain unhealthy gases such as carbon monoxide then the air intake is closed. Such a situation may arise in heavy traffic, queues and tunnels for example.
The entry of nitrous oxides, ground-level ozone and hydrocarbons is prevented by the carbon filter.
1
Option
Textile standard
The interior of a Volvo is designed to be pleasant and comfortable, even for people with contact allergies and for asthma suffer­ers. All of our upholstery and interior textiles are tested with respect to certain unhealthy substances and allergens as well as emis­sions. This means that all textiles fulfil the requirements in the Öko-Tex 100 standard a major advance towards a healthier passen­ger compartment environment.
Öko-Tex certification covers seatbelts, car­pets and fabrics for example. The leather in the upholstery undergoes chromium-free tanning with natural plant substances and fulfils the certification requirements.
2
Volvo workshops and the environment
Regular maintenance creates the conditions for a long service life and low fuel consump­tion for your car, and in this way you contrib­ute to a cleaner environment. When Volvo’s workshops are entrusted with the service and maintenance of your car it becomes part of our system. We make clear demands regarding the way in which our workshops are designed in order to prevent spills and discharges into the environment. Our work­shop staff have the knowledge and the tools required to guarantee good environmental care.
2
More information on www.oekotex.com
Reducing environmental impact
You can easily help reduce environmental impact, for example, by driving economically, by purchasing eco-labelled car care prod­ucts and by servicing and maintaining the car in accordance with the instructions in the owner’s manual.
The following hints will help you to do your bit
,
for the environment (for further advice on how you can reduce environmental impact and drive economically, see page 116).
• Decrease fuel consumption by choosing ECO tyre pressure, see page 158.
• Remove unnecessary items from the car ­the greater the load the higher the fuel consumption.
• Is your car equipped with an engine block heater? If so, use it for a few hours before starting from cold to reduce fuel con­sumption and exhaust emissions.
• Drive gently and avoid braking too hard.
• Drive in the highest gear possible. Low engine speeds result in lower fuel consumption.
• Use engine braking to slow down.
• Avoid idling. Take consideration of local regulations. Switch off the engine in longer stationary traffic.
8
• Always dispose of envi­ronmentally hazardous waste, such as batteries and oils, in an environ­mentally responsible manner. If uncertain, con­sult an authorised Volvo workshop for advice.
• Service your car regularly.
• High speed increases consumption con­siderably due to increased wind resist­ance. A doubling of speed increases wind resistance four times.
These hints will help you to reduce your fuel consumption without increasing your travel time or lessening the enjoyment of driving. Apart from being kind to your car, you’ll be saving money - and the Earth’s resources.
Introduction
Volvo Car Corporation and the environment
9
10
Seatbelts ..................................................................................................12
Airbag system .......................................................................................... 15
Airbags (SRS) ...........................................................................................16
Activating/deactivating the
airbag (SRS) .............................................................................................18
Side airbags (SIPS bags) .........................................................................20
Inflatable Curtain (IC) ...............................................................................22
WHIPS ......................................................................................................23
Roll-Over Protection System
(ROPS) ......................................................................................................25
When the systems deploy ........................................................................26
Crash mode ..............................................................................................27
Child safety ..............................................................................................28
SAFETY
01
01 Safety
01
Seatbelts
Always use a seatbelt
Tensioning the hip strap. The belt must be positioned low down.
Heavy braking can have serious conse­quences if the seatbelts are not used, so make sure that all passengers use their seat­belts. It is important that the seatbelt lies against the body so it can provide maximum protection. Do not lean the backrest too far back. The seatbelt is designed to protect in a normal seating position.
Putting on a seatbelt:
– Pull the seatbelt out slowly and secure it
by pressing the buckle into the lock. A loud "click" indicates that the seatbelt has locked.
Releasing the belt
– Press the red lock button and then let the
seatbelt retract. If the seatbelt does not retract fully, feed the seatbelt in by hand so that it does not hang loose.
The seatbelt locks and cannot be withdrawn:
• if it is pulled out too quickly.
• during braking and acceleration.
• if the car leans heavily.
Keep in mind the following:
• do not use clips or anything else that can
G020104
prevent the seatbelt from fitting properly
• ensure that the seatbelt is not twisted or caught on anything
• the hip strap must be positioned low down (not over the abdomen).
Tension the hip strap over the lap by pulling the diagonal shoulder belt as illustrated.
WARNING
The seatbelts and airbags interact. If a seat­belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
WARNING
Each belt is intended for one person only.
WARNING
Never modify or repair the seatbelt yourself. Contact an authorised Volvo workshop. If the seatbelt has been subjected to a major load, such as in a collision, the entire seat­belt must be replaced. Some of the seat­belt’s protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or dam­age. The new seatbelt must be type­approved and designed for installation at the same location as the replaced seatbelt.
WARNING
The rear seat is designed for a maximum of two passengers.
12
01 Safety
Seatbelts and pregnancy
The seatbelt should always be worn during pregnancy. But it is crucial that it be worn in the correct way. The diagonal section of the seatbelt should wrap over the shoulder then be routed between the breasts and to the side of the abdomen. The lap section of the seatbelt should lay flat over the thighs and as low as possible under the abdomen. It must never be allowed to ride upward. Remove all slack from the seatbelt and ensure that it fits close to the body. In addition, check that there are no twists in the seatbelt.
As a pregnancy progresses, pregnant drivers should adjust their seats and steering wheel such that they can easily maintain control of
the vehicle as they drive (which means that they must be able to easily operate the foot pedals and steering wheel). They should strive to position the seat with as large a dis­tance as possible between their abdomen and the steering wheel.
G020105
Seatbelts
Seatbelt reminder
Unbelted occupants will be reminded to fas­ten their seatbelts through an audio and vis­ual reminder. The audio reminder is speed dependent, and in some cases time depend­ent. The visual reminder is located in the roof console and the combined instrument panel.
Child seats are not covered by the seatbelt reminder system.
Rear seat
The seatbelt reminder in the rear seat has two subfunctions:
• Provides information on which seatbelts are being used in the rear seat (shown on the information display). The message is
01
G018084
13
01 Safety
01
Seatbelts
automatically cleared after approx. 30 seconds or can be acknowledged manually by pressing the READ button.
• To provide a warning if one of the rear seatbelts is unfastened during a journey. This warning takes the form of a message on the information display along with the audio/visual signal. The warning ceases when the seatbelt is re-fastened or when manually acknowledged by pressing the READ button.
The message on the information display showing which seatbelts are in use is always available. Press the READ button to see stored messages.
Certain markets
An unbelted driver will be reminded to fasten his or her seatbelt through an audio and vis­ual reminder. At low speed, the audio reminder will sound for the first 6 seconds.
Seatbelt tensioner
All the seatbelts are equipped with seatbelt tensioners. A mechanism in the seatbelt ten­sioner tightens the belt around the body in the event of a sufficiently violent collision. The belt then provides more effective restraint for occupants.
Seatbelt guide
The seatbelt guide is fitted on both the driver’s seat and passenger seat.
The seatbelt guide is an aid for providing bet­ter access to the seatbelt. When getting into and out of the rear seat remove the seatbelt from the seatbelt guide and position it fur­thest back on the seatbelt bar. Refit the seat­belt into the seatbelt guide afterwards.
G020106
14
01 Safety
Warning symbol on the combined instrument panel
The airbag system1 is continually monitored by the system control module. The warning symbol in the combined instrument panel illuminates when the ignition key is turned to position I, II or III. The symbol goes out after approx. 6 seconds provided the airbag
1
is working correctly.
system
As well as the warning sym­bol, a message may appear on the information display in appropriate cases. Contact an authorised Volvo work­shop urgently. If the warning symbol malfunctions, the warning triangle illuminates and the message
BAG SERVICE REQUIRED
SRS AIRBAG SERVICE URGENT appears on
the information display. Contact an author­ised Volvo workshop urgently.
G020107
WARNING
If the warning symbol for the airbag system remains on or illuminates while driving, it means that the airbag system is not func­tioning fully. The symbol indicates a fault in the seatbelt buckle, SIPS, SRS system or IC system. Contact an authorised Volvo work­shop urgently.
SRS AIR-
or
Airbag system
01
1
Includes SRS and seatbelt tensioner, SIPS, DMIC and ROPS.
15
01 Safety
01
Airbags (SRS)
Airbag (SRS) on the driver’s side
The car has an SRS airbag (Supplemental Restraint System) on the driver’s side to sup­plement the protection afforded by the seat­belt. This airbag is folded up into the centre of the steering wheel. The steering wheel is marked SRS AIRBAG.
WARNING
The seatbelts and airbags interact. If a seat­belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
Passenger airbag (SRS)
G020108
The car has an airbag1 to supplement the protection afforded by the seatbelt on the passenger side. This airbag is folded up into a compartment above the glovebox on the passenger side. Its cover panel is marked SRS AIRBAG.
1
Not all cars have a passenger airbag (SRS). This can be deselected when the car is ordered.
WARNING
To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest. Seatbelts must be secured.
WARNING
Never place a child in a child seat or on a booster cushion in the front seat if the air­bag (SRS) is activated.
Never allow a child to stand or sit in front of the front passenger seat. No one shorter
G020109
than 140 cm should sit in the front passen­ger seat if the airbag (SRS) is activated.
Failure to follow the advice given above can endanger the life of the child.
1
For information on activated/deactivated air­bag (SRS) see page 18.
1
16
01 Safety
SRS system
SRS system, left-hand drive
The system consists of airbags and sensors. A sufficiently violent collision trips the sen­sors and the airbag(s) are inflated with hot gas. To cushion the impact, the airbag deflates when compressed. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation and deflation of the airbag, takes place within tenths of a second.
WARNING
Repairs must only be performed by an authorised Volvo workshop. Any interfer­ence in the airbag system could cause mal­function and result in serious injury.
G020111
SRS system, right-hand drive
NOTE
The sensors react differently depending on the course of the collision and whether the seatbelts on the driver and passenger side are used. It is therefore possible that only one (or none) of the airbags may inflate in a collision. The SRS system senses the force of the collision on the car and adapts accordingly so that only the required airbag is deployed.
The airbags have a function whereby their capacities are adapted to the collision force to which the car is subjected.
Airbags (SRS)
G020110
Location of the passenger airbag in left-hand drive and right-hand drive cars
WARNING
Do not put objects in front of or above the instrument panel where the passenger air­bag is located.
01
G020113
17
01 Safety
01
Activating/deactivating the airbag (SRS)
PAC OS1 (option)
Indicator showing that the passenger airbag (SRS) is deactivated.
The airbag (SRS) for the front passenger seat can be deactivated if the car is equipped with a PACOS switch. For information on how to activate/deactivate, see page 19.
Messages
A text message in the roof panel indicates that the airbag (SRS) for the front passenger seat is deactivated (see illustration above).
1
PACOS (Passenger Airbag Cut Off Switch)
G018346
Indicator showing that the passenger airbag (SRS) is activated.
NOTE
When the remote control key is inserted into ignition position II or III the warning symbol for the airbag is shown in the combined in­strument panel for approx. 6 seconds (see page 15).
Following which, the indicator in the roof console is illuminated showing the correct status for the passenger seat airbag. For more information on the different ignition positions, see page 121.
A warning symbol in the roof panel indicates that the airbag (SRS) for the front passenger seat is activated (see illustration above).
For information on how switching takes place, see under the heading Activating/ deactivating later in this chapter.
Activating/deactivating
The switch for the passenger airbag (PACOS) is located on the passenger end of the instru­ment panel and is accessible when the pas­senger door is open, (see under the heading, Switch – PACOS below). Check that the switch is in the required position. Volvo rec-
G018344
ommends that the key blade is used to change position.
For information on the key blade, see page 98. (Other items with a shape similar to a key can also be used.)
WARNING
Failure to follow the advice given above can endanger life.
WARNING
If the car is equipped with a front passenger airbag (SRS), but does not have PACOS, the airbag will always be activated.
18
01 Safety
WARNING
Never place a child in a child seat or on a booster cushion in the front seat if the air­bag is activated and the symbol in the roof console is illuminated. Failure to follow this advice could endanger the life of the child.
WARNING
Do not allow anyone to sit in the front pas­senger seat if the text message in the roof panel indicates that the airbag (SRS) is deactivated and the Airbag system warning symbol is displayed in the combined instru­ment panel. This indicates that there has been a severe malfunction. Visit an author­ised Volvo workshop urgently.
Activating/deactivating the airbag (SRS)
Switch – PACOS
1
2
Switch location
1. The airbag is activated. With the switch in this position, persons taller than 140 cm can sit in the front passenger seat, but never children in a child seat or on a booster cushion.
2. The airbag is deactivated. With the switch in this position, children in a child seat or on a booster cushion can sit in the front passenger seat, but never anybody taller than 140 cm.
01
WARNING
Activated airbag (passenger seat):
Never place a child in a child seat or on a booster cushion on the front passenger seat when the airbag is activated. This applies to everyone shorter than 140 cm.
Deactivated airbag (passenger seat): No one taller than 140 cm should ever sit in the front passenger seat when the airbag is deactivated.
Failure to follow the advice given above can endanger life.
G019800
19
01 Safety
01
Side airbags (SIPS bags)
Side airbags – SIPS bags
Side airbag locations
A large proportion of the collision force is transferred by the SIPS (Side Impact Protec­tion System) to beams, pillars, the floor, the roof and other structural parts of the body. The side airbags at the driver’s and front pas­senger seats protect the chest area and are an important part of the SIPS. The side air­bags are located in the front seat backrests.
WARNING
Repairs must only be performed by an authorised Volvo workshop.
Any interference in the SIPS bag system could cause malfunction and result in seri­ous personal injury.
Child seats and side airbags
The side airbag does not diminish the protec­tion provided by the car to children seated in a child seat or on a booster cushion.
A child seat or booster cushion can be placed on the front passenger seat provided that the car does not have an activated
1
pas-
senger airbag.
WARNING
Do not put objects in the area between the outside of the seat and the door panel, since this area is required by the side air-
G020118
bag.
WARNING
Only use car seat covers approved by Volvo. Other seat covers may impede the operation of the side airbags.
WARNING
Side airbags are a supplement the seat­belts. Always wear your seatbelt.
20
1
For information on activated/deactivated air­bag (SRS) see page 18
01 Safety
SIPS bags
Driver’s seat, left-hand drive
The SIPS bag system consists of side air­bags and sensors. A sufficiently violent colli­sion trips the sensors and the side airbags are inflated. The airbag inflates between the occupant and the door panel and thereby cushions the initial impact. The airbag deflates when compressed by the collision. The side airbag is normally only deployed on the side of the collision.
Side airbags (SIPS bags)
G020120
Front passenger seat, left-hand drive Location of airbag decal in door opening on front
G020121
passenger side
01
G020343
21
01 Safety
01
Inflatable Curtain (IC)
Properties
The inflatable curtain, DMIC (Door Mounted Inflatable Curtain), is a supplement to the SIPS system. It is fitted inside along the driver’s and passenger side and protects both front seat occupants. The inflatable cur­tain is activated by sensors in the event of a sufficiently violent collision or if the car is at risk of overturning. When deployed, the inflatable curtain inflates. The inflatable cur­tain helps to prevent the driver and front seat passenger from striking their heads on the inside of the car during a collision. The inflat­able curtain is deployed irrespective of whether the roof is open or closed.
WARNING
Do not screw or fit anything to the headlin­ing, door pillars or side panels. This could compromise the intended protection. Only use Volvo genuine parts that are approved for placement in these areas.
G020971
WARNING
Do not load the car higher than 50 mm under the top edge of the side windows. Otherwise, the intended protection of the inflatable curtain, which is concealed in the headlining, may be compromised.
WARNING
The inflatable curtain is a supplement to the seatbelts.
Always use a seatbelt.
22
01 Safety
Protection against whiplash injury – WHIPS
The whiplash protection system (WHIPS) consists of energy absorbing backrests and specially designed head restraints for the front seats. The system is actuated by a rear­end collision, where the angle and speed of the collision, and the nature of the colliding vehicle all have an influence.
WARNING
The WHIPS system is a supplement to the seatbelts. Always wear your seatbelt.
Properties of the seat
When the WHIPS system is deployed, the front seat backrests fall backward to alter the position of the driver and front seat passen­ger. This diminishes the risk of whiplash injury.
WARNING
Never modify or repair the seat or WHIPS system yourself. Contact an authorised Volvo workshop.
G020347
WHIPS system and child seats/booster cushions
The WHIPS system does not diminish the protection provided by the car to children seated in a child seat or on a booster cushion.
Correct seating position
For the best possible protection, the driver and front seat passenger should sit in the centre of the seat with as little space as pos­sible between the head and the head restraint.
WHIPS
01
23
01 Safety
01
WHIPS
Do not obstruct the WHIPS system
WARNING
Do not squeeze rigid objects between the rear seat cushion and the front seat back­rest. Make sure you do not to obstruct the function of the WHIPS system.
WARNING
If a seat has been subjected to extreme forces, such as due to a rear-end collision, the WHIPS system must be checked by an authorised Volvo workshop.
Part of the WHIPS system’s protective ca­pacity may have been lost even if the seat appears to be undamaged.
Contact an authorised Volvo workshop to have the system checked after even a minor rear-end collision.
G020125
24
01 Safety
ROPS function
Roll bars in raised position.
The ROPS system consists of strong roll bars which are located behind the passengers’ head restraints, as well as sensors. In the event of a situation where the car is at risk of overturning, or in the event of a sufficiently violent collision from behind, the sensors detect this and the roll bars rise up behind the passengers’ heads. The roll bars are deployed irrespective of whether the roof is open or closed.
Always contact an authorised Volvo work­shop if the ROPS system has deployed.
G020797
WARNING
Do not carry out any work on the ROPS sys­tem.
Do not place any objects on the ROPS sys­tem or behind the passengers’ head re­straints.
Roll-Over Protection System (ROPS)
01
25
01 Safety
01
When the systems deploy
System Tr igg e re d
Seatbelt tensioner, front seat In a frontal collision and/or side-impact accident and/or rear-end collision and/or overturning. Seatbelt tensioner, rear seat In a frontal collision and/or side-impact accident and/or overturning. Airbags (SRS)
Side airbags (SIPS) Inflatable Curtain DMIC
Whiplash protection WHIPS In a rear-end collision. Roll-Over Protection System (ROPS) In the event of overturning and/or collision from behind.
1
The bodywork of the car could be greatly deformed in a collision without airbag deployment. A number of factors such as the rigidity and weight of the object hit, the
speed of the car, the angle of the collision etc. affects how the different safety systems of the car are activated.
If the airbags have been deployed, the fol­lowing is recommended:
• Have the car transported to an authorised Volvo workshop. Do not drive with deployed airbags.
• Let an authorised Volvo workshop replace components in the car’s safety system.
• Always contact a doctor.
In a frontal collision In a side-impact accident
In a side-impact accident and/or overturning
WARNING
The airbag system control module is located in the centre console. If the centre console is drenched with water or other liq­uid, disconnect the battery cables. Do not attempt to start the car since the airbags may deploy. Have the car transported to an authorised Volvo workshop.
1
1
1
WARNING
Never drive with deployed airbags. They can make steering difficult. Other safety systems may also be damaged. The smoke and dust created when the airbags are deployed can cause skin and eye irritation after intensive exposure. In case of irrita­tion, wash with cold water. The rapid deployment sequence and airbag fabric may cause friction and skin burns.
NOTE
The SRS, SIPS, DMIC, belt tensioner and ROPS systems are deployed only once dur­ing a collision.
26
01 Safety
Driving after a collision
If the car is involved in a collision, the text
CRASH MODE - SEE MANUAL may appear
on the information display. This means that the car has reduced functionality. Crash mode is a protective state that is enforced when the collision may have damaged the car’s vital functions, such as the fuel lines, sensors for one of the safety systems, or the brake system.
Attempting to start the car
First, check that no fuel is leaking from the car. There should be no smell of fuel.
If everything seems normal and you have checked for indications of fuel leakage, you may attempt to start the car.
Firstly, remove the ignition key and then rein­sert it. The car’s electronics will then try to reset themselves to normal mode. Then try to start the car. If on the display then the car must not be driven or towed. Even if the car appears to be driveable, hidden damage may make the car impossible to control once moving.
CRASH MODE is still shown
Moving the car
If NORMAL MODE is shown after CRASH
G020127
MODE
has been reset, the car can be moved carefully out of a dangerous position. Do not move the car further than necessary.
WARNING
Never attempt to repair your car or reset the electronics yourself if the car has been in crash mode. This could result in personal injury or the car not functioning as normal. Always allow an authorised Volvo workshop to check and restore the car to
NORMAL MODE after CRASH MODE has
been displayed.
Crash mode
WARNING
Never, under any circumstances, attempt to restart the car if it smells of fuel when the
CRASH MODE message is displayed.
Leave the car at once.
WARNING
If the car is in CRASH MODE it must not be towed. It must be transported to an author­ised Volvo workshop.
01
27
01 Safety
01
Child safety
Children should sit comfortably and safely
The position of a child in the car and the choice of equipment is dictated by the child’s weight and size. For more information see page 30.
NOTE
Regulations regarding the placement of children in cars vary from country to coun­try. Check what laws apply.
Children of all ages and sizes must always sit correctly secured in the car. Never allow a child to sit on the knee of a passenger.
Volvo’s own child safety equipment is designed for your car. Use Volvo genuine equipment to best ensure that the mounting points and attachments are correctly posi­tioned and are sufficiently strong.
NOTE
If problems arise when fitting child safety products, contact the manufacturer for clearer instructions.
Child seats
Child seats and airbags are not compatible.
Volvo has child safety products that are de­signed for and tested by Volvo.
NOTE
When using child safety products it is important to read the installation instruc­tions included with the product.
Do not attach the straps for the child seat to the horizontal adjustment bar, springs, rails or beams under the seat. Sharp edges can damage the straps. Allow the backrest of the child seat to rest against the dashboard. This
applies to cars without a passenger airbag, or where the airbag is deactivated.
Location of child seats
You may place:
• a child seat or booster cushion on the front passenger seat, provided the pas­senger airbag is not activated1.
• a rear-facing child seat in the rear seat that uses the back of the front seat as support.
Child seats and activated airbags are not compatible.
Always place a child in the rear seat if the
G020128
passenger airbag is activated. A child in the front passenger seat could suffer serious in­jury if the airbag deploys.
WARNING
Never place a child in a child seat or on a booster cushion in the front seat if the air­bag (SRS) is activated.
No one shorter than 140 cm should sit in the front passenger seat if the airbag (SRS) is activated.
Failure to follow the advice given above can endanger the life of the child.
1
For information on activated/deactivated air­bag (SRS) see page 18.
28
01 Safety
WARNING
Booster cushions/child seats with steel braces or some other design that could rest on the seatbelt buckle’s opening button must not be used, as they could cause the seatbelt buckle to open accidentally. Do not allow the upper section of the child seat to rest against the windscreen.
Child safety
Airbag decal
G018564
Decal located on instrument panel end face. Decal located on instrument panel end face
(Australia only).
01
G018620
29
