VOLTCRAFT V-Charge 200 Duo User guide

Download
Operating Instructions
Multifunctional charger "V-Charge 200 Duo"
Item No. 1539603
Table of Contents
Page
1. Introduction .......................................................................................................................................................... 4
2. Explanation of Symbols ....................................................................................................................................... 4
3. Intended Use .......................................................................................................................................................5
4. Scope of Delivery ................................................................................................................................................. 5
5. Safety Notes ........................................................................................................................................................ 6
a) General .......................................................................................................................................................... 6
b) Mains cable/mains voltage ............................................................................................................................ 6
c) Location for Installation .................................................................................................................................. 7
d) Operation ....................................................................................................................................................... 8
6. Rechargeable Battery Notes ................................................................................................................................ 9
a) General .......................................................................................................................................................... 9
7. Usable Rechargeable Battery Types .................................................................................................................12
8. Operating Elements ........................................................................................................................................... 13
9. Commissioning .................................................................................................................................................. 14

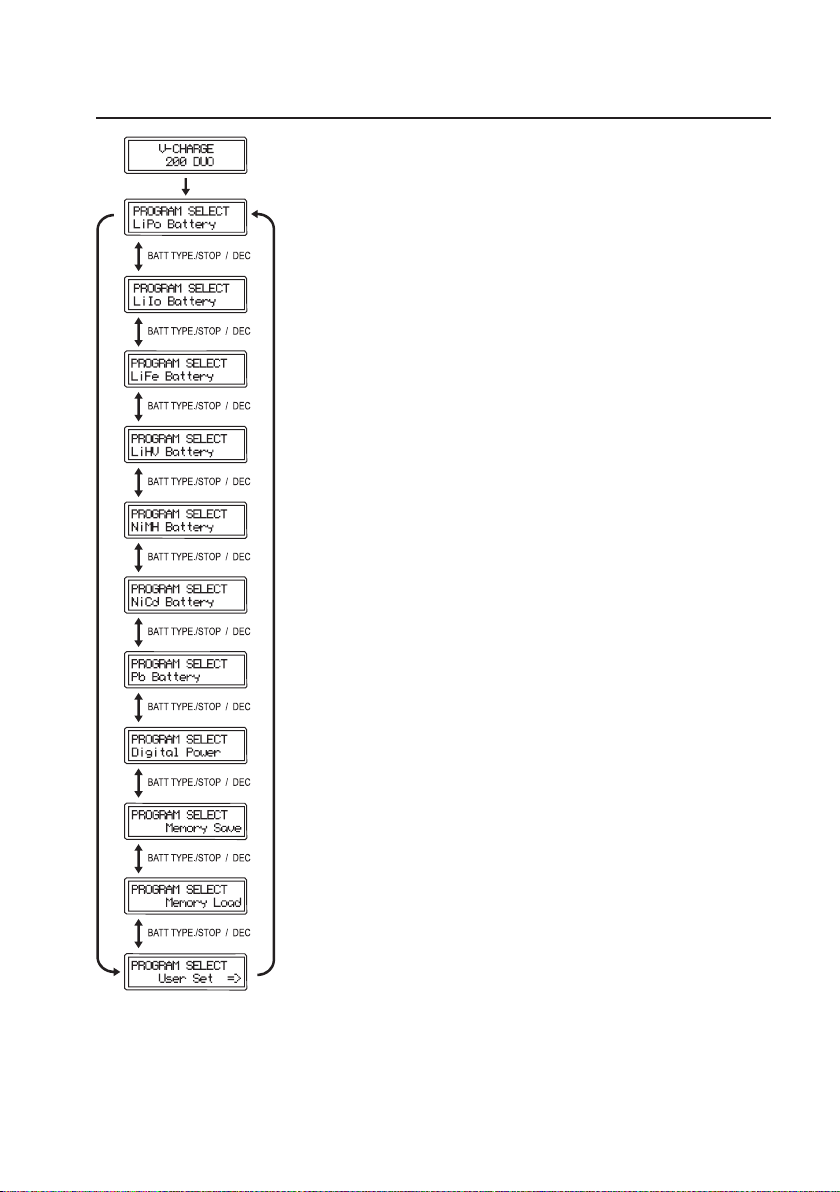

10. Main Menu .........................................................................................................................................................18
11. Lithium Batteries (LiPo, LiIon, LiFe, LiHV) .........................................................................................................19
12. NiMH and NiCd Rechargeable Batteries ...........................................................................................................25
2
Page
13. Lead Batteries (Pb) ............................................................................................................................................30
14. Saving/Loading Rechargeable Battery Data ......................................................................................................33
15. System settings .................................................................................................................................................35
16. Fixed Voltage Output ........................................................................................................................................39
17. Warning Messages on the Display ....................................................................................................................41
18. Information on the Charger ................................................................................................................................42
19. Maintenance and Cleaning ................................................................................................................................43
20. Disposal ............................................................................................................................................................. 43
21. Technical Data ...................................................................................................................................................44
3
1. Introduction
Dear Customer,
thank you for making the excellent decision of purchasing this Voltcraft® product.
Voltcraft® - This name stands for above-average quality products in the areas of measuring, charging and grid tech­nology, characterised by technical competence, extraordinary performance and permanent innovation.
Whether you are an ambitious hobby electronics technician or a professional user - a product of the Voltcraft® brand family will provide you with the best solution for even the most sophisticated of tasks. Special features: We offer the sophisticated technology and reliable quality of our Voltcraft® products at a near-unbeatable price/performance ratio. We lay the groundwork for long, good and successful cooperation.
Enjoy your new Voltcraft® product!
All company names and product names are trademarks of their respective owners. All rights reserved.
If there are any technical questions, please contact:
International: www.conrad.com/contact
United Kingdom: www.conrad-electronic.co.uk/contact
2. Explanation of Symbols
The symbol with a lightning bolt in a triangle is used where there is a health hazard, e.g. from electric shock.
The exclamation mark in a triangle indicates important notes in these operating instructions that must be
observed strictly.
The arrow symbol indicates that special advice and notes on operation are provided.
The product is intended for use in dry indoor rooms only; it must not become damp or wet.
Observe the operating instructions.
4
3. Intended Use
The charger "V-Charge 200 Duo" has two independent charge/discharge channels that each have a two-line lit display and four operating buttons.
The charger is used to charge and discharge rechargeable batteries of the type NiMH/NiCd (1 - 15 cells), LiPo/LiIon/ LiFe/LiHV (1 - 6 cells) and lead batteries (1 - 10 cells, 2 V - 20 V).
The charging current for channel 1 can be set between 0.1 A and 10.0 A. The charging current for channel 2 can be set between 0.1 A and 5.0 A (each depending on the cell number/rechargeable battery voltage). The maximum total charging output is 200 W (each channel max. 100 W).
The discharging current for channel 1 and 2 can be set between 0.1 A and 5.0 A (depending on the cell number/ rechargeable battery voltage). The maximum discharge output for each channel is 15 W.
For each of the two charge/discharge channels, there is a connection for a temperature sensor available for battery monitoring (not enclosed, can be ordered as an accessory).
For multi-cell lithium rechargeable batteries, each charge/discharge channel has a separate balancer. Matching bal­ancer boards are included in the delivery.
The charger has an integrated mains unit to permit operation on mains voltage (230 V/AC, 50/60 Hz). The charger may, however, also be alternatively operated on a stabilised direct voltage of 11 - 18 V/DC (e.g. via an external vehicle lead battery or a suitable mains adapter).
The safety notes and all other information in these operating instructions always have to be observed!
Read the operating instructions carefully and attentively, and keep them for later reference. Only pass the product on to any third parties together with the operating instructions.
Use other than that described above can lead to damage to the product and may involve additional risks such as, for
example, short circuits, re, electrical shock etc. The entire product must not be modied or converted, and the casing
must not be opened!
This product complies with the statutory national and European requirements.
4. Scope of Delivery
• Multifunctional charger
• 2x balancer board
• Connection cable for DC input
• 2x charging cable with T-plug
• Mains cable
• CD with operating instructions
Current operating instructions
Download the current operating instructions via the link www.conrad.com/downloads or scan the QR code displayed. Observe the instructions on the website.
5
5. Safety Notes
Read the operating instructions attentively and particularly observe the safety notes. If the safety notes and the information in these operating instructions regarding proper handling are not ob­served, we assume no liability for any resulting injury/property damage. In such cases, the war­ranty/guarantee will also lapse.
a) General
• The unauthorized conversion and/or modication of the product is inadmissible because of safety and
approval reasons. Never dismantle the product!
• Maintenance, adjustment, or repair work must only be carried out by a specialist/a specialist workshop. The device contains no parts that require servicing or adjusting by you.
• The product is not a toy and must be kept out of reach of children!
The product must only be set up, used or stored in places that are not accessible to children. The same applies for rechargeable batteries.
Pay particular attention when children are present! Children may change the settings or short-circuit the
rechargeable battery/batteries, which may lead to re or explosion. Danger to life!
• In schools, training centres, hobby and self-help workshops, the use of the product must be supervised
by responsible trained personnel.
• In commercial institutions, the accident prevention regulations of the Employer’s Liability Insurance As­sociation for Electrical Systems and Operating Materials are to be observed.
• Do not leave packaging material lying around carelessly. It may become a dangerous toy for children!
• Handle the product with care; impacts, shock or fall even from low heights will damage it.
• If you are not sure about the correct operation or if questions arise which are not covered by the operat-
ing instructions, please do not hesitate to contact us or another specialist.
b) Mains cable/mains voltage
• Product setup corresponds to protection class I. It must only be connected to a proper protective contact mains socket. Observe that the housing or mains line insulation is not damaged or destroyed.
• The mains socket to which the plug-in mains unit is connected must be easily accessible.
• Do not pull the mains plug from the mains socket by pulling the cable.
• If the mains cable or charger are damaged, do not touch it. Danger to life from electric shock!
First switch off the mains voltage for the mains socket to which the mains cable is connected (switch off the corresponding circuit breaker or take out the fuse, then switch off the fault interrupter protection switch (FI circuit breaker) so that the mains socket is separated from the mains voltage on all poles).
Only then unplug the mains unit from the mains socket.
If the charger is damaged, stop operating it. Take it to a specialised workshop or dispose of it in an environmentally friendly way.
If the mains cable is damaged, dispose of the damaged mains cable in an environmentally compatible
way. Do not use it anymore. Replace it with a new mains cable of the same specications.
6
c) Location for Installation
• The charger is intended for dry indoor use only. It must not become damp or wet. Never set it up near a bathtub, shower or similar!
If the charger is operated via the mains cable, there is danger to life from electric shock in case of mois­ture/wetness on the charger/mains cable!
• Avoid direct sun irradiation, strong heat or cold. Keep the charger away from dust and dirt. The same applies to any rechargeable battery that may be connected.
• Do not operate the charger inside of rooms or in bad ambient conditions where ammable gases, va­pours or explosive dust may be or are present! There is a danger of explosion!
• Choose a solid, at, clean and sufciently large surface for the charger. Never place the charger on a ammable surface (e.g. carpet, tablecloth). Always use a suitable, non-ammable, heatproof surface.
• Keep the charger away from ammable or easily inammable materials (e.g. curtains).
• Never cover the ventilation slits. There is a danger of overheating or re. Never push any objects into the
ventilation slots of the charger; There is a danger to life from electric shock! Never impair the function of the integrated fan.
• Do not place the charger on any valuable furniture surfaces without using a suitable protection. Other­wise, scratches, pressure points or discolourations are possible. The same applies to the rechargeable battery.
• Do not use the charger inside a vehicle.
• The charger must only be set up, used or stored in places that are not accessible to children. Children
may change the settings or short-circuit the rechargeable battery/battery pack, which can lead to an explosion. Danger to life!
• Avoid setup in direct proximity of strong magnetic or electromagnetic elds, transmitter aerials or HF
generators. This can affect the control electronics.
• Ensure that the cables are not crushed or damaged by sharp edges. Never place any objects on the cables.
• Do not place any containers lled with liquid, vases or plants, on or next to the charger/mains cable.
When these liquids get into the charger (or the plug connections of the mains cable), the charger will be
destroyed and there is a most severe danger of potentially fatal electric shock or re.
If the charger is operated via the mains cable, rst switch off the mains voltage for the mains socket to
which the mains cable is connected (switch off the corresponding circuit breaker or take out the fuse, then switch off the fault interrupter protection switch (FI circuit breaker) so that the mains socket is separated from the mains voltage on all poles). Only then unplug the mains plug of the mains cable from the mains socket.
If the charger is operated via the DC input (11 - 18 V/DC), disconnect the charger from the voltage/ power supply.
Then disconnect the connected rechargeable battery from the charger. Do not use the charger again ­bring it to a specialist workshop.
7
d) Operation
• The charger may be operated either via the mains voltage (230 V/AC, 50/60 Hz) or via a stabilised direct voltage of 11 - 18 V/DC (e.g. via an external vehicle lead battery or a suitable mains adapter).
Use only one of the two connection types, but never both at once. This may damage the charger.
• Do not wear any metal or conductive materials, such as jewellery (necklaces, bracelets, rings, etc.) while you are working with the charger or batteries. A short-circuit at the rechargeable battery or charging cable poses a danger of burns and explosion.
• Do not operate the product unattended. Despite a considerable number of protective circuits, it is impos­sible to exclude the possibility of malfunctions or problems during the charging process.
• Ensure that there is sufcient ventilation during operation. Never cover up the charger. Leave enough of a distance (at least 20 cm) between charger and other objects. Overheating causes a danger of re!
• The charger must only be used to charge (or discharge) rechargeable batteries of types NiMH, NiCd,
LiIon/LiPo/LiFe/LiHV and lead batteries. Never charge any other rechargeable battery types or non-
rechargeable batteries. There is great danger of re or explosion!
• Always connect the charging cable to the charger rst. Only then must the rechargeable battery be con-
nected to the charging cable.
When disconnecting, proceed in reverse order - rst disconnect the rechargeable battery from the charg­ing cable, then the charging cable from the charger.
If the order is chosen incorrectly, there may be a short-circuit of the charger plugs; there is a danger of
re and explosion!
• Never connect several charges to each other.
• The charger has two charging channels that are independent of each other, so that up to two recharge-
able batteries/rechargeable battery packs can be charged (or discharged) at once. However, only con­nect a single rechargeable battery/rechargeable battery pack to each of the two charging channels. Never connect the charging channels to each other!
• Only operate the product in moderate climate, never in tropical climate. For more information on accept­able environmental conditions, see the chapter "Technical Data".
• Never operate the device immediately after it was taken from a cold room to a warm room. The resulting condensation may lead to malfunctions or damage!
Let the product reach room temperature before taking it into operation again. This may take several hours!
• Avoid operation in direct proximity of strong magnetic or electromagnetic elds, transmitter aerials or HF
generators. This can affect the control electronics.
• If you have reason to believe that the device can no longer be operated safely, disconnect it immediately and make sure it is not operated unintentionally.
Disconnect the charger from the voltage/current supply. Do not use the product any more after this, but take it to a specialised workshop or dispose of it in an environmentally compatible manner.
• It can be assumed that operation without danger is no longer possible if the device has any visible damage, the device no longer works, after extended storage under unsuitable conditions or after difcult
transport conditions.
• Keep the entire product at a dry, cool, clean site that is not accessible to children.
8
6. Rechargeable Battery Notes
Although use of rechargeable batteries in everyday life is a matter of course today, there are many dangers and problems. In particular, with LiPo/LiIon/LiFe/LiHV rechargeable batteries with their high energy content (in comparison with conventional NiCd or NiMH rechargeable batteries), vari-
ous regulations must be observed in order to avoid the danger of explosion and re.
For this reason, always ensure that you have read and understood the following information and safety information when handling rechargeable batteries.
If the manufacturer of the rechargeable battery has provided any other information, read it carefully and observe it!
a) General
• Rechargeable batteries are no toys. Always keep batteries/rechargeable batteries out of the reach of children.
• Do not leave rechargeable batteries lying around openly. Children or pets may swallow them. If swal­lowed, consult a doctor immediately!
• Rechargeable batteries must not be short-circuited, taken apart or thrown into re. There is a risk of re
and explosion!
• Leaking or damaged batteries/rechargeable batteries can cause chemical burns to skin when touched without the use of adequate protective gloves.
• Never recharge normal (non-rechargeable) batteries. There is a risk of re and explosion!
Non-rechargeable batteries are meant to be used once only and must be disposed of properly when empty.
Only charge rechargeable batteries intended for this purpose. Use a suitable battery charger.
• Batteries must not get damp or wet.
• Place the charger and battery on a non-ammable, heat-resistant surface (e.g. stone tiles). Maintain enough distance from ammable objects. Leave enough distance between the charger and the re-
chargeable battery - never place the rechargeable battery on the charger.
• As both the charger and the battery heat up during the charge/discharge procedure, it is necessary to ensure sufcient ventilation. Never cover the charger or the rechargeable battery!
• Never use battery packs made up of different cells.
• Never leave the charging/discharging batteries unattended.
• Never recharge a battery directly in the model. Always remove the rechargeable battery from the model
for recharging.
• Always observe correct polarity (plus/+ and minus/-) when connecting the rechargeable battery to your model or charger. Connecting the battery incorrectly will not only damage the model but also the re-
chargeable battery. There is a risk of re and explosion!
This charger has a mechanism that protects against connecting the poles incorrectly. Nonetheless, it is possible that an incorrectly connected battery may lead to damage in certain situations.
9
• The charger has two charging channels that are independent of each other, so that up to two recharge­able batteries/rechargeable battery packs can be charged (or discharged) at once. However, only con­nect a single rechargeable battery/rechargeable battery pack to each of the two charging channels. Never connect the charging channels to each other!
• If the product is not to be used for an extended period of time (e.g. storage), disconnect any connected rechargeable battery from the charger and disconnect the charger from the voltage/current supply.
The charger has no mains switch. If you operate the charger via the mains cable, pull the mains plug from the socket when you no longer need the charger.
• Do not charge/discharge any battery that is still hot (e.g. caused by high discharging current from the model). Allow the rechargeable battery to cool down to room temperature before attempting to charge or discharge it.
• Never damage the exterior cover of a battery. There is a risk of re and explosion!
• Never charge/discharge damaged, leaking or deformed batteries. This can result in a re or explosion!
Dispose of any unusable rechargeable batteries in an environmentally compatible fashion. Do not con­tinue to use them.
• Remove the battery from the charger when it is fully charged.
• Recharge the rechargeable batteries about every 3 months. Otherwise, so-called deep discharge may
result, rendering the rechargeable batteries useless.
• Keep rechargeable batteries in a suitable location. Use a smoke detector in the room. The risk of re (or
the occurrence of toxic smoke) cannot be excluded. Special rechargeable batteries for the model con­struction area are subject to great stress (e.g. high charging and discharging currents, vibrations, etc.).
b) Additional Information about Lithium Batteries
Modern batteries with lithium technology do not only have a clearly higher capacity than NiMH or NiCd rechargeable battery packs but they also have a considerably lower weight. This makes this type of re­chargeable battery very interesting for application in model construction; so-called LiPo batteries (lithium­polymer) are often used here.
Rechargeable lithium batteries require special care when charging/discharging, as well as during operation and handling.
For this reason, we would like to provide you with some information in the sections below about the dangers and how you can avoid them, thus helping such batteries to maintain their performance for an extended period of time to come.
Additionally observe chapter 6. a).
10
• The outer shell of many rechargeable lithium batteries is only made of a thick foil and therefore very sensitive.
Never destroy or damage the battery, never let the battery fall and do not pierce the battery with any objects! Avoid any mechanical strain on the battery; never pull the connection cables of the battery!
There is a risk of re and explosion!
These guidelines must also be observed when the battery is inserted into the model or when it is re­moved from the model.
• Ensure that the battery does not overheat during usage, recharging, discharging, transport or storage. Do not place the battery next to sources of heat (e.g. speed controller, motor), keep the battery away
from direct sunlight. There is a risk of re and explosion if the battery overheats!
The battery must never heat up to more than +60 °C (observe any additional information from the manufacturer!).
• If the battery is damaged (e.g. after the crash of an aircraft or helicopter model) or the exterior cover is soaked/has expanded, do not use the battery. Do not charge it anymore. There is a risk of re and explo-
sion!
Handle the battery with care, use suitable protective gloves. Dispose of the rechargeable battery envi­ronmentally compatibly.
Never keep such rechargeable batteries in an apartment or a house/garage anymore. Damaged or
bloated lithium rechargeable batteries may catch re suddenly.
• Only use a suitable charger to charge lithium batteries or use the correct charging procedure. Due to a risk of re and explosion, conventional chargers for NiCd, NiMH and lead batteries must not be used!
Always choose the right charging procedure depending on rechargeable battery.
• When charging a lithium battery with more than one cell, always use a so-called balancer (one is already integrated into the supplied charger).
• Charge LiPo batteries with a max. charging current of 1C (if not indicated otherwise by the battery manufacturer!). This means that the charging current may not exceed the capacity value imprinted on the battery (e.g. battery capacity 1000 mAh, max. charging current 1000 mA = 1 A).
With LiFe, LiIon and LiHV batteries, you must observe the instructions of the battery manufacturer.
• The discharging current must not exceed the value printed on the battery.
For example, if a value of "20C" is printed on a LiPo battery, the max. discharging current is 20 times the battery’s capacity (e.g. battery capacity 1000 mAh, max. discharging current 20C = 20 x 1000 mA = 20 A).
Otherwise, the battery will overheat, causing deformation/bloating of the battery or explosion and re!
The printed value (e.g "20C") does not generally refer to the constant current, but to the maximum cur­rent that the battery is capable of producing in the short-term. The constant current therefore should not be higher than one half of the given value.
• Observe that the individual cells of a lithium rechargeable battery must not be deep-discharged. A deep discharge of a lithium rechargeable battery will lead to permanent damage/destruction of the recharge­able battery.
If the model does not provide protection against total discharge or possess a visual display indicating a low battery, remember to switch off the model in time.
11
7. Usable Rechargeable Battery Types
Rechargeable battery type LiPo LiIon LiFe LiHV NiCd NiMH Pb
Rated voltage (V/cell) 3.7 3.6 3.3 3.7 1.2 1.2 2.0
Max. charging voltage (V/cell)
Voltage for storage (V/cell) 3.8 3.7 3.3 3.85 - - -
Charging current for quick charge
Min. voltage after discharge (V/cell)
The voltages in the above table apply to a single cell. The data may deviate depending on manufacturer
(observe manufacturer’s information!).
The max. charging and discharging currents are indicated with the capacity value "C".
A charging current of 1C corresponds to the capacity value imprinted on the battery (e.g. indicated battery
capacity 1000 mAh, max. charging current 1000 mA = 1 A).
Also observe the correct voltage setting for multi-cell battery packs. For example, the individual cells in a
two-cell battery pack may be switched in parallel or in series.
If the maximum permissible charging current for the rechargeable battery is exceeded or a wrong cell
number/voltage setting is chosen, there is a danger of destroying the rechargeable battery. There also is a
danger of re and explosion from the rechargeable battery!
Further notes on the max. charging current and the cell number/voltage can be taken from the data sheets
or the labels of the rechargeable batteries; these data take precedence over the information in the above table.
Important!
• Never charge battery packs made up of different cells (or cells from different manufacturers).
• Never charge non-rechargeable batteries.
• Never charge rechargeable batteries not listed in the above table.
• Never charge rechargeable batteries with integrated electronics.
• Never charge rechargeable batteries that are still connected to other devices (e.g. a speed controller).
• Never charge any damaged or bloated rechargeable batteries.
4.2 4.1 3.6 4.35 1.5 1.5 2.46
<= 1C <= 1C <= 4C <= 1C 1C - 2C 1C - 2C <= 0.4C
>= 3.0 >= 2.9 >= 2.6 >= 3.1 >= 1.0 >= 1.0 >= 1.8
12
8. Operating Elements
1
2
3
4
5
6
1 Lit two-line LC display
2 Voltage selector switch (if available, it´s pre-set to 230 V and not adjustable)
3 Mains socket for connecting the charger to the mains voltage
4 Round sockets (4 mm) for rechargeable battery connection (red = plus/+, black = minus/-), channel 1
5 Balancer port to connect an external balancer board (enclosed), channel 1
6 Socket for external temperature sensor (not enclosed, can be ordered separately), channel 1
7 "BATT. TYPE/STOP" button: Return from a submenu, stopping charging, cancelling
8 "DEC." button: Selecting the rechargeable battery programme in the main menu, value input (value reduction),
menu selection (back), display of various data during charging/discharging
9 "INC." button: Entering values (increasing value), menu selection (forward), displaying the voltage values of the
individual cells when charging lithium batteries with a balancer connection
10 "START/ENTER" button: Selecting the rechargeable battery programme in the main menu, starting/continuing
charging, conrmation of a setting/operating function
11 Socket for external temperature sensor (not enclosed, can be ordered separately), channel 2
12 Balancer port to connect an external balancer board (enclosed), channel 2
13 Round sockets (4 mm) for rechargeable battery connection (red = plus/+, black = minus/-), channel 2
14 Direct voltage input (11 - 18 V/DC, stabilised), e.g. to connect to an external vehicle lead battery
15 Fan
Either operate the charger via the mains voltage connection (3) or the direct voltage input (14). Never use
both inputs at the same time. This may damage the charger.
7
10
9
8
12
11
13
14
15
13
9. Commissioning
a) Connection to a Voltage/Current Supply
Attention!
Always connect the charger to the voltage/current supply rst; only then must a rechargeable battery be
The charger offers two different options for operation:
• Operation via the mains voltage (230 V/AC, 50/60 Hz)
• Operation via stabilised direct voltage (11 - 18 V/DC, e.g. via an external vehicle lead battery or a mains adapter)
The charger has a maximum total charging output of 200 W. If the charger is to be operated via the direct voltage input, the power supply strength must be chosen depending on how high the actually used charging output is (depend­ing on the rechargeable battery type, cell number and the charging current set).
If the charger is not to be operated at a 12 V vehicle lead battery, but via a xed voltage mains unit, it must
When using the direct current input, observe the correct polarity when connecting (plus/+ and minus/-).
The charger will switch on automatically after connecting to the voltage/current supply. The two displays light up and the starting message appears. The charger emits a brief signal.
The charger is then ready for operation.
connected to the charger.
Never use both operating modes at the same time. This may damage the charger. Loss of guarantee/war-
ranty!
When fully using the maximum total charging output of 200 W, the conversion loss increases power intake
by about 20 - 30%.
be able to supply a correspondingly high current.
14
b) Connection of a Rechargeable Battery to the Charger
Please observe the following points before connecting or charging/recharging the battery:
• If you have not done so already, please read chapters 5, 6 and 7 completely and ensure that you have understood the information there.
• Do you know all of the information you need to know about your battery? Unknown or unlabelled batter­ies, the necessary values of which you do not know, must not be connected/charged/discharged!
• Have you selected the correct charging/discharging program for the type of battery you are using? Incor- rect settings will damage the charger and the battery; there is a danger of re and explosion!
• Did you set the correct charging or discharging current?
• Have you selected the correct voltage (e.g. for multiple-cell LiPo batteries)? A two-cell LiPo battery may
be switched in parallel (3.7 V) or series (7.4 V).
• Are all connector cables and plugs undamaged, do the plugs stay rmly in the sockets? Worn plugs and
damaged cables should be replaced.
• Connect only one single rechargeable battery or rechargeable battery pack to each of the two charging channels of the charger, but never several at once per charging channel. Never connect the charging channels to each other! The two charging channels are all independent of each other.
• When connecting a rechargeable battery to the charger, always connect the charging cable to the charg- er rst. Only then must the charging cable be connected to the rechargeable battery. When disconnect­ing, proceed in reverse order (rst disconnect the rechargeable battery from the charging cable, then the
charging cable from the charger).
Failure to do so presents the danger of a short circuit. This can result in a re or explosion of the re­chargeable batteries!
• If you wish to charge battery packs that you have manufactured yourself, the cells must be identical in their construction (same type, same capacity, same manufacturer).
The cells must also be charged to the same level (lithium batteries can be balanced out using the bal­ancer. This is, however, not possible with other battery packs such as NiMH or NiCd).
• Before connecting a rechargeable battery/battery pack to the charger, disconnect it completely, e.g. from a ight or speed controller.
Important when charging/discharging a lithium battery pack with balancer connection:
Multi-cell lithium battery packs usually always have a balancer connection. This permits the charger to monitor the voltage of every single cell separately at all times.
The charger adjusts the voltage of all cells to each other if there are deviations. The balancer prevents that one or
several cells are over-charged or other cells not sufciently fully charged by this. The balancer therefore protects both from over-charging (which may cause re or explosion) and from deep discharge of a single cell, and thus ensures
best performance of the battery pack in your model.
15
Procedure when connecting a battery pack to the charger:
1. Connect the charger to the voltage/current supply.
2. Select one of the two charging channels. First connect the charging cable to the two 4 mm round sockets of the corresponding charging output (#1 or #2). Ensure correct polarity (red cable = plus/+, black cable = minus/-).
The charging cable must not be connected to the rechargeable battery yet! There may be a short-circuit of
the charger plugs; there is a danger of re and explosion!
3. If you want to connect a multiple-cell lithium rechargeable battery to the charger with a balancer cable, connect a balancer board (enclosed) to the respective socket of the charger.
4. Connect the charging cable to the rechargeable battery now. Ensure correct polarity (red cable = plus/+, black cable = minus/-).
5. Connect the balancer plug of a multiple-cell rechargeable lithium battery to the corresponding connection of the balancer board. Do not use any force for plugging in! Ensure correct polarity.
If the balancer plug of the rechargeable battery does not match the shape of the socket on the balancer board, you need to use a matching connection cable (or another balancer board).
Proceed in the following steps when disconnecting a rechargeable battery:
1. If you have connected a lithium rechargeable battery with a balancer cable to the charger, disconnect it from the charger/balancer board.
2. Then disconnect the charging cable from the rechargeable battery.
3. Last disconnect the charging cable from the charger.
Always proceed in this order!
The rechargeable battery must always be disconnected from the charging cable (and from the balancer
Any other order poses danger of short circuit by the two round plugs of the charging cable connected to the
4. If no rechargeable battery is connected to the charger anymore, you can disconnect the charger from the voltage/
connection for lithium rechargeable batteries) rst. Only then must the charging cable be disconnected
from the charger.
rechargeable battery, as well as danger of re and explosion!
current supply.
16
c) General Information on Operation of the Menus
• Select the desired submenu from the main menu using the "BATT TYPE./STOP" or the "DEC" button as described and conrm your selection with the button "START/ENTER".
• In a submenu, you can call the different settings with the buttons "INC" and "DEC".
• To modify a value, push the "START/ENTER" button - the display then ashes. Modify the value ashing in the
display using the "INC" and "DEC" buttons. For quick adjustment of a value (e.g. the charging current), keep the respective button pushed for a longer time.
• Save the (modied) value with the "START/ENTER" button.
• Exit each setting menu using the "BATT TYPE./STOP" button. The charger then returns to the main menu.
Various information is indicated on the display during a charge/discharge process by repeatedly pressing
the button "DEC". If you do not push any button for a few seconds, the charger will return to the normal display.
If a Lithium rechargeable battery with balancer plug is connected to the charger, you can push the button
"INC" while charging/discharging to switch to the voltage display for the individual cells. Briey push the
"START/ENTER" button so that the charger will return to the normal display.
17
10. Main Menu
After connection to the voltage/power supply, the start message will appear briey.
Then the charger is in the main menu.
Rechargeable battery programmes for LiPo rechargeable batteries
Rechargeable battery programmes for LiIon rechargeable batteries
Rechargeable battery programmes for LiFe rechargeable batteries
Rechargeable battery programmes for LiHV rechargeable batteries
Rechargeable battery programmes for NiMH rechargeable batteries
Rechargeable battery programmes for NiCd rechargeable batteries
Rechargeable battery programmes for lead battery
18
4 mm output sockets are used for the voltage output. The output voltage is adjust­able from 3.0 to 24.0 V/DC
Saving rechargeable battery data and rechargeable battery programme
Loading rechargeable battery data and rechargeable battery programme
Setting menu for various functions
11. Lithium Batteries (LiPo, LiIon, LiFe, LiHV)
a) General
The rechargeable battery programmes for LiPo, LiIon, LiFe and LiHV rechargeable batteries generally differ only in the voltages and the permitted charging current, see table in chapter 7.
When charging a lithium battery, there are two different phases. First, the rechargeable battery is charged with a consistent current. When the rechargeable battery reaches its maximum voltage (at a LiPo rechargeable battery, e.g.,
4.2 V), charging continues at constant voltage (the charging current drops). When the charging current drops below a
certain threshold, charging is ended and the rechargeable battery is fully charged.
If the rechargeable battery has a balancer connection (usually this is the case in almost every lithium bat-
tery with more than one cell), the balancer connection must be connected to the charger as well as the rechargeable battery's cable for charging/discharging.
There are different types of balancer plug. Therefore, do not apply any force when the plug does not t in
There are also rare rechargeable batteries with more than one cell where the cell connections are sepa-
When using a balancer (integrated in the charger), all cells of a multi-cell battery pack have the same
The charging current to be set depends on the battery capacity and build (see chapter 7). Always observe
Proceed as follows:
The charger must be in the main menu.
Select the rechargeable battery type matching the rechargeable battery used here with the button "BATT TYPE./STOP" or "DEC" (LiPo, LiIon, LiFe or LiHV),
see gures on the right.
Conrm the selection by pressing the "START/ENTER" button.
Then use the button "INC" or "DEC" to select the different rechargeable bat­tery programmes:
• "CHARGE": Charge lithium battery without balancer connection
• "BAL-CHG": Charge lithium battery with balancer connection
• "STORAGE": Charging/discharging rechargeable lithium battery at a set
• "DCHG": Discharging the rechargeable lithium battery
the included balancer board! The matching adapters for the balancer plugs are available as accessories.
rately routed out and that strictly speaking are not a "multiple-cell battery pack". Therefore, always observe the information of the rechargeable battery manufacturer on the build and rated voltage.
voltage after the charge process, which prevents the overcharging of individual cells (danger of re and
explosion) or a deep discharge of one of the cells (damage to the rechargeable battery).
the battery manufacturer's instructions.
PROGRAM SELECT LiPo Battery
PROGRAM SELECT LiIo Battery
PROGRAM SELECT LiFe Battery
PROGRAM SELECT
voltage value (e.g. for storage)
LiHV Battery
19
b) Charging Batteries without Balancer Connection ("CHARGE")
Of course, you can also charge multiple-cell lithium rechargeable batteries with a balancer connection with
the rechargeable battery programme "CHARGE".
However, the individual cell voltages are not reconciled here, so that one or several cells may be over-
Therefore, always charge multiple-cell lithium rechargeable batteries with balancer connection with
• First, choose the rechargeable battery type with the button "BATT TYPE./STOP" or "DEC" as described in chapter
• Select the rechargeable battery programme "CHARGE" with the button
• If the values need to be changed, push the "START/ENTER" button. The number of cells in the upper right of
• The rechargeable battery's capacity ashes. Set the rechargeable battery's capacity with the buttons "INC" and
• The charging current ashes. Change the charging current using the button "INC" or "DEC". Keep the respective
• When no display is ashing anymore, start charging by keeping the "START/
charged. There is a risk of re and explosion!
the rechargeable battery programme "BAL-CHG", but never with the rechargeable battery programme "CHARGE"!
11. a) (LiPo, LiIon, LiFe or LiHV) and push the button "START/ENTER".
"INC" or "DEC".
The previously selected rechargeable battery type is written in the upper left. The upper right shows the cell number ("3S" = 3-cell rechargeable bat­tery), the lower left the rechargeable battery capacity, and the lower right the currently set charging current.
Use the button "INC" or "DEC" to select a different rechargeable battery programme; use the button "BATT
TYPE./STOP" to return to the main menu.
the display is ashing. Set the number of the cells with the buttons "INC" and "DEC". Keep the respective button
pressed for quick adjustment.
Conrm the number of the cells by pressing the "START/ENTER" button.
"DEC". Keep the respective button pressed for quick adjustment.
Conrm the rechargeable battery's capacity by pressing the "START/ENTER" button.
button pressed for quick adjustment.
The maximum possible charging current depends on the battery type and number of cells. The maximum
charging power is 100 W per channel.
Conrm the charging current with the "START/ENTER" button.
ENTER" button pushed (approx. 3 seconds).
The charger now examines the connected rechargeable battery.
If the settings are wrong, or if the charger detects a problem, an audio signal is emitted and the appropriate
information is shown on the display. You can stop the warning signal by pressing the "BATT TYPE./STOP"
button. You then return to the previous conguration menu.
If no error was recognised, e.g. the display on the right will appear (alternat­ing).
The "S:" value indicates the cell number that you have set in the menu (in the example a 3-cell rechargeable battery).
The "R:" value indicates the cell number that the charger has recognised (in the example also a 3-cell rechargeable battery).
LiPo CHARGE 3S C= 5000mAh 2.0A
BATTERY CHECK WAIT...
S: 3SER R: 3SER CANCEL(EXIT)
S: 3SER R: 3SER CONFIRM(ENTER)
20
If these two numbers do not match, please check the settings on the charger and the battery itself. It may
be that the LiPo battery has been completely discharged, or a cell may be faulty. In this case, the battery
should not be charged, as there is a risk of re and explosion!
You can return to the previous conguration menu using the "BATT TYPE./STOP" button.
• If the two numbers match, you can start the charging process by briey pushing the "START/ENTER" button.
• Charging begins. The display will show various information on the current
charging progress.
Example:
At the upper left, the rechargeable battery type and the cell number are displayed ("Li3S" = Lithium rechargeable battery with 3 cells); the charging current is shown in the upper middle and the current rechargeable battery voltage at the upper right.
The lower left shows the current rechargeable battery programme ("CHG" = "CHARGE"), in the middle the elapsed charging time and the charged capacity in mAh are displayed to the right of this.
Various information is indicated on the display during a charge/discharge process by repeatedly pressing
the button "DEC" (see chapter 18). If you do not push any button for a few seconds, the charger will return to the normal display.
• After completion of charging, an audio signal is emitted (if it has not been turned off).
If you wish to cancel the charging process prematurely, push the button "BATT TYPE./STOP".
Li3S 1.2A 12.3V CHG 022:43 00682
c) Charging Rechargeable Batteries with Balancer Connection ("BAL-CHG")
In contrast to the simple rechargeable battery programme "CHARGE" (see chapter 11. b), the rechargeable battery programme "BAL-CHG" monitors the voltage of every single cell of a multiple-cell lithium rechargeable battery and corrects it accordingly if there are any deviations.
Besides the two normal rechargeable battery connections (plus/+ and minus/-), the balancer connector for the battery must also be connected to the charger.
The balancer connection of the rechargeable battery must be connected to the charger via the enclosed balancer board (with XH connections). If your rechargeable battery has a different balancer plug, you need a suitable adapter cable (not enclosed, can be ordered separately).
If you use self-customised rechargeable batteries, the balancer plug must be correctly assigned.
The black cable is the minus pole of the rst cell. The next connection pin is the plus pole of the rst cell;
the respective next connection pin is the plus pole of the second, third, fourth, fth and sixth cell (depending
on cell number).
The last connection pin of the balancer plug of the rechargeable battery therefore is the plus pole of the last
cell. Therefore, the same voltage can be measured between the two outer pins of the balancer plug as at the two rechargeable battery connections directly.
The remaining procedure for charging is described in chapter 11. b).
If a lithium rechargeable battery with balancer plug is connected
to the charger, you can switch to the display of the individual cell
voltages by pushing the button "INC", see gure on the right.
LiPo BAL-CHG 3S C= 3000mAh 3.0A
3.83V 3.78 3.80V
0.00V 0.00 0.00V
21
Briey push the "INC" button or the "START/ENTER" button so that the charger will return to the normal display.
Important!
Only a battery pack with exactly the same voltage for each cell provides the maximum performance and
Variations in the quality of the materials used and the internal structure of multiple-cell lithium battery packs
Charging such a rechargeable lithium battery without balancer will quickly cause large differences of cell
When charging a rechargeable lithium battery with different cell voltages without a balancer, there is the
Example:
A dual-cell LiPo battery pack charged without the use of a balancer appears to have a voltage of 8.4 V and thus ap­pears to be fully charged. The individual cells, however, have a voltage of 4.5 V and 3.9 V (one cell is dangerously overcharged, the other half discharged).
A cell overcharged in this way may leak, expand or, in a worst case scenario, catch re or explode!
If this LiPo rechargeable battery is inserted, e.g. in a model plane, the ying time will be very short, since the voltage
of the half-charged cell will break down quickly and the rechargeable battery will not supply any current anymore.
service life for a model airplane/vehicle.
mean that the cells may have different voltages once discharged.
voltage. This not only shortens the operating life (as one cell may have a very low voltage), but also dam­ages the rechargeable battery as a result of a total discharge.
risk of overcharging one cell, which can lead to an explosion.
If your rechargeable lithium battery has a balancer connection, it must be connected to the charger at all
times in addition to the two regular rechargeable battery connections (plus/+ and minus/-) (via the balancer board); then use the charge programme "BAL-CHG".
22
d) Discharging Rechargeable Batteries ("DCHG")
Normally, it is not necessary to discharge lithium batteries (contrary to NiCd batteries) before charging. The battery can be charged immediately, independent of its current status. If you want to discharge a rechargeable lithium battery anyway, you can set the discharge current.
The maximum possible discharging current depends on the battery type, battery capacity and number of
cells. The max. discharge output of the charger is 15 W for each channel. This limits the max. possible discharge current of rechargeable batteries with multiple cells.
Discharge a lithium rechargeable battery only to the minimum permitted voltage per cell (see table in
chapter 7 or observe information of the rechargeable battery manufacturer). If the rechargeable battery is discharged any further, this deep discharge will permanently damage it and render it useless!
• First, choose the rechargeable battery type with the button "BATT TYPE./STOP" or "DEC" as described in chapter
11. a) (LiPo, LiIon, LiFe or LiHV) and push the button "START/ENTER".
• Select the rechargeable battery programme "DCHG" with the button "INC" or "DEC".
The upper left shows the rechargeable battery type, the upper right the discharge end voltage per cell.
The lower left shows the currently set discharge current; the lower right shows the cell number ("3S") and the associated total rechargeable battery voltage after discharge (cell number x discharge end voltage per cell).
Use the button "INC" or "DEC" to select a different rechargeable battery programme; use the button "BATT
TYPE./STOP" to return to the main menu.
• If the values need to be changed, push the "START/ENTER" button. The discharging end voltage per cell ashes.
Set this voltage with the button "INC" or "DEC". Keep the respective button pressed for quick adjustment.
The discharge end voltage set here applies per cell. The total voltage of the connected rechargeable bat-
tery is automatically calculated after setting the cell number (see below) and displayed at the lower right of the display.
Conrm the discharging end voltage by pressing the "START/ENTER" button.
• The discharge current at the lower left of the display ashes. Change the discharging current using the button "INC"
or "DEC". Keep the respective button pressed for quick adjustment.
The maximum possible discharging current depends on the battery type and number of cells. The max.
discharge output of the charger is 15 W for each channel and thus limits the discharging current.
Conrm the discharging current with the "START/ENTER" button.
• The number of the cells in the lower right of the display ashes. Set the number of the cells with the button "INC" or
"DEC". Keep the respective button pressed for quick adjustment.
Depending on the cell number and the discharge end voltage set per cell (see above), the total voltage of
the connected rechargeable battery is calculated automatically (at the end of the discharge process) (for a two-cell Lithium rechargeable battery, e.g., 6.0 V).
Conrm the cell number with the "START/ENTER" button; the display stops ashing.
• When no display is ashing anymore, keep the "START/ENTER" button pushed (approx. 3 seconds), to start
discharging.
LiPo DCHG 3.0V
1.0A 9.0V(3S)
23
• After starting the discharging process, various information about the current progress is shown in the display.
In the upper left, the rechargeable battery type and the cell number are dis­played ("Li3S" = Lithium rechargeable battery with 3 cells); the discharging current is shown in the upper middle and the current rechargeable battery voltage in the upper right.
The lower left shows the current rechargeable battery programme ("DSC" = discharging rechargeable battery), the middle the elapsed discharging time and the discharged capacity is mAh is displayed to the right of this.
A multiple-cell rechargeable battery must be connected to the
charger with the balancer connection as well when discharging.
Here, you can switch between the normal display and the display of
the cell voltage while discharging by pushing the "INC" button.
• After completion of discharging, an audio signal is emitted (if it has not been turned off).
If you wish to cancel the discharging process prematurely, push the button "BATT TYPE./STOP".
Li3S 1.0A 12.3V DSC 012:43 00252
3.83V 3.78 3.80V
0.00V 0.00 0.00V
e) Storing Batteries ("STORAGE")
This rechargeable battery programme can be used if you want to store the rechargeable battery for an extended period. Depending on the rechargeable battery type set, the rechargeable battery is charged or discharged to a spe-
cic voltage.
Depending on the cell voltage, the battery is either charged or discharged. Of course, with a multi-cell bat-
tery pack, this is only wise if a balancer connection is available and connected to the charger.
At extended storage of a lithium rechargeable battery (e.g. when storing a ight battery over winter), the
rechargeable battery should in any case be checked every 3 months and treated with the rechargeable battery programme "STORAGE" again to prevent harmful deep discharge.
The procedure when setting the cell number, battery capacity and current must be performed as in the rechargeable battery programme "CHARGE" (chapter 11. b) or "BAL-CHG" (chapter 11. c).
The set current is used for charging/discharging.
LiPo STORAGE 3S C= 3200mAh 2.0A
24
12. NiMH and NiCd Rechargeable Batteries
a) General
The rechargeable battery programmes for NiMH and NiCd rechargeable batteries generally differ only in the internally used charging procedures. The settings in the menus are the same.
The charger must be in the main menu.
Select the rechargeable battery type matching the rechargeable battery used here with the button "BATT TYPE./STOP" or "DEC" (NiMH or NiCd), see g­ures on the right.
Conrm the selection by pressing the "START/ENTER" button.
Then use the button "INC" or "DEC" to select the different rechargeable bat­tery programmes:
• "CHARGE Man": Charge rechargeable battery, set charging current manually
• "CHARGE Aut": Charge rechargeable battery, automatically select charging current
• "DISCHARGE": Discharging the rechargeable battery
• "CYCLE": Multiple charging/discharging or discharging/charging cycles
Use the button "BATT TYPE./STOP" to return to the main menu.
b) Charging Rechargeable Batteries ("CHARGE Man")
The charging current to be set depends on the rechargeable battery's capacity and is usually 1C (also see chapter 7). High-quality rechargeable batteries also can stand a charging current up to 2C. However, you should always observe the battery manufacturer's instructions.
The value "1C" means that the charging current is equivalent to the battery's capacity. A charging current
of 3 A therefore is required for a 3000 mAh-NiMH battery at 1C.
A value of 0.5C means that the charging current corresponds to half the capacity value. At a NiMH re-
chargeable battery with a capacity of 3000 mAh, 0.5C means that a charging current of 1.5 A must be set.
In general: The smaller the rechargeable battery (the individual cell), the lower the maximum charging cur-
rent.
For example, conventional NiMH-mignon/AA-cells with a capacity of 2000 mAh permit a charging current
of 1C (this corresponds to a charging current of 2 A). For quick charging of such cells (available, e.g., for receiver batteries), never set more than 0.5C (for a Mignon/AA-cell with 2000 mAh, this equals a charging current of 1 A).
PROGRAM SELECT NiMH Battery
PROGRAM SELECT NiCd Battery
25
Charge a NiMH or NiCd battery as follows:
• First, choose the rechargeable battery type with the button "BATT TYPE./STOP" or "DEC" as described in chapter
11. a) (NiMH or NiCd) and push the button "START/ENTER".
• Select the rechargeable battery programme "CHARGE Man" with the but­ton "INC" or "DEC".
The value at the lower right represents the currently set charging current.
Use the button "INC" or "DEC" to select a different rechargeable battery programme; use the button "BATT
TYPE./STOP" to return to the main menu.
• If the value for the charging current must be changed, push the "START/ENTER" button. The charging current ashes. Change the charging current using the button "INC" or "DEC". Keep the respective button pressed for
quick adjustment.
The maximum possible charging current depends on the battery type and number of cells. The maximum
charging power is 100 W per channel.
Conrm the set charging current with the "START/ENTER" button.
• When no display is ashing anymore, start charging by keeping the "START/ENTER" button pushed (approx.
3 seconds).
• The charger now examines the connected rechargeable battery. In case of an error, a warning signal is output and the corresponding information is displayed. You can stop the warning signal by pressing the "BATT TYPE./
STOP" button. You then return to the previous conguration menu.
If no error is found, e.g. the display shown on the right will appear.
The rechargeable battery type is shown in the upper left ("NiMH" = NiMH rechargeable battery), the upper middle shows the charging current and the upper right the current rechargeable battery voltage.
The lower left shows the current rechargeable battery programme ("CHG" = "CHARGE"), in the middle the elapsed charging time and the charged capacity in mAh are displayed to the right of this.
• After completion of charging, an audio signal is emitted (if it has not been turned off).
If you wish to cancel the charging process prematurely, push the button "BATT TYPE./STOP".
NiMH CHARGE Man CURRENT 0.1A
BATTERY CHECK WAIT...
NiMH 1.2A 7.62V CHG 022:43 00682
26
c) Automatic Charge Mode ("CHARGE Aut")
In automatic charge mode, the charger checks the condition of the connected rechargeable battery (e.g. the inner resistance) and calculates the charging current from this. You need to set an upper limit for the charging current so that the rechargeable battery is not damaged by a too-high charging current.
Depending on the rechargeable battery and its inner resistance, shorter charging times may be achieved in the re­chargeable battery programme "CHARGE Aut" than in the rechargeable battery programme "CHARGE Man" (chapter
12. b).
Proceed as in the rechargeable battery programme "CHARGE Man" for setting and operation (chapter
12. b).
The only difference is that you do not set the actual charging current, but the limit for the maximum charging
current that the charger must not exceed for reasons of safety.
NiMH CHARGE Aut CUR LIMIT 1.0A
d) Discharging Battery ("DISCHARGE")
This rechargeable battery program can be used to put partially charged NiMH/NiCd rechargeable batteries into a
dened starting condition or to perform a measurement of the rechargeable battery capacity.
Specically NiCd rechargeable batteries should not be recharged from a partially discharged condition, since the
capacity may reduce by this (memory effect).
The maximum possible discharging current depends on the battery type, battery capacity and number of
cells. The max. discharge output of the charger is 15 W for each channel. This limits the max. possible discharge current of rechargeable batteries with multiple cells.
Discharge a NiMH or NiCd battery as follows:
• Set the rechargeable battery type as described in chapter 12. a) (NiMH or NiCd) and select the rechargeable battery programme "DISCHARGE".
The set rechargeable battery type (NiMH or NiCd) is shown in the upper left of the display, and the rechargeable battery programme next to it.
The value in the lower left indicates the currently set discharging current; the value on the lower right represents the deactivation voltage at the end of the discharge process.
Use the buttons "INC" or "DEC" to select a different rechargeable battery programme; use the button "BATT
TYPE./STOP" to return to the main menu.
• To change the value for the discharging current and the deactivation voltage, briey push the "START/ENTER" button. The discharging current ashes.
• Set the discharging current with the buttons "INC" and "DEC". Keep the respective button pressed for quick adjust-
ment.
The maximum possible discharging current depends on the battery type and number of cells. The max.
discharging output of the charger is 15 W for each channel.
• Briey push the "START/ENTER" button; the deactivation voltage ashes.
• Set the deactivation voltage with the buttons "INC" and "DEC". Keep the respective button pressed for quick
adjustment.
• Briey push the "START/ENTER" button to conrm the setting.
Proceed as described above to change the discharging current or the discharging voltage again if desired.
NiMH DISCHARGE
0.5A 6.0V
27
• When no display is ashing anymore, keep the "START/ENTER" button pushed (approx. 3 seconds), to start
discharging.
• The charger now examines the connected rechargeable battery. In case of an error, a warning signal is output and the corresponding information is displayed. You can stop the warning signal by pressing the "BATT TYPE./
STOP" button. You then return to the previous conguration menu.
If no error is found, e.g. the display shown on the right will appear.
The rechargeable battery type is displayed in the upper left of the display, the upper middle shows the discharging current and the upper right the cur­rent rechargeable battery voltage.
The lower left shows the current rechargeable battery programme, in the middle the elapsed charging time and the charged capacity in mAh are displayed to the right of this.
• After completion of discharging, an audio signal is emitted (if it has not been turned off).
If you wish to cancel the discharging process prematurely, push the button "BATT TYPE./STOP".
BATTERY CHECK WAIT...
NiMH 2.0A 7.42V DSC 022:45 00690
e) Cycle Programme ("CYCLE")
To test rechargeable batteries, form new rechargeable batteries or refresh older rechargeable batteries, you can perform up to 5 cycles in sequence automatically. The two possible combinations are "Charge/Discharge" and "Discharge/Charge".
Proceed as follows:
• Set the rechargeable battery type as described in chapter 12. a) (NiMH or NiCd) and select the rechargeable battery programme "CYCLE".
The set rechargeable battery type is shown in the upper left of the display, and the rechargeable battery programme in the middle.
The display at the upper right represents the corresponding combination "Charge/discharge" ("C>D") or "Discharge/ charge" ("D>C"). The charge current ("C") is shown in the lower left, the discharge current ("D") in the middle and the number of currently set cycles in the lower right.
Use the buttons "INC" or "DEC" to select a different rechargeable battery programme; use the button "BATT
TYPE./STOP" to return to the main menu.
• Push "START/ENTER" to change the settings. The order for the cycle programme ("C>D" or "D>C") ashes.
• Use the buttons "INC" or "DEC" to select the desired order ("C>D" = Charge + subsequent discharging; "D>C" =
Discharge + subsequent charging).
• Briey push the "START/ENTER" button; the charging current ashes. Change the charging current using the but­tons "INC" or "DEC". Keep the respective button pressed for quick adjustment.
• Briey push the "START/ENTER" button; the discharging current ashes. Change the discharging current using the
buttons "INC" or "DEC". Keep the respective button pressed for quick adjustment.
• Briey push the button "START/ENTER"; the number of cycles ashes (how often the currently set sequence of
charging/discharging or discharging/charging is performed).
NIMH CYCLE C>D C=1.0A D=1.0A 1
28
• Set the cycle number with the buttons "INC" and "DEC" (1 - 5 cycles are possible). Push the "START/ENTER" but- ton briey then to conrm the setting. The display stops ashing.
• To start cycle programme, keep the "START/ENTER" button pressed for longer (approx. 3 seconds).
• The charger now examines the connected rechargeable battery. In case
of an error, a warning signal is output and the corresponding information is displayed. You can stop the warning signal by pressing the "BATT TYPE./
STOP" button. You then return to the previous conguration menu.
If no error is found, e.g. the display shown on the right will appear.
The rechargeable battery type is shown in the upper left, the upper middle shows the charging or discharging current and the upper right the current rechargeable battery voltage.
The lower left shows the selected cycle programme ("C>D" = Charge/discharge, "D>C" = Discharge/charge), the middle shows the elapsed charging or discharging duration and the right next to it the charged or discharged capacity in mAh.
To interrupt the cycle programme prematurely, push the button "BATT TYPE./STOP".
• After completion of the cycle programme, an audio signal is emitted (if it has not been turned off).
• With the buttons "INC" and "DEC" you can check the values for the different
cycles (see display shown on the right).
BATTERY CHECK WAIT...
NiMH 2.0A 7.42V C>D 022:45 00890
CHG 1 02430mAh DCHG 1 01890mAh
CHG 2 02460mAh DCHG 2 01950mAh
CHG 3 02500mAh DCHG 3 02000mAh
29
13. Lead Batteries (Pb)
a) General
Lead batteries are completely different from lithium, NiMH or NiCd batteries. Despite their high capacity they can only provide low currents. The charging process is also different.
The charging current for modern lead batteries must not exceed 0.4C; 1/10C is perfect for lead batteries.
A higher charging current is not permitted; it would overload the rechargeable battery! This not only causes
danger of explosion and re, but also danger of injury from the contained acid.
Also always observe the information printed on the battery or the information provided by the battery
The charger must be in the main menu.
Select the rechargeable battery type "Pb Battery" with the "BATT TYPE./
STOP" or "DEC" button here, see gure on the right.
Conrm the selection by pressing the "START/ENTER" button.
Then use the buttons "INC" and "DEC" to select the different rechargeable battery programmes:
• "CHARGE": Charge rechargeable battery
• "DISCHARGE": Discharging the rechargeable battery
b) Charging Batteries ("CHARGE")
The charging current to be set depends on the battery capacity and is usually 0.1C (also see chapter 7). High-quality lead batteries also can stand a charging current up to 0.4C. However, you should always observe the battery manu­facturer's instructions.
Proceed as follows to charge a lead battery:
• First, choose the rechargeable battery type with the buttons "BATT TYPE./STOP" and "DEC" as described in chap-
• If the value for the charging current must be changed, push the "START/ENTER" button. The charging current
manufacturer on the permitted charging current.
PROGRAM SELECT Pb Battery
The value "0.1C" means that the charging current is equivalent to one-tenth of the rechargeable battery's
capacity. For a lead battery with a capacity of 5000 mAh (= 5 Ah) the charging current at 0.1C must be set to 0.5 A.
ter 13. a) and push the button "START/ENTER".
Select the rechargeable battery programme "CHARGE" with the buttons "INC" or "DEC".
The set rechargeable battery type is shown in the upper left of the display, and the rechargeable battery programme next to it.
The value on the lower left shows the currently set charging current, the value at the lower right shows the voltage or number of cells of the lead battery (in this example, a 6-cell lead battery (6 x 2.4 V = 14.4 V)).
Use the buttons "INC" or "DEC" to select a different rechargeable battery programme; use the button "BATT
TYPE./STOP" to return to the main menu.
ashes. Change the charging current using the buttons "INC" and "DEC". Keep the respective button pressed for
quick adjustment.
Pb CHARGE
1.0A 14.40V(6P)
30
The maximum possible charging current depends on the battery type and number of cells. The maximum
charging power is 100 W for each channel.
Conrm the set charging current with the "START/ENTER" button.
• The number of the cells in the lower right of the display ashes. Set the number of the cells with the buttons "INC"
and "DEC". Keep the respective button pressed for quick adjustment.
Conrm the number of the cells by pressing the "START/ENTER" button.
• When no display is ashing anymore, start charging by keeping the "START/
ENTER" button pushed (approx. 3 seconds).
The charger now examines the connected rechargeable battery.
If the settings are wrong, or if the charger detects a problem, an audio signal is emitted and the appropriate
information is shown on the display. You can stop the warning signal by pressing the "BATT TYPE./STOP"
button. You then return to the previous conguration menu.
If no error was recognised, e.g. the display on the right will appear (alternat­ing).
The "S:" value indicates the cell number that you have set in the menu (in the example a 3-cell rechargeable lead battery).
The "R:" value indicates the cell number that the charger has recognised (in the example also a 3-cell rechargeable lead battery).
If these two numbers do not match, please check the settings on the charger and the battery itself. It may
be that the lead battery has been completely discharged, or a cell may be faulty. In this case, the battery
should not be charged, as there is a risk of re and explosion!
You can return to the previous conguration menu using the "BATT TYPE./STOP" button.
• If the two numbers match, you can start the charging process by briey pushing the "START/ENTER" button.
• Charging begins. The display will show various information on the current
charging progress.
At the upper left, the rechargeable battery type and the cell number are displayed ("Pb6" = lead battery with 6 cells); the charging current is shown in the upper middle and the current rechargeable battery voltage at the upper right.
The lower left shows the current rechargeable battery programme ("CHG" = "CHARGE"), in the middle the elapsed charging time and the charged capacity in mAh are displayed to the right of this.
Various information is indicated on the display during a charge/discharge process by repeatedly pressing
the button "DEC" (see chapter 18). If you do not push any button for a few seconds, the charger will return to the normal display.
• After completion of charging, an audio signal is emitted (if it has not been turned off).
If you wish to cancel the charging process prematurely, push the button "BATT TYPE./STOP".
BATTERY CHECK WAIT...
S: 6SER R: 6SER CANCEL(EXIT)
S: 6SER R: 6SER CONFIRM(ENTER)
Pb6 1.0A 12.3V CHG 022:45 00690
31
c) Discharging Battery ("DISCHARGE")
This rechargeable battery program can be used to put partially charged lead batteries into a dened starting condition
or to perform a measurement of the rechargeable battery capacity.
The maximum possible discharging current depends on the battery type, battery capacity and number of
cells. The max. discharge output of the charger is 5 W. This limits the max. possible discharge current of rechargeable batteries with multiple cells.
Proceed as follows to discharge a lead battery:
• Fist, choose the rechargeable battery type "Pb Battery" with the buttons "BATT TYPE./STOP" and "DEC" as de- scribed in chapter 13. a) and briey push the button "START/ENTER".
• Select the rechargeable battery programme "DISCHARGE" with the button
"INC" or "DEC".
The set rechargeable battery type is shown in the upper left of the display, and the rechargeable battery programme next to it.
The value on the lower left shows the currently set discharging current, the value on the right shows the voltage or number of cells of the lead battery (in this example, a 6-cell lead battery (6 x 2.0 V = 12.0 V)).
Use the button "INC" or "DEC" to select a different rechargeable battery programme; use the button "BATT
TYPE./STOP" to return to the main menu.
• If the value for the discharging current must be changed, briey push the "START/ENTER" button. The discharging current ashes.
• Change the discharging current using the button "INC" or "DEC". Keep the respective button pressed for quick
adjustment.
Briey push the "START/ENTER" button to conrm the set discharging current.
• When no display is ashing anymore, keep the "START/ENTER" button pushed (approx. 3 seconds), to start
discharging.
• The charger now examines the connected rechargeable battery. In case of an error, a warning signal is output and the corresponding information is displayed. You can stop the warning signal by pressing the "BATT TYPE./
STOP" button. You then return to the previous conguration menu.
If no error is found, e.g. the display shown on the right will appear.
The rechargeable battery type is shown in the upper left ("Pb6" = lead bat­tery with 6 cells), the upper middle shows the discharging current and the upper right the current rechargeable battery voltage.
The lower left shows the current rechargeable battery programme, in the middle the elapsed charging time and the charged capacity in mAh are displayed to the right of this.
• After completion of discharging, an audio signal is emitted (if it has not been turned off).
If you wish to cancel the discharging process prematurely, push the button "BATT TYPE./STOP" briey.
Pb DISCHARGE
1.0A 12.0V(6P)
BATTERY CHECK WAIT...
Pb6 1.0A 12.3V DSC 022:45 00690
32
14. Saving/Loading Rechargeable Battery Data
The charger has 10 memory slots in which you can store often-used settings. For example, the data (cell number,
charging procedures, charging current) for 3 different LiPo ight batteries can be saved there, so that you do not have
to set them anew every time.
a) Saving Battery Data
• Select the function "Memory Save" in the main menu of the charger with the button "BATT TYPE./STOP" or "DEC".
• Conrm the selection by pressing the "START/ENTER" button. The memory number ashes.
• Select one of the 10 memories (0....9) with the button "INC" or "DEC".
When the memory is empty, "NULL" is displayed.
If there already are data in the memory, the display will alternate,
e.g., the rechargeable battery type, rechargeable battery program, cell number, as well as the charging and discharging current.
• Hold the "START/ENTER" button for about one second to start the setting mode. The rechargeable battery type is displayed rst; see example in the gure on the right.
Briey pushing the "BATT TYPE./STOP" button will take you one step back or out of the setting mode.
• Select the rechargeable battery type (LiPo, LiIon, LiFe, LiHV, NiMH, NiCd, Pb) with the "INC" or "DEC" button, then briey push the "START/ENTER" button.
The following display depends on the rechargeable battery type. A LiPo
rechargeable battery has been selected in the rst step in the gure on the
right (see above).
• Briey push the "START/ENTER" button to switch between the respective available setting options. The respec­tively adjustable value ashes.
• Modify the value ashing using the "INC" and "DEC" buttons. Keep the respective button pressed for quick adjust-
ment.
• To save the settings, keep the button "START/ENTER" pressed for 3 sec­onds. The display now shows the data of the memory and the memory slot
number ashes.
• The "INC" or "DEC" button selects another memory slot to programme it or change an existing programming.
Briey pushing the "BATT TYPE./STOP" button leaves the setting mode. The charger is in the main menu
again.
PROGRAM SELECT Memory Save
MEMORY [0] NULL
MEMORY LiPo [0] BAL 3S 1.0A
BATT TYPE LiPo Battery
LiPo BAL-CHG 3S C= 3000mAh 3.0A
MEMORY LiPo [0] BAL 3S 1.0A
33
b) Loading Battery Data
• Select the function "Memory Load" in the main menu of the charger with the button "BATT TYPE./STOP" or "DEC".
• Conrm the selection by pressing the "START/ENTER" button.
• Select one of the 10 memories (0....9) with the button "INC" or "DEC".
The data stored in the memory are displayed, e.g. rechargeable battery type, rechargeable battery programme, cell number, charging and discharg­ing current.
• Load the battery data from the selected memory by pushing the button "START/ENTER" for about 3 seconds.
• The charger is then in the corresponding rechargeable battery programme, and the associated data are displayed.
In the example on the right, the data for a LiPo rechargeable battery with 3 cells, a capacity of 3000 mAh and a charge current of 3.0 A have been transferred from the memory.
• The rechargeable battery programme can be started as usual by pushing the "START/ENTER" button for 3 sec­onds.
Alternatively you can, of course, change the settings loaded from the memory, e.g. to increase or reduce
the charging current.
Briey push the "START/ENTER" button several times; the respective chosen set value ashes.
Change the set value using the button "INC" or "DEC". Keep the respective button pressed for quick adjust-
ment. Briey push the "START/ENTER" button to accept the setting.
When no display is ashing anymore, keep the "START/ENTER" button pushed (approx. 3 seconds), to
start the rechargeable battery programme.
PROGRAM SELECT Memory Load
MEMORY LiPo [1] BAL 3S 1.0A
Loading...
LiPo BAL-CHG 3S C= 3000mAh 3.0A
34
15. System settings
The system settings of the charger summarise various basic settings. They are pre-applied with the most common values in the delivery condition.
Depending on the rechargeable batteries you want to charge or discharge, however, certain changes to the values are sensible.
Proceed as follows:
• Select the function "User Set" in the main menu of the charger with the but­ton "BATT TYPE./STOP" or "DEC".
• Conrm the selection by pressing the "START/ENTER" button.
• Use the button "INC" or "DEC" to select the desired setting functions.
• If a setting is to be changed, briey push the button "START/ENTER". The respectively adjustable value ashes.
• Modify the value ashing using the "INC" and "DEC" buttons. Keep the respective button pressed for quick adjust-
ment.
• Complete the setting by briey pushing the "START/ENTER" button. The value stops ashing. Then you can select
another setting function, see above.
• To return to the main menu, push the button "BATT TYPE./STOP".
Observe the following information for description of the possible setting functions.
Switch the pre-charging function on/off and set the time for the pre-charging duration
It is not sensible to start charging with a high charging current in deep-dis­charged rechargeable batteries. The charger may determine an error and interrupt charging.
If you want to try to charge such rechargeable batteries, switch on the function and set a longer pre-charging duration.
The charger will then try to charge at reduced charging current for the set duration (1 to 60 minutes can be set), before starting normal charging.
You can switch the function on ("ON") or off ("OFF").
PROGRAM SELECT User Set =>
Precharge Time OFF 1min
Set pause duration between charging/discharging processes
When charging a rechargeable battery, it heats up (depending on the charging current).
In the cycle programme, the charger makes a break between charging and discharging so that the rechargeable battery cools off before discharging starts.
Set the desired break duration (1 to 60 minutes).
Wait Time CHG>DCHG 1min
35
Set the voltage for Delta-U-recognition (for NiMH or NiCd only)
The charger uses the delta-U charging procedure for NiMH and NiCd re­chargeable batteries to see if the rechargeable battery is fully charged.
Instead of the internal default settings, the voltage value can be specied
manually (in mV per cell).
NiMH Sensitivity D.Peak Default
NiCd Sensitivity D.Peak Default
If the value is set too high, the charger may not recognise that the rechargeable battery is fully charged.
The protection circuit for the charge duration or the maximum capacity usually trips here (if set correctly).
If the value is set too low, the charge will switch off too early and the rechargeable battery will not be fully
Change the voltage in steps and check the charging process. Due to the many different rechargeable bat-
Switch the overtemperature protection on/off and set a temperature threshold
The charger offers a connection for a temperature sensor (not enclosed, can be ordered separately).
If the overtemperature protection is on ("ON"), the charger will interrupt charg­ing and discharging.
Set the desired temperature at which the charger is supposed to switch off.
Switch the safety timer on/off and set the duration
If charging starts, the internal safety timer starts as well.
If the charger cannot detect whether the battery is fully charged for whatever reason (e.g. with delta-U detection), the charge process is terminated auto­matically after a set time if the safety timer is on. This protects the battery from overloading.
The safety timer can be switched on ("ON") or off ("OFF"); the time for the safety timer can also be changed.
Some calculation examples for the duration:
Battery capacity Charging current Timer time
2000 mAh 2.0 A 2000 / 2.0 = 1000 / 11.9 = 84 minutes
3300 mAh 3.0 A 3300 / 3.0 = 1100 / 11.9 = 92 minutes
1000 mAh 1.2 A 1000 / 1.2 = 833 / 11.9 = 70 minutes
charged.
teries, it is not possible to suggest a perfect value.
Temp. Cut-off ON 80C(176F)
If no temperature sensor is connected, switch off the overtemperature protection ("OFF").
Safety timer ON 240min
Do not set the time too short, since the rechargeable battery cannot be fully charged then because the
safety timer will cancel charging.
The factor 11.9 is used to permit charging 140% of the rechargeable battery capacity (the rechargeable
battery is guaranteed to be fully charged then), before the safety timer trips.
36
Automatic deactivation at specic charging capacity
This safety function of the charger terminates charging automatically when a certain capacity has been "loaded" into the battery.
However, do not set a capacity which is too low; otherwise the re-
chargeable battery cannot be fully charged and charging will be interrupted early.
The safety function can be switched on ("ON") or off ("OFF").
Monitoring of the DC input voltage
This function monitors the voltage at the DC charger input. This is sensible when a 12 V car lead battery is used for power supply. If the voltage drops below the set value, charging is terminated to prevent deep discharge of the car lead battery.
Switching the key conrmation sounds/warning sounds on/off
With the option "Key beep", conrmation beep for each push of a button is
switched on ("ON") or off ("OFF").
The function "Buzzer" switches the signal sound for various functions/warning messages on ("ON") or off ("OFF").
Max. cell voltage when charging
The maximum cell voltage can be set depending on the set rechargeable bat­tery type (LiPo, LiIon, LiFe, LiHV and Pb).
The charger ends charging when all cells have reached the set voltage.
LiPo: 4.00 - 4.24 V/cell (basic setting 4.20 V)
LiIon: 3.90 - 4.20 V/cell (basic setting 4.10 V)
LiFe: 3.40 - 3.65 V/cell (basic setting 3.60 V)
LiHV: 4.00 - 4.40 V/cell (basic setting 4.35 V)
Pb: 2.20 - 2.40 V/cell (basic setting 2.40 V)
Capacity Cut-Off ON 5000mAh
Input Power Low Cut-Off 11.0V
Key beep ON Buzzer ON
Battery end volt LiPo 4.20V/C
Battery end volt LiIo 4.10V/C
Battery end volt LiFe 3.60V/C
Battery end volt LiHV 4.30V/C
Battery end volt Pb 2.40V/P
37
Loading factory settings (reset)
This recovers the factory settings (reset).
Keep the button "START/ENTER" pressed for more than 2 seconds.
Then the charger starts again and will then be in the main menu.
Observe that all values set by you are then reset to factory settings; the 10 rechargeable battery memories
(see chapter 14) are also deleted.
Factory reset Press Enter > 2S
38
16. Fixed Voltage Output
The charger offers the option of using the charging output (the two 4 mm output sockets) like a conventional control­lable mains unit.
In this case, the charger supplies a direct voltage to the output sockets; setting of 5.0 V/DC to 24.0 V/DC is possible. The output current can be set to between 0.1 A and 10.0 A. Observe that the maximum output current is not possible for the maximum current; the charger can only supply 80 W at most.
Caution, important!
If this function is used, never connect a rechargeable battery to the two output sockets of the charger.
Before you activate this function and set an output voltage and an output current, always disconnect any
There is a risk of re and explosion!
Proceed as follows:
• Disconnect any connected rechargeable battery from the charger rst (both from the 4 mm output sockets and the
• The charger must be in the main menu. Select the "Digital Power" function
• Conrm the selection by pressing the "START/ENTER" button.
• The display shows "POWER MODE". The set output current type is shown
• To change the output current and the output voltage, briey push the
• Change the output current using the button "INC" or "DEC". Keep the respective button pressed for quick adjust-
• Briey push the "START/ENTER" button; the output voltage ashes.
• Change the output voltage using the button "INC" or "DEC". Keep the respective button pressed for quick adjust-
• Briey push the button "START/ENTER"; the display will stop ashing.
• Keep the "START/ENTER" button depressed (approx. 3 seconds). The charger activates the xed voltage output. A
connected rechargeable battery from the charger.
balancer connection).
with the "BATT TYPE./STOP" or "DEC" button here, see gure on the right.
in the lower left of the display, and the output voltage to its right.
"START/ENTER" button. The value of the output current starts to ash.
ment.
ment.
signal will be sounded (if it has not been switched off in the setting menu). The fan starts to run.
The display shows the current intake ("CURRENT") and output voltage ("VOLTAGE") at the moment.
Slight uctuations in the display of voltage/current are normal
(measuring-technically caused). For this reason, a (low) output cur­rent will be displayed even when nothing is connected to the output as well.
PROGRAM SELECT Digital Power
POWER MODE
1.0A 12.0V
CURRENT 0.52A VOLTAGE 12.00V
39
• To set the output current and the output voltage, briey push the "START/ENTER" button.
Caution, important!
A connected consumer can be damaged when changing the output voltage.
Therefore, disconnect the connected consumer from the output sockets of the charger before changing the
The same applies, if applicable, when changing the output current.
• Briey push the "START/ENTER" button; the output voltage ashes. Set it with the button "INC" or "DEC" (for quick
• Briey push the "START/ENTER" button. The current power intake and the output voltage are displayed.
Push the "BATT TYPE./STOP" button again briey to return the charger to the main menu.
output voltage.
The output current is now ashing in the display. Set it with the "INC" or "DEC" button (keep the respective button
pushed for quick adjustment).
adjustment, keep the respective button pushed).
Briey push the "BATT TYPE./STOP" button to end this function. The output is deactivated again.
40
17. Warning Messages on the Display
REVERSE POLARITY
CONNECTION BREAK
SHORT ERROR
INPUT VOL ERR
BREAK DOWN
BATTERY CHECK LOW VOLTAGE
BATTERY CHECK HIGH VOLTAGE
BATTERY VOLTAGE CELL LOW VOL
BATTERY VOLTAGE CELL HIGH VOL
BATTERY VOL ERR CELL CONNECT
The polarity of the rechargeable battery connections has been switched.
The connection to the rechargeable battery has been disrupted, e.g. if the battery has been disconnected during the charging process.
There is a short circuit at the output of the charger.
A problem has been identied at the direct voltage input of the charger.
The charger is defective.
The rechargeable battery voltage is too low. Check the setting of the re­chargeable battery type and the cell number at the charger.
The rechargeable battery voltage is too high. Check the setting of the re­chargeable battery type and the cell number at the charger.
The voltage of a cell of a connected lithium rechargeable battery is too low (a cell may be defective or deep-discharged).
The voltage of a cell of a connected lithium rechargeable battery is too high (possibly overloaded or balancer connection defective).
There is a problem with the balancer connection (balancer plug not connected or defective).
TEMP OVER ERR
CONTROL FAILURE
The inner temperature of the charger is too high. Let the charger cool off.
The charger is defective.
41
18. Information on the Charger
Various information is indicated on the display during a charge/discharge process by repeatedly pressing the button "DEC". If you do not push any button for a few seconds, the charger will return to the normal display.
The information that can be displayed depends on the connected rechargeable battery type.
Voltage of the battery at the end of charging/discharging
End Voltage
12.60V
Battery capacity for safety cut-off
Capacity Cut-off ON 5000mAh
Duration for safety timer
Safety timer ON 240min
Temperature limit for overtemperature protection
Temp. Cut-off ON 80C(176F)
Display of the temperature at the external temperature sensor
Ext.Temp 0C Int.Temp 0C
If no external temperature sensor is connected (not enclosed, can be ordered separately), "0C" is
displayed.
Input voltage
IN Power Voltage
14.93V
If the charger is operated via the mains voltage, the input voltage is always displayed as approx. 15 V/DC
(this is the voltage of the internal mains unit).
42
19. Maintenance and Cleaning
The product does not require any maintenance. You should never take it apart. The product should only be mainte­nanced/repaired by a specialist or specialist workshop or it may be damaged.
Any rechargeable battery connected must be disconnected from the charger before cleaning.
If the xed voltage output is activated, disconnect any connected consumer from the charger.
Then disconnect the charger from the voltage/current supply.
Never use any aggressive cleaning agents, cleaning alcohol or other chemical solutions, since these may damage the casing or even impair function.
Use a dry, lint-free cloth for cleaning the product.
Dust can be removed using a clean, soft brush and a vacuum cleaner.
20. Disposal
a) Product
Electronic devices are recyclable and should not be disposed of in household waste. Dispose of the prod-
uct according to the applicable statutory provisions at the end of its service life.
b) Batteries/Rechargeable Batteries
You as the end user are required by law (Battery Ordinance) to return all used batteries/rechargeable batteries. Dis­posing of them in the household waste is prohibited.
Batteries/rechargeable batteries that contain hazardous substances are labelled with the adjacent icon to
indicate that disposal in domestic waste is forbidden. The descriptions for the respective heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead (the names are indicated on the battery/rechargeable battery e.g. below the rubbish bin symbol shown on the left).
You may return used batteries/rechargeable batteries free of charge at the ofcial collection points in your community,
in our stores, or wherever batteries/rechargeable batteries are sold.
You thus full your statutory obligations and contribute to the protection of the environment.
43
21. Technical Data
Operating voltage ........................................ Mains voltage input: 230 V/AC, 50/60Hz
Direct voltage input: 11 - 18 V/DC
Never use both inputs at the same time. This may damage the charger. Loss of guarantee/warranty!
Charging/discharging channels ................... 2
Charge current ............................................. 0.1 - 10.0 A (depending on the cell number and rechargeable battery
Charging output ........................................... each channel max. 100 W
Discharge current ........................................ 0.1 - 5.0 A (depending on the cell number and rechargeable battery
Discharge output ......................................... each channel max. 15 W
Suitable rechargeable batteries ................... NiMH/NiCd, 1 - 15 cells
LiPo/LiIon/LiFe/LiHV, 1 - 6 cells
Pb, 1 - 10 cells (rated voltage 2 - 20 V)
Discharge current for balancer .................... 400 mA per cell
Delta-U-recognition ...................................... yes (for NiMH/NiCd, adjustable 5 - 20 mV/cell)
Safety timer ................................................. yes (10 - 720 minutes, can be switched off)
Fan integrated ............................................. yes
Ambient conditions ...................................... Temperature +10 °C to +40 °C; humidity 0% to 90% relative, non-
Weight ......................................................... 1300 g
Dimensions .................................................. 205 x 170 x 56 mm (W x D x H)
type)
type)
condensing
44
454647
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microlming, or the capture in
electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
Copyright 2020 by Conrad Electronic SE.
1539603_V2_0520_02_VTP_m_EN
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
