STARPLUS@
Station User Guide

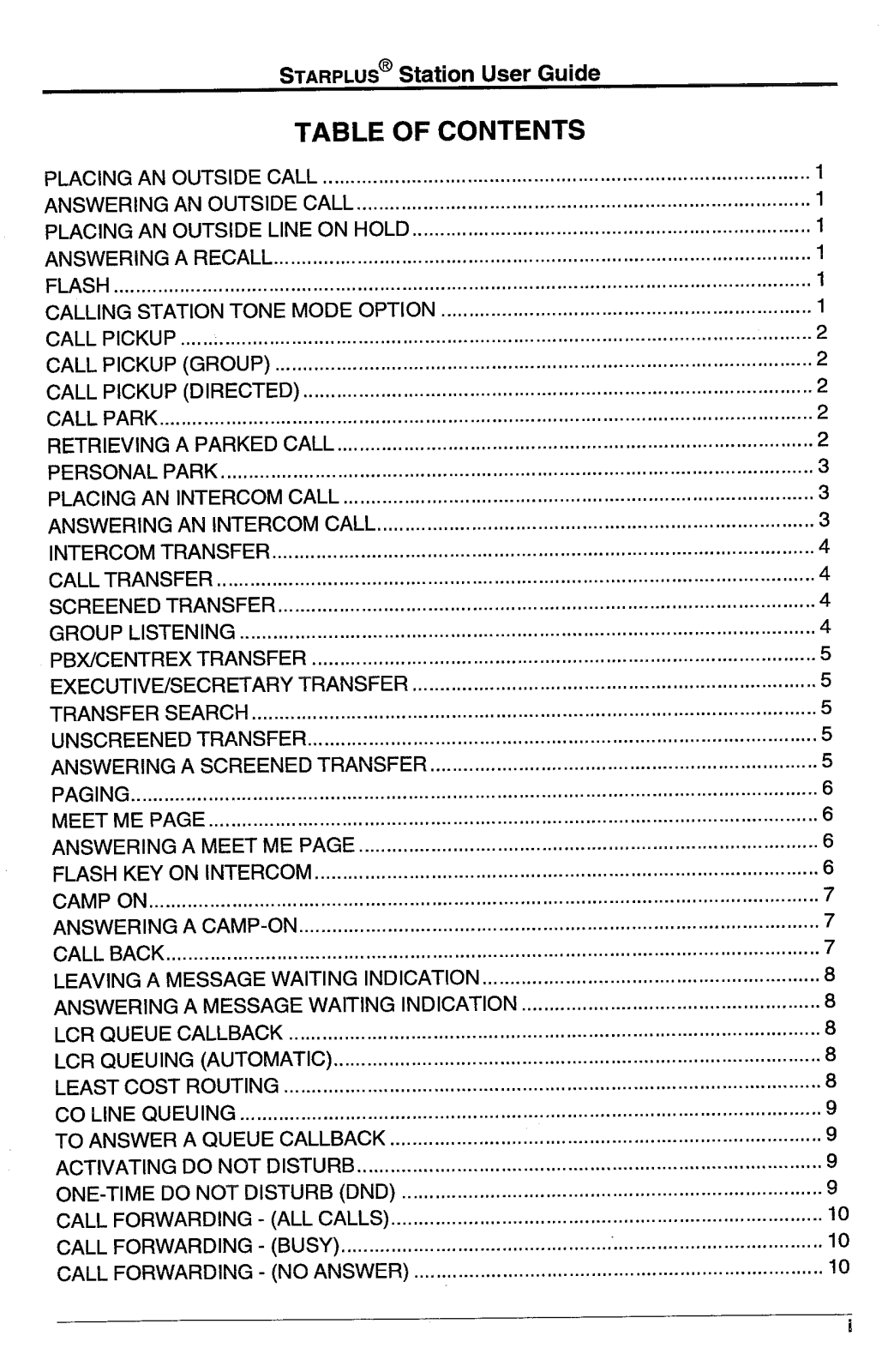

TABLE OF CONTENTS
PLACING AN OUTSIDE CALL
ANSWERING AN OUTSIDE CALL
PLACING AN OUTSIDE LINE ON HOLD..
ANSWERING A RECALL
FLASH
CALLING STATION TONE MODE OPTION..
CALL PICKUP.
CALL PICKUP (GROUP).
CALL PICKUP (DIRECTED)
CALL PARK
..............................................................................................................................
.................................................................................................................
..................................................... 2
.................................................................
RETRIEVING A PARKED CALL
PERSONAL PARK
PLACING AN INTERCOM CALL
ANSWERING AN INTERCOM CALL
INTERCOM TRANSFER
CALL TRANSFER..
SCREENED TRANSFER
GROUP LISTENING..
PBWCENTREX TRANSFER
EXECUTIVE/SECRETARY TRANSFER..
TRANSFER SEARCH
UNSCREENED TRANSFER.
ANSWERING A SCREENED TRANSFER..
PAGING..
MEET ME PAGE..
ANSWERING A MEET ME PAGE..
FLASH KEY ON INTERCOM
CAMP ON
ANSWERING A CAMP-ON
CALL BACK..

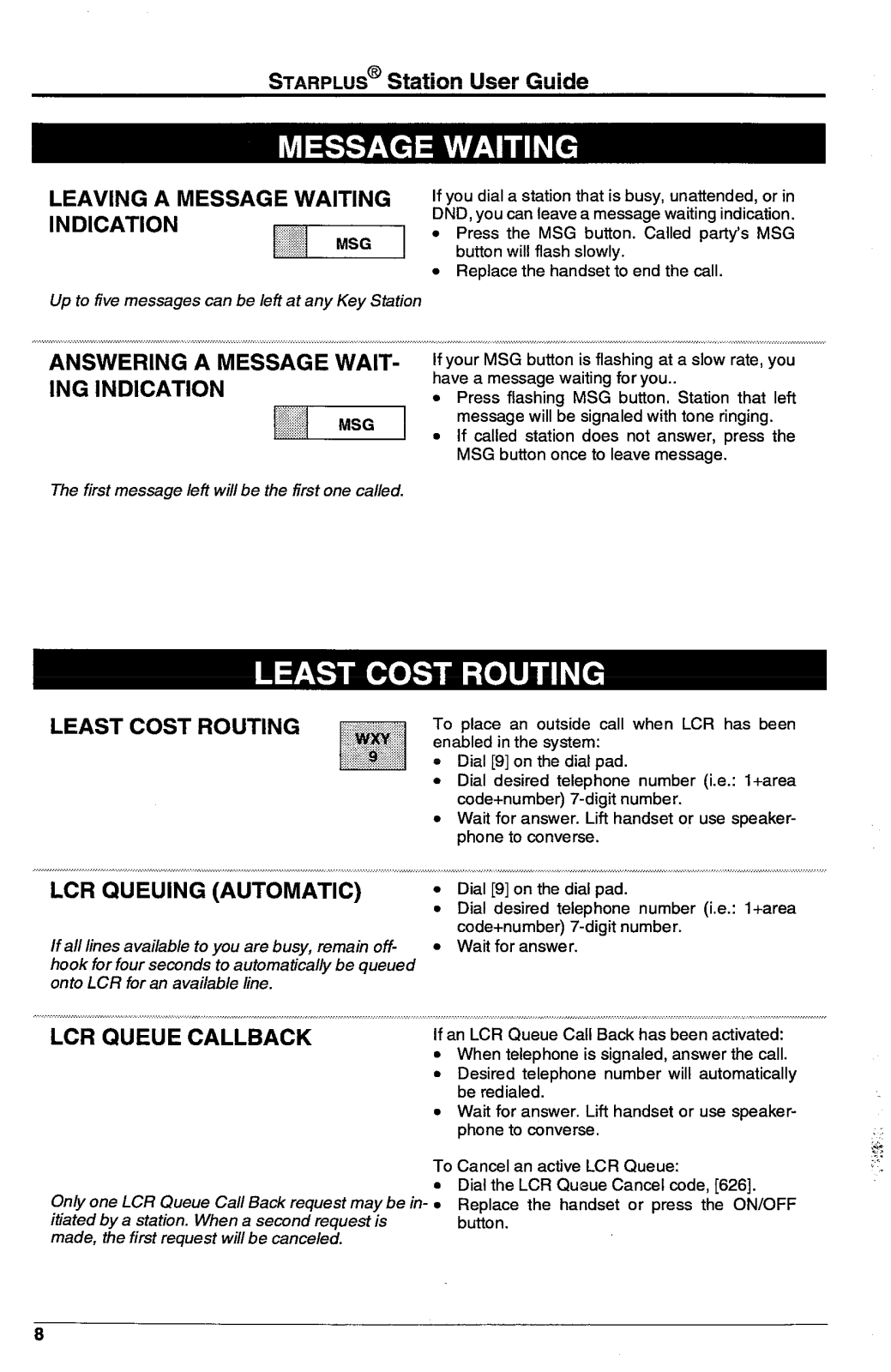

LEAVING A MESSAGE WAITING INDICATION
ANSWERING A MESSAGE WAITING INDICATION.
LCR QUEUE CALLBACK..
LCR QUEUING
LEAST COST ROUTING..

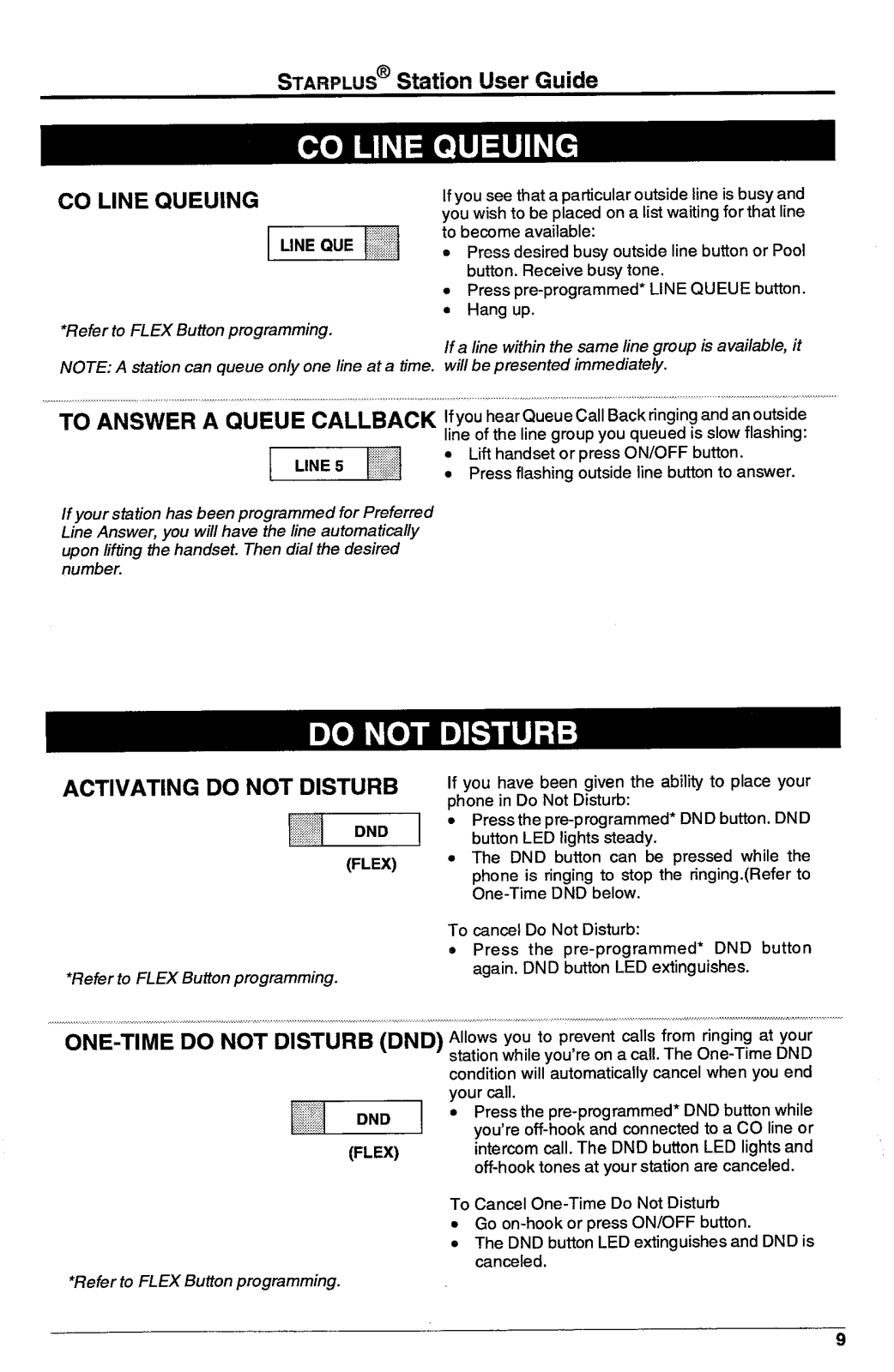

CO LINE QUEUING
TO ANSWER A QUEUE CALLBACK..
ACTIVATING DO NOT DISTURB
ONE-TIME DO NOT DISTURB

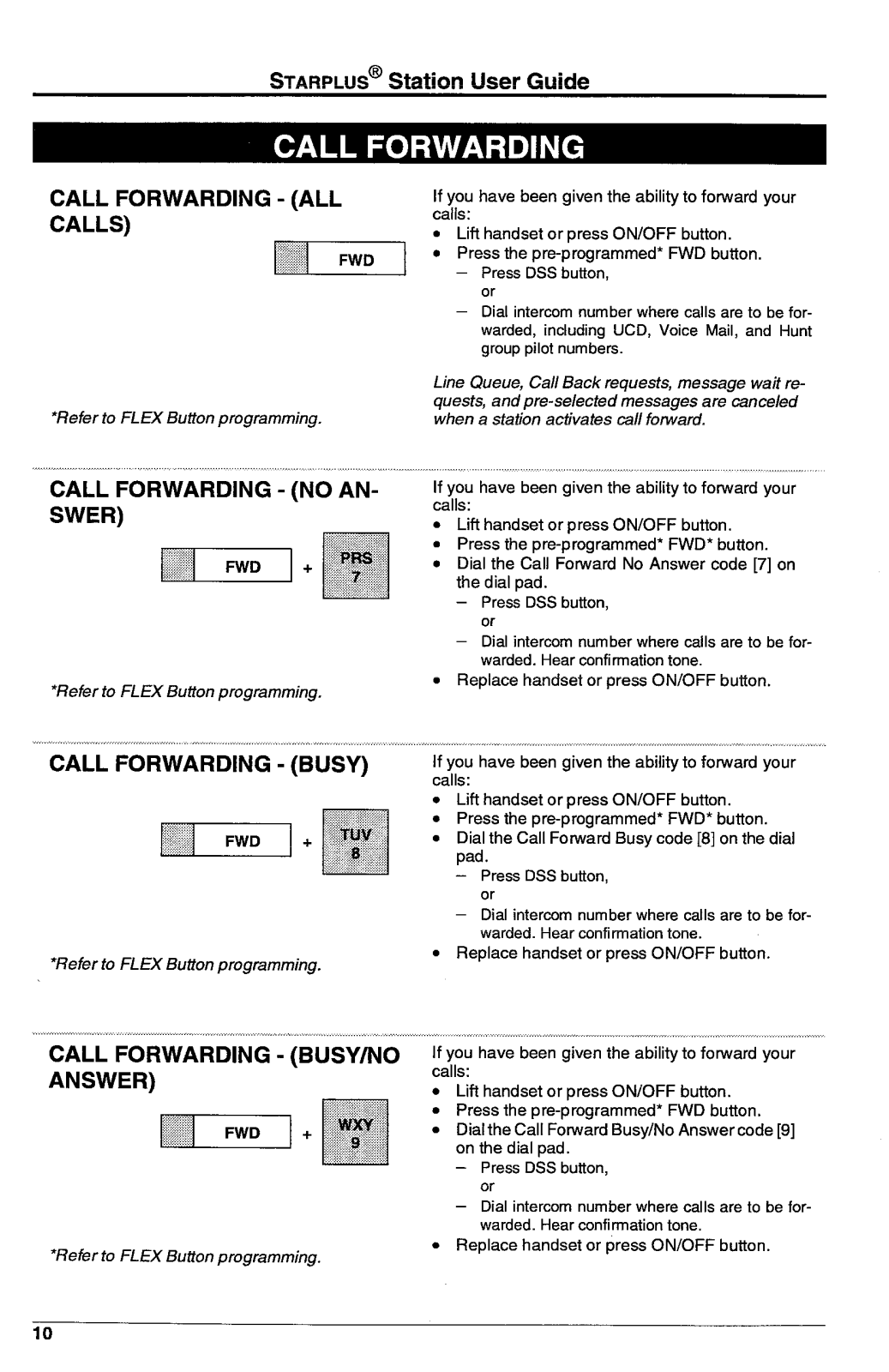

CALL FORWARDING - (ALL CALLS)
CALL FORWARDING - (BUSY).
CALL FORWARDING - (NO ANSWER).
..................
.........................................................................................................................
...........................................................................................................
..............................................................
............................................
......................................................................................................
.......
........................................................................................................
............................................................................................................ 6
....................................................................................................................
(AUTOMATIC).
.........................................................................................................
........................................................................................ 1
..................................................................................
......................................................................
.................................................................................................
................................................................. 1
................................................................................................ 2
............................................................................................ 2
...................................................................................... 2
.....................................................................................
...............................................................................
...............................................................................................
...
.................................................................................................
...........................................................................................
....................................................................... 5
...............................................................................................
...........................................................................................
....................................................................
.................................................................................
........................................................................................... 6
..............................................................................................
............................................................. 8
.............................................................................................. 8
.......................................................................................
................
...............................................................................
............................................................................
....................................................................................
............................................................................
(DND)
..............................................................................
......................................................................................
.........................................................................
.....................................................
1
1
1
1
2
3
3
3
4
4
4
4
5
5
5
5
6
6
7
7
7
8
8
8
9
9
9
9
10
10
10
Page 4

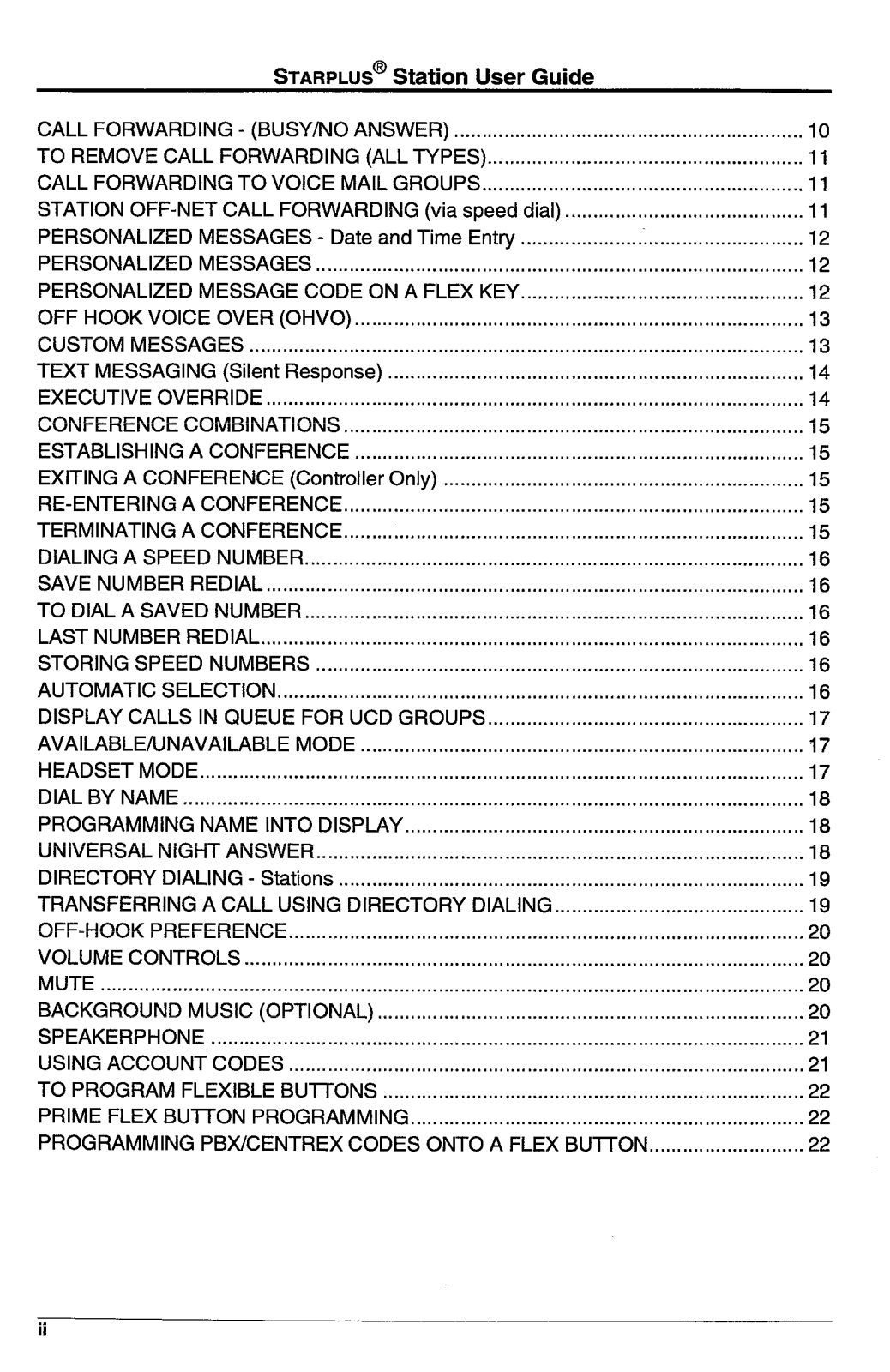

STARPLUS@ Station User Guide
FORWARDING - (BUSY/NO ANSWER)
CALL
TO REMOVE

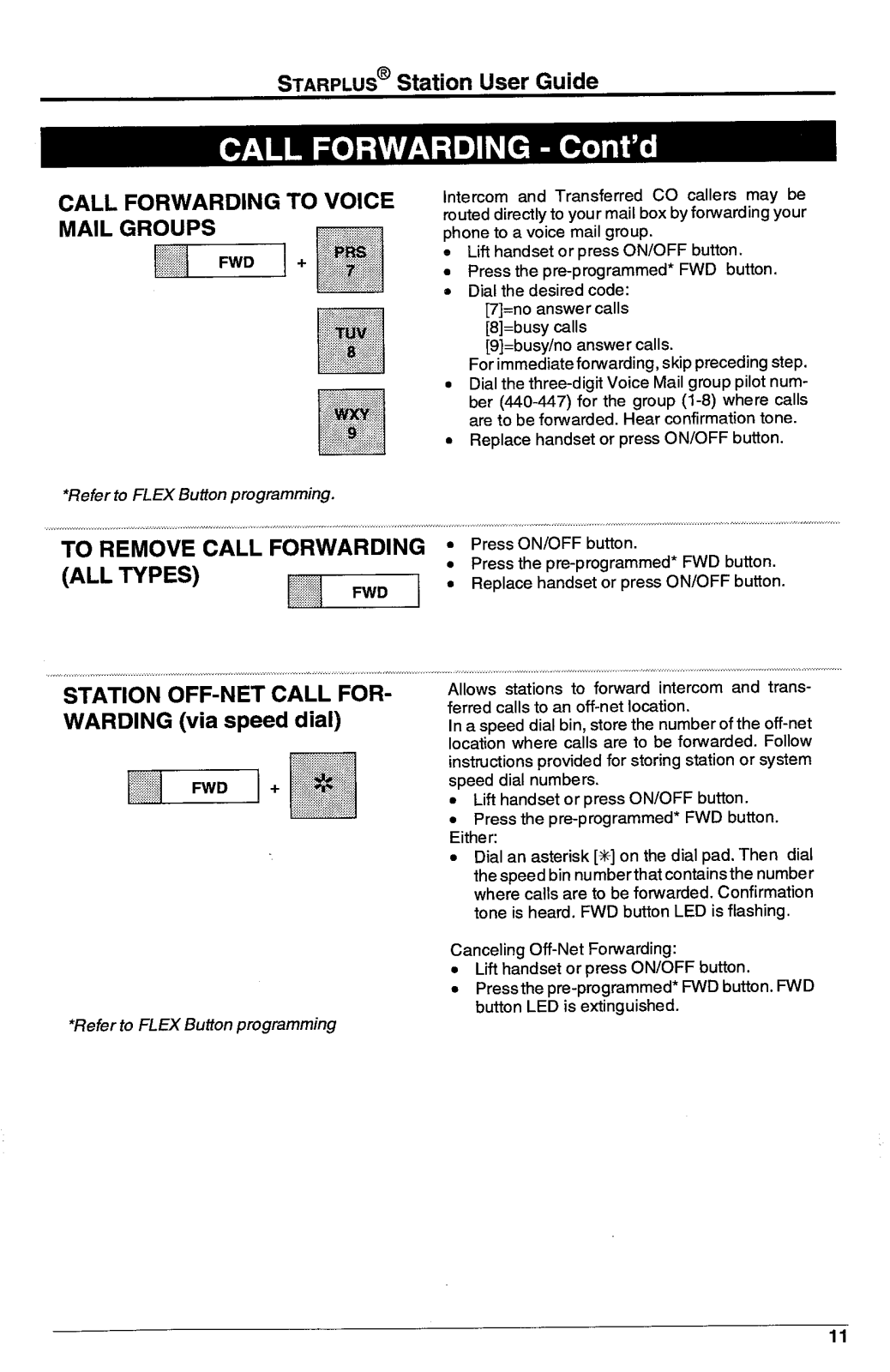

FORWARDING TO VOICE MAIL GROUPS..
CALL
STATION

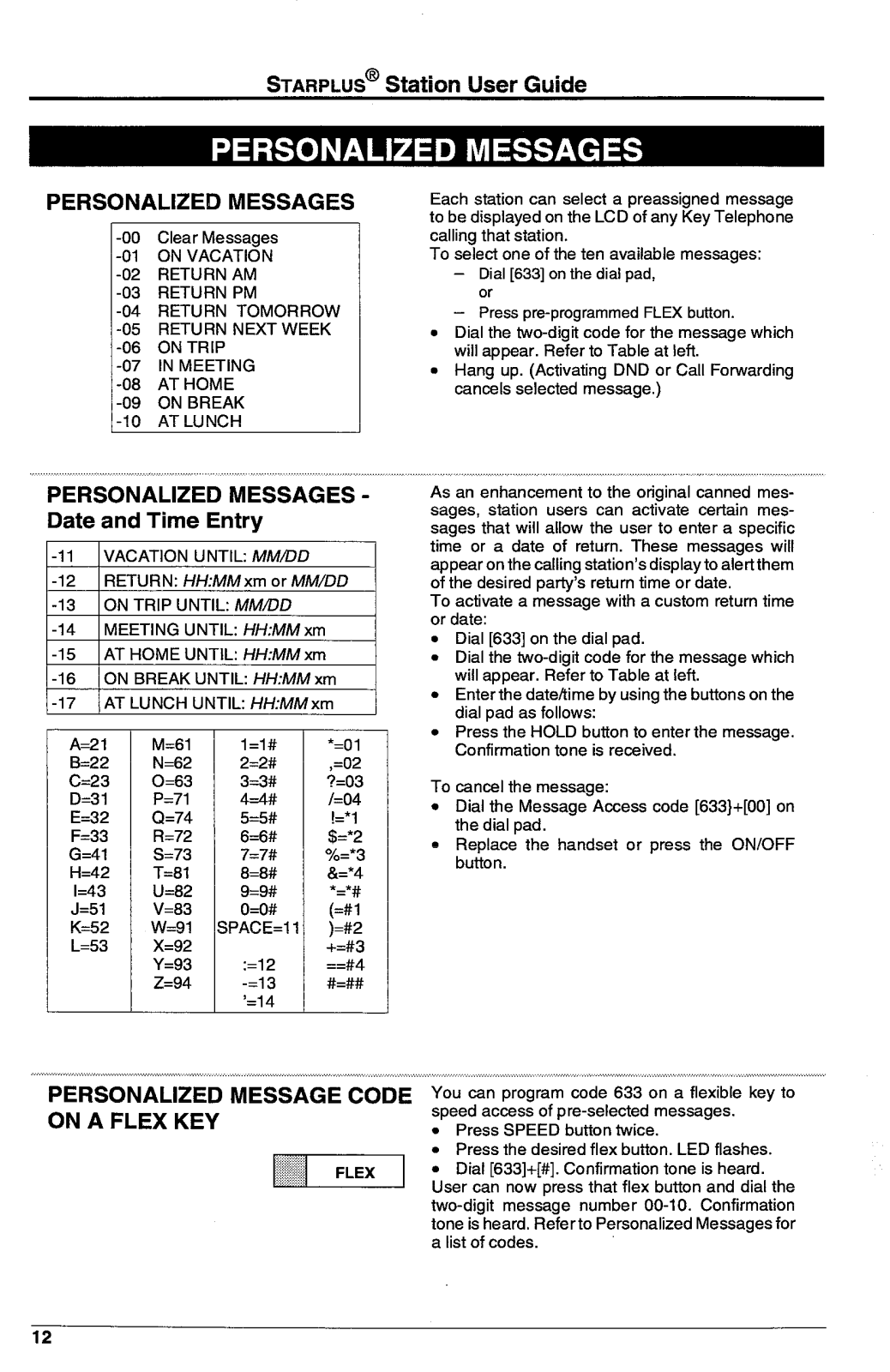

PERSONALIZED
PERSONALIZED
PERSONALIZED

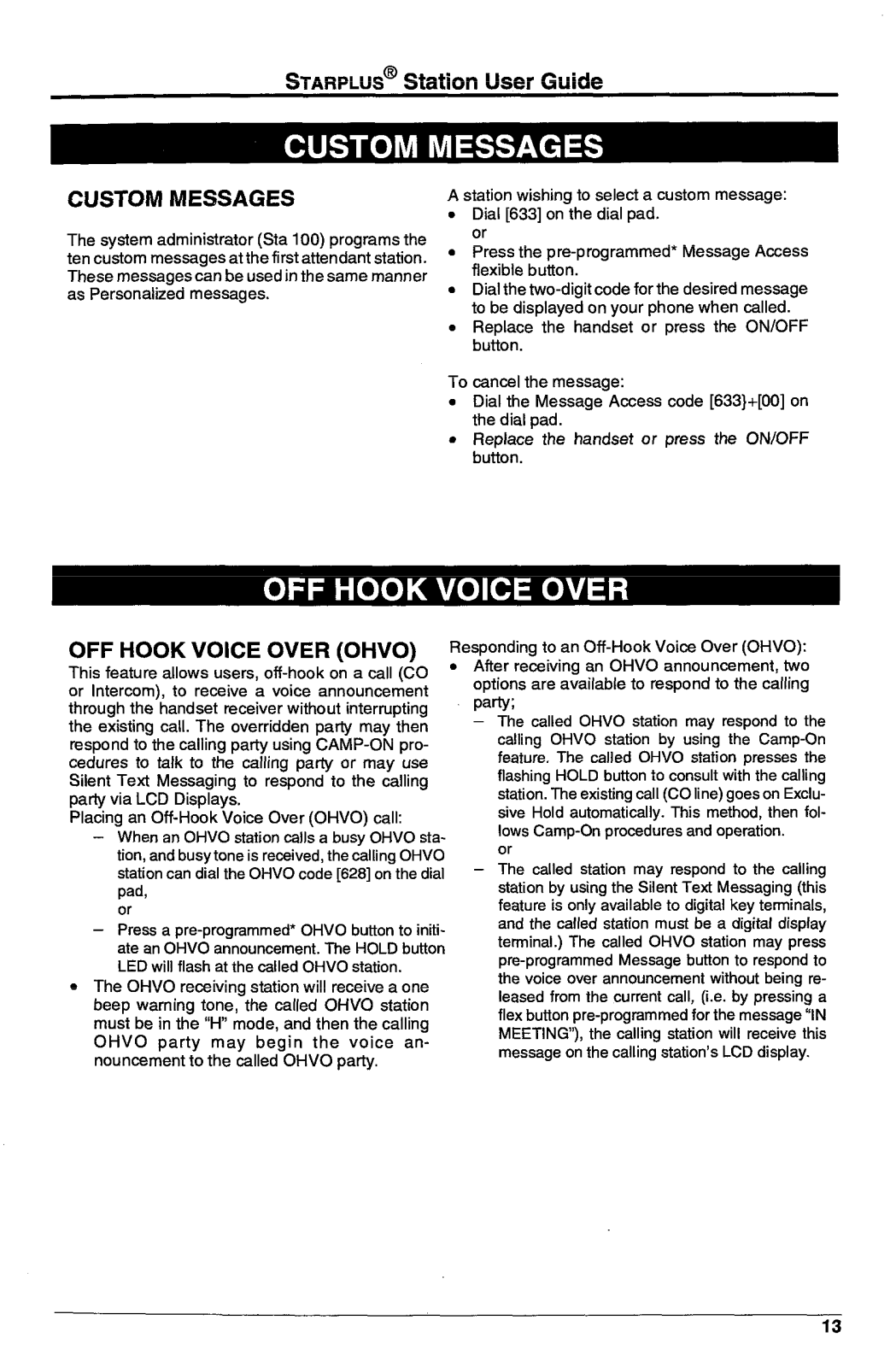

HOOK VOICE OVER (OHVO).
OFF
CUSTOM
TEXT MESSAGING
EXECUTIVE OVERRIDE..

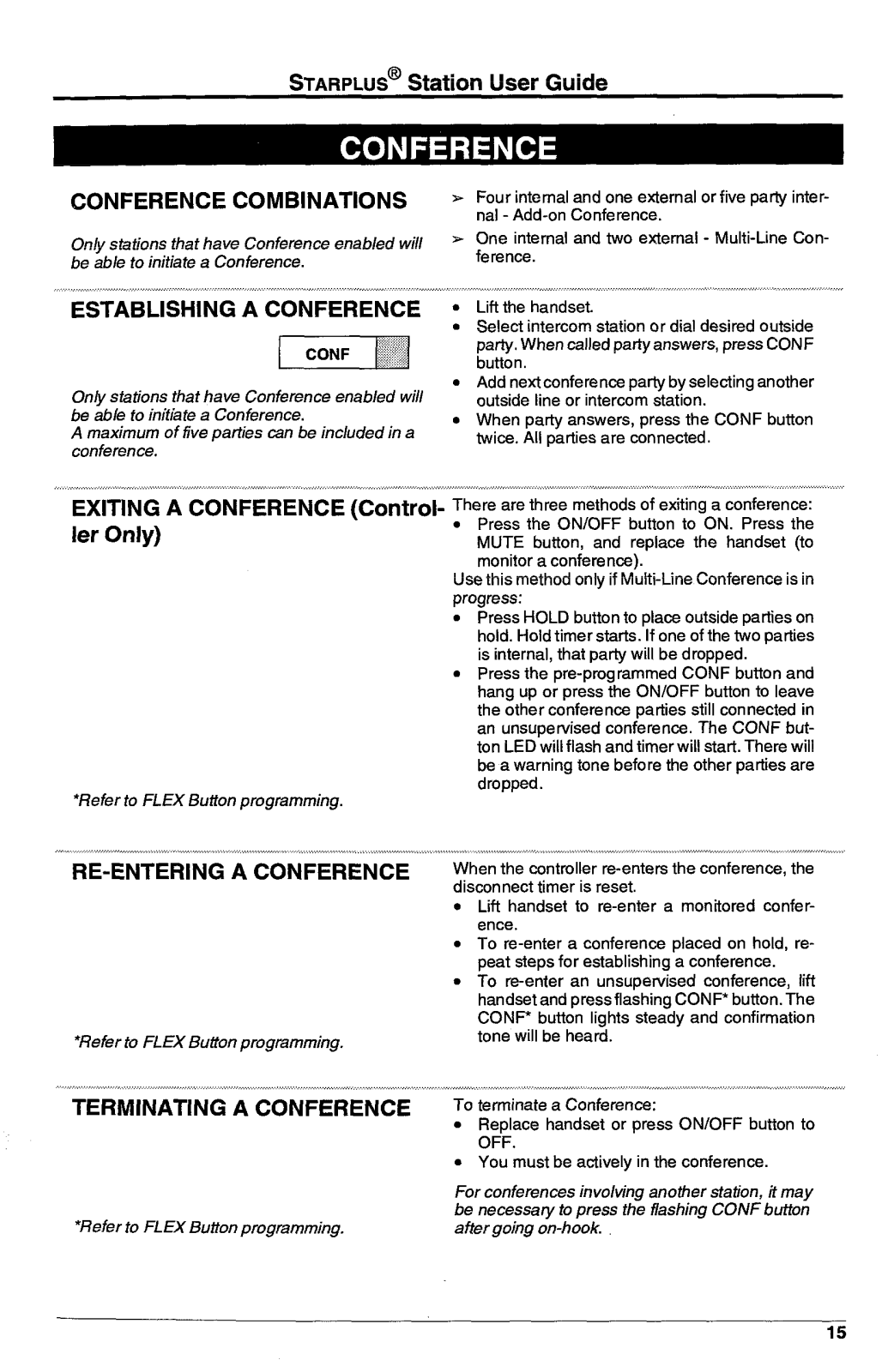

CONFERENCE COMBINATIONS..
ESTABLISHING A CONFERENCE
EXITING A
RE-ENTERING A CONFERENCE..
TERMINATING A
DIALING A
SAVE
TO DIAL A
LAST NUMBER
STORING
AUTOMATIC
DISPLAY CALLS
AVAILABLE/UNAVAILABLE
HEADSET MODE.. ...........................................................................................................
DIAL BY
PROGRAMMING
UNIVERSAL NIGHT ANSWER.. ......................................................................................
DIRECTORY DIALING TRANSFERRING A CALL USING

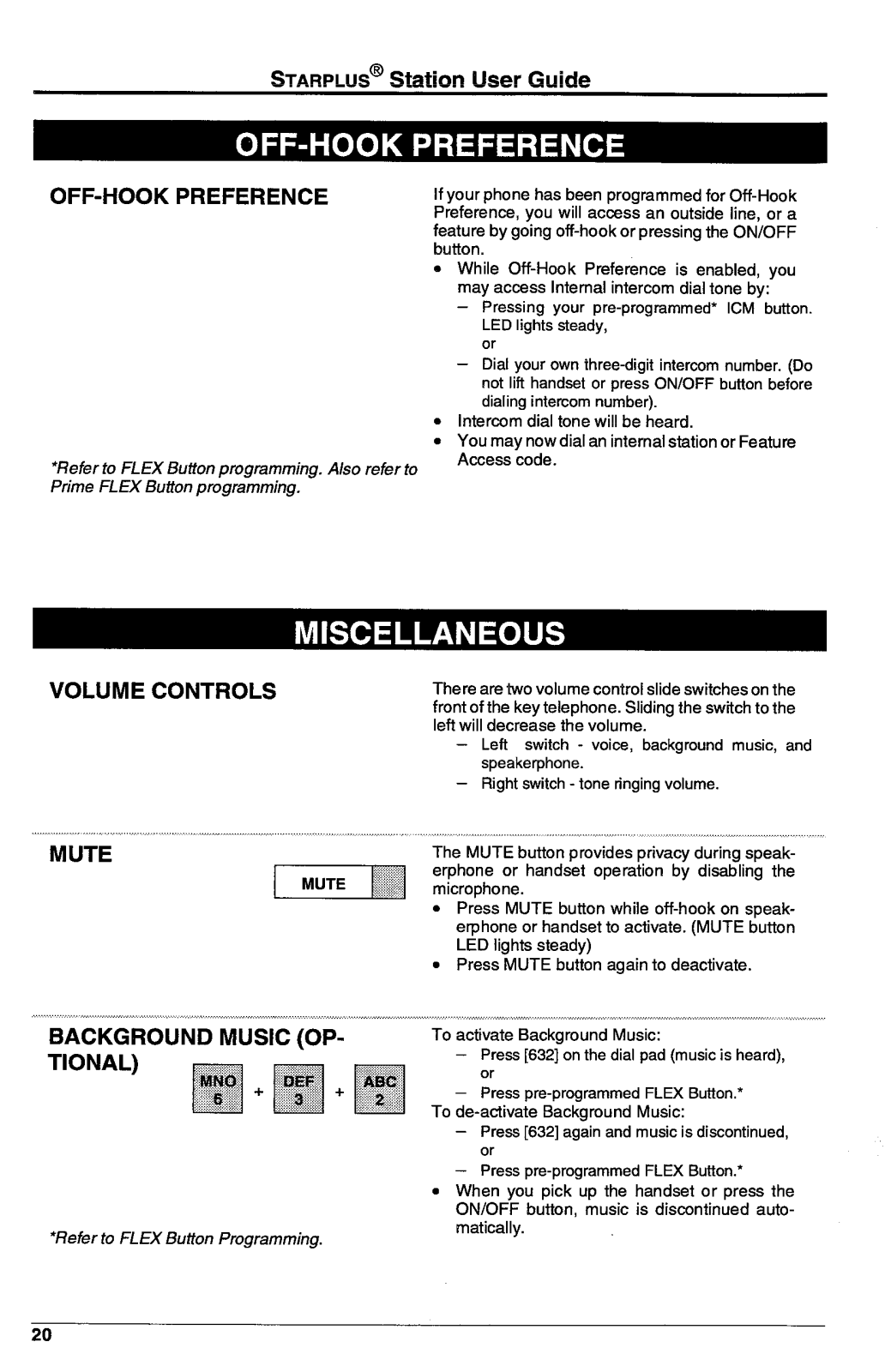

OFF-HOOK
VOLUME
MUTE ...............................................................................................................................
BACKGROUND
SPEAKERPHONE
USING
TO PROGRAM
PRIME
PROGRAMMING
CALL FORWARDING
OFF-NET CALL FORWARDING
MESSAGES - Date
MESSAGES ........................................................................................
MESSAGE CODE
MESSAGES
CONFERENCE (Controller Only)
SPEED NUMBER.. ........................................................................................
NUMBER REDIAL.. ...............................................................................................
SAVED NUMBER.. ........................................................................................
SPEED NUMBERS
SELECTION..
NAME..
PREFERENCE.. ...........................................................................................
CONTROLS..
ACCOUNT CODES .............................................................................................
FLEXIBLE BUl-i-ONS ............................................................................
FLEX BU-ITON PROGRAMMING..
....................................................................................................
(Silent Response)
...............................................................................................
CONFERENCE..
REDIAL..
IN QUEUE FOR
..............................................................................................................
NAME INTO DISPLAY.. ......................................................................
MUSIC (OPTIONAL).
PBXICENTREX CODES ONTO A FLEX BUlTON..
................................................................................................
.............................................................................................
MODE
Stations
...................................................................................................
...........................................................................................................
(ALL TYPES). ........................................................
and Time Entry ...................................................
ON A FLEX KEY.. .................................................
................................................................................
.................................................................................
.................................................................................
.................................................................................
.................................................................................
........................................................................................
UCD GROUPS..
................................................................................
....................................................................................

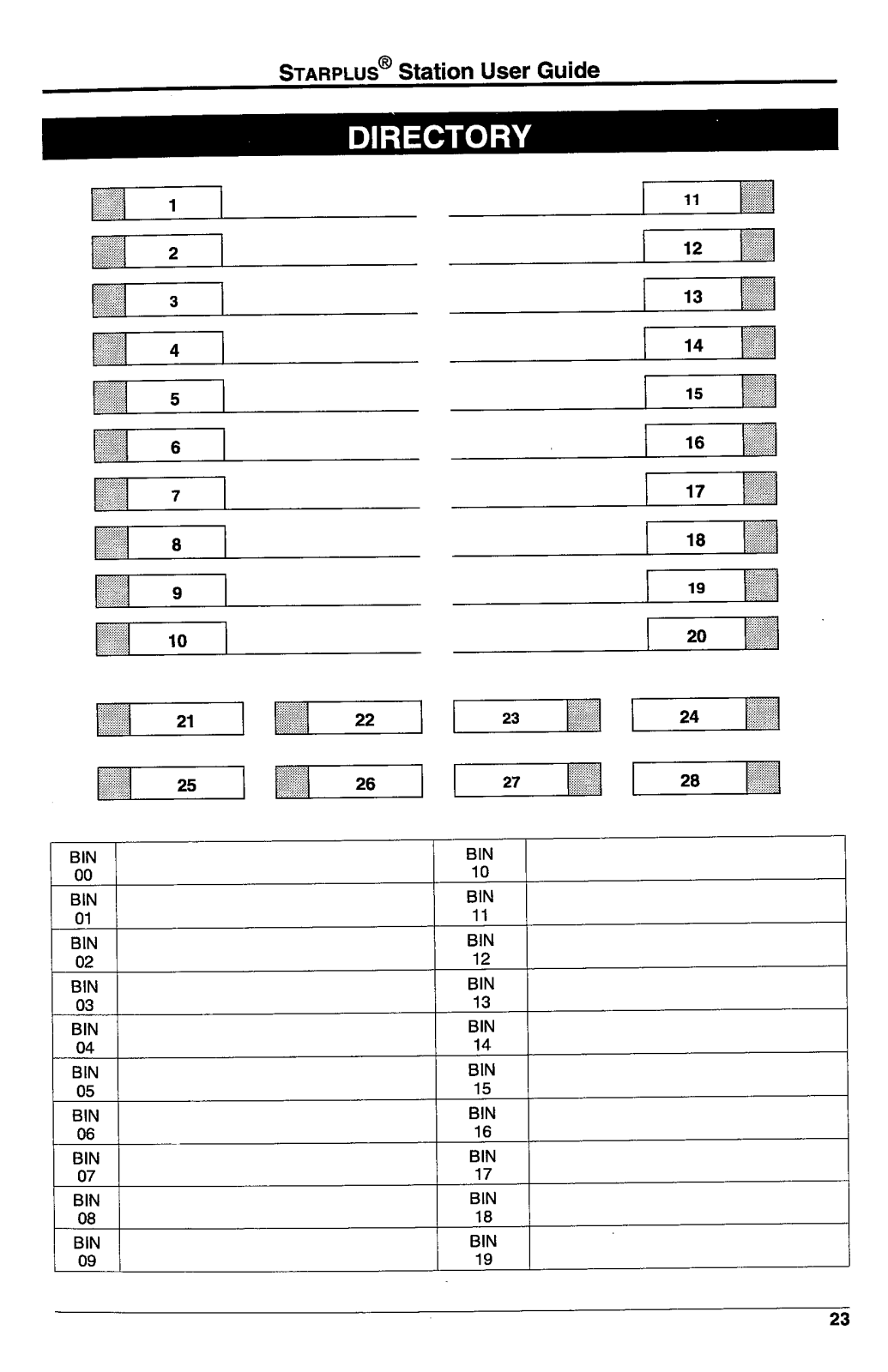

DIRECTORY
............................................................................
...............................................................
........................................................
(via speed dial) ...........................................
...........................................................................
.................................................................
.......................................................
DIALING.. ...........................................
.....................................................................
..........................
10
11
11
11
12
12
12
13
13
14
14
15
15
15
15
15
16
16
16
16
16
16
17
17
17
18
18
18
19
19
20
20
20
20
21
21
22
22
22
ii
Page 5
STARPLUS@
Station User Guide

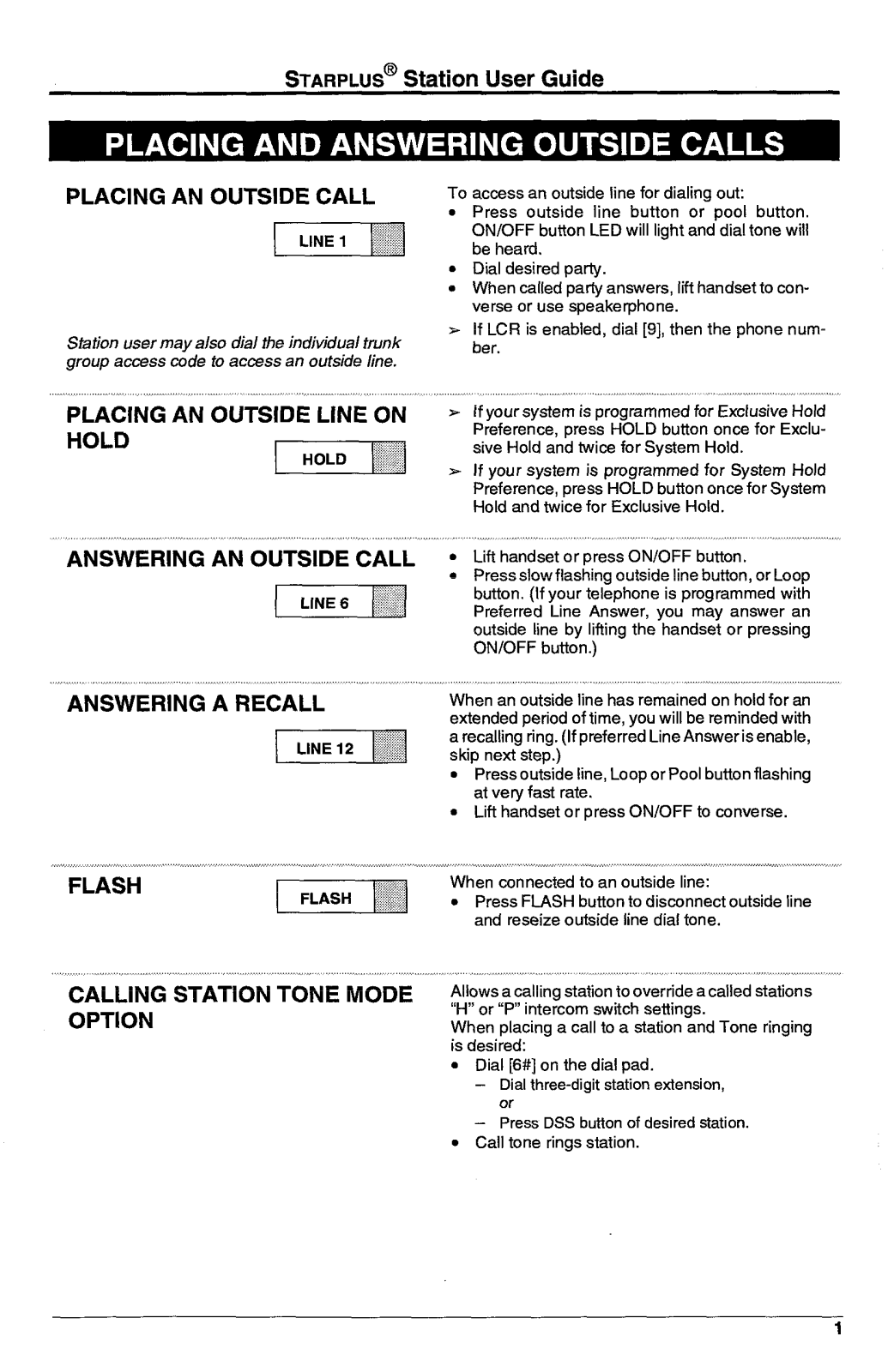

PLACING AN OUTSIDE CALL
(,,,,,
Station user may also dial the individual trunk
group access code to access an outside line.
PLACING AN OUTSIDE LINE ON
HOLD
ANSWERING AN OUTSIDE CALL
(
ANSWERING A RECALL
i-iiqyj
To access an outside line for dialing out:
Press outside line button or pool button.
ON/OFF button LED will light and dial tone will
be heard.
Dial desired party.
When called party answers, lift handset to converse or use speakerphone.
If LCR is enabled, dial [9], then the phone number.
lf your system is programmed for Exclusive Hold
Preference, press HOLD button once for Exclusive Hold and twice for System Hold.
If your system is programmed for System Hold
Preference, press HOLD button once for System
Hold and twice for Exclusive Hold.
.
Lift handset or press ON/OFF button.
.
Pressslowflashing outside line button, or Loop
button. (If your telephone is programmed with
Preferred Line Answer, you may answer an
outside line by lifting the handset or pressing
ON/OFF button.)
When an outside line has remained on hold for an
extended period of time, you will be reminded with
a recalling ring. (If preferred Line Answeris enable,
skip next step.)
l
Press outside line, Loop or Pool button flashing
at very fast rate.
l
Lift handset or press ON/OFF to converse.
’ FLASH
(1
CALLING STATION T&E MODE
OPTION
,. ,;
When connected to an outside line:
. Press FLASH button to disconnect outside line
and reseize outside line dial tone.
Allows a calling station to override a called stations
“H” or “P” intercom switch settings.
When placing a call to a station and Tone ringing
is desired:
l
Dial [6#] on the dial pad.
- Dial three-digit station extension,
or
- Press DSS button of desired station.
l
Call tone rings station.
,,,, ., ,
Page 6
STARPLUS@
Station User Guide

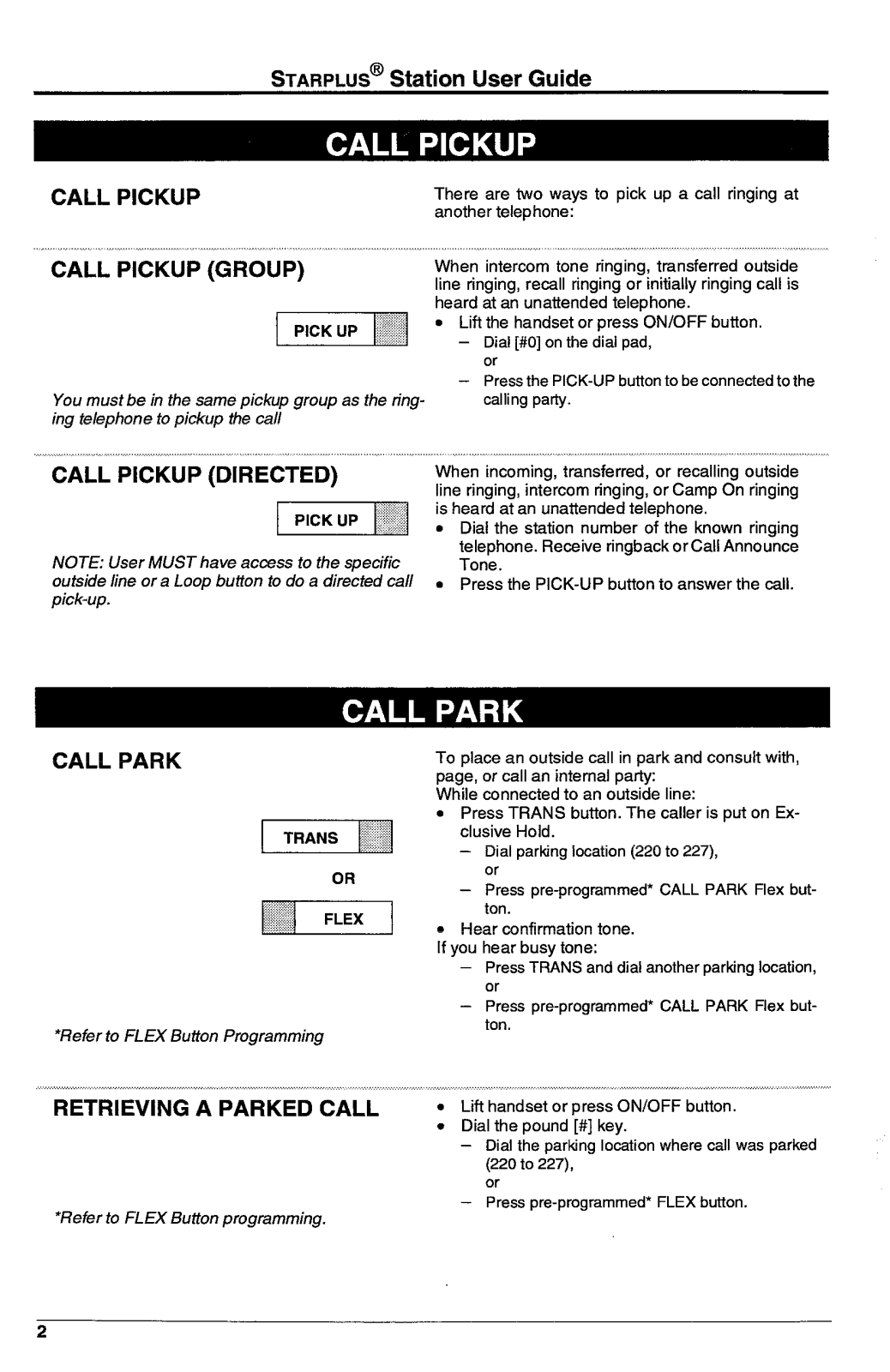

CALL PICKUP
CALL PICKUP (GROUP)
You must be in the same pickup group as the ring-
ing telephone to pickup the call
CALL PICKUP (DIRECTED)
NOTE: User MUST have access to the specific
outside line or a Loop button to do a directed call
pick-up.
CALL PARK
*Refer to FLEX Button Programming
There are two ways to pick up a call ringing at
another telephone:
When intercom tone ringing, transferred outside
line ringing, recall ringing or initially ringing call is
heard at an unattended telephone.
l
Lift the handset or press ON/OFF button.
- Dial [#0] on the dial pad,
Or
- Press the PICK-UP button to be connected to the
calling party.
When incoming, transferred, or recalling outside
line ringing, intercom ringing, or Camp On ringing
is heard at an unattended telephone.
l
Dial the station number of the known ringing
telephone. Receive ringback or Call Announce
Tone.
l
Press the PICK-UP button to answer the call.
To place an outside call in park and consult with,
page, or call an internal party:
While connected to an outside line:
l
Press TRANS button. The caller is put on Ex-
clusive Hold.
- Dial parking location (220 to 227),
or
- Press pre-programmed* CALL PARK Flex button.
l
Hear confirmation tone.
If you hear busy tone:
- Press TRANS and dial another parking location,
or
- Press pre-programmed’ CALL PARK Flex but-
ton
RETRIEVING i PARKED CALL
*Refer to FLEX Button programming.
2
. Lift handset or press ON/OFF button.
. Dial the pound [#] key.
- Dial the parking location where call was parked
(220 to 227),
or
- Press pre-programmed* FLEX button.
Page 7
STARPLUS’
Station User Guide

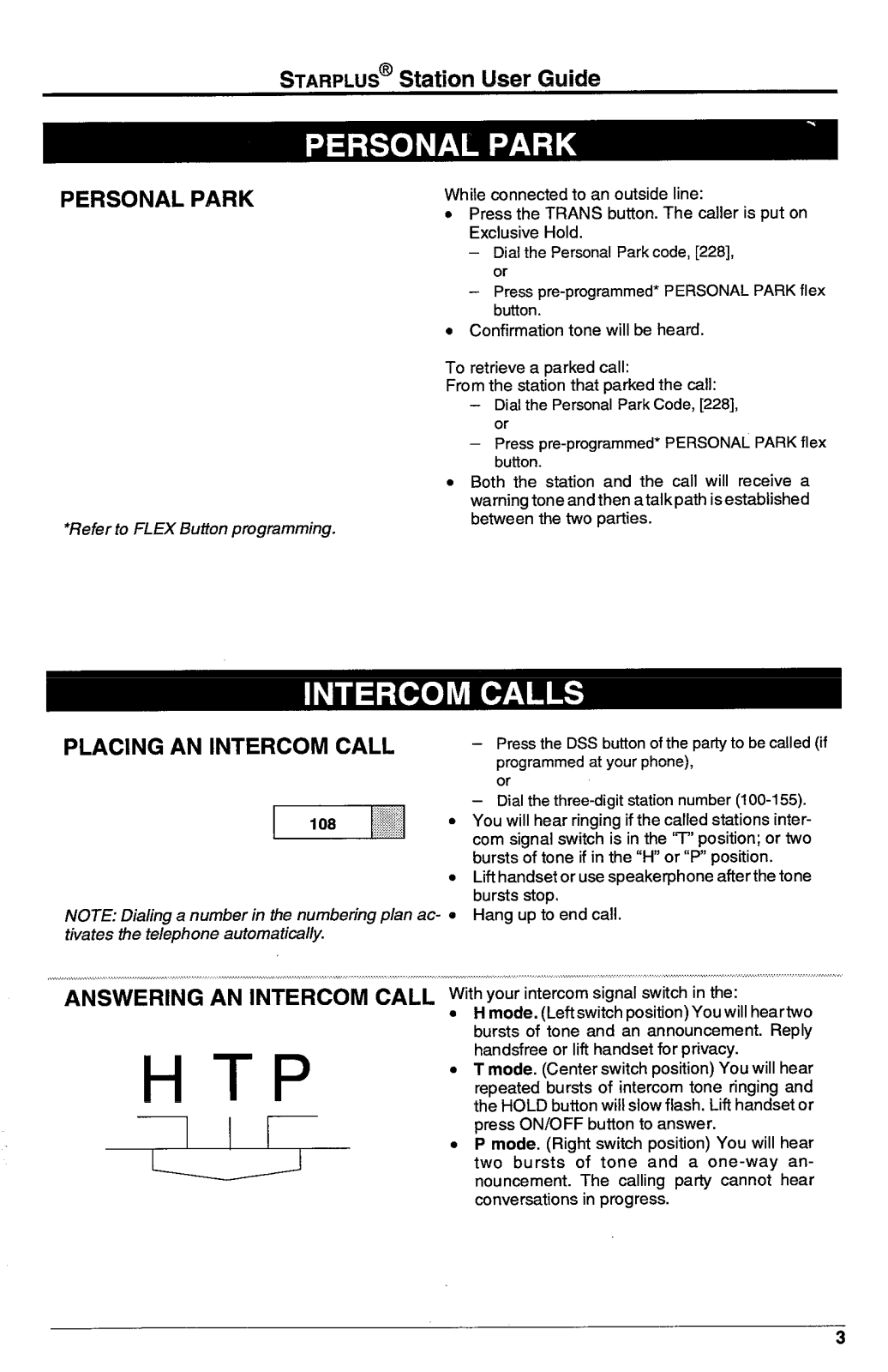

PERSONAL PARK
*Refer to FLEX Bufton programming.
PLACING AN INTERCOM CALL
NOTE: Dialing a number in the numbering p/an ac- .
fivates the telephone automatically.
While connected to an outside line:
l
Press the TRANS button. The caller is put on
Exclusive Hold.
- Dial the Personal Park code, [228],
or
-
Press pre-programmed* PERSONAL PARK flex
button.
. Confirmation tone will be heard.
To retrieve a parked call:
From the station that parked the call:
- Dial the Personal Park Code, [228],
Or
-
Press pre-programmed* PERSONAL PARK flex
button.
l
Both the station and the call will receive a
warning toneandthen atalkpath isestablished
between the two parties.
- Press the DSS button of the party to be called (if
programmed at your phone),
- Dial the three-digit station number (100-155).
You will hear ringing if the called stations inter-
signal switch is in the ‘T’ position; or two
bursts of tone if in the “l-f” or “P” position.
. Lift handset or use speakerphone after the tone
bursts stop.
Hang up to end call.
ANSWERING AN INTERCOM CALL
HTP
With your intercom signal switch in the:
. H mode. (Leftswitch oosition)Youwill heartwo
bursts of ‘tone and an announcement. Reply
handsfree or lift handset for privacy.
. T mode. (Center switch position) You will hear
repeated bursts of intercom tone ringing and
the HOLD button will slow flash. Lift handset or
press ON/OFF button to answer.
. P mode. (Right switch position) You will hear
two bursts of tone and a one-way announcement. The calling party cannot hear
conversations in progress.
Page 8
Page 9
STARPLUS@
Station User Guide

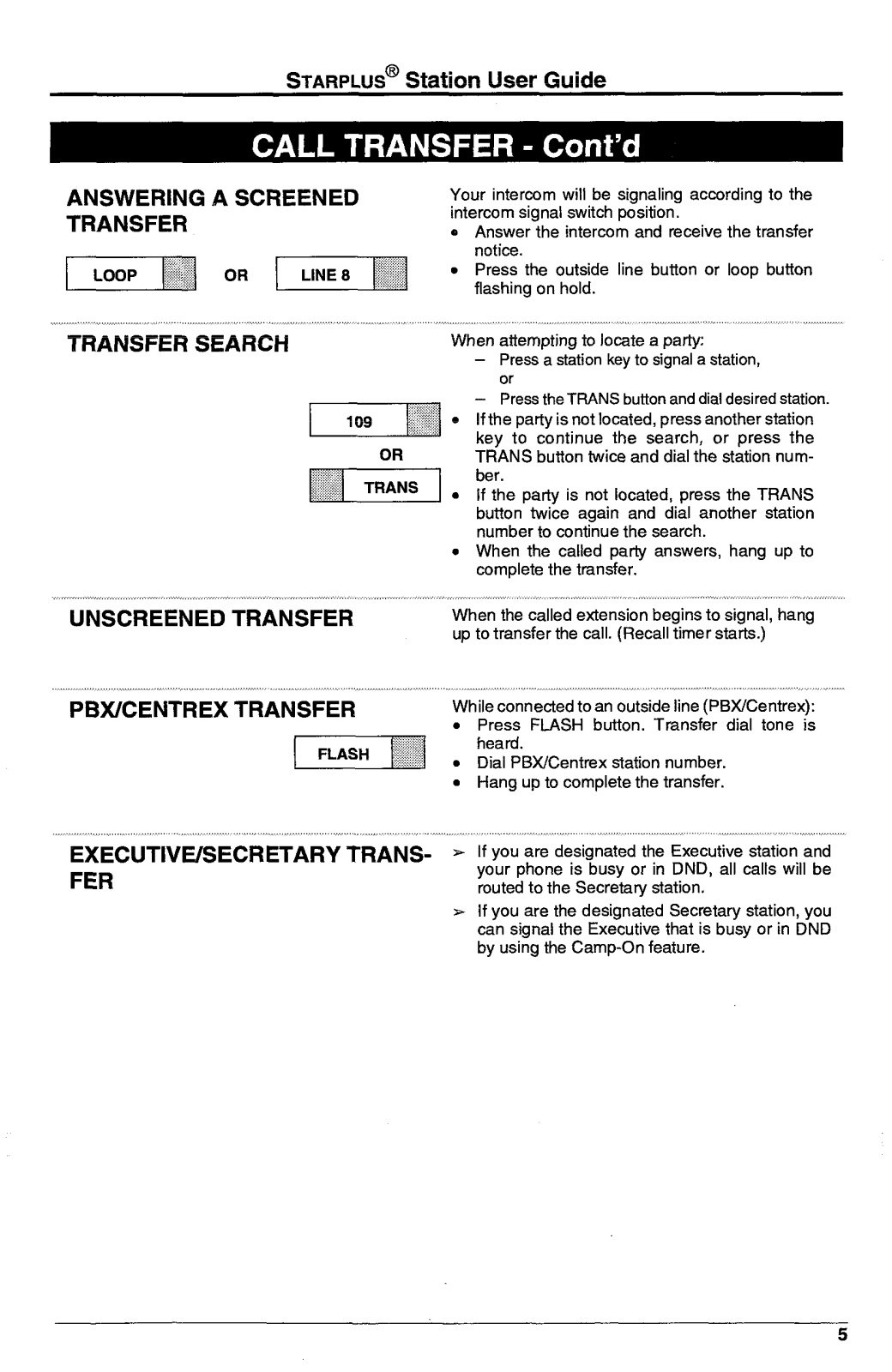

ANSWERING A SCREENED
TRANSFER
)Loop OR rlhi-rj
TRANSFER SEARCH
UNSCREENED TRANSFER
PBWCENTREX TRANSFER
(,,,,,
Your intercom will be signaling according to the
intercom signal switch position.
a Answer the intercom and receive the transfer
notice.
. Press the outside line button or loop button
flashing on ho,d,
When attempting to locate a party:
- Press a station key to signal a station,
Press the TRANS button and dial desired station.
If the party is not located, press another station
continue the search, or press the
twice and dial the station num-
button twice again and dial another station
number to continue the search.
l
When the called party answers, hang up to
complete the transfer.
When the called extension begins to signal, hang
up to transfer the call. (Recall timer starts.)
While connected to an outside line (PBWCentrex):
. Press FLASH button. Transfer dial tone is
heard.
. Dial PBWCentrex station number.
. Hang up to complete the transfer.
not located, press the TRANS
EXECUTIVE/SECRETARY TRANSFER
x=- If you are designated the Executive station and
your phone is busy or in DND, all calls will be
routed to the Secretary station.
> If you are the designated Secretary station, you
can signal the Executive that is busy or in DND
by using the Camp-On feature.
5
Page 10
STARPLUS@
Station User Guide

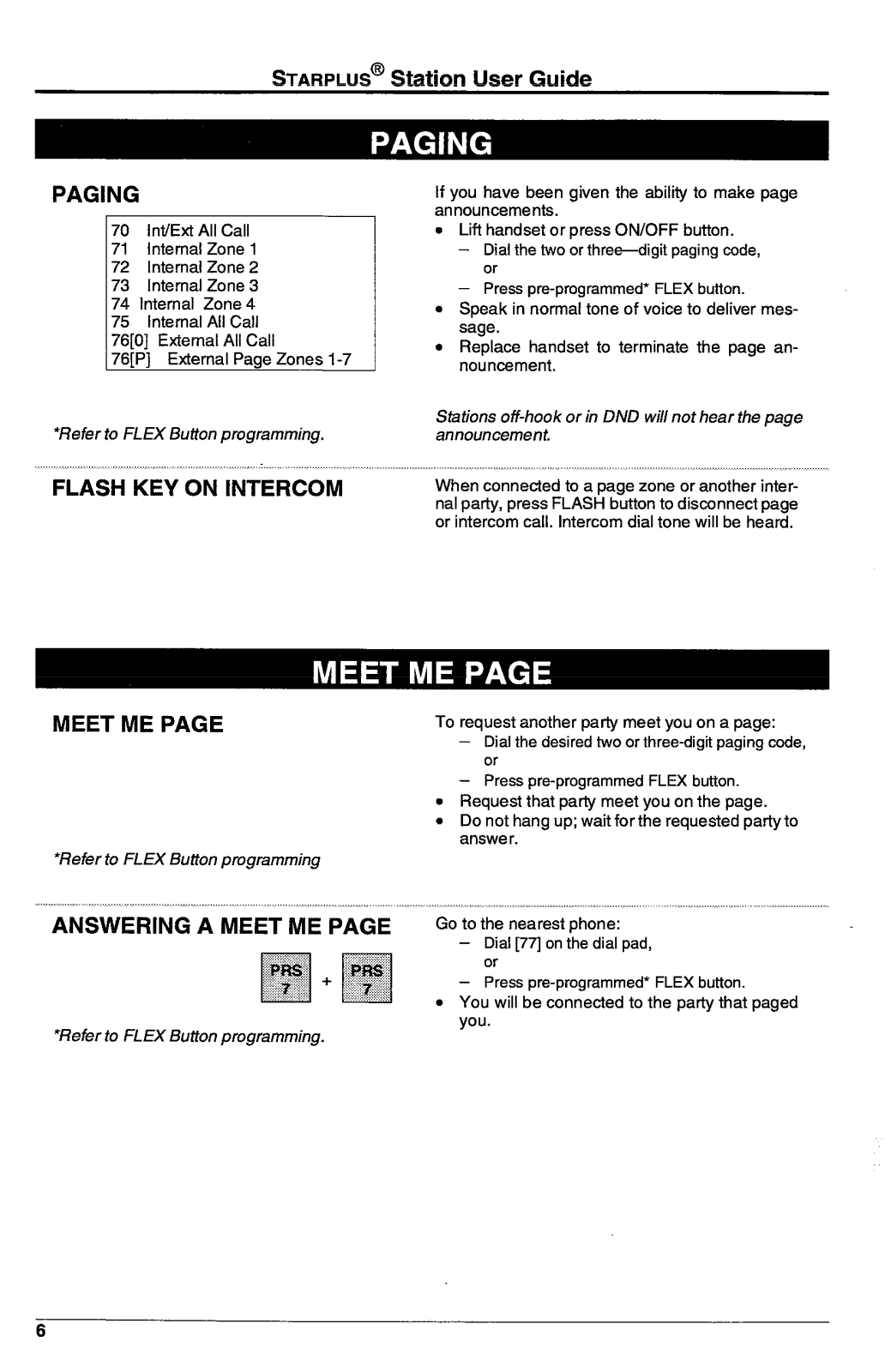

PAGING
70 Int/Ext All Call
71 Internal Zone 1
72 Internal Zone 2
73 Internal Zone 3
74 Internal Zone4
75 Internal All Call
76[0] External All Call
76[P] External Page Zones l-7
*Refer to FLEX Button programming.
FLASH KEY ON INTERCOM
MEET ME PAGE
*Refer to FLEX Button programming
If you have been given the ability to make page
announcements.
l
Lift handset or press ON/OFF button.
Dial the two or three-digit paging code,
-
Or
- Press pre-programmed’ FLEX button.
l
Speak in normal tone of voice to deliver message.
l
Replace handset to terminate the page announcement.
Stations off-hook or in DND will not hear the page
announcement.
When connected to a page zone or another inter-
nal party, press FLASH button to disconnect page
or intercom call. Intercom dial tone will be heard.
To request another party meet you on a page:
Dial the desired two or three-digit paging code,
or
- Press pre-programmed FLEX button.
l
Request that party meet you on the page.
l
Do not hang up; wait for the requested party to
answer.
,.,.
ANSW&l’& MEET hk PA&E
p$iJ+jp$rl Or
*Refer to FLEX Button programming.
Go to the nearest phone:
”
-
- Press pre-programmed* FLEX button.
l
You will be connected to the party that paged
you.
~ ~
Dial [77] on the dial pad,
Page 11
STARPLUS@
Station User Guide

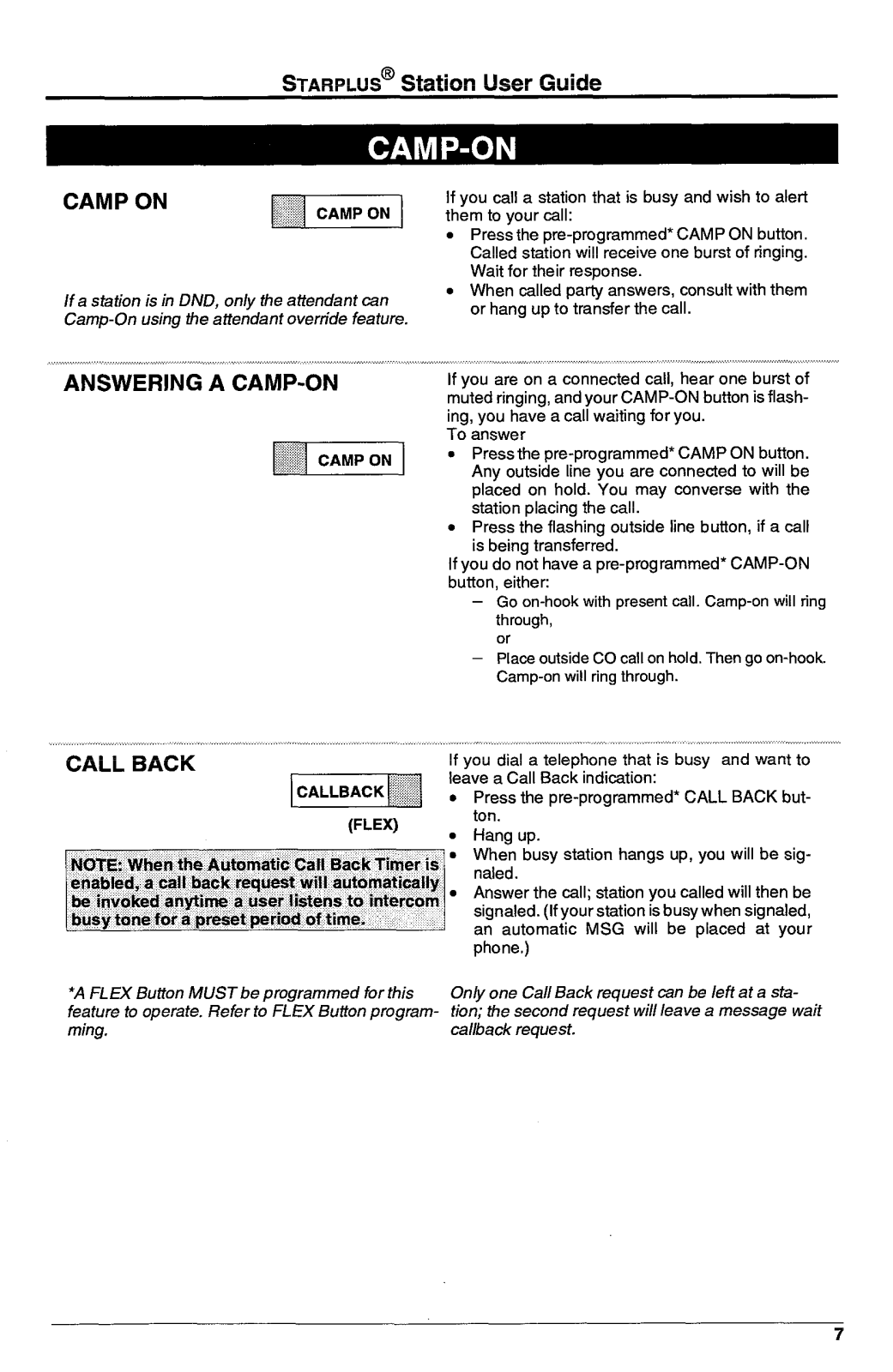

CAMP ON
If a station is in DND, on/y the attendant can
Camp-On using the attendant override feature.
VI
ANSWERING A CAMP-ON
CALL BACK
liiEiT7 l
I
NOTE: When the Automatic Call Back Timer is
enabled a call back request will automatically
I:,-1.
be invoked anytmte a user lwtens to intercom
busy tone for a preset period of time.
I,J
FLEX) .
If you call a station that is busy and wish to alert
them to your call:
. Press the pre-proorammed* CAMP ON button.
Called station’willreceive one burst of ringing.
Wait for their response.
. When called party answers, consult with them
or hang up to transfer the call.
If you are on a connected call, hear one burst of
muted ringing, and your CAMP-ON button is flashing, you have a call waiting for you.
To answer
. Press the pre-programmed* CAMP ON button.
Any outside line you are connected to will be
placed on hold. You may converse with the
station placing the call.
. Press the flashing outside line button, if a call
is being transferred.
If you do not have a pre-programmed’ CAMP-ON
button, either:
- Go on-hook with present call. Camp-on will ring
through,
or
- Place outside CO call on hold. Then go on-hook.
Camp-on will ring through.
If you dial a telephone that is busy and want to
leave a Call Back indication:
Press the pre-programmed’ CALL BACK but-
ton.
Hang up.
When busy station hangs up, you will be sig-
l
naled.
Answer the call; station you called will then be
signaled. (If your station is busy when signaled,
an automatic MSG will be placed at your
phone.)
*A FLEX Button MUST be programmed for this
feature to operate. Refer to FLEX Button programming.
Only one Call Back request can be left at a sta-
tion; the second request willleave a message wait
callback request.
Page 12
STARPLUS@
Station User Guide
LEAVING A MESSAGE WAITING
INDICATION
Up to five messages can be left at any Key Station
m
ANSWERING A MESSAGE WAIT-
ING INDICATION
yl/-iq
The first message left will be the first one called.
LEAST COST ROUTING
If you dial a station that is busy, unattended, or in
DND, you can leave a message waiting indication.
l
Press the MSG button. Called party’s MSG
button will flash slowly.
l
Replace the handset to end the call.
If your MSG button is flashing at a slow rate, you
have a message waiting for you..
l
Press flashing MSG button. Station that left
message will be signaled with tone ringing.
l
If called station does not answer, press the
MSG button once to leave message:
To place an outside call when LCR has been
enabled in the system:
l
Dial [9] on the dial pad.
l
Dial desired telephone number (i.e.: l+area
code+number) 7-digit number.
l
Wait for answer. Lift handset or use speakerphone to converse.
LCR QUEUING (AUTOMATIC)
If alllines available to you are busy, remain offhook for four seconds to automatically be queued
onto LCR for an available line.
LCR QUEUE CALLBACK
Only one LCR Queue Call Back request may be in- .
itiated by a station. When a second request is
made, the first request will be canceled.
l
Dial [9] on the dial pad.
. Dial desired telephone number (i.e.: l+area
code+number) 7-digit number.
= Wait for answer.
If an LCR Queue Call Back has been activated:
l
When teleohone is sianaled. answer the call.
. Desired telephone n;mber’will automatically
be redialed.
. Wait for answer. Lift handset or use speaker-
phone to converse.
To Cancel an active LCR Queue:
l
Dial the LCR Queue Cancel code, [626].
Replace
the handset or press the ON/OFF
button.
Page 13
STARPLUS@
Station User Guide
CO LINE QUEUING
*Refer to FLEX Button programming.
NOTE: A station can queue only one line at a time.
TO ANSWER A QUEUE CALLBACK
pqq
If your station has been programmed for Preferred
Line Answer, you will have the line automatically
upon lifting the handset. Then dial the desired
number.
ACTIVATING DO NOT DISTURB
rT-/Tiq
(FLEX)
*Refer to FLEX Button programming.
If you see that a particular outside line is busy and
you wish to be placed on a list waiting for that line
to become available:
l
Press desired busy outside line button or Pool
button. Receive busy tone.
. Press pre-programmed* LINE QUEUE button.
l
Hang up.
If a line within the same line group is available, it
will be presented immediately.
If ou hear Queue Call Back ringing and an outside
Y
lrne of the line group you queued is slow flashing:
l
Lift handset or press ON/OFF button.
. Press flashing outside line button to answer.
If you have been given the ability to place your
phone in Do Not Disturb:
. Press the pre-programmed* DND button. DND
button LED lights steady.
. The DND button can be pressed while the
phone is ringing to stop the ringing.(Refer to
One-Time DND below.
To cancel Do Not Disturb:
* Press the pre-programmed’ DND button
again. DND button LED extinguishes.
ONE-TIME DO NOT DISTURB (DND)
(FLEX)
*Refer to FLEX Button programming.
Allows ou to prevent calls from ringing at your
Y
statron whrle you’re on a call. The One-Time DND
condition will automatically cancel when you end
Press the pre-programmed* DND button while
you’re off-hook and connected to a CO line or
intercom call. The DND button LED lights and
off-hook tones at your station are canceled.
To Cancel One-Time Do Not Disturb
. Go on-hook or press ON/OFF button.
. The DND button LED extinguishes and DND is
canceled.
Page 14
STARPLUS@
Station User Guide
CALL FORWARDING - (ALL
CALLS)
1.....:“1]
*Refer to FLEX Button programming.
CALL FORWARDING - (NO ANSWER)
*Refer to FLEX Button programming.
CALL FORWARDING - (Sky)
+
*Refer to FLEX Button programming.
If you have been given the ability to forward your
calls:
l
Lift handset or press ON/OFF button.
l
Press the pre-programmed* FWD button.
- Press DSS button,
or
- Dial intercom number where calls are to be for-
warded, including UCD, Voice Mail, and Hunt
9roup pilot numbers.
Line Queue, Call Back requests, message wait requests, and pre-selected messages are canceled
when a station activates call forward.
If you have been given the ability to forward your
calls:
l
Lift handset or press ON/OFF button.
l
Press the pre-programmed’ FWD* button.
l
Dial the Call Forward No Answer code [7] on
the dial pad.
- Press DSS button,
or
- Dial intercom number where calls are to be for-
warded. Hear confirmation tone.
l
Replace handset or press ON/OFF button.
If you have been given the ability to forward your
calls:
. Lift handset or press ON/OFF button.
l
Press the pre-programmed* FWD* button.
l
Dial the Call Forward Busy code [S] on the dial
pad.
- Press DSS button,
or
- Dial intercom number where calls are to be for-
warded. Hear confirmation tone.
l
Replace handset or press ON/OFF button.
CALL FORWARDING - (BUSY/NO
ANSWER)
*Refer to FLEX Button programming.
If you have been given the ability to forward your
_I_
calls:
l
Lift handset or press ON/OFF button.
l
Press the pre-programmed’ FWD button.
l
Dial the Call Forward Busy/No Answer code [9]
on the dial pad.
- Press DSS button,
or
- Dial intercom number where calls are to be for-
warded. Hear confirmation tone.
l
Replace handset or press ON/OFF button.
Page 15
STARPLUS’
Station User Guide
CALL FORWARDING TO VOICE
MAIL GROUPS
*Refer to FLEX Bufton programming.
‘TO REMOVE CALL~ORWARD~NG
(ALL TYPES)
VI
STATION OFF-NET CALL FORi
WARDING (via speed dial)
*Refer to FLEX Button programming
Intercom and Transferred CO callers may be
muted directly to your mail box by forwarding your
phone to a voice mail group.
. Lift handset or press ON/OFF button.
. Press the pre-programmed* FWD button.
* Dial the desired code:
[7]=no answer calls
[8]=busy calls
[9]=busy/no answer calls.
Forimmediateforwarding,skip preceding step.
l
Dial the three-digit Voice Mail group pilot number (440447) for the group (l-8) where calls
are to be forwarded. Hear confirmation tone.
. Replace handset or press ON/OFF button.
. Press ON/OFF button.
. Press the pre-programmed* FWD button.
s Replace handset or press ON/OFF button.
Allows stations to forward intercom and transferred calls to an off-net location.
In a speed dial bin, store the number of the off-net
location where calls are to be forwarded. Follow
instructions provided for storing station or system
speed dial numbers.
. Lift handset or press ON/OFF button.
l
Press the pre-programmed* FWD button.
Either:
. Dial an asterisk [%I on the dial pad. Then dial
thespeed bin numberthatcontainsthe number
where calls are to be forwarded. Confirmation
tone is heard. FWD button LED is flashing.
Canceling Off-Net Forwarding:
. Lift handset or press ON/OFF button.
s Pressthe pre-programmed* FWD button. FWD
button LED is extinguished.
Page 16
STARPLUS@
Station User Guide
PERSONALIZE!3 MESSAGES
-00 Clear Messages
ON VACATION
-01
-02 RETURN AM
-03
RETURN PM
RETURN TOMORROW
-04
-05 RETURN NEXT WEEK
ON TRIP
-06
IN MEETING
-07
-08 AT HOME
ON BREAK
-09
-10 AT LUNCH
PERSONALIZED MESSAGES Date and Time Entry
VACATION UNTIL: MM/D/J
-11
I RETURN: HH:MMxm or MM/DD
-12
1 ON TRIP UNTIL: MM/LID
-13
MEETING UNTIL: HH:MM xm
-14 1
1 AT HOME UNTIL: HH:MM xm
-15
ON BREAK UNTIL: HH:MM xm
-16 1
I-17 / AT LUNCH UNTIL: HH:MMxm
A=21
B=22
C=23
D=31
E=32
F=33
G=41
H=42
I=43
J=51
K=52
L=53
M=61 l=l#
N=62 2=2#
0=63 3=3# ?=03
P=71 4=4#
Q=74 5=5#
R=72
s=73 7=7#
T=81 8=8# &=*4
U=82
V=83
W=91 SPACE=1 1 )=#2
x=92
6=6# $=‘2
9=9# ‘2#
O=O# (=#l
Y=93 :=12
l
=01
,=02
I=04
!=*I
%=‘3
+=#3
==#4
z=94 -=13 #=##
‘=I 4
Each station can select a preassigned message
to be displayed on the LCD of any Key Telephone
calling that station.
To select one of the ten available messages:
- Dial [633] on the dial pad,
or
- Press pre-programmed FLEX button.
l
Dial the two-digit code for the message which
will appear. Refer to Table at left.
l
Hang up. (Activating DND or Call Forwarding
cancels selected message.)
,,.
As an enhancement to the original canned messages, station users can activate certain messages that will allow the user to enter a specific
time or a date of return. These messages will
appear on the calling station’s display to alert them
of the desired party’s return time or date.
To activate a message with a custom return time
or date:
l
Dial [633] on the dial pad.
l
Dial the two-digit code for the message which
will appear. Refer to Table at left.
l
Enter the date/time by using the buttons on the
dial pad as follows:
l
Press the HOLD button to enter the message.
Confirmation tone is received.
To cancel the message:
l
Dial the Message Access code [633)+[00] on
the dial pad.
l
Replace the handset or press the ON/OFF
button.
PERSONALIZED MESSAGE CODE
ON A FLEX KEY
You can program code 633 on a flexible key to
speed access of pre-selected messages.
l
Press SPEED button twice.
l
Press the desired flex button. LED flashes.
l
Dial [633]+[#]. Confirmation tone is heard.
User can now press that flex button and dial the
two-digit message number 00-10. Confirmation
tone is heard. Referto Personalized Messages for
a list of codes.
Page 17
STARPLUS@ Station User Guide
CUSTOM MESSAGES
The system administrator (Sta 100) programs the
ten custom messages at the first attendant station.
These messages can be used in the same manner
as Personalized messages.
OFF HOOK VOICE OVER IOHVO)
This feature allows users, off-hook 0; a call (CO
or Intercom), to receive a voice announcement
through the handset receiver without interrupting
the existing call. The overridden party may then
respond to the calling party using CAMP-ON procedures to talk to the calling party or may use
Silent Text Messaging to respond to the calling
party via LCD Displays.
Placing an Off-Hook Voice Over (OHVO) call:
- When an OHVO station calls a busy OHVO station, and busytone is received, the calling OHVO
station can dial the OHVO code [628] on the dial
pad,
or
- Press a pre-programmed* OHVO button to initiate an OHVO announcement. The HOLD button
LED will flash at the called OHVO station.
l
The OHVO receiving station will receive a one
beep warning tone, the called OHVO station
must be in the ‘I-l” mode, and then the calling
OHVO party may begin the voice announcement to the called OHVO party.
A station wishing to select a custom message:
. Dial [633] on the dial pad.
Or
. Press the pre-programmed* Message Access
flexible button.
. Dial the two-digit code for the desired message
to be displayed on your phone when called.
. Replace the handset or press the ON/OFF
button.
To cancel the message:
l
Dial the Message Access code [633)+[00] on
the dial pad.
l
Replace the handset or press the ON/OFF
button.
Responding to an Off-Hook Voice Over (OHVO):
After receiving an OHVO announcement, two
’
options are available to respond to the calling
party;
- The called OHVO station may respond to the
calling OHVO station by using the Camp-On
feature. The called OHVO station presses the
flashing HOLD button to consult with the calling
station. The existing call (CO line) goes on Exclusive Hold automatically. This method, then follows Camp-On procedures and operation.
or
- The called station may respond to the calling
station by using the Silent Text Messaging (this
feature is only available to digital key terminals,
and the called station must be a digital display
terminal.) The called OHVO station may press
pre-programmed Message button to respond to
the voice over announcement without being released from the current call, (i.e. by pressing a
flex button pre-programmed for the message “IN
MEETING”), the calling station will receive this
message on the calling station’s LCD display.
Page 18
STARPLUS@
Station User Guide

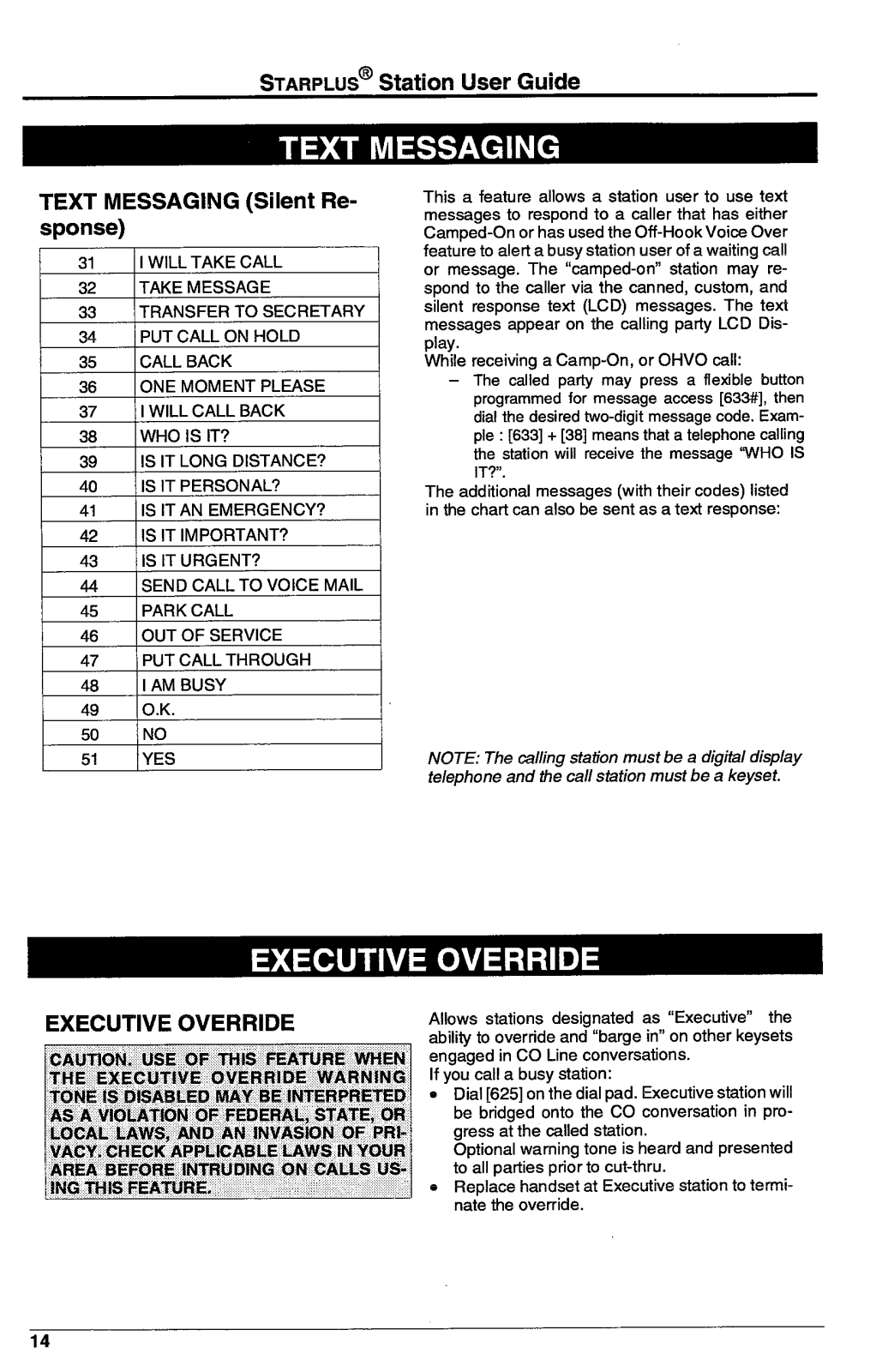

TEXT MESSAGING (Silent Response)
1 I WILL TAKE CALL
31
32 1 TAKE MESSAGE
33 /TRANSFER TO SECRETARY
34 / PUT CALL ON HOLD
WHO IS IT?
38
IS IT LONG DISTANCE?
39
IS IT PERSONAL?
40
IS IT AN EMERGENCY?
41
IS IT IMPORTANT?
42
IS IT URGENT?
43
SEND CALL TO VOICE MAIL
44
45 1 PARK CALL
46 1 OUT OF SERVICE
This a feature allows a station user to use text
messages to respond to a caller that has either
Camped-On or has used the Off-HookVoice Over
feature to alert a busy station user of a waiting call
or message. The “camped-on” station may respond to the caller via the canned, custom, and
silent response text (LCD) messages. The text
messages appear on the calling party LCD Dis-
play.
While receiving a Camp-On, or OHVO call:
- The called party may press a fletible button
programmed for message access [633#], then
dial the desired two-digit message code. Example : [633] + [38] means that a telephone calling
the station will receive the message ‘WHO IS
IT?“.
The additional messages (with their codes) listed
in the chart can also be sent as a text response:
NOTE: The calling station must be a digital display
telephone and the call station must be a keyset.
EXECUTIVE OVERRIDE
Allows stations designated as “Executive” the
ability to override and “barge in” on other keysets
engaged in CO Line conversations.
If you call a busy station:
. Dial [625] on the dial pad. Executive station will
be bridged onto the CO conversation in progress at the called station.
Optional warning tone is heard and presented
to all parties prior to cut-thru.
. Replace handset at Executive station to termi-
nate the override.
Page 19
STARPLUS@
Station User Guide
CONFERENCE COMBINATIONS *
Only stations that have Conference enabled will *
be able to initiate a Conference.
ESTABLISHING A CONFERENCE
piqqCONFII
On/y stations that have Conference enabled will
be able fo inifiafe a Conference.
A maximum of five parties can be included in a
conference.
II
EXITING A CONFkRENCE (Control- ’
ler Only)
Four internal and one external or five party internal -Add-on Conference.
One internal and two external - Multi-Line Conference.
Lift the handset.
l
Select intercom station or dial desired outside
party. When called party answers, press CONF
button.
.
Add nextconference party by selecting another
outside line or intercom station.
.
When patty answers, press the CONF button
twice. All parties are connected.
There are three methods of exiting a conference:
. Press the ON/OFF button to ON. Press the
MUTE button, and replace the handset (to
monitor a conference).
Use this method only if Multi-Line Conference is in
progress:
l
Press HOLD button to place outside parties on
hold. Hold timer starts. If one of the two parties
is internal, that party will be dropped.
l
Press the pre-programmed CONF button and
hang up or press the ON/OFF button to leave
the other conference parties still connected in
an unsupervised conference. The CONF button LED will flash and timer will start. There will
be a warning tone before the other parties are
*Refer to FLEX Button programming.
dropped.
,,, ,I ,,
,111
,,,
RE-ENTERING A CONFERENCE
*Refer to FLEX Button programming.
TERMINATING A CONFERENCE
*Refer to FLEX Button programming.
When the controller re-enters the conference, the
disconnect timer is reset.
l
Lift handset to re-enter a monitored confer-
ence.
l
To re-enter a conference placed on hold, repeat steps for establishing a conference.
l
To re-enter an unsupervised conference, lift
handsetand pressflashing CONF*button.The
CONP button lights steady and confirmation
tone will be heard.
To terminate a Conference:
l
Replace handset or press ON/OFF button to
OFF.
l
You must be actively in the conference.
For conferences involving another station, it may
be necessary to press the flashing CONF button
after going on-hook.
15
Page 20
STARPLUS@
Station User Guide

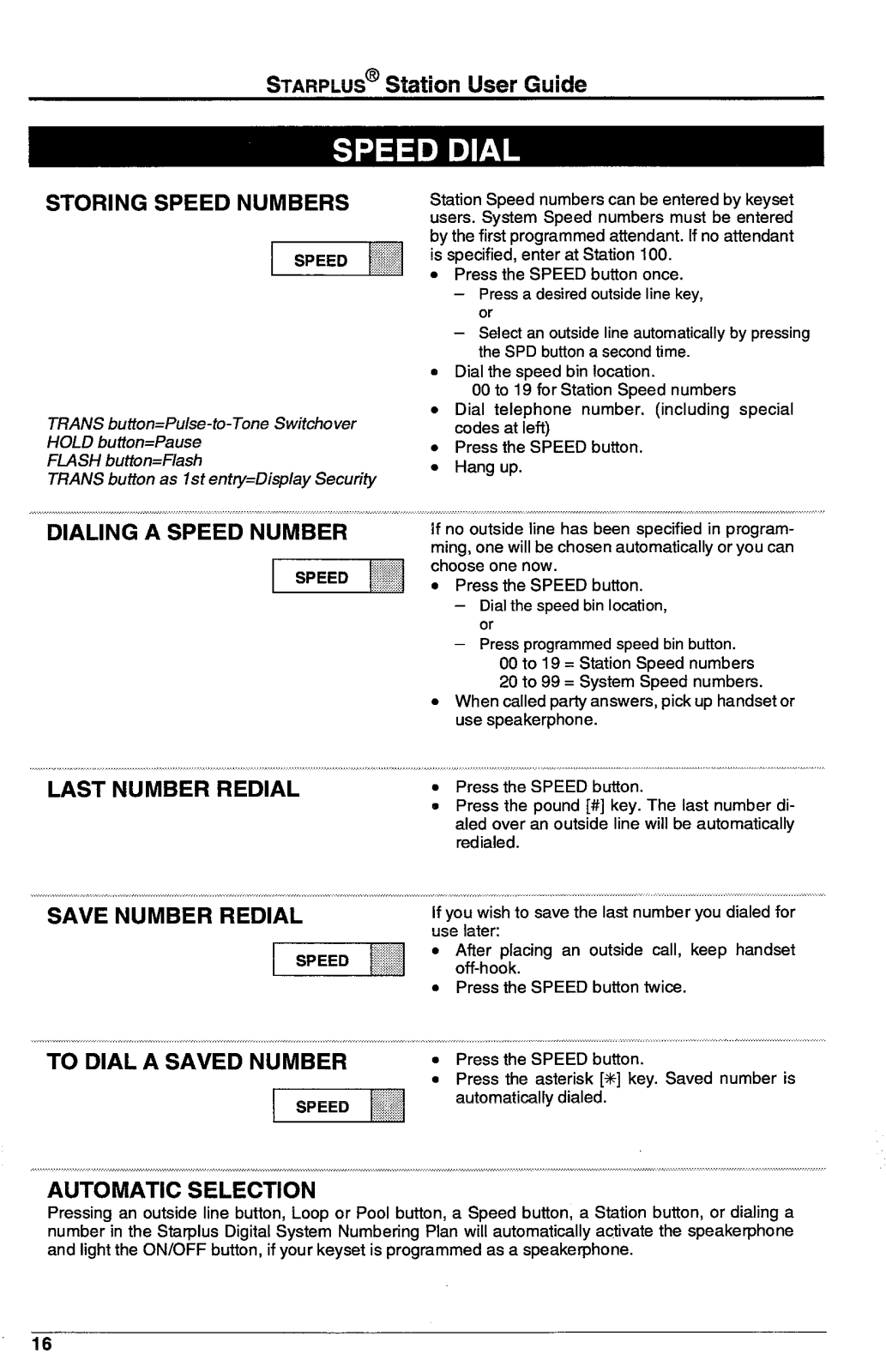

STORING SPEED NUMBERS
TRANS button=Pulse-to-Tone Switchover
HOLD button=Pause
FLASH button=Flash
TRANS button as 1st entry=Display Security
DIALING A SPEED NUMBER
r--iEqq
Station Speed numbers can be entered by keyset
users. System Speed numbers must be entered
by the first programmed attendant. If no attendant
is specified, enter at Station 100.
Press the SPEED button once.
- Press a desired outside line key,
or
- Select an outside line automatically by pressing
the SPD button a second time.
Dial the speed bin location.
00 to 19 for Station Speed numbers
Dial telephone number. (including special
codes at left)
Press the SPEED button.
Hang up.
tf no outside line has been specified in programming, one will be chosen automatically or you can
choose one now.
. Press the SPEED button.
- Dial the speed bin location,
or
- Press programmed speed bin button.
00 to 19 = Station Speed numbers
. When called party answers, pick up handset or
. Press the SPEED button.
a Press the pound [#] key. The last number di-
20 to 99 = System Speed numbers.
use speakerphone.
aled over an outside line will be automatically
redialed.
SAVE NUMBER REDIAL
TO DIAL A SAVED NUMBER
If you wish to save the last number you dialed for
use later:
l
After placing an outside call, keep handset
off-hook.
l
Press the SPEED button twice.
_II
. Press the SPEED button.
. Press the asterisk [+K] key. Saved number is
automatically dialed.
,, ,.,
, ,
AUTOMATIC SELECTION
Pressing an outside line button, Loop or Pool button, a Speed button, a Station button, or dialing a
number in the Starplus Digital System Numbering Plan will automatically activate the speakerphone
and light the ON/OFF button, if your keyset is programmed as a speakerphone.
16
Page 21
STARPLUS@ Station User Guide

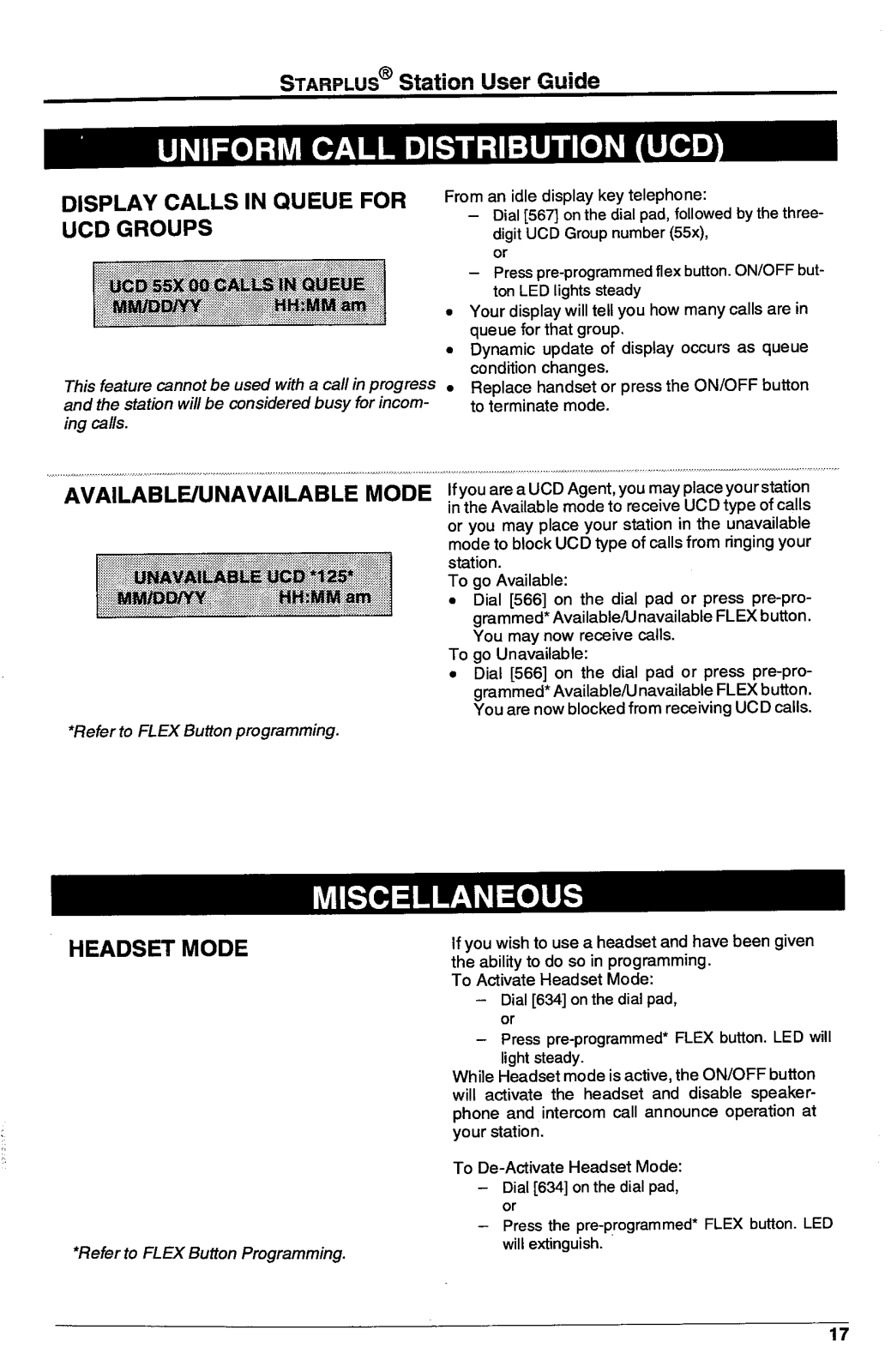

DISPLAY
CALLS IN QUEUE FOR
UCD GROUPS
This feature cannot be used with a call in progress .
and the station will be considered busy for incoming calls.
*Refer to FLEX Button programming.
From an idle display key telephone:
Dial [567] on the dial followed by the threedigit UCD Group number (55x),
. dynamic update of display occurs as queue
condition changes.
Replace handset or press the ON/OFF button
to terminate mode.
.,.
lfyou areaUCD Agent, you may placeyourstation
in the Available mode to receive UCD type of calls
or you may place your station in the unavailable
mode to block UCD type of calls from ringing your
station.
To go Available:
. Dial [566] on the dial pad or press pre-pro-
grammed*AvailableNnavailable FLEX button.
You may now receive calls.
To go Unavailable:
. Dial [566] on the dial pad or press pre-pro-
grammed*AvailableNnavailable FLEX button.
You are now blocked from receiving UCD calls.
,,,,,,
.,
HEADSET MODE
*Refer to FLEX Button Programming.
If you wish to use a headset and have been given
the ability to do so in programming.
To Activate Headset Mode:
- Dial [634] on the dial pad,
or
-
Press pre-programmed* FLEX button. LED will
light steady.
While Headset mode is active, the ON/OFF button
will activate the headset and disable speakerphone and intercom call announce operation at
your station.
To De-Activate Headset Mode:
- Dial [634] on the dial pad,
or
-
Press the pre-programmed* FLEX button. LED
will extinguish.
Page 22
STARPLUS@
Station User Guide

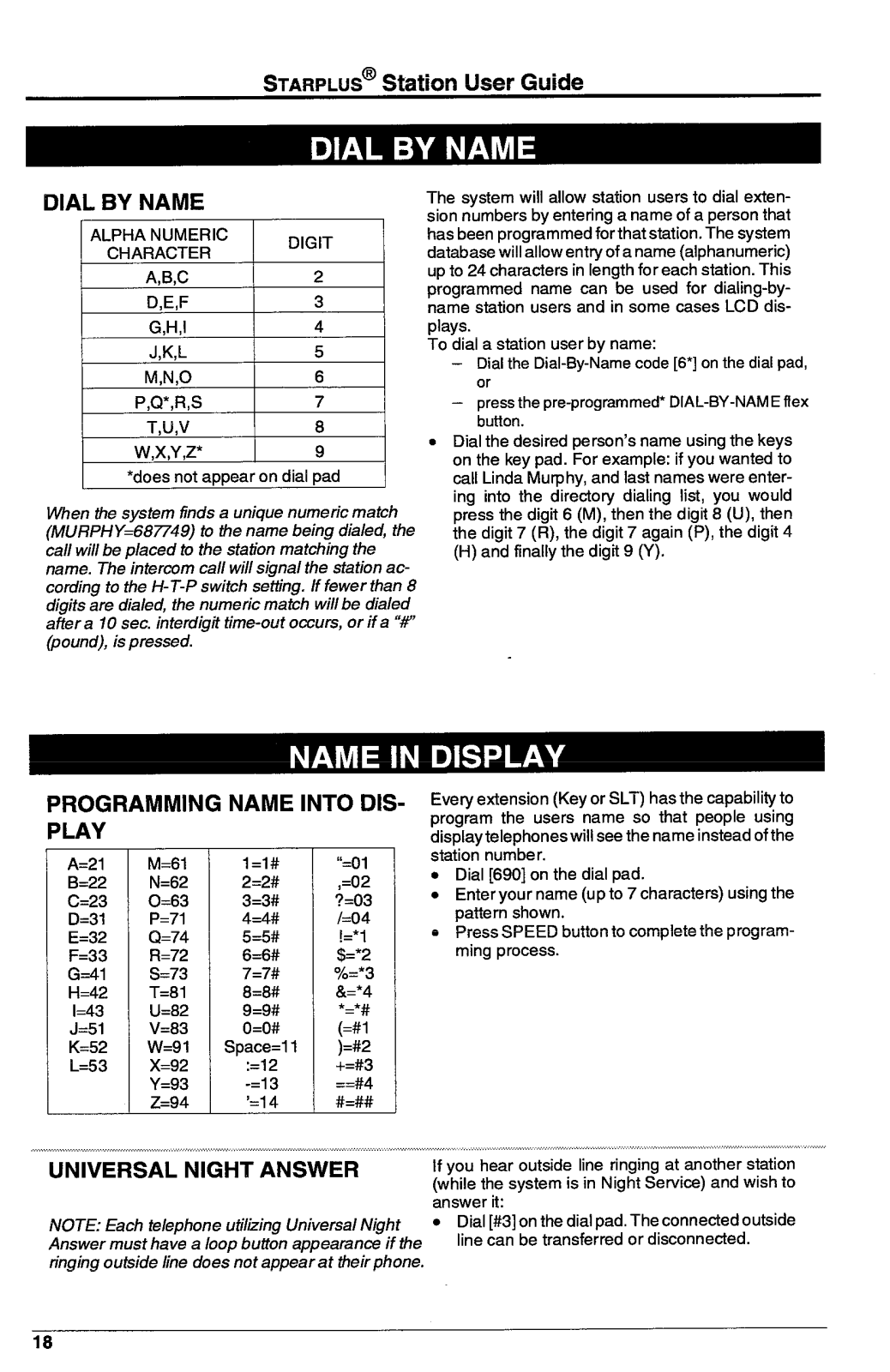

DIAL BY NAME
/fFqy
MN0
P,Q’,R,S
t
when the system finds a unique numeric match
(MlJRPHY=687749) to the name being dialed, the
call will be placed to the station matching the
name. The intercom call will signal the station according to the H-T-P switch setting. If fewer than 8
digits are dialed, the numeric match will be dialed
aftera 10 sec. interdigit time-out occurs, or if a “w’
(pound), is pressed.
6
7
PROGRAMMING NAME INTO DIS-
PLAY
A=21
922
C=23
D=31
E=32
F=33
G=41
H=42
I=43
J=51
K&2
L=53
M=61
N=62
0=63
P=71
Q=74
R=72
s=73
T=81
U=82
V=83
w=91
x=92
Y=93
z=94
l=l#
2=2#
3=3#
4=4#
5=5#
6=6#
7=7#
8=8#
9=9#
O=O#
Space=1 1
:=12
-=13
‘=14
“&I
,=02
?=03
I=04
!=‘l
$=*2
%=‘3
&=‘4
;I;
)=#2
+=#3
==#4
#=##
The system will allow station users to dial extension numbers by entering a name of a person that
has been programmed for that station. The system
database will allow entry of a name (alphanumeric)
up to 24 characters in length for each station. This
programmed name can be used for dialing-by-
name station users and in some cases LCD displays.
To dial a station user bv name:
- Dial the Dial-By-Name code [6*] on the dial pad,
or
- press the pm-programmed’ DIAL-BY-NAME flex
button.
Dial the desired person’s name using the keys
on the key pad. For example: if you wanted to
call Linda Murphy, and last names were entering into the directoy dialing list, you would
press the digit 6 (M), then the digit 8 (U), then
the digit 7 (R), the digit 7 again (P), the digit 4
(H) and finally the digit 9 (Y).
Every extension (Key or SLT) has the capability to
oroaram the users name so that people using
b&lay telephoneswill see the namejnstead of the
station number.
. Dial [690] on the dial pad.
l
Enter your name (up to 7 characters) using the
pattern shown.
. Press SPEED button to complete the program-
ming process.
UNIVERSAL NIGHT ANSWER
NOTE: Each telephone utilizing Universal Night
Answer must have a loop button appearance if the
ringing outside line does not appear at their phone.
18
If you hear outside line ringing at another station
(while the system is in Night Service) and wish to
answer it: -
l
Dial [#3] on the dial pad. The connected outside
line can be transferred or disconnected.
Page 23
STARPLUS@
Station User Guide

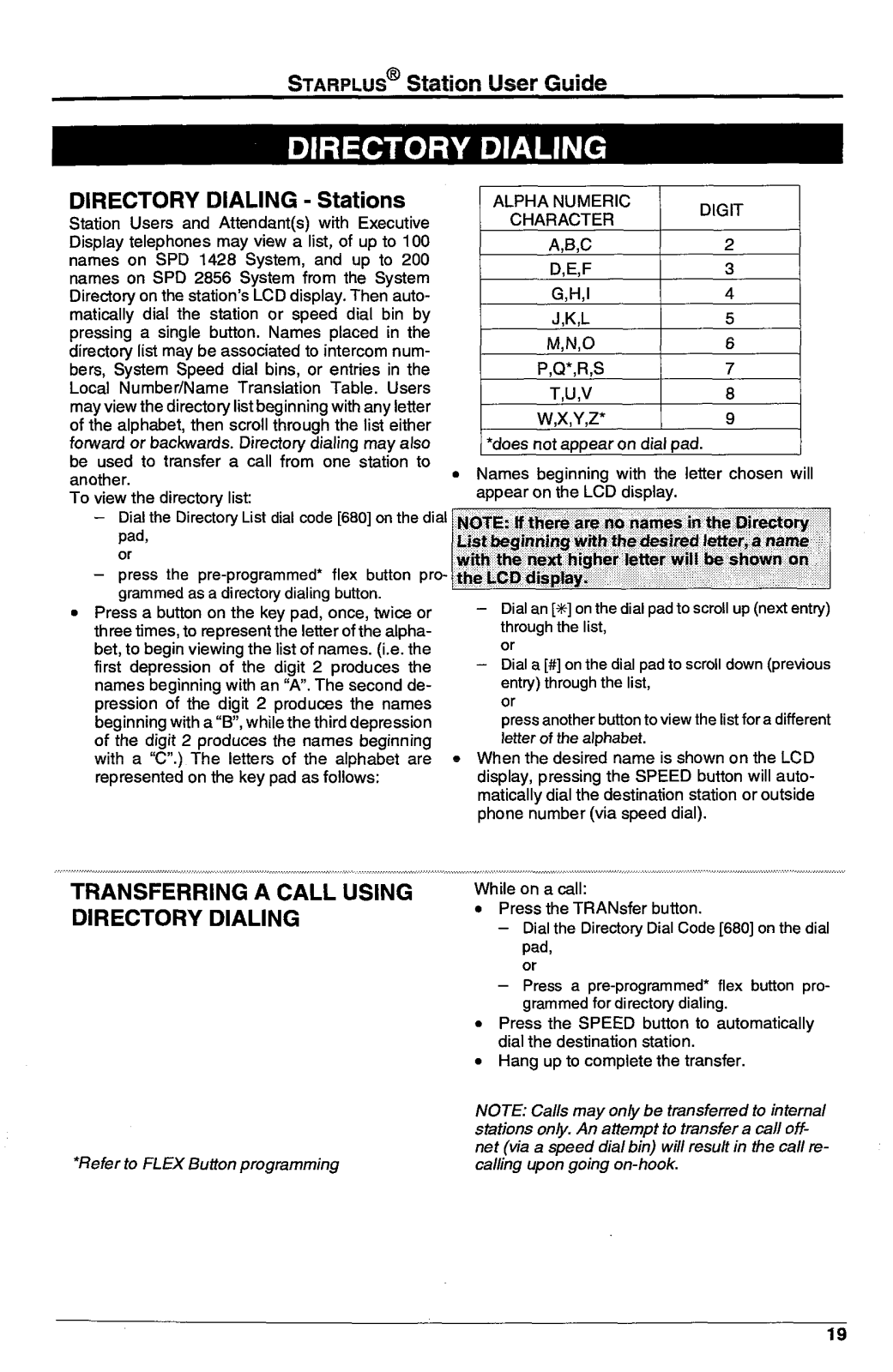

DIRECTORY DIALING - Stations
Station Users and Attendant(s) with Executive
Display telephones may view a list, of up to 100
names on SPD 1428 System, and up to 200
names on SPD 2856 System from the System
Directory on the station’s LCD display. Then automatically dial the station or speed dial bin by
pressing a single button. Names placed in the
directory list may be associated to intercom numbers, System Speed dial bins, or entries in the
Local Number/Name Translation Table. Users
may view the directory list beginning with any letter
of the alphabet, then scroll through the list either
forward or backwards. Directory dialing may also
be used to transfer a call from one station to
another.
To view the directory list:
- Dial the Directory List dial code [680] on the dial
pad,
or
- press the pre-programmed’ flex button programmed as a directory dialing button.
l
Press a button on the key pad, once, twice or
three times, to represent the letter of the alphabet, to begin viewing the list of names. (i.e. the
first depression of the digit 2 produces the
names beginning with an “A”. The second depression of the digit 2 produces the names
beginning with a “S”, while the third depression
of the digit 2 produces the names beginning
with a ‘C”.) The letters of the alphabet are
represented on the key pad as follows:
ALPHA NUMERIC
CHARACTER
.W,C
W,F
WV
JKL
WJQ
P,Q*,R,S
TSJ,V
W,X,Y,Z*
*does not appear on dial pad.
.
Names beginning with the letter chosen will
appear on the LCD display.
- Dial an [*] on the dial pad to scroll up (next entry)
through the list,
or
- Dial a [#] on the dial pad to scroll down (previous
entry) through the list,
or
press another button to view the list for a different
letter of the alphabet.
When the desired name is shown on the LCD
l
display, pressing the SPEED button will automatically dial the destination station or outside
phone number (via speed dial).
DIGIT
2
3
4
5
6
7
8
9
TRANSFERRING A CALL USING
DIRECTORY DIALING
*Refer to FLEX Button programming
While on a call:
. Press the TRANsfer button.
- Dial the Directory Dial Code [680] on the dial
pad,
or
- Press a pre-programmed* flex button programmed for directory dialing.
l
Press the SPEED button to automatically
dial the destination station.
l
Hang up to complete the transfer.
NOTE: Calls may only be transferred to internal
stations only. An &tempt to transfer a call off-
net (via a speed dial bin) will result in the call recalling upon going on-hook.
19
Page 24
STARPLUS@ Station User Guide
OFF-HOOK PREFERENCE
*Refer fo FLEX Button programming. Also refer to
Prime FLEX Button programming.
VOLUME CONTROLS
,.,
.._
MUTE
- microphone, “’ ’
If your phone has been programmed for Off-Hook
Preference, YOU will access an outside line. or a
feature by gding off-hook or pressing the ON>OFF
button.
0 While Off-Hook Preference is enabled, you
may access Internal intercom dial tone by:
- Pressing your pre-programmed* ICM button.
LED lights steady,
or
- Dial your own three-digit intercom number. (Do
not lift handset or press ON/OFF button before
dialing intercom number).
l
Intercom dial tone will be heard.
l
You may now dial an internal station or Feature
Access code.
There are two volume control slide switches on the
front of the key telephone. Sliding the switch to the
left will decrease the volume.
- Left switch - voice, background music, and
speakerphone.
- Right switch -tone ringing volume.
The MUTE button provides privacy during speakerphone or handset operation by disabling the
l
Press MUTE button while off-hook on speakerphone or handset to activate. (MUTE button
LED lights steady)
. Press MUTE button again to deactivate.
.,, ,,,.
BACKGROUND M&i& (OP-
TIONAL)
pi$J+pg+pJ Or - Press pre-programmed FLEX Button.*
*Refer
to
FLEX Button Programming.
,,,,,,
To activate Background Music:
,,
- Press [632] on the dial pad (music is heard),
To de-activate Background Music:
- Press [632] again and music is discontinued,
or
- Press pre-programmed FLEX Button.’
l
When you pick up the handset or press the
ON/OFF button, music is discontinued automatically.
Page 25
STARPLUS@
Station User Guide

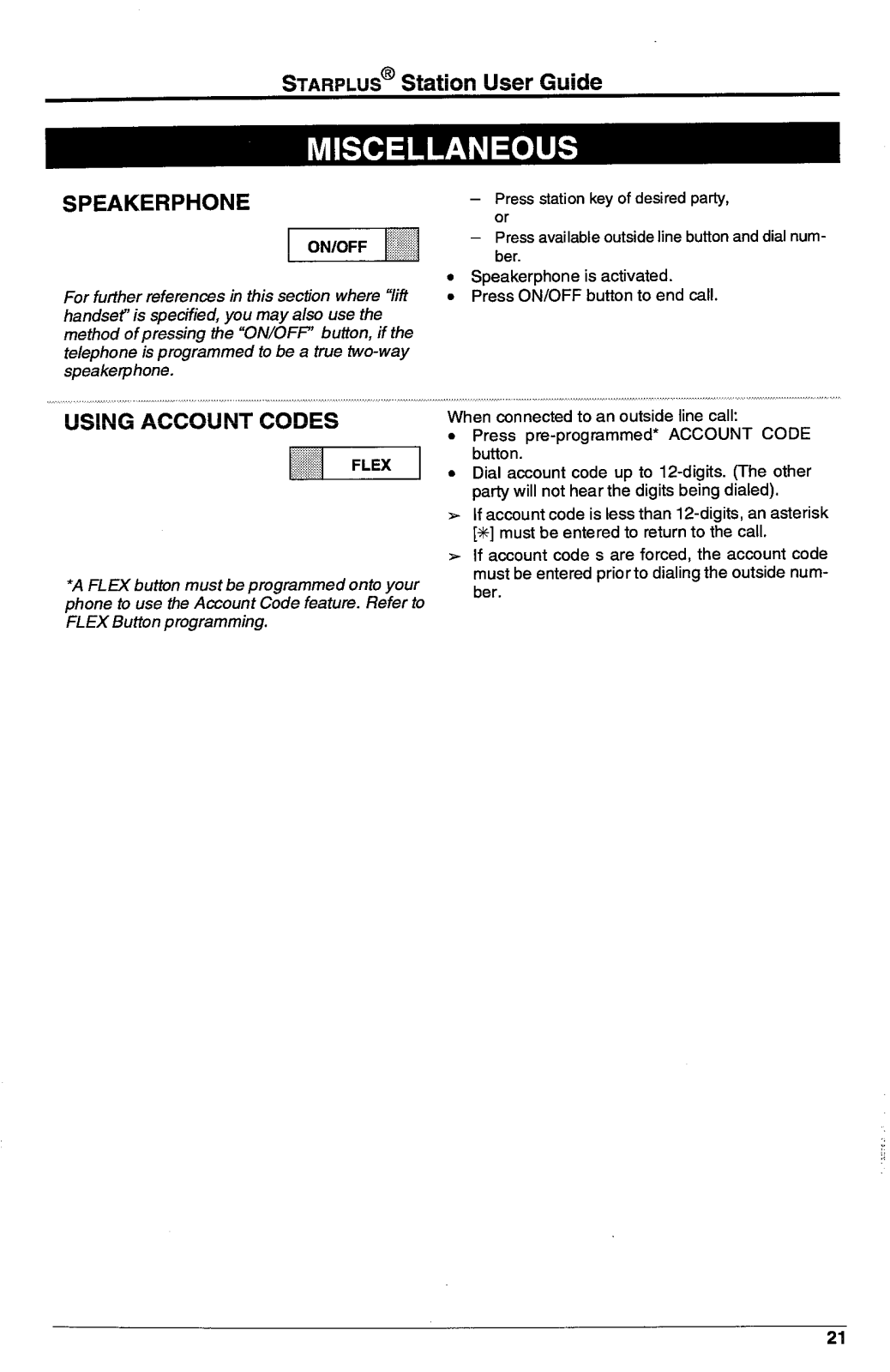

SPEAKERPHONE
For further references in this section where “lift
handser is specified, you may also use the
method ofpressing the “ON/OFF’ button, if the
telephone is programmed to be a true two-way
speakerphone.
USiN& ACCOUNT &ODES
*A FLEX button must be programmed onto your
phone to use the Account Code feature. Refer to
FLEX Button programming.
- Press station key of desired party,
Or
-
Press available outside line button and dial number.
l
Speakerphone is activated.
. Press ON/OFF button to end call.
When connected to an outside line call:
l
Press pre-programmed* ACCOUNT CODE
button.
l
Dial account code up to 12-digits. (The other
party will not hear the digits being dialed).
> If account code is less than 12-digits, an asterisk
[%%I must be entered to return to the call.
> If account code s are forced, the account code
must be entered priorto dialing the outside number.
Page 26
Page 27
Page 28
Page 29
Page 30
Loading...
