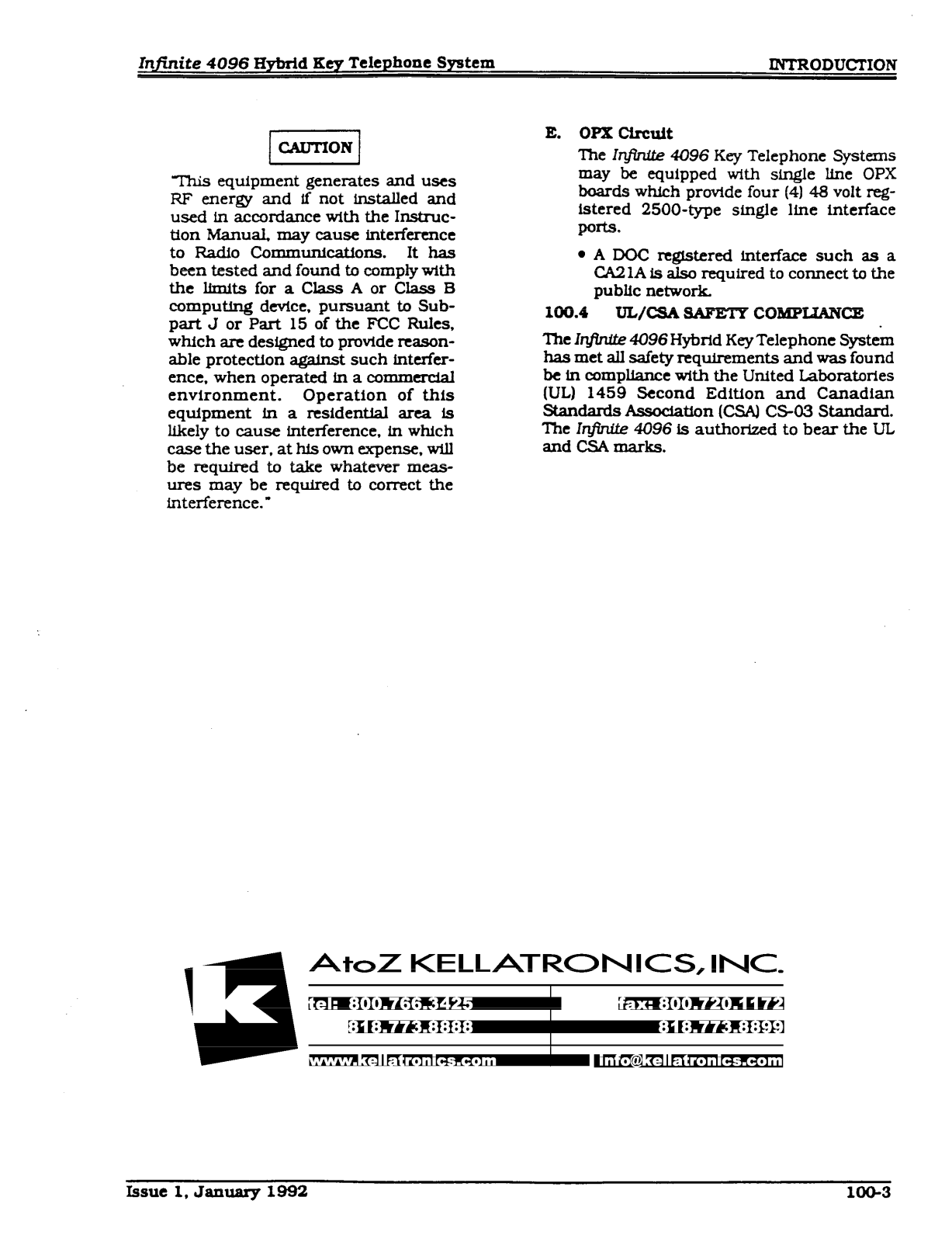

E. OPX Circuit

The Zrzfznite 4096 Key Telephone Systems may be equipped w-ith single line

OPX

boards which provide four (41 48 volt registered 2500-type single line interface

PO-.

l

A DOC

CA2 1A is also required

nglstered interface such as a

to connect to the

public network.

loo.4 uL/csA SAFETY COMP~CE

The Irsfznite 4096 Hybrid Key Telephone System

has met all safety requirements and was found

be in compliance with the United Laboratories

KJL)

1459 Second Edition and Canadian

Standards Assodatlon (CXiAj CS-03 Standard.

The k#nife 4096 is authorized to bear the UL

and CSA marks.

Issue 1, January 1992

loo-3

Infinite 4096 Hybrid Key Telephone System

SECTION200

GENERALDESCRIPTION

GENERAL DESCRIPTION

200.1

SYSTEM TEcHN0LoGY

The In&f& 4096 Hybrid Key Telephone System

is an expandable modular system engineered for growth through modular card IPCB) expansion as well as KSU module expansion and provides a flexible assortment of features through software options and optional circuit cards. F&p-e 200-l is a block diagram of the

System.

The Zn$nf& 4096 Hybrid Key Telephone System

is the upper end of a family of Electronic Key

Telephone Systems designed to meet the needs

of telephone users from small to large. The other members of this family are the In&f& 816 and 1224.

The In&&e 4096 Hybrid Key Telephone System

is a modular system designed for growth using state of the art Di&al Technology for switching

control. co mmand processing and also utilizes a CMOS based microprocessor controlled cross point switching matrix, and provides a fl&ble assorunent of features.

This family of systems Is englneered ‘to allow the same telephones to migrate through the complete product line.

This system has a capacity of up to 40 outside

lines. 96 internal telephone stations. and 14 intercom channels. The system architecture allows for non-blocking access to all 40 CO

lines. The KSU is designed as two cabinets.

The Basic cabinet will support 24 outside lines

and 48 internal stattons. The Expansion cabinet will support an additional 16 outside lines and 48 internal statlons. Standard single-line (2500 type) telephones can be installed in the system by exchanging key telephone boards for single-Une boards.

200.2 COMMON EQUIPMENT

The following components are necessary to

operate the @?nf& 4096 Hybrid Key Telephone System: (Refer to Appendix B for a complete

4096 component list with Part #‘s)

0

Basic KSU

0

Central Processor Board (CPB) with generic software

l

DC/DC Converter (DC/DC)

l

Key Station Interface Board (KIB)

e

Central Ofiice Interface Board (COB)

l

Power supply Es)

l

External Power Housing (EPS)

0

Enhanced Key Telephone or

l

Executive Key Telephone

A

Basic Key Sewice Unit (BKSIJj The Basic KSU is housed in a wall-mount

cabinet that contains card slots for modular boards and associated pre-wired connectors.

The KSU provides card slot positions for DC/DC Converter (DC/DC), Central Processing Board (CPB), 24 CO/PBX lines (3 COB’s), 48 stations (6 KIB’sl. an Application Board (APL), and

two Power Failure Transfer untts. One ( 1) BKSU is required per system.

B.

Expansion Key Service Unit [EKSUJ The Expansion KSU is an add-on cabinet

that mounts next to the Basic KSU with ribbon cable connectors to interface to the Basic KSU, card slots to support up to 8 PCB’s and a pre-wired CO line interface connector (a). The lQcpa.nsion KSU will

support a configuration of 16 CO lines and 48 Key Telephones/DSS Units/Phone Boxes. One (1) EKSU is required when the system exceeds 24 CO lines or 48 stations.

Two power supplies are required in the

External Power Supply Housing (EPS) for Expansion KSU operation.

C.

External Power Supply Housing (EPS)

The External Power Supply Housfng (EPS)

is a wall mountable cabinet that houses

the EPS motherboard (backplane), two Power Supply Units 0%). the Single Lfne Ringing Generator and Message Waiting Power Supply Unit (RG), and the Battery Charging Unit (BC). The EPS contains an ON/OFF power switch. an AC input cord. a DC output cord, battery connector panel for connecting 24V dc of battery power, an

AC ON LED, a DC ON LED and a RING ON

LED for the Battery Charging Board (BC). One (1) EPS Is required per system.

Issue 1, January 1992

200-l

I I

Y I I

I I

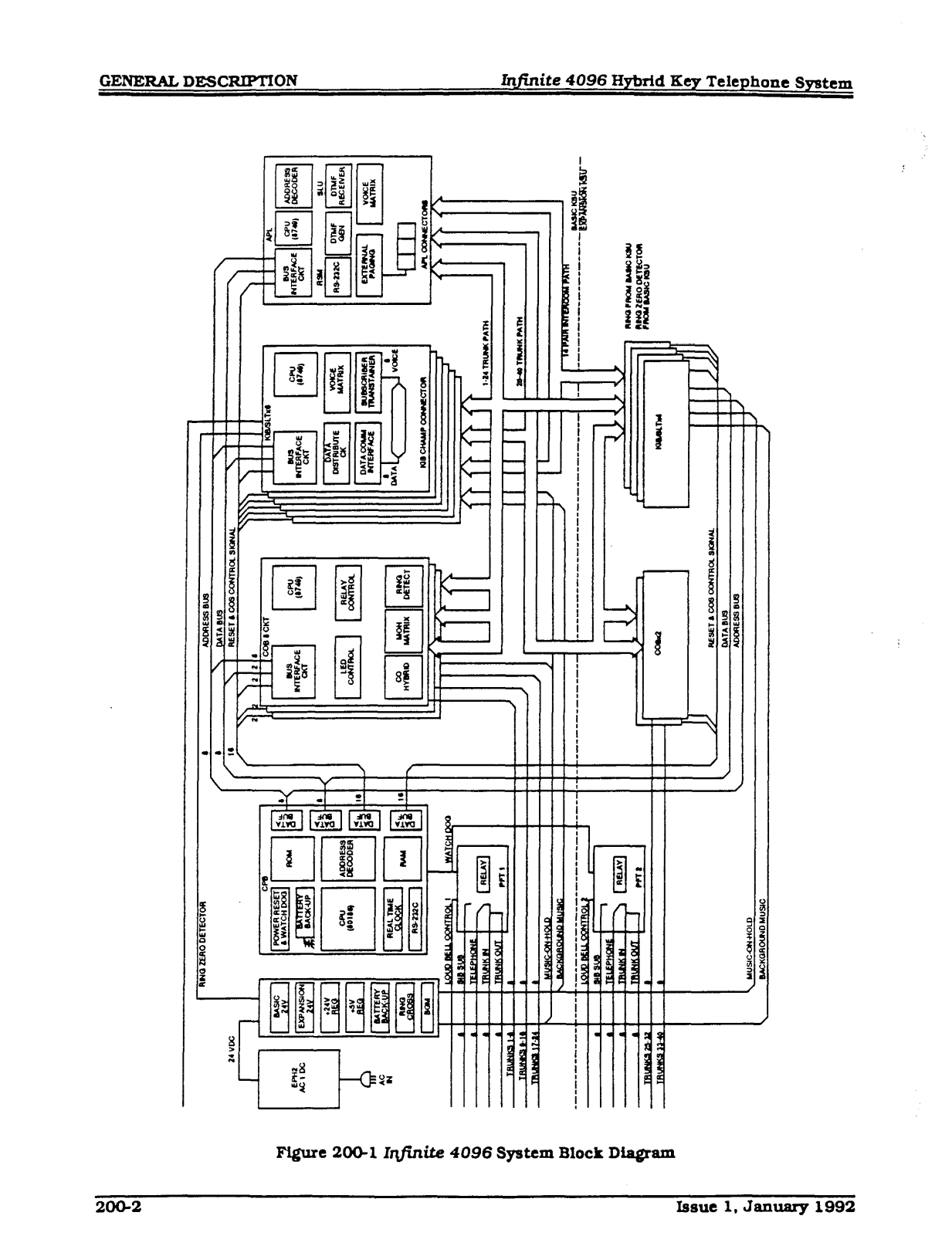

Figure 20&l @finite 4096 System Block Diagram

200-2 Issue 1, January 1992

InJ?nite

4096 Hybrid Key Telephone

System

GENERAL DESCRIPTION

The Power Supply Units Ipsl. Ring Gener-

ator Unit (RG) and the Battery Charging Unit (BC) all incorporate modular connec-

tors

that interface on the EPS motherboard allowing easy installation and removaI of these units.

D. Power Supply Unit (I’!31

This unit converts 117V ac to 24 volt

power required for system operation. One power supply is required for the Basic

and an additional power supply is required for the Expansion KSU. Both units plug into the External Power Supply Housing EW.

E. DC/DC Converter (DC/DC)

Thts is a modular unit that converts the

24V dc power into !5V dc and 14V de. the system operating voltages. The unit also provides LED voltage indicators, test

points

and ad]ustments, as well as an

input jack (RCA type) for Background

Sk.

F. central Processor Board (CPB)

This board provides the system’s main 16

bit microprocessor and operating memory. It controls all system activity including switching functions and feature operattoxi

This board houses the Programmable

Read Only Memory (PROM) with generic

operating instructions, and Random Access Memory (RAW for customer data base programming.

A

lithium battery is included for protectlon of the RAM memory. An RS-232C connector for data base

printout and SMDR is included. Feature Package somare is installed on this board at the factory (See FP description below). One ( 11 CPB is required per system.

G. Featun Package Software

‘l%e Feature Package installed on the CPB

provides the generic operation and feature

set available to the system. This Feature Package includes software to support such features as Least Cost Routing &CR), Uniform Call Distribution (UCD), Hunt Groups, Direct Inward System @I!%%*, Voice Mail In-band integration and Remote Administration*. This one Feature Package will support a maxfmum

configuration of 40’ CO lines and 96’ sta-

UOILS.

P Additional hardware may be required.)

KSU

Mu-

Access

200.3 FoFtTcxR.Ds

A.

Central Oface Interface Board (COB)

Provides the interface for eight central of-

fke DTMF or

Dial Pulse) loop start lines. The board can be removed or inserted with KSU power ON, however, the ‘Normal/Service’ switch should be in the ‘Sexvice’ mode before removing ing the board into the system. An in-use LED for each circuit and a switch to take

the board out of setice are provided.

The CO circuiti are equipped with programmable current sensing circuitry that

identifies distant end disconnect loop supervIsion, if provided by the Central Of&e.

B.

AmpliI3ed Central Office Ynterface Board (cm

The Amplified Central Office Interface

Board (COAI is an

opUonai

card that in-

stalls in place of any standard COB board. The COA enhances audio levels and contains all other attributes of the COB. The

COA is recommended for DISA and line conference applications and should not be used in the System behind a PBX because of possible feedback When Aniplified CO operation is desired, it is recommended that &CO ctrcuits in the system be equipped on COA Boards.

C.

Key Station Interface

Board (XIB)

Provides interface circuit.~~ for eight Key

Telephones. The KIB will support any In-

jnfte Enhanced or Executive Key Tele-

phone set. ‘Ihe KXB board can be inserted or removed with the KSU power ON, how-

ever, the ‘Nom&/Service” switch should be in the ‘SeIvice” mode before removing or insexting the board into the system. An in-use LED and a switch to take the card out of service are provided. A DSS/DIS or Phone Box can also be assigned to any one of the cfrcuits. The KIB circuits are pro-

tected from mis-wiring and overcurrent.

D.

Key Station Interface Board with OffHook Voice AMounce (glB/OHVl

The Key Statton Interface Board with Off-

Hook Voice Announce (KIB/OHVJ provides interface circuitry for eight Electronic Key

Telephones (Enhanced or Executive). in-

cluding the capability for 081 Hook Voice Announce (requires an OHVA equipped Key telephone with a six conductor cord).This board can be inserted or re-

or insea-

multi-

Issue 1, January 1992

200-3

GENERALDESCRIPTION Winite 4096

Hybrid Key Telephone System

moved with the KSU power ON. A DSS or Phone BQX can be assigned to any one of the circuits. Used in placed of KIB board.

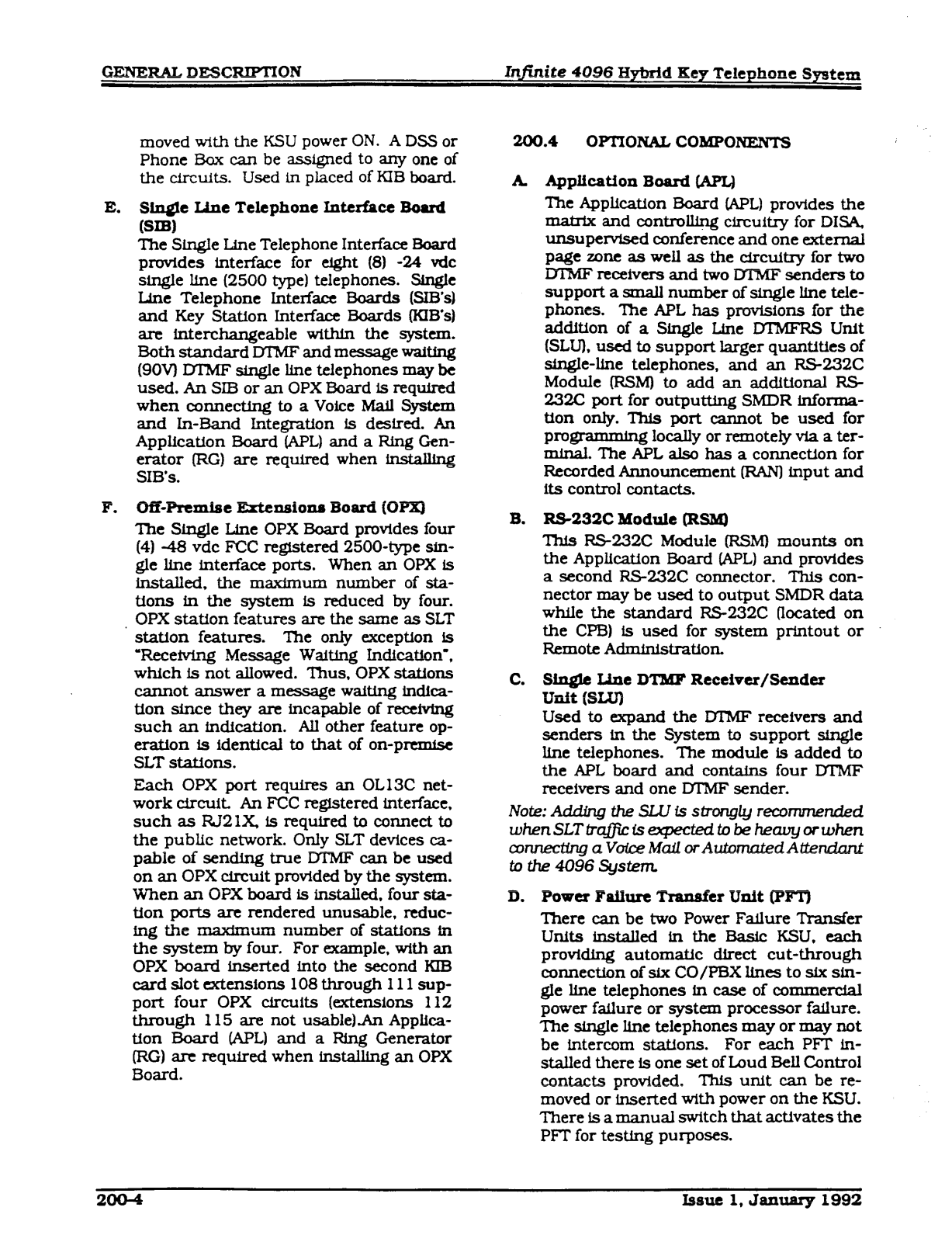

E. Shqle Line Telephone Inter&e Board

(SIB)

The Single Line Telephone Interface Board

provides interface for eight (8) -24 vdc single line (2500 type) telephones. Single

Line Telephone Interfarx Boards (SIB’s)

and Key Station Interface Boards 0UB’s)

are interchangeable wlthin the system. Both standard MMF andmessage waiting (9OV’) DTMF single line telephones may be used. An SIB or an OPX Board is required

when connecting to a Voice Mail System

and In-Band Integration is desired. An

Application Board (APL) and a Ring Gen-

erator (RG) are required when fnsblung SIB’S.

F. OfWrcmise Ertcnsions Board (OPXI

The Single Line OPX Board provides four

(4) 48 vdc FCC registered 2500-type single line interface ports. When an OPX is installed. the maximum number of stations in the system is reduced by four. OPX station features are the same as SLT station features. The only exception is

‘Receiving Message Waiting Indication’, which is not allowed. Thus. OPX stations cannot answer a message waiting indication since they are incapable of receiving such an indication. All other feature operation is identical to that of on-premise SLT stations.

Each OPX port requires an OL13C network circuit An FCC registered interface, such as RJ21X is required to connect to the public network. Only SLT devices capable of sending true DTMF can be used on an OPX circuit provided by the system.

When an OPX board is installed. four sta-

tion ports are rendered unusable, reducing the maximum number of stations in the system by four. For example, with an OPX board inserted into the second KIB

card slot extensions 108 through 111 support four OPX circuits (extensions 112 through 115 are not usable)& Application Board (APL) and a Ring Generator

(RG) are required when installing an Board.

OPX

200.4

A

B.

C.

oPrxoNAL coMPoNENTs

ApplkationBoardtAF’L)

The Application Board [APL) provldes the rnatrlx and control&g circuitry for DISA. unsupervised conference and one external

page zone as well as the drcuttxy for two MMF recehers and two MMF senders to support a small number of single line telephones. The APL has provisions for the addition of a Single Ltne DTMFRS Unit

(SLU).

single-be telephones, and an RS232C Module (RsMj to add an

23242 port for outputting SMDR information only. This port cannot be used for pro- locally or remotely via a terminal. The APL also has a connection for Recorded Announcement (RAN) input and its control contacts.

RS-232C

This RS-232C Module (RSM) mounts on the Application Board (APL) and provides

a second RS-232C connector. This con-

nector may be used to output SMDR data while the standard RS-232C (located on the CPB) is used for system printout or Remote AdministraUon.

Single

used to support larger quantities of

additional F2S

Module (RSM]

Line DTMF Receiver/Sender

unit (SLUI

Used to expand the MMF receivers and senders in the System to support single

line telephones. The module is added to the APL board and contains four IYlMF receivers and one DTMF sender.

Note:AddhgtheSLUisstrongl~~remnmended whenSLTlraJlciseq&edtobeheauyorwhen mmecUngaVdceMailorAutomatedAttendant

to the 4096 Si~stem

D. Power Failure Transfer Unit (PPT)

There can be two Power Failure Ransfer

Units installed in the Basic KSU, each providing automatic direct cut-through connection of six CO/PBX lines to six sln-

gle line telephones in case of commercial power failure or system processor failure.

The single line telephones may or may not

be intercom stations. For each PFI’ installed there is one set of Loud Bell Control wntacts provided. This unit can be removed or inserted with power on the KSU.

There

is a manua.l

PFT for testing purposes.

switch that

activates the

2004

Issue 1, January 1992

Infinite

4096 Hybrid Key Telephone

System GENERAt

DESCRIPTION

E. Battcry charging unit [BCI

The Battery Charging Unit @Cl installs

into the External Power Supply Housing (EPS) and provides the charging clrctitxy

for a 24V dc battery package. The charg-

ing rate is 28V

Basic KSU

sion KSU (when the second Power Supply is added).

dc at 0.5 ampere for the

or 2.0 ampere with the &pan-

F. Single Une Ring Generator and lL6/FK

Power Supply Unit (RG)

Pmvldes the for supporting single line telephones and OPX’s. Also provides the voltage to light single lfne telephone M/W atghts when SIB cards are installed in the system. This unit plugs into the External Power Supply

Housing (EPS). One (1) unit Is required when the system will be equipped with single line telephones.

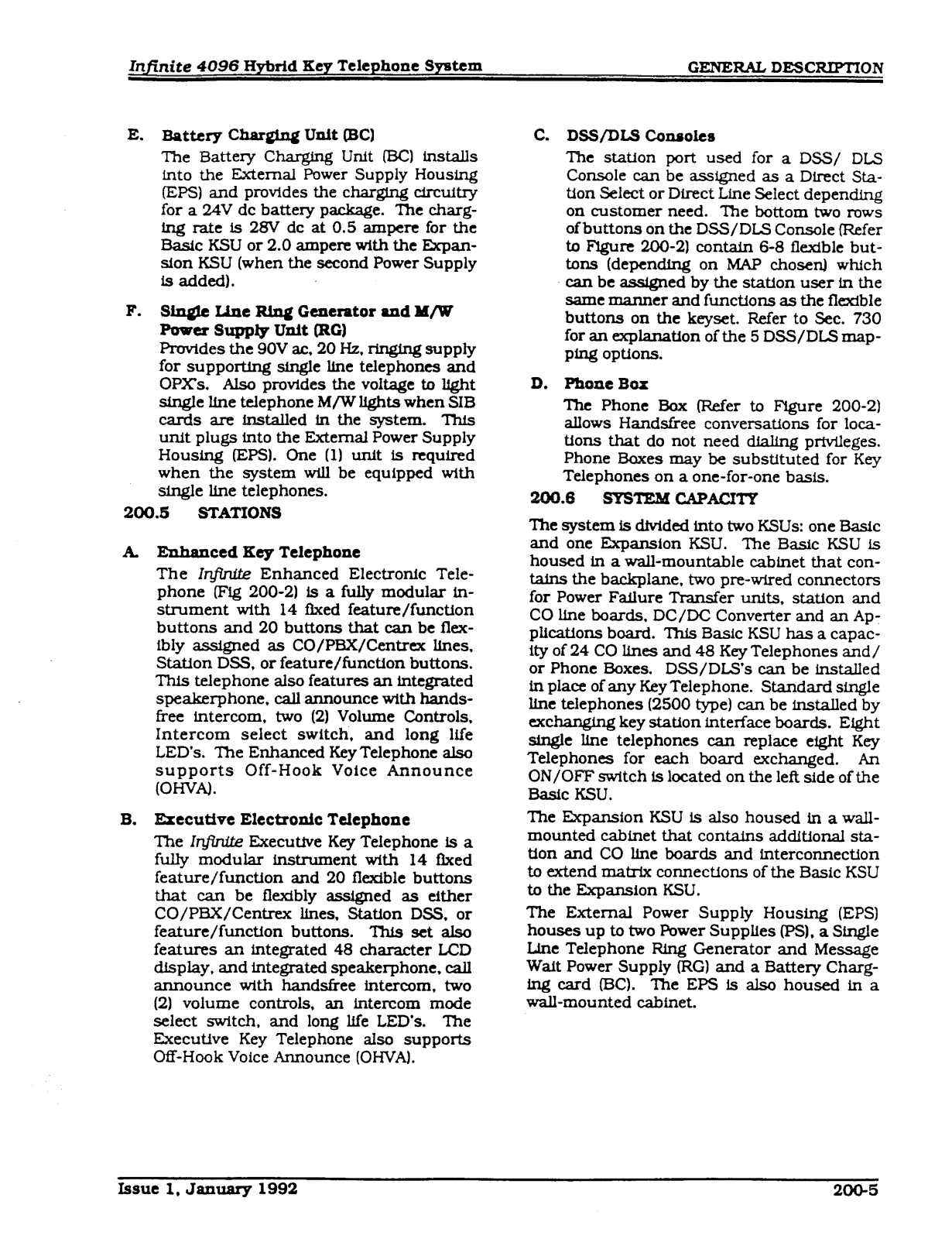

200.5 STATIONS

9OV ac, 20 Hz. ringing

supply

A Enhanced Key Telephone

The Irgfinite Enhanced Electronic Telephone (Fig 200-2) is a fully modular Instrument with 14 fixed feature/function buttons and 20 buttons that can be flexibly assigned as

Station DSS, or feature/iimcUon buttons. This telephone also features an integrated speakerphone, call announce with handsfree intercom, two (2) Volume Controls, Intercom select switch. and long life LED’s. The Enhanced Key Telephone also supports Off-Hook Voice Announce

(OWN.

CO/PBX/Centrar lines.

B. Executive Electronic Telephone

The InJniie Executtve Key Telephone is a

fully modular instrument with 14 i3xed feature/function and 20 flexible buttons that can be flexibly assigned as either CO/PBX/Centrex lines. Station DSS. or feature/function buttons. This set also

features an Integrated 48 character LCD

&play, and integrated speakerphone, call announce with handsfree intercom, two

(2)

volume controls, an Intercom mode select switch. and long lffe LED’s. ‘The ExecuUve Key Telephone also supports M-Hook Voice Announce (OHVA).

C. DSWDLS Consoles

The station port used for a DSS/ DLS

Console can be assigned as a Direct Sta-

tion Select or Direct Line Select depending

on customer need. The bottom two rows ofbuttons on the DSS/DLS Console (Refer to FYgure 200-2) contain 6-8 flexible buttons (depending on MAP chosen) which can be assigned by the station user in the same manner and functions as the flexible

buttons on the keyset. Refer to Sec. 730 for an explanation of the 5 DSS/DLS mapping opuons.

D. Phone Box

The Phone Box (Refer to Figure 200-2)

allows Handsfree conversations for loca-

tions that

Phone Boxes may be substituted for Key

Telephones on a one-for-one basis.

200.6 §YsTmtcAPAcxm

The system is divided into two KSUs: one Basic

and one Expansion KSU. ‘The Basic KSU is housed in a wall-mountable cabinet that contains the backplane, two pre-wired connectors for Power Failure Transfer units, station and CO line boards, DC/DC Converter and an Applications board. This Basic KSU has a capacity of 24 CO lines and 48 Key Telephones and/

or

Phone Boxes. DSS/DLSs can be installed

in place of any Key Telephone. Standard sfngle

line telephones (2500 type) can be installed by exchanging key station interface boards. Eight single line telephones can replace eight Key

Telephones for each board exchanged. h

ON/OFF switch is located on the left side of the Basic Ksu.

The Expansion KSU is also housed in a wallmounted cabinet that contains tion and CO ltne boards and interconnection to extend m&-ix to the Expansion KSU.

The External Power Supply Housing (EPS)

houses up to two Power Supplies (PS), Line Telephone Ring Generator and Message

Walt Power Supply (RGI and a Battery Charg-

ing card (BC). The EPS is also housed in a

wall-mounted cabinet.

do not need dialing privileges.

additional sta-

connections

of the Basic KSU

a Single

Issue 1, January 1992

200-5

GENERAL DESCRIPTION Infinite 4096 Hybrid Key Telephone System

Enhanced Model

Phone Box

Executive Model

DSS Console

200-6

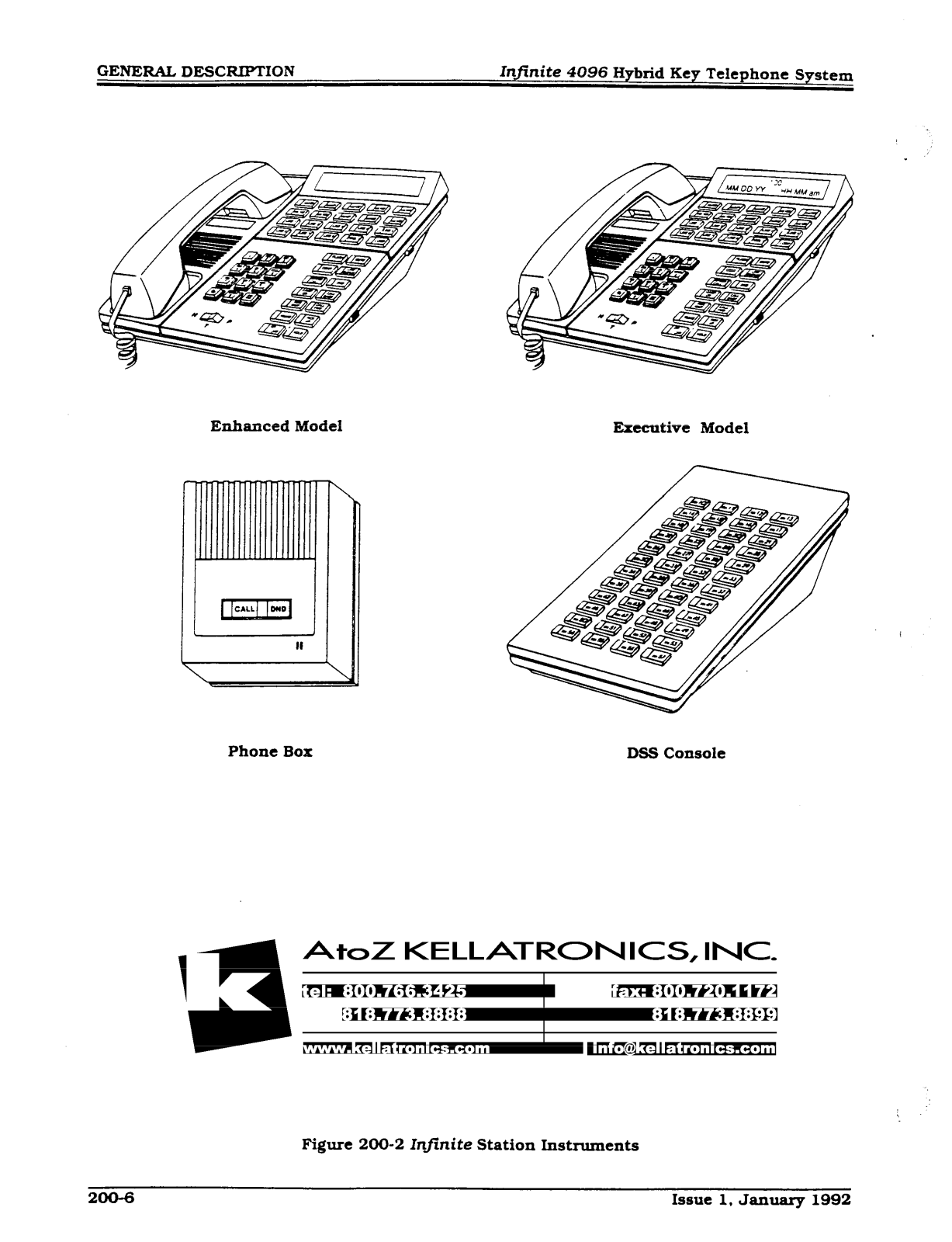

Figure 200-2 Infinite Station Instruments

Issue 1, January 1992

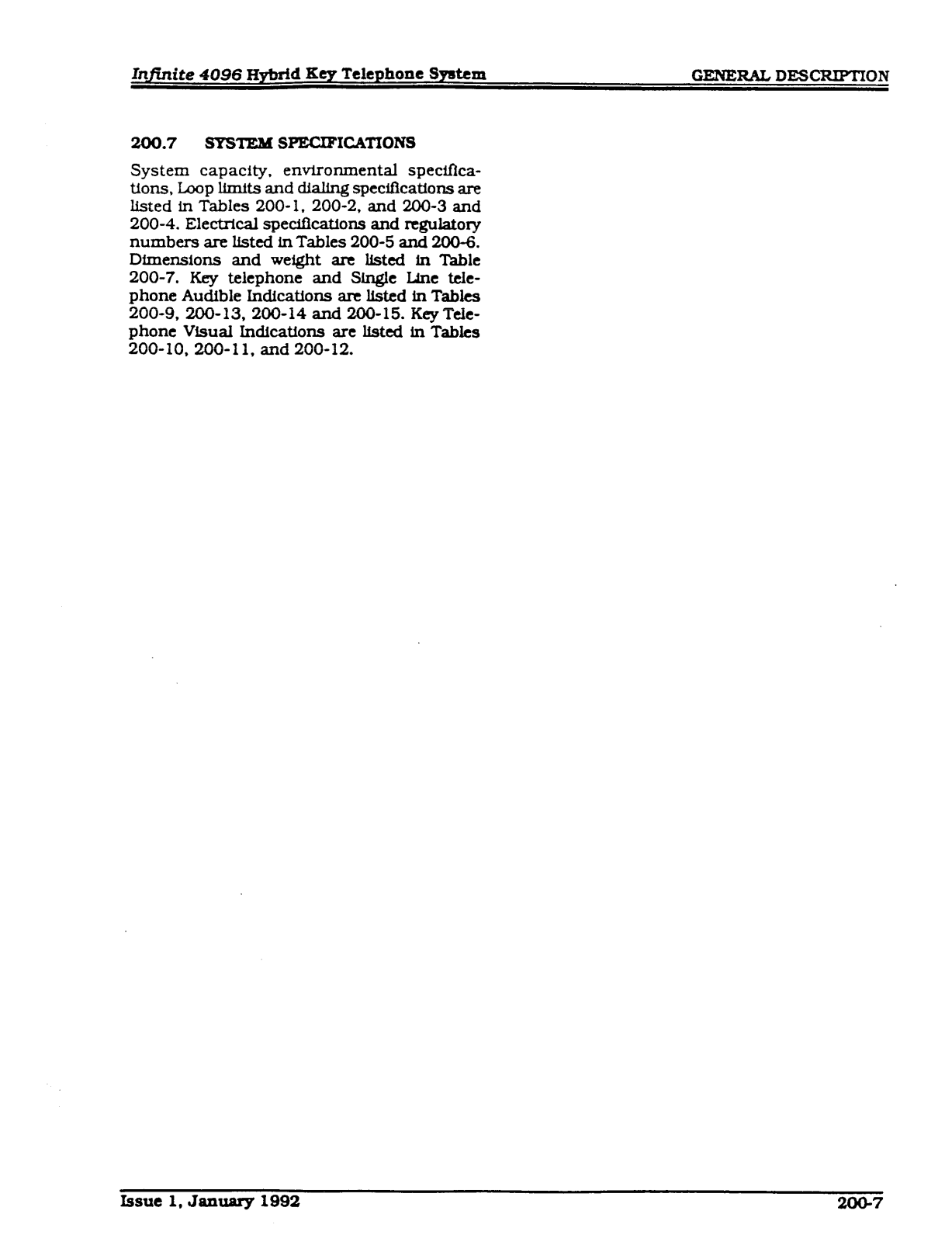

200.7 SIrsTEM sPEcxF1cATx0Ns

System capacity. environmental speclfkaUons. Loop limits and dialing specifications are listed in Tables 200- 1. 200-2, and 200-3 and

200-4. Electrical specifkations and regulatory numbers are listed in Tables 200-5 and 200-6. Dimensions and weight are llsted in Table 200-7. Key telephone and Single Line telephone Audible Indications are ltsted in Tables 200-9, 200-13. 200-14 and 200-15. Key Tele-

phone Visual Indications are listed in Tables 200-10. 200-11, and 200-12.

Issuel,January1992

!zoo-7

GENERAL DESCRIPTION

Ports:

CO/PBX/Centrex stations Single Line Telephones

OPX

Attendants:

DSS/DLS Consoles:

Phone Boxes: UCD:

Groups: Members: RAN Announcements: Calls in Queue:

Hunt Groups:

Groups: Members:

Types:

Voice Mail:

Groups:

Ports: Integration Method: VM Message Wait: VM Disconnect Signal:

SMDR Ports:

Station Cards:

Infinite

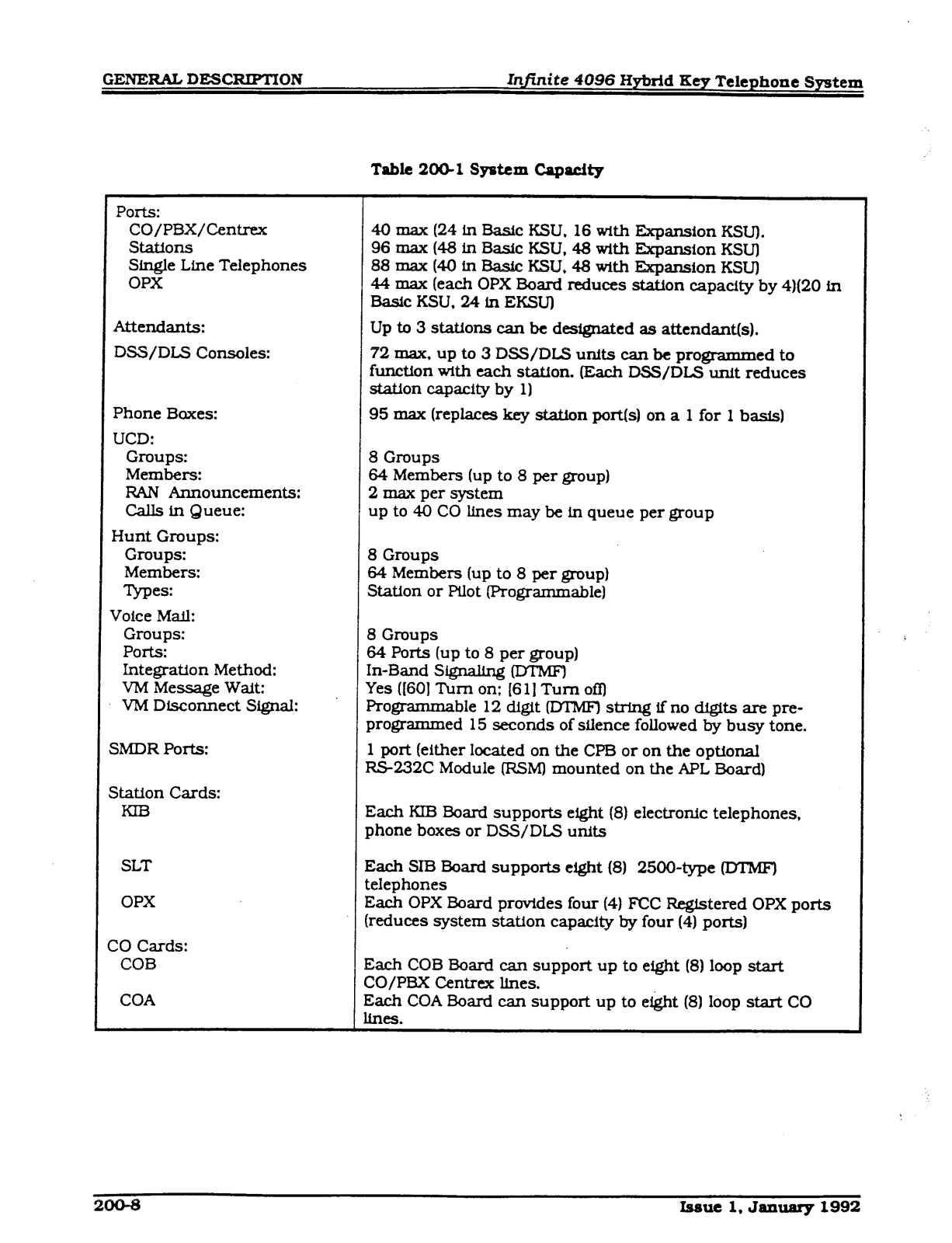

Table 2-1 System Capacity

40 max (24 in Bask KSU. 16 with Expansion KSU).

96 max (48 in Basic KSU, 48 with Expansion KSUj 88 max (40 in Basic KSU. 48 with Expansion KSUj 44 max (each OPX Board reduces statton capacity by 4)(20 in Basic KSU. 24 in EKSU)

Up to 3 stations can be designated as attendant(s). 72 max. up to 3 DSS/DI..S units can be programmed to

function with each statfon. (Each DSS/DLS unit reduces station capacity by 1)

95 max (replaces key station port(s) on a 1 for 1 basis)

8 Groups 64 Members (up to 8 per group) 2 mat per system up to 40 CO lines may be in queue per group

8 Groups 64 Members (up to 8 per group) Station or Pilot (Programmable)

8 Groups

64 Ports (up to 8 per group) In-Band S@naling (DTMF) Yes I[601 Turn on: [S 1 I Turn offj Progrrnable 12 digit (DTMFj string if no digits are preprogrammed 15 seconds of silence followed by busy tone.

1 port (either located on the CPB or on the optional RS-232C Module (RSMj mounted on the APL Board)

Each KIB Board supports eight (8) electronic telephones, phone boxes or DSS/DLS units

4096 Hybrid Key Telephone System

SLT OPX

CO Cards:

COB

COA

200-8

Each SIB Board supports eight (8) 2500~type 0 telephones Each OPX Board provides four (4) FCC Registered OPX ports (reduces system station capacity by four (4) ports)

Each COB Board can support up to eight (8) loop start CO/PBX Centrex lines. Each COA Board can support up to eight (8) loop start CO lines.

Issue 1.

January

1992

Infinite 4096 Hybrid Key Telephone System GENERAL DESCRIPTXON

Table 200-l System Capacity (Cant’d)

DTMF Receivers:

DTMF Senders:

Page Zones:

Internal: External:

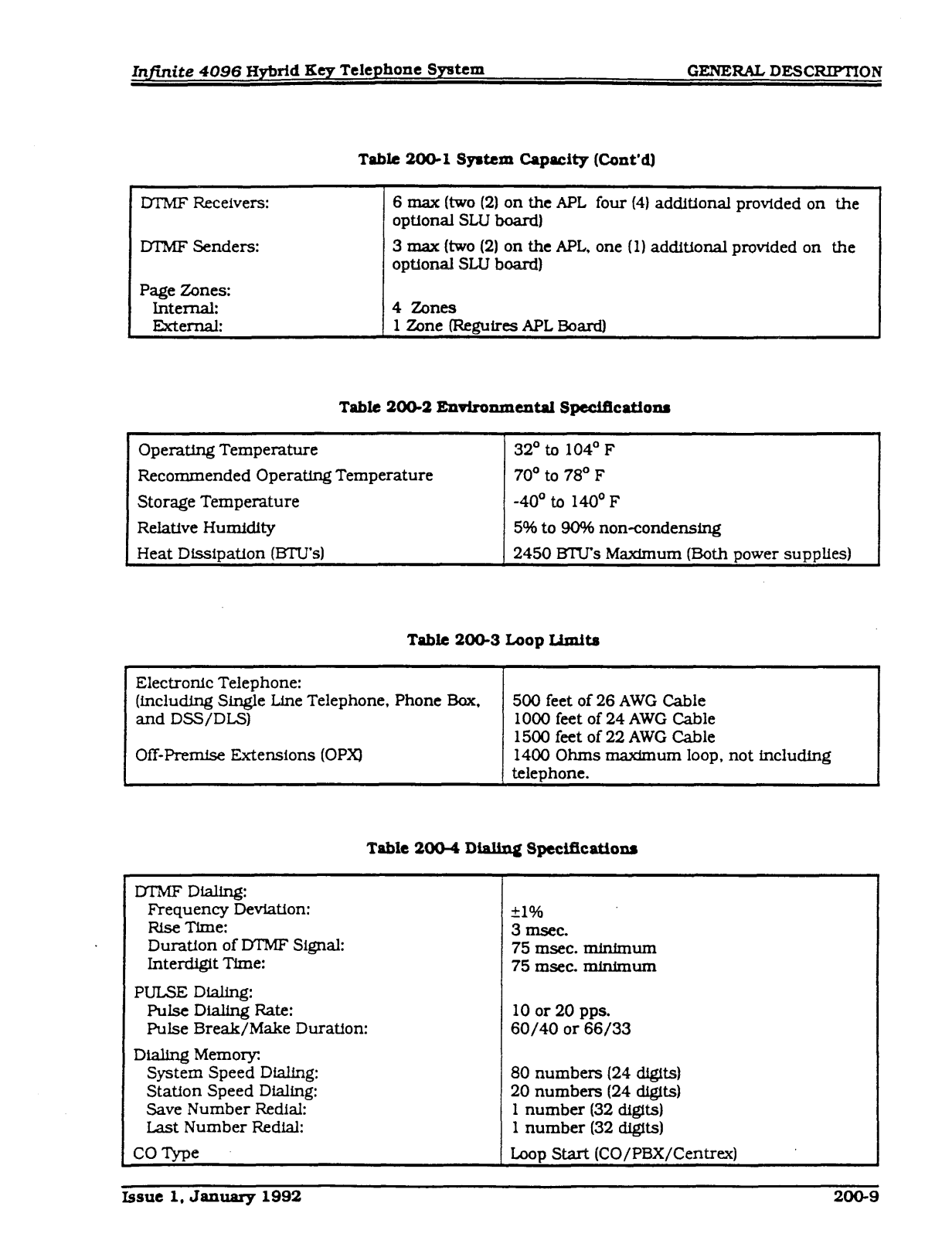

Table 200-2 Emlronmcntal Spccificationr

Operating Temperature

Recommended Operating Temperature Storage Temperature Relative Humidity Heat DissiDation (BTU’s)

6 max (two (2) on the APL four (4) additional provided on the optional SLU board)

3 max (two (2) on the APL, one (1) additional provided on the opttonal SLU board)

4 Zones

1 Zone lReeUlres APL Board1

Tablc2OG3LoopLdmits

32’to 104’F

70'

to 78O F

-40'

to 140’ F

5% to 90% non-condensing

2450

BTU’s M-urn (Both Dower suwlies)

Electronic Telephone: (fnclu~ Single Ltne Telephone, Phone Box, and DSS/DLS)

Off-Premfse Extensions (OPXI

1

Table 2004 DLal(na Spedfications

DTMF Dialing:

Frequency Deviation: Rise Time: Duration of DTMF Signal: InterdigIt Time:

PULSE Dialing:

Pulse DiaJing Rate:

Pulse Break/Make Duration:

Dialing Memory:

System Speed Dialing: Station Speed Dialing: Save Number Redial: Last Number Redial:

CO Type

500

feet of 26 AWG Cable 1000 feet of 24 1500 feet of 22 1400 Ohms nwdmum loop, not including

1 telephone.

kl%

AWG AWG

Cable Cable

3 mscc. 75

msec. minimum

75

msec. minimum

lOor

60/40

80 numbers (24 dlgfts) 20 numbers (24 digits)

1 number (32 digits) 1 number (32 digits)

Loop Start (CO/PBX/Centrex)

pps.

or 66/33

I

Issue 1, January 1992

200-g

GENE= DESCRIPTTON Iqjinite 4096 Hybrid Key Telephone System

Table 200-S

AC Input to Power Supply

Power Consumption

Power Supply Fuse - AC input

Longitudinal Balance:

Idle Channel Noise: Cross Talk Attenuation:

Single Frequency Distortion:

(3OOHz-3.4-OOHz)

ITir@ng Sensitivity:

Rfnger Equivalence Number: REN) COLineSfgnaIing-DTMF:

Input Level Range: M&c Source (input):

Contact F?aUng

External Page Control Loud Bell Control RAN Port Control

External Page Port

Output Impedance Output Power

LJL File Number:

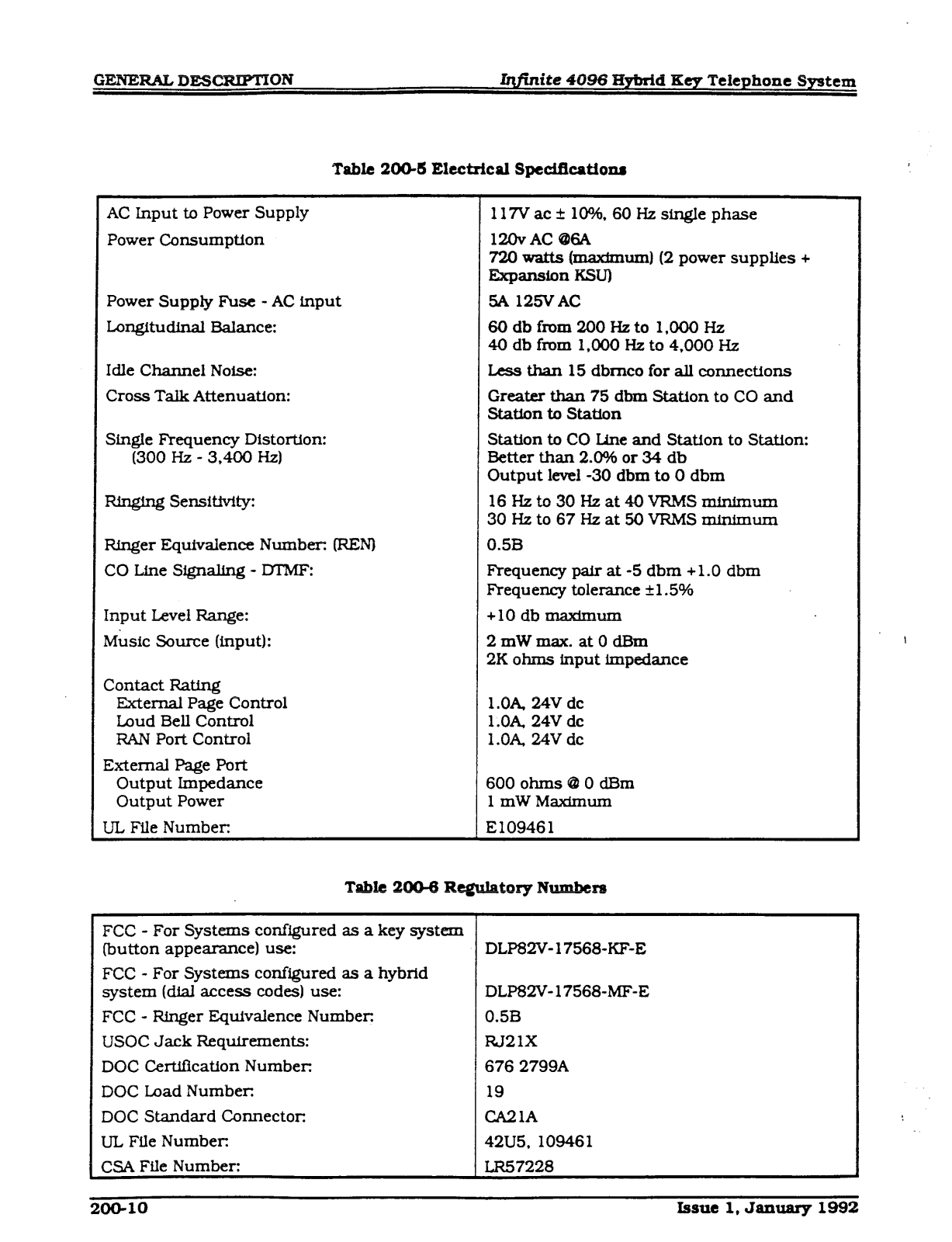

Electrical Spdflcations

117Vac+10%.60Hzsinglephase

12OvAC @6A 720 watts (maximum) (2 power supplies + Expnslon KSLJ)

5A 125VAC 6Odbfrom2OOHzto 1,OOOHz

40 db from 1,000 Hz to 4.000 Hz Less than 15 dbmco for all connections

Greater tban 75 dbm Station to CO and Station to StaUon

Statton to CO I&e and Station to Station: Better than Output level -30 dbm to 0 dbm

16Hzto30Hzat4OVRMSminimum

30Hzto67Hzat5OVRMSminimum

0.5B Frequency pair at -5 dbm +l.O dbm

Frequency tolerance fl.5% +I0 db maximum 2mWmax.atOd.Bm

2K ohms input impedance

l.OA, 24V dc 1 .OA. 24V dc l.OA. 24V dc

600

ohms 43 0 dBm

1 mW Maximum

El09461

2.0%

or 34 db

Table 200-6 Re.@atory Numbers

FCC - For Systems configured as a key system

(button appearance) use: DLP82V- 17568-KF-E

FCC - For Systems configured as a hybrid system (dial access codes) use:

FCC - Ringer Equivalence Number: 0.5B USOC Jack Requirements:

DOC Certification Number: DOC Load Number: 19 DOC Standard Connector: CA21A UL File Number: 42U5. 109461 CSA File Number:

DLP82V- 17568~MF-E

RJ21x

676

2799A

LR57228

200-10

Issue 1, January 1992

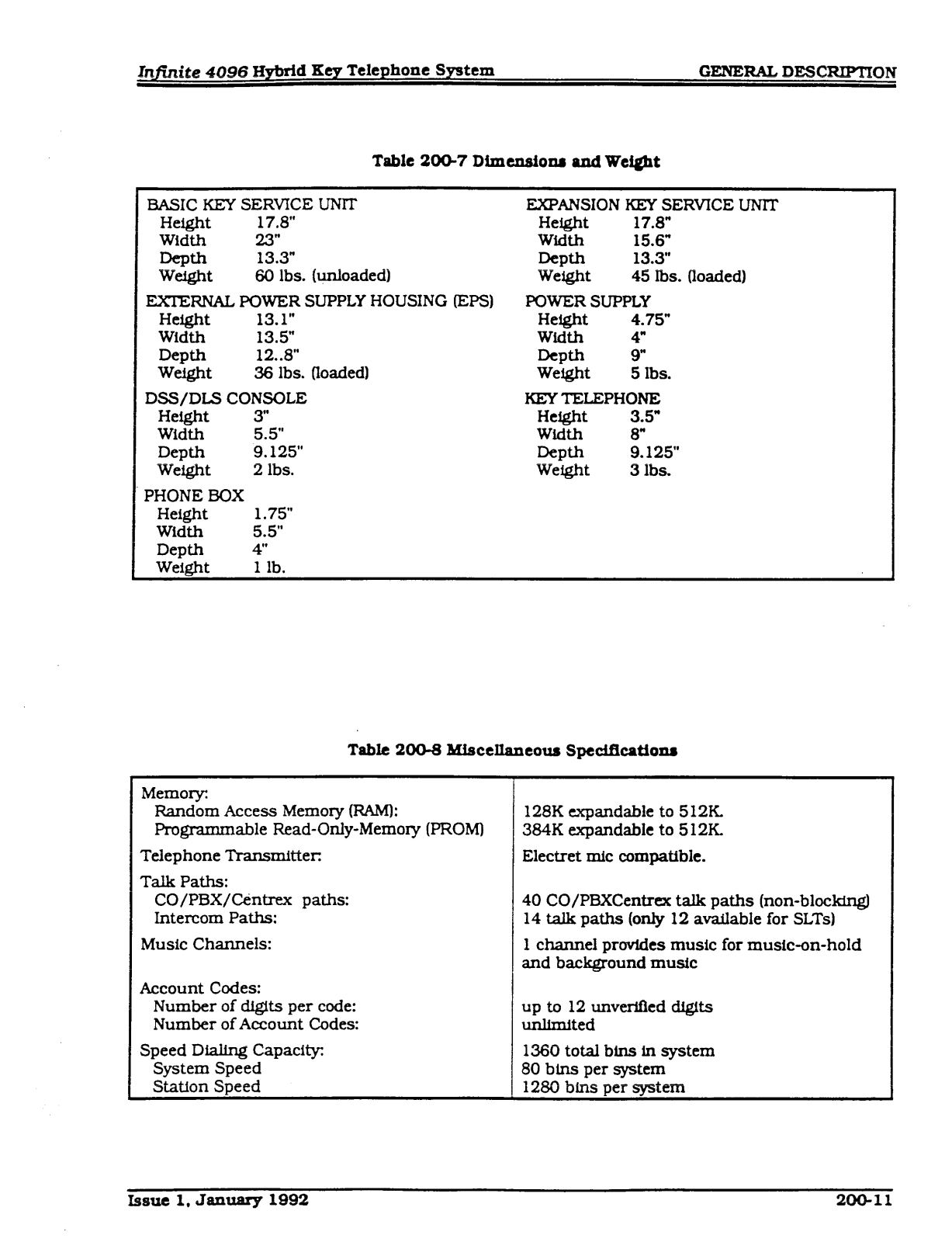

Table 200-7 Dimensiona and Weight

BASIC KEY SERVICE UNlT EXPANSION KEY SERVICE UNlT

Height

Width 23” Width

Depth

J-4m

EXTERNAL POWER SUPPLY HOUSING (-EPS)

Height 13.1” Height 4.75” Width 13.5” width ” Depth 12..8”

weight

DSS/DLS CONSOLE KEY TELEPHONE

Height 3” Height 3.5” Width 5.5” Width Depth 9.125”

Weight

PHONE BOX

Height Width 5.5” Depth 4”

Weight 1 lb.

17.8” Height 17.8”

15.6”

13.3”

60 lbs. (unloaded) Weight 45 Ibs. (loaded)

36 Ibs. (loaded) Weight 5 Ibs.

2 lbs.

1.75”

Depth

POWER SUPPLY

Depth

Weight 3 lbs.

13.3”

ii-

L25”

Table 200-8 MisceIlaneous Spedfkationr

Memory:

Random Access Memory (RAM):

kgrammable Read-Only-Memory (PROM) Telephone -titter: Talk Paths:

CO/PBX/C&trex paths:

Intercom Paths:

Music Channels:

Account Codes:

Number of digits per code: Number of Account Codes:

Speed Dialing Capacity:

System Speed Station Speed

Issue 1, January 1992 200-11

128K expandable to 5 12K

384K expandable to 5 12K. Electret mic compatible.

40 CO/PBXCentrex talk paths (non-blockI@

14 talk paths (only 12 available for SLTs) 1 channel provides music for music-on-hold

and background music up to 12 unverified digits

unlimited

1360 total bins in system

80 bins per system

1280 bins per system

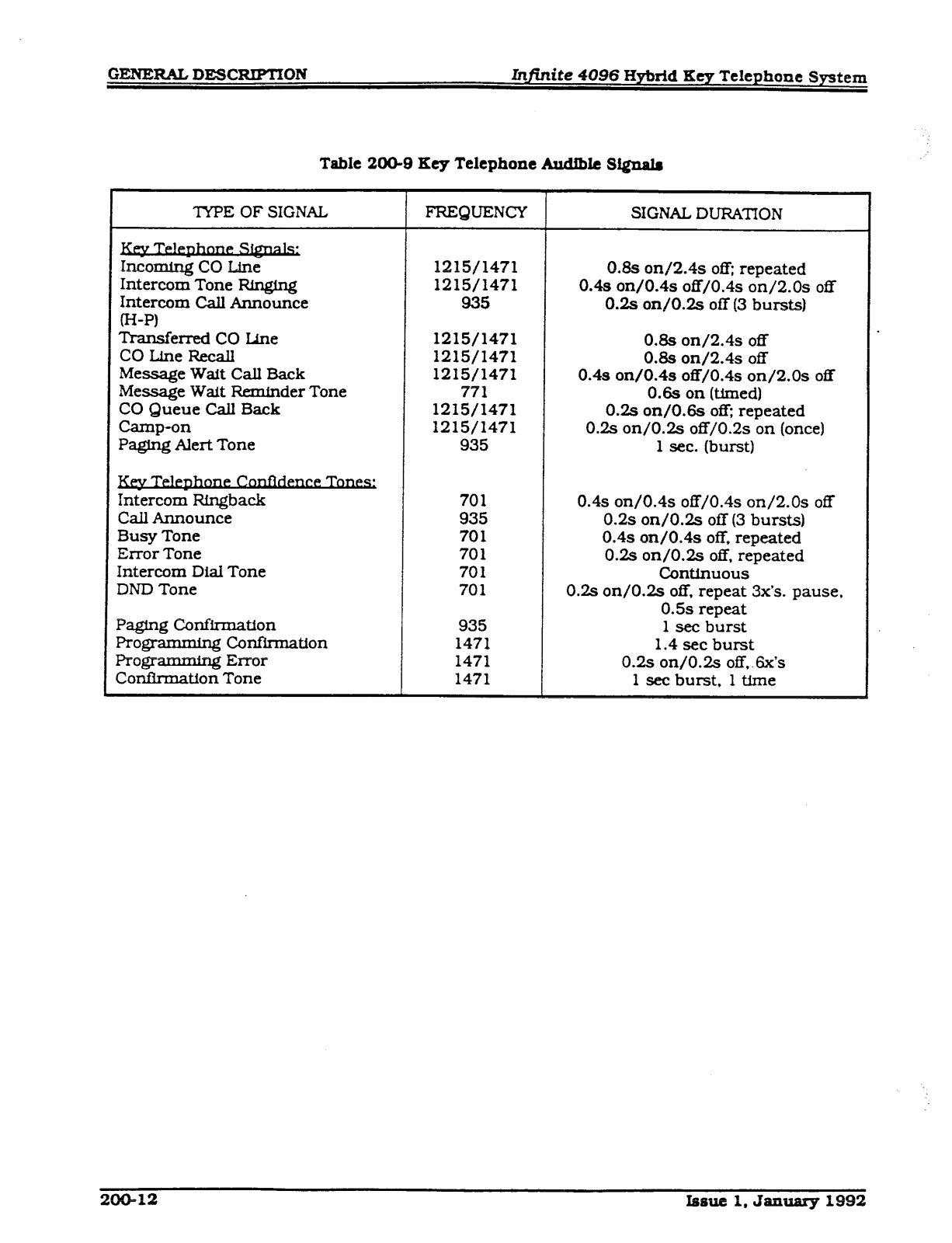

Table 200-Q Key Telephone Audible Sign&

‘TYPE OF SIGNAL FREQUENCY

Incoming CO Line Intercom Tone Ringing Intercom Call Announce

1215/1471 0.8s on/2.4s off; repeated 1215/1471

935 0.2s

M-P)

Transferred CO Line

COU.neFtfxall Message Watt Call Back

Message Watt Reminder Tone CO Queue Call Back Camp-on Paging Alert Tone

1215/1471 1215/1471

1215/1471

771 1215/1471 1215/1471 0.2s on/OJs off/O.as on (once)

935

Intercom Rfngback 701

Call Announce 935 Busy Tone Error Tone

Intercom Dial Tone DND Tone

701 701 701 701

Paging Confirmation 935 Programming 0mfirmation 1471 Programmixq~ Error 1471 Confhmation Tone

1471

SIGNAL

DURATION

0.4s on/0.4s ofVO.4~ on/2.0s off

on/O.2s off (3

bursts)

0.89 on/2.4s off

0.8s on/2.4s off

0.49

on/0.4s oW0.4~

on/2.0s off

0.6s on (timed)

0.2s on/0.6s o@ repeated 1 sec. (burst)

0.4s on/0.4s off/O.4s on/2.0s off

0.2s on/OA off (3 bursts)

0.4s on/O.4s off. repeated

0.2s on/O& off, repeated Continuous

0.2s on/OL?s off, repeat 3~‘s. pause,

0.5s repeat 1 set burst

1.4 set burst

0.2s on/OL?.s off,.,.6x’s 1 set burst, 1 time

200-12 lssue 1. January 1992

Infinite 4096

Hybrid Key

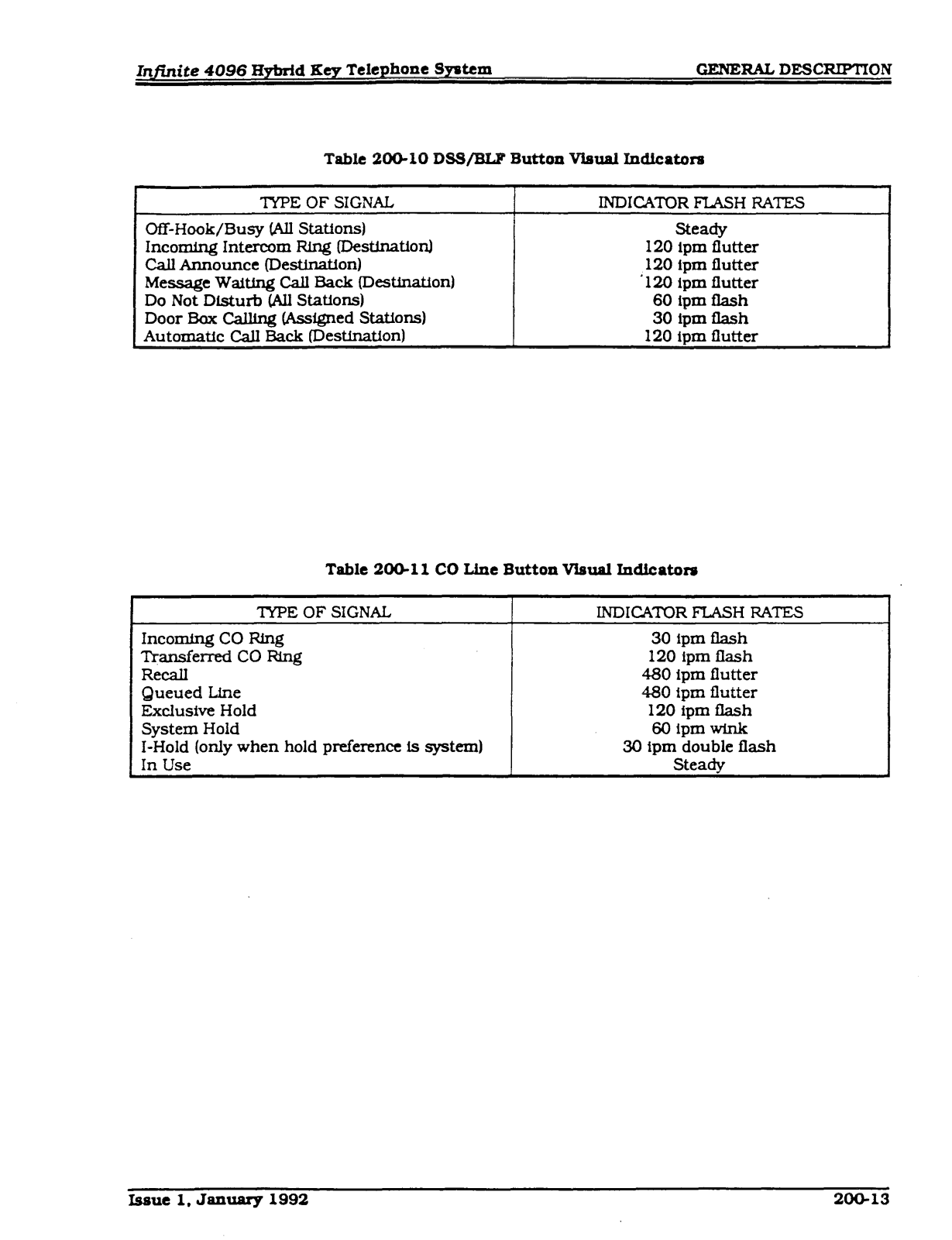

Table 200-10 DSS/BLF Button visual Iudlcatom

Telephone S~~tcm

GENERAL DE!XRPTION

I--

Off-Hook/Busy (All Stations)

Incoming Intercom Ring (D&inationl Call Announce (Destination) Message Waiting Call Back (Destination) Do Not Disturb (AlI Stations) Door BQX Calling (Assigned Stations)

Automatic Call Back fDesUnationl

Incoming CO Ring

Transferred CO Ring

Recall Queued Line Exclusive Hold System Hold I-Hold (only when hold preference is system) In Use

TYPE OF SIGNAL I INDICATOR FLASH RATES I

Table 2OQ-11 CO LLne Button Visual Yndicatom

TYPE OF SIGNAL INDIC4TOR FLASH RATES

Steady 120 ipm flutter 120 Ipm flutter

‘120 ipm flutter

60 ipm flash 30 ipm flash

120

iDrn flutter

30 ipm flash

120 ipm flash

460 ipm flutter

480 ipm flutter

120 lpm flash

6Oipmwink

30 ipm double flash

Steadv

Issue 1, January 1992

200-13

GENERALDESCRIPTION

Injlnite

4096 Hyfnid Key Telephone System

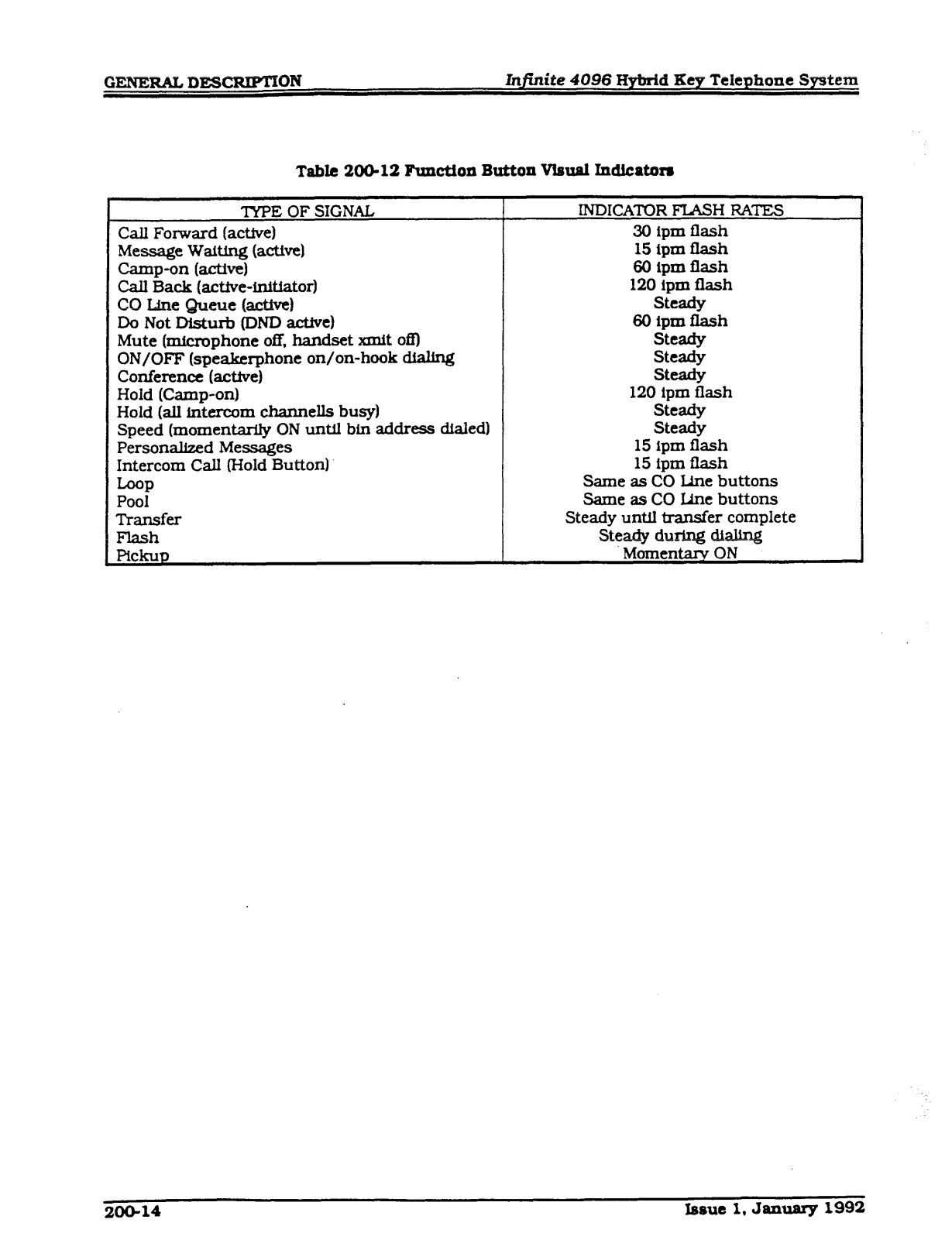

TYPE OF SIGNAL

Call Forward (active1 Message Waiting (active1 Camp-on (active) Call Back (active-initiator) CO Line Queue (active) Do Not Disturb (DND active) Mute (microphone off, handset xmit oa ON/OFF (speakerphone on/on-hook dlaltng

Conference (active) Hold [Camp-on) Hold (all intercom charmells busy)

Speed (momentarily ON until bin address dialed) Personalized

Messages

Intercom Call (Hold Button) LOOP

Pool

Transfer

Flash

pickup

INDICATOR FLASH RATES

30 ipm flash

15 ipm flash

60 ipm flash

120 ipm flash

steady

60 ipm flash

Steady steady

St-e

120 ipm flash

Steady Steady

15 ipm flash

15 ipm flash Same as CO Line buttons Same as CO Une buttons

Steady until transfer complete

Steady during dialing

Momen- ON

200-14

Issue 1, January 1992

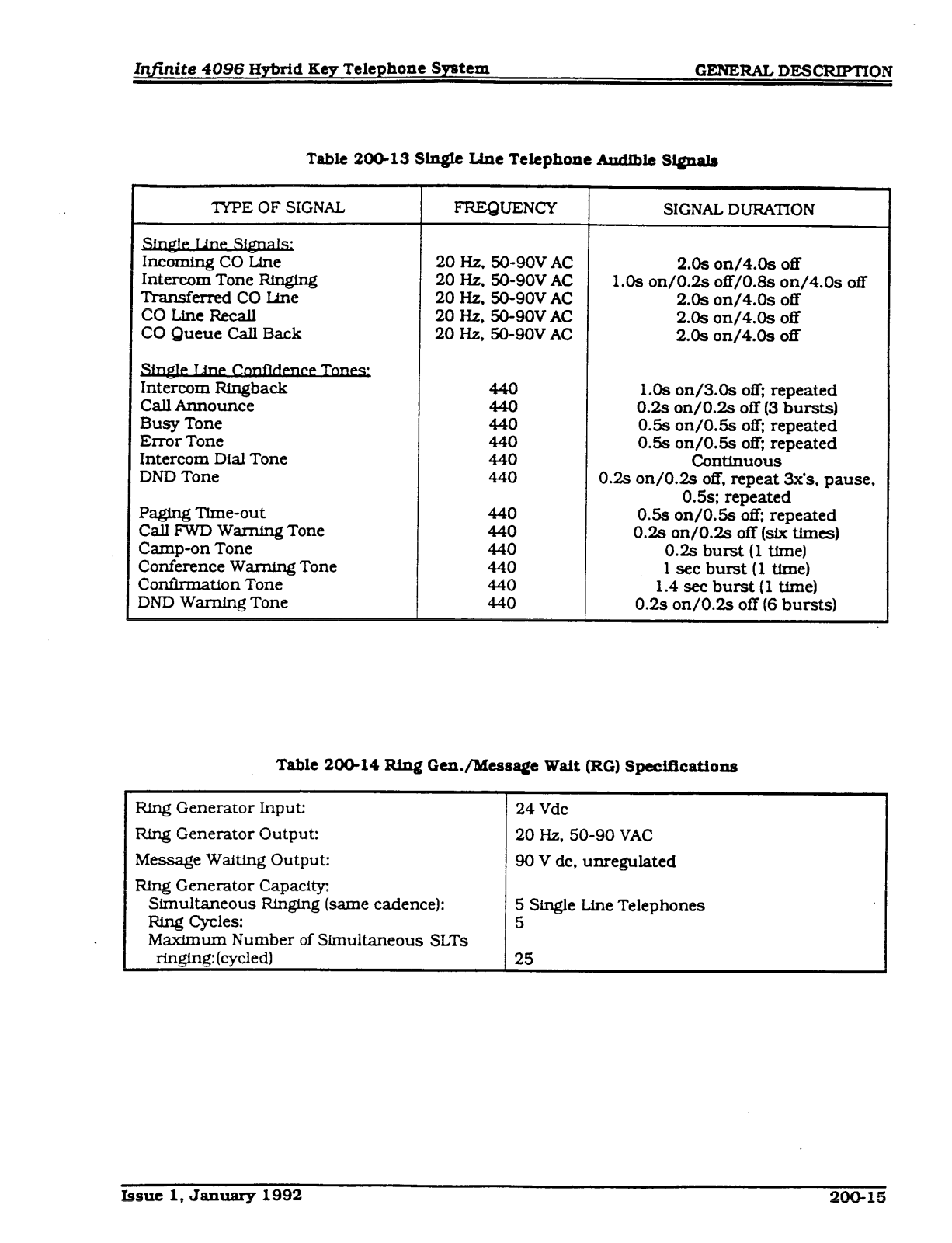

Table 20&13 Sin@ Ldne Telephone Adble Sign&

‘IYF’E OF SIGNAL FREQUENCY

Incoming CO Line 20 Intercom Tone Ringing 20 Transferred CO Une

20 C0LineReca.U 20 CO Queue Call Back 20

Intercom Ringback Call Announce Busy Tone Error Tone Intercom Dial Tone DND Tone

Paging Time-out Call FWD Warning Tone Camp-on Tone Conference Warning Tone Zo&rmaUon Tone 3ND Warning Tone

Hz. SO-90VAC Hz. !?O-9OV AC Hz. 50-9OV AC Hz, 50-9OV AC Hz, 50-9OV AC

SIGNAL DURATION

2.0s on/4.Os off

1.0s on/O.& off/O& on/4.0s off

2.0s on/4.0s off

2.0s on/4.Os off

1.0s

on/3.Os

0.2s on/0.2s off (3

otT; repeated

bursts)

0.5s on/O& OR repeated

0.5s on/O& OR repeated Continuous

0.2s on/O.% off, repeat 3x3, pause,

0.5s: repeated

0.5s on/O& off; repeated

0.2s on/O.Z3 off (six times)

0.2s burst (1 time)

1 set burst (1 time)

1.4 set burst (1 time)

0.2s on/OZ?s off (6 bursts)

Table 200-14 RIq Gen./Mess~e Wait (RGI Specifications

FUng Generator Input: Ring Generator Output: Message Waiting Output: Ring Generator Capacity

Simultaneous Ringing (same cadence): Ring Cycles: Maximum Number of Simultaneous SLTs

Issue 1, January 1992

24 Vdc 20 Hz. 50-90 VAC 90 V dc, unregulated

5 Single Line Telephones 5

200-15

Table 2OG18OPXTele~honeAudlble Si@ula

‘IYPE OF SIGNAL

Incoming CO Line

Intercom Tone Ringing Transferred CO Une C0LtneReca.U CO Queue Call Back

PTQneS,

Intercom Ringback Busy Tone Error Tone Intercom Dial Tone

DND

Tone

Paging Time-out

CallFNDWarning

Camp-on Tone Conference Warning Tone Confirmation Tone 3ND Warning Tone

‘Precise Tone Plan

.*

Tone

FREQUENCY

2OHz.50-9OVAC 2OHz,5O-9OVAC

1.0s on/O.% off/O.8s on/4.0s off

SIGNAL DURATION

2.0s

2OHz,50-9OVAC 2.0s 2OHz,50-9OVAC 2.0s 2OHz.50-90VAC 2.0s

440+480

480+620 480+620 350+440 480+620

480+620

350+440 350+440 480+620 350+440 350+440

0.5s on/0.5.s OF, repeated

0.25s on/0.25s off, repeated

0.2s on/OAs off, repeat 3x’s, pause,

0.2s on/OAs off (six times)

0.2s

1 s on/3s off

Continuous

0.5s; repeated

0.5s on/0.5s off

0.2s burst (1 ttme)

1 set burst (1 time)

1.4 set burst (1 time) on/OA off (6 bursts]

on/4.Os off on/4.Os off

200-16 Issuel,January1992

kjinite

4096 Hybrid Key Telephone System GENERAL DESCRIPTION

The

Mean

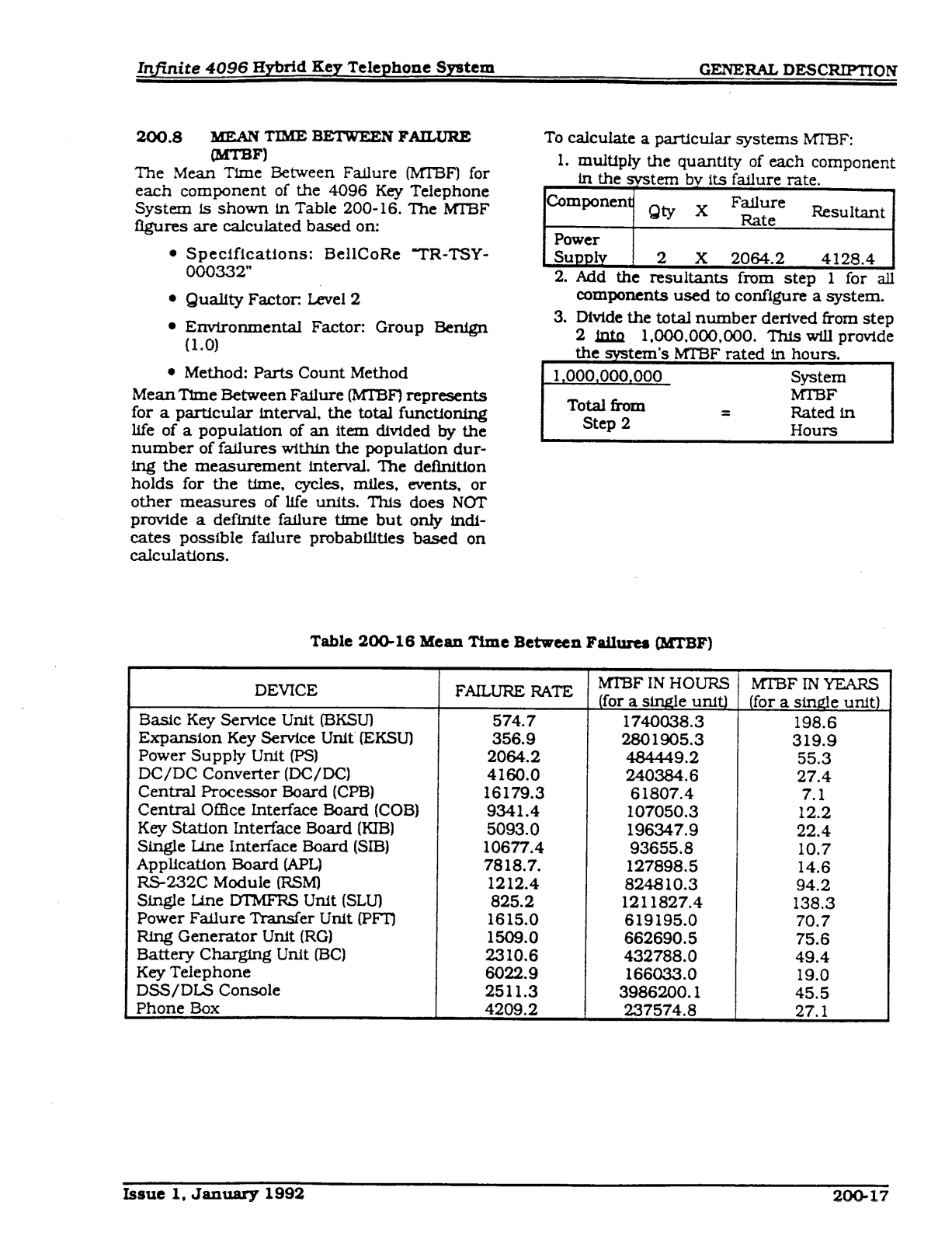

each component of the 4096 Key Telephone System is shown in Table 200-16. The MTBF

figures are calculated based on:

l

MeanlIme Between Failure @‘vlTBF) represents for a particular interval, the total functlontng life of a population of an item divided by the number of failures with&r the population during the measurement Interval. The deffnitlon holds for the time, cycles, miIes, events, or

other measures of life units. This does NOT provide a definite failure tfme but only indicates possible failure probabilities based on calculations.

Time Between Failure (MlBF) for

Specifications: BellCoRe

000332” Quality Factor: Level 2 Environmental Factor: Group Benign

(1.0)

Method: Parts Count Method

‘TR-TSY-

To calculate

1. multfpiy the quantity of each component ln the system by its failure rate.

,

Component Q,y K Fa&;

Power

1 SUPPlY I

2. Add the resultants from step 1 for all components used to configure a system.

3. Divide the total number derived from step 2 fntn 1.000.000.000. This will provfde the system’s MTBF rated in hours.

1 .ooo,ooo.ooo

Total fkom

Step 2

I

a particular

x 2064.2 4128.4

2

=

systems MTBF:

Resultant

System lVil73F Rated in Hours

I

Table 200-16 Mean Time Between Fatlures (MTBF)

DEVICE

Basic Key Service Unit (BKSUI

Expansion Key Service Unit IEKSUI Power SuppIy Unit (PSI

DC/DC Converter (DC/DC) Central Processor Board (CPBI

Central O&e Interface Board (COB) Key Statton Interface Board (KIB) Single I&e Interface Board (SIB) AppIicaUon Board (APL) RS-232C Module IRSMI Single Line MMF-RS unit (SLUI

Power Fatlure Transfer Unit Ipm Ring Generator Unit (RG)

Battery Chargfng Unit (BCI Key Telephone DSS/DLS Console Phone Box

FAXLURE F!ATE

574.7

356.9

2064.2 484449.2 55.3

4160.0 240384.6 27.4

16179.3

9341.4 107050.3 12.2

5093.0 196347.9 22.4

10677.4 93655.8 10.7

7818.7.

1212.4 824610.3 94.2

825.2 1211827.4 138.3

1615.0 619195.0 70.7

1509.0

2310.6 432788.0

6022.9 166933.0

2511.3

4209.2 237574.8 27.1

MIBFINHOURS Ml?BFMYEARS

(for

a single unit)

1749038.3

2601905.3 319.9

61807.4

127898.5 14.6

662690.5 75.6

3986200.1 45.5

(for a sing,Ie utit)

198.6

7.1

49.4

19.0

Issue 1, January 1992 200-17

Infinite 4096 Hybrid Key Telephone Spetem

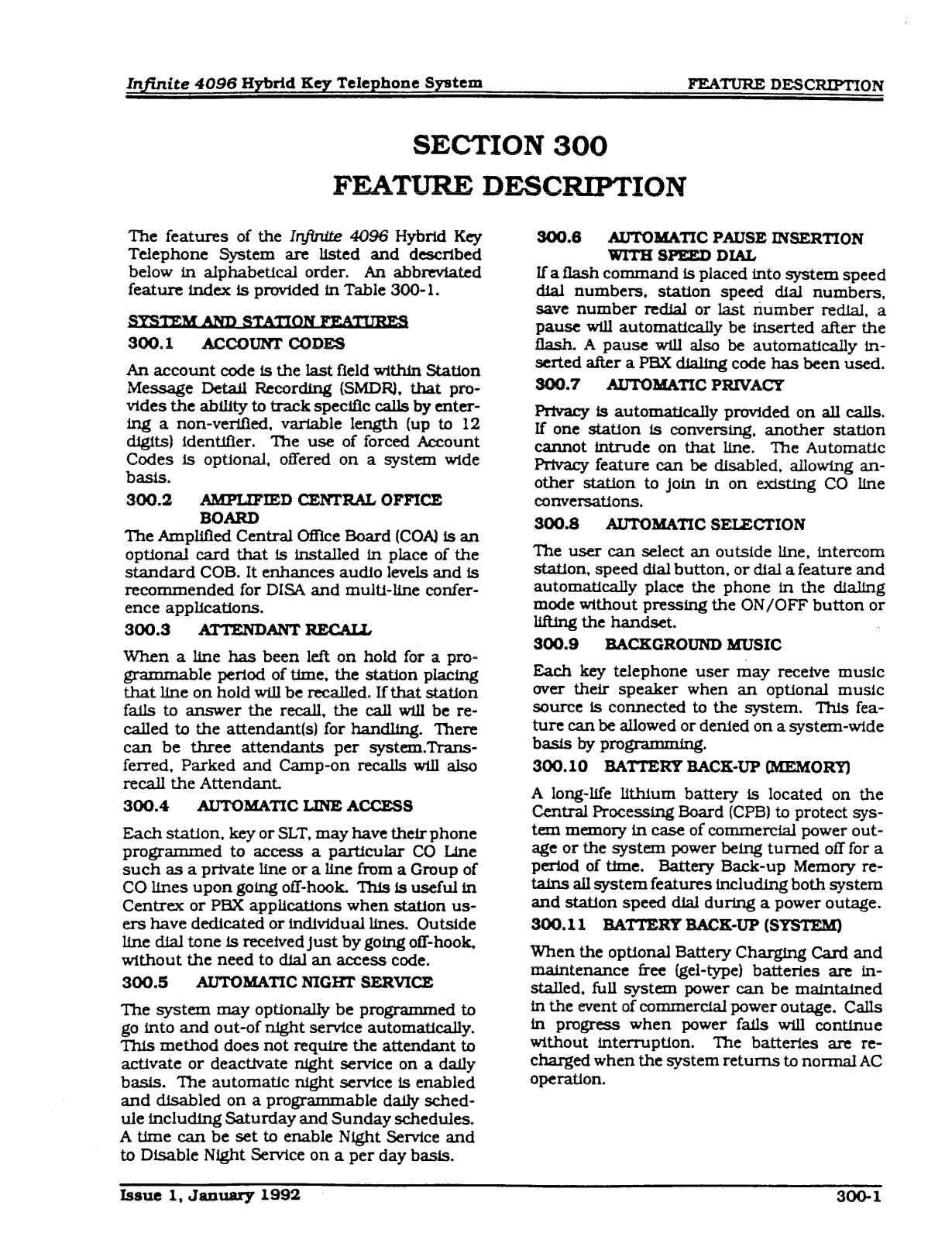

SECTION300

FEA'IWREDESCFUPTION

FEAm DESCRIPTION

The features of the In&i& 4096 Hybrid Key Telephone System are listed and described

below in alphabetical order. An abbreviated

feature index is provided in Table 300- 1.

300.1 ACCOUNT CODES

An account code is the last

Message

vides the ability to track specii3c calls by enter-

ing a non-verfned, variable length (up to 12 digIts) identifier. Codes is optional, offered on a system wide

basis.

300.2 AMPIJFIED CENTRAL OFFICE

The Amplified Central Office Board (COAI is an

optional card that ls installed in place of the

standard COB. It enhances audio levels and is recommended for DISA and multi-line conference applications.

300.3 ATTENDANTRECAUI

When a line has been left on hold for a programmable period of time, the station placing that tie on hold will be recalled. If that station fails to answer the recall, the call will be recalled to the attendant(s) for handling. There can be three attendants per system.Transferred. Parked and Camp-on recalls will also recall the Attendant

300.4

Each station. key or SLT, may have their phone programmed to access a particular CO Line such as a private line or a line from a Group of CO lines upon going off-hook. This is useful in Centrex or PBX appiicattons when station users have dedicated or individual lines. Outside lfne dial tone is received just by going off-hook,

without the need to dial an access code.

300.5

The system may optionally be programmed to go into and out-of night service automatically.

This method does not require the attendant to

activate

basis. The automatic night seIvfce is enabled and d.isabled on a programmable dw sched-

ule including Saturday and Sunday schedules. A time can be set to enable Night Service and to Disable Night Service on a per day basis.

Deta.ll Recording (SMDR). that pro-

The use of forced Account

BOARD

AUTOMATIC

AUTOMATIC NIGHr SERVICE

or deactivate night service on a dally

field within Station

LINEACCES

300.6

If a flash command is placed into system speed dial numbers, station speed dial numbers,

save number red&l or last number redlal. a pause will automatically be inserted after the flash. A pause will also be automatically inserted after a PBX dialing code has been used.

300.7 Privacy is automatically provided on all calls.

If

one station

cannot

Privacy feature can be disabled, allowing another statton to join in on existing CO line

conversations.

300.8 AUTOMATIC SELXCTION

The user can select an outside be, intercom

station. speed dial button, or dial a feature and automatically place the phone in the dialing mode without pressing the ON/OFF button or lifting the handset.

300.9 BACKGROUND MUSIC

Each key telephone user may receive music

over their speaker when an optional music source is connected to the system. This feature can be allowed or denied on a system-wide

b- by pro-.

300.10

A

long-life lithium battery is located on the

Central Processing Board (CPB) to protect sys-

tan memory in case of commercial power out-

age

period of Ume. Battery Back-up Memory retains all system features including both system and station speed dial during a power outage.

300.11 BATTERY BACK-UP (SYSTEM)

When the optional Battery Charging Card and maintenance free (gel-type) batteries are installed, full system power can be maintained

in the went of commercial power outage. Calls

in progress when power fails will continue without interruption. The batteries are recharged when the system returns to normal AC operation.

AUTCMATIC PAUSE INSERTION WITHSPEEDDIAL

AUTOMATIC PRIVACY

is

conversing. another

intrude on that line. The Automatic

BATTERY BACK-UP @IEMORy]

or

the system power being turned off for a

station

Issue 1, January

1992

300-l

FEATURED ESCRPMON

IqCtite 4096 Hybrid Key

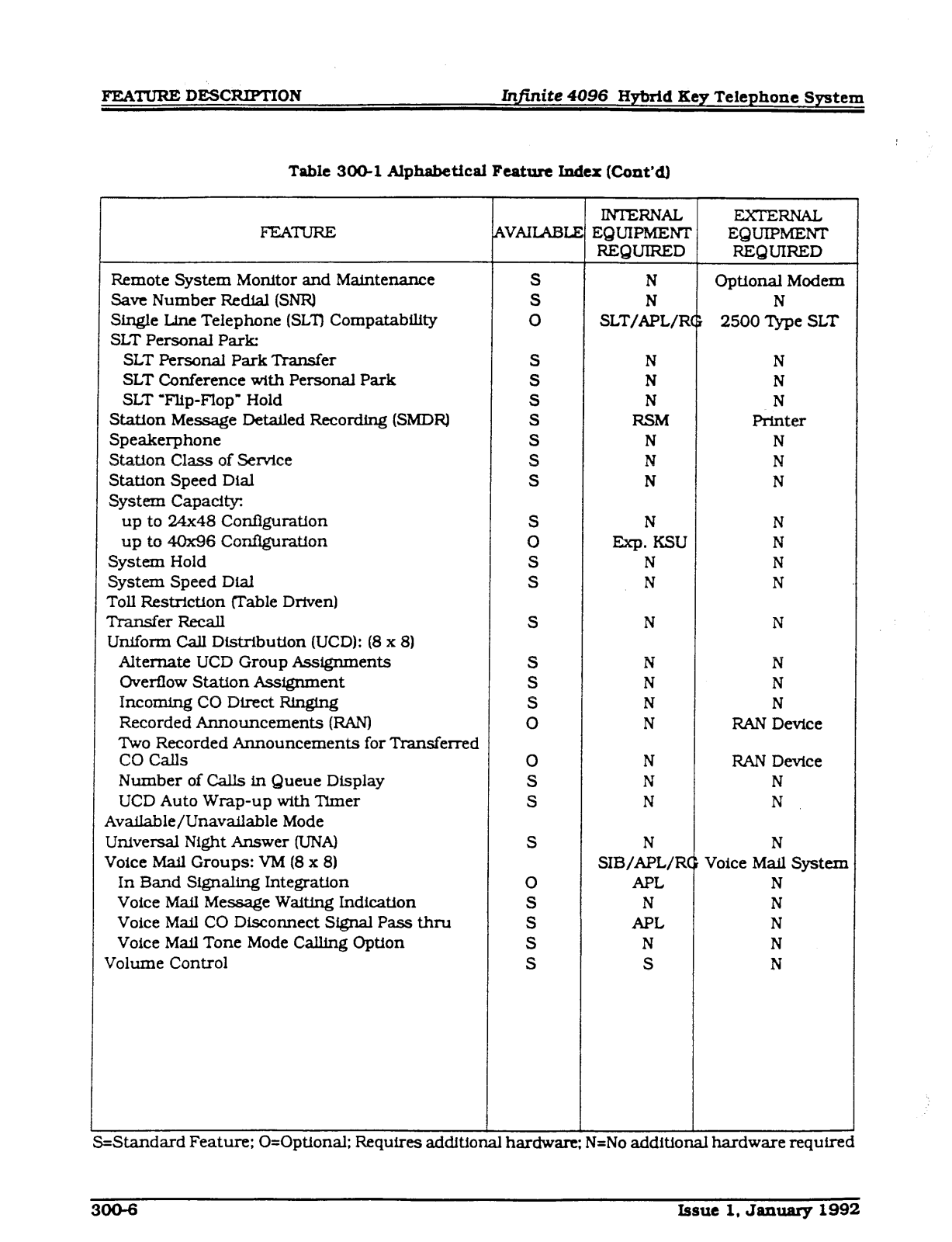

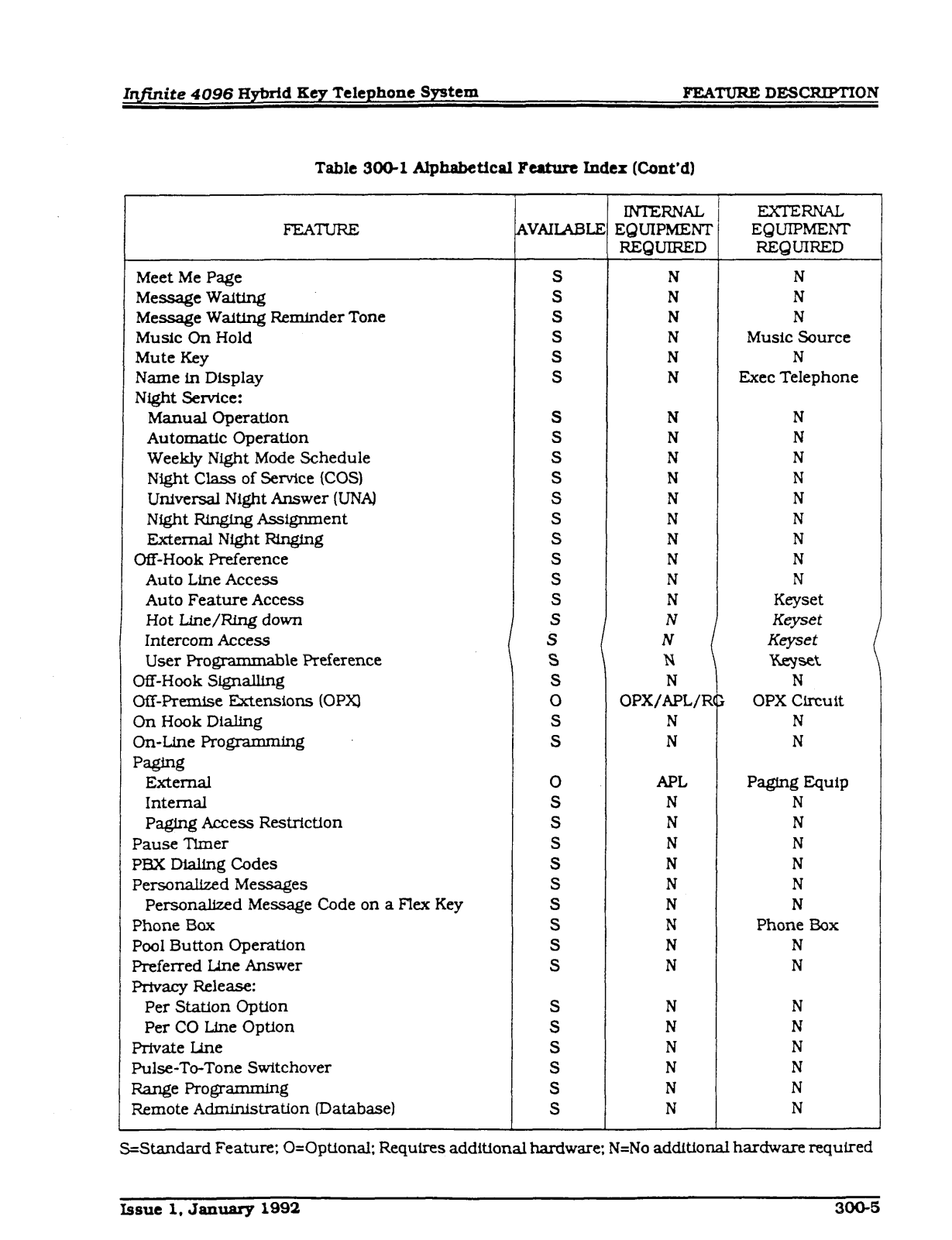

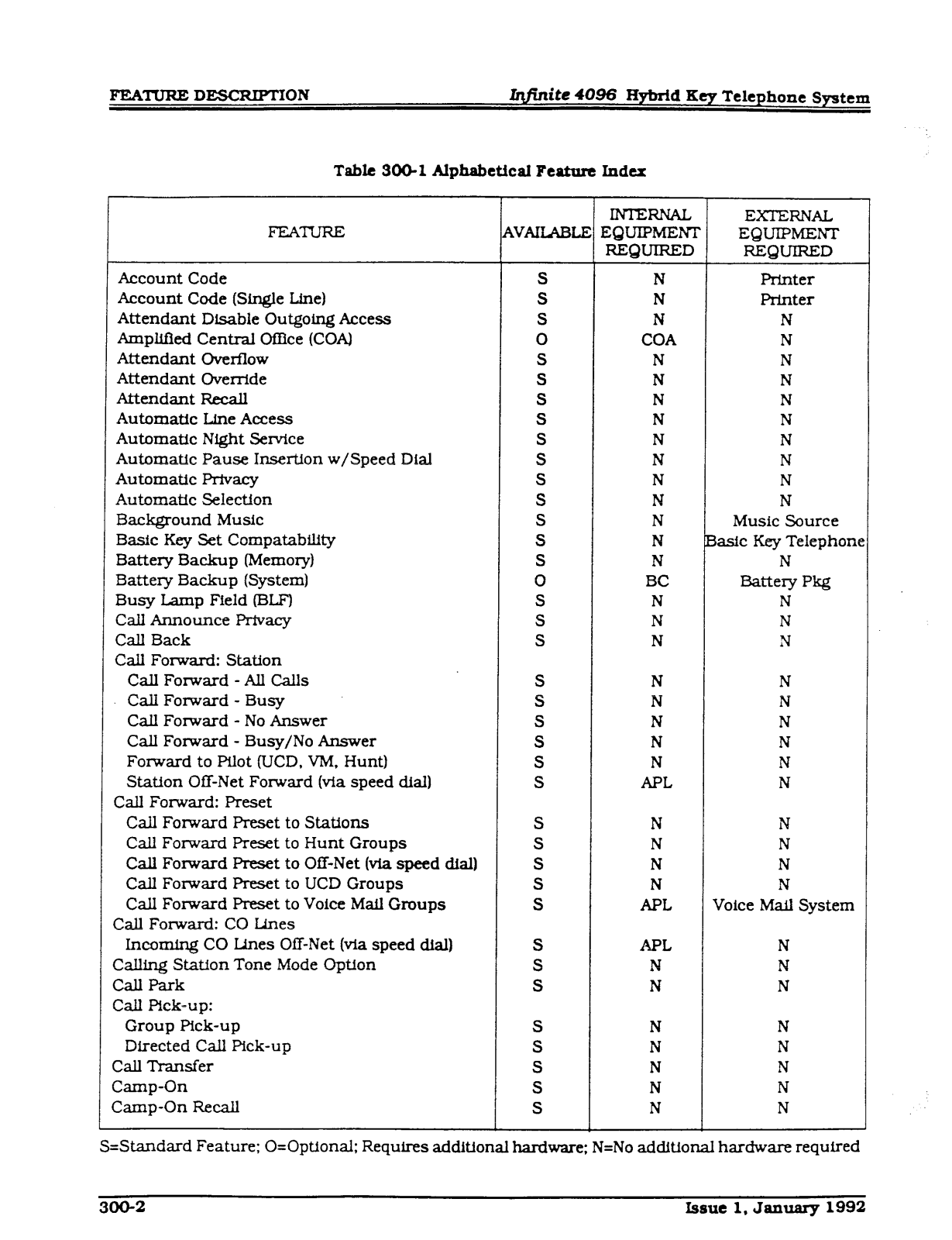

Table 300-l Alphabetical Fe&ure Index

Telephone System

IMERNAL

FEA.IuRE AVAILABLE EQUIPMEr(rr

REQUIRED

EXTERNAL

EQUIPMENT

REQUIRED

Account Code s N Printer Account Code (Single Line) S N Printer Attendant Disable Outgoing Access S N N AmpIifIed Central Of&e (COAI

Attendant OverfIow

0 COA N

S N N Attendant Override S N N Attendant Recall S N N Automatic Line Access S N N Automatic Night SeIvfce S N N

Automatic Pause Insertion w/Speed Dial

S

Automatic Privacy S

N N

Automatic Selection S N N

Background Music S N Music Source Basic Key Set Compatabfflty S N Basic Key Telephont Battery Backup Memory) S N N

Battery Backup (System) Busy Lamp Field (BLFI CdI Announce Privacy CaII Back

0 BC Battery Pkg S S S

N N N N

N N

Call Forward: Station

CalI Forward - AII Cabs S N N CalI Forward - Busy S N N Call Forward - No Answer S N N

Call Forward - Busy/No Answer

S

N

N Forward to Pilot (IJCD, VM, Hunt) S N N Station Off-Net Forward (via speed dial) S APL N

Call Fonvard: Preset

Call Forward Preset to Stations

S N N

CaII Forward Preset to Hunt Groups S N N

Call Forward Preset to Off-Net (via speed dial) Call Forward Preset to UCD Groups

S S N N

CalI Forward Preset to Voice Mafl Groups S APL

N

Voice Mail System

Call Forward: CO IJnes

Incoming CO Unes Off-Net (via speed dial)

Calling Station Tone Mode Option

S S N N

APL N

Call Park S N N CaIl Pick-up:

Group Pick-up S N

N

Directed CaII Pick-up S N N ZLU Transfer Camp-On

S S

N N N N

Camp-On RecaII S N N

S=Standard Feature: O=OpUonaI; Requires additional hardware; N=No additionaI hardware required

300-2

issue 1, January 1992

&finite 4096 EyMd Key Telephone System

Table 30&l Alphabetical Feature Index (Cont’dl

FEATURE

Canned Toll Restriction Centrex Compatability Centrex/PBX Transfer Chdn.frq Speed Bins CO Line Access

CO Line Class of Service CO Line Control (contact) CO Line Groups CO Line Loop Supervision CO Line Queue

CO Line Incoming Ring Assignment:

&signed Per CO Line CO Ring Detect Conference:

Add-on

Multi-Line

Unsupervised Tnmk-to-Trunk

SLT - Add-on SLT - Multi-Line SLT - Conference with Personal Park Conference Enable/Disable Per Statton

Conference Enable/Disable Per CO Line

Data

Base Printout (dump) Day/Night Class of Service (COS) 3efault Button Mapping 3ial Pulse Sending Xaling PrWileges Xrect CO Line Ringing:

To Stations To UCD Groups To Hunt Groups To Off-Net (via speed dial)

To Voice Mail Groups Xrect Station Selection Xrected Call Pick-up:

Pick-up from Statlons

Pick-up from UCD Groups Xrect Inward Statton Access (DISA):

Programmable Access CO Line Group Access Station Access

Xrectory Dialing

INTERNAL

AVAIIABLE EQUIPMENT

REQUIRED

S N S N S N

S N S N S N S PFT S N N S N S

N N

S N N S N

S N S N 0

APL N S N N S N N S N S N S N

S

N

S N S N

S N S N S

APL N S APL N S N S

N

Voice

S N N S N

0 APL N S N S N N S N N S N N

EzcrERNAL

EQUIPMENT

REQUIRED

N N N N N N N

N

N N

Mail

System

N

S=Standard Feature: O=OpUonal; Requires additional hardware; N=No additfonal hardware required

Issue 1, January 1992

300-a

F’EATUREDESC~ON

IxKlvRE

li@tite

4096 Hybrid Xcy Telephone System

IVAIIABLE

INTERNAL Exl-ERNAL

EQUX’MEKT EQUIPMEm

REQUIRED

Do Not Disturb (DND)

One-Time Do Not Disturb

m-dfng Emergency Transfer

End to End S&r&ling

Exclusive Hold Executive Override Executive/Sccrcky Transfer External Night Ringing Flash Flash on Intercom Flash with Speed Dial Flexible Attendant(s)

Flexible Button Assignment Forced Account Codes

Group Call Pick-up

Headset Compatabfflty Headset Mode Hearing Aid Compatible Hold Preference Hold Recall

Hot Line/Ring Down

Hunt Groups: (8 x 8)

Pilot Hunting Station Hunting

Hunt Group Chaining Intercom Calling Intercom Signaling Select Last Number &dial (LNRI LCD Interactive Display Least cost I?mung &CR):

LCR 3 Digit Tables

LCR 6 Digit Tables

Route List Tables

Insert/Delete Tables

Weekly Time Tables

Daily Start Time Tables

Exception Tables

Default LCR Database

LCR Routing for Toll Information Loop Button CO Line Access Loud Bell Control ILBC)

0 S S S S S

S S S S S S S S S S S

S

S S S S S S S

S S S S S S S S S S

0

S S S

N N N

PFT

N N N N N

S N N N N N N N N N N N N

N N N N N N N

N

N N

N N N N N N

N

PFT

N N N

SLTS

N

N N N N

NN N N N

(22 buttons)

N N N N N N N

Key Station

N N N N N N

Exec Telephone

N N N N N N N N N N

Gen & Bells

=Standard Feature: O=OpUonal; Requires additional hardware: N=No additional hardware required

3004

Issue

1, January 1992

InJinite 4096 Hybrid Key Telephone SYStem FEATURE DESCRIPTION

Table 300-l Alphabetical Fn Index

(Cont’d)

INIERNAL EXTERNAL

FEATURE

Meet Me Page

AVAIIABLE

S N N

Message Waiting S N

EQUIPMENT EQUIPMENT

REQUIRED

N

Message Waiting Reminder Tone S N N Music On Hold Mute Key

S N

Music Source

S N N Name in Display S N Exec Telephone Night Setice:

Manual Operation S N

N Automatic Operation S N N Weekly Night Mode Schedule S N N Night Class of Sexvice (COS) S N N Universal Night Answer (UNAI S Night Ringing Assignment S N

N N

N External Night Ringing S N N

Off-Hook Preference S N N

Auto Line Access S N N Auto Feature Access S N Keyset Hot I&e/Ring down S N Keyset

Intercom Access

User Programmable Preference S

S N Keyset

N

w=t

OfT-Hook Signalling S N N OfWremise &tensions (OPXl 0 OPX/APL/R(; OPX circuit On Hook Dialing On-Line Programming S

S N N

N N

PagLng

External 0 APL

pagtng Equip

Internal S N N

Paging Access Restriction S Pause llmer PBX Dialing Codes Personalized Messages

S N N S N N S N N

N N

Personalized Message Code on a Flex Key S N N Phone Box Pool Button Operation

S N Phone Box

S N N Preferred Line Answer S N N Privacy Release:

Per Station Option Per CO Line Option S

Private I&e S N

Pulse-To-Tone Switchover Range Pwr==QZ

Remote Administration (Database) S N

S N N

N N

N

S

S N

N N

S=Standard Feature; O=OpUonal: Requires additional hardware: N=No additional hardware required

Issue 1, January 1992

300-5

FXATURE DESCRIPTION

Infinite

4096 Hybrid Key Telephone System

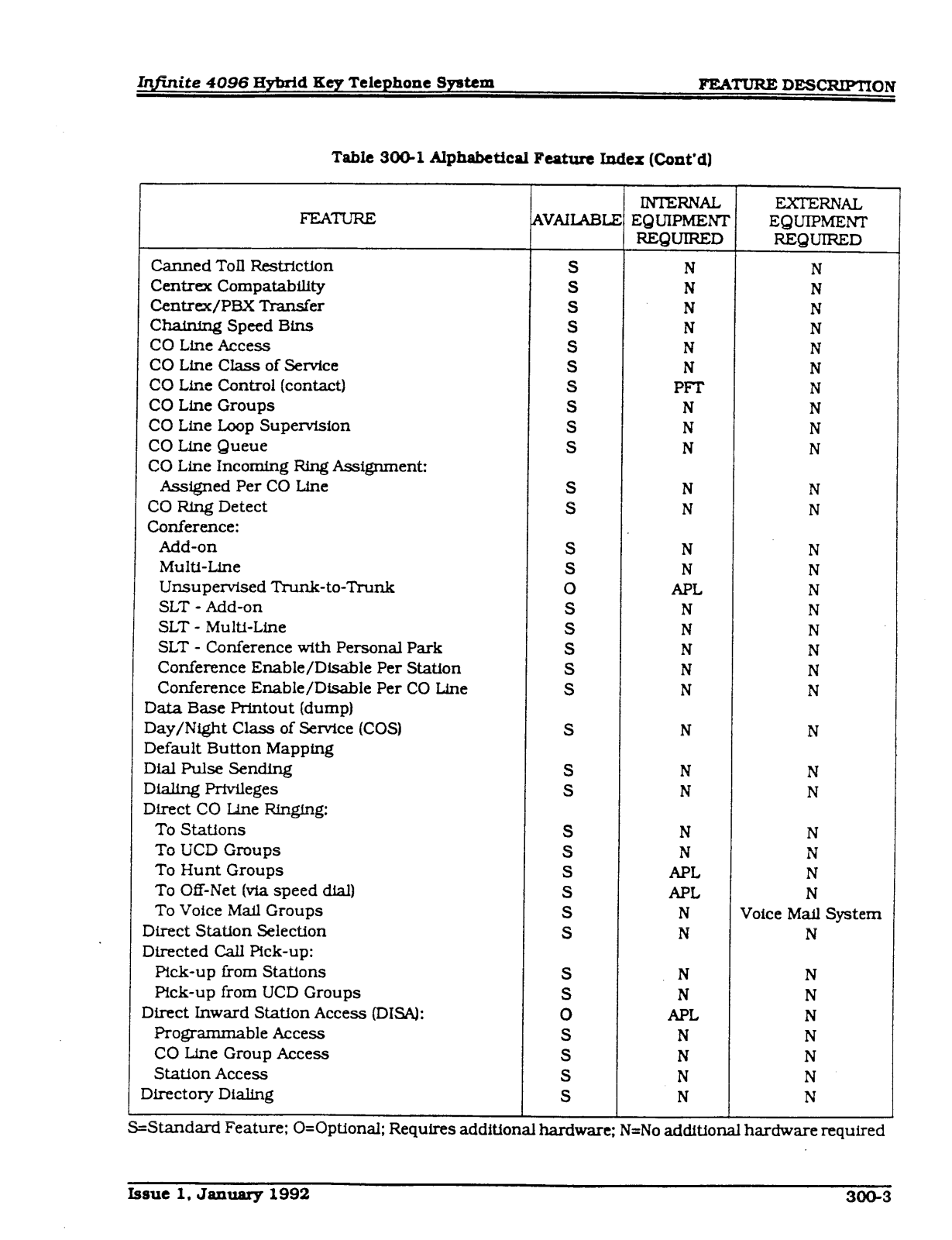

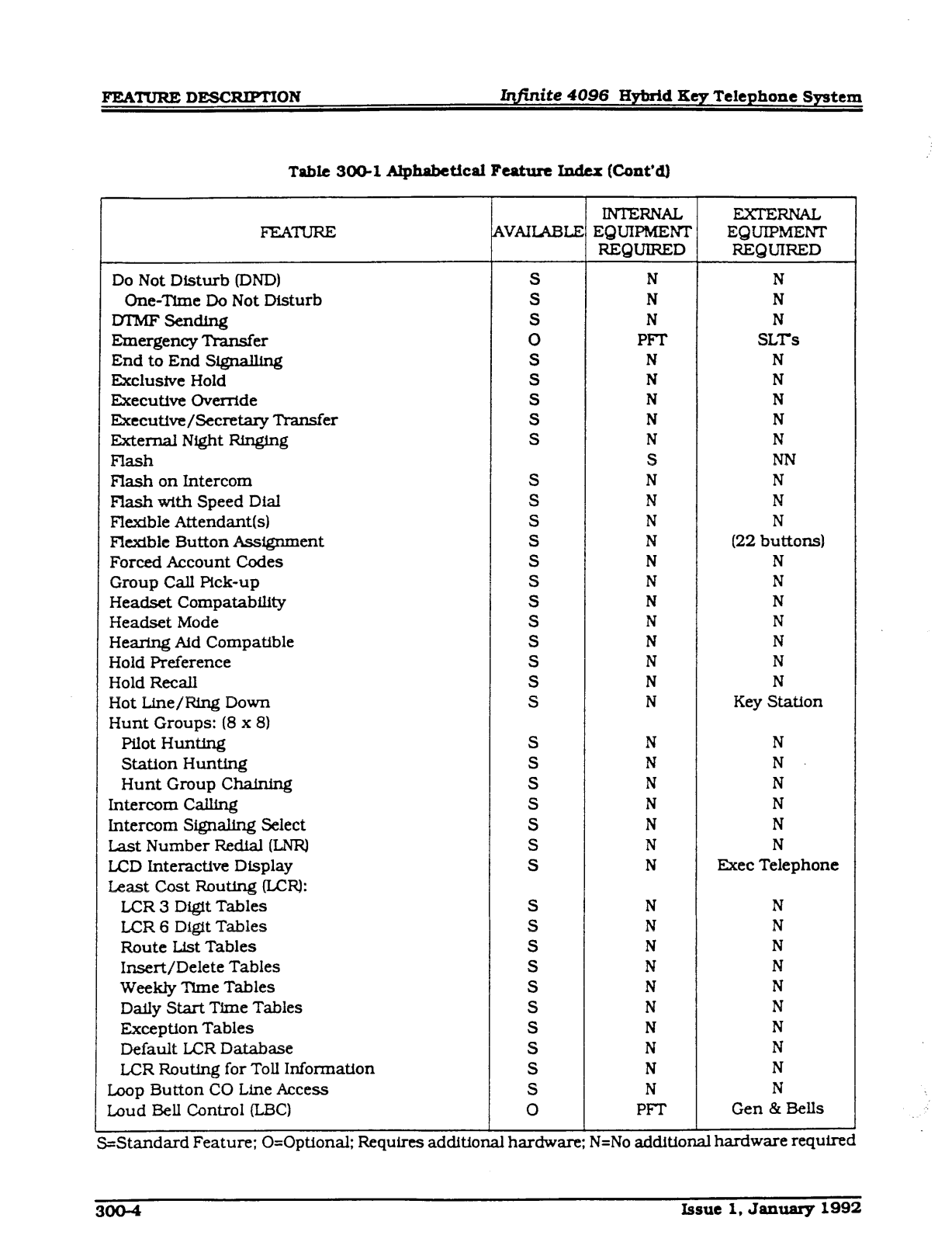

Table 300-l Alphabetical Fea&rt Index

FEATURE AVAIIABLE EQUIPMEKT

(Cont’d)

INTERNAL

ExTERIwL

EQUIPMEM.

REQUIRED REQUIRED

Remote System Monitor and Maintenance S Save Number Red&xl (SNRI S Single Line Telephone (SLT) Compatabiltty

0 SLT/APL/RG 2500 l)pe SLT

N Optional Modem N N

SLT Personal Park

SLT Personal Park Transfer

S N N SLT Conference with Personal Park S N SLT ‘Flip-Flop’ Hold S N

Station Message Detailed Recording (SMDRI S RSM Speakerphone S N Station Class of Service Statlon Speed Dial

S N N S N N

System Capacity:

up to 24x48 Conflguratton S

up to 40x96 Conf&uration System Hold System Speed Dial

0 ExpTKsu N S N N

S N N Toll Restriction Crable Driven) Transfer RecaIl

S N N

Uniform Call Distribution (UCD): (8 x 8)

Alternate UCD Group Assignments S N N

Overflow Station Assignment

S N N

Incoming CO Direct Ringing S N N

Recorded Announcements (RANI

0 N RAN Device

Two Recorded Announcements for Transferred

co calls Number of Calls in Queue Display UCD Auto Wrap-up with %er

0 N RAN Device S N N

S N Available/Unavailable Mode Universal Night Answer (UNA) Voice Mail Groups: VM (8 x 8)

In Band Signaling Integration Voice Mail Message Waiting Indication

S N N

SIB/APL/RC; Voice Mail System

0 APL N

S N N

Voice Matl CO Disconnect Sfgna.l Pass thru S APL N Voice Mail Tone Mode Calling Optlon

Volume Control

S N N

S S N

N N

Prlrlter

N

S=Standard Feature: O=OpUonal: Requires

additional

hardware: N=No additional hardware required

300-6 Issue

1, January 1992

Infinite 4096 Hybrid Key Telephone System

FEUUREDE'SCR~~ION

300.12

When a button on a Key Telephone is assigned as a DSS it also serves as a Busy Lamp Field to &splay the status of that telephone.

BUSY LAMP

FIELD

[BLF)

300.13 CAUANNOUNCE - PRIVACY

Each telephone user can set their intercom signaling switch to receive intercom call announcements without having the calling party hear any conversations in progress.

300.14 CAILBACX

A

station can initiate a call back request to

another busy station. As soon as that station becomes idle. the station that left the call back request is signaled.

300.16 CALL FORWARD: STATION

A.

Ch.llFOrWtUd-AIlCalls

l3.l.s feature allows a station the ability to

have alI their calls (internal or external) forwarded immediately to a designated station, a UCD group pilot number, Voice Mail group number, or Hunt group. (See Note)

B.

Call Forward - Busy

This feature allows a station the ability to

have their calls fonvarded to a designated station, a UCD group pilot number, Voice Mail group number, or Hunt group when

their station is busy. (See Note)

C.

Call Forward - No Answer

This feature allows a station the ability to

have their calls forwarded to a designated station. a UCD group pilot number. Voice

Mail group number or Hunt group number when there is no answer at the answer calls forward when the systemwide “no answer timer” aspires. (See Note)

Call Forwird - Busy/No Auswer

D.

Allows a stations the ability to fonvard a

combination busy/no answer calls to a designated station, a UCD group pilot

number, Voice Mail group number, or Hunt group. No answer calls forward

when the system-wide “no answer timer”

expires. Initial CO ringing, transferred CO

ringing and intercom ringing calls can all be forwarded. Calls that ring to an idle station will be call foxwarded after expiration of the No Answer ring Umer.(See Note)

station.

No

Cdl Fommud -

E.

stations will be

com and transferred CO line calls to an

d-net location. This allows a station to reroute calls that would normally be lost. Calls can be forwarded to home or another off-net site. Initially ringing CO calls cannot be forwarded with this feature (see Incoming CO ltnes m-Net Forward. fea-

ture). (See Note)

NO7?3: Iniff~~L Ringing Incomirg: ads will forward to groups. Cie: UCD, Voice stationf~ is the on& dngontheCOUne.

300.16 CAU

This feature allows the system data base to be

configured so that incoming CO Lines. which

are programmed to ring at a particular station, can be forwarded elsewhere in the system predetermined by programmin active if the station ringing is

a

speci.fIed Ume. This is parUcuiarly useful in

‘overflow” applications where a Voice Mail or

Auto Attendant may be in use.

A station

ward location defined in the data base.

Reset Cdl Forward is chainable only to other predetermined preset foMrard stations speclfled in the database up to a chain of 5 stations.

Chainable Preset Call Forwarding will force the incoming CO Line to ring at each station preassigned in the database for the Preset Fonvard Ring Timer specified in the database before folwarding.

Each station in the system may, independently, have incoming CO calls preset for-

warded to the following destinations:

A Fkeset CaU Forward - Stations

may have one designated preset for-

Each Key Telephone user may have preset in the database IntUaJ Ringing Incoming to

be directed to another station in the system, if the call goes unanswered for a predetenntned amount of time.

B. Reset Call

CO Lines can be preset forwarded to ring into a Hunt Group line will not preset forward to a busy Hunt

group, however each Ume the preset forward timer expires (for a total of five at-

tempts) the group will be checked for an idle station. If a member of the group is idle the call will then be presented to that

member.

Off-Net

allowed to fonvard inter-

Mail

stationassigned to

FORWARD:

PRESET

This feature is

g.

not answered in

Forward

- Hunt Groups

from any

station

Hunt2 fJthe

A CO

Issue 1, January 1992

300-7

FEATURXD ESCRFTION

@finite 4096 Hyhrfd Key Telephone System

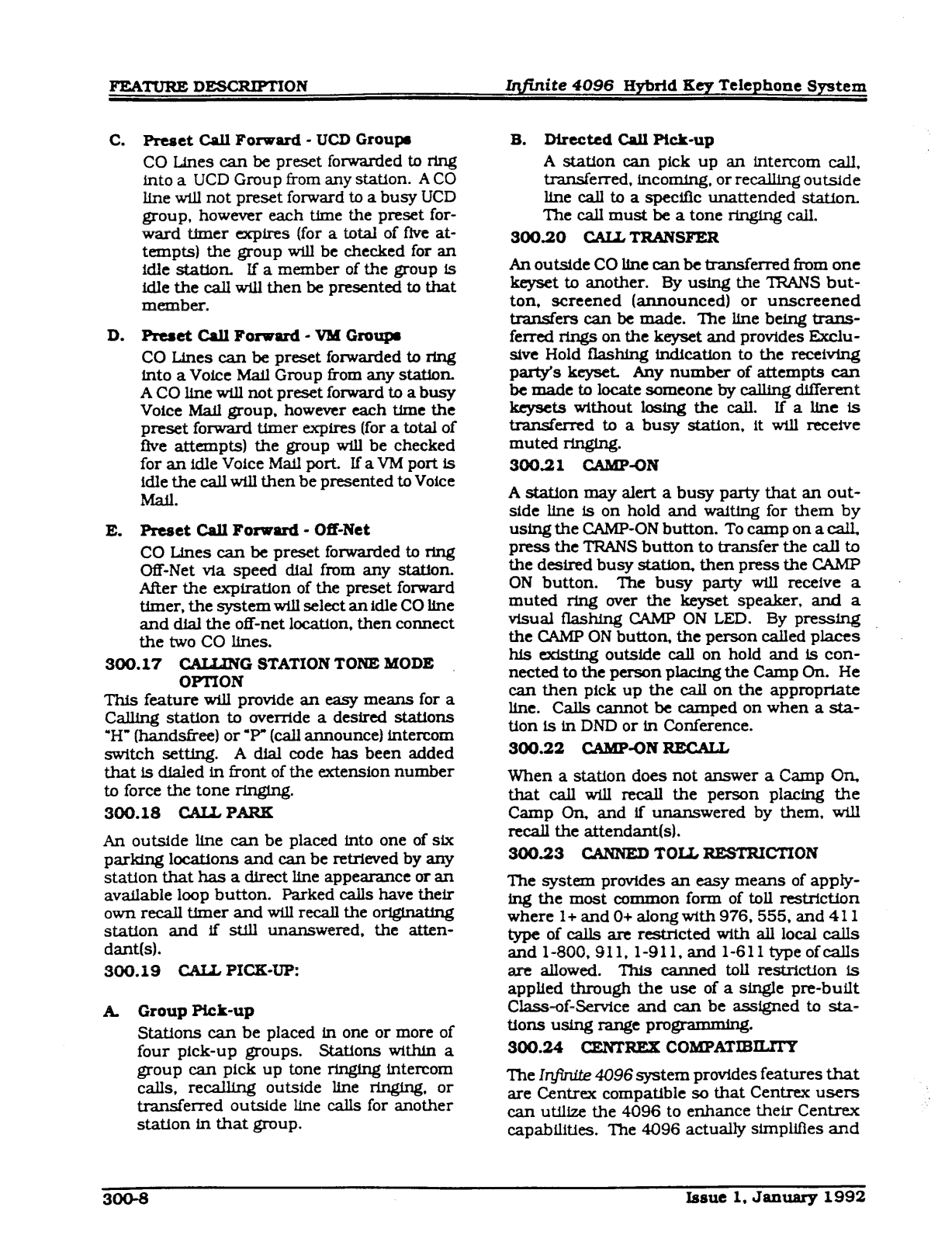

C. Preset Ca.U Fommrd - UCD Groupa

CO Lines can be preset forwarded to ring into a UCD Group from any station.

A CO

line will not preset forward to a busy UCD

group,

however each time the preset for-

ward Umer expires (for a total of five at-

tempts) the group will be checked for an idle station.

If a member of the group is

idle the call will then be presented to that

member.

D. Preset Call Fors~ard - VM Groupa

CO Lines can be preset forwarded to ring

into a Voice Mail Group f?om any statlon.

A CO line will not preset forward to

a busy

Voice Ma.il group, however each Ume the

preset forward timer expires (for a total of five attempts) the group will be checked

for an idle Voice Mail port. If a VM port is

idle the call will then be presented to Voice Mail.

E. Preset Call Forward - Off-Net

CO Lines can be preset forwarded to ring Off-Net via speed dial from any station.

After the expiration of the preset forward

timer, the systemwlll select anidle CO line and dial the off-net location, then connect the two CO lines.

300.17 QiLT.dNG STATION TONE MODE OPTION

This feature will provide an easy means for a

Calling station to override a desired stations ‘H” (handsfree) or ‘P” (call announce) intercom

switch setting. A dial code has been added that is dialed in front of the extension number to force the tone ringing.

300.18 CALLPAFuc

An outside line can be placed into one of six

parkl.ng

locations and can be retrieved by any

station that has a direct line appearance or an

available loop button. Parked calls have their

own recall timer and will recall the origtnating station and if still unanswered, the atten-

dant(s).

300.19 CALL PICX-UP:

A Group Pick-up

Stations can be placed in one or more of four pick-up groups. Stations within a group can pick up tone rlnglng intercom calls, recalling outside line ringing. or transferred outside line calls for another station in that group.

B. Directed Call Pick-up

A

station can pick up an intercom call, tmnsferred. incoming. or recalling outside line caJl to a specific unattended station.

The call must be a tone ringing call.

300.20 CAlLTRANsFER

An outside CO line can be transferred !?om one

keyset to another. By using the ‘IRANS button, screened (announced) or unscreened transfers can be made. ?he line being transferred xlngs on the keyset and provides Exclusive Hold flashing indication to the receiving party’s keyset. Any number

of

attempts can

be made to locate someone by calling Werent

keysets without losing the call. If a he is

transfixred to a busy station, it will receive muted ringtng.

30031 CAMP-ON

A station may alert a

busy party that an outside line is on hold and waiting for them by using the CAMP-ON button. To camp on a call. press the TFWNS button to transfer the call to

the desired busy station. then press the CAMP

ON button. The busy party will receive a

muted ring over the keyset speaker, and a visual flashing CAMP ON LED. By pressing the CAMP ON button, the person called places

his exisUng outside call on hold and is con-

nected to the person placing the Camp On.

He

can then pick up the call on the appropriate

line. Calls cannot be camped on when a station is in DND or in Conference.

300.22 GWIP-ON RECALL

When a station does not answer a Camp On

that call will recall the person placing the CampOn.andif unanswered by them, will recall the attendant(s).

300.23 CANNED TOLL RESTRICTION

The system provides an easy means of apply-

ing the most common form of toll restrlction

where l+ and 0+ along with 976,555. and 4 11

typeofcallsareresUictedwithalllocalcalls and l-800.911, 1-911. and l-611 typeofcalls are allowed. This canned toll restrictton is applied through the use of a single pre-built Class-of-Service and can be assigned to sta-

Uons using range

300.24 CEmREx coblPATIBILrrY

programming.

The In&&e 4.096 system provides features that

are Centrex compatible so that Centrex users

can utilize the 4096 to enhance their Centrex

capabilities.

The 4096 actually simplifies and

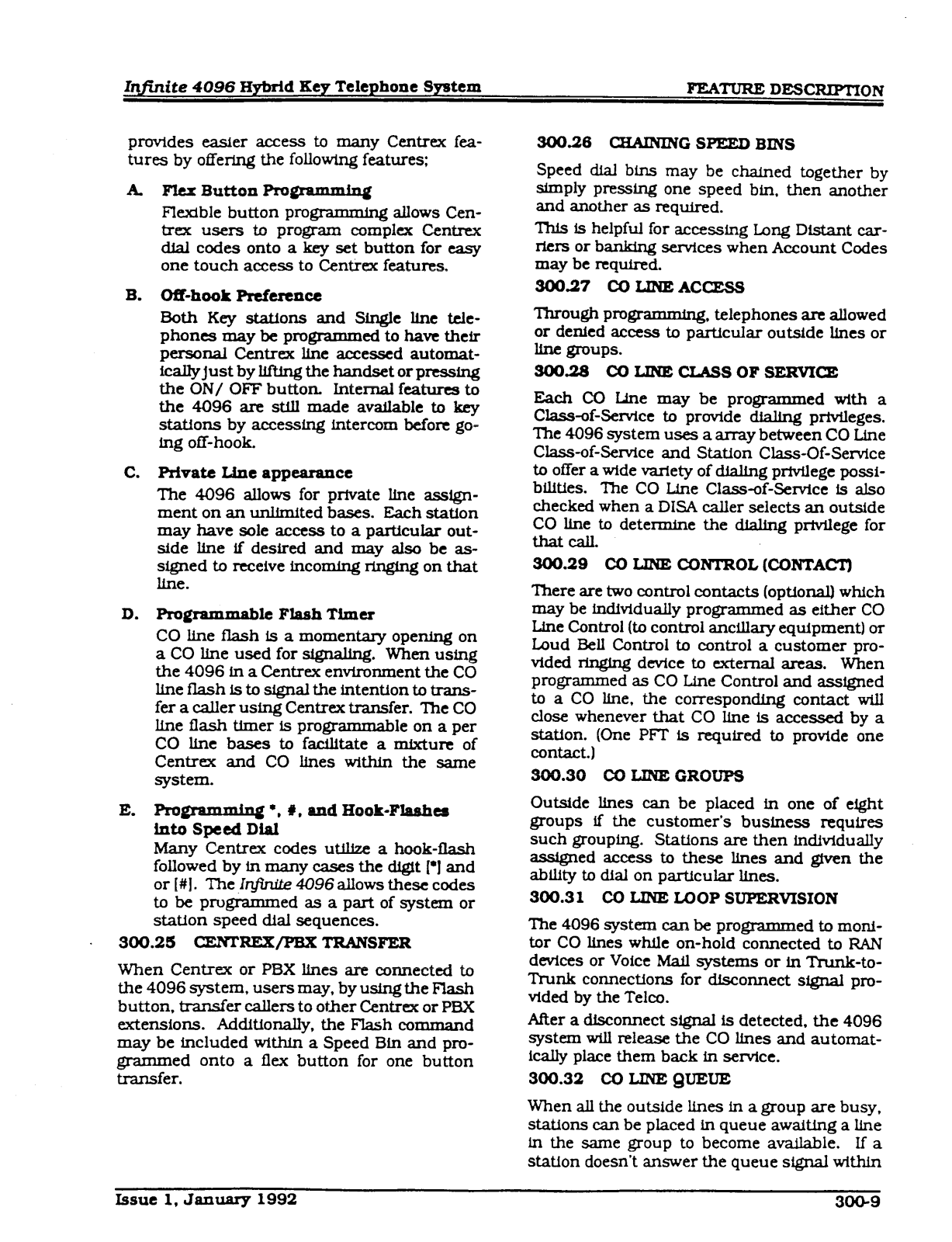

30043

Issue 1.

January 1992

Infinite 4096 Hybrid Key Telephone System

FZWURE DESCRIPTION

provides easier access to many Centrm features by offering the following features:

A

Flex Button Pro@amm.ing Flexible button programming

allows Cenbzx users to program complex Centrex dtal codes onto a key set button for easy one touch access to Centrex features.

B. Off-hook Preference

Both Key stations and Single line telephones may be programmed to have their personal Centrex line accessed automatlcallyjust by lifting the handset

or

the ON/ OFF button. Internal features to

the 4096 are still made available to key

stations by accessing intercom before go-

ing off-hook.

C. Ptivate Line appearance

The 4096 allows for private line assign-

ment on an unlimited bases. Each statton may have sole access to a particular outside line if desired and may also be assigned to receive incoming ringing on that

line.

D. P’ro@ammablc Flash Timer

CO line flash is a momentary opening on

a CO line used for signa&@. When using the 4096 in a Centrex environment the CO line flash is to signal the intention to transfer a caller using Centrex transfer. The CO line flash timer is programmable on a per CO line bases to facilitate a mfxture of Centrex and CO lines within the same system.

E. Pro-

into Speed Dial

l

, I, and Hook-Flashes

h4any Centrex codes utilize a hook-flash followed by In many cases the d#t I.1 and or [#I. The Irgpnite 4096 allows these codes to be prugrammed as a part of system or station speed dial sequences.

. 300.25 CENTREx/PBXTRANSFER

When Centrex or PBX lines are connected to the 4096 system, users may, by using the Flash button, transfer callers to other Centrex or PBX

extensions. Additionally, the Flash command may be included wHhin a Speed Bin and proz;d onto a flex button for one button

.

pressing

30028 CHAlNING SPEED BINS

Speed dial bins may be chained together by simply pressing one speed bin. then another and another as required.

This is helpful for accessing Long Distant car-

rlers or

banktng se~ces when Account Codes

may be required.

30027 CO LINE ACCESS

mow$ Programming,

telephones are allowed

or dented access to parttcular outside lines or

line groups. 3002s couNEcLAsSOFSERvIc!E

Each CO Line may be programmed with a Class-of-Service to provide dialing privileges.

The 4096 system uses a array between CO Line

Class-of-Service and Station Class-Of-Sexvice to offer a wide variety of dialing privilege possibilities. The CO Line Class-of-Service is also checked when a DISA caller selects an outside CO line to determine the dialing privilege for tllatcaIl.

300.29 CO LINE CONTROL (CONTACl’j

There are two control contacts (optional) which may be individually programmed as either CO Line Control (to control ancillary equipment) or Loud Bell Control to control a customer pro-

vided ringing device to external areas. When

programmed as CO Line Control and assigned to a CO line. the corresponding contact will close whenever that CO line is accessed by a statton. (One PFT Is required to provide one contact.)

300.30 CO LINE GROUPS

Outside lines can be placed in one of eight

groups if the customer’s business requires

such grouping.

Stations are

then individually assigned access to these lines and given the ability to dial on particular lines.

300.31

CO LINE LOOP SUPERVISION

The 4096 system can be programmed to moni-

tor CO lines while on-hold connected to RAN devices or Voice Mail systems or in Trunk-to-

Trunk connections

for disconnect signal pro-

vided by the Telco. After a disconnect signal is detected, the 4096

system will release the CO lines and automatlcally place them back in selvlce.

300.32 CO LINE QUEUE

Issue 1, January 1992

When all the outside lines in a group are busy,

stations can be placed in queue awaiting a line in the same group to become available. If a station doesn’t answer the queue signal withtn

300-S

FIMTURE DESCRWl’ION Infinite 4096 Hybrid Key Telephone System

15 seconds, that station is dropped from the ically terminate the call when both parties

queue.

300.33 CO LINE E’iWmG RINGING AS SIGNMENT

Each CO line may be programmed (in data

base admin) so that incoming ringing on the

specif3ed CO line(s) may be assigned initial ringing to one of the following destinations:

l

one or more stations (Keys& or SL?)

l

To a UCD. Voice Mail or Hunt Group

l

m-Net (via Speed Mall

The ring-in w-ill follow Day Ring assignments unless Night Service mode is active. in which case all incoming CO calls will follow Night Ring assignments.

When ringing is assigned to a keyset, a direct

line appearance or an idle Loop button must be available to receive the call. Station call forxuding of initial ringing CO caJl is possible and can be directed to other keysets with an available Loop button or direct appearance.

Ifthein.ltfallyrQ$ngCOcallcannotringatthe destination assigned, it will ring at the tit

Attendant station.

NOTE: You

cann.ot~Callmnuardmin-

iliaLk~rirqingCOazUtoUCD,VoiceMa4orHunt

gmupsiftheUne&assignedtoringatmorethan

one station

hang up, when bp Supervision is pro-

vided by the telco and enabled in the data

base.

A programmable conference timer will disconnect the unsupenflsed conference if the initiator does not re-enter.(Requires

APL board.)

300.38 WNFERENCE ENABLWDISABLE

A ProqrPmmable Per Station:

‘R& feature will allow the system to be administered on a per station basis for the

ability of a statton to initiate a conference.

B. Progmmmahle Pa CO L&e:

CO lines can be individually programmed to allow Conference capabilities.

300.37 DATA EASE PRINTOUr (DUMP)

Through a system programming command,

either portions of or a complete data base dump can be printed using the RS232C con-

nector located on the 4096 CPB.

300.38 DAY/NIGET CLASS OF SERVICE (=w

Thts feature allows statlons that are a ceW

COS during the day, to be assigned a different

COS when the system is put in the night mode. The night COS goes into affect when the system is placed into the night mode, manually or

300.34 CO RING DETECT

The duration of the ringing signal from the CO

or the PBX is matched with ringing detection

circuitry in the KSU. The rln.g detect can range from 200 to 900 msec. programmed in 100 msec increments. This timer helps prevent false ringing.

300.35 CONFERENCE

There are three Werent types of conferencing:

automatically. This prevents the misuse of

phones after hours.

300.39 DEFAULT BVrrON MAPPING

The 4096 allows for 20 fltible buttons on each

Enhanced or Executive key telephones to be flexibly assigned to CO/PE3X lines, DSS buttons, Speed Dial or Feature buttons. However the system will power up with a default button mapping as shown in Figure 300- 1.

300.40 DIAL PULSE SENDING

Add On Conference

A

Up to iIve internal parties can engage in a conference, or four internal parties with a

limit of one external party.

B.

Multi-me confennee One internal statton can engage in a con-

ference with two outside parties.

Unsupen+& Conference

C.

The conference initiator can exit a confer-

ence with two outside parties and leave them in an unsupervised conference. The initiator can re-enter the conference at

Each CO interface circuit for outside lines can be programmed to send dial pulse or DTMF signals. Dialing speed and break/make ratios are programmable.

300.41 DIMJNG PRIVIWCES

The system provides a flexible means of providing toll or dialing restrfction. Through the

assignment of class of service (both station and outside line) many combinations of

allow

and deny numbers can be set. Both area and office codes can be screened for allow/deny pri-+ leges.

any time. The 4096 system can automat-

300-10 Issue 1, January 1992

I

f

Issue 1. January 1992

Figure 300-l Iqjinite 4096 Default Mapping

300-11

FmuuRE DESCRXEVON

@finite 4096 Hybrid Key Telephone System

300.42

300.43

DIRECTORY DIALING DIRECT’ B’AVARB SYSI’EM AC-

c=sIDIsA)

Allows as many as three simultaneous outside

line calls to be programmed to provide direct

access to the system and the use of features such as WATS lines. intercom dial tone or the ability to dial out on outgoing trunks without going through the attendant. The duration of aTrunktoTrunkDISAcal.lcanbesetbythe system administrator.

The APL card is required to provide the DISA feature.

A

Rug-hle AcceIM

A

3-d&$ security code can be assigned in the system database to restrict unwanted use of the DISA c.ircults. Each DISA lfne can be programmed independently for 24 hour DISA use or night DISA use only.

B.

CO Line Group Access

Incoming DISA callers may access all line groups such as FX or WATS l.t.nes or other outgoing services from home or while away from the office. The Class of Service assigned to the outgoing line accessed will determine the dialing privilege for the call.

c.

station Aece.ss

DISA callers may dial any station directly without going through the attendant.

If a DISA caller attempts to call a station that is busy or does not answer the system

will return ICM dial tone at the end of a

programmable timer (Preset Forward

Tfmer). ‘Thfs will allow the DISA caller to

txy another station wlthout having to dial into the system again.

300.44

DIRECl’

STATION SELECTION

The user with DSS buttons assigned at their Key Telephone can call an intercom statton by

simply pressing the appropriate DSS button.

The called station is automatically signaled.

300.45

A Cdl

DIRECTED

CALL PICKUP

pfck-up - Station

A station can pick up an fntercom call,

transferred, incoming. or recalling outside kne call to a specific unattended station.

The call must be a tone rtnging call.

B. Call Pick-up - UCD Groupe

StatIons outside of a UCD group can pick up an intercom call, transferred, incoming.orrecalhngoutsldeknecallrfngmgto a specific UCD station. The call must be atonerlngingcall.

300.46 DIRECTORY DIAIJNG

Station users with Executive D&play telephones may vfew a ltst, of up to 200 names,

from the system directory on the statfon’s LCD

display. then automatically dial the station or

speed dfal bin by pressing a single key. Names placed in the directory list may be associated to Intercom Numbers or System Speed dial bins. Users may VLCW the directory list beglnnfng with any letter of the alphabet then scroll through the list either forward or backwards.

When the desired name is d&played on the

LCD display pressing the Speed Call button

will automat&&y place a call to that de&maUon. Directory dialing may also be used to transfer a call from one statfon to another.

300.47

DISABLE OUTGOING CO LINE ACCESS

This feature allows the tit Attendant station

to dial a code and disable a CO lfne from outgoing CO calls. This applies to all station(s) that have access to that hne. Incoming status is not affected. This feature fs a part of the ‘Maintenance” package.

300.48

DO NOT DISTURB @ND)

Placing a keyset in DND wfll elimfnate incoming outside line ringfng. intercom calls. transfers and paging announcements. A rlngtng

station may go into DND to silence ringing. The attendant can overrfde a station fn DND. The station in DND can use the telephone to

make normal outgoing calls. A statton can be

denied this feature through progmmmlng. A. One-Time Do Not Disturb

Allows a station user to turn off muted

ringing that occurs while off hook fhandset or ON/Om on another call. Useful when having an mportant conversation and do not wish to be disturbed by ringing. The station. while off hook, (ON/OFF or handset) depresses the DND button

whtch ellnnn.ates muted rlnglng. When

the station gcxzs on-hook the DND button is extinguished and DND is canceled.

This feature is not ava&ible to intercom

Phone Bax users.

300-12 Issue 1. January 1992

In.ite 4096 Hybrid Key Telephone System F’EATURE DESCRIPTION

300.49 DTMF SENDING

Each CO interface circuit for outside lines can be individually programmed to send DTMF (tone) or dial pulse signals.

300.50 EMERGENCY TWWSFER

Two Power Failure Transfer cards may be in-

stalled so that in case of a power failure, up to

12 CO lines can be automatically connected to

specifYied customer provided SLTs.

300.51 END TO END SXCHAILMC

This feature indicates the capability of the

system to accept DTMF tones f?om stations. send them through the public network and have them received at the distant end for computer access. or a variety of control functions or inward call completion at a distant switching system.

300.52 EXCLUSIVE HOLD

When a line is placed on Exclusive Hold, no other station in the system can retrieve this call. Hold may be programmed to be acttvated on the fat or second depression of the Hold button. CO Lines while in a transfer hold are always placed in an Exclusive Hold condition.

300.53 EXECUTIVE OVERRIDE

This feature allows certain stations to be des-

ignated as executive stations with the ability to override and “Barge in” on other keysets engaged in conversation on a CO line. Stations engaged in intercom conversations can be overridden, however, the intercom call will be dropped when the ovenide occurs.

In addition to the station programmable option a system programmable option will enable or

disable a warning tone when the station marked as an executive is cut into the conversation. This is useful for UCD agent supervisor

or training personnel who require a service

obsenlng option.

NOlEAdecreaeinvo~may~onthe

co line a.@ the barge-in OccuJ-s.

CAUTION: USE OF THIS FEATURE WHEN THE EXECUTIVE OVERRIDE WARNING TONE IS

DISABLED MAY BE INTERPRETED AS A VIOLATION OF FEDERAL OR STATE LAWS, AND AN INVASION OF PRIVACY. CONSULT COUNSEL WlTH RESPECT TO APPUCABLE LAW BEFORE

INTRUDING ON CALLS USING THIS FEATURE.

300.54 ElUXIJT’XVE/§F,CRETARY TRANS FER

There are four sets of ExecuUve/ Secretary

pairings available. When the Executive station is busy or in DND, the Secretary station will

receive intercom calls and transfers. The Secretary station can signal the ExecuUve in DND by using the Camp On feature.

300.55 EXTERNAL

NIGHT RINGING

The system can be programmed so that CO

lines marked for UNA Wtu activate Loud Bell

control contact Xl connected to an external ringing device when the system is placed into Night mtie. A PFT is required to provide one LBC contact.

300.56 FLASH Provides telephone users with the ability to

terminate an outside call or trar&er a call

behind a PBX or Centrex and restore dial tone without hanging up the handset. A FLASH button is located on each key telephone.

300.57 FLASH ON INTERCOM

‘IWs feature enables key station users to utiltze

the Flash Key to terminate pages and intercom cab. While connected to a page zone or another internal station pressing the Flash key will terminate the call and return intercom dial tone.

300.58 FIASH WITH SPEED DIAL

A flash can be programmed within a speed dfal

number. When this is done, a pause will auto-

mat&ally

be inserted before the remalnlng

speed dial digits are sent.

300.59 MXUBlS

ATTENDANT

Any three Key Telephones in the system can be assigned as attendant stations. These staff ons will receive recalls and can place the system into Night Senlce. The attendant stations must be either Enhanced or Executive stauons.

300.60

FLEXIBLE

BUM’ON ASSIGNMEXVI’

Each Key Telephone has 20 (Enhanced and Executive) flexible buttons which can be indi-

vldually programmed. One of the following

seven operations can be selected for each button: ALSO refer to Sec. 400.33.

l

Outside line. Automatically accesses assigned line. (Assigned in database)

l

DSS/BLF. Automatically signal assigned staUon and provides BW for off-hook and DND. (User programmable)

0

Feature. Any feature with a dialing code (ie: Personalized

Messages,

Paging, Account Code, Call Park. Music, LCR etc.) can be assigned to a flexible button. (User programmable)

Issue 1, January 1992

300-13

FEATURE DES-ON

@firtiLe 4096 Hybrid Key Telephone System

0

Group Access. (ie: UCD, Hunt, Voice Mail group pilot numbers) (User programmable)

0

Speed dial. Automatically dials a Speed number. (System. Station, Saved Number Red&l. Last Number R&al) (User pro-

grammable)

l

Pooled group access. Some or all outside lines can be grouped; pressing this button accesses the highest numbered unused

CO line in that group. (Assigned in data-

base)

l

Loop. Used to answer a transferred call on a Une for which a user does not have a

button assigned. (AssIgned in database)

300.61 FORCED ACCOUNT CODES

The 4096 system allows the system to be ar-

ranged so that station users must enter an account code before placing an outsfde call.

Account codes can also be used as a Traveling

Class-of-Setice to upgrade a restricted sta-

tions class-of-service for unrestricted dialing. Account codes must be entered before the call when forced.

300.62 FORCED LZAST COST ROUTING

The 4096 System may be programmed on a per

station basis to force the use of LCR for outgoing accessing. TNS allows the system administrator to maintain greater control over d.Mng patterns and the lines used for placing outgoing co calls.

300.63 GROUP CALL PICK-UP Stations can be placed in one or more of four

pick-up groups. Stations within a group can pick up tone ringing intercom calls, recalling

outside line ringing. or transferred outside line calls for another station in that group.

300.64 -SET COMPATD3IUl-Y

The @?nf.te electronic key telephones are de-

signed to allow the connection of an industry standard, electret mic compatible, modular

headset. The user connects the modular head-

set to the handset jack on the telephone leaving

the handset in place. The ON/OFF button on the key telephone is then used to act&ate the headset

300.65 HEADSETMODE Each Electronic key telephone can be indivldu-

ally programmed for headset operation. When programmed, an industry standard Headset

with it’s adapter box may be connected to a key

telephone for headset use. This allows handset or headset operation by switching the se-

lector switch on the adapter box. Speakerphone operation and call announce on intercom are disabled while a station has enahled headset mode.

Once programmed in station programming the user may then select between headset mode or normal handset/speakerphone mode by s&nply dialing a code or pressing a user program-

mable flex button

300.66 aEARMGAIDCOMPATIBI2

All Ir@f& Electronic key telephones are hearing atd compatible in compliance with the FCC Part 15, section 68.316. TNS allows the telephone to be used in conjunction with users wearing hearing alds.

300.67 HOLD PREFERENCE

ll-ds allows either Exclustve or System hold as

the primary hold on the first depression of the HOLD button, depending on programming.

300.68 HOLDWhen an outside caJl has been on Hold for a

programmable length of time, recall ringing tone is sent to the station placing the call on Hold. Ifthls station does not answer the recall. a recall tone is sent to the attendant(s).

300.69 HOTLINE Electronic Key Telephones may be pro-

grammed to mediately call or ring down a

particular station or outside number upon going off hook. ‘RI.& is performed by program-

ming the stations Off-Hook preference to

activate a DSS or Speed dial feature key.

300.70 HUNTGROUPS

The system can be arranged for up to eight (8)

Hunt groups. Each Hunt group can contain

up to eight stations each. Each Hunt group is

independently arranged to utilize either a pilot hunting technique or station hunttng technique.

A PilotHun-

Incoming CO, transferred CO, and intercom calls can be directed to a pilot extension number of a Hunt group. The system

will search sequentially (in the order the

extensions were entered in the data base programming for an idle station in the

group

and will ring that station. Calls dlrected directly to stations Iby calling the extension number) within the hunt group

300-14

Issue l,January1992

&#nite

4096 Hybrid Key Telephone System

l%U’URE DESCRIFTION

will not hunt but receive call progress

tones of the extension dialed.

B.

St&on Hunting

Incoming CO, transferred CO, and intercom calls that are presented to a busy, or DND station. that is a member of a Station Hunt group, will search sequentially (in the order the extensions were entered in data base prom

for an idle station in the group and will ring that station. Calls can also be directed to the groups pilot number for hunting.

C.

Hunt Group Chaining

Hunt Groups can be chained or joined

together forming larger Hunt Groups.

This is accomplished by assigning a pflot

hunt group number as the last member of a group.

300.71

INCOMITfG CO LINES OFF-NET FORWARD (VU SPEED DIAL)

Allows the first attendant to forward incoming CO calls to an off-net location. The attendant can forward a group of CO lines or all CO lines to a off-net location. The attendant must have a dfrect appearanc e of the CO line(s) to be forwarded. Off-net forwarding is accomplished

via use of a speed dial bin and requires the APL

card to be installed in the system.

300.72 INTERCOM CALUNG

The System’s architecture allows 14 intercom

paths for internal traffic capability, 12 of these paths can be used by

SLTs. A

station is reached on intercom by dialing the associated three-d&it number.

300.73 INTERCOM SIGNALING w

Users can control the method by which they receive intercom calls and slgnals. A convenient intercom signal switch is located on each Key Telephone for easy selection. The choices are:

l

Handsfree NIleft position). The station

user. upon hearing a tone burst and voice announcement over the speaker, can reply handsfree.

l

Tone Ringing (TJ(middle position).

A

standard tone ring notifies the party of an incoming intercom call. The called party answers by lift&g the handset or moving

the switch to the handsfree (H) position or pressing the ON/OFF button.

l

Privacy IPMght position). The station user receives a burst of tone and a voice

announcement over his/her speaker. The microphone is deacuvated for privacy. ‘Ihe called party must lift the handset or press the ON/OFF button to answer the calI. /Or move the switch to the handsfree N position.)

300.74 LAST NUMEERREDIAL(MR)

Permits the automatic redMing of the last

telephone number dialed on an outside line.

Up to 32 digits can be stored. Outside line

selection of the same line used is automatic.

300.75 ED lNl”EIUCTlVE DISPLAP

The optional 34 button Executive Key Tele-

phone provides the user with visual indication of call status, calls to and tirn other extensions, number dialed, line used and camp-on are some of the features displayed. Refer to Section 410.1 for an illustration of the LCD

&Plays.

300.76 LEAST COST ROUTING (LCRI

Allows the system to automatically select the

least costly route available according to the number dialed. the time of day/day of week, the chss of setice (COS) assigned to the station/trunk group priority level assigned.

A LCR 3-Di@t Table

l%.is table is divided into 2 sections: ‘Lead-

ing 1” (” 1” Is dialed before the number) and ‘Non Leading 1” (no ‘1” is dialed before the number). This gives the system the ability to handle calI routing in areas that require a ” 1” before a long distance number as well as in areas that do not require the ‘1”.

B. LCR S-Diglt Table (Office Codes)

The s-Digit Table can include 20 office

code maps. Each map can be programmed to route up to 800 office codes to one of the

16 possible route Ms. Each map must be

associated with a specific area code in the 3-D@ Table. Several different office code maps can be used with the same area code to provide additfonal routtng flexibility.

C.

Route List Tables

Up to 16 Merent routes can be prozwd&Each route can contatn up to 4

- one for each of the 4 time periods. Up to 7 CO line groups (routing choices) and their corresponding Insert/Delete Tables may be programmed

within each route list.

Issue 1, January 1992 300-15

Insert/Delete Tables

There are 20 Insert/Delete Tables. Up to

20

digits. including pauses, can be inserted and up to 16 digits deleted. Digits can be inserted before or after the number dialed. but can be deleted only from the

beginning of a number dialed.

Weekly Time

Table8

The least costly mute for a particular di-

aled number may be different at dlffercnt

times of the day and on different days of the week To accommodate this situation, there are 2 Time-of-Day tables - Daily Start

Time Table and Weekly Schedule Table. The Weekly ‘IYme table determines which

one of the 4 Routes LCR should use based on the Time-of-Day and Day-of-the-Week.

F.

Daily Start Time Tables

The Daily Start Tlme tables allow the user

to match the Time Perlods d&count &UCture to the can-lers rate schedule.

G.

Bception Tables This table is used to route operator as-

sisted calls and any other calls which would use a l- or 2-digit number rather than a 3-digit area code.

I-I.

Default LCR D&abase Inanefforttodecrease installation and set

up time usually associated with L+CR a

default LCR data base has been incorporated. ‘Ihe default LCR data base will provide basic routing for all local and long distance dhling.

I.

IXR Routing

for

Toll Inform&ion

This feature adds provisions to the LCR

call processing which will allow common call routing for all toll information calls.

l-(xXx)555-X212. (xXx)555-1212, l555-1212 and 555-1212 calls will all be intercepted and sent to a selected route in

the Route List Table. Numbers dialed will be integrated and if it is determined to be a toll information call, either preceded with an area code or without or with a leading dlgit 1 or not, the call will be sent to the route designated in progxramming

300.77 LOOP

BUTTON CO LINE ACCESS

A station not having a dirext appearance for a

CO line will receive incoming CO calls and transferred CO calls under the loop button. Only one call at a time can be connected to a

keyset on the loop button. If more than one loop button is on a key set the loop buttons

may be conferenced together.

lf all programmed Loop buttons on a keyset are busy or have a CO call on hold. the party attempting to

transfer a CO line to that station will receive busy tone and cannot transfer the call to that statton. If a transfer is attempted. the CO line

will recall the initiator immediately and the transfer recall timer will start-

CO lines are also presented to a Loop when dialing out using LCR or when using speed dial to dial out and the line chosen does not appear on the key station.

300.78 LOUD BELL CONTROL (LBC)

Two sets of relay-controlled contacts are pro-

vided to connect external signaling devices (optional).

Each set of contacts can be programmed to follow the day and night ringing sigrmls of any station.

The fl.rst Loud Bell Control (LBC) contact also

serves as the Extema.l Night Ringing control contact. Loud Bell Control Contacts (one each) are provided with. and require the installation of, a PFT unit for each contact desired. (Max 2)

300.79 MEET ME PAGE

Users may answer a page call from any phone in the system by dialing a special code. The &wk who initiated the page must remain off-

300.80 hESSAGE WAITING

Stations that are busy. unattended, or in DND can be left a message indication by other sta-

Uons in the

system. Up to fYive messages can

be left at one keyset. Upon return to the station. the user can pnzss the flashlng MSG WAlT button to ring each party in sequential order.

300.81 MES6AGE WAITING FBMKNDER TONE

Akeystattonwithamessagewaittngcanbe

recminded at

300.82 MUSIC

a timed

ON

interval with a tone.

HOLD

Amusic source. when connected to the system. provides music to a.ll lines on Hold, parked

calls, transferred calls and calls waiting to be answered by Uniform Call Distribution (UCD).

300.83 bfUTEKEY

Pressing the MUlX button whLle in the speakerphone mode or using the handset will disable the microphone but not affect the speech coming over the speaker or handset. Pressing the illuminated MUTE button again will reactivate the microphone.

300-16 Issue 1,

January 1992

Infinite 4096 EyMd Key

Telephone S-tern

FEATURE DESCRIPTION

300.84

This feature allows every extension (Key or SLV the capability to pm the users name, for that station. so that people using display telephones will see the name instead of the station

number on their display. The name is programmed at each station by the user into station speed dial bin 00. When a name is programmed, the bin (00) is no longer used for station speed dial. The name may be up to seven (7) letters in length.

NAME IN LCD DISPIAY

300.85 NIGHT SEFWICE

A.

Manual operation

The Attendant(s) can control the use of

Night Mode ma.nuaJly by pressing the NIGHT @ND) button. An LED will indicate

when the system is in Night Mode opera-

tion.

B.

Automatic Night Mode Operation

The 4096 system can be programmed so

that the system is automatically placed

into night mode. A programmable weekly time schedule allows the system administrator to preset the time the system is placed into night mode and removed from night mode on a daily basis including

weekend operation. The Attendant(s) can override the Auto-

matlc Night mode schedule simply by pressing the MGHT (DND) button.

C.

Weekly Night Mode Schedule

A programmable weekly night mode

schedule provides for 24 hour, 7 day a

week automatic night mode operation ‘The

system can be put into and out of night

mode automatically on a daily basis. Nlgbt Class of Service (COS)

D.

The system allows each station to be as-

signed a Merent COS for night operation.

The night COS goes into effect when the

system is put into night mode manually or via the automatic schedule. Prevents the misuse of phones after hours.

Universal Night Answer (UNA)

E.

incoming CO lines can be programmed for

Universal Night Answer (UNA). Stations which do not have acces to a line during the day can answer that line while the System is in the Night Mode by dialing a UNA code.

F.

Night Ringing Ass~ents

Each CO line may be individually programmed for Night ringing to other stations, to Hunt groups, UCD groups, Voice

Mall groups, or off-net via speed dial. When the system is placed into mode. manually or automatically, ringing will follow the night ringing assignments for each CO line.

G.

External Night Rfnging

The system can be programmed so that

CO lines marked for UNA will acttvate

Loud Bell Control contact #l connected to an external ringing device when the system Is placed into Night mode.(Requlres a PFr w/LBcI

300.86 OFF-HOOK PREFERENCE

A.

Auto L&e Accese

Each station, key or SLT. may have their phone programmed to access a particular CO Line such as a private line from a Group of CO lines upon going offhook This is useful in Centrex or PBX applications when station users have dedicated lines. Outside line dial tone is received just by going off-hook, without the need to dial an access code.

B.

Auto

Feature

In addition to auto line have the ability to have their off-hook preference select a DSS or feature button upon going off-hook or pressing the ON/OFF button.

C.

Hot Line

Electronic Key Telephones may be pro-

grammed to immediately call or ring down

a particular station or outside number upon going off hook. This is performed by

programming the stations Off-Hook pref-

erence to activate a DSS or Speed dial

feature key.

D.

Intercom tie88

When off-hook preference is enabled. at a

key station, that station may sttll obtain Intercom dial tone for accessfng internal stations done either by pressing an intercom button or dialing their own intercom station number prior to going off-hook.

Accese

access

or

other system features. This is

Key Stations

night

or a line

Issue 1, January 1992

300-17

FZATUREDESCRWTION In$.nite 4096 Hybrid Key Telephone System

E. User Programmable Preferena

Based on a station programmable option Key stations may be given the ability to enable, disable or change their off-hook preference by dialing a code. TNS option can be denied in station programming on

a per key station basis.

300.87

OFF-HOOK SIGXWUJNG

If a station has been programmed to receive direct outside tie ringing and is busy on an-

other call, that station Mll receive muted ring to indicate another call is ringing in. Additionally CO calls may be ‘camped-on” to a busy station and receive muted ringing.

300.88

OFF-HOOK VOICE ANNOUNCE

Provides a means for the calling party of an attempted intercom call to make a voice an-

nouncement and receive a handsfree reply from a busy station: two conversations could be conducted on the same phone at the same

Ume. The receiving station(s) must be S~JC-wire

OHVA equipped keysets, and each, must be programmed in data base. KIB-OHV is also required for OHVA operation.

300.89 OFF-PREMISE EXTENSIONS (OPX)

The Off-Premfses Extension Board (OPXI provides 4 FCC registered 2500~type single line

interface ports. This enables the use of 4 offpremise 2500 telephone sets. When an OPX board is installed. the maximum number of stations in the system is reduced by four. A precise tone plan is provided to OPX stations.

An APL and Ring Generator are required when

fnstalling OPX Boards.

300.90 ON HOOK DIALING

The Key Telephone user can place calls without

lffting the handset. If the speakerphone is disabled. the handset must be IlfIed to con-

verse.

300.91 ON LINE PROGIUMMJNG

Changes to the system data base with the exception of the LCR data base can be made

without interrupting normal system operation.

Programming may be preformed using a key station terminal connected to the system (sta

100) or via a external terminal either on-site or

remotely.

300.92 PAGMG

k EkternalPaging

There is one external paging zone option-

ally available in the 4096 system. External Paging requires a two-digit dialing code.

External paging requires the APL Board and an externally provided amplifier and

paging system. One ( 11 make and one (1) break contact are provided with the page zone on the APL Board.

B. IntcrnalPa#ng

There are four internal paging zones avail-

able in the 4096 system. A station can be

in any or all u>neis or in no zone at all.

Stations

not assigned to a page group can still make page announcements, ifallowed in station progmmming. Stations can be assigned to a page group in order to receive pages but not allowed to make page announcements.

C. Pqhq Access Restriction

Programming on a per-station basis, can deny any station the ability to make any

type of page.

300.93 PAUSE TIMER

When dialing a speed number, a timed pause between digit sending can be placed in the number. ‘The length of this pause can be programmed in the system database.

300.94

PBX DIALING CODES

The System will allow five one or two-digit

access codes to lx entered into memory. When one of these codes is dialed, this signals the KSU that toll restrkUon is to be applied at the next dialed d&its after the code. If one of these codes is not dialed, toll restrictton does not apply. This allows the dialing of PBX extensions 100, 110. 111. etc. This functions on lines marked as PBX type lines in program-

ming*

300.95 PERSONALIZED AUESSAGEZS

Each station (Key and SLV can select a pre-assigned message to be displayed on the LCD of the Key Telephone calling that station. There are ten possible messages which can be dis-

played:

-

VACA’IION

-

RETURN MORNING

-

RETURN AFl-ERNOON

-

REl’URN TOMORROW

-

RElURNNEXTWEEK

-

BUSINESS TRIP

-

MElTING

-

HOME

-

ON BREAK

-

LUNCH

300-18 Issue 1, January 1992

Infiite 4096 Hybrkl Key Telephone System FEATURE DES-ON

A Personalized Messaqe Code QP s Flex

This feature allows a key station user to program the pre-selected meSSage code

1781

under a Flex key. This speeds access

of the pre-selected messages.

300.90

A

Phone Box may be substituted for a tele-

PHONEBOX

phone on a one for one basis. The phone box

can

be used to receive intercom an-

nouncements and also provide handsfret re-

sponse. There is also a CALL button which will signal all stations programmed to receive phone box signaling (stations that have a pro-

grammed DSS flex button for the phone box

station). One of these stations can respond to

this signal by pressing the DSS/BLF button or dialing the intercom number of the phone box station. Two way conversation is then possible.

The Phone box also has a DND button that when enabled will blocking calls when privacy Is needed. Back Ground Music may be presented to the Phone Box and can be controlled (on or ofl’I by the attendant

300.97

The

POOL BUTTON OPERATION

Pool Group Key Is used primar@ to access

station

CO. lines that do not appear on a station so that outgoing calls may be made. Pooled group keys are associated to CO line groups and may be programmed for use on any of the flexible line buttons that do not represent CO line appearances directly. CO lines are accessed in

descending order of priority starting with the hfghest numbered available (not busy) CO IIne fn a CO line group.

Stations may have as many POOL buttons as their are CO line groups (7). MulUple POOL

buttons for the same group are also allowed.

300.98

A

station with Preferred Lfne Answer can an-

PREFERRED

LINE ANSWER

swer any assigned outside. transferred, or re-

calling line, or queue callbacks by lifttng the handset or pressing the ON/OFF button.

300.99 F’RIVACY REIZASE

Privacy is insured on all

communicaUons in

the system. If desired, the customer may elect to disable the Automatic Privacy feature. Thus allowing another station to join in on existing CO Line conversations.

A Per Station Option

Each station may be programmed to give the station the capability to join an exist-

ing conversation simply by pressing the CO line button that is in use. A warning tone is presented to all parties when the station enters the conversation. The CO line must also have privacy disabled to

allow the cut-through.

B. Per CO Line Option

l%.ls feature allows each CO line to be

individually programmed for privacy. This feature is useful for maintaining security on such lines as Data lines, Private Iiris, or special circuits requiring privacy. If privacy is disabled on a CO line then. while in use, another statton may enter the con-

versation simply by pressing the CO line button. A warning tone is presented to all parties prior to actual cut-through. The statton attempting to enter the conversaUon must also have privacy disabled.

NUZEAdecreuseinwlumemayocnvonthe

COLinecJterthecut-thmughccrm-s.

300.100 PRIVATE LINE

Fbivate line programmmg allows certain lines

to ring at a specific station only. When placed

on Hold, these lines are

grammed station only. A private line can be

transferred to other

300.101 PULSE-TO-TONE SWITCHOVER

stattons.

When co mmanded. the system will change the

signaling on an outside line from dial pulse to DTMF (tone), allowlng the use of common carrlers behind

a dial

pulse outside line. This can be done manually when dialing. stored within a speed dial number.

300.102

RANGE PROGRAMMING

The Ir$nite 4096 allows for range programming when programming CO lines and Stations.

Range programming allows you to program all parameters alike for the entire range or you can change ormodify a few items that will be copied

to all members in the range.

300.103

REMOTE ADMINISTIUTION

The Remote Administration feature allows

authorized personnel to access the admtnistraUon programming via a terminal device (portable terminai device or personal computer with communkaUons software package).

The feature pennits the review and entry of the

customer database in the same manner as via the telephone at ‘admin. extension 100. The terminal device can be connected directly to the

RS232

connector on the CPB board, or can be

active

at the pro-

or can

be

Issue 1, January 1992 300-19

FEA’IURE DESCZRPTION Infinite 4096 Hybrid Key Telephone System

accessed by a telephone modem linking the CPB’s RS232 connector (via a CO line) to a remote location.

300.104

REadOTE S- MONITOR AND

-cE

A RemoteSystem

Monitor

The Remote Monitor feature provides remote access to the installed system for

diagnosttc purposes. These capabllities

benefit Se-e personnel enabling them to

support the end user remotely. Different levels of access, via password, allows authorized personnel to trace, monitor and ‘up-load” critical information directly from the 4096 system. This provides a more accurate means of acquiring system information that leads to a quick resolution of problems that may occur. This is all done without interfering with ongoing cdl processing or normal system opera-

tion, and in many cases may be performed

without a site visit. An external modem

connected to the CPB RS232-C is required for remote access.

Capabiltties allowed and reserved for this “High level troubleshooting” in addition

are:

l

Monitor Mcxle

l

Enable & Disable Event mace”

l

Dump “Trace Buffer” (up-load)

B. Remote System Maintenance

The Remote Maintenance feature allows

the Interconnects’ technical staff to review the systems configuration data and indi-

vidual card slot configuration data. This

can be done ‘on site” using a data terminal or remotely using modem to modem ac-

cess to

a remote data terminaL In both cases connection to the RS232C connection on the CPB is required.

300.105 SAVE NUMBER RED&IL (SNRI

Any number dialed on an outside line can be

saved permanently to be used at any time. This number is saved until a new number is stored.

300.106 SINGLE LINE TELEPHONE (SLT)

COMPATlBlUlT

The 4096 system supports industry standard

2500Type (DTMFI singIe line

mmum of 88 single line telephones may be

installed and operate on the In&f& 4096 Hy-

brid Key Telephone System. SIB, APL and RG

cards are required.

instruments. A

300.107 STATION

MESSAGE DETAIL RE-

CORDING (SMDR) The InjInUe 4096 Key Telephone System provides one industry standard RS-232C port for

dual purpose use and a second port is optional for SMDR output each allowing connection to an external prlntcr or ca.U accounting device.

The system provides details on both incoming

and outgoing calls. This feature is program-

mable to allow all calls or just outgoing long

distance calls to be recorded. The system tracks calls by out&de line. number dialed. time of day, date, station that placed the call and duration of call. Account codes may also be entered and recorded.

300.108 BONE Both Enhanced and Executive Key Telephones

are equipped with a speakerphone. However,

the speakerphone can be programmed to work

in one of three ways:

l

Normal speakerphone operation.

l

Disabled for outgoing and incoming CO

calls but handsfree talkback on intercom

alIowed.

l

Headset operation allowed.

300.109 STATION CLASS OF

SERVICE

Each station is assigned a Class of Service which governs that stations d.ta&ng privileges. Day Class of Service and Night Class of Service assignments to stations provide the system administrator additional control over station dialing. preventtng misuse of phones after hours. Six uniquely defined Classes of Service are available for assignment to stattons on a per station basis and all Ax are available for day and night asstgnment. Station Class of Service works in conjunction with CO line Class of Service to provide the most fl&le

means

for offering custom toll restriction. As a part of the Dialing privilege assignment through Ckiss of Service the system offers two programmable Allow and Deny tables for addi-

tional

customization of a toll restrlctfon plan

for a particular customer.

300.110 STATION SPEED DIAL Each station user can program up to 20 tie-

quently dialed numbers of up to 24 digits In length. Pauses, flash commands. pulse-to-

tone switchover, and NO-DISPIAY characters take up digit spaces. There are a total of 1280

speed locations to be divided among all tele-

phones on a tit-come, first-serve basis.

300-20

Issue 1, January 1992

mite 4096 Hybrid Key Telephone System

I’EATUHE DES-ON

Numbers are dialed by use of the SPD button and a two-diglt code. Th& feature can additionally he assigned to any of the 22 buttons in the flexible button field on each keyset for one-button activation.

300.111 6YsTEM CXPACITY

A. Up to 24x48 CoufI@rat.ion

Without the Expansion KSU, the 4096

system will support a maximum of 24 outside CO circuits and 48 stations cfr-

cuits.

B. Up to 40x96 Comtion

With the addition of the Expansion Cabinet the 4096 system can be expanded to a total of 40 CO lines and 96 stations. Also requires additional power suppiy (PS).

300.112 SPSTEM HOLD

When a lfne is placed on System Hold, any station in the system with access to that line can retrieve the call.

300.113 SYSTEM SPEED DIAL

Up to 80 commonly dialed numbers can be programmed into System Speed Dial for use by stations allowed this feature. These numbers can be up to 24 digits including pauses, flash commands, pulse-to-tone switchover, and nodisplay characters. The last 40 numbers will

not be monitored by toll restriction.

300.114 TOLL RE6TRICI’ION (TAB= DRZYEN)

The system provides a flexible means of provid-

ing t0I.I restriction to internal stations of the In.$n.& 4096 key telephone system. Each station is assigned a Class of Service for day mode operation and one for night mode operation these station COs’s work in conjunction with a CO line Class of servfce to allow for customized toll restrictton. Two (2) Allow and Deny tables along with four (4) special tables afford the system administrator to devise a variety of

. complex toll restriction or dialing privilege

schemes.

300.115 TILWSFER RECALL Screened and unscreened transfers will recall

the initiating party if unanswered for a pro-

grammable length of time. and then if unan-

swered, will recall the attendant.

300.116 UNIFORM CALL DISTRIBUI’ION WCD)

Eight Uniform Call Distributton (UCD) groups can be programmed, each containing up to eight 3-Digit station numbers. Each group is

assigned a pilot number. When this number is dialed. the first avallable agent in that group is rung. Calls are routed to the station that has

been on-hook for the longest period of time.

h

Alternate UCD Group Assigumeuta

An alternate UCD group can be pro-

grammed so that if stations in one group are busy, the alternate group wtll be

checked for an available station.

B.

Overflow Station Assignments

An overflow station may be assigned to route callers in queue to a designated

station after a specified time. The overflow station may not be one of the UCD group

stauons.

C.

Incoming CO Direct Ringbg CO Unes can be programmed to ring di-

rectly into a UCD group. When all agents

are busy and RAN is enabled, the system will answer the caller and present the 1st RAN announcement automatically.

D.

Recorded AMouucements (R4Nj Recorded announcement devices can be

assigned to provide up to two different

messages. if all stattons ln a UCD group

are busy. The two messages are avatlable

to all eight (8) UCD groups in tierent configurations. A RAN device can provide an announcement to one caller at a time. Subsequent callers will be queued onto the message on a first-in basis.

E.

Numlxr of CalIs in Queue Display There are two methods of viewing UCD

Group call queue status.

1.

In-service UCD agents and the assigned overflow station will see the quantity of calls in queue on the LCD of their station for the UCD group of which they are a

member. If every member of a UCD group

is busy and calls are in queue, the ‘Xx CALLS IN QUEUE’ display will be seen at

all UCD members of that group.

NOTE: Ifa UCD rnem&r is taken out of the pup (le. DND, Cd Fbmxn-dUnauatlnb le etc.) they wiUnotreceiu2cdsinqueuetn$~n

2. Any station not assigned in a UCD group can view the number of calls in queue for any given UCD Group. To view the num-

ber of calls in queue the statfon user dial’s the CalIs In Queue code (or presses a programmed FLEX button with this code) then enters the UCD group desired. The

Issue 1, January 1992

300-2 1

m=DESCRWTION

&finite 4096 HyMd Key Telephone System

LCD wi.l.l

number of caJls in queue for that group.

F. UCD Allto wrapup wa/ Timer

After completion of a UCD call (on-hook)

the agent will not be subjected to another UCD call for the duration of the Auto

Wrap-Up timer (regardless of the number

of calls in queue), allowing the agent to finish call related work facilities. This will allow agents to remove themselves from the group (le. DND. Unavailable, Call Forward or originate another call). The auto wrap-up timer is

programmed as part of the UCD data base.

(System-wlde)

display, on a reai time basis, the

or access

other

G. UCD AVAILABIX / UNAVAILABLE

Stations programmed into a UCD group may log off and on to their assigned UCD group by dialing an Available/Unavailable

code. When an agent is in the Available mode that agent will receive UCD calls in the normal the Unavailable mode that agent will no longer receive UCD type calls, however

may receive non-UCD calls. Agents that

have logged off by going Unavailable will

‘receive a visual reminder that they are

logged off with a flashing LED and or a LCD display message.

manner. When an agent ls in

300.117 UNIVERSALNIGHT ANSWER W

Incoming CO lines can be programmed for Universal Night Answer (UNA). Stations which do not have access to a line during the day can answer that line while the System in the Night Mode by dialing a

UNA

code.

300.118 VOICE h¶AIL GROUPS CMa)

The Voice MaFl feature automatically handles

unanswered calls. Stations may forward calls to a voice mail group (for leaving mail) or may

call the voice mail group directly (to retrieve

mail) with no assistance fYom the attendant.

Up to eight (8) voice mail groups can be conflgured fn the system. Each group can contain up to eight voice mail stations. each of which interfaces with a port on a SIB or OPX card. Each voice mail ‘station’ can be shared by a number of actual users. An SIB or OPX Board and an APL Board and Ring Generator are required when utilizing the 4096 Voice Mail “In-Band” integration.

A VM In-Band Si@mIing Integration

The 4096 system integrates with a wide

range of Voice Mail systems through the use of ‘I.n-Band’ sAgrung.

B. Vhf Message Waiting Indication

When Voice A&il has received a voice mes-

sage for a user who has

4096 system, the VM connected to the

system will leave a

cation at the VM users station. When the station user retrieves their mail, the VM system wilI me1 the message waiting indication left at

lie message wattlng indication will ap-

pear on the programmed Voice Mail

(group) button. If such a button has not been programmed. waiting indication will appear on the MSG WAIT button as a normal message waiting

signal. SLTs will receive a voice mail mes-

sage waiting as a normal message waiting indication (Message waiting lamp).

a station v&i a VM

a station on the

message waiting indl-

port

a voice mail

message

C. Vhf CO Disconnect Signal - Pass

-m

To

avoid

Voice Mail ports fYom being Ued

up, as a result callers abandoning the call

or

not exiting the VM system properly, disconnect signal has been added to not@ the VM system that a caller has abandon. By default, ‘Silence’ is provided to the VM port followed by “busy tone’ to aid the VM system to recognize that a caller has abandoned. OpUona.lly, DTh@ digits

may be programmed to Serve as a discon-

nect code.

D. VM Tone

Voice mail systems and/or Automated Attendants can uttlize the Calling Station Tone Mode

using supervfsed transfer or call screening options on voice mail or auto attendant(s)

requiring ringback tone for proper call

-

300.119

Both speaker and

separately adjusted by ut.&ing the two slide switches on the right side of the keyset.

Mode

CaIling Option

option. This is useful

VOLUME COKTROLS

tone ringing volume can be

when

a

300-22

Issue 1, January 1992

IqjZnite

4096 Hybrid Key Telephone System

FEATURE DESCRIPTION

Single Line telephones have access to most of the system and station features listed in the previous section, however, the additional features listed below are unique to Single Line

Telephones. (An APL and a Ring Generator in

addition to SIB or OPX cards must be installed fn the system for proper SLT operation)

300.120 ACCOUKT CODE

SLT

stations may enter an account code,

up to

12 d&Its in length, to ident@ calls for bill-

ing/tracking purposes. The account code may

be entered either before the call or during the

call (the outside caller is placed on hoM while

the account code is entered if during the call.).

The account code is recorded on the SMDR

printout Account codes are non-verified and can vary in length from 1 to 12 digits.

300.121 AUTOMATIC IJNE ACCESS

SLTs may have their station programmed to

access a

line

particular CO Line such as

or

a line from a Group of CO lines upon

a private

going off-hook. This is useful in Centrex or

PBX applications when station users have

dedicated or individual lines. Outside line dfal tone is received just by going off-hook, without the need to dial access codes.

300.122 CALL FORWARD

Single line telephones may direct intercom calls and transferred CO lines to be forwarded

to another station. SLTs have access to all forwarding options that Key station user have:

. CallForward-AllCalls

l

Call Forward - No Answer [2]

. Call Forward - Busy [3]

l

Call Fonvard - Busy/No Answer [4]

l

Call Foxward - Off-Net [7]

. Preset Call Forward

300.123 CAMP ON

A

busy station can be notified that an outside line Is on hold and waiting for them. The busy station ls nottned of this by a beep tone. Single line telephones can receive

tion or

300.124 CONFERENCE

initiate one by using an access code.

a camp on indica-

An SLT user can initiate a conference with an

outside line and one other internal station.

300.138 co

NFERENcE/wITHPERsoNAL

PARK

Shgle Line Telephones (SLTJ can initiate a conference between two outside (CO) calls.

The Personal Park feature is used in conjunc-

tion with the SLT conference code to make this possible. A combination of features are derived from these new dial codes (Personal Park, Flip/Flop, and Multi-line Conference).

300.126

DIRECT OUTSIDE LINE ACCESS

Single line telephones can access outside lines

by dialing CO line group access codes 9 or 81-87.

300.127 DIRECT OUTSIDE UME RINGING

Single line telephones can be set up

to receive

direct outside line ringing. SLTs may be programmed to receive incoming CO Ringing on more than one CO line. However, an SLT can

answeronly~caUatatfme.IfaSLTisbusy when a CO call rings in. no notification will be given to that SLT station.

300.128 DIRECTED CALL PICK UP

Tone ringing intercom calls, Initial Ringing CO

calls and transferred outside line calls to speclfic stations can be picked up by single line

telephones.

For this type of

pickup, the sta-

tions do not have to be in the saxne pickup group.

300.129 DO NOT DISTURB

Each telephone user can be allowed to place their phone in Do No Disturb. The user will recefve en-or tone if they are not allowed this feature. They will also receive a confidence

tone when li.fUng the handset to remind them

they are in Do Not Disturb. The attendant can override a station in DND.

300.130

Tone ringing

GROUP CALL PICX UP

intercom calls and

transferred outside line calls can be picked up by single line telephones by dialing a special pickup code. The telephones must be in the same pickup group.

300.131 INTERCfM CALUNG

Single ltne telephones can make and receive intercom calls.

300.132

MESSAGE WAITING/GUL BACX

Single I&e Telephones caJling a station that is busy, idle. or in Do Not Disturb can leave a message waiting indication to slgnal the station to call back.

Issue 1, January 1992

300-23

300.133 MESSAGE WAITING INDICATION

300.140 TRANSPER

Industry standard meSSage waiting single line

telephones can have up to five (5) message waiting indications left for them, fmm other stations. The message waiting LED will flash at the called station.

300.134 NIGET SERVICE

When outside lines are marked UNA and the

system is placed into night servlce. a single line telephone can answer incoming calls on lines it does not normally have access to by dialing [71 [5j. An external ringing device must be

provided.

300.135 0FF4300x PREFERENCE

SLTs may have their station programmed to access a particular CO Line such as a private line or a line Tom a Group of CO lines upon

going off-hook This is useful ln Centrex or

PBX applications when station users have

dedicated lines. Outside line dial tone is received just by going off-hook, without the need to dial access codes.

300.136 PERSONAL PARK Single line telephones can be connected to two

calls flntercom or CO lines) at the same time and ‘flip/flop’ between the two calls. This can be performed with originated or received calls.

This feature is also used with SLT multi-line

conference feature.

300.137 QUEUING

Single line telephones can be placed ln a queue awaiting the first available outside line in a

group to become available.

300.138

Each SLT user may program up to 20 individual speed dial numbers. Each speed dial number can be up to 24 digits in length. There are a total of 1280 speed locations to be divided among all telephones. If single line telephones are to be allowed this feature, an APL board

must be installed.

300.139 SYSTEM SPEED DIAL

Each SLT user can be allowed access to system speed dial numbers on a programma ble basis. If single line telephones are to be allowed this

feature, an APL board must be installed. The last forty system speed numbers override toll restriction.

STATION

SPEED DIAL

Outside lines may be transferred by or to single line telephones. These transfers can be either announced or unannounced.

300.141 -ANT DISABIE OUTGOING

Tht first attendant can disable CO lines, preventing outgoing accexi to those lines. This is useful for removing a faulty line fi-om service. or for reserving CO lines for important use. All statlons that can normally make calls on the lines are tiected, but incoming calls are not affected. A CO line may be disabled while it is being used: when the tnmk becomes idle. fur-

ther outgoing access will be prevented.

300.142 ATTENDANT

System programming allows the attendant station to be programmed so that if the attendant is busy or not there, the call will be automatlcally forwarded to another predetermined station. VM Group, Hunt Group or UCD group after a programmed period of time. (Refer to Call Forward. Station and Preset)

300.143 ATTENDANT OVERRIDE

Attendant stations may override a busy station

or ring a station in DND. While busy, pressing

the override key provides override tone and a ffve second delay before voice cut-through to the called party occurs, automatically placing any outside line call on Hold. The Attendant Override function may be progmmm flex button and can be enabled or disabled in

Programmtng.

300.144 ATTEMlANT POSITION

The system identifies a maximum of three pro-

grammable stattons as attendants for line recalls and attendant features. programmed attendant can enter system date

and time information as well as System Speed numbers the programming mode. The 4096 System is placed in Night Service by any programmed attendant pressing the MGKT (DND) button.

300.14s ATTENDANT RECALL

A held CO call left unattended by a station w-ill

recall the attendant(s) after a programmable period of time has elapsed. A recalling CO line

flashes at a distinctive rate that identifies the

originating station of the unanswered call.

fkom this

OVERFLOW

edontoa

The first

position without entering

300-24 Issue 1. January 1992

Irl,Enite 4096 Hybrid Key Telephone

System

FEATURE DESCRIPTION

300.146 AUTOMATIC NIGHT MODE

In addition to the attendants capability to place the system into and out of night mode manu-

ally, by pressing the Night key, an automatic night mode schedule has been added to the system. The automatic schedule is set in data

base programming on a week day basis, in-

cluding Saturday and Sunday. The Attendant can override the automatic schedule by press-

l.ng the NIGHT (DND) button.

300.147 DIRECTORY DIALZNG

Station users with Executive Display tele-

phones may view a list. of up to 200 names, from the system directory on the station’s LCD display. then automatically dial the station or speed dial bin by pressing a single key. Names placed in the directory list may be associated to Intercom Numbers or System Speed dial

bins. Users may view the directory list beginning with any letter of the alphabet then scroll through the list either forward or backwards.

When the desired name is displayed on the

LCD display pressing the Speed Call button will automattcally place a call to that destfnaUon. Directory dialing may also be used to transfer a call corn one station to another.

300.148 INCOMING CO LlNE OFF-NET

FORWARD

All&s the f3rst attendant to forward incoming

CO calls to an OfT-Net location. The attendant

must have a direct appearance of the CO line to be forwarded. Forwarding can be established on a per CO line group basis, or all CO lines may be simultaneously fonvarded to an off-net location.

300.149 TIME AND DATE PROGRAMMING

is idle. A

station in DND mode is shown by a

flash.tng indicator.

300.162 DIRECT STATION CALLXNG

Enables the user to make an intercom voice call to any key telephone in the system. Permits you to automatically put an outside caller on hold and simultaneously make an intercom all to an intemai station. Also allows you to transfer an intercom call or outside call that is on hold to another station.

300.153 MAPPING OPTIONS

EachDSSterminalcanbeprogrammedinone of three ways:

0

MAP 1 - Station loo-139 appear in se-

quential order with the bottom two rows of buttons being two fixed feature buttons and six flexible buttons.

This feature allows the first programmed atten-

dant to set the time and date without entering

the programming mode.

W/DSS/DLS

300.150 ATTENDANT SEARCH

Allows a user to make a series of intercom calls without hanging up the handset. An intercom

connection is switched to another station

whenever a DSS key is pressed. Pressing the

next DSS key terminates the prwious intercom call.

300.151 BUSY LAMP FIELD INDICATORS

Each station key on the DSS console has a corresponding indicator which shows whether the station is idle or busy. The indicator is lit when the station ls busy and unlit if the station

Issue 1. January 1992

DSSfDLS Console Map 1

300-25

FEATURED-ON

InJ?nite

4096 Hybrid Key Telephone System

l

MAP 2 - Statton 140- 179 appear in sequential order with the bottom two rows of buttons being eight flexible buttons.

l

MAP 3 - CO Lfne buttons l-40 appear in sequential order with the bottom two rows of buttons being eight flexible buttons.

DSS/DLS Console Map 2

DSS/DLS Console Map 3

CO Une ringing on Map 3 is determined by CO Line Ringing Assignments.

300.1!54

Allows the user to

RELEASE=

dfsconnect rxlls while offhook, speeding up call handling time (MAP 1 only).

300-26

b8UC 1,

January 1992

InjTnite

4096 Hybrid Key Telephone System FEM’UXE OPERATION

SECTION400

FEATUREOPEIiATION

400.1

The hjlnite 4096 System has a wide variety of features and flexible programming. allowing

each telephone user to program his/her tele-

phone to meet his/her own individual needs. This section of the manual contains the oper-

ating instnxUons for key telephone and Single Line users and includes an illustration of the

key telephone used in the Ir@n& 4096 system and description of the keys on the telephones and their functions. It is designed to provide step-by-step instrucUons for operating the key

telephones and Single Line telephones in the

system. Visual and audible cues which accompany the various steps in the operation of the features are also include

Literature similar to these operating instruc-

Uons

tomer in the form of Station. SLT. and

Attendant User’s Guides.

400.2 Each 4096 key station provides the following

keys, indicators and features: HANDSET AND SpEAgER are located at the

left side of the fi-ont panel. A handset is provided to allow confidential conversation when desire L&ing the handset from its cradle (going off-hook) disengages the station’s built-in speaker.

The speaker is located directly below the center portion of the handset. ‘The station may be

operated with the handset on-hook When this occurs, audio is transmitted to the station user

through the station’s speaker.

OUTSIDE CALLS are announced by a tone signal repeated every 3.2 seconds. The corresponding outside line indicator will flash

slowly. INTERCOM CALLS can be tone ringing or voice

announce lfit is voice announced, the receiving station will receive 3 bursts of tone prior to the announcement. lf it is a tone ringing call, the receiving station will hear a tone ring every 2.4 seconds.

Fl3XIBI.S BUTTONS are used to access idle outside lines, provide DSS/BLF for internal stations, access speed dial number and

vate features. These buttons are programmed

INTRODUCTION

has been prepared for use by the cus-

ISYTELEPHONE

STAmONFEA-

acti-

by the individual station user. The default flex

feature buttons are described below. EI.ASH button is used to terminate an outside

call and restore dial tone without having to

hang up the handset. It is also used to transfer

calls behind a PBX or Centrex within those

systems. AAUTE button allows you to switch the built-in

microphone on or off when using the speakerphone, or the handset microphone when using the handset.

CONFERENCE (CONF) button is used to establish and build conference calls.

IZQZ QUEUE button allows you to queue onto

an outside line when all lines in a group are busy. Your station is placed in queue awaiting a line in the same group to become available.

SPEEB CALL button provides you with access to speed dialing, save number red&l and last number redial. This button is also used to access speed dial and flex button program-

ming. DO NOT DI!STURB (DND) button allows the

user to place his/her telephone into a Do Not Disturb mode to eliminate incoming outside

line ringing, intercom calls,

ing announcements. The station in DND can use the telephone to make normal outgoing calls. On Attendant stations, this button becomes the system Night Mode button.

W-ON button enables you to alert a busy party that an outside line is on hold and waiting for them.

MAUI BACK button allows you to initiate an automatic call back request to another busy

station. As soon as that station becomes idle, the station that left the call back request is signalred.

MESSAGE WAIT [MSG you to initiate a message waiting indication at stations that are busy, unattended, or in Do Not Disturb. Message Waiting Callback request left at your station will indicated by a flashing Msg Wait LED.

CALt FWB button allows you to forward your calls to another station

TRANSFER (I’RANS) button is used to transfer an outside call from one station to another.

transfers and pag-

WAIT)

button allows

Issue 1, January 1992

No-1

FEATURE OPERATION

Irtfrnite 4096 Hybrid Key Telephone System

PICK UP button allows you to pickup a tone ringing intercom call. transferred. incoming, or

recalling ourside line call to a specific unartended station either by group or directed call pick-up.

ON/OFF button enables you to make a telephone call without lifting the handset. It turns the telephone on and off when using the speakerphone.

HOLD button enables you to place an outside caller on hold.

400-2

Figure 400- 1 Infinite Executive Key Telephone

Issue 1, January 1992

Table 400-l Xqjinite 4096 System Numbering Plan

100-195 286 287 BB 288

Station Intercom Numbers Headset Mode m-hook Preference Programming

Attendant Override

(Flex Button Programming)

289 XXX 0 Turn BGM OFF at a phone box

(1st programmed Attendant)

289 XXX 1

Turn BGM ON at a phone box

( 1st programmed Attendant) 290 294 295 296

Directory Dialing Executive Override Name in Display Programming CO Line m-Net Forward (1 st programmed Attendant)

297 89U

298

391 392 5# xxx 590-597 60 61 690-697 74 75 76

UCD Calls in Queue Display Disable Outgoing CO Line Access SLT Conference W/ Personal Park

Personal Park

Tone Mode Ring Option

Hunt Group Pilot Numbers l-8 Voice Mail enable MSG Walt Voice Mail cancel MSG Watt Voice Mall Group Pilot Numbers l-8 LCR Queue Cancel

Universal Night Answer

Time & Date Programming

( 1 st programmed Attendant)

77 78 22 78 00 790-795 80 81 82 83 84

85 86 87 88

Background Music Personalized Messages Clear Personalized Messages

Call Park (system)

Account Code Enter

CO Line Group 1 (if LCR is enabled)

CO Line Group 2

CO Line Group 3 CO Line Group 4

CO Line Group 5 CO Line Group 6 CO L&e Group 7

All CO Ihe Groups (CO I&e Off-Net

Forward)

890-897 898

9

UCD Group Pilot Numbers l-8

UCD Available/Unavailable LCR or CO Line Group 1

(if LCR is disabled)

0

Attendant

( 1 st programmed Attendant)

‘1 Internal Page Zone 1 2 Internal Page Zone 2 ‘3 Internal Page Zone 3 ‘4 Internal Page Zone 4 ‘5

Internal All Call Page ‘6 External Page 09

Meet-Me-Page Answer Yl AllCallPage(Int.&Ext.) #l

SLT DND Enable / Disable #2xXx SLT All Call Forward #22 xxx

SLT No Answer - Call Forward W23XQC SLT Busy - Call Forward #24 XXX SLT Busy / No Answer -

Cdl Forward #27 W SLT Off-Net - Call Forward #2 Call forward cancel (all types) #3W

SLT Station Speed Dial

*ogrammlng #4 Message Wait enable

#5 #6 #7xXx

Message

SLT Group call Pick-up

SLT Directed Call pick-up

Wait return

#79 c Call Park pickup (Key and SL’ll

#8 SLT Clear - Call Forward. DND.

Personal Messages

#9 w #O

SLT Speed Dial Access

SLT Flash Comman dt.oCOLine #* SLT Camp-on (call wait) ##

SLT CO Line Queue mlxxx Station call Fonvard-All ~12XXX Station No Answer-Call Foxward m]3XX?C Station Busy-Call Forward ~]4XXX Station Busy/No Answer-

Call forward

mm7

Station Off-Net Call forward

[SPDl YY Speed Dial Access

(OO- 19 Station) (20-99 System)

[SPDJ

l

[SPD] #

Save Number Redial Last Number Redial

Xxx = Intercom Station Numbers

U = UCD Group Number l-8

YY = Speed Dial Bin numbers

C = Call Park Location O-5 22 = Personalized Messages BB = Button Number

Issue 1, January 1992

NO-3

FEATURE OPERATXON

400.3 a. Lift handset

b. Press slow flashing outside line button.

400.4 PIACING AN OUTSIDE CALL ON If your system is programmed for Exclusive

Hold Preference, press HOLD button once

for Exclusive Hold and twice for System

Hold.

lf your system is programmed for System Hold Preference, press HOLD button once for System Hold and twice for Exclusive Hold.

400.5

When an outside line has remained on hold for an extended period of Ume, you will be

reminded with a recalling ring.

a Press outside line. Loop or Pool button

b. Lift handset to converse.

400.6 ACCOUNI’ CODES

When connected to an outside line call:

a..

b.

If acmunt code is less than 12 digits, an [‘I

must be entered to return to the call. azdesareforcedtheaccmntcademustbe entered prior to dialing the ouhide number.

400.7

The First Attendant station can disable CO

lines. preventtng outgoing CO calls.

a Lift handset or press ON/OFF button.

b. Dial [298] on the dial pad. Confirmation

c. Depress the line button(s) of the CO

To re-activate the CO Line(s), repeat the steps

followed to disable it.

ANSWERING AN OUTSIDE CAEL

or Loop button. (If your telephone is programmed with Preferred Line Answer, you may answer an outside line by ltfktng the handset.)

HOLD

ANSWERING A RECALL

flashing at very fast rate.

Press pre-programmed account code button (Refer to Flexible Button pro-

grammingl. Dial account code up to 12 digits. me other party will not hear the digits being dialed).

If aamunt

DI!UBLE OUTGOING CO LINE ACCESS

tone is heard. Line(s) to be disable Confhmatlon tone

is heard and the CO Line Button LED is

flashtng.

In$.nite 4096 Hybrid Key Telephone System

400.8 PIACXNGAN OUTSIDE CALL [Automatic Ldne Selection)

a

Press outside line or Pool button or dial line group access [811 or 1871. ON/OFF button LED will light and dial tone will be heard.

b.

Dial desired party.

C.

When called party answers, lift handset to converse or use speakerphone.

StaiionusermayalsodialthefndLuidualtnrnk

gnm.paLxessaxietoaci3??ssanoutsideline.

400.9 RACXGROUND MUSIC (Optiona a Dial 177) on the dial pad:

b. or c. Press the pre-programmed flex button.

(music is heard) d. Dial [771, on the dial pad: e. or

f. Press the pre-programmed flex button

again+ and music is discontinue.

When you pick up the handset or press the ON/OFF button, music is disconffnued CIUJB-

matimlly.

400.10 AUTOMATIC SEIXCTION Pressing an outside lfne button. Loop or Pool

button: a Speed button: a Station button: or

d.la&ng a number in the InJnfte 4096 Num-

bering Plan will automatically activate the

speakerphone and light the ON/OFF button. If your keyset is programmed as a speakerphone.

400.11 CALL BACK If you dial a telephone that is busy or in DND

and want to activate Call Back:

a Press CALL BACK button.

b. Hang up.

c. When busy station hangs up, you will be

signaled.

d. Answer call: statton you called will then

be signaled. (If your station is busy when

signaled, an automatic MSG WAlT will

be placed at your phone.)

onf.LJoneCall~tequestaln&leflt~

station; the second request ti be converted

toamessagewailadlbackrequest

400-4

Issue 1, January 1992

Infiite

4096 Hybrid Xey Telephone System F’EATURE OPERATION

400.12 CALL FORWARD: STATXON

k CallForward-Allcalls

If you have been given the ability to forward

your calls:

1. Lift handset or press ON/OFF button.

2. Press CALL FWD button.

3. Press station key or dial

ber

where calls are to be forwarded.

including UCD. Voice

group pilot numbers.

4. Replace

ON/OFF button.

~Queue,callbacktequests*messagewait quests, andpre-selected messages are amc&d when a station CaLlbackrequestsarenotaUowedatastaiion

whf?n?aaIlllisf-

beiransfemdbythere&uingstMonbuckto

*aJmf-

the handset

ai3ilxh.s all.2 fomarci

tiecicoL.inecallsa.ln

dedsbtlonAsta.tioninthe

intercom num-

Mail.

and Hunt

or

press the

caLlfi3?lm-dmodemaystlllmakeoutgolng alus.

To Remove Call Forwarding:

1.

Lift handset or press ON/OFF button.

2.

Press CALL IWD button.

3.

Hang up.

B.

Call Forward - Busy

If

you

have been

your calls:

1. Lift the handset or press ON/OFF button

2. Press CALL FWD button.

3. Dial the Call Forward No Answer code [2] on the dial pad.

4. Dial the 3-digit extension number where calls are to be forwarded. Confirmation tone will be heard.

To cancel Call Fo~dingz

1. Lift the handset or press the ON/OFF button.

2. Press the CALL FWD button.

C. Call Forward - No Answer lf you have been given the ability to forward

your calls:

1. Lift the handset or press ON/OFF button.

2. Press CALL FWD button.

3. Dial the Call Forward Busy code I31 on the dial pad.

given the ability to forward

4. Dial the 3-d&$ extension number where calls are to be forwarded. Confirmation

tone will be heard.

To cancel Call Forwarding:

1. Ltft the handset or press the ON/OFF

button.

2. Press the CALL FWD button.

D. Call If you have been

your calls:

1.

2.

3.

4.

To cancel Call Forwarding:

1. Lift the handset or press the ON/OFF

2. Press the CALL FWD button.

E. In a speed dial bin, store the number of the

off-net location where calls are to be forwarded. Follow instructions provided for storing station or system speed dial numbers.

Allows stations to forward intercom and transferred CO calls to an off-net location.

1. Lift handset or press ON/OFF button.

2. Press CALL FWD button.

3. Dial [7’j. Then dial the speed bin number

4. Press the pre-programmed button for

5. Confirmation tone is heard. CALL FWD

Line Qufae, Cad back requests, mfzssage uxzit

requests, andpre-selected messages are cm-

c&d when a statfon activates cx7lL forwaxti

Wbackrequests~notaflowedatastuiion whereaazlltsfonuarded coLim?adfsaln

be tmnsferred by the receiufng station buck to

the oHginaifomtmied station A staiion fn the alufonuardmodemaystiumakeoutgoing adk.

Forwad

Lift the handset or press ON/OFF but-

ton

Pnss CALL FWD button.

Dial the Call Forward Busy/No Answer code I41 on the dial pad.

Dial the 3-digit extension number where calls are to be forwarded. Gmfirmation tone will be heard.

button.

- Busy/No Answer

given the ability to forward

Call Forward - Off-Net (via speed dial)

that contains the number where calls are to be forwarded.

or

the speed bin.

button LED is flashing.

Issue 1, January 1992

400-5

FEXIURE OPERATION

mite 4096 Hybrid Key Telephone

System

Canceling Off-Net Forwarding

1. Lift handset or press ON/OFF button.

2. Press CALL FWD button. CALL lWD button LED is extinguished.

F. Call

Fommrd

- UCD Gmrqre

If you have been given the ability to forward

your calls:

1. Lift the handset or press ON/OFF button

2. Press CALL FWD button.

3. Dial the desired code:

-

= no answer calls

PI

- [3] = busy calls

- [4]

= busy and no answer calls.

NOIE: Skip step 3. fw immediate fonumm.

4. Dial the 3-d&$ UCD group pilot number (890-897) for the group (l-8) where calls are to be forwarded. Confirmation tone

WIII be heard.

To cancel Call Forwarding:

1. Lift the handset or press the ON/OFF button.

2. Press the CALL FWD button.

G. Call Forward - Voice hfail Groups

Intercom and Transferred CO callers may be routed directly to your mail box by fonvarding your phone to a voice mail group. Callers will then be greeted by your personal voice mail greetfng if available.

If you have been given the ability to forward

your CaIls:

1. Lift the handset or press ON/OFF button

2.

F’ress CALL FWD button.

3. Dial the desired code:

- [2]

= no answer calls

- 131 = busy calls

- [4]

= busy and no answer calls. NOTE: Sk@ thLs step fw imnwdfate fonuard@I-

4.

Dial the 3-digit Voice Mail group pilot

number (690-697) for the group (l-8) where calls are to be forwarded. Confirmation tone will be heard.

To cancel Call Forwarding:

1. Lift the handset or press the ON/OFF button.

2. Press the CALL lWD button.

E Cdl Fomard - Hunt Groupe

If you have been given the ability to forward

your czllls

1. Lift the handset or press ON/OFF button

2. Press CALL FWD button.

3. Dial the desired code:

- (21 = no answer calls

- I31 = busy calls

- [4]

= busy and no answer calls. NUlE: Skip this step for immediate fonuard@la

4. Dial the 3-d&$ Hunt group pilot number (590-597) for the group (l-8) where calls are to be forwarded. Confirmation tone

wilI bc heard.

To cancel Call Forwarding:

1. Lift the handset or press the ON/OFF button.

2. Press the CALL FWD button.

400.13 CAILFORWARD: PF2ESET

lfa CO Line forwarded by Preset Call Forward encounters a manually forwarded station (Call Forward - Station), or a station in DND. then the incoming CO Line will bypass that station and forward to the next in the chain. If that stat-ton is the last in the cha.in. then

the call will not forward any further and will

continue to ring at that station until answered or terminate.

400.14 CALL FORWARD: CO LINES

A. Incoming CO L&es Off-Net

speed aa

(via

Allows the first attendant station to forward

lncomlng CO cx.lls to an off-net location. In a speed dial bin, store the number of the

off-net location where calls are to be for-

warded.

storing station

Follow instructions provided for

or

system speed dial num-

bers.

1. Dial I2961 on the dial pad.

2.

Dial the CO group access code for the CO

Ltne group to be forwarded.

81 =CO Group 1

=CO Group 2

82 83 =CO Group 3

=CO Group 4

84

=CO Group 5

85 86 =CO Group 6

=CO Group 7

87

=AIl CO Lines

88

,

4066

Issue 1, January 1992

Imite 4096 Hybrid Xey Telephone SYStem

FEATURE OPERATION

3.

Dial the speed bin number that contains the number where calls are to be forwarded or press the programmed button for the speed bin. Confirmation tone is heard.

Canceling Off-Net Forwarding

1. Dial [296] on the d.ial pad.

2. Dial the CO group access code.

3. Dial [#I. Confirmation tone is heard

400.16 CAUJNG STATION

OPTION

TONE MODE

AlIows a calling station to override a called

statlons H or P intercom switch settings.

When placing a call to a station and Tone

ringing is desired:

a. Dial [5#] on the dial pad.

b. Dial 3-dQit station extension or press

DSS button of desired station Call tone rings station.

400.16

CAL&PARK

To place an outside call on hold and consult with, page, or call an internal party and/or transfer the outside call.

While connected to an outside line:

a. Press TRANS button. The caller is put on

Exclusive hold.

b. Dial parking location (790 to 795). Hear

confirmation tone.

c. If you hear busy tone, press TRANS and

dial another parking location.

FWriedng a Parked CaJl

a Lift handset or press ON/OFF button. b. Dial pound [#I. c. Dial parking location (790 to 795) where

the calI was parked.

400.17

CALL PICX-UP: GROUP

When intercom tone ringing, transferred out-

side line ringing, or recall ringing is heard at an unattended telephone:

a. Lift the handset or press the ON/OFF

button.

b. Press the PICK UP button to be con-

nected to the calling party.

NUE?:Youmustbeinthesame@ckupgroup

clsthelingfngtelephonetopfckupthealu

400.18 CALLTRANSFER

Outside lines can be transferred from one phone to another within the system. The transfer can be either screened (announced] or unscreened to either an idle or busy station. or UCD or Hunt Group.

Screened Transfer

While connected to an outside line:

a.

Press station button where call ls to be transferred (if programmed on your telephone),

or Press ‘IRANS button and dial station

number (100 to 195).

The cakd extension signals according

b.

to the intercom signal switch position.

C.

When that extension answers, an-

nounce the transfer. Hang up to complete transfer.

d.

Unscreened Transfer

When the czlled extension beglns to signal:

a Hang up to transfer the call (Recall timer

starts). Transfer Search When attempting to locate a pax-@

Press a station key to signal a station or

a..

press the TFLWS button and dial station desired.

b. If the party is not located, press another

station key to continue the search, or press the TFL4N button and dial the staUon number.

C.

If the party is not located, press the

lRANS button agafn and dial another

statton number to continue the search.

When the called patty answers, hang up

d.

to complete the transfer.

Answering a Screened Transfer Your intercom will be signaling according to

the intercom signal switch position.

a Answer the intercom and receive the

transfer notice.

b. Press the outslde line button or loop

button flashing on hold.

Issue

1, January 1992

400-7

FEWURE OPERATION

Infinite

4096 Hybrid Key Telephone System

400.19 TFUNSFERRXN A STATION FORWARDED

GcocALLsTo

TO VM

While connected to a CO line:

a Press the TRANS button and dial the

extension number of the station for-

warded to voice mail.

b. The transferring station hangs up. The

COcallwtllbedirectedtothemailboxof

the forwarded station.

NOlE: If the tmnsfen-hg stdon attempts to .sLpa%ethetmnsferofjustuzaitsLmuLthe

voice mail system answers, then it becomes

necessaly to

lEtXXC?SSIheCOlIneandre-

transfer them a~& go on-hook before the voice mailsystemansruers.7MswiUensufrthatthe copartgwiuhearthepersonalgreetingoftht? mailbauserandaryappUcableins~ns.

400.20 CAMP-ON If you call a station that is busy and wish to

alert them to your call:

a Press the CAMP ON button.Called sta-

tion will receive two bursts of ringing. b. Wait for their response c. When called party answers, consult with

.themorhanguptotransferthecalL

If a station is In DND. only the attendant can Camp On using the attendant override feature.

Answering a Camp On

If you are on a connected call, hear two bursts of muted ringing, and your CAMP ON button is flashing. you have a call waiting for

you. To answer

a Press the CAMP ON button. b. Any outside line you are connected to

will be placed on hold. You may con-

verse with the. station placing the call. c. Press flashing outside line button, If a

call is being transferred.

400.21 CO LINE

ACCESS

To access outside line:

a Press idle CO line button, Pool button,

or dial CO line group access code or LCR

access code. b. Dial number desired for outside call. c. Lift handset to converse or use speaker-

phone.

430.22 QUEUING

A station can queue only one line at a tlrne.

If you see that a particular outside line is busy and you wish to be placed on a bst

waiting for that line to become avaIlable: To Place a Queue

a Press desired busy outside line button

or pool button (Busy tone is heard) b. Press LINE QUEUE button. c. Hang up.

To Answer a Queue

If you hear rlngfng and an outside line of the line group (or a Loop or Group Key), you queued onto is slow flashing:

a. Lift handset b. Press flashing outside line button to an-

swer.

If your statton has been programmed for Preferred Line Answer, you will have the line automatically upon ISUng the handset.

400.23 CONFEREN CE COMBINATXONS Gnly stations that have conference enabled

will be able to institute a conference.

l

Add-on Conference: Four internal and

one external or tie party internal

0

Multi-Line Conference: One internal and

Iwo external.

Establishing a Conference A maximum of five parties can be included in

a conference. The internal party must lift the handset.

a.

Lift handset.

Select intercom station or dial desired

b.

outside party.

C.

When called party answers, press

CONF

button.

Add next conference party by selecting

d.

another outside brie or intercom statioh

e.

When party answers, press CONF but-

ton twice.

f.

All parties are connected.

Exiting a Conference (Controller only)

There are three

methods

of exiting a confer-

ence:

a Press the ON/OFF button to ON, press

the MUTE button. and replace the handset (to monitor a conference).

b. Press HOLD button to place outside par-

400-8

Issue 1, January 1992

Imite 4096 Hybrid Key Telephone System

FEATURE OPERATION

ties on hold. Hold timer starts. If one of the two parties is internal. that party will be dropped.

c. Press CON’F and hang up or press the

ON/OFF button to leave the other conference parties still connected in an unsupervised conference. CONF button

will flash and timer will start. There will be a warning tone before the other parties are dropped.

&-entering a Conference

When the controller re-enters the conference,

the disconnect timer is reset.

a Lift handset to re-enter a monitored con-

ference.

b. To re-enter a conference placed on hold,

repeat steps for establishing a conference.

c. To re-enter an unsupervised conference,

lift handset and press flash&g CONF button. The CONF button lights steady and confirmation tone will be heard.

Terminating a Conference To texminate a conference:

a Replace handset or push ON/OFF but-

ton to OFF.

To terminate an unsupervised conference:

a Press the flashing CONF button while on

hook. all parties will be dropped.

The conference initiator who is actively in the

conference.

400.24 DIRECTED

CALL PICX-UP

When incoming, transferred, or recalling

outside line &@ng. intercom ringing, or Camp On ringing is heard at an unattended

telephone:

a Dial the station number of the known

ringing telephone.Receive rlngback tone, or call announce tone.

b. Press the PICK UP button to answer the

call.

400.25

DIRECT INWARD SYSTEM

AC

mss @ISA)

a Call the phone number or the system

administrator specified of the DISA line.

b. The system answers and returns fnter-

corn dial tone.

c. Enter the DISA access code also speci-

fkcl by the system administrator, if applacable.

d. Dial tone is returned.

To place an outgoing call:

a Dial a group access code: 9.81 - 87. b. CO Dial tone is returned. c. Dial the desired telephone number.

NOTE: LCR amnot be accessedfrom DISA. If LCR is enabled DISA users may dial 81 to aa2essliJ7es~tnlnkgrcJup1.

NOTE: 7he conference timer (Refer to Sec.

710.7)

will monitor a DISA -bunk-tu-bunk”

allLaNireleuseiilelinesone(l)rrrfnute~r

the time expires.

To reach an internal station:

a Dial the Sdfgit station number. Ring-

back tone will be heard.

b. Converse when party answers.

NUlEIfthestationdial.edisuna&nded

busyortnDND,fnfercomd.MtonewiLl& returned b&r the Preset call Fonxrd Timer

expires) Refer to Sec. 710.4

400.26

DIRECTORY DlALWG

To dial using directory dialing To view the directory list:

a Dial the directory list dial code I2901 or

press the pre-programmed Flex button programmed as a directory dialing button.

b. Press a button on the key pad, once,

twice or three times, to represent the letter of the alphabet, to begin viewing the list of names. The letters of the aiDhabet are represented on the key pad

as follows: A =2

B

= 22

C =222

D

=3

E

=33

F

= 333

G =4

H =44

=444

I

C.

I

Yaxnes beginning with the letter chosen

J =5

K

=55

L

=555

M

=6 =66

z

=666

P

=7 =7

9

R

=77

S = 777

_

T

U V W

=8 =88 =888

=9

X = 99

Y = 999

z = 999 Next =* Prev =#

will appear on the LCD display.

IftherearenommestntheDi.rectoyList

begimingwiththedesiredMter,anamewith

thenexthfgherletkrwiLlbesbwnontheL.CD

dfsPlay*

Issue 1,

January 1992

400-g

FEATURE OPEIUTION

Infinite 4096 Hybrid Key Telephone System

d. Dial [*] to scroll up (next entry) through

the list or Dial [#] to scroll down (previous entry)

through the list

or

Press another key to view the list from a different letter of the alphabet.

To dial the desired party:

a When the desired name is shown in the

LCD display pressing the SPEED CALL button will automatically dial the destinatton station or outside phone number

(via speed dial).

l

lf the desired party is an Intercom station, that station will be signaled according to that station’s intercom selector switch (SLT station will tone

~a

l

If the desired pa.@ is associated to a speed dial bin the system will select a

CO line and dial the number programmed into the speed dial bin. Call progress tones will then be heard.

To Transfer a Call using Directory Dialing:

a Whileonacall;

A Press the Transfer button and dlaI

the Directory Dial Code [2901.

or

- Press a pre-programmed flex button programmed for directory dialing.

b. Follow the steps for placing a directory

d.ialing call. Hang up to complete the transfer.

Note: Cds r-my only be transfemd to Inter-

nal stafions only. An attempt to transfer a call off-net (L&J a Speed dial binJ UJUL result In the call recaU.lng upongoing orhook

400.27 DO NOT DISTURB If you have been given the ability to place

your phone in Do Not Disturb:

a Press the DND button. DND button

lights steady.

lhe DND button can be pressed whUe the phone is ringing to stop the ringing. (Refer to

One-Time Do Not Disturb below.)

Removing Do Not Disturb

a. Press the DND button. The button LED

extlngties and DND is canceled.

A OuoTime Do Not Disturb

Allows you to prevent calls from ringfng at your station while you’re on a call. The OneTime DND condition will automatically can-

cel when you end your call.

1. Press the pn-programmed DND button while you’re off-hook and connected to a

CO line or intercom call. The DND button LED lights and off-hook tones at your station are canceled.

To cancel:

1. Replace handset The DND button LED extinguishes and DND is canceled.

400.28 EXCLUSIVE HOLD

When a line is placed on Exclusive Hold. no

other station in the system can retrieve this call. Hold may be programmed to be

a.cU-

vated on the first or second depression of the

Hold button. CO Lines while in a transfer hold are always placed in an Exclusive Hold condition.

400.29 ExEcmnm OVERRIDE

Allows

stations

designated as ‘Executive” the ability to ovetide and “barge in” on other keysets engaged in conversation.

lf you call a busy station:

a Dial I2941 on the dial pad. Executive

station will be bridged onto the CO line conversation in progress at the called station. Optional warning tone is heard and presented to all parties prior to cut-

thl-OUgh.

b. Replace handset at Executive station to

terminate the override.

NOIE: Zf the busy party is connected vfa intercom to anotherpzrty, the inWcoma3nnectfon

wiKbedroppedwhentioverr&occws.

NOl73:A&araseinudumemqoccuronthe

co line after the barge-tn OCNS.

CAUTION: USE OF THIS FEATURE WHEN THE EXECUTIVE OVERRIDE WARNING TONE IS

DISABLED MAY BE INTERPRETED AS A VIOLATION OF FEDERAL OR STATE LAWS, AND AN INVASION OF PRIVACY. CONSULT COUNSEL WlTH RESPECT TO APPLICABLE

LAW BEFORE INTRUDING ON CALLS USING THIS FEATURE.

400-10

Issue 1, January 1992

Inmite 4096 Hybrid Key

If

YOU

are designated the Executive statAon

and

your

phone is busy or in DND. all calls

Telephone System

will be routed to the Secretary station.

If you are the designated Secretary station, you can signal the Executive that is busy or In DND by using the Camp On feature.

400.31 FLASH

When connected to an outside line:

a. Press FLASH button to disconnect out-

side line and reseize outside line dial

tone.

400.32 FLASH ON INTERCOM

When connected to a page zone or another internal party:

a. Press FLASH button to disconnect page

or intercom call. Intercom dial tone will be heard.

400.33 H.Exmm

BUIT0N ASSIGN-

If you have buttons on your telephone which have NOT been assigned as CO lines. Pooled group, or Loop buttons, you may program them to suit your own individual needs.

There are tie possible functions you may

assign to these buttons:

FEATURE OPERATION

a

DSS/BW This button, when pressed, will automatically signal the assigned intercom station. DSS/BLF buttons are programmed by the station user.

0

FEATURES: This button can be pro-

grammed so that when pressed it will

act&ate a particular feature, thus eliminating the need for dialing the feature code. Some features require a flex but-

ton to be programmed for that feature to be accessible to the station user. Where thisisthecaseitissodesignatedinthis Feature Operation SecUon and user

guide. Feature buttons are programmed

by the station user. Refer to Table 400-2

for a complete listing of code/features

that may be programmed onto a flexible

button.

0

SPEED DIAL: Thts button can be programmed to automatically access a

speed number location for one-step op-

eration. PBX and Centrex codes can be programmed into a speed dial bin and accessed by one button depression.

l

POOLED GROUP ACCESS: A group of outside lines can be placed under one button. When this button is pressed, the

100-195

286 288

290 294

296 297

392 590-597 690-697

77 W=l

78[001

78# 790-795 80 890-897 898

Table 4OS2 FLEX

Direct Station Select Headset Mode

Attendant Override

(Flex Button ProgrammingI Directory Dialing ExecuUve Override CO Line Off-Net Forward

(1 st Programmed Attendant)

UCD Calls in Queue Display Personal Park Hunt Grp Pilot Numbers l-8 VM Grp Pilot Numbers l-8 Background

Music

Personalized Messages Clear Personalized Messages

Personalized Message Code Cad Park (system)

Account Code Enter

UCD Grp Pilot Numbers 1-8 UCD Available/Unavatlable

Button F’ro@ammixq codes

I O

‘1 Internal Zone 1

‘2

‘3

l

4

l 5

‘6

l 9 Meet Me Page Answer ‘0 AlICaIII%.ge [SPEED CALLI+Iyy1 Speed Dial Access*

[SPEED CALL]+{‘] Save Number Redial [SPEED CALL]+[#] Last Number Red.ia.l

W= Speed Dial Bin numbers

ZZ= Personalized

‘The desired speed bin must be programmed

prior to assigning the speed bin onto a flex-

ible button.

Attendant ( 1 st Pgm’d Attendant)

Internal Zone 2 Internal Zone 3 Internal Zone 4 Internal All Call External Page

(00- 19 Station) (20-99 System)

Messages

Issue 1, January

1992

44X-11

FILWURE OPERATION

system wiI.I select an ava&xble line from

this group Pool arlmlnfstit.iOIl.

l

LOOP: l3is button will act as the direct appearing button for outside lines that do not appear on the user’s individual

telephone. Any phone that doesn’t have

aAl lines appear on it must have a loop key. There is NO limit to the number of LOOP buttons buttons are assigned in data base administraUon.

To program fltible buttons:

a Press SPEED CALL button twice. b. Press the assgned button to be pro-

grammed (lt must be programmed in

data base as a multi-function button).

c. Dial desired code (Refer to Button Pro-

gramming Codes).

for the user to place a call on.

buttons are assigned in data base

a station may have.

Loop

Infinite 4096 Hybrid Key Telephone System

L3.l station number (100 to 1951.

NOIE;Diaiinganumberintfienwnberlngpian actiuates the telephone automaifMuy.

b. You will hear rlnglng if called

in the T answering mode:

%.ree bursts of tone if called station is

in the ‘H’ or ‘F position. Lift handset or use speakerphone, after

C.

the three tone bursts stop. Hang up to end call.

CL

Answering an Intercom Call With your intercom signal switch in the T

(center) mode. you will hear repeated bursts of intercom tone ringing and the HOLD but-

ton will slow flash.

Lift handset or press ON/OFF button to

a.

answer,

station is

To erase a flexible button:

a Press SPEED CALL button twice. b. Press the button to be erase c. Press F’KASH button. d. Replace handset or press ON/OFF but-

ton.

400.34 Eyou wish to use a headset and have been

given the ability to do so in programming.

To activate Headset Mode:

a Dial [286] on the dfal pad:

b. LED will light steady.

While Headset mode is active. the ON/OFF

button will activate the headset and disable speakerphone and intercom calI announce operation at your station.

To de-activate Headset Mode:

a Dial [286] on the d.Ial pad;

b. LED ~III extinguish.

*Refer tojlex button pmgrmmdg.

400.35 Placing an Intercom Call

a Press station key of party to be called (if

-SET’ MODE

or Press pre-programmed* FLEX button.

&ss the pre-programmed* FLEX button.

INTERCOM CALLING

programmed at your phone);

Eove the intercom signal switch to the H mode to reply. If you receive a call from a Phone Box, you must press that DSS button to answer the call.

b.

Hang up to end calL

In the P mode, you will hear three bursts of tone and one-way announcement. The

HOLD button will slow flash and the calling

party cannot hear conversations ln progress.

a Llfthandset;

or Press ON/OFF button to answer,

move the intercom signal switch to the

H mode to reply.

In the H mode, you will hear three bursts of tone and an announcement. Reply handsf&e or lift handset for privacy.

400.36 Intercom transfer without DSS buttons:

a

b.

C.

d.

e.

Intercom transfer using DSS buttons:

a Receive or make an intercom call using

INTERCOM TRANSFER

Receive or Ilzake an intercom call. Press the TRANS button. Intercom dial

tone is heard.

Dial the station where the call is to be transferred.

When 2nd station answers, you are in a

supervised transfer mode (1st station is staged for transferf .

Hang up (station 1 and 2 are connected).

a DSS button.

or

.

400-12 Issue 1. January 1992

b. pre.ss DSS button where call is to be

transferred.

c. Hang up (station 1 and 2 are connected).

Intercom transfer using DSS buttons with Search and Recovery

Receive or make an intercom call using

a

a DSS button.

Press DSS button to search for 2nd

b.

Party* Press TRANS button to recover 1st call

C.

and abort transfer.

d.

Repeat the last two steps until 2nd party is located.

Hang up (Station 1 and 2 are connected).

e.

400.37

a Press SPEED CALL button. b. Press pound [#I key.

mekLstnumbercifaLedoveranoutsideiine

udbevredialed

The system will automaticaUy select the

original line used to place the call and redial the number.

If that line is busy, the system will automatically select another line fi-om the same group and red&l the number.

If no lines are available in the same group, station will receive busy tone and can queue for a line.

If the station user preselects a line before activating LNR the preselection will over-

ride the line which was used or&inaIy.

400.38

To place an outside call when LCR has been

enabled in the system:

a Dial 191 on the dial pad. b. Dial desired 7-digit telephone number.

c. Wait for answer. Lift handset or use

If all lines available to pu are busy, remain off--hook for fm

LAST

LEAST COST ROUTING

(ie: l+ area code+number)

speakerphone to converse.

NUMBERREDLAL

(4) seconds to mtomficdly

bequeuedontoLCRforanauatlableUne.

LCR Que Callback If an LCR Queue Callback has been acti-

vated:

a When telephone is signalled. answer the

call.

b. Desired telephone number will automat-

ically be redialed.

NOlE:Or&oneLCRQueueCullEhckrequest

may~~byastationWhenasewnd reqzu3t is made, timt request will be canceled..

400.39 LCR QUE CANCEL a. Dial the LCR Queue Cancel code, (74 on

the dial pad.

b. Replace handset or press ON/OFF but-

ton

400.40 MEETMEPAGE

To request another party to meet you on a

page:

a Dial the desired two-digit paging code:

or

Press pre-programmed flex button b. Request that party meet you on the page. c. Do not hang up; wait for the requested

party to answer. As soon as the paged party answers and is connected to you, the page circuit is released.

AnswerI$ a Meet Me Page

a. Go to the nearest Telephone and dial [*I.

I91 on the dial pad:

or Press the pre-programmed* flex button.

b. You will be connected to the party that

paged you.

*Refer b FLEXButton progmmming.

400.41

Leaving a Message Waiting Indication

a. Press the MSG WAIT button.

b. Called party’s MSG WAIT button will

c. Hang up.

Upbjlverrzessagescunbeleftatany Station

Ifyou dial a station that is busy, una&mied

orinDND,youamleaueamessagezmitfng

fndimUon. Answering a Message Waiting Indication If your MSG WAIT button is flashing at a slow

rate, you have a

a.

b.

C.

The fist message Left will be the first one

cnLled

MESSACE WAITING

slow flash.

message waIt.tng for you. Press flashing MSG WArI’ button. Station that left message will be signaled

with tone rlnglng.

If called station does not answer, press MSG WAIT button once to leave mes-

sage.

Issue 1, January 1992

400-13

400.42 MllTEBEy The MUIE button provides privacy during

speakerphone or handset operation by disabling the microphone.

a Press the MUTE button while off-hook

on speakerphone or handset to act&ate.

b. Press MUTE button again to deactivate.

l7lemulkf?atul-eallto~deactiuates uponcalltiznnimiim

400.43 OFF-HOOK PmCE

If your phone has been programmed for OffHook Preference, you will access an outside

Iine. or a feature by going off-hook or press-

ing the ON/OFF button.

While m-Hook Preference is enabled. you

may access internal intercom dial tone by:

a. Pressing your pre-programmed ICM

buttonLED lights steady or Dial your o~vn 3-digit intercom number.

(Do not lift handset or press ON/OFF button before dialing intercom number.) Intercom dial tone will be heard.

b., You may now dial an internal station or

Feature Access code.

*Refer to FIEX

Also refer to prime F7ex button programming.

400.44 If you dial a station that is busy and want to

signaI your call:

a.

Press the CAMP ON button.

b.

If three bursts of tone are heard, your call has cut through the busy connec-

tion. You may speak to the called party. Uf

c.

you hear ringing, you have placed a

CAMP ON to that station: see CAMP ON

feature.)

Receiving an OHVA call

a If your telephone has been programmed

for off-hook voice announce and you are already talking on a call, another station using the CAMP ON feature to not@ you of a waiting call will result in a warning

button pmgmmmiw.

OFF-HOOX VOICE ANNOUNCE (OrrvA)

tone and an immediate voice cutthrough to your speaker.

Note: If you are using your speakerphone, rnmitoring a call through your speakerphone ware in DND, the standard CAMP ON signal 0fmutedrfngingwuLresult

BoththeazlkdstaUonandthecu.Uingstation rrwtbepmgmmmedforOHVAfotthisf~ towork AusercundLsableOHVAbyplacfng his/her idephone fn the TONE aJ.kamw l-rode. Houlewr, the nounce off-h&c to an OH-VA Me@wne set to Tone by using the OVERRIDE button

400.46 PAGING If you have been given the ability to make

page announcements:

a. Lift handset.

b. Dial the two-digit paging code

or Press programmed flex button.

‘1 Internal Zone 1 l 2 Internal Zone 2 ‘3 Internal Zone 3

Internal Zone 4

:;

Internal All Call External Zone

‘6 ‘0 Allcall

c. Speak in normal tone of voice to deliver

message.

StatlwLsofihookorfnDNDtinothearthe

pageNO?E:WhenmakfngazonepageorA.U~

pageandthezmeisbusy.thepageinUiator

LuiLlr-eMvefingbacktoneuniilthezonebecomes auailable. You will then hear a warning tmeandcanmakethepageannouncemeti

400.46 PBX/CENTREX TRANSFER

While connected to an outside line

(PEX/Centrexf :

a. Press FLASH button.

b. Receive transfer dial tone.

c. Dial PBX/Centrex station number. d. Hang up to complete transfer.

rlbkdadcanvofcean-

400-14

Issue 1, January 1992

InfZnite

4096 Hybrid Key Telephone System FEATURE OPERATION

400.47

PERSONAU2ZD bfESSAGE3

Each station can select a pre-assigned message to be displayed on the LCD of any Key

Telephone calling that station.

a Dial [7][8] on the dial pad;

or

Press a programmed flex button.

b. Dial the two-digit code for the message

which will appear.

00 clears messages 01

VACATION

02 RIDURN MORNING 03 FtIXURN AFER.NOON 04

RETURN TOMORROW

05 RETURN NEXTWEEK 06 BUSINESS TRIP 07 MEETING 08

HOME

09 ON BREAK

10 LUNCH

NO77Z:lW.sfeatureismtamihb&tothe

aumdanw.

400.48

PERSONALIZED MESSAGE

CODEONAFLXXKEY

You can program code 78 on a f&ibIe key to

speed access of pre-selected messages.

a Press SPEED CALL button twice.

b. Press the desired flex button. LED

flashes.

c. Dial [78] + I#]. Confirmation tone is

heard.

User can now press that flex button and dial the two-digit message number 00- 10 to acti-

vate or deactivate a personalized message.

Confirmation tone will be heard.

400.49 PHONE BOX RINGING

To receive ringing from Phone Box(esl at

station, a DSS button must be assigned on a flex key. Refer to Flex Button ProgrammIng for instructions on how to program DSS buttons. Also refer to Sec. 710.24 for Phone Box Ring Timer.

400.50 PRIMB GRAMbEING

FIEX

BUXTON PRO-

If your phone is programmed for off-hook preference and have been given the ability to enable or change the prime flex button.

a Dial [287] on the dial pad

b. Then dial two-digit button number (0 l-

20).

To disable Off-Hook Preference:

a Diall287lonthedialpad. b. DiaI IO01

400.51 PROG RAMMING YOUR NAME

Every extension (key and

on the dial

INTO THE LCD DISPLAY

pad.

SLT) has the

capabfflty to program the users name so that people using display telephones will see the name

instead

of the station number.

a Dial [295] on the dial pad.

b. Enter your name (up to 7 letters) using

the pattern shown below.

G=14

H=*4

I=#4

J=15

K=*5

L=#5

M=16

N=‘6

0=#6

P=17 Q=‘l R=*7

S=#7

c. Press SPEED CALL button to complete

the programming process.

To erase your name:

a. Dial [295] on the dial pad. b. Press SPEED CALL button.

Station Speed Bin 00 is used to store name

in display information.

400.52

a

The signaling on an out&de line can be

PULSE TO TONE SWITCHOVER

changed from dial pulse to tone (DTMF)

manually while dialing out. To perform the change-over

a Dial an [*I on the dial pad.

b. Remaining digit will be sent using

DIMF.

77~ Pulse to Tone Switchover command may alsobeinchdedintoaspeeddialbin Refer b speed ~Progmmming.

Issue 1. January 1992

400-15

FEATURE OPERAnON Infinite 4096 Hybrid Key Telephone System

400.53 SAVE

NIJMBERREDIAL

If you wish to save the last number you dialed

for use later:

a After placfng an outside call. keep hand-

set off-hook

b. Press SPEED CALL button twice.

To Dial a number that was saved using the

steps above:

a Press SPEED CALL button.

b. Dial the asterisk [‘I key.

System will automatically select the origlnal he used to place the caJ.l and redial

the number. If that ltne is busy. the system will auto-

matically select &other line from the same group and redial the number.

If no lines are avaIlable in the same group, station will receive busy tone and can queue for a line.

If the station user preselects a line before activating SNR the preselection will over-

ride the line which was used originally.

400.54 PROG- GPBK/CENT~ CODES ONTO A FLZX BUM’ON

For easy one-button access to Centrex or PBX features, perform the following steps:

a. Program the Centrex or PBX code into a

station or system speed dial bin, including hook-flash (flash key). [*I, and [#I commands. (Refer

to

station or system

speed dial programmind

b. Program that speed bin onto a flex but-

ton.

‘Refer toJ!ex buttonpmgmmmfy.

400.55 SpEAgERPHONE Press ON/OFF button to “ON”. Intercom

a.

dial tone will be heard.

b.

Press station’key of deslred party, or press available outside line button and dial number. Speakerphone is activated.

C.

Press ON/OFF button to ‘Or to end call.

NUZE: For further

references in this

section where Yifl handset” ts specijled you may also use the method of pressing the ‘ON/OFF button. if the telephone is programme

dtobea

irue two-w spcxdct?rpholle.

400.56 STATION SPEED DIAL lf no outside line has been specified in pro-

gramming, one will be chosen automatically

or you can choose one now.

a. Press SPEED CALL button and dial bin

location; or Press programmed speed bin button. Station Speed numbers are 00 to 19.

b. When called party answers. pick up

handset or use speakerphone.

400.57 STORING SPEED NUMBERS Station Speed numbers can be entered by

keyset users. System Speed numbers must be entered by the first programmed attendant. If no attendant is specified. enter at Stauon loo.

a..

Press SPEED CALL once, then press a

desired outside line key or pool key or select an outside line automatically by pressing the SPEED CALL button a second time.

b.

Dial the speed bin location.

00 to 19 for StatIon Speed numbers:

20

to

99 for System Speed numbers.

C.

Dial telephone number. (including special codes described below)

- ‘IRANS - Pressing the TRANS button during number entry initiates a

Pulse-To-Tone swltchover.

- HOLD - Pressing the HOLD button

during number entry Inserts a Pause.

-FlASH-PressingtheFLASHkey

inserts a Flash into the speed number.

- lRANS - Pressing the TRANS button

as the first entry in the speed bin inserts a no-display character caus-

ing the numbers stored in the bin not to appear on the Key Telephones display when the bin is accessed.

d.

Press SPEED CALL

e.

Hang up*

To program several speed numbers in a row,

press SPEED CALL button twice to conclude programming a number and then just enter the next speed number bin to be programmed. If the station has no line appear-

ance for the line programm

ed into the speed bin. that line will come up under the Loop button or Pool button when accessed.

400.58 SYSTEM WEED DIAL lf no outside Une has been specified in pro-

400-16 Issue 1. January 1992

gmmming, one wii be chosen automatically or you can choose one now.

a Press SPEED CALL button and dial bin

location: or

Press programmed speed bin button. System Speed numbers are 20 to 99.

b. When called party answers. pick up

handset or use speakerphone.

400.89 UNIFORM CAU,

CVCDI

A Number of Calla in Queue Display

From an idle display key telephone:

1. Dial I2971 on the dial pad: or Press programmed flex button. (ON/OFF button LED lights steady)

2. Dial 3-digit UCD group number (890-

897).

Your display will tell you how many calls are

in queue for that group. Dynamic update of display occurs as queue

condition changes.

3.

Lift the handset or press the ON/OFF button to terminate mode.

NOIE

Thisfeature auuu, tbeusedwUhacaLl

DISTIUBUTION

in progress and ihe station will be amsidered busyfor incoming calls.

B. AV~IB/UNAVAILABLE MODE If you are a UCD agent, you may place your

station in the Available mode to receive UCD type of calls or you may place you station in the Unavailable mode to block UCD type calls i?om ringing your station.

To go Available:

1. Dial 18981 on the dial pad: or

Press pre-programmed Available/Unavailable flex button. You may now receive calls.

To go Unavailable:

1. Dial I8981 on the dial pad; gess pre-programmed Ava.ilable/Un-

available flex button.You are now

blocked from receiving UCD calls.

400.60

Lf you hear outside line ringing at another station and wish to answer it:

a Dial 1751 on the dial pad. The connected

UNIVERSAL NIGHT ANSWER

outside line can be transferred or disconnected.

Each telephone rdihfng UnFversoL Night An-

swernmsthavealnopbuttonappe-g theringing-linedoesnotappearat th&phOW.

400.61 VOICE MAIL OPERATlON (V&5)

Intercom and Transferred CO callers may be muted directly to your mail box by forwarding your phone to a voice mail group. Callers

will then be greeted by your personal voice mail grteting if available (Refer to CaU For-

ward -

Rttrltving Voice Messages If your Message Waiting key or programmed

Voice Mail group key is flashing, you may

have a voice meSSage waiting for you. To enter the voice mail system to check for mail:

Receiving a Voice Mail Message Wait

To receive a message waiting indication that

a

Voice Mail system must be programmed to

provide such an indication.

After the voice mail system receives a voice

message for a station user:

-b. Then dial the 3-digit extension number

Turning the Message Waiting lamp Off

When a station user retrieves the voice messages from the voice mail system. the voice mail system must:

A

Allows the Voice Mail system to override a

called stations H or P intercom switch setttngs.

Voice Mail Operation)

a Dial the Voice Mail group number;

or Press the programmed voice mail group key or flashing Message Wait key.

b. You will immediately be prompted to

enter your password for your mail box.

voice message has been taken for you, the

a. The voice mail must go off-hook and dial

the voice mail message wait code [SO].

of the station user who received a voice

message.

a

Be programmed to go off-hook and dial the message cancel code (6 11.

b.

Then dial the 3-digit extension number

of the station user who retrieved the voice message.

VMTone

Mode Cal&q

Option

Issue

1, January 1992

400-17

FE~~RE OPERATION Intiite 4096 Hybrid Key Telephone System

When placing a call to a station and Tone mging is desire (the Voice Mail system MUST

Message Waiting Requek

be programmed to:

1. Dial (5#] on the dial pad.

2.

Then dial 3digit station extension (call tone rfngs station).

400.62

VOLUME CONTRO=

There are two volume control slide switches

on the right side of the Key Telephone. Slld-

fng the switch toward you deer-eases the volume. The f?ont switch is for voice, background music, and speakerphone volume. The back switch is for tone ringing volume.

400.66 GAIL FORWARDXNG

To call forward calls to another station:

a.

Lift handset

b.

Dial I#21 on the d&l pad.

C.

Skip step c for immediate forwarding,

otherwise dial the appropriate code:

- [2]

- I31

- 141

= Call Forward No Answer = Call Forward Busy = Call Forward Busy/No Answer

- tZg;- Call Forward Off-Net (via speed

400.63

ACCOUKT CODE

SLT stations can enter an account code to identify the call or calling station.

Entering Account Code before a call:

a. Lift the handset. b. Dial [80] on the dial pad. c. Dial the account code.

Iftheam3untcodecmiainsfewerthan12

digits,dial[*ltoretwntointerwmdfaltone.

Dialbnf?isheard.

d. Dial (91 or CO Access code and the de-

sired number.

Entering Account Code during a call:

a Depress the hookswitch momentarily.

Your call will be placed on hold while you

enter your account code. b. Dial [801 on the dial pad. c. Dial the account code.

IftheacmuntaxieamtainsfeuerthanI2

digus,diQL[‘]tordl.lmautomafiwuytothe

400.64

CALLRACK

If you dial a telephone that is busy and want to leave a Call Back request:

a Briefly depress and release the hook-

switch. b. Dial I#41 on the dial pad. c. Replace handset.

OnLyoneGdlBackrequestcanbele~ata

d.

Dial the 3-digit extension number or speed bin number where calls are to be forwarded. Confirmation tone will be heard.

e.

Replace handset.

To Remove Call Forwarding:

a Lift handset.

b. Dial [#2] or [#Sl. Confirmation tone will

be heard.

c. Replace the handset.

400.66

GUUNG STATION TONE MODE

OPTION Allows a calling station to overrfde a called key station’s H or P intercom switch setting.

When placing a call to a key station and Tone

ringing is desired:

a. Dial [5#] on the dial pad.

b. Dial 3-d.igit station actension (call tone

rings station).

400.67

UMP-ON

After receiving intercom busy tone:

a Briefly depress and release the hook-

switch.

b. Dial [#‘I. When the called party answers.

consult with them.

While on a CO line you receive a Camp-on warning tone through handset:

a Choose desired call Urang up on present

call and take the new one, or ignore the

Camp-on signal). (also see Personal

Parkl

400-m

Issue 1, January 1992

400.68

CALA PARK (System)

To place an outside call on hold and consult with. page. or call an internal party and/or transfer the outside call.

While connected to an outside line:

a

Depress and release the ho&switch.

The caller is put on Exclusive hold.

b.

Dial parking location (790 to 7951. Hear con&mation tone.

C.

If you hear busy tone, depress and release the hookswltch and dial another parking location.

Retrieving a Parked Call

a Lift handset.

b. Dial pound [#I on the dial pad.

c. Dial parking location (790 to 795) where

the call was parked.

400.69

CALLTRANSFER:

Making an Unscreened Transfer

a Briefly depress and release the hook-

switch. b. Dial desired intercom number. c. Hang up to complete the transfer.

Making a Screened Transfer:

a Briefly depress and release the hook-

switch.

b. Dial desired telephone number.

c. Announce the call.

d. Hang up to complete the transfer.

400.70

CLEAR CALL FORWARD, DND,

PERSONALIZED -ES

SLTs can activate and cancel call forward by dialing [#2] and DND by dialing [#l] and enable and cancel personalized messages by

dialing W=l.

A convenient code I#81 has been incorporated

to cancel either Call forwarding, DND. or Personalized Messages when the

. has forgotten which code has been pro-

grammed on the phone

To cancel Call Forward, DND. Personalized

Messages:

a Lift handset. Notification tone will be

heard.

b. Dial [#8] on the dial pad. Confirmation

tone will be heard.

SLT

user

C.

Replace the handset.

400.71 Co LINE QUEUING

a. Dial outside line access code. Receive

busy tone.

b. Briefly depress and release the hook-

swIt.ch.

c. Dial [##I on the dial pad. Confirmation

tone is heard.

400.72 CONFERENCE

You may

and 1 other

a. Lifthandset

b. Make outside call.

set up a conference of 1 external

internal station

c. Briefly depress and release the hook-

switch to put the call on hold.

d. Dial number of internal station you wish

to add.

e. When that station answers, briefly de-

press and release the hookswitch again

and all 3 parties will be connected.

400.73 co NFERENcEwITI-I PERSONAL

PARK

While connected to an outside line:

a

Depress the hookswltch momentarily. Intercom dial tone is heard.

b.

Dial I3921 on the dial pad. (1st call is placed in personal paxlc).

C.

Dial desired number for 2nd call.

d.

Depress the hookswitch momentarily. Intercom dial tone is heard.

e.

Dial 13911 on the dial pad. All three parties are conferenced.

f.

Hang up to terminate conference.

400.74

a Lift handset

DIRECT OUTSIDE LINE

ACCESS

b. Dial access code (9, 81 - 87). c. Dial desired telephone number.

400.76

DIRECTZD CALL PICX-UP

Upon hearing an unattended telephone ring:

a.

Lift handset.

b.

Dial [#7] on the dial pad.

C.

Dial station number of ringing telephone. You will be connected to intercom, incoming, recalling or transferred outside he.

Issue 1, January 1992 400-19

FEATURE OPERATION

Infinite 4096 Hybrid Key Telephone

System

400.76

DO NOT DISTURB

Activating Do Not Disturb:

a L&handset b. Dia.l[#l] onthedlalpad. c. Replace handset.

To cancel Do Not Dlsturh:

a. Lifthandset.

b. Dial [#l] or [#8j on the dial pad. c. Replace handset.

400.77 PBx/cEmRExTRAN8FER

(Flash Command to CO Une)

To initiate a PBX or Centrex Transfer command from an SLT.

While connected to a PBX or Centrex tie:

a BrIefly depress and release the hook-

switch. Intercom dial tone will be heard.

b. Dial [#O] on the dial pad. A Flash com-

mand will be presented to the PBX or Centrex line.PEX or Centrex stutter tone will be heard. Dial number of desired

extenSiOIl.

c. Replace handset to complete transfer.

400.78

GROUP CALL+ PICX-UP

Upon hearing an unattended telephone rlnging :

a Lift the handset. b. Dial [#S] on the dial pad. You will be

connected to intercom or transferred or

recalling outside line call.

NO?E:Yoummtbeinthesumeplckupgnxq.

400.79 F’IACING CALL3 ON HOlD

a When telephone is signalled. answer the

call.

b. Desired telephone number will automat-

iczallyberedialed.

c.

Wait

for answer. Lift handset

s*rphone

to converse

or use

NO?E:CkZyoneLCRQumeGdLBackquest

maybefnfUakdbyastation Whenasemnd nixpest ts made, thefbst request UJU be can-

celed.

400.83

LCRCANCEL

a. Lift handset or press ON/OFF button. b. Dial the LCR Queue Cancel code, [74] on

the dial pad.

c. Replace handset or press ON/OFF but-

ton.

400.84 MESSAGEWAITXNG

Leaving a Message

Waiting

Indication

a. LifthandseL

b. Dial intercom station. Receive no an-

swer, or DND tone.

c. Briefly depress and release the hook-

switch. d. Dial [#4] on the dial pad. e. Replace handset.

Answering a Message Waiting Indication. Your message waiUng lamp is flashing:

a. Lifthandset

b. Dial I#51 on the dial pad. Station that left

the message will ring.

While connected to an outside line:

a Briefly press and release the hook-

switch. (Call is placed on hold).

To retrieve the all:

a Press and rele&x the hookswitch again.

400.80

a.

IN’IZRCOM CALUNG

Lift

handset.

b. Dial 3-digit intercom number (loo- 195).

400.81 LCR QUEUING (Automatic)

If all lines available to you are busy, remain off-hook for four (4) seconds to automatically be queued onto LCR for an available line.

400.82 LCR QUE CALLHACX If an LCR Queue Call Back has been acti-

vated:

400-20

400.85

OFF-HOOX PREFERENCE

If your phone has been programmed for Off-Hook Preference, you will hear out&de line dial tone when lifting the handset.

When this operation is desired, you may not

have access to all features contained in this User Guide. However, consult

your

Centrex

or PBX User’s Guide for additional features

you may have.

To obtain Intercom (system) dial tone while

M-Hook Prefizrence is enabled:

a. Lift handset (CO/PBX/or Centrex dial

tone is heardl (system).

b. Depress the hook-switch momentarily

(intercom dial tone is heard).

c. Dial your own three-digit intercom ex-

MlSlOIl.

Issue 1, January 1992

XnjTnite 4096 Hybrid Key Telephone System

F73muRE OPERATION

400.86 PERSONALIZED MESSAGES

Each station can select a pre-assigned mes-

sage to be displayed on the LCD of any Key

Telephone calling that

of the ten available messages:

a Dial I781 on the dial pad. b. Dial the two-digit code for the message

which will appear.

00 clear messages 01 VACATION 02 03 FtElURN AFIERNOON

04

REXURNMORNING RElURN TOMORROW

station.

To select one

05 REIURNNEXI’WEEK

06 BUSINESS TRIP

07 M.EEXNG 08 HOME 09

10 LUNCH

c. Hang up. (Acttvatlng DND cancels se-

lected message.)

400.87

ON BREAK

PAGING

a. Lift handset.

b. Dial the two-digit paging code. Wait for

page warning tone.

l 1 Internal Zone 1 l 2 Internal Zone 2 l 3 Internal Zone 3 ‘4 Internal Zone 4 ‘5 Internal All Call ‘6

External Zone

l o AIrcall

c. Speak in normal tone of voice to deliver

message.

Statlons off-hook or ln DND will not hear the page announcement.

NUlEWhenmakingazonepcqeorAUCalL

pageandthemneisbusy,thepageinimtor

wiul-eceberfngbacktoneuTl.ulthezunebewmes -le. You will then hear a waming tone and can make the page

cmnow-lcement

d. Deliver page in normal tone of voice. e. Replace handset to terminate page.

400.88 PERSONAL PARE (FlipFlop)

While connected to first call:

a Depress the hookswitch momentarily.

Intercom dial tone is heard.

b. Dial 13923 on the dial pad. (call is placed

in personal park).

c. Dial desired number for 2nd call. d. Depress the hookswitch momentarily.

Intercom dial tone is heard.

e. Dial [3921

returned and 2nd call is placed in personal park

meuseram azLIbydoingahnolcjlashanddialing13921as manyt.imesasnecessary.

400.89 PROGRAMMIN

on the dial

alfemahfywnnecttotheotht?r

pad. (1st call is

GYOURNAME

MTOTZELCDDISPIAY

Every SLT extension has the

program the users name so that people using display telephones will see the name instead of the station number.

a Ltfthandset. b. Dial I2951 c. Enter your name (up to 7 letters) using

the pattern shown below.

A=12

B=*2

C=#2 71;;

D=13

E=‘3 K=.5 Q=‘l X=*9

F=#3

SPACE=##

d. Press the hookswitch to complete the

programming process.

Station Speed Bin 00 is used to store name In display information.

400.90 a Lift handset

b. Dial [#91 on the m pad. c. Dial desired station speed bin number

(OO- 19).

on the dial

G=14 N&6

J=15

I..=#5 g;

STATION

SPEED DXAL

M=16 T=18

0=#6 V=#8

P=17 w=19

capability to

pad.

U=‘8

Y=#9 z=#l

400.91 STORING STATION SPEED NUB!Elms

a.

Lift handset

b.

Dial I#31 on the dial pad.

C.

Dial desired station speed bin number (OO- 19).

Dial telephone number you wish to

cl.

St0l-t

e.

Briefly depress and release the hookswitch. (Confhmation tone is heard.)

LineGroup1wf.ubepr~

SLTspeed numbers and thus Line Group 1 will be used when acttvating speed dialfiom an SLT.

mmmedalongwuh

Issue 1, January 1392

400-2

1

FEXTURE OPERATION Ing?.nite 4096 Hybrid Key Telephone

System

400.92 SPSTEM SPEED DIAL a ufthandset.

b. Dial I#91 on the dial pad. c. Dial desired system speed bin number

(20-99).

400.93

Upon hearing an incoming signal:

a Lift handset

b. Dial UNA access code 1751. You will be

UNWERSS NIGHI’ ANSWER

connected to ringing outside line.

a.94 UCD AVAILABrp;/UNAVAILABLE If you are a UCD Agent. you may

station in the Available mode to receive UCD type of calls or you may place your station in

the Unavailable

calls from ringing at your station.

To

go Available:

a. Dial 18981 on the dial pad. You may now

receive calls.

To go Unavailable:

a. Dial I8981 on the dial pad. You are now

blocked from receiving UCD calls.

mode to block UCD type of

place your

400.96 ANSWERING AN OVrSIDE C%LL

a Lift handset.

b. Press slow flashing outside line button.

If your tfziephme ts progmmme d with Re-

ferred Line Answer, you may onswerarlout-

sidelinebyl@ingthehandset

400.96 PLACING OUTSIDE LINE ON HOLD

If your system is programmed for Exclusive Hold Preference. press HOLD button for Exclusive Hold and twice for System Hold.

If your system is programmed for System Hold Preference, press HOLD button once for System Hold and twice for Exclusive Hold.

400.97 ANSWERING

SIDE LXNE When an outside line has remained on hold for an extended period of time. you will be reminded with a recalling ring.

a Press outside line button flashing at very

fast rate.

b. Lift handset to converse.

A-G

once

I

OUT-

400.98 ATTENDANT ACTIVATION OF

BGM

AT

A PHONE BOX

The Attendant may control (turn ON and

OFF) background music at a phone box station.

To control background music at a specific

phone bax:

a.

Dial I2891 on the dial pad.

b.

Then dial the three-digit station number

of the desired phone box.

Then dial either:

l

[O] to turn

BGM off

or

l

111 to turn BGM on

400.99 ATTENDANT DISABLE OUI’GOMC ACCESS

The attendant station can disable CO lines, preventing outgoIng CO calls.

a

Lift handset or press ON/OFF button.

b.

Dial (2981 on the dial pad. Confirmation tone is hear

C.

Depress the line button(s) of the CO Line(s) to be disable ConfIxmation tone is heard and the CO Line Button(s) LED ls flashing.

d.

To re-activate the CO Line(s). repeat the

steps followed to disable it.

400.100 -ANT 0-E

IfAttendant Ovenlde is allowed, Attendant(s)

stations may override

either busy or in Do Not Disturb.

If the Attendant calls

on a CO call and

waitmgcall:

a. Press the pre-programmed A’lTN OVER-

RIDE button. Three short tone bursts

will be presented to the called party.

b. After five (5) seconds, the station’s CO

line will automatically

and the Attendant will be cut-through.

If the Attendant calls a station that is in Do

Not Disturb

mode and wishes to alert them

or call stations that are

a statton that is busy

wishes to alert them of a

be placed on hold

0faca.Q

a Press the pre-programmed AlllV OVER-

RIDE button. The station will be signaIled with a Camp-on tone.

4QO.101 ATTENDANT RECALL

When an outside line has remained on hold for an extended period of time, you will be reminded with a recalling ring.

400-22

Issue 1, January 1992

Injhzite 4096 Hybrid Key Telephone System

FEA’IZTRE OPERATION

a Press outside line button flashing at a

very fast rate.

b. Lift handset to converse.

400.102 DIRECTORY DIALADmSTRATION

Names may be programmed into the dfrec-

tory dialing list fmm the 0rst assigned atten-

dant station. The system aJlows up to 200 names to be programmed into the directory. Each name can be associated to either a Station in the system or a System speed dial binandcanbeupto24charactersinlength.

Names are programmed in one of two ways either by themselves or while programming system speed dial numbers.

A Method One This method may be used to enter names

that will be associated to a system speed dial bin only. Names are entered as part of the same procedure as pro@ammirqA speed dial entries.

To enter a name along with a system speed

dfal number:

1. Press the SPEED CALL button once.

2. Then either press a desired outside lfne key;

or Press the SPEED CALL button a second

time to have an outside line selected

automatically.

3. Dial the system speed dial bin locatton

(2oto 99).

4. Dial the telephone number (including special characters TRANS, HOLD and

FL4SHj.

5. Press the SPEED CALL button to save

the telephone number. Sktp this step if

you did not change the telephone num-

ber.

To enter a name:

1. Press the CONF button.

2. Enter the name (up to 24 characters may be entered) by using keys on the dial pad as follows:

A

B C D

E =‘3 F = #3 G = 14 H I = #4

T

= 12

=

‘2

= #2 = 13

= 04

I

J

K L =#5 u M =16 v = #8 N =‘6 W = 19 0

R

=15 s

=‘5 T = 18

=#6 X

= l 7

the system

= #7 =

‘8

= l g = #9 = #l

Space = ## 1

3. Press the SPEED CALL button when finished.

heard and the display Wail update.

4. Hang up to end programming.

B. Method’fWo Dlrectoxy dialing list maintenance

To enter, edit or erase names that appear in

the directory dial list for stations or speed dial

numbers:

1. Dtal the directory dial list programcode

12991. The first entry (entry 000) in the

Directory list will then be shown on the LCD display as follows:

:::~::::.‘.“,‘.y.~~... ..,....__ .._._

~

<;:;$g;;g;,pj ,~~~~~~ia,~~~~~~~~~~~~:

- nnn = Programmed Name (blank if none)

- AA A = Directory List entry number

(OOO- 199)

- XXX = Either a Station Number or a

System Speed dial Bin Number

To Select a merent entry in the directory dial list:

1. Press the HOLD button

2. Then either enter the three-digit entry number (000- 199) on the dial pad and press the SPEED CALL button or Dial [*I to scroll up (next entry) through the list or Dial I#] to scroll down (previous entry) throuugh the list

To Enter or Change the current name shown

on the display;

1. Press the CONF button.

2. Then enter the name (up to 24 characters may be entered) bv using keys on

the dial-pad as follows:-

A = 12

=

42

: D = 13 E =*3 F G H I

= #2

= #3 = 14

= 04 = #4

ConfirmaUon tone will be

: . .._...... .,., . . . . . . . . . . . . . . . .,.,

J

K =*5 L = #5 M = 16 N =*6 0 P Q =*1

R

= 15

= #6 = 17

= ‘7

S = #7

T = 18

U =*8 V = #8 W = 19 X Y

2 space =##

2z l g = #9 = #1

Issue 1, January 1992

400-23

3. Press the SPEED CALL button when finished.

Confirmation tone wffl be

heard and the display will update.

To enter the Intercom number or system

speed

dial

bin

to be associated to the name:

1. Press the TRANS button.

2. Then enter either a three-digit station intercom number (100-1951

Eial a three-digit System speed dial

number (020-099).

3. Press the SPEED CALL button to save the entry. Confirmation tone will be heard and the display will update.

To clear an entry. press the FLASH button

followed by pressing the SPEED button. Confirmatton tone will be heard and the entry

will be erased.

400.103 ExE(=uTIvE OVERRIDE

Allows stations designated as “Executive” the ability to override and ‘barge In” on other keysets engaged in conversation.

If you call a busy station:

a Dial [294] on the dial pad. Executive

station will be bridged onto the CO conversation in progress at the called station. Optional warning tone is heard and presented to all parties prior to cut-

-ugh-

b. Replace handset at Executive station to

terminate the override.

NOl7Z:Ifthe busypcuiytswnn&eduiatnterwm to another party, the intercom wnneciion

will be dropped when the overtide occurs.

NCYE:Adecmzseinvohmemayowuronthe

CO line after the

CAUTION: USE OF THIS FEATURE WHEN THE

EXECUTIVE OVERRIDE

DISABLED MAY BE INTERPRETED AS A VIOLATION OF FEDERAL OR STATE LAWS, AND AN INVASION OF PRIVACY. CONSULT COUNSEL WlTH RESPECT TO APPLICABLE LAW BEFORE INTRUDING ON CALLS USING

THIS FEATURE.

KlO.104 INTERCOM CALLING

4

barge-in

oarurs.

WARNING TONE IS

Placing an Intercom Call

a Press station key of party to be called (if

programmed at your phone); Kal station number (100 to 195).

b. You will hear ringing if called station is

in the T answering mode: or three

bursts of tone if called station is in the ‘H’ or ‘P” position.

C.

Lift handset or use speaker-phone, tone bursts stop.

d. Hang up to end call.

Answering an Intercom Ca.U With your intercom signal switch in the T

mode, you will hear repeated bursts of intercom tone ringing and the HOLD button will slow f-lash.

a Lift handset or press ON/OFF button to

answer. If you receive a call from a Phone Box. you must press that DSS button to answer the call.

b. Hang up to end call.

In the P mode, you will hear three bursts of tone and one-way announcement. The HOLD button will slow flash and the calling party cannot hear conversations in pro-

gr-In the H mode, you will hear three bursts of tone and an announcement. Reply hand&e or lift handset for privacy.

400.105 INCOMXNGCOUNESOFF-NET (via speed dialj

Allows the first attendant station to forward

incoming CO calls to an off-net location. In a speed dial bin, store the number of the

off-net location where calls are to be forwarded. Follow instrucUons provided for storing station or system speed dial numbers.

a Dial 12961 on the dial pad:

or Press pre-progrred CO Off-Net For-

ward button.

b. Dial the CO group access code of the

group to be forwarded.

81 =CO Group 1 82 =CO Group 2 83 =CO Group 3 84 =CO Group 4 85 =CO Group 5 86 =CO Group 6 a7 =CO Group 7 88 =All CO Lines

c. Dial the speed bin number that contains

the number where calls are to be forwarded:

or Press the programmed button for the speed bin. Conflrmatton tone is heard.

400-24

Issue

1.

January

1992

IqfInite

4096 Hybrid Key Telephone

System

FEATURE OPERATION

Canceling Off-Net Forwarding

a.

Dial [296] on the dial pad: or Press pre-programmed CO Off-Net For-

ward button.

b.

Dial the CO group access code.

C.

Dial [#I on the dial pad. Confirmation

tone is heard.

400.106 NIGHT SERVICE

Any designated attendant can place the system into Night SeIvice by:

a. Pressing the Night Service button

mm.

b. Pressing the Night Service button again

removes the system from Night Service.

77~ Attedant stationlsl do not hate DIVD

CapabiLitieS.

400.107 SETTING SYSTEM TIME AND DATE

Must be set by the first programmed attendant.

Dial 1761 on the dial pad. Confirmation

a

tone is heard. Enter date and time as follows:

b.

YYMMDDHHMM

- YY = year 00-99

- MM=month 01-12

- DD = day 01-31

- HH = hour 00-23

- MM=minute 00-59 When the correct number of d&its are

C.

entered, con&maUon tone will be heard and the display will update.

400.108 STORING SY!STEM SPEED NUb¶HERS

System Speed numbers must be entered by the tit programmed attendant. Ifno attendant is specified, enter at Station 100.

a.

Press SPEED CALL once, then press a desired outside line key or select an outside line automatically by pressing

the SPEED CALL button a second tfme.

b.

Dial the System speed bin location (20 to 99).

C.

Dial telephone number.

Press SPEED CALL.

d. e.

Hang up.

- Pressing the TRANS button during number entry initiates a Pulse-To-

Tone switchover. Pressing the

HOLD button during number entry

inserts a Pause. Pressing the FLASH

key inserts

a Flash into the speed

number.

- Pressing the ‘IRANS button as the first entry In the speed bin inserts a no-display character causing the numbers stored in the bin not to

appear on the Key Telephones display when the bin is accessed.

Speed Bin numbers 60-99 are NOT moni-

tored by Toll Restriction.

The attendant console may be programmed

in one of five Merent ways. Therefore, you

may not have all of the features listed below

on your console. Refer to Sec. 300.153 for a description of each map.

400.109 AmENDANT TRANSFER SBlRa

When attempting to locate a par@

a. Press a station button to signal that

station. If the party is not located, press another station button to continue the search.

400.110 PLACING AN OUTSIDE CALL CAutomatic Line Selection)

a Press outside line button. ON/OFF but-

ton LED will light and dial tone will be

heard. b. Dial desired patty. c. When called party answers. lift handset

to converse or use speakerphone.

400.111 CALLPARK

While connected to an outside line:

a Press programmed CALL PARK button.

The caller is put on Exclusive hold.

b. At this time. you can page or call another

internal station.

c. When the party you called responds,

announce the call park location and re-

place handset.

400.112

DO NOT DISTURB INDICATION

The associated station button will flash at a medium rate to indicate that station is in Do

Not Disturb.

400.113 RETRIEWNGAPARKEDCALL

a. Lift handset or press ON/OFF button. b. Dial (#I on the dial pad. c. Dial parking location (790 to 795) where

the call was parked.

Issue 1, January 1992

400-25

400.114 CAU TRANSFER Outside lines can be transferred from one

phone to another within the system. The

transfer can be either screened (announced)

or unscreened to either an idle or busy sta-

tion. Screened Transfer

a.

While connected to an outside line. press

station button where call is to be transferred (if programmed on your telephone), or press ‘IRANS button and dial station number (100 to 195).

b.

The called extension signals according to the intercom signal switch position.

C.

When that extension answers, announce the transfer.

Hang up to complete transfer.

d.

Unscreened Transfer

a. When the called extension begins to sig-

nal.ha.nguptotmnsfertheca.ll(Recall

timer starts).

Transfer Search

a

When attempting to locate a party, press

a station key to signal a station.

b. If the party is not located, press another

station key to continue the search, or press the TRAN button and dial the station number.

If the party is not located, press the

C.

TRANS button again and dial another station number to continue the search.

When the called party answers, hang up

d.

to complete the transfer.

400.115 CAMP-ON

While connected to an outside line:

a. Press desired station button. b. When busy tone is heard, press CAMP-

ON button.

c. Replace handset, access another CO

Lfne or press RELEASE button (if you

have one).

400.116 FUXIBLE BUM’ON PROGIUMh¶lNG

a. Press SPEED CALL button twice.

b. Press FLEX button to be programmed (it

must be programm

edindatabascasa

flexible button).

c. Dial desired code (Refer to Table 400-2

Button Pro @ammirq~ Codes).

400.117 MEETME PAGE

To request another party meet you on a page:

a. Dial the desired two-dgit paging code;

or Press programmed button.

b. Request that party meet you on the page.

c. Do not hang up: wait for the requested

party to answer.

Answering a Meet Me Page

a. Go to the nearest Telephone and dial 1’91

onthedialpad.

b. You will be connected to the party that

paged you.

400.118 A

1.

PAGlNG

ExternalPaging Press programmed PAGE button;

E&l [‘Sl on the dial pad.

2.

Speak in normal tone of voice to deliver message.

3.

Replace handset to terminate page announcement.

B.

xntcnl8l Paging

Stations off-hook or in DND will not receive

the page announcement.

1. Press programmed PAGE button or dial one of the following codes:

‘1 Internal Zone 1 l 2 Internal Zone 2

LntemaJ Zone 3

l 3 l 4 Internal Zone 4

l 5 Internal All Call

2. Speak in normal tone of voice to deliver message.

3. Replace handset to tennlnate page announcement.

400-26

Issue 1. January 1992

Infinite

4096 Hybrid Key Telephone System

C. All Call Paging U.ntemal/ErtcmaU

1. Press pre-programmed’ PAGE button: or

Dial [‘O] on the dial pad.

2. Speak in normal tone of voice to deliver message.

3. Replace handset to terminate page announcement.

400.119 REIXASE BUTTON

DSS/DLS map 1 contains a Release button that may be pressed to disconnect or terminate an intercom call, transfer sequence, page announcement or CO call.

FZUUR.E OPERATION

Issue 1. January 1992

400-27

Infinite

4096 Hybrid Keg Telephone

System

LCD DISPLAYS

410.1

The

lower field. The upper field displays the current acutity of the telephone. The lower field is

divided into two secttons. The left section of the lower field displays the date, speed bin number, connected intercom station or outside line

Idle Station

LCD DISPLWS

display is arranged into an upper and

Table 410-l Zqfiiite 4096 LCD Displays

FUNCllON

CALLING STATION’S

M=uWDiallng

outgoing calls

number. The right section of the lower field displays the cm-rent time or elapsed time on an

outside call. The following Table shows what

will appear on the LCD &plays based on the

function performed.

DISPLAY

CALLED STATION’S DISPLAY

I

Recalling

from Hold

Recalling Line

fiorn Another Station

Connected to .&I Incoming CO Line

Intercom Call

Line

Issue

1, January 1992

410-l

LCD DISPLAYS

Infinite

4096 Hybrid Key Telephone Spskm

Table 410-l 4096 LCD Dkplay~ /COnt’d)

FUNCTION

Camp-on

Conference

Internal Page

CALLING STATION’S DISPIAY

CALLED STATION’S DISPLAY

External Page

AllCallPage

Meet Me Page

410-2

Issue 1, January 1992

Table

410-l 4096 LCD Diaplapr (Cont’a)

FUNCTION :

Station call Forward

(Originalng Station)

Wame in Display)

Station No-Answer Call Forward (Originating Station)

CALLING STATION’S DISPIAY

CALLED STATION’S DISPLAY

St&&jn Bu v/No-&p

swer

Call Forward (Or@nating Station)

Station Busy Call Forward [OrlglnaUng Station)

?oma.rded Call

Name in Display)

Issue 1. Jarmary 1992

410-3

FUNCTION

Forwarded Call before and after call is answered)

Station Forwarding to a

Voice

Mail Group

(Station Idle)

Staff on Forwardfng to a UCD Group (Statlon Idle)

Table 410-l 4096 LCD Displays (Cont’d)

Preset Forward

3aUon calling a %&ion Forwarded to 3 Voice Mail Group

hclusive Hold

4104 Issue 1, January 1992

Infinite

4096 Hybrid Key Telephone System

LCD DISPLAYS

FUNCTION

Rfnging CO Lines

Display Security Feature

Station Forwarding m-Net

Calling a Station

Forwarded Off-Net

Table 410-l 4096 LCD

CALLING STA-I’ION’S

DISPLAY

Displays (Cont’d]

CALLED STATION’S DISPIAY

CdI.5 in Queue (Agents and Overflow stattons)

Calls in Queue [using Dial Code)

Unavailable Mode [Agent Station)

Station calling a Voice Mail Group ?ilot Number

Issue 1, January 1992

410-7

In,ite

4096 Hybrid Key Telephone System

SECTION500

WSTALIATION

INSTALLATION

500.1 SITEPLANNING

The Ir@nf& 4096 Hybrid Key Telephone Sys-

tem, like most electronic omce equipment.

should not be subjected to harsh environmental conditions. To aSSure easy servicing and reliable operation, several fxtors must be considered when planning the system installation. Always remember the following BEFORE installing the KSU and wirfng:

a

The Basic KSU. Expansion KSU and Ex-

temal Power Supply Housing are designed for wall mounting.

l

Both power supplies operate on 117V ac, 60 Hz single phase electricity. A 3-wire

(parallel blade with ground) receptacle must be provided on a dedicated, separately fused 15 ampere circuit.

l

The KSU should be within 25 feet of the

telephone company Irelco) RJ21X The KSU should be centrally located and care should be taken to stay within prescribed cable lengths. It is recommended that 24.

AWG 3-pair twisted cable be used.

l

Mounting space for standard backboard, or a plywood type board for MDF blocks, if a standard backboard is not used.

l

A well

venttlated area having a

recom-

mended temperature range of 70 to 78 degrees Fahrenheit and a humidity range of 5 to 90% (non-condensing).

e

Lighting and accessibility of KSU for servicing.

e

Protection from flooding, flammable materials, excessive dust, and vibration.

l

Proximity of radio transmitting equipment, arc welding devices, copy machines, and other electrical equipment that are capable of generating electrical interference.

l

Access to a good earth ground such as a metallic COLD water pipe. Inspect the pipe for non-metallic joints.

suo.2 UIWAClUNG THE 4096 BASIC

SYSTEM

1.

Remove the

Key Service Unit from

the

srUppi.ng carton and stand it upright on a level working surface with the cover facing forward.

2.

Remove the cover by turning the two screws on the front of the cabinet l/4 turn and tilting the cover outward.

3.

Remove all remaining items from the Basic

KSU packing box and inspect for shipping damage.

The

Basic System ships with

most

components necessary for a working 8 CO line by 16 station system. The components included in the Basic KSU Package are:

l

(1) Basic Key Service Unit (BKSUI

- BKSU Mounting Template

l

(11 DC/DC Converter (DC/DC)

l

(11 Central Ofiice Board (COB)

l

(2) Key Station Interface Board (KIB)

- Including 16 Key Station User Guides

Other components required to make the systern operational are:

l

( 1) External Power Supply Housing

l

(1) Power Supply (pS101

l

(11 Central Processor Board (CPB) with

generic software

OpUonal System items are:

l

Expansion Key Servfce Unit (EKSUI

Additional Central Office Interface

Board (COB)

AmplifN Central Office Interface Board

COA)

Additional Key Telephone Interface Board (KlBl or KIB/OHVs

Single IJne Telephone Interface Board EJ-B)

Off-Premise Extensions Board (OPxl

Issue 1. January 1992

Applications Board (APL)

Single Line Telephone DTMFRS Unft WLJ)

500-l

INSTALLATXON

Injinite

4096 Hybrid Key Telephone System

l

RS-232C Module (RSSM)

0 Power Failure Transfer Unit (PFTJ

l

Battery Charging Board 032)

l

Single Line Ring Generator and Message

Wait Power Supply (RG)

Refer to Appendix B for a complete component offering and their associated part NUT&EL

500.3 SYSTEM GROUNDING

To ensure that the system will operate prop-

erly, a good earth ground is required. Use of the Telco ground (source not mar4 or a metallic COLD water pipe usually provides a reliable ground path. Carefully check that the pipe

does not contain insulated joints that could isolate the ground. In the absence of the COLD water pipe. a ground rod or other source may be used. A no. 8 AWG copper wire should be used between the ground source and the KSU and EPS (25 feet maximum). The farther from the ground source, the larger the ground wire

used should be. The wire should be kept as short as possible and can be connected to the ground lug provided on the lower left side of the front face of the KSU (cover om (Refer to Figure 500-l) and the right side of the EPS.

500.4 KSU KNSTALXATXON Refer to Figures 500-l. 500-2. and 500-3 for

general mounting arrangements and dimen-

sions. The KSU is mounted in the following

manner:

The KSU is designed for wall mounting

only. and should not be mounted directly

on a masonry or dry walled surf-. A wooden backboard (plywood or pressed board) of sufficient size should be attached to the wall for the KSU to be mounted

upon. l%e KSU mounting template should be used to ident@ screw hole locations. It

is in-qortant that the KSU and MDF con-

necting blocks be mounted on the back-

board.

I 1 I

EXTERNAL

POWER _ *

SUPPLY

HOUSING

W-U

GND +

+

I

mmmm

s s

66Ml-50 BLOCKS

T T A

01

A

500-Z

FYgure 500-l MountingArrangements

Issue 1, January 1992

In.ite

4096 Hybrid Key Telephone System

INSTALLATION

H- 15.8” .-----jj

1

I

17.8”

I

EXPANSION KSU 13.5”

17.8” 13.5”

BASIC KSU

DEPTH: 13.3”

p- 13.5” -Bq

12.75” +

POWER SUPPLY

DEPTH: 12.8”

Figure 500-2 Mounting Dimensions

Issue 1, January 1992 500-3

BASIC KSU

CCCK K K K K K

I I P (La: 2 34 s c: s

b”““, I, I I I A

f=BBBBBB86Bp

CO LINES

01-24 \

FEE--

TRANSFER

LOUD BELL

CONTROL

GROUND TERMINAL

-7

CABLE RACEWAY

)o

C 0

C

C 0 N V

E R T

E

)R . .

.

I

ON EXPANSION KSU

1 ) .

:

STATIONS 100-l 47

STATIONS

148-195 \

500-4

r

EXPANSION KSU

CO LINES

'25-40

Figure 500-3 Basic KSU and Expansion KSU

LEFT SIDE OF BASIC KSU

lilil /II Ill// I///l

Ill I//II

IllI Ilill /III/ Iill 1//1/ lllll lill llill

DC IN

Issue 1, January 1992

/\

Infiite 4096 Hybrid Key Telephone System

INSTALLATION

a hm3-t 4 (#lo or larger) screws into the

backboard and tighten enough to hold the weight of the KSU. Lift the KSU and place

it onto the screws. When the KSU is in position. the screws can be tightened and the KSU is securely mounted.

500.6

LIGHTNING PROTECTION

The I@.n& 4096 Hybrid Key Telephone System

should have Central Office lines and OPX stations protected with proper lightning surge arresters. This will provide protection from

damaging surges on sensitive cabling by nondirect lightning strikes.

The protection should contain a compliment of

three-element gas-discharged tubes to ground high potential surges, and associated circuits

to absorb and fflter lower level surges. TNs type of lightning protection fs available through telephone equipment supply houses. Care should be taken to ensure that such protection

devices are installed in accordance with the manufacturer’s instrucUon.s and to ensure that no more than one set of protectors be installed

on central of&e lfnes at the installation premlses. Improper installation can be a serious safety hazard.

Failure to provide the proper lightning protection will increase maintenance expense and

require more available spare parts.

500.6 EXTERNAL POWER SUPPLY HOUSING

(EPSI

INSTALLATION

NUl73: 77~ second Power Supply PSI

added to the l2xtemal Power Supply Housing

must

be

whentheExpanslonKSUtsadded

The External Power Supply Housing should be wall mounted onto the same backboard as the KSU. The power supply must be located within three feet of a separately fused 15 ampere,

117V ac power outlet. A four foot DC output cord is provided for interconnection of the KSU and External Power Supply. A battery backup Bypass Board fs installed in the BC slot of the External Power Supply Housing (EPSI. This is required to provide system power when a Battery Charging (BC) card is not installed.

The power supply may be located to the left of the Basic KSU or above the BKSU.

NOlE lie right die of the

reserued for the lCqansion KSU.

ures 500-l and 500-21

Basic KSU shdd be

(Refer to Fig-

Using the template provided. spot punch the mounting surface through the template four corners. Install four (no. 10 or larger) screws into the backboard and tighten to about l/8 inch from the mounting surface. Lift the EPS

housing onto the four screws and tighten. Connect the DC output cord of the EPS to the

Basic KSU by a&ning the connector pins, pressing inward. then turning the collar of the

connector clockwise until tight.

Do not connect AC power cord to an

AC outlet at this time.

500.7 POWER SUPPLY (P6) INSTALLATION

Install the Power Supplylies) into the EPS

housing by sliding them into their respective mounting slots. Lock the power supply(ies) into the EPS housing by &ding the mounting lock

to the left and

tightening

by turning clockwise.

Refer to Figure 5004. Plug the associated AC IN power cord fnto the

AC IN socket on the Power Supplyties). Then

plug the DC cord into the DC output connector on the power supplyties).

500.8 BATT’ERY

BACK

UP INSTM&A-

TION

A Battery Charging Unit @Cl is an option that

can be installed in the External Power Supply Housing and will

maintain system

operation during loss of AC power. A separate external 24V dc battery package must be provided.

Do not make

connecttons with the

power applied to the External Power Supply Housing. Also remove power Tom the KSU by turning the power switch to off (located on the left side of the BKSU).

Issue 1. January

1992

600-5

XNSTALLATION Infinite 4096 Hybrid Key Telephone System

@?I

Exbrnal Power SqpIy Housing - Right Side

MODEL GPS7A

:. ‘.

0

4096 Power Supply (PS)

INPUT

OuTPur

OUTPUT 24V DC

10A MAX

k9+

@ GND

i3 -

II

5A 125V AC

GNO

UllON: Remove the shorting strap from

battery connecting terminals on the right

e of the EPS before connecting batteries.

Figure 500-A Ext. Power Supply Housing 8 Power Supply

500-6

Issue 1. January 1992

Vodavi Infinite 4096 User Guide

TABLEOFCONTENTS
