Vizio S5451w-C2 User Manual

VIZIO
QUICK START GUIDE
Model: S5451w-C2
IMPORTANT SAFETY INSTRUCTIONS
Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit.
• Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing fire, electric shock, or component damage.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your Unit.
• When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket should be located near your Unit and be easily accessible.
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause fire or electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause fire or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Unit.
• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.
• See the important note and rating located on the back of the unit.
• WARNING - This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near the equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain, or moisture.
• CAUTION - Danger of explosion or fire if batteries are mistreated. Replace only with the same or specified type.
• Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or dispose of it in fire.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of not isolated dangerous voltage within the product that may be sufficient magnitude to constitute a risk of shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.
Explanation of WARNING symbols:
TABLE OF CONTENTS
Package Contents .................................................................. 4
Controls & Connections ......................................................... 5
First-Time Setup ....................................................................... 8
Connecting with HDMI ........................................................... 10
Using the Remote .................................................................... 17

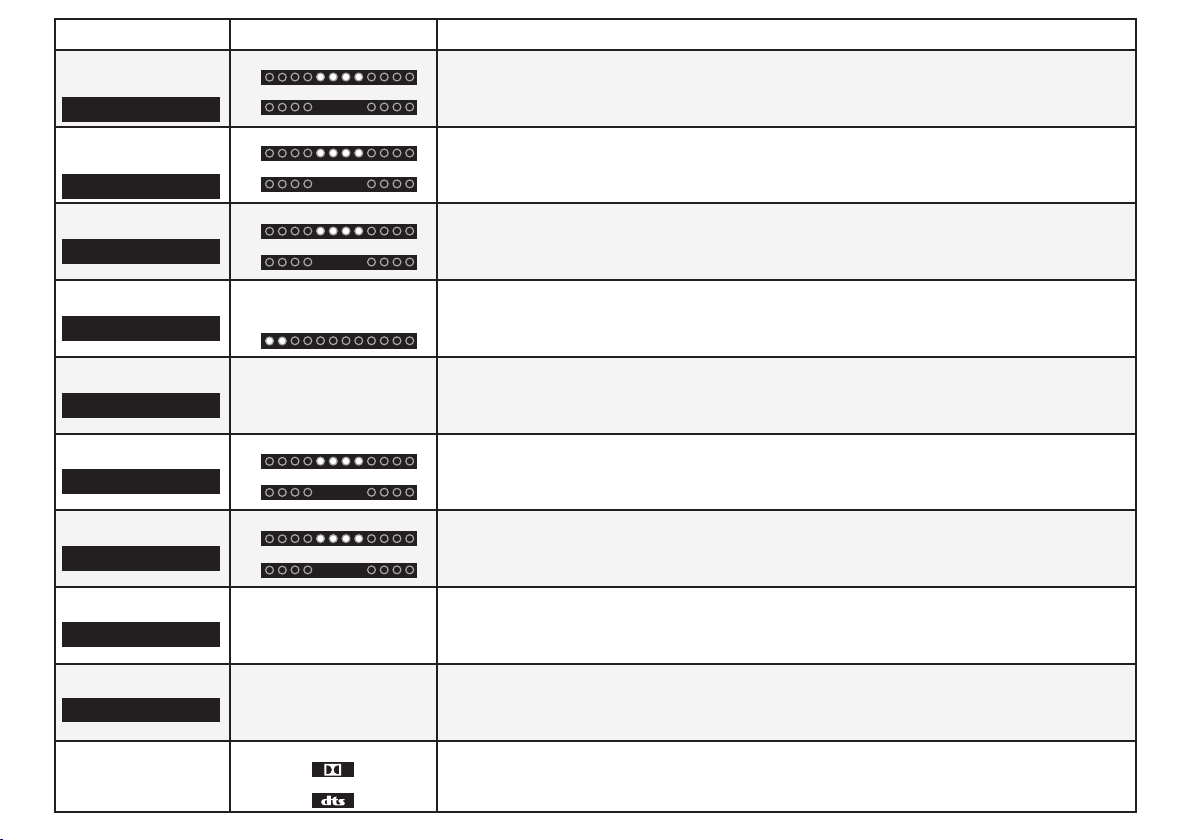

Settings and LED Behavior ...................................................... 18
Programming the Sound Bar .................................................. 20
Resetting to Factory Default Settings ..................................... 21
Bluetooth Pairing ..................................................................... 22
Using Bluetooth Mode ............................................................ 23
Advanced Setup .................................................................... 24
Wall Mounting the Sound Bar ................................................ 26
Re-linking the Subwoofer with the Sound Bar ........................ 28
Wall Mounting the Satellite Speakers ..................................... 29
Help & Troubleshooting .......................................................... 31
One-Year Limited Warranty ..................................................... 32
Specifications .......................................................................... 32
Legal & Compliance .............................................................. 33
PACKAGE CONTENTS
VIZIO
INPUT MENU
High Definition Sound Bar with
Wireless Subwoofer
Digital Optical
Cable
Stereo RCA to 3.5mm
Audio Cable
2 x Sound Bar Wall
Mount Brackets
2 x Satellite Speaker
Wall Mount Lugs
(Size: M4 x 8)
2 x Satellite Speakers
Coaxial Audio
Cable
2 x Sound Bar Wall
Mount Lugs
(Size: M4 x 10)
2 x Satellite Speaker
Wall Mount Brackets
4
Remote Control
with Batteries
2 x Satellite Speaker
Audio Cables
Wall Mount
Template
4 x Velcro
Cable Ties
This Quick
Start Guide
2 x Power
Cables
HDMI Cable
CONTROLS & CONNECTIONS
Back of Sound Bar
Power Port
Service Port
(For use by authorized technician only)
AUX (1)
RCA Analog Audio In
OPTICAL (4)
Digital Optical Audio In
AUX (2)
3.5mm Analog Audio In
DIGITAL (3)
Digital Coaxial Audio In
5
USB (7)
HDMI OUT (ARC) (6)
HDMI IN (5)
Power
Input
Bluetooth Input
(Hold to pair device, See
Volume
Bluetooth Pairing
Control Buttons
are located here
for more information.)
6
Back of Subwoofer
Back of Satellite Speaker
Pairing Button
LED Indicator
Satellite Speaker Ports
(Connects to Speakers)
Power Switch
Power Port
Satellite Speaker Port
(Connects to Subwoofer)
7
FIRST-TIME SETUP
Back of Sound Bar
1
GOOD
3.5MM TO RCA CABLE
Note: Cables’ appearance may differ from the ones supplied.
BETTER
DIGITAL OPTICAL
CABLE
†
CHOOSE ONE CABLE:
GOOD BETTER BEST
AND CONNECT IT TO YOUR TV
†
When using the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to
your Blu-ray/other source, some TVs do not pass through digital audio.
BETTER
DIGITAL COAXIAL
*
* Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual.
8
CABLE
†
GOOD
3.5MM TO RCA CABLE
BEST
HDMI CABLE
Do not use HDMI IN for First-Time Setup.

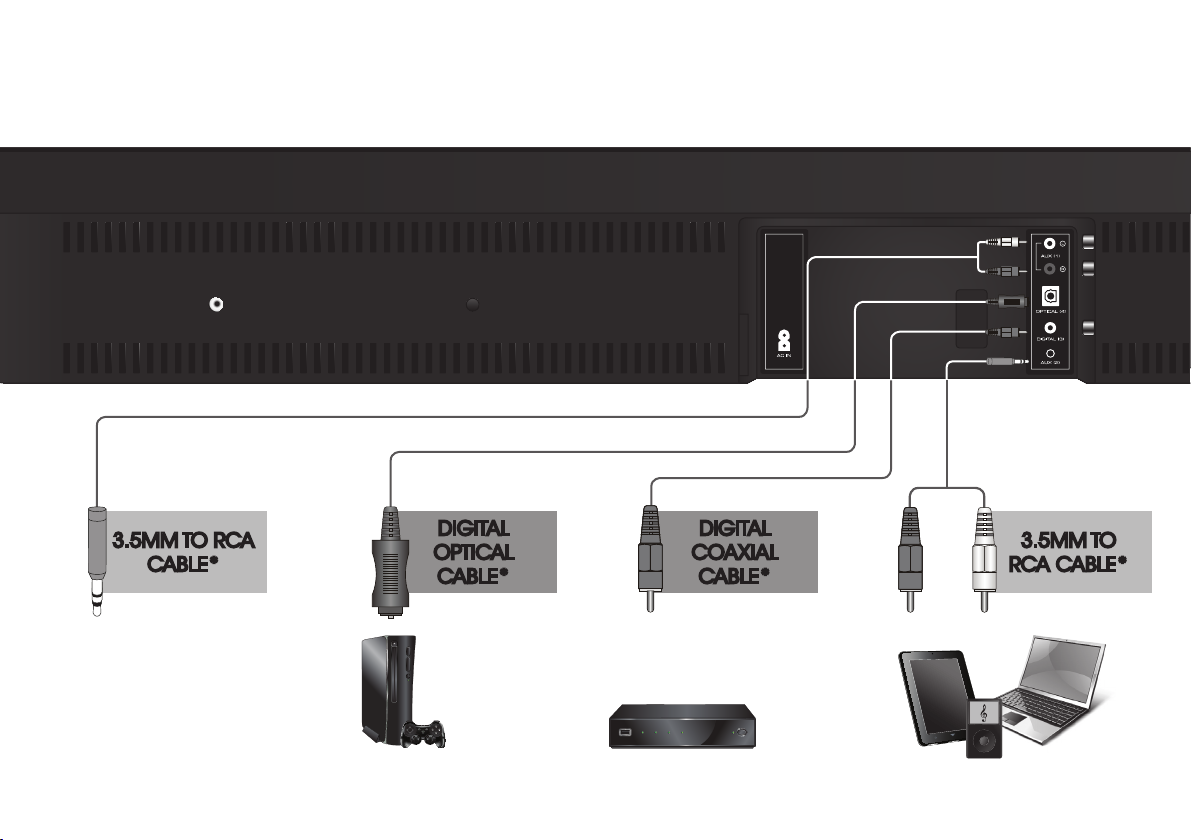

See Advanced Setup if you would like to connect HDMI devices (such as Blu-ray™ players, cable boxes, and game consoles) to your Sound Bar.
†
HDMI cables send Video (Out) and receive Audio from the TV. See Connecting with HDMI on page 10 for more information.
†
When using the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to
your Blu-ray/other source, some TVs do not pass through digital audio.
Connect the Sound Bar to your TV* using one of the connection types to the left. Choose the best possible connection type. Be sure the TV port is an audio output, not an audio input.
* Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual.
9
CONNECTING WITH HDMI
What is HDMI Audio Return Channel (ARC)?
Using HDMI ARC, your TV can send audio to the sound bar using an HDMI cable.
You will need to connect your sound bar to your TV’s HDMI ARC port using an HDMI cable that is ARC compatible.
To connect using HDMI*:
1. Connect one end of the HDMI cable to the HDMI 1 (ARC) port on the back of your TV.
2. Connect the other end to the HDMI OUT (ARC) port on your VIZIO sound bar.
3. From the AUDIO menu on your TV, change the Digital Audio Setting to Dolby Digital or Bitstream.
4. From the AUDIO menu, disable the TV’s internal speakers.
5. From the SYSTEM menu, enable CEC† Function.
6. From the CEC menu, select Device Discovery to register the sound bar with the TV.
If you want to use the volume buttons on the TV remote control to control the sound bar, enable System Audio Control from the CEC menu.
*
The following steps are for use with a VIZIO TV, steps may differ by TV manufacturer. See your TV’s user manual for more information.
†
CEC Function naming may differ by TV manufacturer. See your TV’s user manual for more information.
10
Back of TV*
Connect to HDMI (ARC) port on your TV
Back of Sound Bar
* HDMI ARC port location may differ by TV manufacturer. See your TV’s user manual for more information.
11
